ADAM SUB10 Mk2 Powered Studio Subwoofer
ADAM subwoofers
Our subwoofers are dedicated to ADAM Audio’s primary goal: the best possible authenticity in the reproduction of music. For our subwoofers, this means combining power and precision while simultaneously avoiding “impressive” bass volume at the cost of accuracy. Their task is it to complement the highly acclaimed lucidity and transparency of the ADAM monitors in the lower and lowest frequencies.
All subwoofers up to the Sub2100 feature both balanced (XLR) and unbalanced (RCA) in and output connectors, and numerous controls to adapt to different room acoustics and requirements.
“I recommend it highly to anyone looking for a top-notch subwoofer.” Tape Op on the Sub12 (Feb/March 2009)

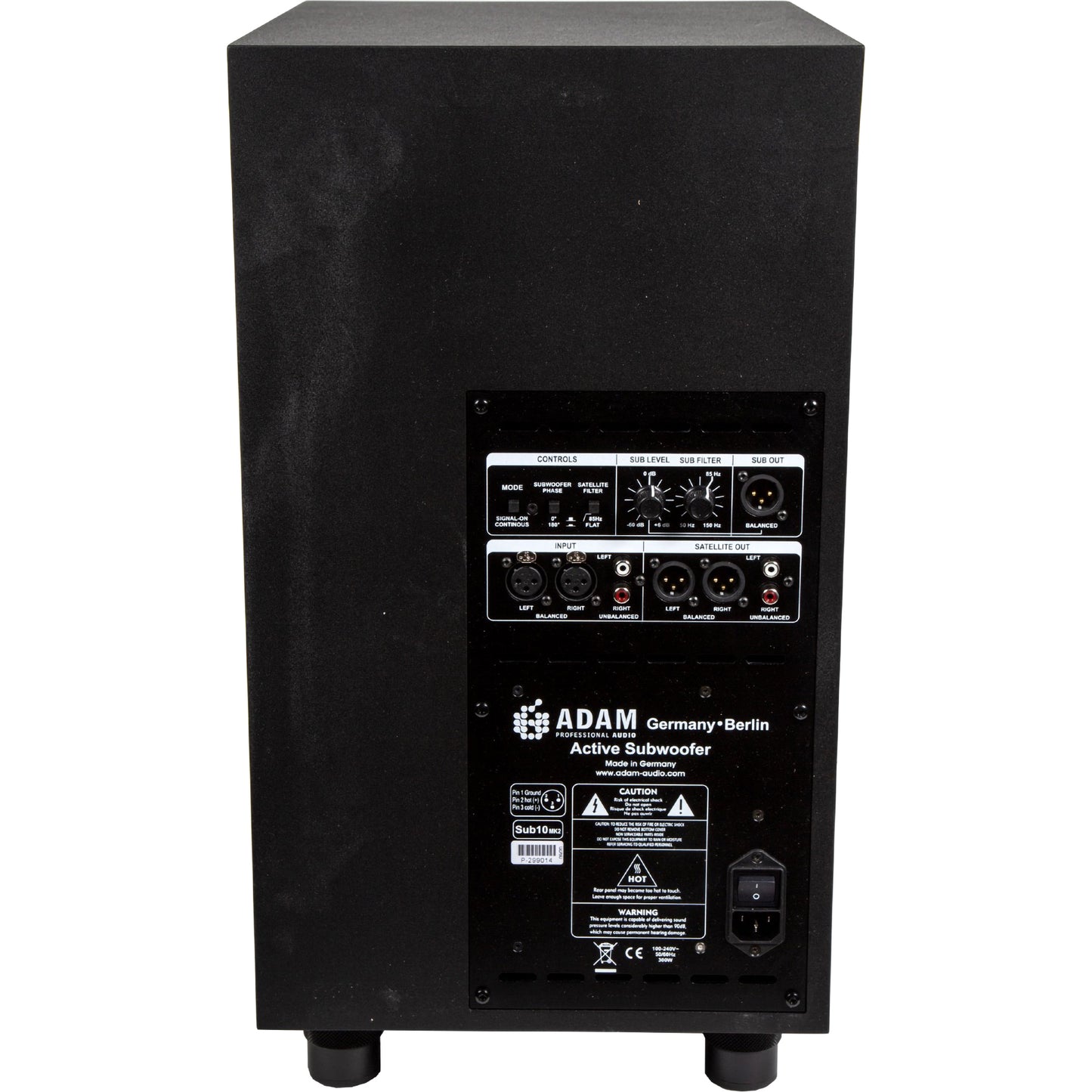

Panel/Controls
All subwoofers up to the Sub2100 feature a number of controls to adapt to different room acoustics and requirements.
All units have a level control that varies from -60dB to +6dB, a phase ±180° switch and variable upper frequency barrier control (50-150Hz), a switchable 85Hz high pass filter for the satellite output. In addition, there is a ‘signal-on/continuous’ switch. This provides the option of automatic power up whenever the subwoofer receives a signal and automatic power off after 15 minutes of no signal.
Sub10 Mk2
The Sub10 Mk2 and the Sub12 are powerful subwoofers designed to extend the low frequency capabilities of any near or midfield monitoring and are ideal matches for ADAM monitors such as the AX- or the SX-Series.
A large (2”) voice coil is driven by a 200W Ice Power amp. This amp stays cool as it uses PWM technology in the amp and the power supply sections, producing > 90% overall efficiency, and can handle its maximum power without danger to the electronics or the driver. The Sub10 Mk2 houses an 10” woofer, capable of a frequency response of 25Hz - 150Hz. The larger Sub12 has a 12” woofer capable of producing a 3dB higher SPL max output and reproduces frequencies down to 22Hz.
Both versions work with a new down-firing bass reflex tube that, due to its shape and size, avoids unnecessary ventilation noise. For larger rooms or higher levels it is possible to chain as many ADAM Subs together as necessary. All inputs and outputs have both XLR and RCA (cinch) connectors.
Subwoofer
Number 1
Basket Ø 10" (260 mm)
Voice coil Ø 2" (50 mm)
Cone material Paper
Built-in Amplifiers
Subwoofer 1
Amp. power RMS / music 200 W / 300 W
Input connectors
Analog XLR / RCA
General data
Panel Rear
Frequency response 25 Hz - 150 Hz
THD > 60 Hz ≤1 %
Max. peak ≥113 dB
Crossover frequencies 50 - 150 Hz
Input impedance 10 KOhm
Weight 46.3 lb (21 kg)
Height x Width x Depth 22" (560 mm) x 12" (300 mm) x 15.5" (400 mm)
Warranty 5 Years
Delivery contents
Power cord, Manual
| Product Name | Adam Audio Sub10 Mk2 Powered Studio Subwoofer |
|---|---|
| Brand | ADAM Audio |
| Condition | New |
| MPN | SUB10MKII |
| UPC | 4260110240017 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Subwoofer
- Number 1
- Basket Ø 10" (260 mm)
- Voice coil Ø 2" (50 mm)
- Cone material Paper
- Built-in Amplifiers
- Subwoofer 1
- Amp. power RMS / music 200 W / 300 W
- Input connectors
- Analog XLR / RCA
- General data
- Panel Rear
- Frequency response 25 Hz - 150 Hz
- THD > 60 Hz ≤1 %
- Max. peak ≥113 dB
- Crossover frequencies 50 - 150 Hz
- Input impedance 10 KOhm
- Weight 46.3 lb (21 kg)
- Height x Width x Depth 22" (560 mm) x 12" (300 mm) x 15.5" (400 mm)
- Warranty 5 Years
- Delivery contents
- Power cord, Manual
Adam Audio Sub10 Mk2 Powered Studio Subwoofer
Details
ADAM SUB10 Mk2 Powered Studio Subwoofer
ADAM subwoofers
Our subwoofers are dedicated to ADAM Audio’s primary goal: the best possible authenticity in the reproduction of music. For our subwoofers, this means combining power and precision while simultaneously avoiding “impressive” bass volume at the cost of accuracy. Their task is it to complement the highly acclaimed lucidity and transparency of the ADAM monitors in the lower and lowest frequencies.
All subwoofers up to the Sub2100 feature both balanced (XLR) and unbalanced (RCA) in and output connectors, and numerous controls to adapt to different room acoustics and requirements.
“I recommend it highly to anyone looking for a top-notch subwoofer.” Tape Op on the Sub12 (Feb/March 2009)
Panel/Controls
All subwoofers up to the Sub2100 feature a number of controls to adapt to different room acoustics and requirements.
All units have a level control that varies from -60dB to +6dB, a phase ±180° switch and variable upper frequency barrier control (50-150Hz), a switchable 85Hz high pass filter for the satellite output. In addition, there is a ‘signal-on/continuous’ switch. This provides the option of automatic power up whenever the subwoofer receives a signal and automatic power off after 15 minutes of no signal.
Sub10 Mk2
The Sub10 Mk2 and the Sub12 are powerful subwoofers designed to extend the low frequency capabilities of any near or midfield monitoring and are ideal matches for ADAM monitors such as the AX- or the SX-Series.
A large (2”) voice coil is driven by a 200W Ice Power amp. This amp stays cool as it uses PWM technology in the amp and the power supply sections, producing > 90% overall efficiency, and can handle its maximum power without danger to the electronics or the driver. The Sub10 Mk2 houses an 10” woofer, capable of a frequency response of 25Hz - 150Hz. The larger Sub12 has a 12” woofer capable of producing a 3dB higher SPL max output and reproduces frequencies down to 22Hz.
Both versions work with a new down-firing bass reflex tube that, due to its shape and size, avoids unnecessary ventilation noise. For larger rooms or higher levels it is possible to chain as many ADAM Subs together as necessary. All inputs and outputs have both XLR and RCA (cinch) connectors.
Subwoofer
Number 1
Basket Ø 10" (260 mm)
Voice coil Ø 2" (50 mm)
Cone material Paper
Built-in Amplifiers
Subwoofer 1
Amp. power RMS / music 200 W / 300 W
Input connectors
Analog XLR / RCA
General data
Panel Rear
Frequency response 25 Hz - 150 Hz
THD > 60 Hz ≤1 %
Max. peak ≥113 dB
Crossover frequencies 50 - 150 Hz
Input impedance 10 KOhm
Weight 46.3 lb (21 kg)
Height x Width x Depth 22" (560 mm) x 12" (300 mm) x 15.5" (400 mm)
Warranty 5 Years
Delivery contents
Power cord, Manual
| Product Name | Adam Audio Sub10 Mk2 Powered Studio Subwoofer |
|---|---|
| Brand | ADAM Audio |
| Condition | New |
| MPN | SUB10MKII |
| UPC | 4260110240017 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- Subwoofer
- Number 1
- Basket Ø 10" (260 mm)
- Voice coil Ø 2" (50 mm)
- Cone material Paper
- Built-in Amplifiers
- Subwoofer 1
- Amp. power RMS / music 200 W / 300 W
- Input connectors
- Analog XLR / RCA
- General data
- Panel Rear
- Frequency response 25 Hz - 150 Hz
- THD > 60 Hz ≤1 %
- Max. peak ≥113 dB
- Crossover frequencies 50 - 150 Hz
- Input impedance 10 KOhm
- Weight 46.3 lb (21 kg)
- Height x Width x Depth 22" (560 mm) x 12" (300 mm) x 15.5" (400 mm)
- Warranty 5 Years
- Delivery contents
- Power cord, Manual
