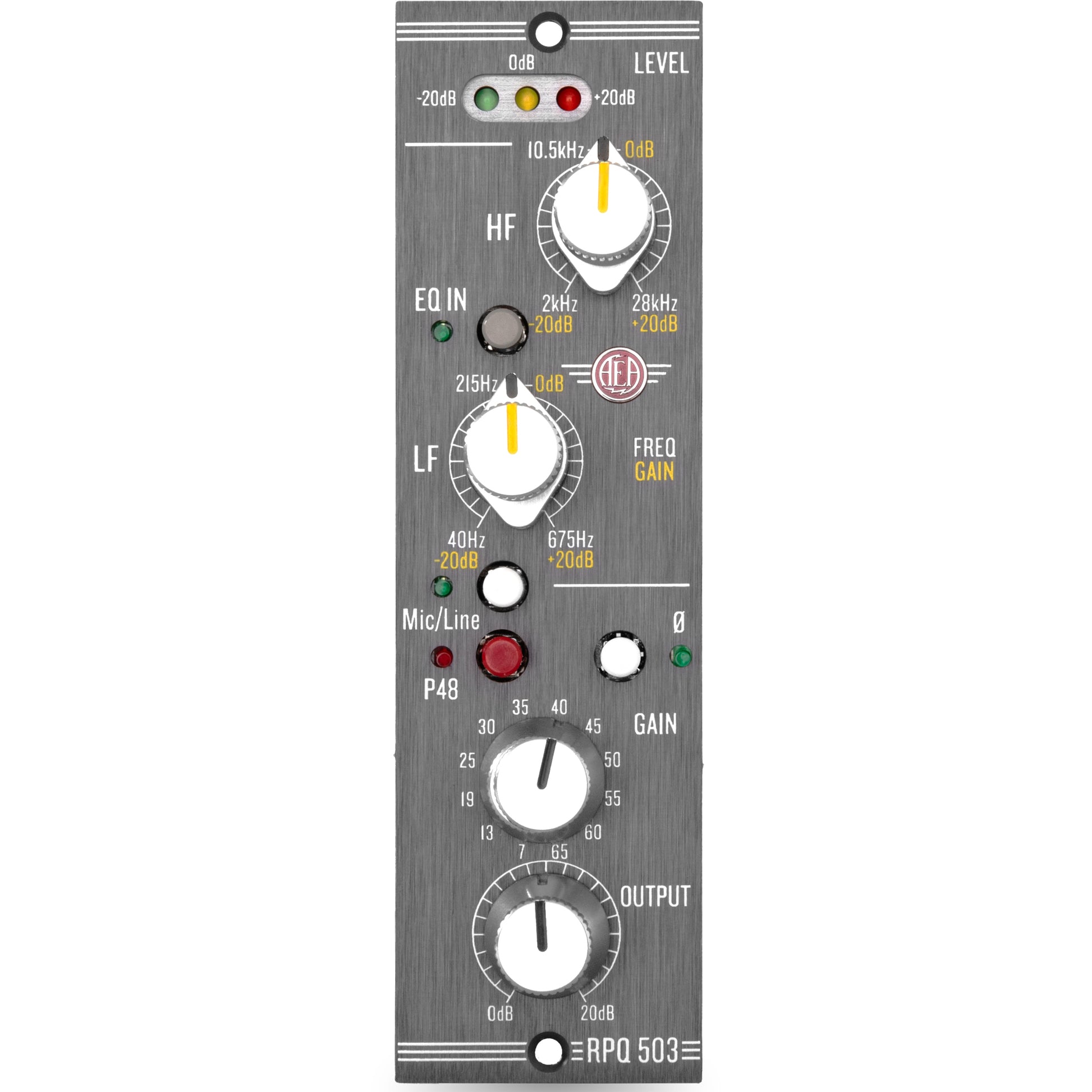

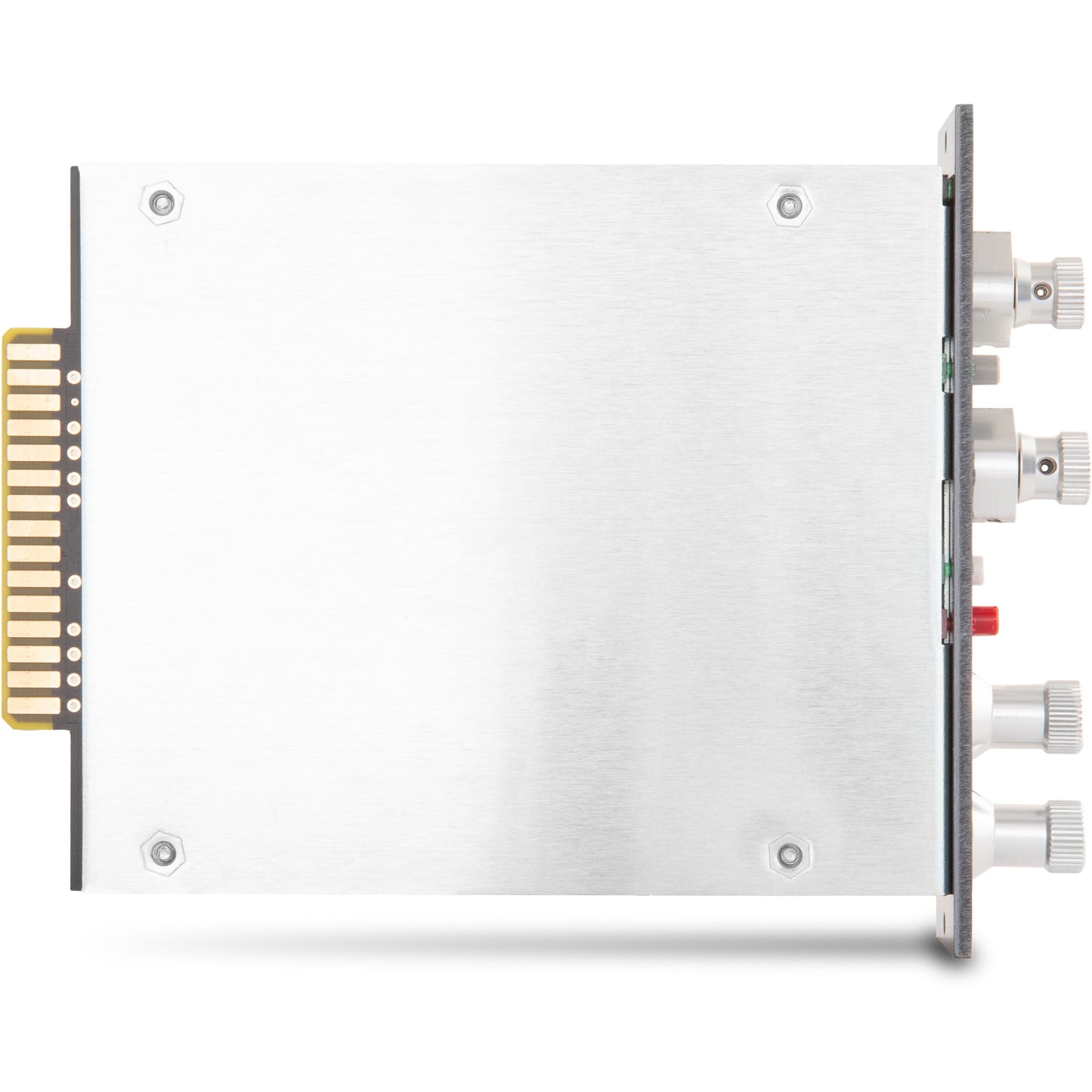

Based on the 3rd Generation circuit design of our celebrated RPQ3, the RPQ503 brings the same rich and natural sound to the 500 Series Format.
Your Favorite Ribbon Preamp — Now in 500 Series
The RPQ503 is the next evolution in AEA’s trusted lineage of high-impedance, high-gain preamplifiers.
More than just a preamp, the RPQ503 also includes the expanded EQ section of the RPQ3, with boost and cut controls for both low and high end, on custom, compact, dual-concentric potentiometers.
Featuring a powerful combination of ultra-low noise, low-distortion op-amps, ultra-high 68KΩ input impedance, and 85dB of clean gain, the RPQ503 delivers exceptional clarity and detail.
Enhance every microphone
A gain powerhouse
The RPQ503 is a powerhouse that provides unparalleled high gain with low-noise. With 85db of clean gain, the RPQ503 gives you enough juice to record soft sources without ever having to worry about noise. The RPQ503 is the tool of choice for all microphones whenever a true and pristine signal path is desired. Our 3rd generation circuitry is the cleanest and most musical design we’ve done yet.
| Product Name | AEA RPQ503 500 Series Ribbon Mic Pre and EQ |
|---|---|
| Brand | AEA |
| Condition | New |
| MPN | RPQ503 |
| UPC | 652401978459 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- AEA RPQ503 500 Series Ribbon Mic Pre and EQ
- 2 x #4-40 Phillips Flat-Head Screw

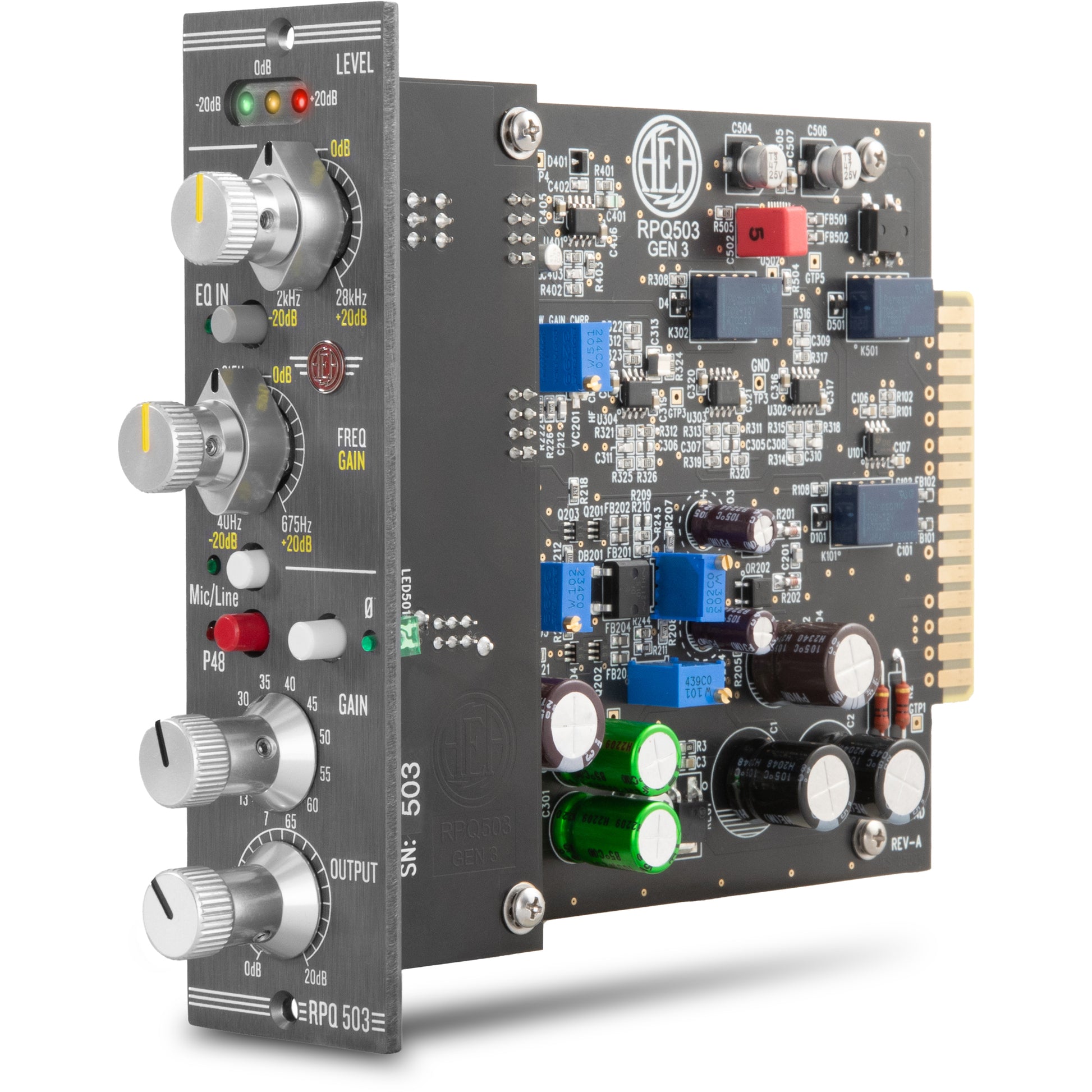

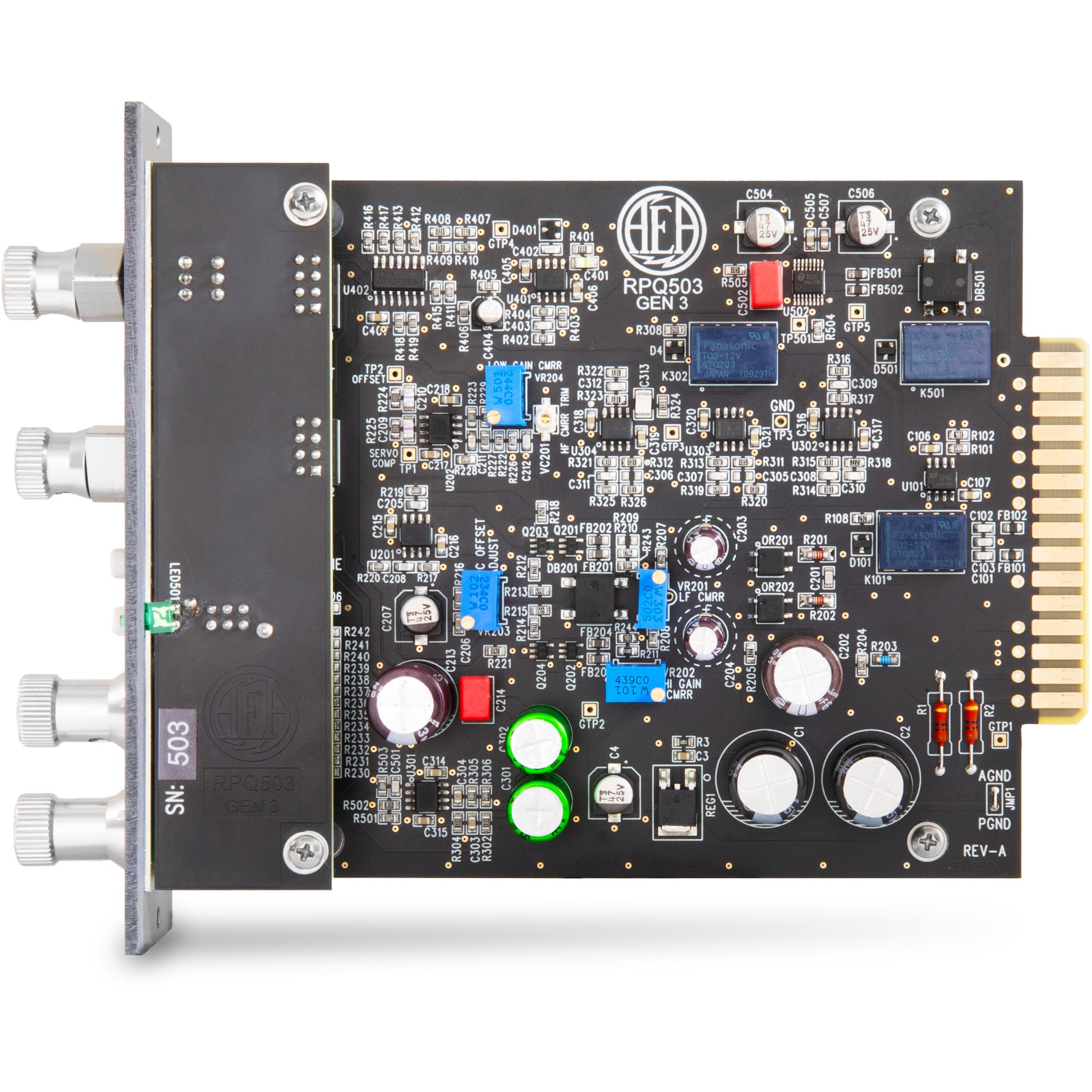

- AEA Gen 3 Preamp Circuitry with our Signature CurveShaper™ EQ
- 1-Space 500-Series Preamp
- Ultra-High 68KΩ Input Impedance
- 7 to 85 dB of Gain
- EQ Boost/Cut, +/-20 dB with LF/HF Sweepable Frequency
- Polarity Switch
- Mic/Line Input Switching
- Made in the USA
Specifications |
|
|---|---|
| Max Gain at 1 kHz | 85 dB |
| EIN (Max Gain 22 Hz to 22 kHz) | -130 dBu (typical), 40 Ω source unweighted -128 dBu (typical), 150 Ω source unweighted |
| Frequency Response | 30 dB gain: (-0.6 dB at 10 Hz, -3 dB at 160 kHz) 85 dB gain: (-3 dB at 10 Hz and 160 kHz) |
| THD+N | 0.0018% (1 kHz, 22 Hz–22 kHz @ 30 dB Gain, +4 dBu output) |
| XLR Output Maximum Level | +27 dBu into 600 Ω load |
| Input Impedance | 68 kΩ |
| Input Impedance (P48 Engaged) | 11.3 kΩ |
| Output Impedance | 50 Ω |
| Max Input Signal Level | +20 dBu (minimum gain) |
| Mic Gain Control | 12-position switch from +7 dB to +65 dB |
| Output Trim | Continuously variable from 0 dB to +20 dB |
| EQ Circuitry | First order shelving response 20 dB max boost/cut Low frequency sweep continuously variable 40 Hz to 675 Hz High frequency sweep continuously variable 2 kHz to 28 kHz |
| Input and Output XLR Polarity | Pin 2 high |

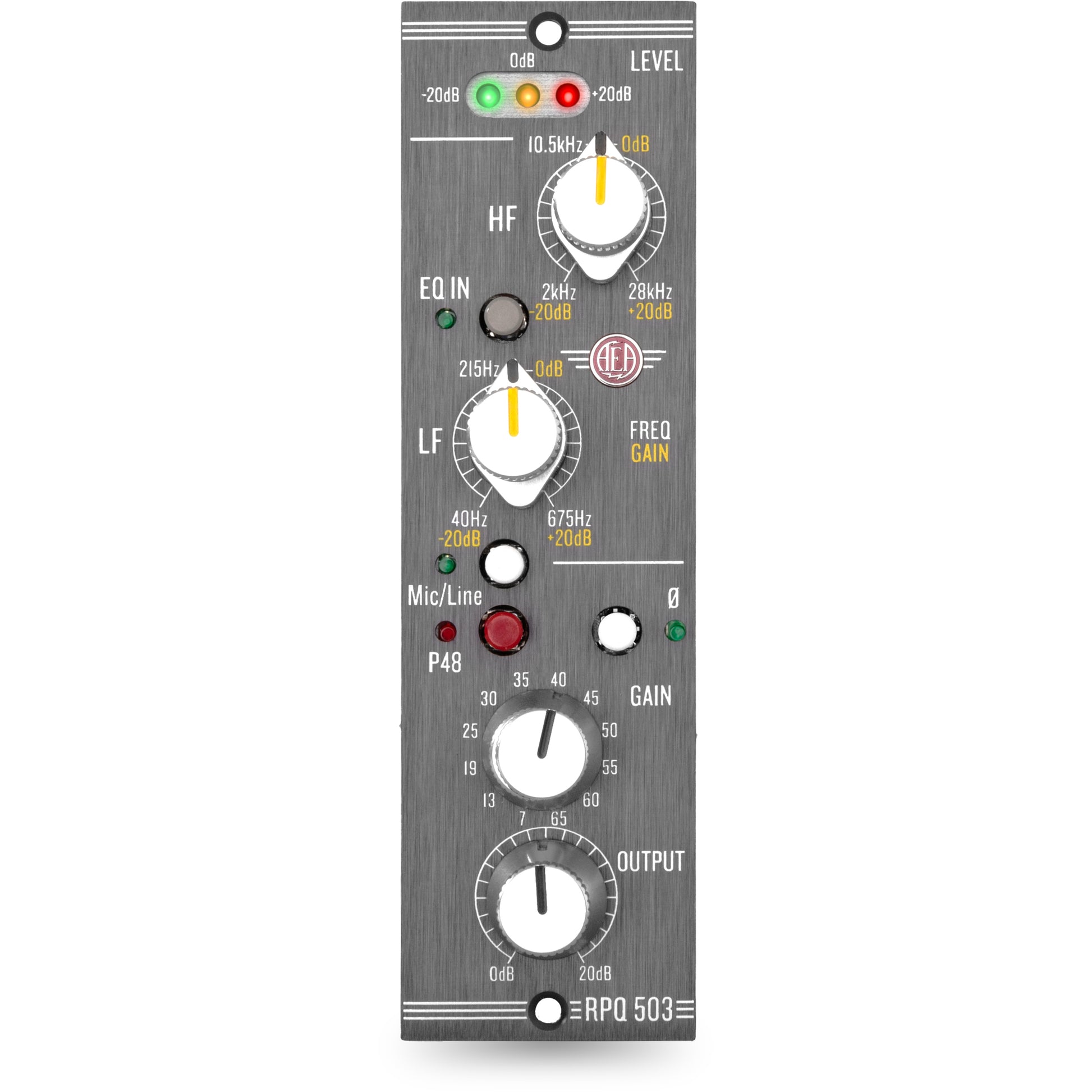

| LED Signal Level Indicators | Green LED = -20 dBu; Yellow LED = 0 dBu; Red LED = +20 dBu (clipping +27 dBu) |
| Dimensions | 0.125" anodized aluminum front panel Measured with knobs and switches: 1.5"W x 6.8"D x 5.2"H (3.81 cm x 17.27 cm x 13.21 cm) |
| Weight | 12 oz (~0.34 kg) |
