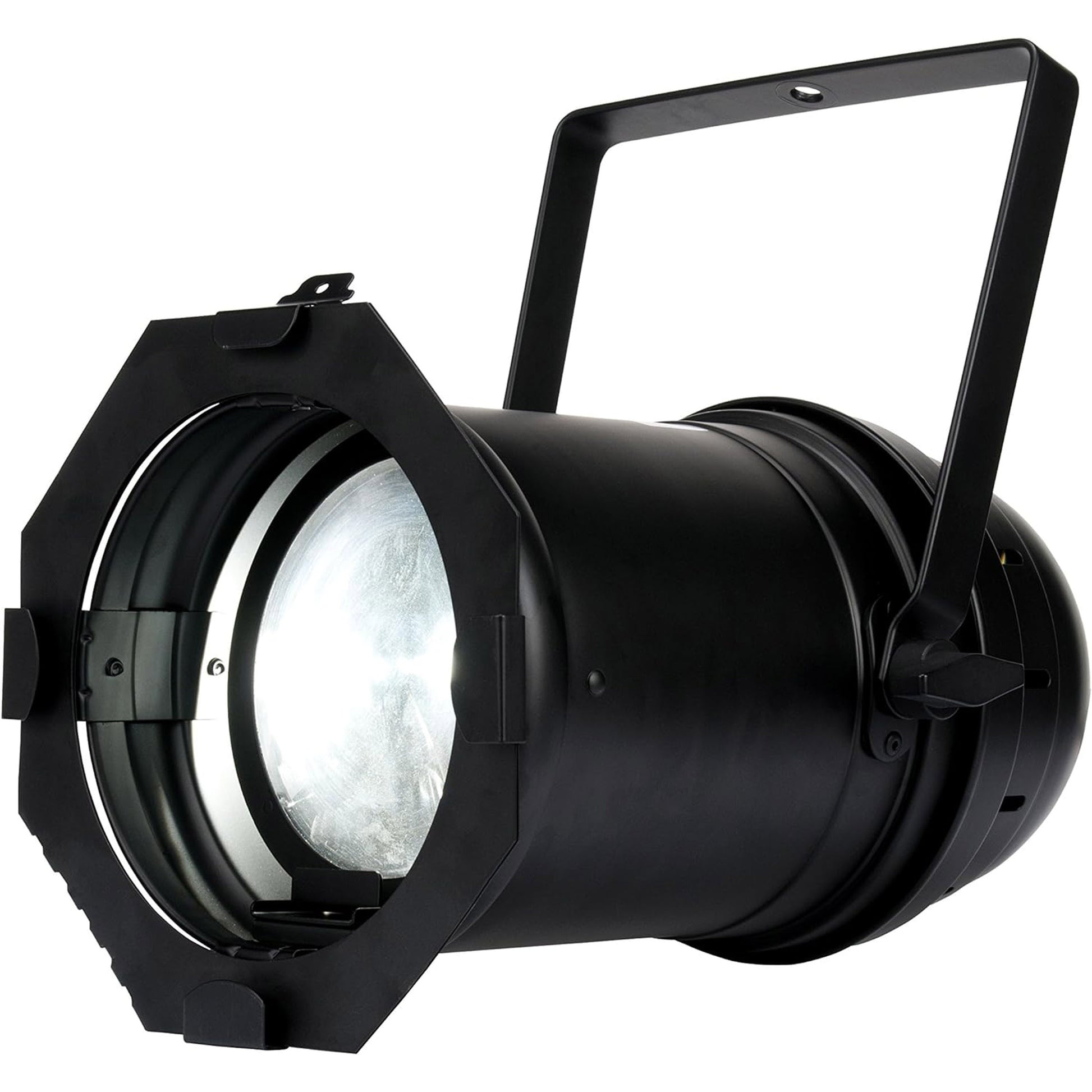

American DJ PAR Z100 5K White LED Stage PAR Can

American DJ PAR Z100 5K White LED Stage PAR Can

$469.99
$469.99
Sale Sold out

On order with the manufacturer!
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

The ADJ Par Z100 5K is a modern LED twist to the traditional halogen Par Can. It is powered by a potent 100W warm white C.O.B. (Chip On Board) LED with a color temperature of 5700K.

The Par Z100 5K is a modern LED twist to the traditional halogen Par Can. It is powered by a potent 100W warm white C.O.B. (Chip On Board) LED with a color temperature of 5700K. Its output is comparable to a 1000W halogen sealed beam Par. It is equipped with 5 different beam angle options that may be changed by hand. Power locking In/Out allows for the fixture to be daisy chained, while 5-pin DMX control offers a variable strobe rate and 5 different dimming curve options.

The Par Z100 5K allows lighting and stage designers the look of the traditional stage par with the technological conveniences of modern day lighting. The advantages include low power draw, fixture and performers won’t get hot on stage, DMX control of dimming and strobe. There are no dimmer controllers need. The fixture comes with a gel frame in which diffusion filters may be inserted to further change the beam angle.

More Information
Product Name American DJ PAR Z100 5K White LED Stage PAR Can
Brand American DJ
MPN PAR830

What's in the Box?

  • American DJ PAR Z100 5K White LED Stage PAR Can
  • 4-button DMX menu display on rear panel
  • Adjustable latch to manually change beam angle
  • Includes gel frame for diffusion filters (Diffusion filter sold separately)
  • Strobe effect (25Hz max)
  • Flicker Free Operation
  • Electronic Dimming: 0 - 100% with 5 dimming curves
  • Run all night – No duty cycle
  • Optical:
    • 100 Watt COB Cool White LED (5700K)
    • Life expectancy: rated at 50,000 hrs.
    • LUX: 7874 (9˚); 4900 (15˚); 2467 (20˚); 1397 (25˚); 896 (30˚)
    • CRI: 90
    • Beam angle: 9, 15, 20, 25 0r 30-degree (manual adjustment)
    • PWM frequency:1200Hz
  • Connection:
    • DMX: 5-pin DMX In/Out
    • With Wired Digital Communication Network
    • Power locking In/Out to power battery or daisy chain fixture
  • Control:
    • Control protocol: DMX-512
    • 2 DMX Channels
  • Electrical:
    • Power Draw Total (All LED's @ Full On): 115W, 0.964A @ 120V/60Hz, 112W, 0.5A @ 220V/50Hz
    • Multi-voltage operation: AC 100-240V, 50/60Hz
    • Daisy chain: 15 fixtures (120V); 25 fixtures (230V)
  • Dimensions / Weight:
    • Dimensions (LxWxH): 19.33” x 10.82” x 8.75” / 491 x 275 x 224mm
    • Weight: 8 lbs. / 3.6kg.
    • ETL Approved

American DJ PAR Z100 5K White LED Stage PAR Can
Details

The ADJ Par Z100 5K is a modern LED twist to the traditional halogen Par Can. It is powered by a potent 100W warm white C.O.B. (Chip On Board) LED with a color temperature of 5700K.

The Par Z100 5K is a modern LED twist to the traditional halogen Par Can. It is powered by a potent 100W warm white C.O.B. (Chip On Board) LED with a color temperature of 5700K. Its output is comparable to a 1000W halogen sealed beam Par. It is equipped with 5 different beam angle options that may be changed by hand. Power locking In/Out allows for the fixture to be daisy chained, while 5-pin DMX control offers a variable strobe rate and 5 different dimming curve options.

The Par Z100 5K allows lighting and stage designers the look of the traditional stage par with the technological conveniences of modern day lighting. The advantages include low power draw, fixture and performers won’t get hot on stage, DMX control of dimming and strobe. There are no dimmer controllers need. The fixture comes with a gel frame in which diffusion filters may be inserted to further change the beam angle.

More Information
Product Name American DJ PAR Z100 5K White LED Stage PAR Can
Brand American DJ
MPN PAR830

What's in the Box?

American DJ PAR Z100 5K White LED Stage PAR Can
Features
  • 4-button DMX menu display on rear panel
  • Adjustable latch to manually change beam angle
  • Includes gel frame for diffusion filters (Diffusion filter sold separately)
  • Strobe effect (25Hz max)
  • Flicker Free Operation
  • Electronic Dimming: 0 - 100% with 5 dimming curves
  • Run all night – No duty cycle
Tech Specs
  • Optical:
    • 100 Watt COB Cool White LED (5700K)
    • Life expectancy: rated at 50,000 hrs.
    • LUX: 7874 (9˚); 4900 (15˚); 2467 (20˚); 1397 (25˚); 896 (30˚)
    • CRI: 90
    • Beam angle: 9, 15, 20, 25 0r 30-degree (manual adjustment)
    • PWM frequency:1200Hz
  • Connection:
    • DMX: 5-pin DMX In/Out
    • With Wired Digital Communication Network
    • Power locking In/Out to power battery or daisy chain fixture
  • Control:
    • Control protocol: DMX-512
    • 2 DMX Channels
  • Electrical:
    • Power Draw Total (All LED's @ Full On): 115W, 0.964A @ 120V/60Hz, 112W, 0.5A @ 220V/50Hz
    • Multi-voltage operation: AC 100-240V, 50/60Hz
    • Daisy chain: 15 fixtures (120V); 25 fixtures (230V)
  • Dimensions / Weight:
    • Dimensions (LxWxH): 19.33” x 10.82” x 8.75” / 491 x 275 x 224mm
    • Weight: 8 lbs. / 3.6kg.
    • ETL Approved
