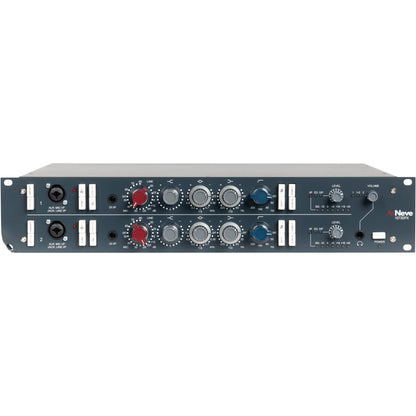

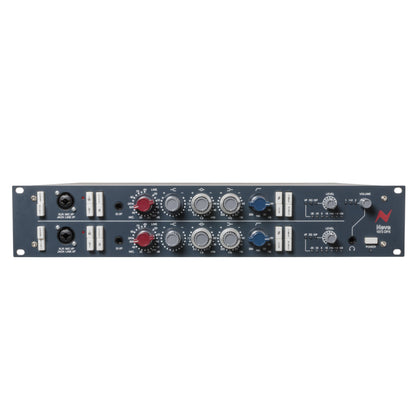

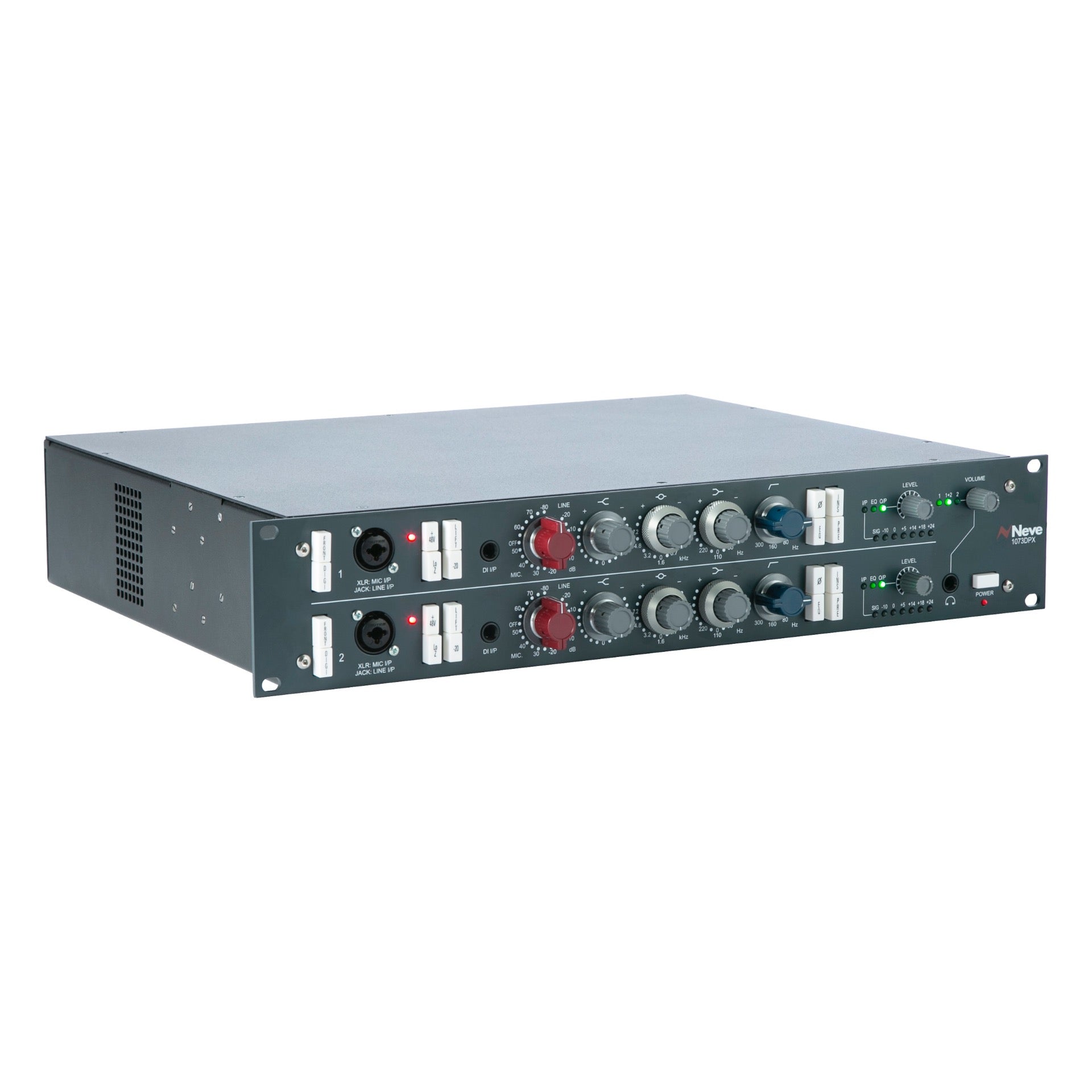

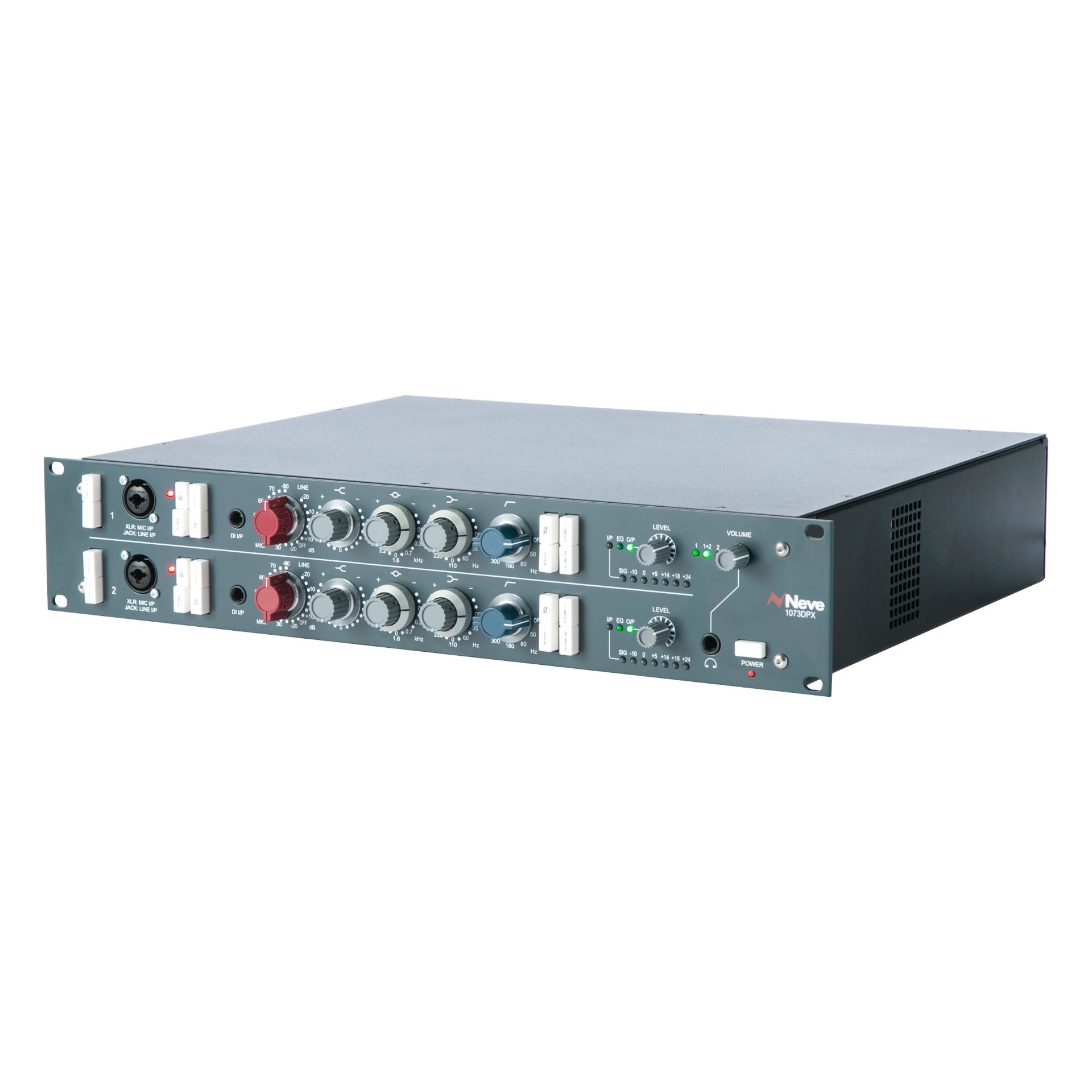

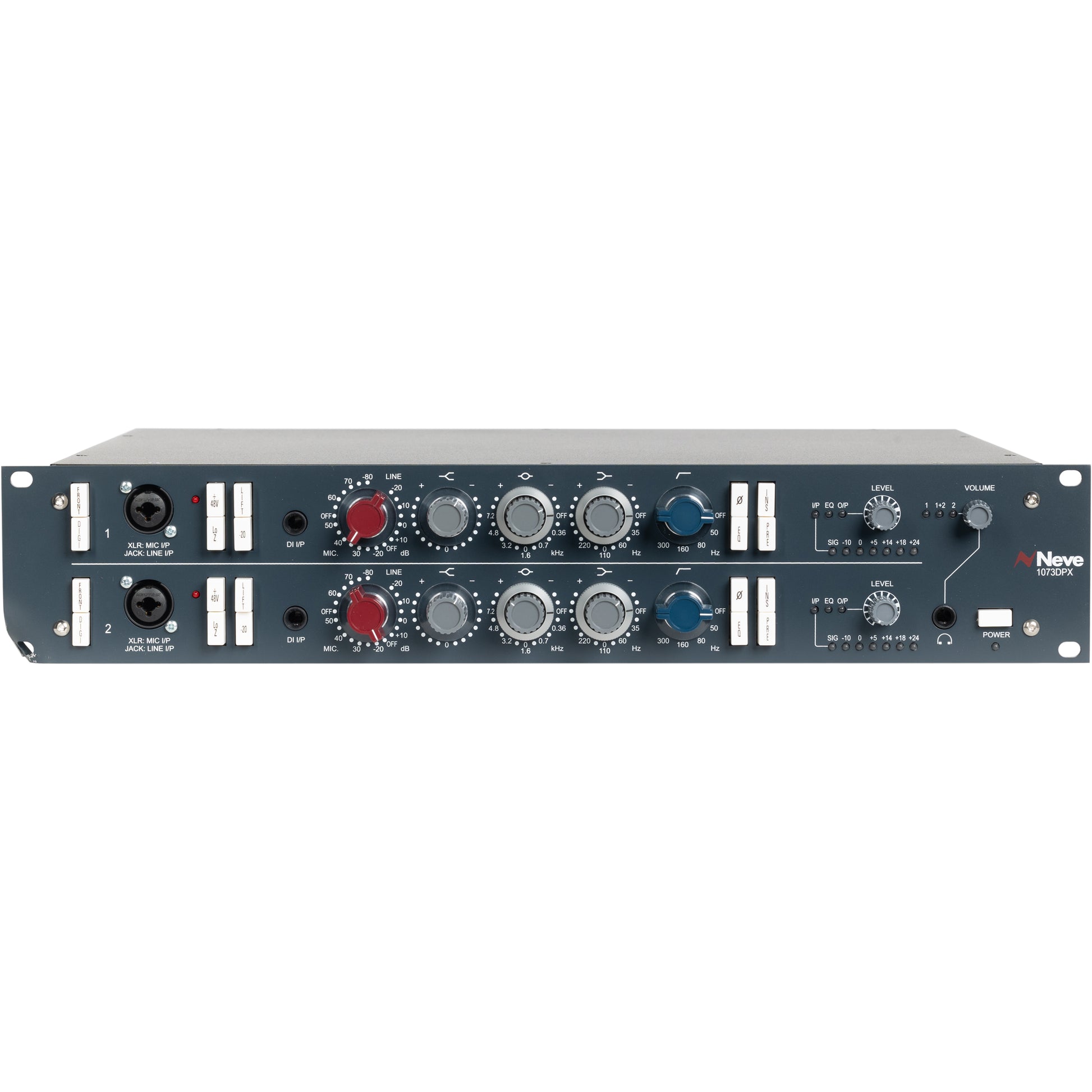

AMS Neve 1073DPX Dual Mic Pre EQ
The quality is legendary. Designed and built in England, the modern-day 1073DPX is produced to the exact specifications of the original with matched components to ensure the sound remains true.
The 1073DPX has two channels of Neve 1073 Class A design microphone preamplifiers, each with 3-band EQ (fixed HF plus two switchable bands with cut/boost capability) and high pass filter, adding warmth and depth to recordings, bringing out subtle ambience, maintaining spatial positioning, and capturing a more precise image – embodying, think many engineers and producers, the essence of the genuine Neve sound.

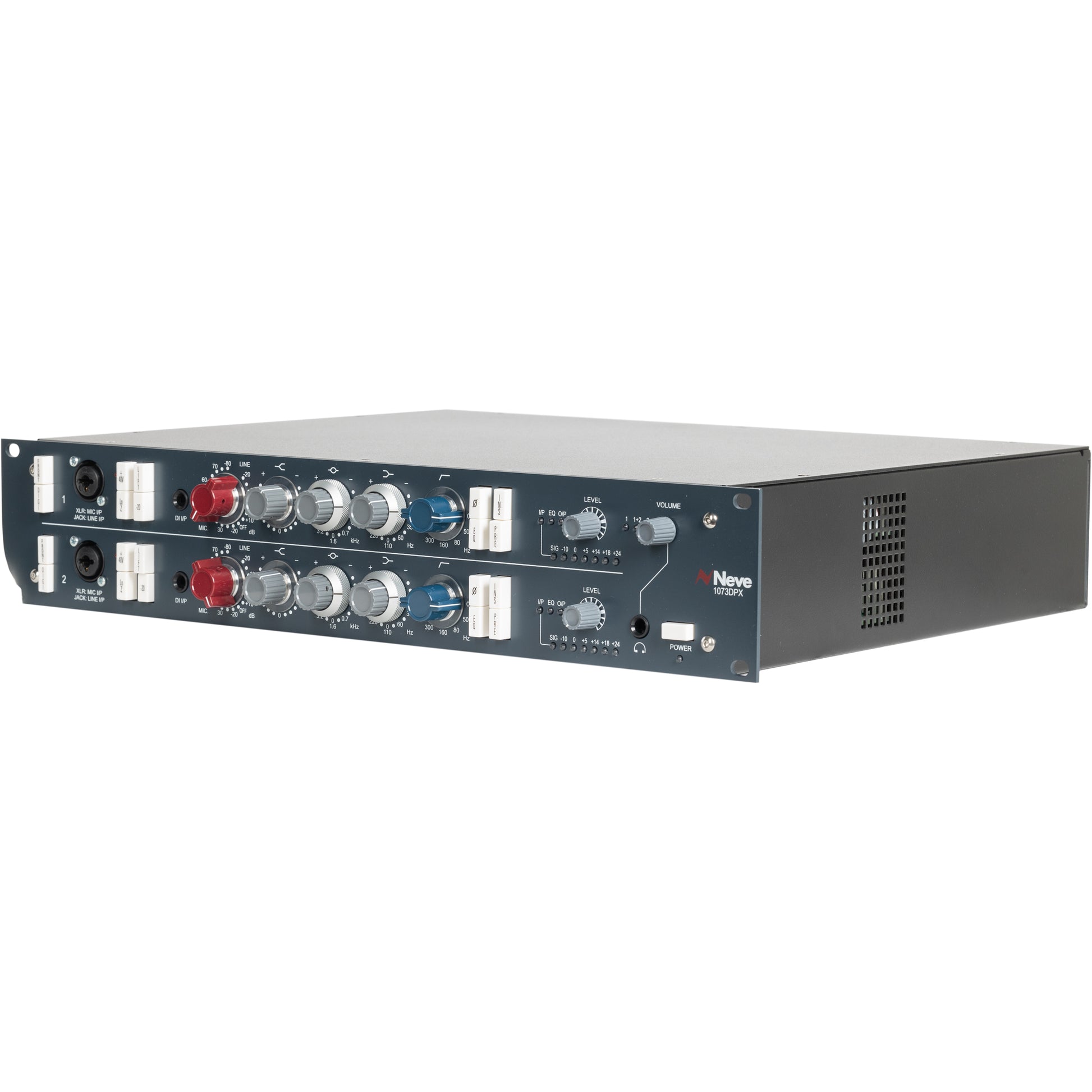

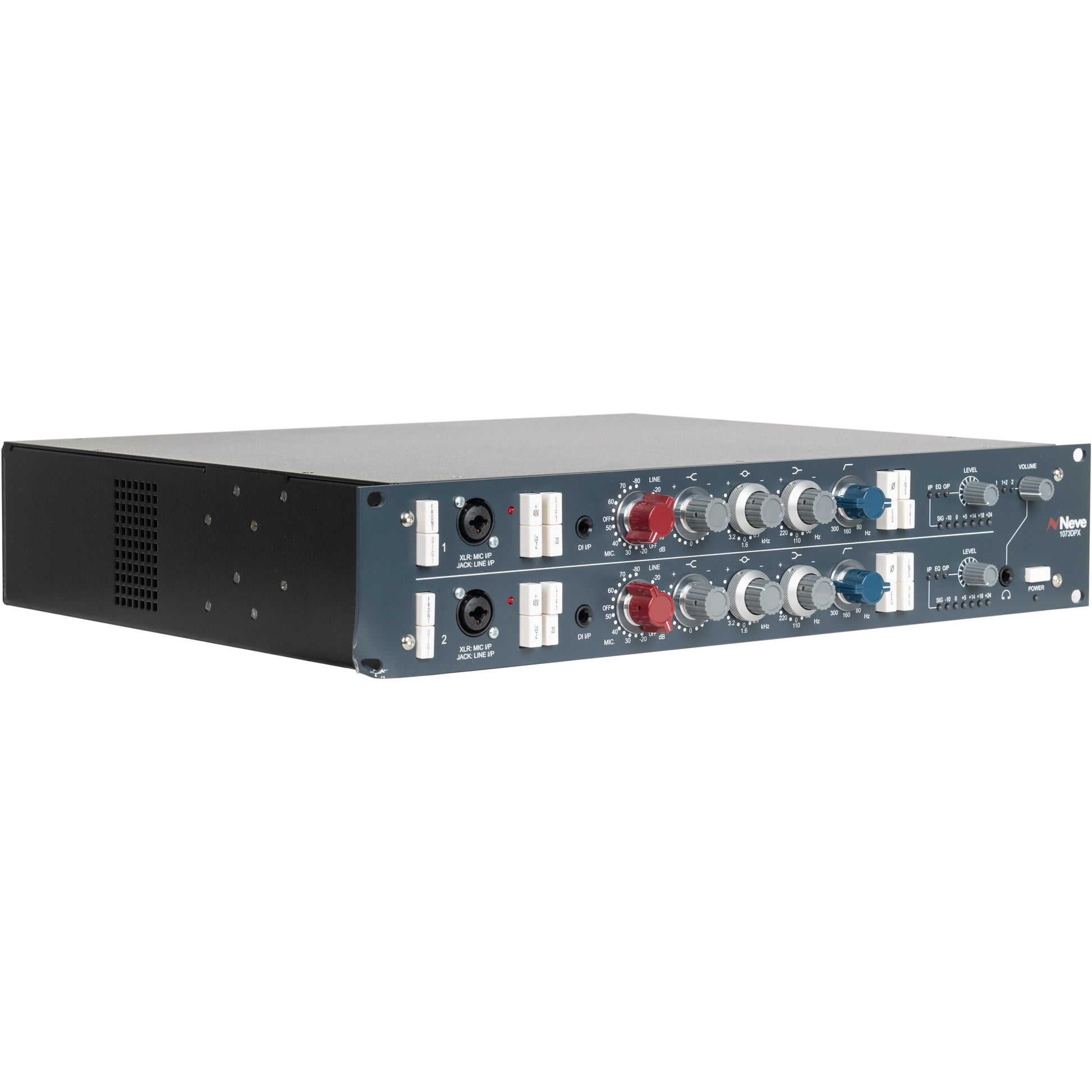

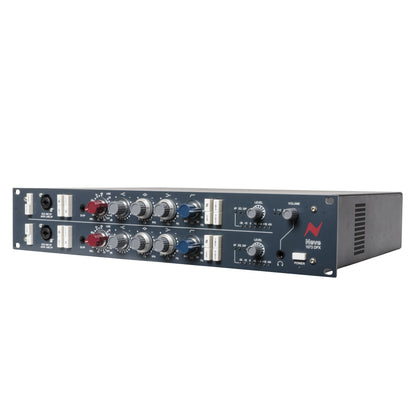

Building on the 1073 classic module features, the 1073DPX introduces extra functionality with integrated DI input, phantom power, selectable Insert feature, level meters, selectable headphone monitoring and I/O connectors on each channel for easy and direct connection of microphones and instruments. The 19” rack-mount 2U unit includes an external multi-voltage PSU
| Product Name | AMS Neve 1073 DPX Dual Mic Pre EQ |
|---|---|
| Brand | AMS Neve |
| Condition | New |
| MPN | 1073dpx |
| UPC | 700615306688 |
| Shipping Option | Free Shipping to the Continental U.S. |
- 2 independent, genuine Neve 1073 transformer-coupled microphone preamplifier / EQ circuits, in a single 2U 19″ rack mount enclosure
- Exclusive Neve Marinair™ transformers used on each input and output stage.

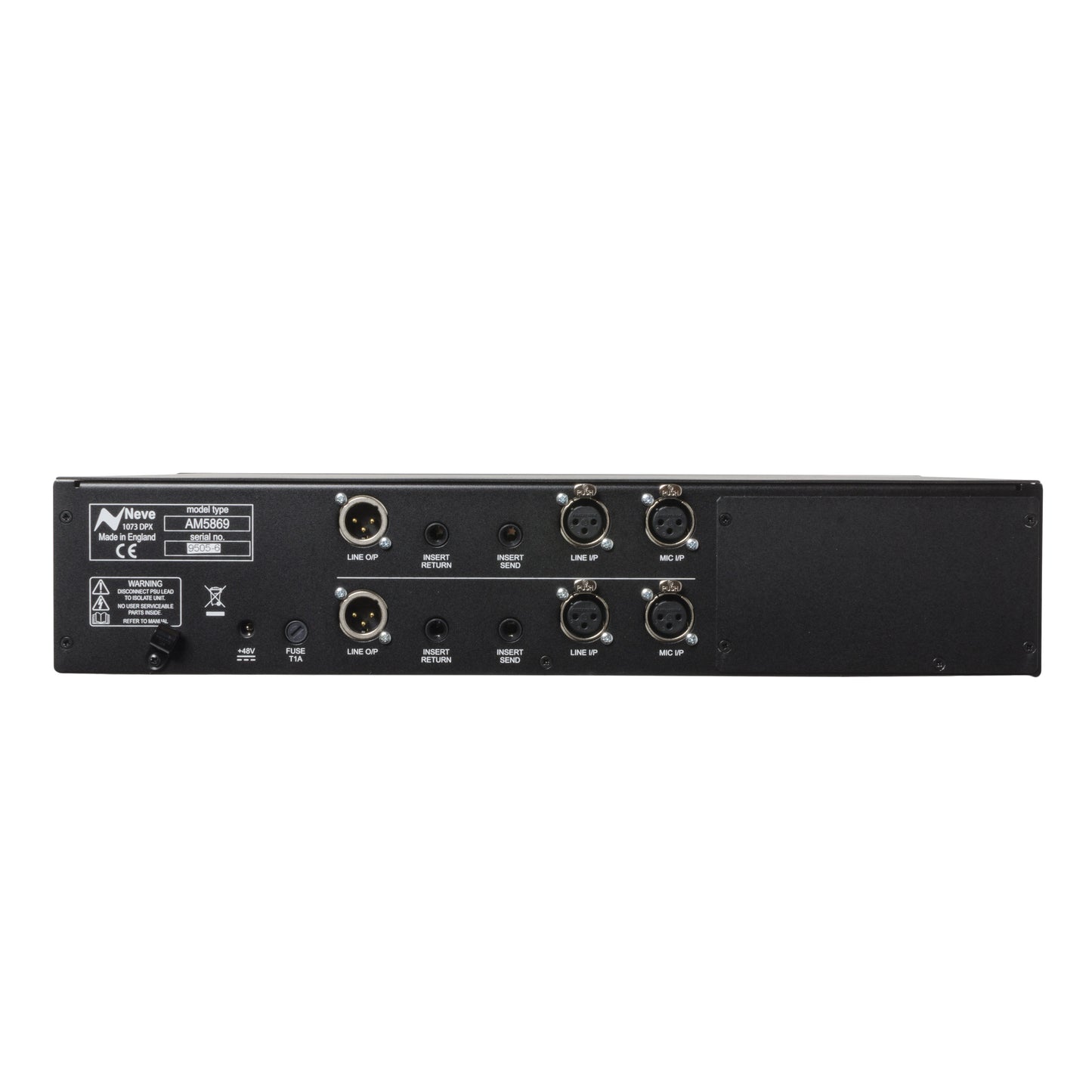

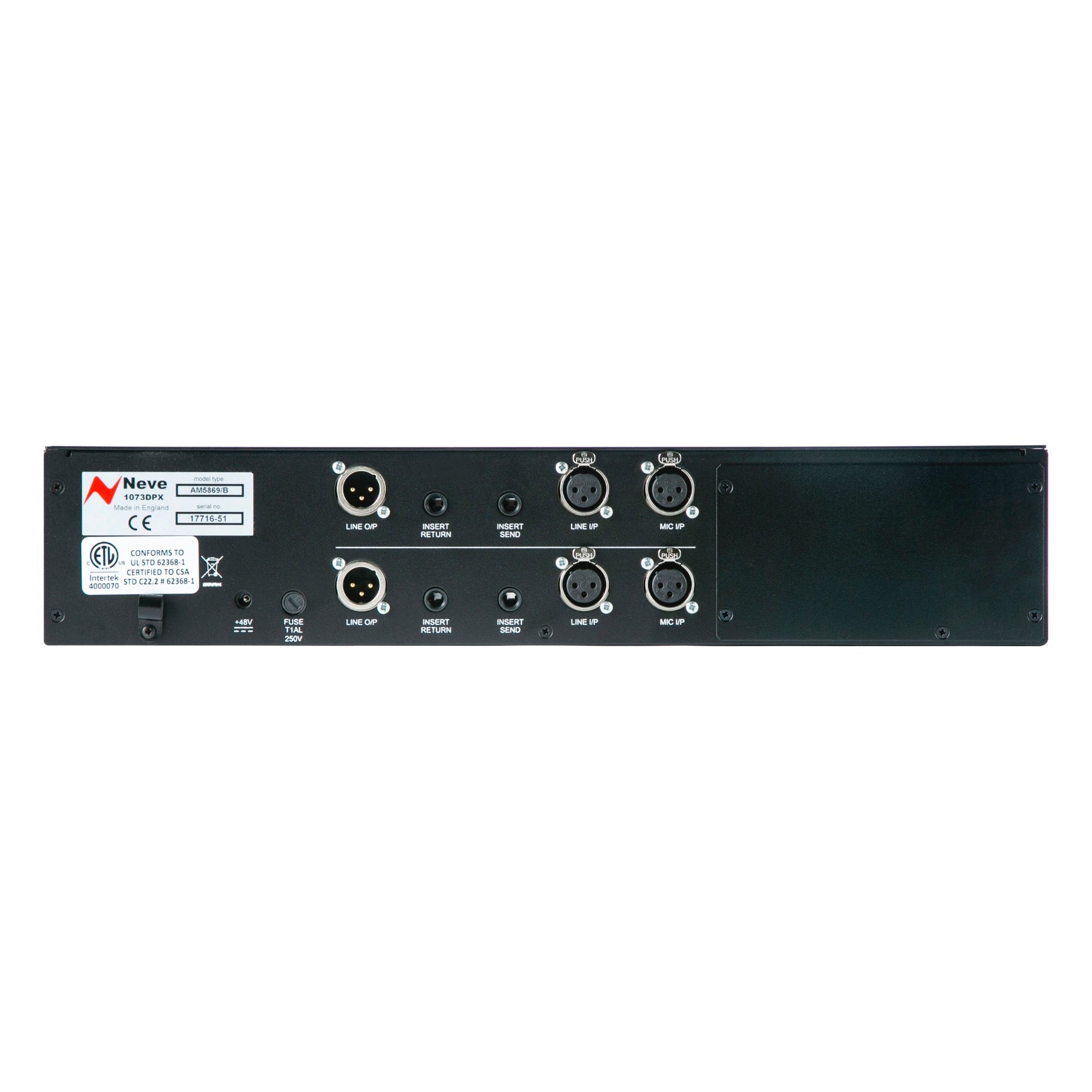

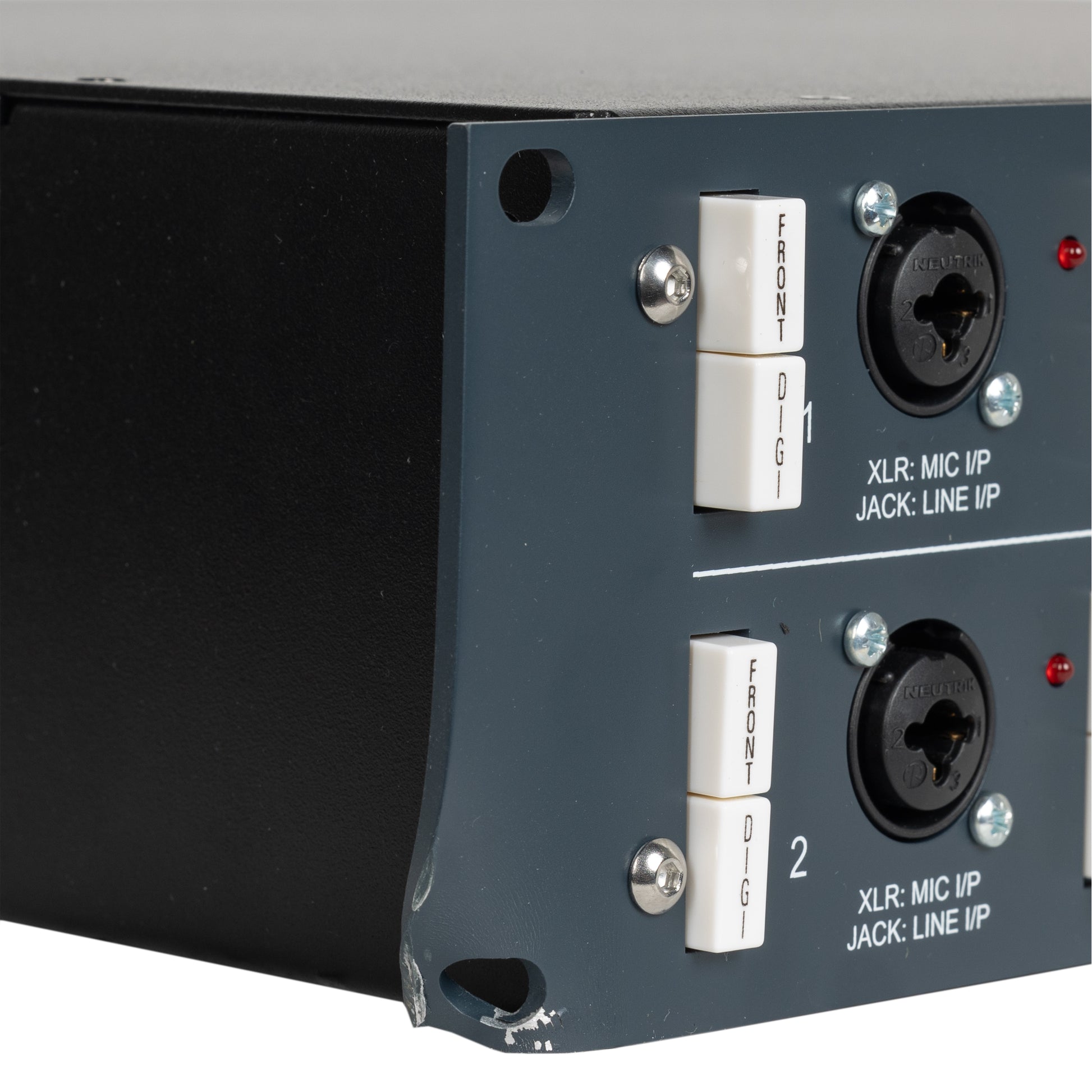

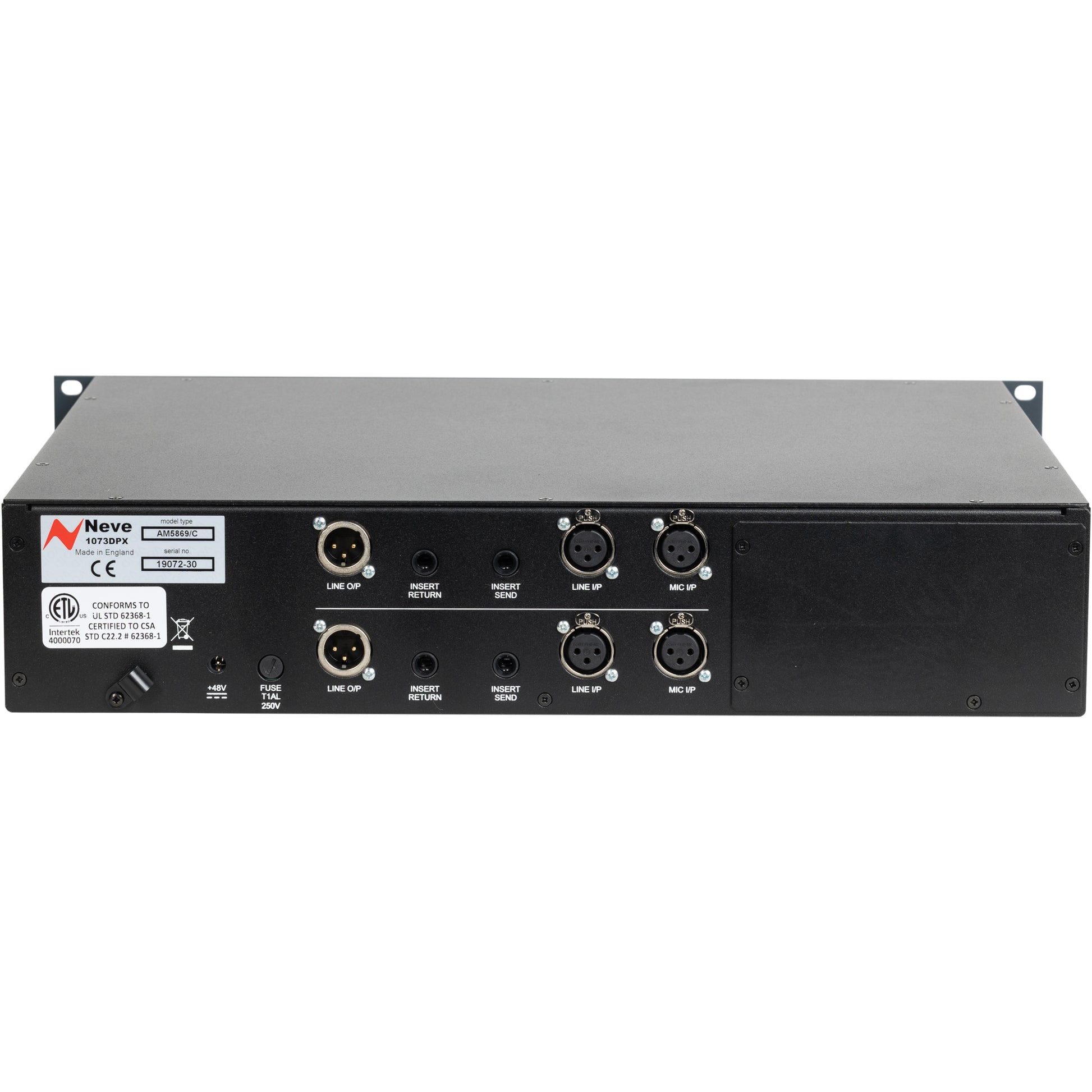

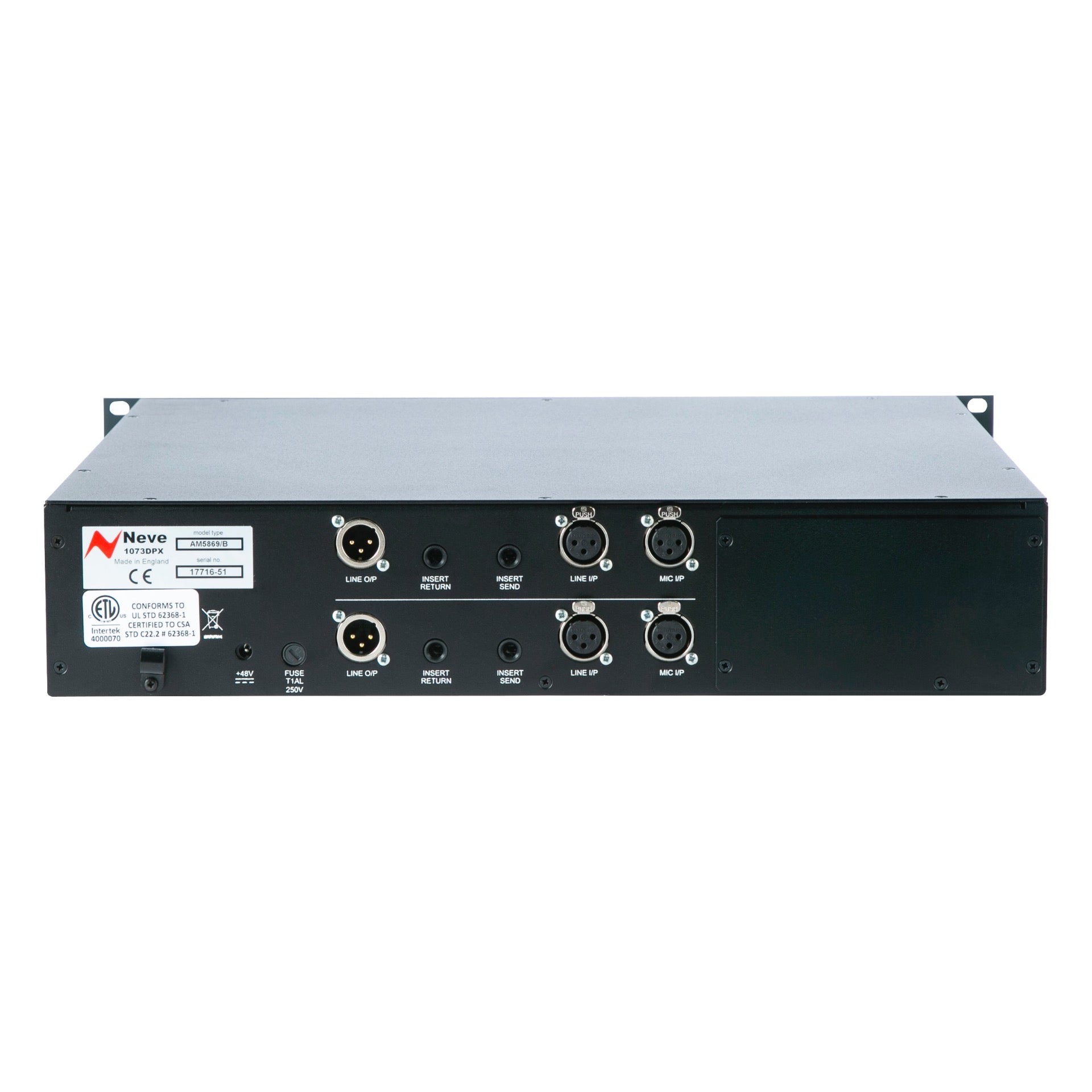

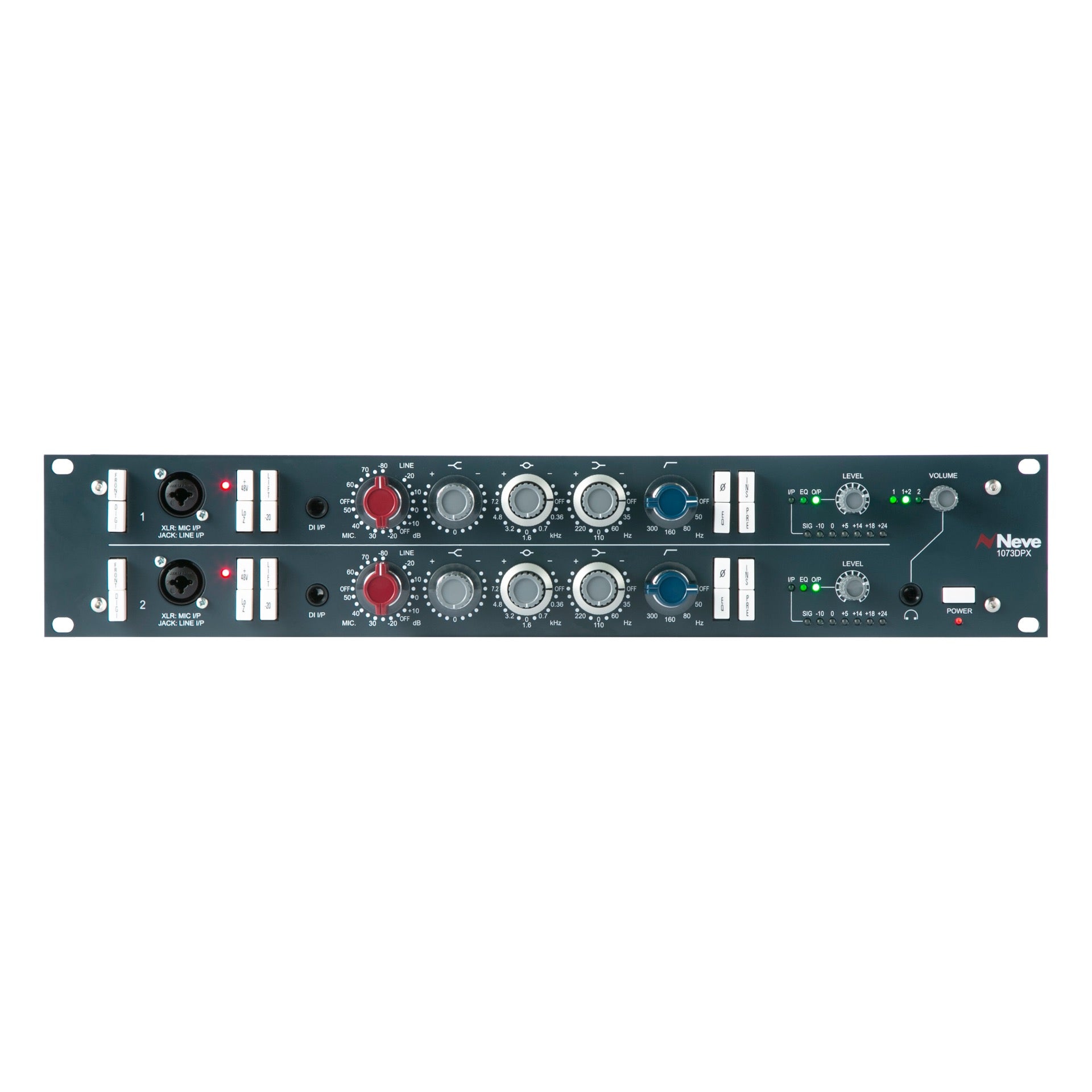

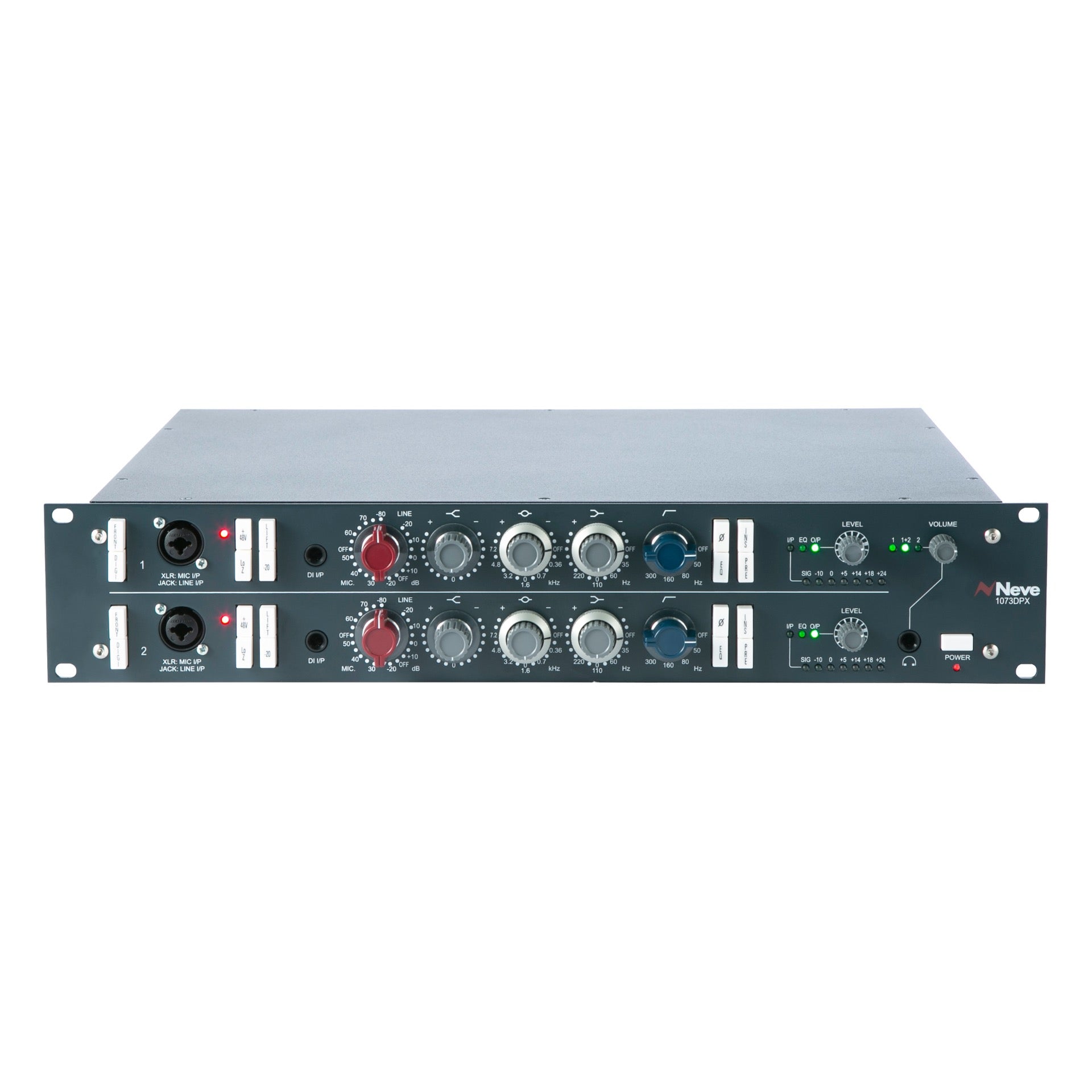

- Convenient connections for Mic, Line & DI inputs on front of unit, with switchable mic/line input connections on the rear of the unit
- Switchable +48v Phantom Power, Hi/Lo impedence, -20dB pad and DI ground lift on the input stage
- Switchable Phase, and EQ in/out
- Insert send and return loop feature allows external equipment to be connected easily to the 1073DPX audio chain, such as mono/stereo limiter/compressors;
- Pre-EQ insert send/return – a line level send is available from the mic-preamp output stage and a return just before the EQ stage
- Post-EQ insert send/return – a line level send is available from the post-EQ stage and a return just before the main output stage
- Independent channel output level controls
- 7-stage LED signal level meters for each channel – can show mic/line/DI input-stage level, EQ-stage level or output-stage level up to +24dB
- Headphone output with adjustable volume control, can listen to channel 1, channel 2 or both channels combined
- External multi-voltage PSU
General Specification |
|
|---|---|
| Type | 2 independent, genuine 1073® transformer-coupled microphone preamplifier/EQ circuits, in a single 2U 19″ rack-mount enclosure |
| Transformers | Exclusive Neve® Marinair® transformers are used on each input and output stage. |
| Connections | Mic, Line & DI inputs on the front; switchable mic/line input connections on the rear |
| Phantom Power | Switchable +48v Phantom Power |
| Additional Features | Hi/Lo impedance, -20dB pad, DI ground lift, switchable phase, and EQ in/out |
| Insert Send/Return Loop | Allows external equipment connection to the audio chain, with pre-EQ and post-EQ send/return options |
| Output Controls | Independent channel output level controls |
| LED Meters | 7-stage LED signal level meters for each channel |
| Headphone Output | Adjustable volume control; can listen to channel 1, channel 2, or both channels combined |
| Power | External multi-voltage PSU, 48Vdc, 480mA ±20mA excluding digital module. Negative Earth |
Preamp Specification |
|
| Microphone Input | Gain +80db to +20dB in 5dB steps |
| Line Input | Input impedance 10kΩ, gain +20dB to -10dB in 5dB steps |
| DI Input | Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on) Gain +80dB to +20dB in 5dB steps |
EQ Specification |
|
| High Frequency | Smooth +/-16dB fixed frequency shelving at 12kHz |
| Low Frequency | Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz |
| Mid Frequency | Smooth +/-18dB peaking, fixed ‘Q’ with selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz |
| High Pass Filter | 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz |
Audio Performance |
|
| Output | Maximum output is >+26dBu into 600Ω, transformer balanced and earth free; Output Impedance 75Ω @1kHz |
| Distortion | Not more than 0.07% from 50Hz to 10kHz at +20dBu output (80kHz bandwidth) into 600Ω |
| Frequency Response | ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out |
| Noise | -82dBu at all line gain settings (22Hz to 22kHz bandwidth) |
| EIN | Better than -125dBu @ 60dB gain |
Dimensions |
|
| Width | 480mm (19 inches) |
| Height | 88mm (3.5 inches) |
| Depth | 356mm (14 inches) |
| Weight | Approx. 10kg (22 pounds) |
