AMS Neve 8801 ADC Card AD Output Card Option

AMS Neve 8801 ADC Card AD Output Card Option

On order with the manufacturer!

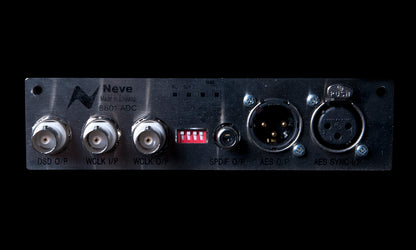

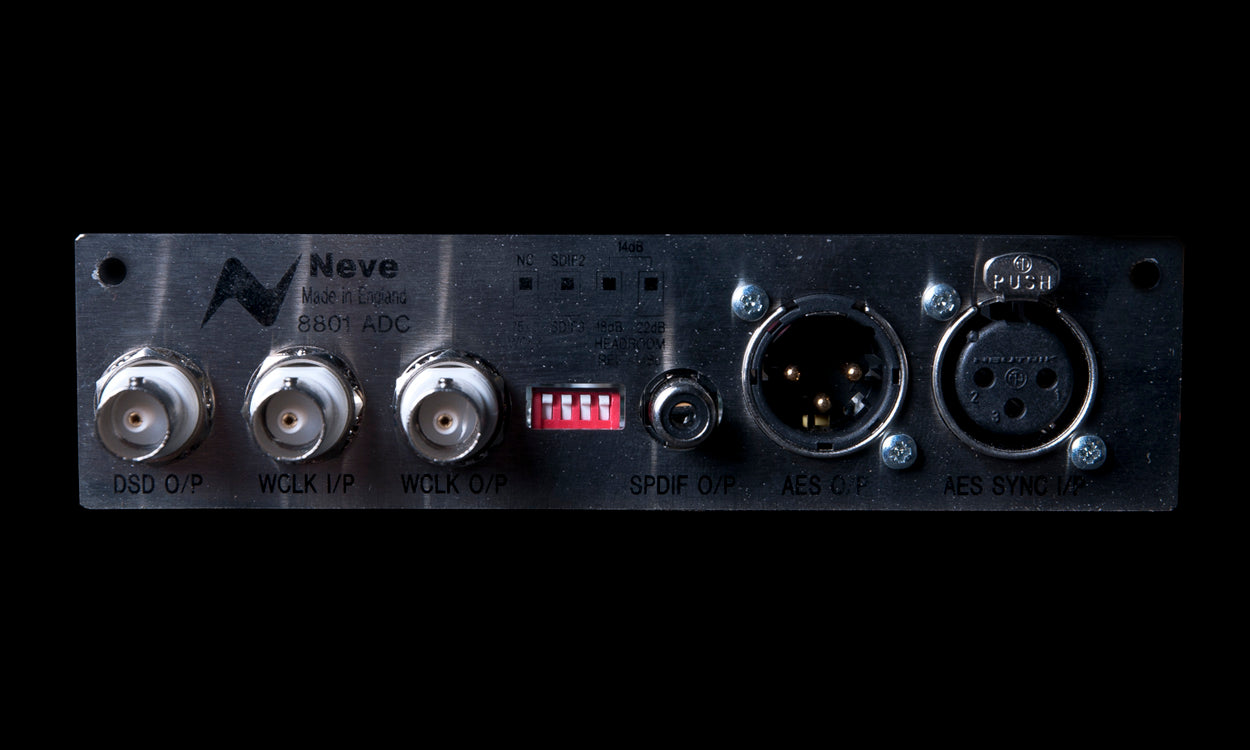

AMS Neve 8801ADC Card for 8801 Channel Strip. ADC for use with Neve 8801 Channel Strip.
View full details
  • Details
  • Reviews

   AMS Neve 8801ADC Card for 8801 Channel Strip

ADC for use with Neve 8801 Channel Strip

Digital Sync

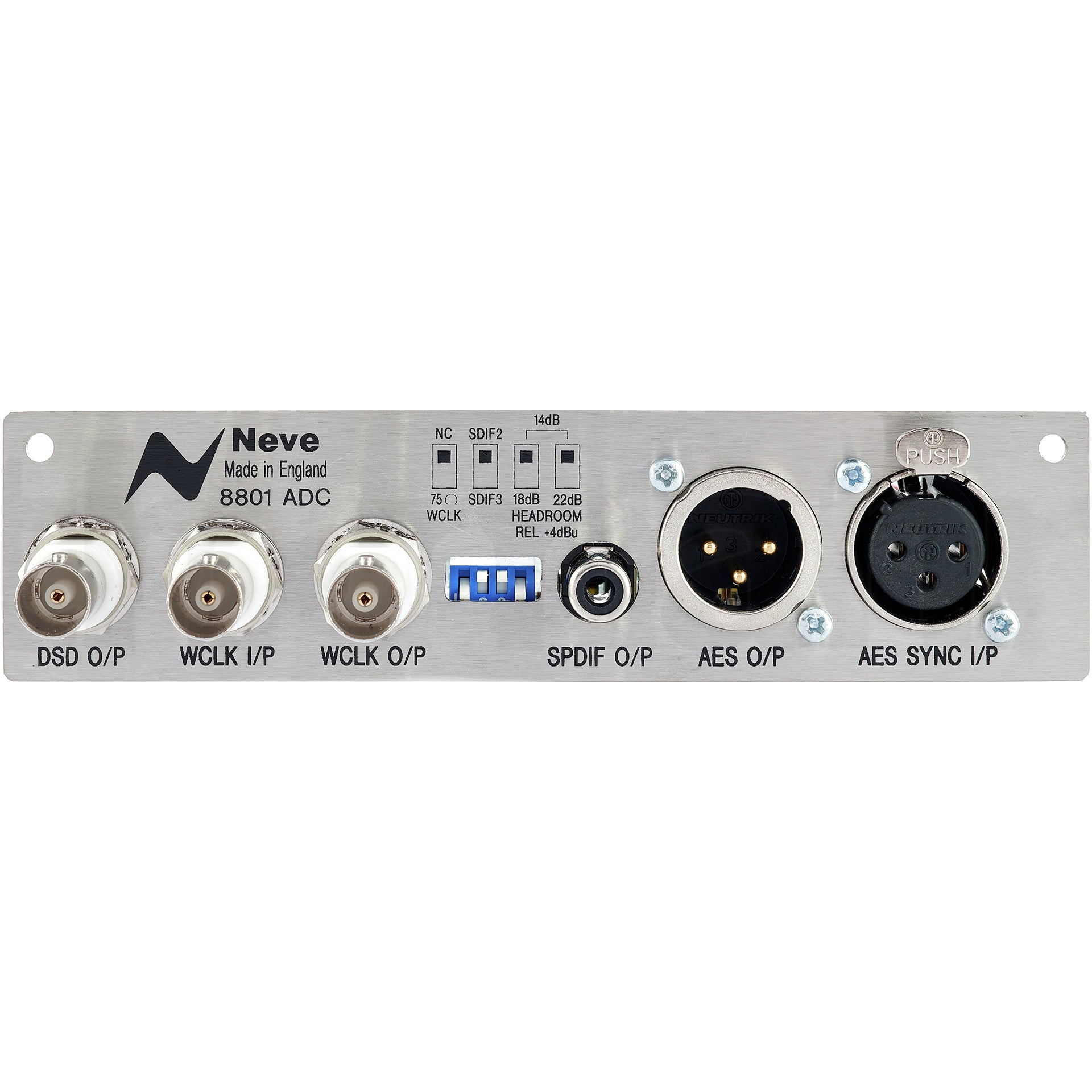

The ADC option board has 2 sync inputs, AES 3 on a female XLR and Word Clock on a BNC.

If neither sync input is present, the unit will synchronise to its internal clock.
If either of the sync inputs is present at the sampling frequency displayed on the front panel, the LED (AES or WCLK respectively) will illuminate green showing that the sync input is being used as a reference.
If the incoming sync sample rate differs from the sample rate displayed on the front panel, the WCK or AES LEDs will flash.
If both sync inputs are present and correct the word clock input will be used as the reference and the AES LED will flash.
More Information
Product Name AMS Neve 8801 ADC Card AD Output Card Option
Brand AMS Neve
Condition New
MPN 8801ADC
Shipping Option Free Shipping to the Continental U.S.

AMS Neve 8801 ADC Card AD Output Card Option

Details

   AMS Neve 8801ADC Card for 8801 Channel Strip

ADC for use with Neve 8801 Channel Strip

Digital Sync

The ADC option board has 2 sync inputs, AES 3 on a female XLR and Word Clock on a BNC.

If neither sync input is present, the unit will synchronise to its internal clock.
If either of the sync inputs is present at the sampling frequency displayed on the front panel, the LED (AES or WCLK respectively) will illuminate green showing that the sync input is being used as a reference.
If the incoming sync sample rate differs from the sample rate displayed on the front panel, the WCK or AES LEDs will flash.
If both sync inputs are present and correct the word clock input will be used as the reference and the AES LED will flash.
More Information
Product Name AMS Neve 8801 ADC Card AD Output Card Option
Brand AMS Neve
Condition New
MPN 8801ADC
Shipping Option Free Shipping to the Continental U.S.
