768 kHz HD Master Clock
The perfect solution for mastering, recording and project studios, film-scoring, post-production and live sound
For over a decade, Antelope’s legendary OCX Master Clock has been a dominant force in the audio world.
This legacy now continues with the newest master clock by Antelope Audio – Isochrone OCX HD.
The New Standard In Clocking
OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator.

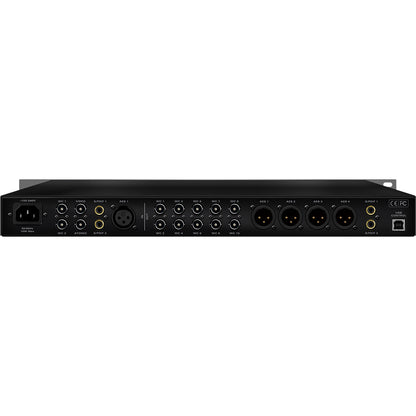

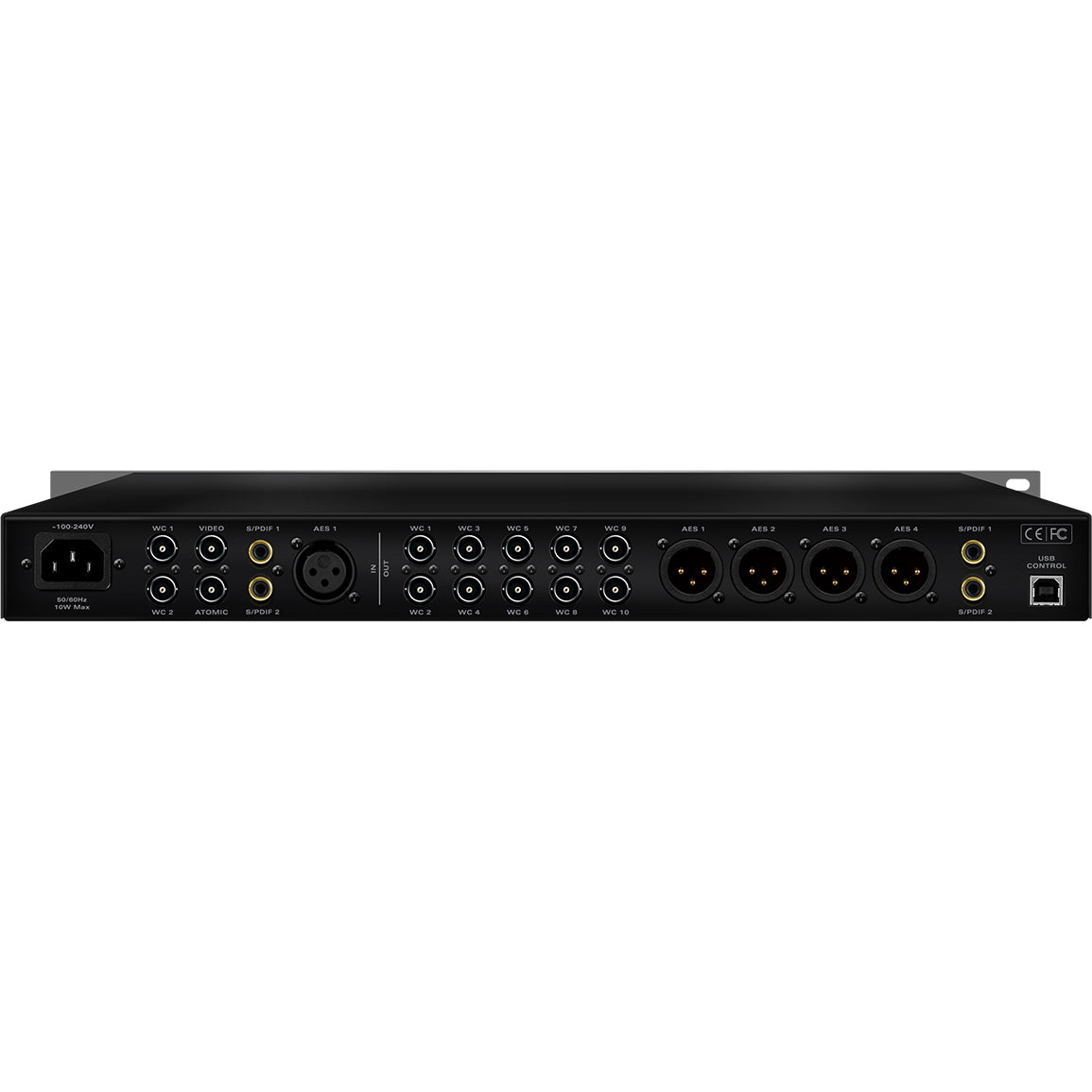

OCX HD Master Clock offers a great variety of clocking options – 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.
Video Clocking
All that you love about Antelope’s cult Trinity Master Clock now in just 1U.
Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope’s newest Atomic Clock – 10MX.
Advanced Control
Access all OCX HD features via Antelope Audio’s flexible software control panel
Antelope’s latest master clock benefits from flexible firmware update functionality, as featured in all new-generation Antelope products, allowing for fast and easy firmware updates on the user-friendly software control panel, available for both OS X and Windows.

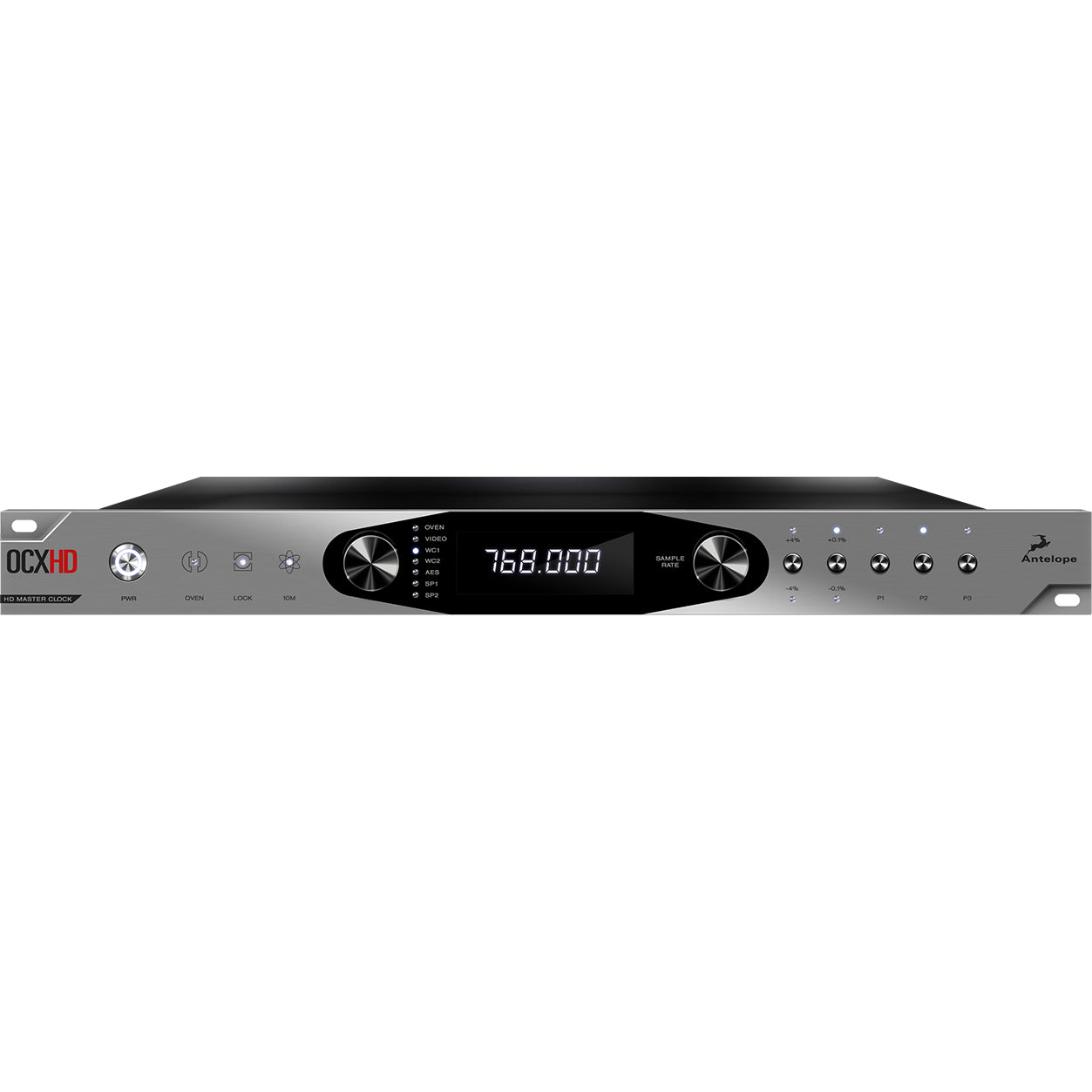

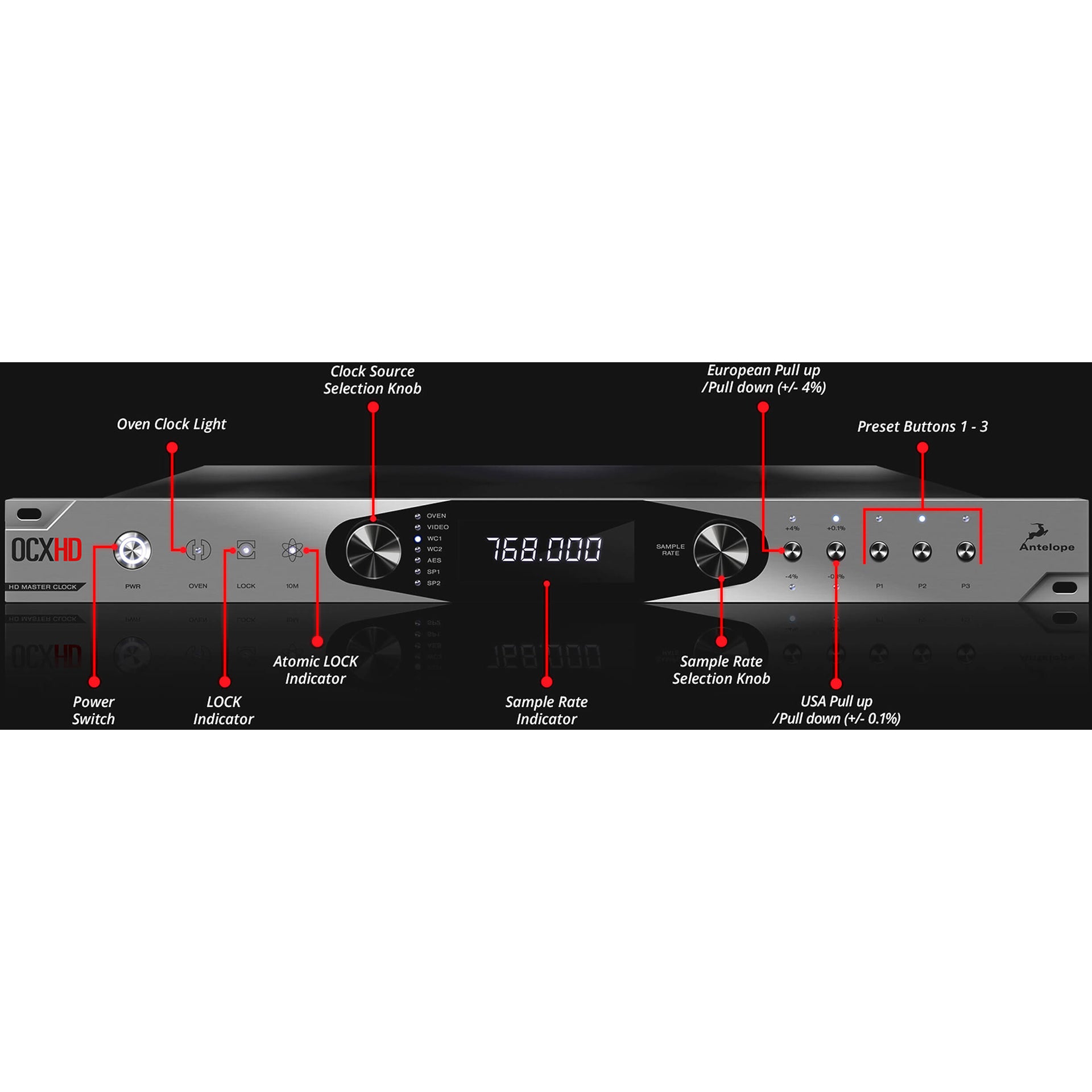

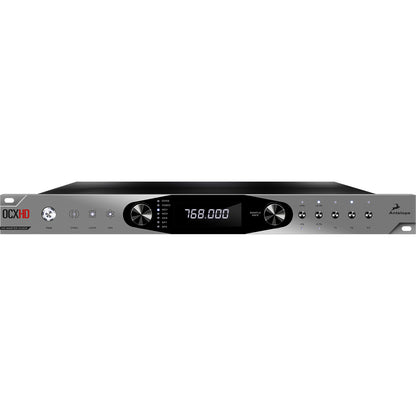

The desktop app provides convenient remote control to simplify project workflow. The device is also easily configurable from an elegant front panel, which will add a futuristic aesthetic to any gear rack.
{{asset=1101, align=center, width=75%}}
| Product Name | Antelope Audio OCX HD High Resolution Master Clock |
|---|---|
| Brand | Antelope Audio |
| Condition | New |
| MPN | OCXHD |
| UPC | 853744004144 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Antelope's 4th-generation AFC jitter management algorithm
- Sample rate support up to 768kHz
- Output of 5 distinct sample rates enabled by onboard multipliers and dividers
- Additional connectivity via 4 AES/EBU, 2 S/PDIF clocking outputs (up to 192kHz)
- Comprehensive audio gearboxing
- Universal video input (BNC connector)
- Atomic clock input for optimized accuracy and calibration
- 3 recallable presets
- Control panel Rate Lock protects your settings while in session
- User-friendly front panel control
Sample Rates Generated
- 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz
Master Clock Outputs
- 10x Word Clock Outputs up to 768kHz
- 4x AES/EBU Outputs up to 192kHz
- 2x S/PDIF Outputs up to 192kHz
Inputs
- 2x Word Clock Inputs up to 768kHz
- 1x Video Input accepting wide range of SD and HD video signals
- 1x Atomic Input
- 2x S/PDIF Inputs up to 192kHz
- 1x AES/EBU Input up to 192kHz
- 1x USB Input for control
Humidity
- 30 – 80% RH non-condensing
Clocking System
- 4th Generation Acoustically Focused Clocking
- 64-bit DDS
- Oven Controlled Crystal Oscillator
Clock Calibration
- < +/-0.001 ppm
Clock Stability
- <+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F
Clock Aging
- < 1 ppm per year
Atomic Clock Input
- 1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC
Sample Rates (kHz)
- 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)
Operating Temperature
- 0 – 50°C, 32-122°F
Weight
- 2.65 kg/5.84 lb
Dimensions
- 482.6 (W) Ñ… 230 (D) Ñ… 44 (H) mm
- 19 (W) x 9.05 (D) x 1.75 (H) inch
Power Supply
- AC Universal Input ~95-245V, 20 Watts Max
System Requirements
Windows
- OS: Windows 7/8/8.1/10
- Disk Space: Minimum 512 MB available disk space
- USB: 1x USB 2.0 Port
- Required USB bandwidth (for firmware update): 80%-90%
- CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
- Memory (RAM): 4GB Minimum (8GB or more Recommended)
Mac
- OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
- Disk Space: Minimum 512 MB available disk space
- USB: 1x USB 2.0/3.0 Port
- Required USB bandwidth: 80%-90%
- Memory(RAM): 4GB Minimum (8GB or more recommended)
- CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)
- Additional Info: Internet connection required for product activation.
