*Please note- This item is pre-owned and in excellent condition. Please see photos.

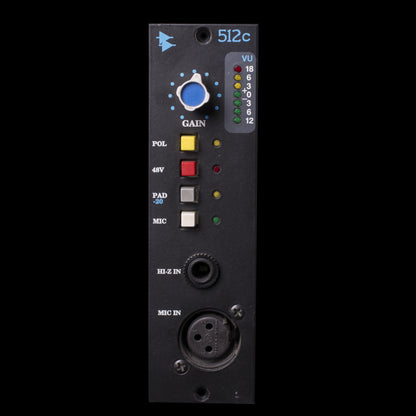

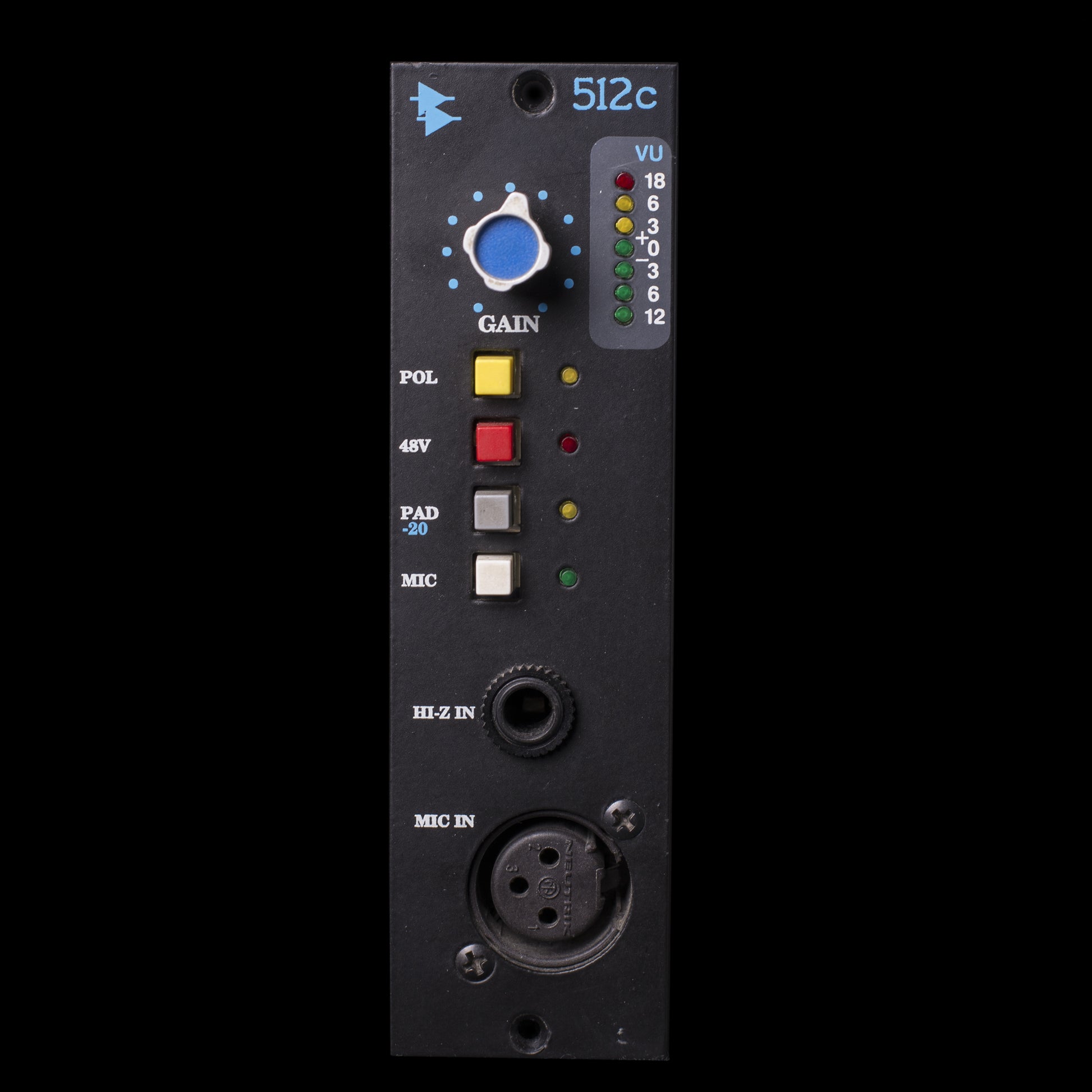

API 512C Discrete Mic / Line Pre Offering low noise (-129 EIN) and 65 dB of gain, the 512c includes phantom power, and switchable polarity, -20 dB pad and Mic or Instrument/Line selector. Front panel XLR and 1/4 inch connectors combined with rear panel mic access allows for additional flexibility when installed into an API lunchbox®, API's 10 position 500V vertical rack, or an API console. The API 512c remains faithful to the circuit designs of API's founder, Saul Walker. Fully featured and still hand assembled, the 512c carefully preserves the original sound character that made it so much a part of the early days of recording. Offering high headroom and a wide variety of inputs and input access points, it is equally at home in the commercial recording studio as it is in the home project studio. The 512c Mic/Line Preamp makes use of the 2520 op-amp and therefore exhibits the reliability, long life, and uniformity which are characteristic of all API products.
| Product Name | API 6bHC 6 Slot Lunch Box (C101427) |
|---|---|
| Brand | API |
| Condition | Pre-Owned |
| MPN | 512C |
| UPC | 612391300661 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Mic Preamp with 65dB of gain
- Front and Back Panel Mic Input Access
- Line/Instrument Preamp with 50dB of gain
- Front and Back Panel Line/Instrument Input
- LED VU meter for monitoring output level
- 20dB pad switch, applies to mic/line/instrument
- 48v Phantom switchable power
- Traditional API fully discrete circuit design
- Uses the famous API 2520 Op-amp
- Rear Connector:Output on edge connector, MIC Input on edge connector, can be defeated
- Front Connectors:XLR MIC Input, hi-Z 1/4" Unbal Input
- Gain Range:MIC, 10 dB min, 65 dB max. Unbal HI-Z Input, 14 dB min, 50 dB max
- Maximum Input Levels:MIC, +8 dBu, Unbal HI-Z Input, +36 dBu
- Input Impedance:MIC Input, 1500 Ohms (150 Ohm mic), HI-Z Unbal Input, 20 K Ohms
- Output Impedance:Less than 75 Ohms, Transformer Balanced
- Clipping Level:+30dBu
- Frequency Response:+0, -.3, 30Hz to 20kHz
- Equivalent Input Noise: -129, Mic In. -125, Un-Balanced In.
- Actual Metered Noise: Mic, -95 dBu, Un-Bal., -90 dBu
- Distortion:Less than .05% at +4 Out, Less than .1% at +28 Out
API 6bHC 6 Slot Lunch Box (C101427)
Details

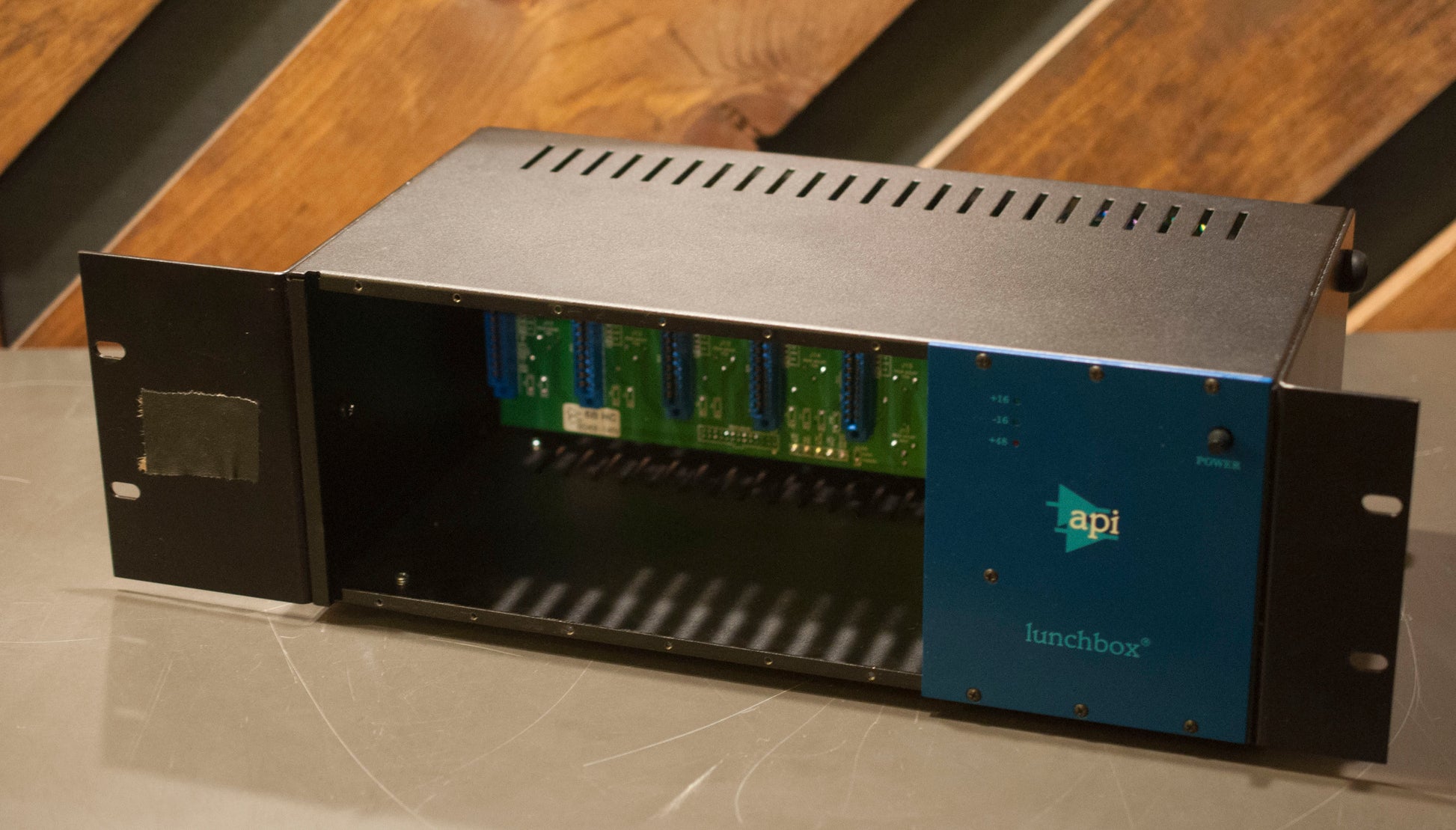

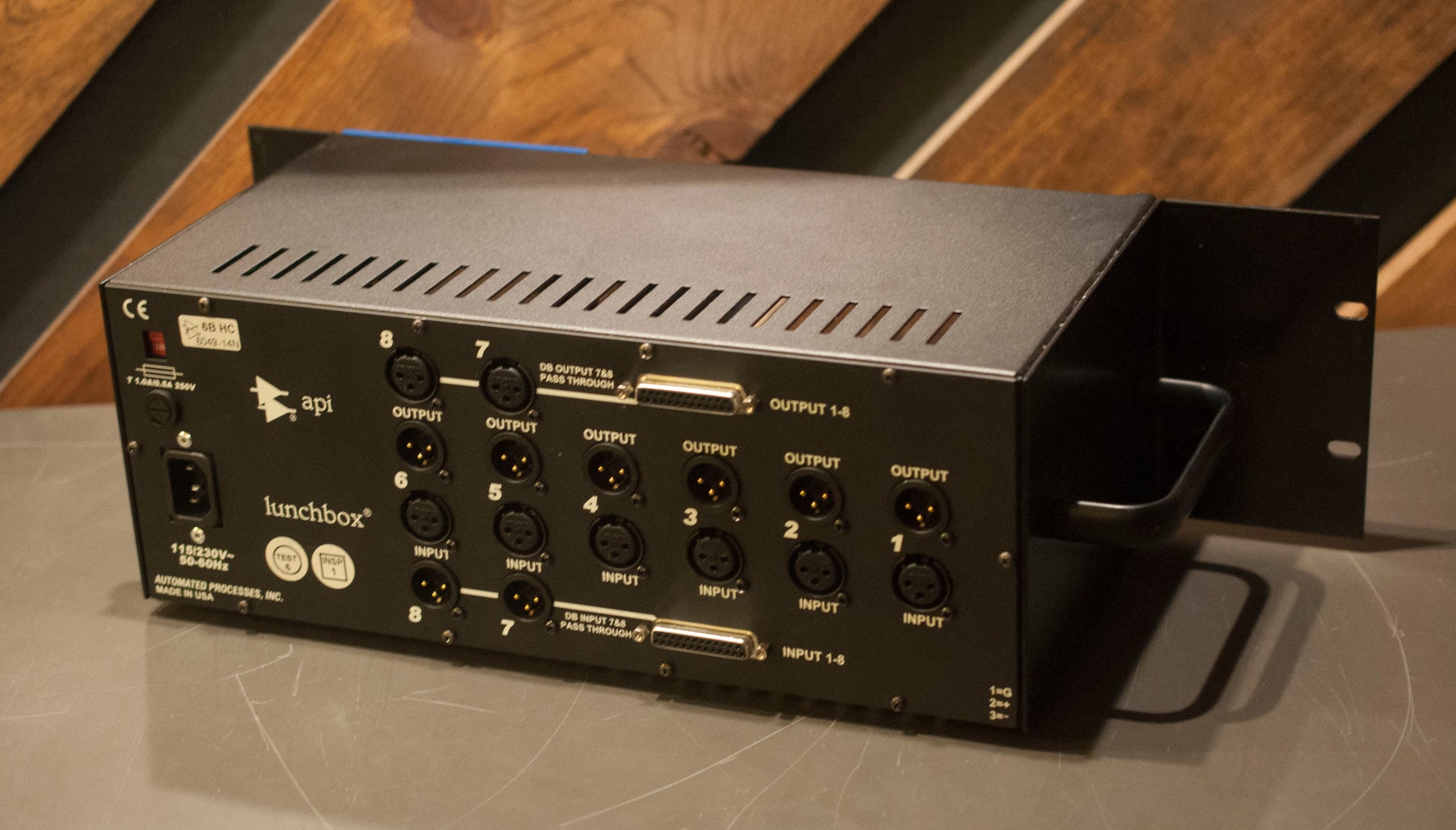

This is the High Current API 6 slot lunchbox. You don’t need to worry about any power issues with modules being used in this version.
| Product Name | API 6bHC 6 Slot Lunch Box (C101427) |
|---|---|
| Brand | API |
| Condition | Pre-Owned |
| MPN | 512C |
| UPC | 612391300661 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- Mic Preamp with 65dB of gain
- Front and Back Panel Mic Input Access
- Line/Instrument Preamp with 50dB of gain
- Front and Back Panel Line/Instrument Input
- LED VU meter for monitoring output level
- 20dB pad switch, applies to mic/line/instrument
- 48v Phantom switchable power
- Traditional API fully discrete circuit design
- Uses the famous API 2520 Op-amp
Tech Specs
- Rear Connector:Output on edge connector, MIC Input on edge connector, can be defeated
- Front Connectors:XLR MIC Input, hi-Z 1/4" Unbal Input
- Gain Range:MIC, 10 dB min, 65 dB max. Unbal HI-Z Input, 14 dB min, 50 dB max
- Maximum Input Levels:MIC, +8 dBu, Unbal HI-Z Input, +36 dBu
- Input Impedance:MIC Input, 1500 Ohms (150 Ohm mic), HI-Z Unbal Input, 20 K Ohms
- Output Impedance:Less than 75 Ohms, Transformer Balanced
- Clipping Level:+30dBu
- Frequency Response:+0, -.3, 30Hz to 20kHz
- Equivalent Input Noise: -129, Mic In. -125, Un-Balanced In.
- Actual Metered Noise: Mic, -95 dBu, Un-Bal., -90 dBu
- Distortion:Less than .05% at +4 Out, Less than .1% at +28 Out
