Please note these are open box items! Never used!

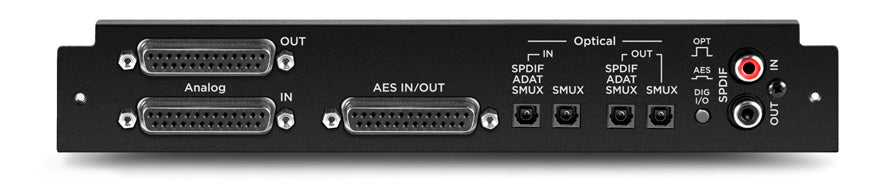

The A8X8 from Apogee is a 16-channel module for the Symphony I/O that allows for any combination of 8 x 8 analog input and output, and 8 x 8 AES/EBU or optical digital input and output. The module occupies one of the two slots available on the chassis and represents 25 years of Apogee research and design excellence.
Refined and updated circuitry with fewer, more advanced components allows for a shorter audio path, resulting in more clarity and transparency and a more efficient power distribution. The module features enhanced C777 clocking performance and lower converter latency.
The analog and AES I/O require optional breakout cables, available in various configurations to suit individual requirements.
8 x 8 channels of analog input/output with 8 x 8 channels of AES/EBU or optical digital input/output, available simultaneously up to a total of 16 channels
Optical digital supports ADAT, SMUX, and S/PDIF
S/PDIF input and output up to 192 kHz on RCA coaxial that replaces two input channels and mirrors two output channels
Ultra low latency AD and DA conversion
Rear panel Dig I/O hardware switch selects AES or optical digital I/O format
ADC 24-bit
DAC 24-bit
Sample Rates Up to 192kHz
Analog In 1 x 25-pin D-Sub (requires optional breakout cable)
Input Impedance 10kΩ
Maximum Input Level 24 dBu
Analog Outputs 1 x 25-pin D-Sub (requires optional breakout cable)
Output Impedance 25Ω
Maximum Output Level â to +24dBu
Digital Input Connectors 1 x 25-pin D-Sub (requires optional breakout cable) shared with output
1 x RCA coaxial S/PDIF
2 x TOSLink optical ADAT or S/PDIF
Digital Output Connectors 1 x 25-pin D-Sub (requires optional breakout cable) shared with output
1 x RCA coaxial S/PDIF
2 x TOSLink optical ADAT or S/PDIF
Dynamic Range A/D: 120 dB A-weighted
D/A: 129 dB A-weighted
THD + N -113dB @ 20 dBu (0.00024%)
D/A: -117dB @ 20 dBu (0.00014%)
Frequency Response A/D: 1 Hz to 20 kHz (+/-0.05 dB) @ 44.1 kHz
D/A: DC to 20 kHz (+/-0.05 dB) @ 44.1 kHz
Word Clock On chassis
Power Requirements From chassis
Dimensions (WxDxH) Fits slot on chassis
| Product Name | Apogee A8X8 16-Channel Analog AES/Optical (A8X8) |
|---|---|
| Brand | Apogee |
| Shipping Option | Free Shipping to the Continental U.S. |
