Symphony I/O 2x6 SE is the best converter in Apogee’s 30 year history and features two analog line level inputs via XLR connectors to connect to mic preamps, outboard gear or any line level signal with the absolute best conversion. The output section features six line level outputs via DB-25 for multiple monitor pairs, or even 5.1 surround mixing.
2x6 SE takes advantage of the latest advancements in digital audio technology offering line level inputs with 124 dB (A) of dynamic range, THD+N of -116dB and line level outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB. The D/A stage incorporates the latest DAC technology, carefully optimized to offer mastering engineers the ultimate transparency to make critical adjustments with confidence. Whether you’re working with analog outboard gear or digitally in a DAW, the 2x6 SE retains every bit of warmth, punch and image in your recordings and signal processing chain.
2x6 SE module is available to expand existing Symphony I/O MkII Thunderbolt and Symphony I/O MkII Pro Tools HD systems. The 2x6 SE module may be installed in the second open module slot of any Symphony I/O MkII chassis alongside an 8X8 or 16X16 configuration.
| Product Name | Apogee Symphony I/O MkII 2x6 SE - Module |
|---|---|
| Brand | Apogee |
| Condition | New |
| MPN | 2X6SE |
| UPC | 805676302102 |
| Shipping Option | Free Shipping on orders over $94.72 |
- Highest Quality Apogee AD/DA converter
- A/D = 124dB (A) dynamic range, -116dB THD+N
- D/A = 131dB (A) dynamic range, -118dB THD+N

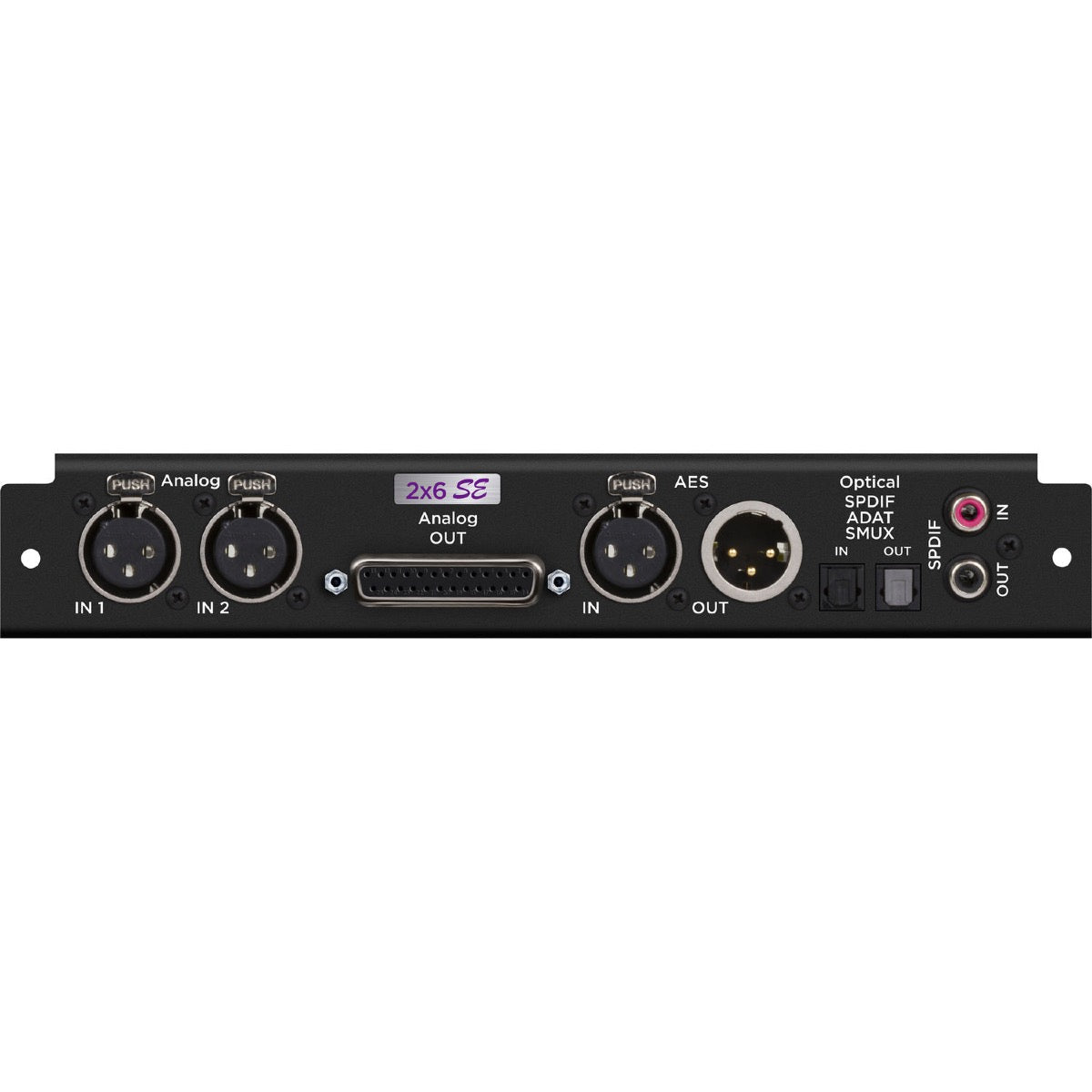

- 2 analog line-level inputs via XLR
- 6 analog line-level outputs via DB-25
- Fully trimmable analog input and output
- 2 channels of AES/EBU I/O via XLR
- Optical I/O - supports ADAT, SMUX, and S/PDIF:
- ADAT - eight channels; 44.1kHz-48kHz on one TOSlink connector
- SMUX - four channels; 88.2kHz-96kHz on one TOSlink connector
- S/PDIF - two channels; up to 96kHz on one TOSlink connector
- S/PDIF Coaxial I/O - 2 channels; up to 192kHz via RCA connector
- May be installed in any Symphony I/O MkII Thunderbolt or PTHD chassis with an available module slot.
*Not compatible with Symphony I/O MkII SoundGrid chassis.
Apogee Symphony I/O MkII 2x6 SE - Module
Symphony I/O 2x6 SE is the best converter in Apogee’s 30 year history and features two analog line level inputs via XLR connectors to connect to mic preamps, outboard gear or any line level signal with the absolute best conversion. The output section features six line level outputs via DB-25 for multiple monitor pairs, or even 5.1 surround mixing.
2x6 SE takes advantage of the latest advancements in digital audio technology offering line level inputs with 124 dB (A) of dynamic range, THD+N of -116dB and line level outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB. The D/A stage incorporates the latest DAC technology, carefully optimized to offer mastering engineers the ultimate transparency to make critical adjustments with confidence. Whether you’re working with analog outboard gear or digitally in a DAW, the 2x6 SE retains every bit of warmth, punch and image in your recordings and signal processing chain.
2x6 SE module is available to expand existing Symphony I/O MkII Thunderbolt and Symphony I/O MkII Pro Tools HD systems. The 2x6 SE module may be installed in the second open module slot of any Symphony I/O MkII chassis alongside an 8X8 or 16X16 configuration.
| Product Name | Apogee Symphony I/O MkII 2x6 SE - Module |
|---|---|
| Brand | Apogee |
| Condition | New |
| MPN | 2X6SE |
| UPC | 805676302102 |
| Shipping Option | Free Shipping on orders over $94.72 |
- Highest Quality Apogee AD/DA converter
- A/D = 124dB (A) dynamic range, -116dB THD+N
- D/A = 131dB (A) dynamic range, -118dB THD+N
- 2 analog line-level inputs via XLR
- 6 analog line-level outputs via DB-25
- Fully trimmable analog input and output
- 2 channels of AES/EBU I/O via XLR
- Optical I/O - supports ADAT, SMUX, and S/PDIF:
- ADAT - eight channels; 44.1kHz-48kHz on one TOSlink connector
- SMUX - four channels; 88.2kHz-96kHz on one TOSlink connector
- S/PDIF - two channels; up to 96kHz on one TOSlink connector
- S/PDIF Coaxial I/O - 2 channels; up to 192kHz via RCA connector
- May be installed in any Symphony I/O MkII Thunderbolt or PTHD chassis with an available module slot.
*Not compatible with Symphony I/O MkII SoundGrid chassis.
