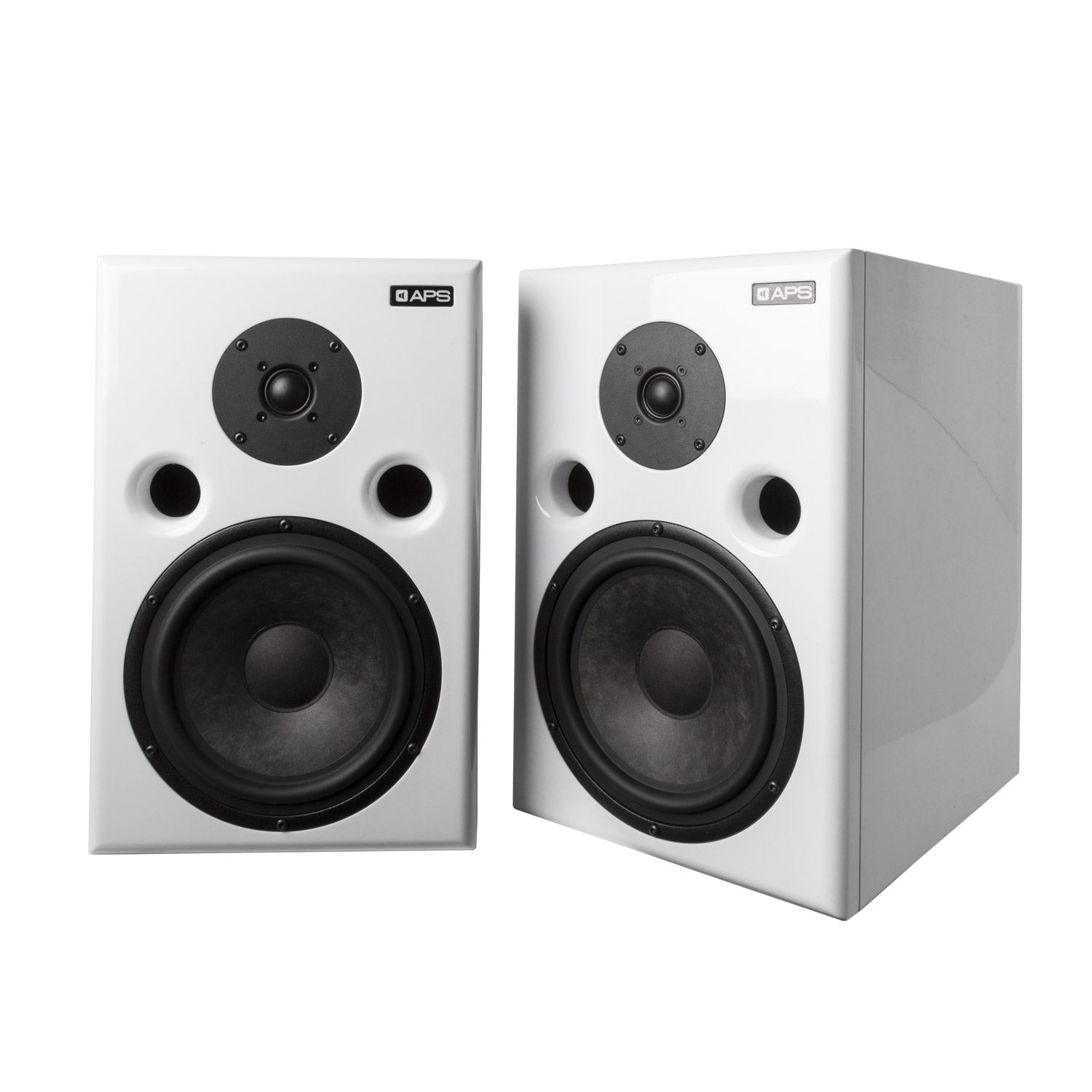

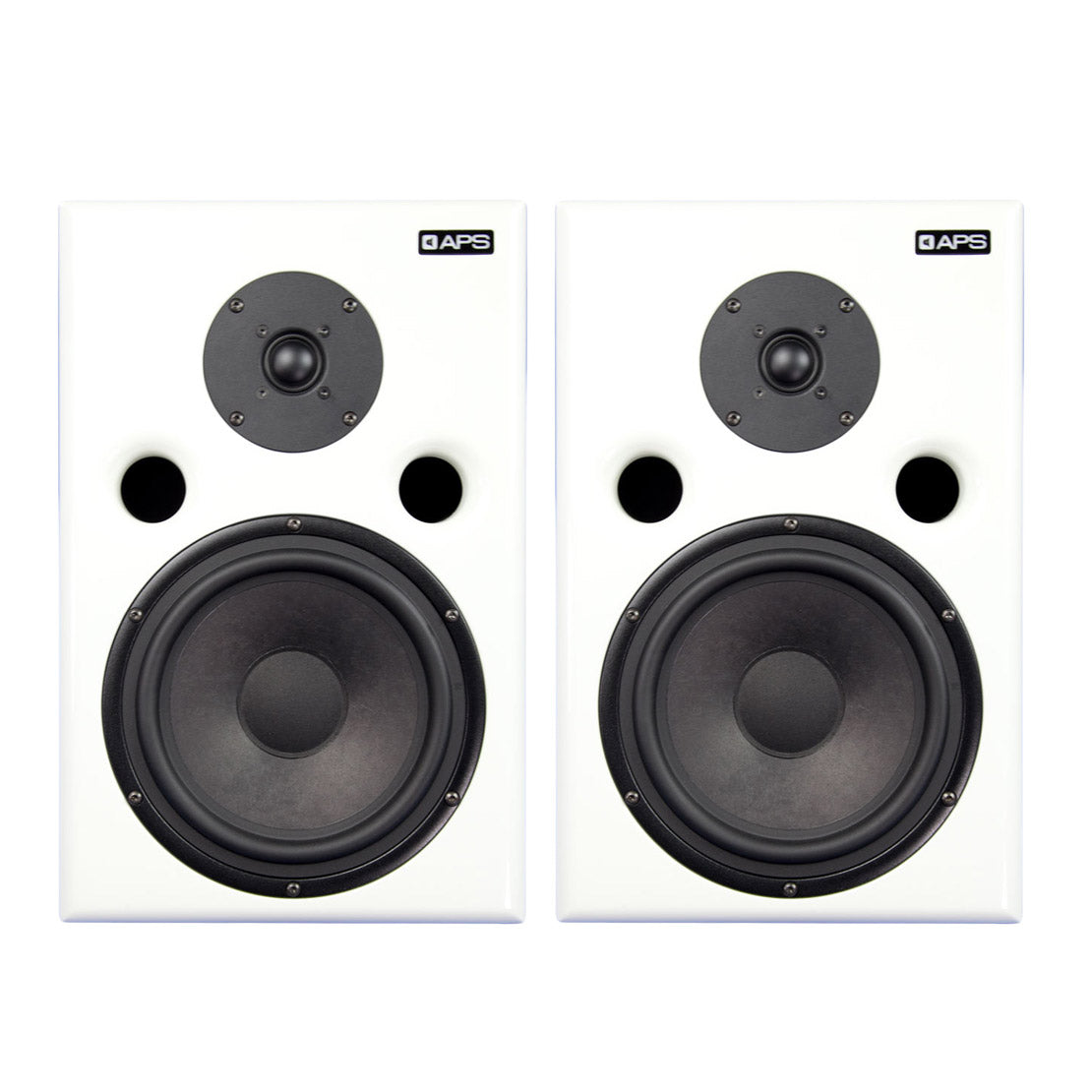

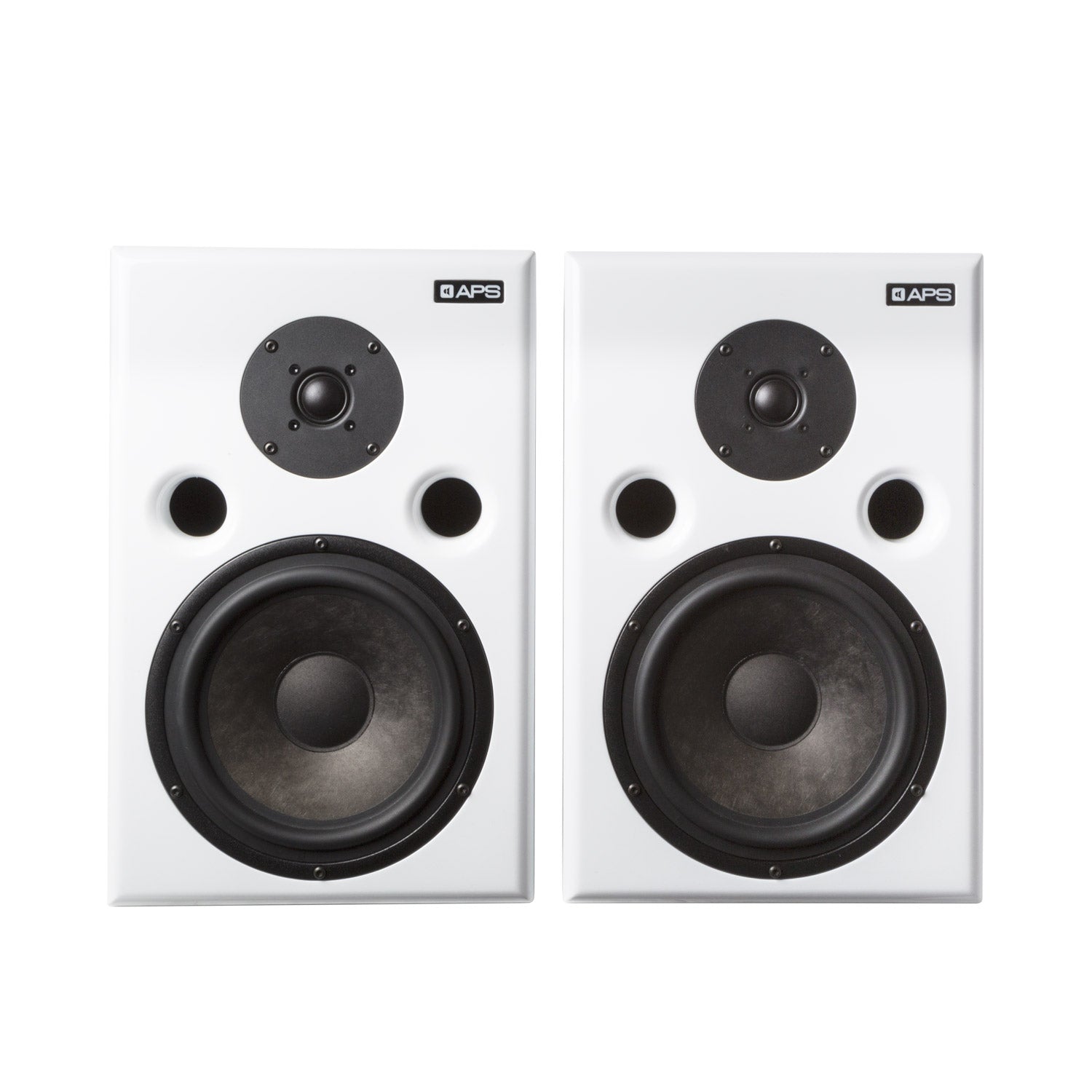

AEON monitor is an active 2-way appliance equipped with two speakers (tweeter and woofer) and two independent power amplifiers for each speaker, fixed on the back plate of the monitor enclosure, as well as with an appropriate set of precise regulators, signalizes, inputs and security devices.
The monitor construction is based on speakers produced by a Norwegian company SEAS. The woofer meets the APS strict requirements. The monitors are offered in two versions: with a titanium or a fabric dome tweeter.

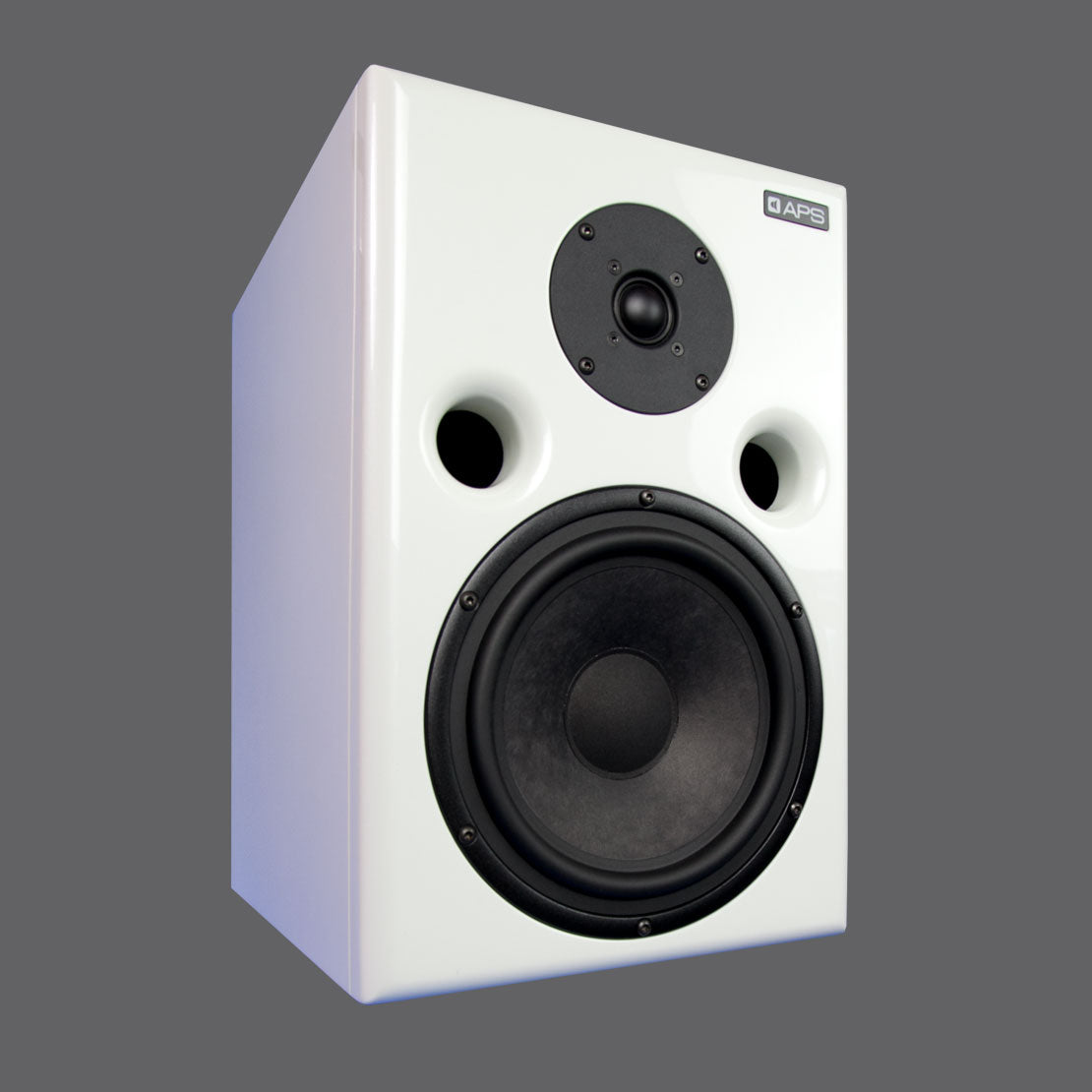

The monitor has been closed in the bass reflex enclosure with front ventilation, providing a dynamic bass properly filled with low frequencies. The edges of the monitor enclosure have been rounded to reduce reflections and to improve the quality of produced sound. The inner wall of the enclosure that completely separates the electronic module from the speaker chamber constitutes at the same time a significant reinforcement of the enclosure eliminating excessive oscillations of the monitor enclosure side walls.
| Product Name | APS Aeon Studio Monitors Pair |
|---|---|
| Brand | APS |
| Condition | New |
| MPN | aeon |
| Shipping Option | Free Shipping to the Continental U.S. |
NEAR-MID FIELD MONITOR
- TypeActive – two power amplifiers
- Tweeter: monolithic integrated circuit TDA7294
- Woofer: Woofer p.a.: operates on 2SA1943/2SC5200
SystemTwo-way
- Crossover Frequency1.5 kHz (slope: 24 dB/octave)
- DimensionsHeight x Width x Depth
- 42 cm x 27 cm x 36 cm / 16.6" x 10.5" x 14"
- Free Field Frequency Response±2 dB: 30 Hz - 30 kHz
- SPL in Free Field @ 1mRMS: 108 dB (single)
- Peak: 116 dB (pair)
- Weight18 kg / 39.6 lbs
LOUDSPEAKERS
- Bass/Mid-Range LoudspeakerØ 22 cm / 8"
- Diaphragm: cellulose, surround: rubber
- Magnetically Shielded
- Tweeter loudspeakerØ 2.5 cm / 1" in two versions:
- Titanium dome
- Fabric dome
- Magnetically Shielded
AMPLIFIERS
- Bass/Mid-Range Power Amplifier150 W RMS @ 4Ω
- Tweeter Power Amplifier70 W RMS @ 6Ω
- Total Harmonic Distortions0.005 % – PO = 5 W, f = 1 kHz
- 0.1 % max – PO = 0.1 up to 50 W, f = 20 Hz up to 20 kHz
- Signal to Noise Ratio103.5 dB – weighted by A curve
- 101 dB – in band of 20 Hz up to 20 kHz
- Input Voltage Level for 100 dB SPL in Free Field @ 1m0 dBu (i.e. 0.775 V) – calibrated regulators in 0 dBu, 0 dB positions

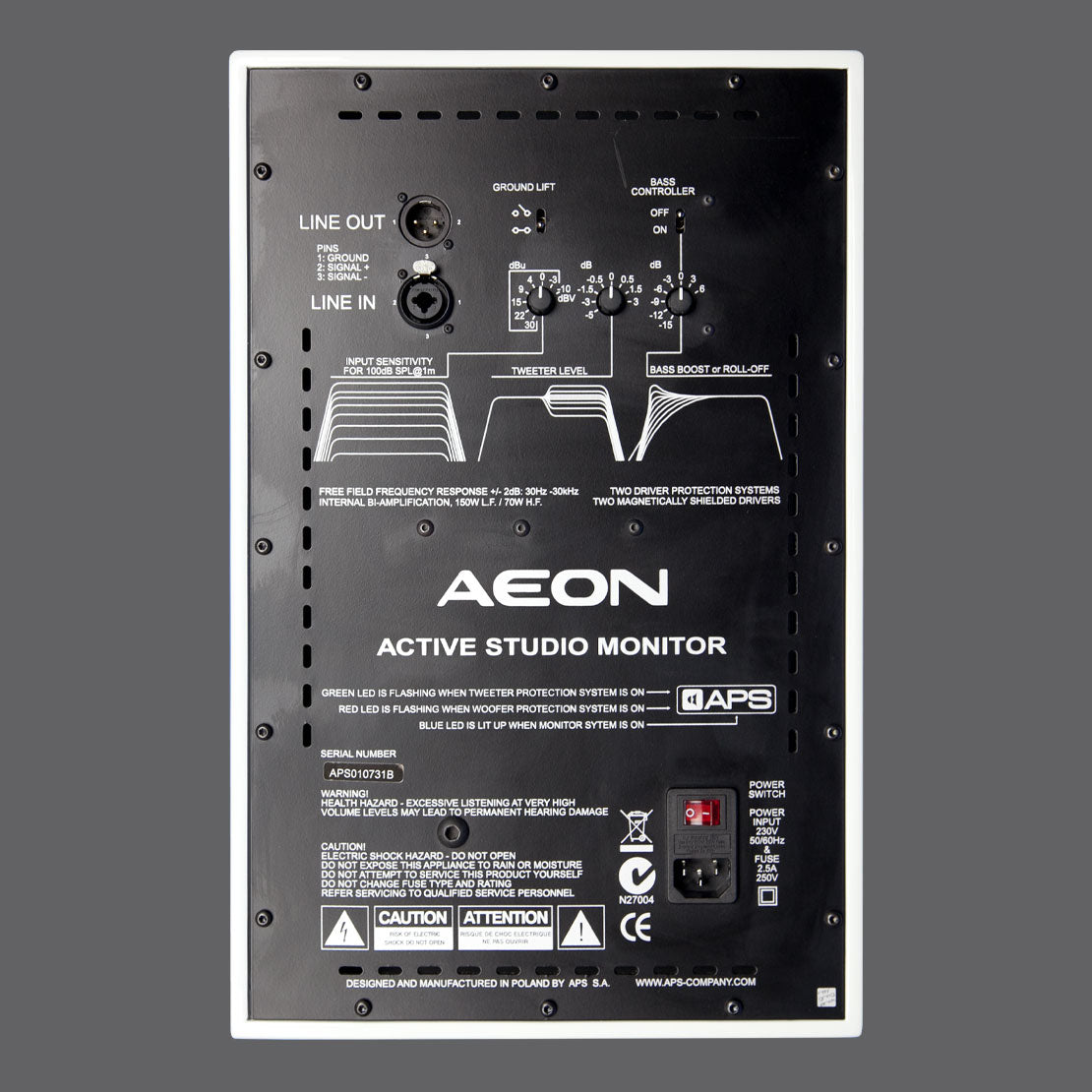

CALIBRATED CONTROLS
- Input Sensitivity Switch30dBu, 22dBu, 15dBu, 9dBu, 4dBu, 0dBu, -3dBu, -10dBV
- Bass Controller Level Switch-15dB, -12dB, -9dB, -6dB, -3dB, 0dB, 3dB, 6dB
- Bass Controller SwitchPosition ON: bass-reflex with active filter
- Position OFF: "clear" quick bass-reflex
- Tweeter Loudspeaker Level Switch-5dB, -3dB, -1.5dB, -0.5dB, 0dB, 0.5dB, 1.5dB, 3dB

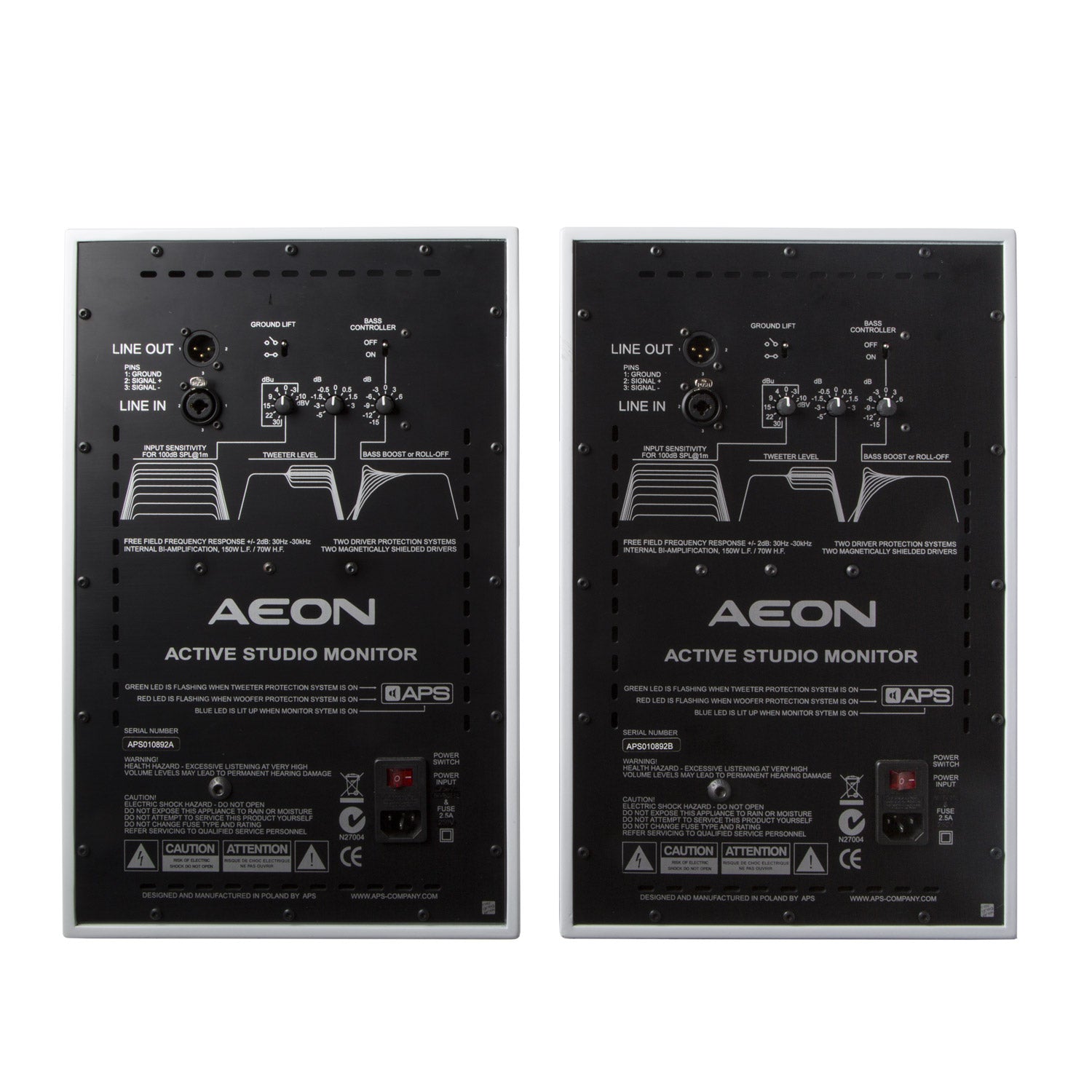

INPUTS, OUTPUTS
- InputTwo Types (common socket Combo):
- XLR symmetrical (balanced)
- TRS symmetrical (balanced) 6.3 mm
- Input Impedance 10 kΩ
- „Loop Through” OutputXLR symmetrical
- Output Impedance 100Ω
PROTECTIONS
- Tweeter Loudspeaker ProtectionLimiter (optical)
- Bass/Mid-Range Loudspeaker ProtectionLimiter (optical)
- Power Amplifiers Protections
- Interference, thermal, short circuit and over-current limiters
