The ART Solo Series is a range of highly affordable, all-analog, single-channel processors. They offer flexible tone shaping with intuitive controls and the unmistakable sound of real tubes.
The Solo Studio might be the most versatile member of the family, combining elements of the Solo MPA preamp and Solo VLA compressor into a single 1U channel strip.
It offers 40 dB of input gain, phantom power, a tilt EQ to balance lows and highs, and an 80 Hz high-pass filter to reduce rumble and tighten bass.
Activate the optical compressor for smooth, transparent control of your dynamics and your choice of a pristine clean or warm tube signal path. The backlit VU meter can show gain reduction or output level for easy reference.

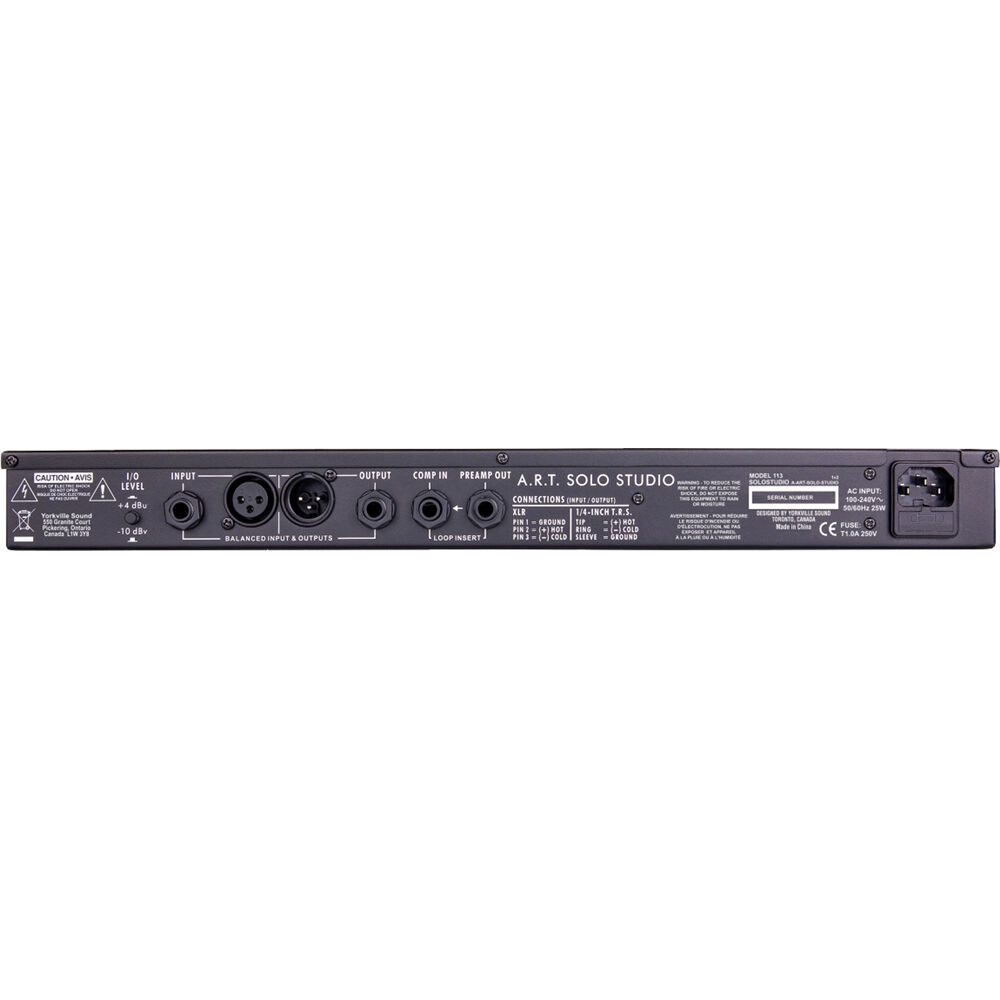

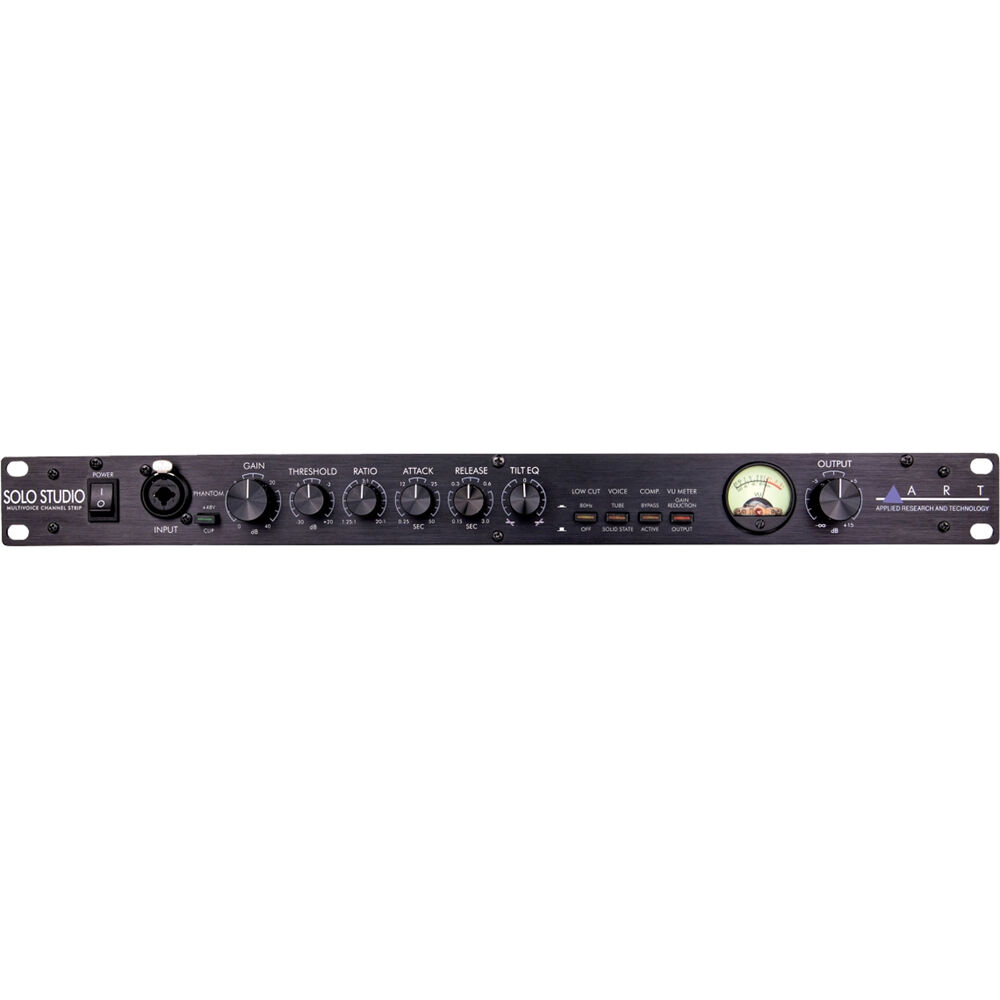

The front combo jack lets you quickly change sources without getting behind your rack. The rear panel has XLR and 1/4” inputs and outputs, and an insert point between the preamp and compression stages.
Packed with features, the Solo Studio is a powerful channel strip and DI that expands your recording setup with flexible tone shaping, musical compression, and real tube saturation.
| Product Name | ART SoloStudio Multi-voice Channel Strip |
|---|---|
| Brand | ART |
| Condition | New |
| MPN | SOLOSTUDIO |
| UPC | 840402050766 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- ART SoloStudio Multi-voice Channel Strip
- IEC Power Cable
- 48 Volt Switchable Phantom Power
- Selectable Multi-Voice Tube/Solid State Control
- Hand selected 12AT7 Tube
- OPTO - Analog Optical Isolators (AOI)
- Optical Controlled Compression
- Pre-Compression Insert Loop
- Flexible Tilt EQ
- Selectable Low Cut Filter (HPF)
- Variable Threshold and Ratio controls
- Variable Attack and Release controls
- Variable Blend (Compression)
- Variable Output Level Control
Performance |
|
|---|---|
| Input Impedance | 47 kΩ (XLR), >800 kΩ (Instrument) |
| Output Impedance | <47 Ω (XLR) |
| Maximum Input Level | +19 dBu (XLR) |
| Maximum Output Level | +27 dBu (XLR) |
| Maximum Gain | 55 dB |
| Frequency Response | 15 Hz – 50 kHz (+0, –1 dB) |
| Equivalent Input Noise | –129 dBu (XLR, “A” weighted) |
| CMRR | >90 dB |
Power |
|
| Power Requirements | 100–240 V, 50/60 Hz |
Physical |
|
| Dimensions (H × W × D) | 1.75" × 19" × 6.0" (4.45 × 48.3 × 15.2 cm) |
| Weight | 5.6 lbs (2.5 kg) |
ART SoloStudio Multi-voice Channel Strip
Details
The ART Solo Series is a range of highly affordable, all-analog, single-channel processors. They offer flexible tone shaping with intuitive controls and the unmistakable sound of real tubes.
The Solo Studio might be the most versatile member of the family, combining elements of the Solo MPA preamp and Solo VLA compressor into a single 1U channel strip.
It offers 40 dB of input gain, phantom power, a tilt EQ to balance lows and highs, and an 80 Hz high-pass filter to reduce rumble and tighten bass.
Activate the optical compressor for smooth, transparent control of your dynamics and your choice of a pristine clean or warm tube signal path. The backlit VU meter can show gain reduction or output level for easy reference.
The front combo jack lets you quickly change sources without getting behind your rack. The rear panel has XLR and 1/4” inputs and outputs, and an insert point between the preamp and compression stages.
Packed with features, the Solo Studio is a powerful channel strip and DI that expands your recording setup with flexible tone shaping, musical compression, and real tube saturation.
| Product Name | ART SoloStudio Multi-voice Channel Strip |
|---|---|
| Condition | New |
| MPN | SOLOSTUDIO |
| UPC | 840402050766 |
What's in the Box?
- ART SoloStudio Multi-voice Channel Strip
- IEC Power Cable
Features
- 48 Volt Switchable Phantom Power
- Selectable Multi-Voice Tube/Solid State Control
- Hand selected 12AT7 Tube
- OPTO - Analog Optical Isolators (AOI)
- Optical Controlled Compression
- Pre-Compression Insert Loop
- Flexible Tilt EQ
- Selectable Low Cut Filter (HPF)
- Variable Threshold and Ratio controls
- Variable Attack and Release controls
- Variable Blend (Compression)
- Variable Output Level Control
Tech Specs
Performance |
|
|---|---|
| Input Impedance | 47 kΩ (XLR), >800 kΩ (Instrument) |
| Output Impedance | <47 Ω (XLR) |
| Maximum Input Level | +19 dBu (XLR) |
| Maximum Output Level | +27 dBu (XLR) |
| Maximum Gain | 55 dB |
| Frequency Response | 15 Hz – 50 kHz (+0, –1 dB) |
| Equivalent Input Noise | –129 dBu (XLR, “A” weighted) |
| CMRR | >90 dB |
Power |
|
| Power Requirements | 100–240 V, 50/60 Hz |
Physical |
|
| Dimensions (H × W × D) | 1.75" × 19" × 6.0" (4.45 × 48.3 × 15.2 cm) |
| Weight | 5.6 lbs (2.5 kg) |
