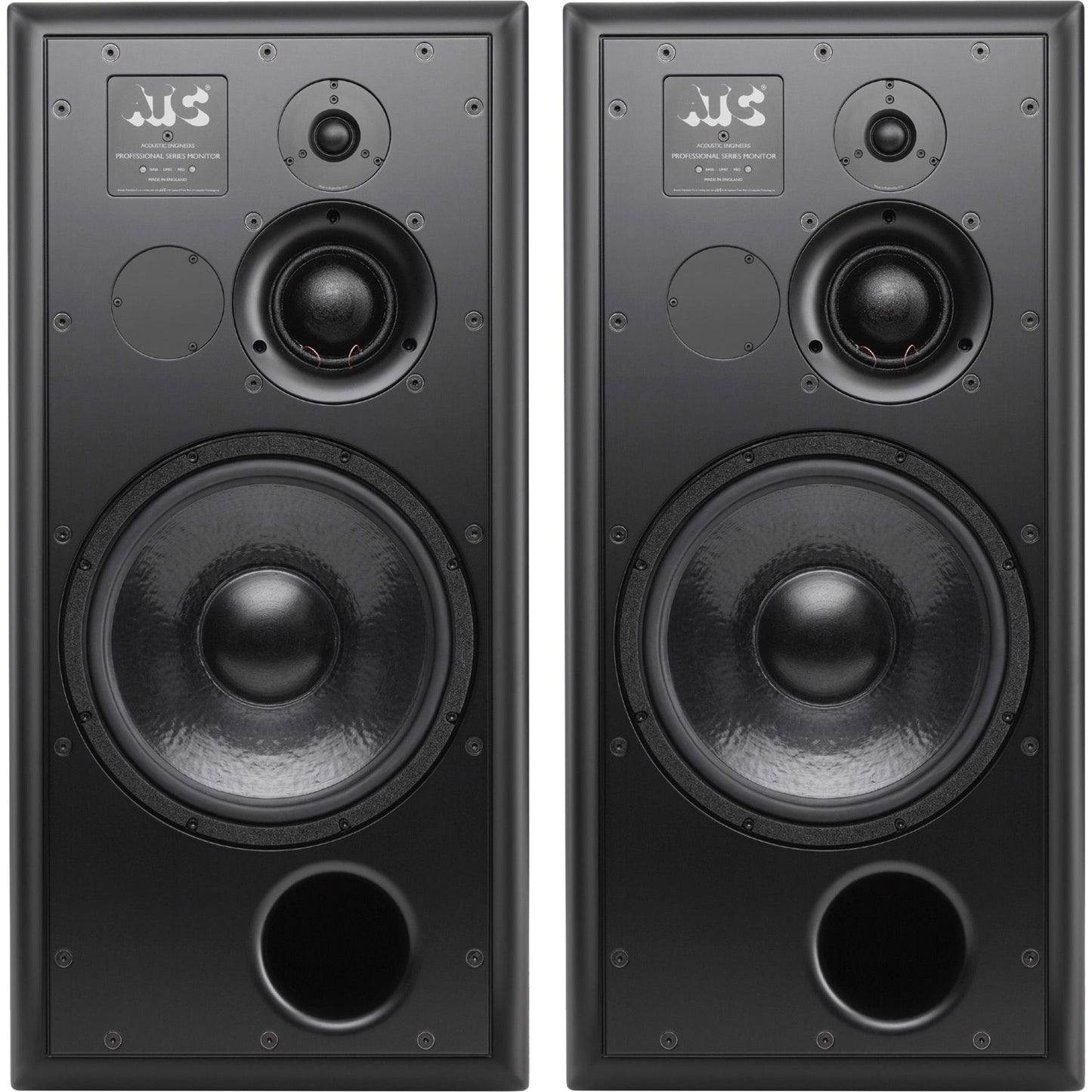

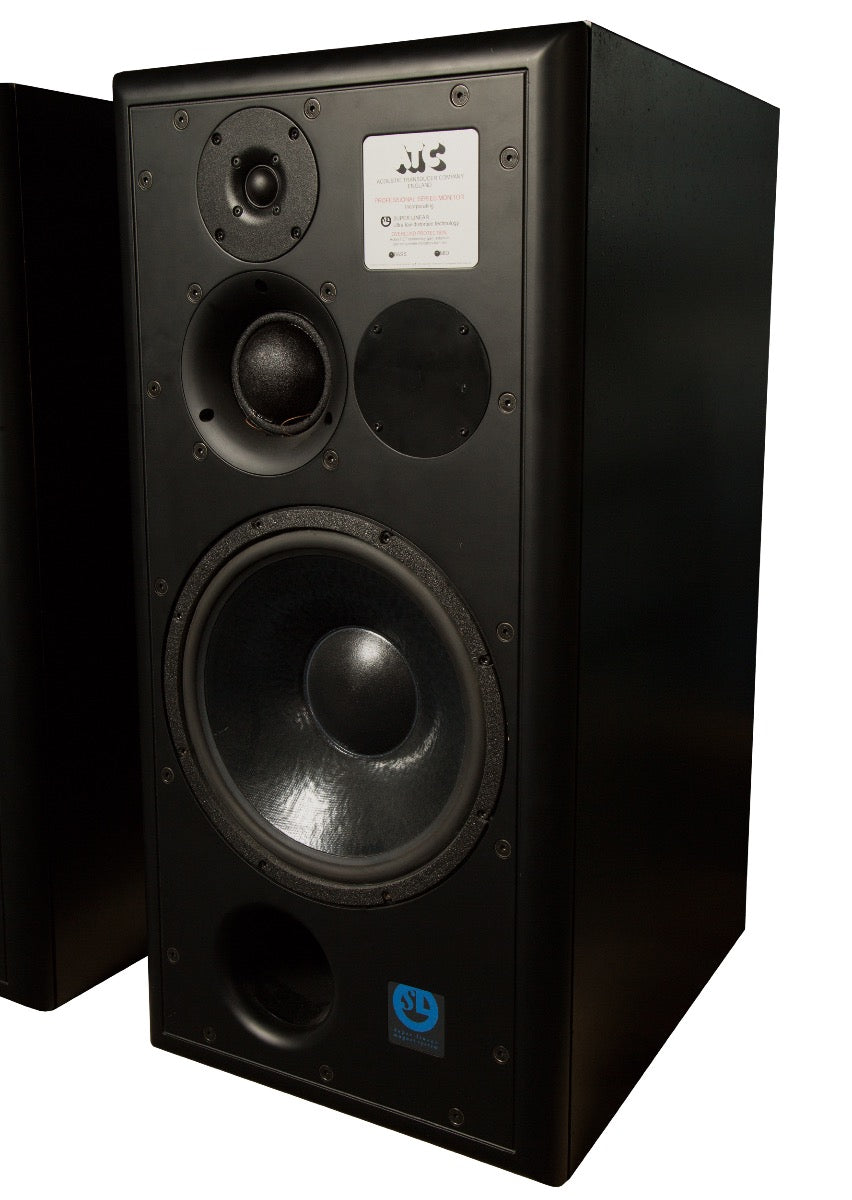

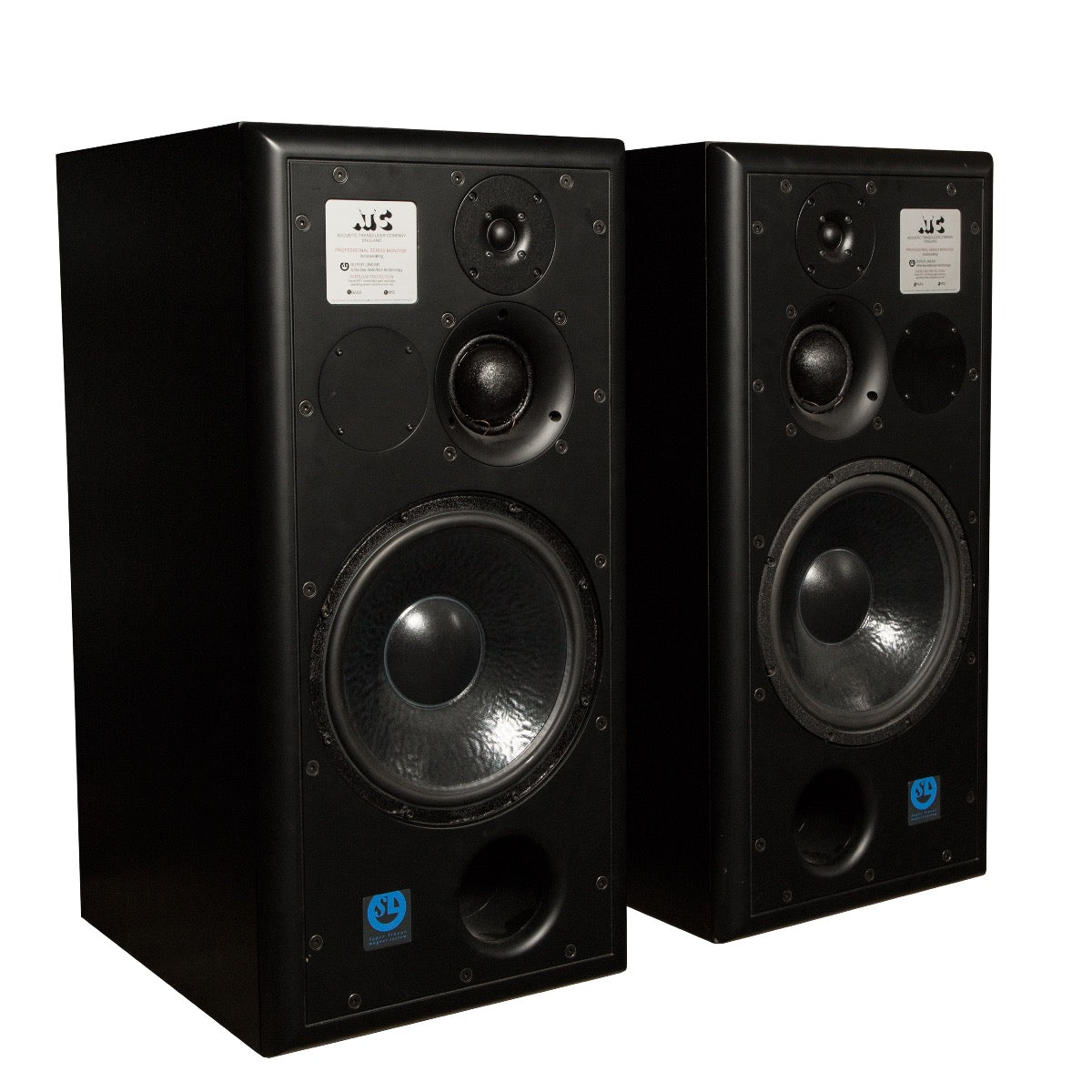

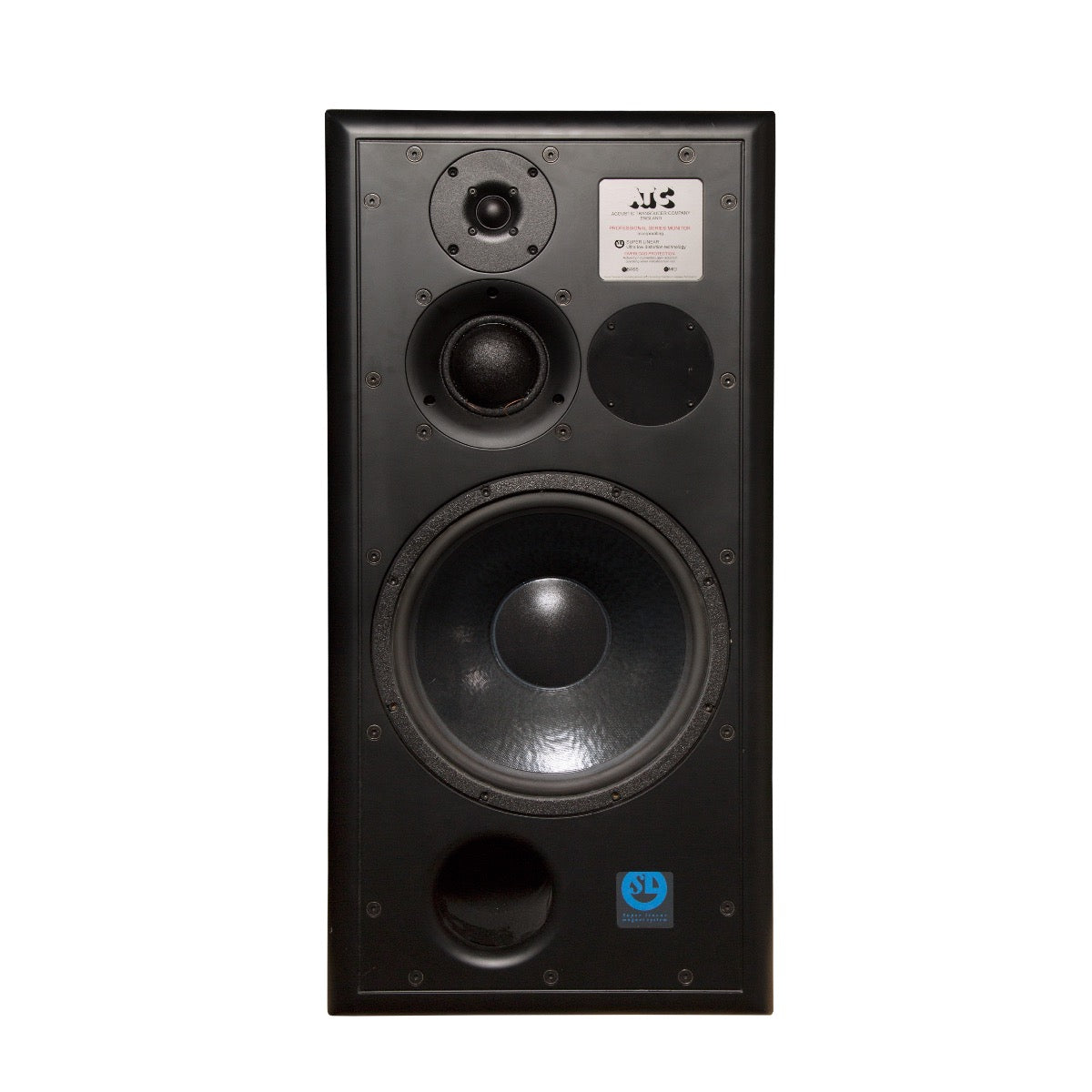

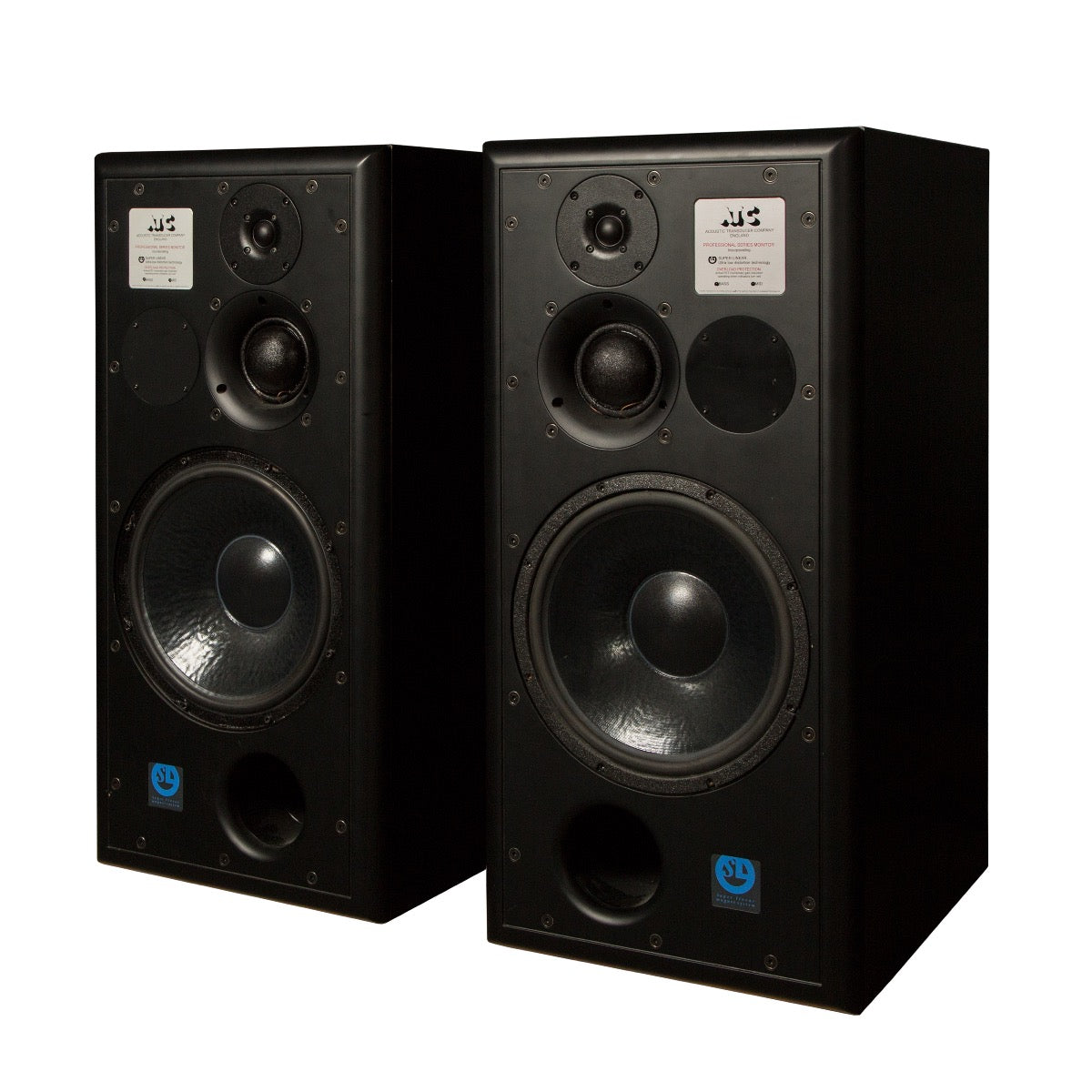

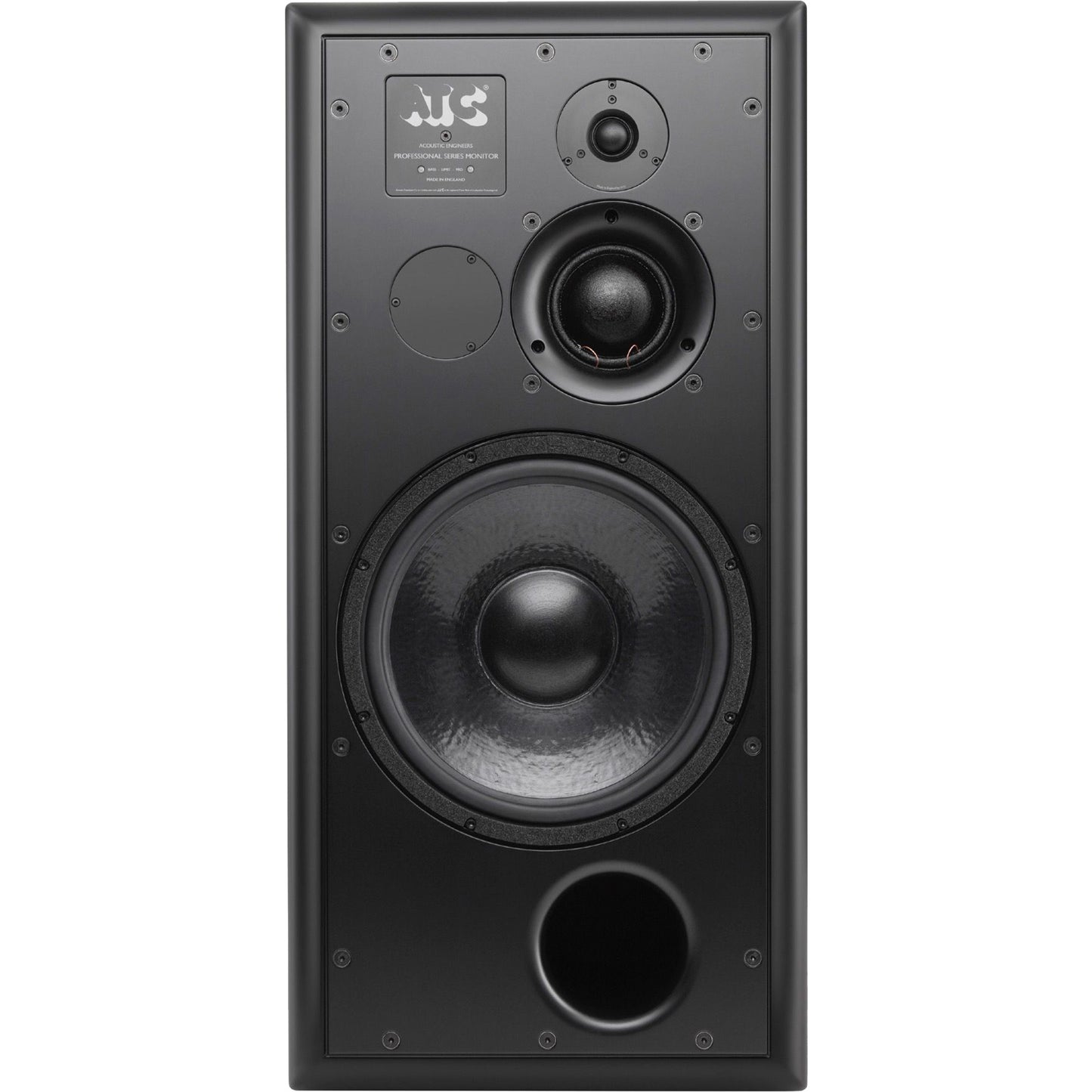

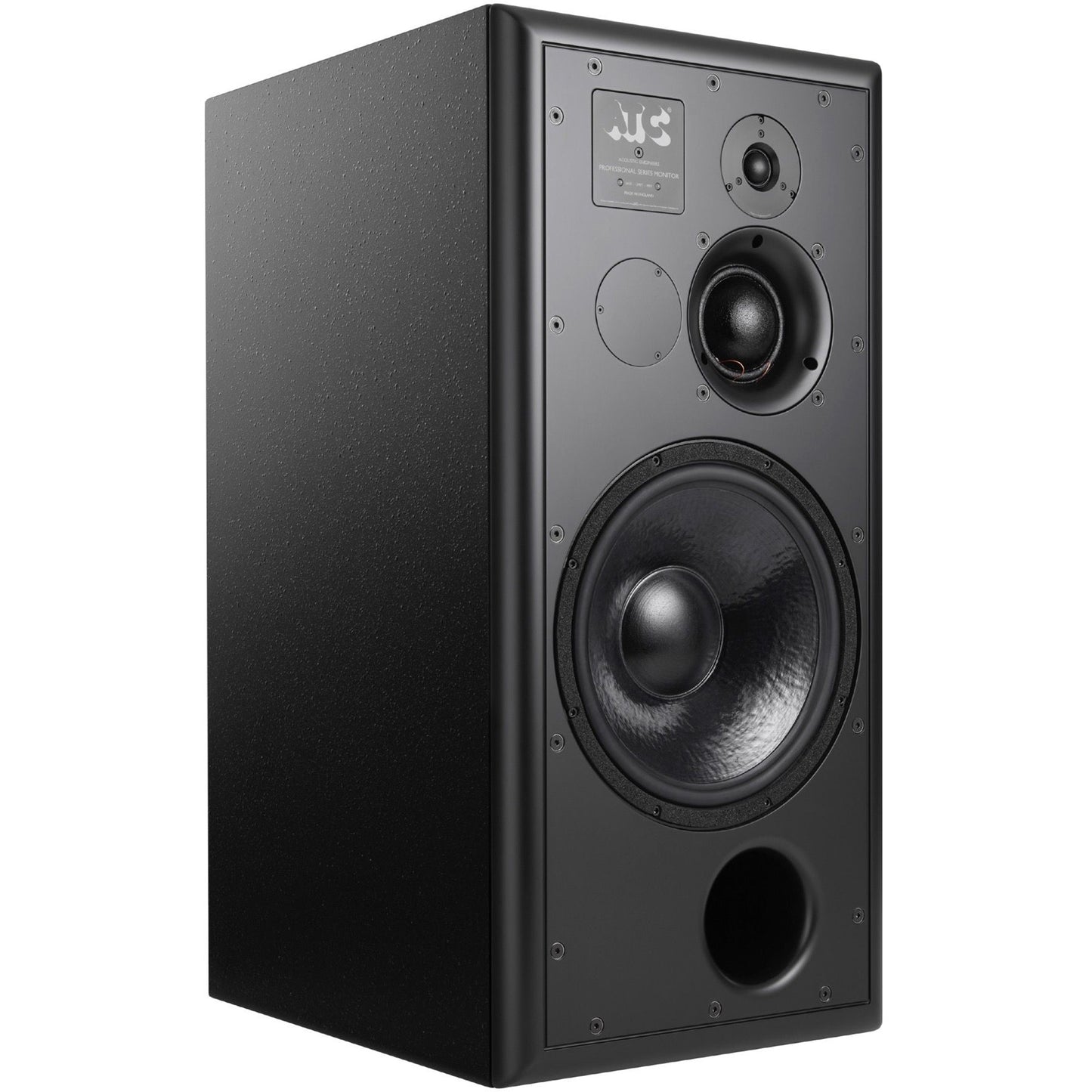

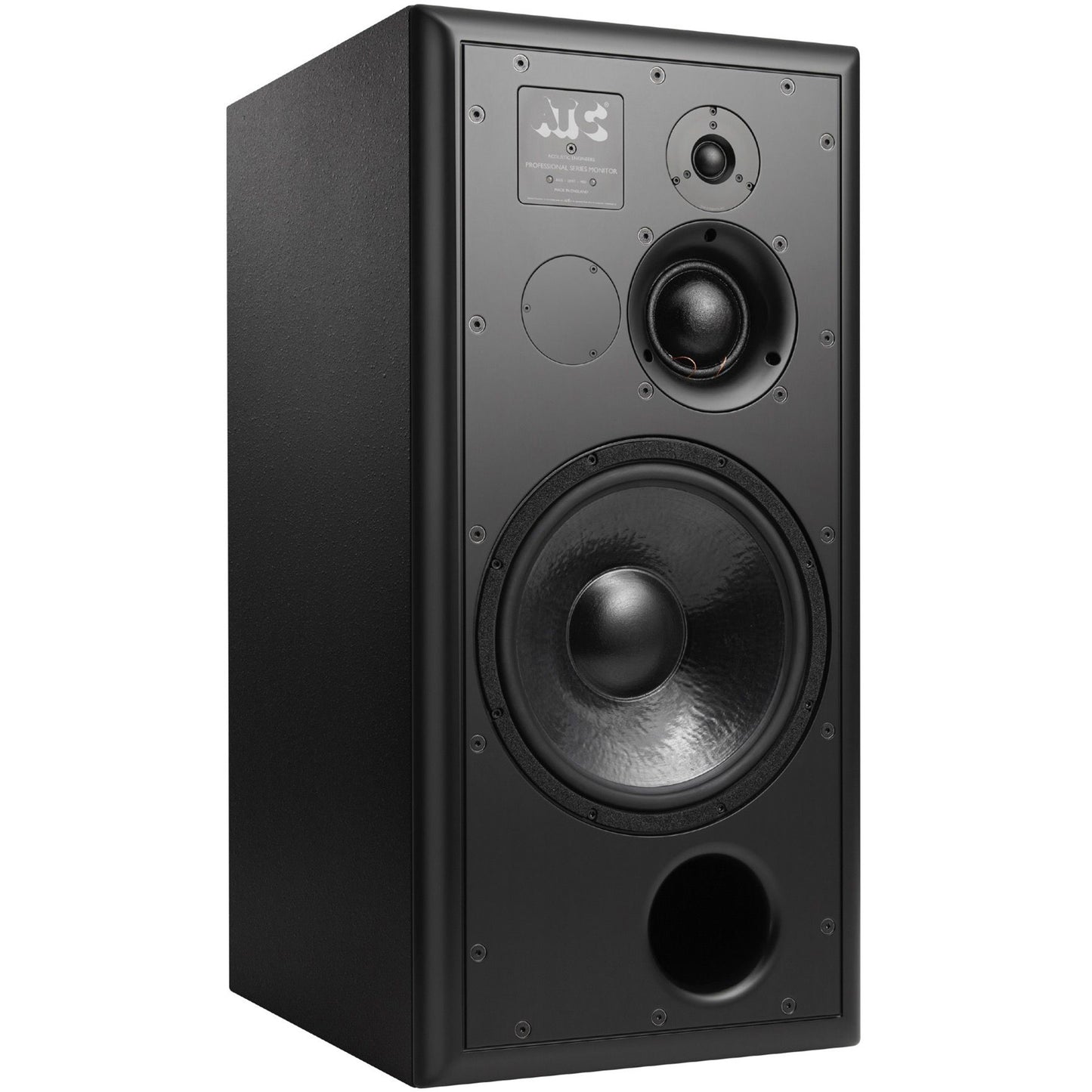

ATC SCM100ASL Pro Active 12 in 3 way Monitor Speakers Pair
The SCM100A Pro is an active 3-way midfield reference monitor for larger rooms. Like the SCM50ASL Pro, the system features the unique SM75-150S soft dome midrange driver and the proven SH25-76S 25mm S-Spec tweeter and the same amplifier configuration. In contrast, however, it uses a 314mm bass driver in a larger enclosure.
The active design enables the drivers to be optimally controlled by six MOS-FET amplifier blocks and offers large headroom and a maximum sound pressure level of 115dB.
An LF EQ with a neutral reference position and five bass boost settings are available to adapt the bass frequency response to the room.
Fourth-order active crossovers ensure an extremely linear frequency response in both the direct and indirect sound field and thus contribute to an extraordinary stereo sound image with spatial depth gradation and plasticity. The SCM100A Pro sets standards for music playback.
- ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
- Full “SL” spec 12˝/314mm bass driver.
- ATC 3″/75mm “Super Dome” mid driver.

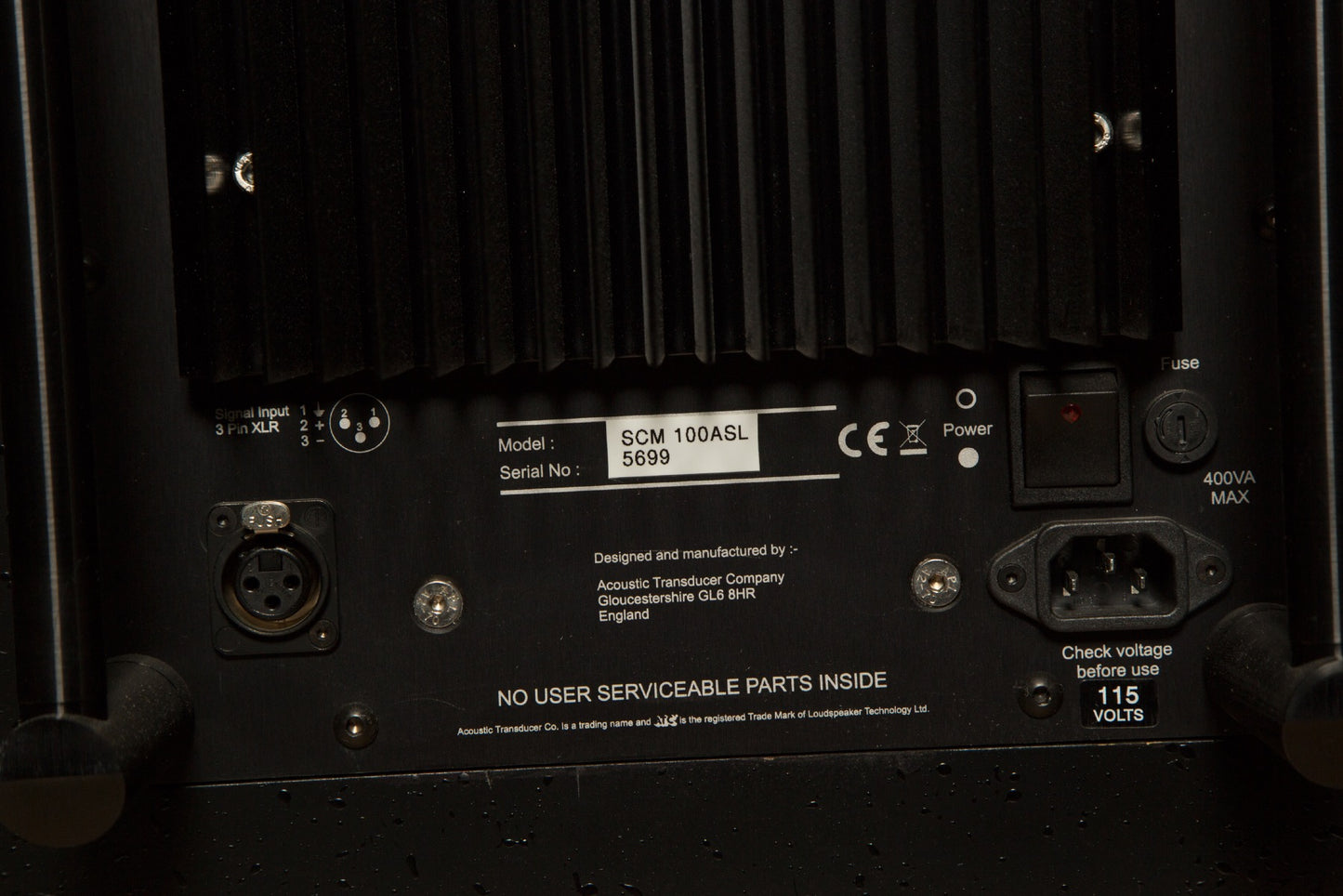

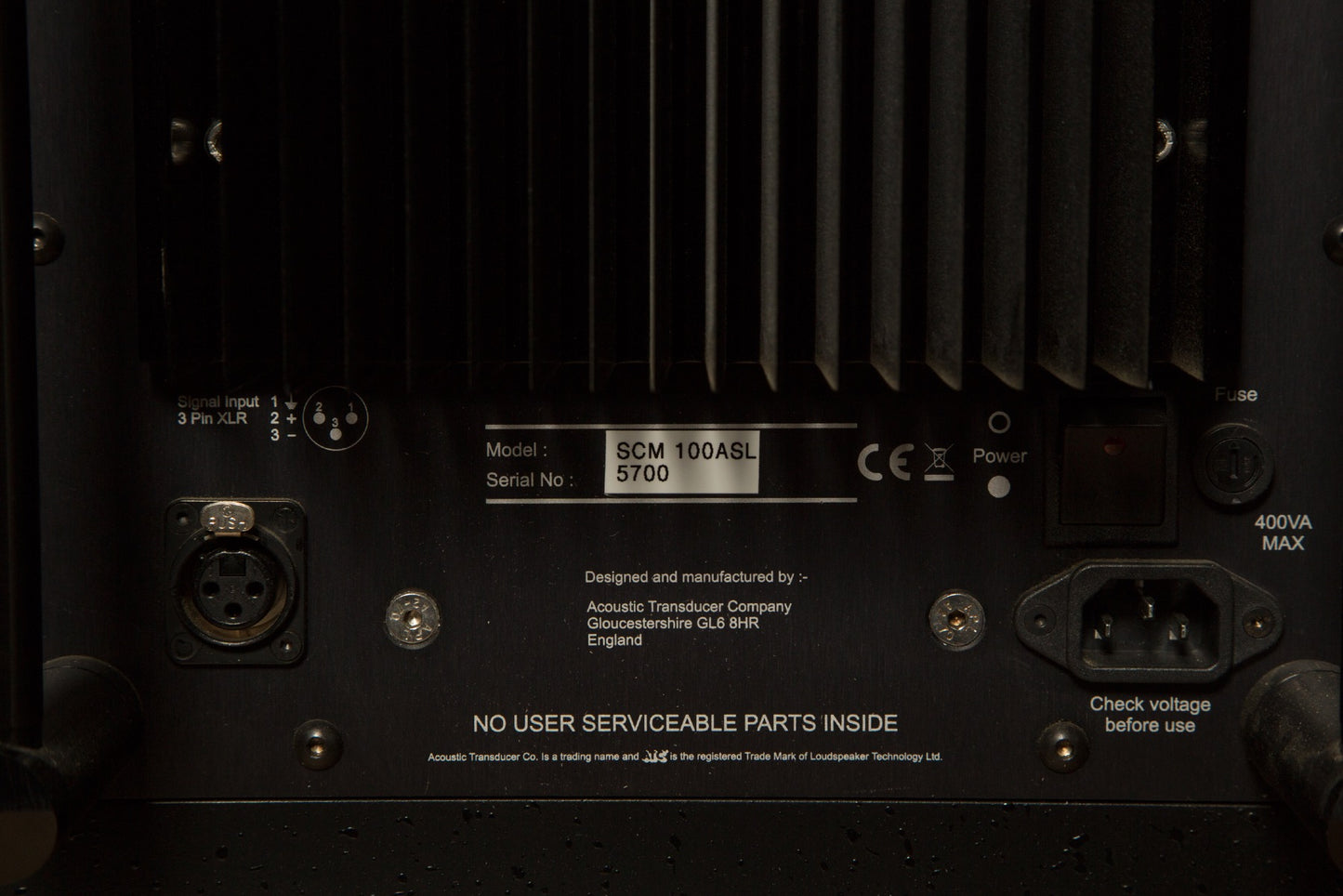

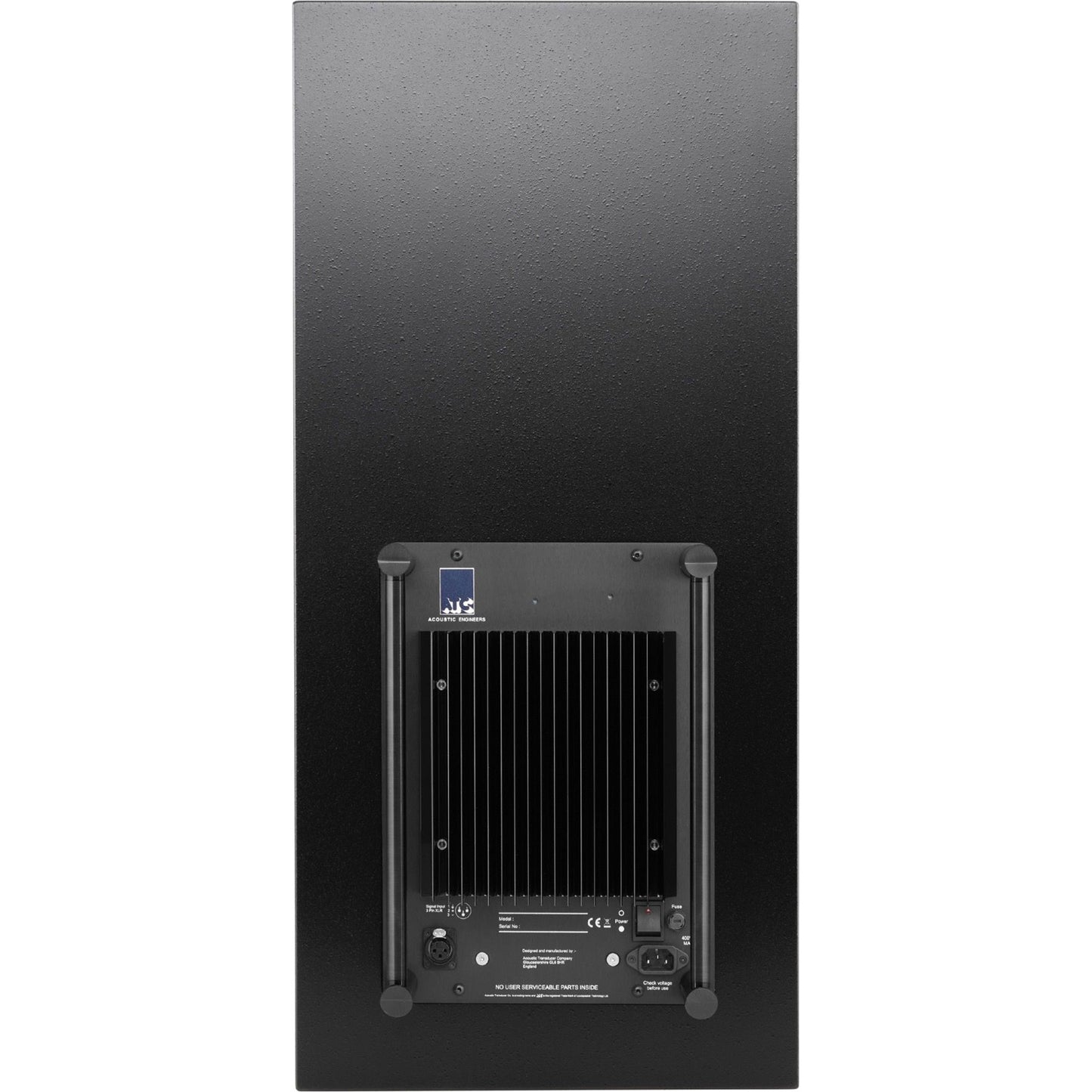

- On board grounded source 350W Tri-amp pack.
- LF contour control.
- Clip indication.
- 6 year warranty.
| Product Name | ATC SCM100ASL Pro Active 12 In 3-Way Monitor Pair |
|---|---|
| Brand | ATC Loudspeakers |
| Condition | New |
| MPN | SCM100ASL |
| Shipping Option | Free Shipping on orders over $94.72 |
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 12″/314mm
Amplitude Linearity (±2dB): 65Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)

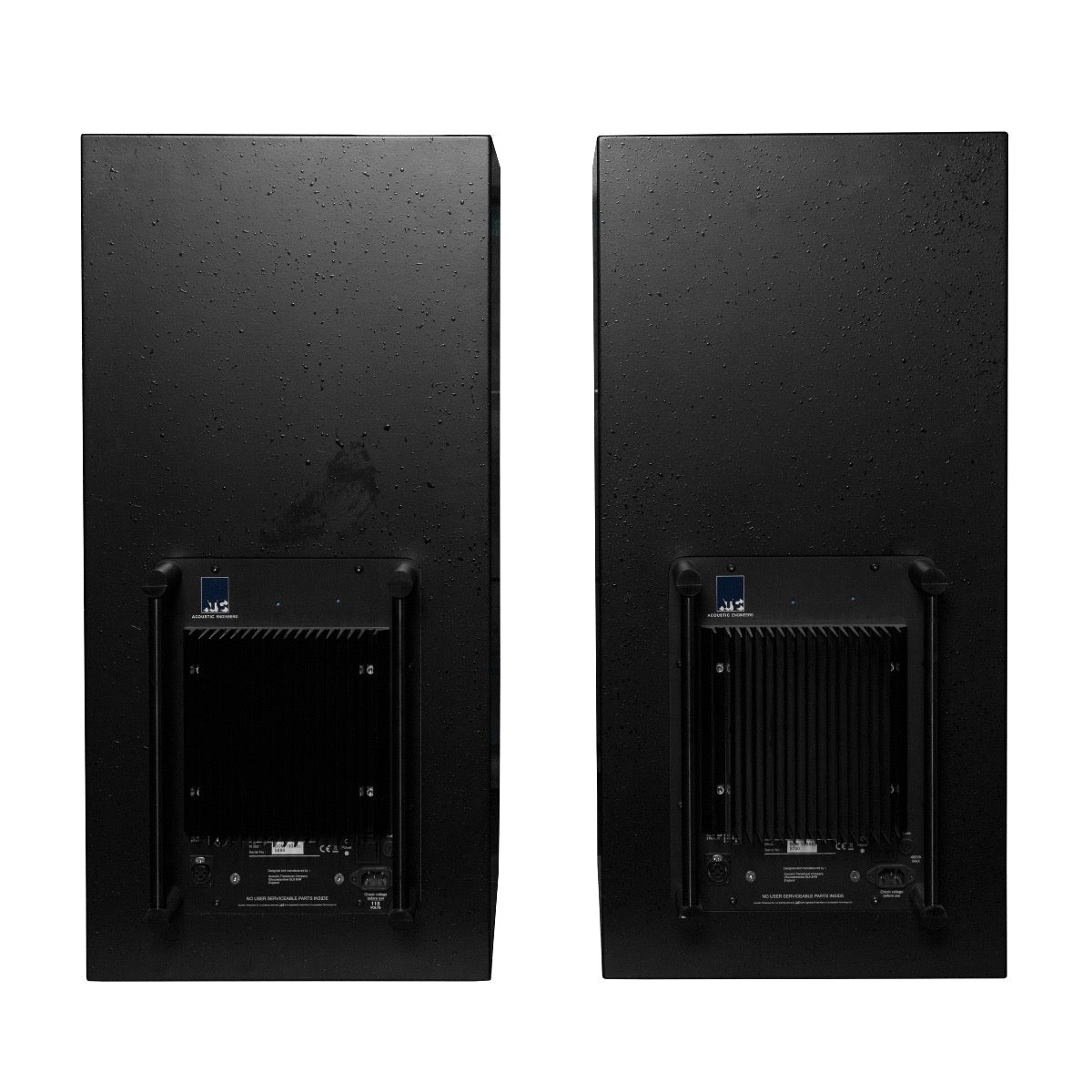

Dimensions (HxWxD): 832 x 398 x 581mm (32.8Ë x 15.7Ë x 22.9Ë) Depth with amplifier at rear adds 3Ë
Weight: 65kg / 143lbs
