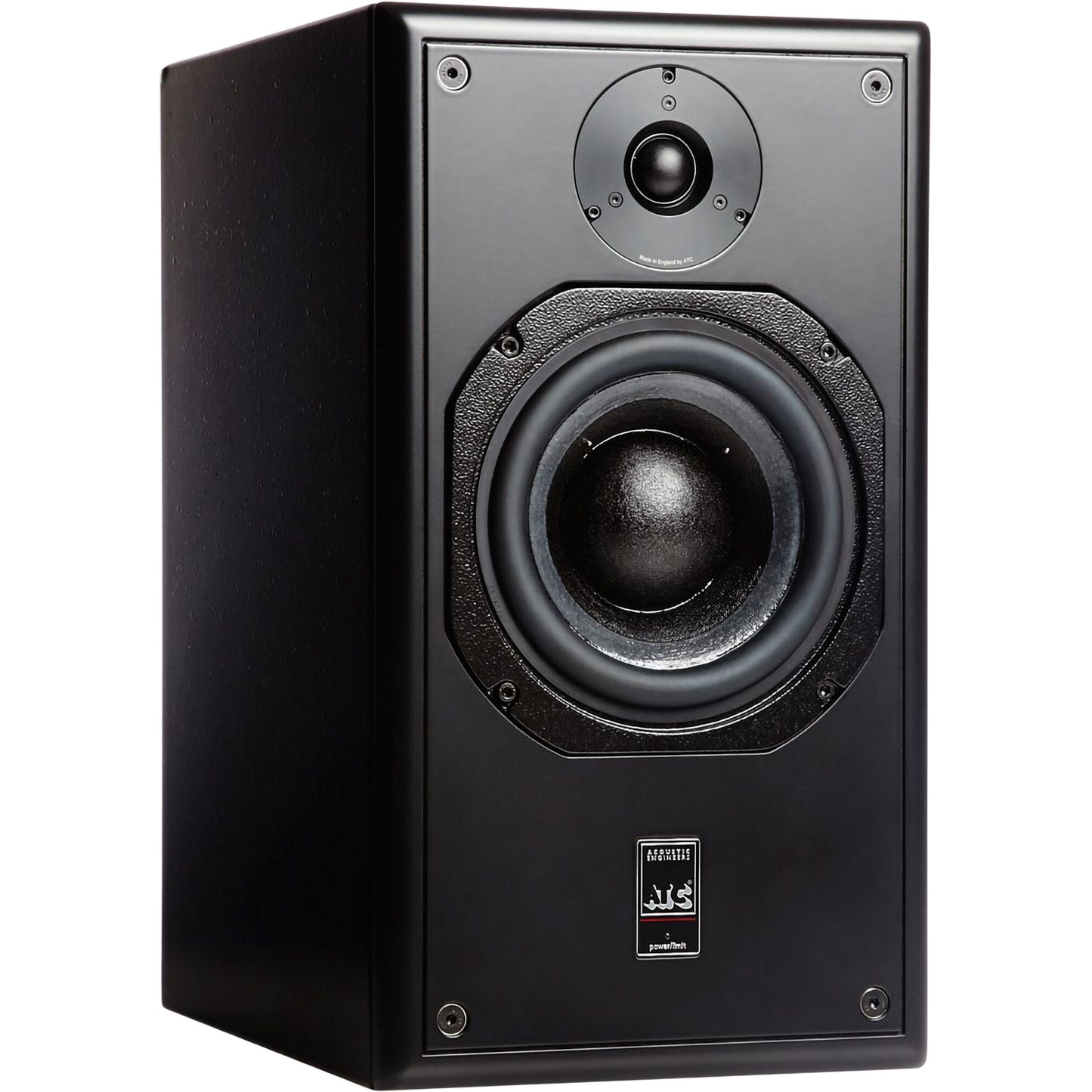

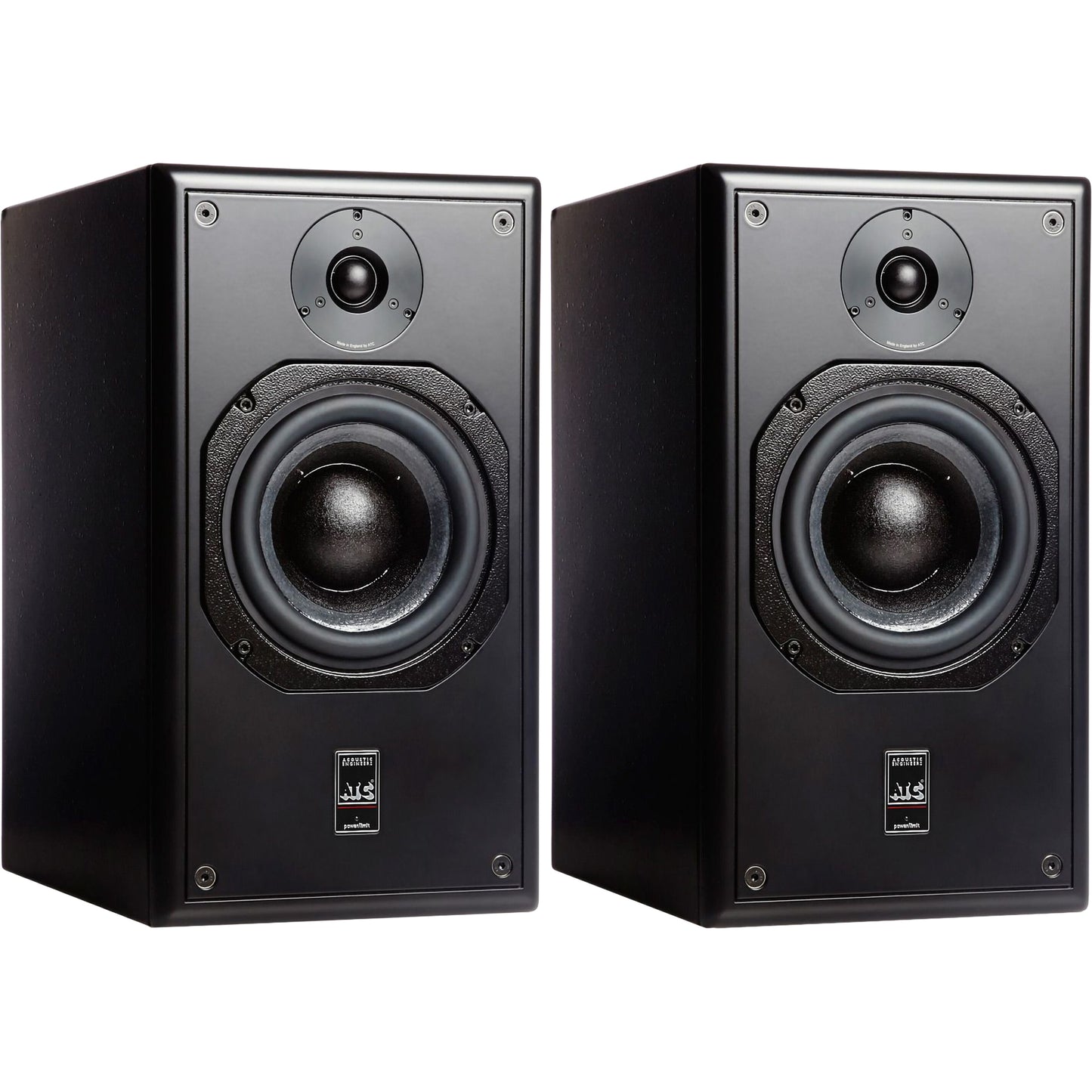

ATC SCM20ASL Pro Active 6.5 In 2-Way Monitor Pair

ATC SCM20ASL Pro Active 6.5 In 2-Way Monitor Pair

On order with the manufacturer!

300W 2-way, 6.5" active nearfield monitors with active filtering, wide dispersion, overload protection, and balanced XLR inputs.

View full details
  • Details
  • Tech Specs
  • Reviews

ATC SCM20ASL Pro Active 6.5 in 2 Way Monitor Pair:

  • Compact very high performance  active 2-way studio monitor
  • Ideally suited to:
  • critical near-field listening applications in all control rooms
  • LCR surround monitoring in small-to-medium control rooms
  • surround channels in medium-to-large contol rooms
  • Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver
  • Proprietary ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter
  • Discrete MOSFET class A/B bi-amp pack. LF 200W & HF 50W

ATC, Acoustic Transducer Company, was founded in 1974 by sound engineer Billy Woodman and they have continued to build some of the best studio speakers in the world. Their monitors are designed to meticulous detail, and they are constantly inventing new drivers and other audio technologies. They are also the choice of sound engineers in top recording studios in the industry.

The ATC SCM20ASL Pro mk2 feature hand-wound voice coils made from flat oxygen-free copper wire that function in a precision long magnetic gap. They have magnet vents designed to reduce air flow noise and heat, as well as increase power handling and reliability. These drivers are designed to give you a smooth and even frequency response without built-in EQ. Their bi-amped 250W LF/50W HF design gives amazing headroom, for maximum transparency at any volume level.

You’ll hear every little detail and change in your sound from monitors that are this meticulously crafted- the sound they put out is pure art.

More Information
Product Name ATC SCM20ASL Pro Active 6.5 In 2-Way Monitor Pair
Brand ATC Loudspeakers
Condition New
Shipping Option Free Shipping on orders over $94.72

Drivers: LF 6.5”/150mm Super Linear, HF 1”/25mm Dual-Suspension ‘S-Spec’ Tweeter
Amplitude linearity : 80Hz – 20kHz (+/-2dB)
Cut-off frequencies : 55Hz – 25kHz (-6dB freestanding)
Dispersion : +/-80° coherent horizontal, +/-10° coherent vertical
Maximum continuous : SPL 108dB (per pair @ 1m)

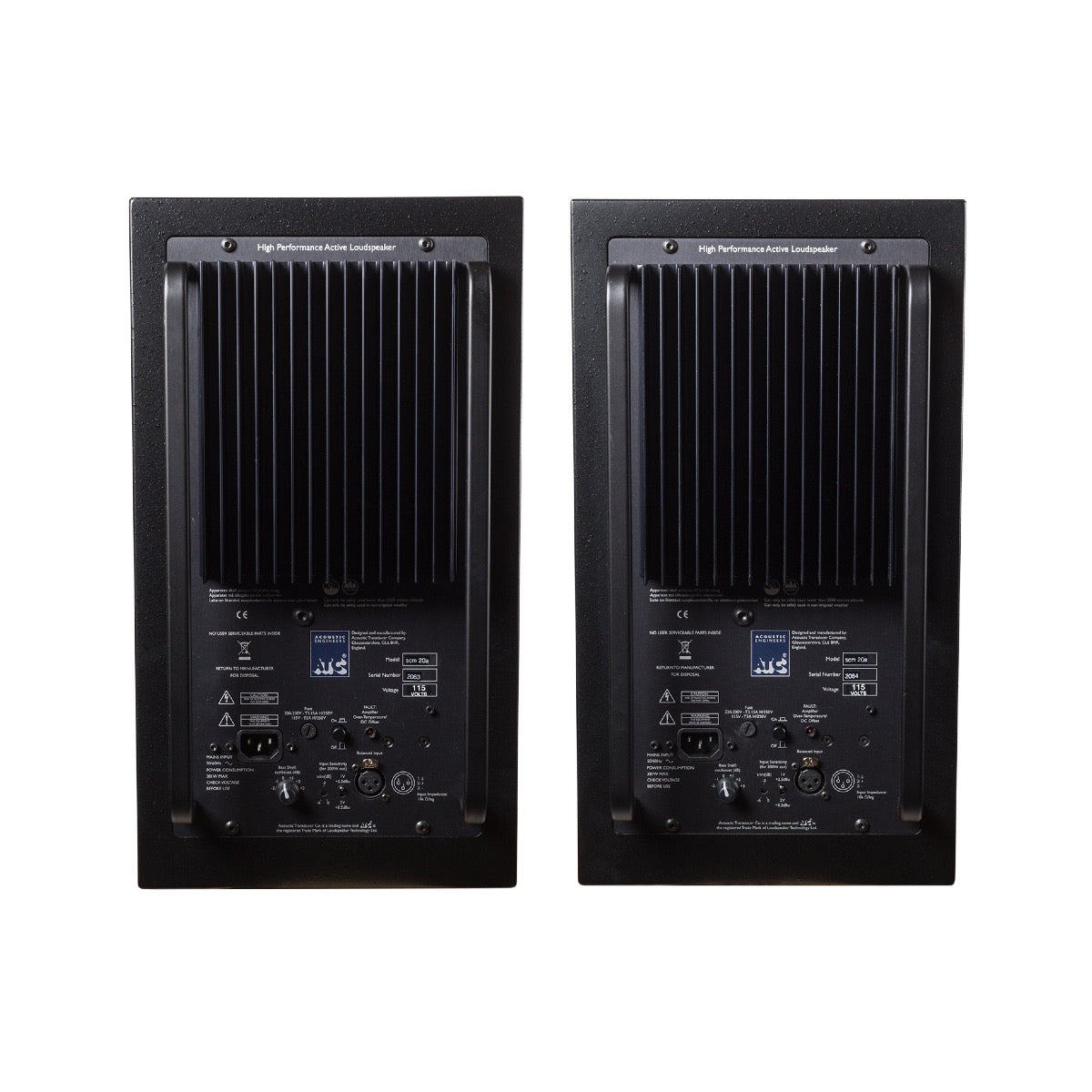

Audio input : Rear panel mounted female XLR (pin 2 +ve)
Input sensitivity : 1V/2V RMS or +2.2/+8.2dBu via switch (ref. bass full output)
Input sensitivity trim : 0dB to -6dB (via rear panel pot)
Total input sensitivity range : 1V/+2.2dBu to 4V/+14.2dBu
Input impedance : 10kΩ per leg
Amplifier output power : Bass 200W continuous, HF 50W continuous (1%THD)
Crossover frequency : 2.1kHz
Crossover filters : 2nd order/ 12dB/oct critically damped with phase compensation
Low frequency shelf cut/boost : 80Hz, -2dB to +3dB in 1dB steps (via rear panel rotary switch)
Overload protection : Active FET momentary gain reduction (inc. front panel mounted ‘limit’ LED)
Amplifier thermal trip circuit
Cabinet Dimensions (HxWxD) : 450x250x392mm (17.7″x8.8″x15.4″)
Weight : 28kg/61.6lbs (per cabinet)

ATC SCM20ASL Pro Active 6.5 In 2-Way Monitor Pair

1 total reviews

Details

ATC SCM20ASL Pro Active 6.5 in 2 Way Monitor Pair:

  • Compact very high performance  active 2-way studio monitor
  • Ideally suited to:
  • critical near-field listening applications in all control rooms
  • LCR surround monitoring in small-to-medium control rooms
  • surround channels in medium-to-large contol rooms
  • Proprietary ATC 150mm/6” Super Linear Mid/Bass Driver
  • Proprietary ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter
  • Discrete MOSFET class A/B bi-amp pack. LF 200W & HF 50W

ATC, Acoustic Transducer Company, was founded in 1974 by sound engineer Billy Woodman and they have continued to build some of the best studio speakers in the world. Their monitors are designed to meticulous detail, and they are constantly inventing new drivers and other audio technologies. They are also the choice of sound engineers in top recording studios in the industry.

The ATC SCM20ASL Pro mk2 feature hand-wound voice coils made from flat oxygen-free copper wire that function in a precision long magnetic gap. They have magnet vents designed to reduce air flow noise and heat, as well as increase power handling and reliability. These drivers are designed to give you a smooth and even frequency response without built-in EQ. Their bi-amped 250W LF/50W HF design gives amazing headroom, for maximum transparency at any volume level.

You’ll hear every little detail and change in your sound from monitors that are this meticulously crafted- the sound they put out is pure art.

More Information
Product Name ATC SCM20ASL Pro Active 6.5 In 2-Way Monitor Pair
Brand ATC Loudspeakers
Condition New
Shipping Option Free Shipping on orders over $94.72
Tech Specs

Drivers: LF 6.5”/150mm Super Linear, HF 1”/25mm Dual-Suspension ‘S-Spec’ Tweeter
Amplitude linearity : 80Hz – 20kHz (+/-2dB)
Cut-off frequencies : 55Hz – 25kHz (-6dB freestanding)
Dispersion : +/-80° coherent horizontal, +/-10° coherent vertical
Maximum continuous : SPL 108dB (per pair @ 1m)
Audio input : Rear panel mounted female XLR (pin 2 +ve)
Input sensitivity : 1V/2V RMS or +2.2/+8.2dBu via switch (ref. bass full output)
Input sensitivity trim : 0dB to -6dB (via rear panel pot)
Total input sensitivity range : 1V/+2.2dBu to 4V/+14.2dBu
Input impedance : 10kΩ per leg
Amplifier output power : Bass 200W continuous, HF 50W continuous (1%THD)
Crossover frequency : 2.1kHz
Crossover filters : 2nd order/ 12dB/oct critically damped with phase compensation
Low frequency shelf cut/boost : 80Hz, -2dB to +3dB in 1dB steps (via rear panel rotary switch)
Overload protection : Active FET momentary gain reduction (inc. front panel mounted ‘limit’ LED)
Amplifier thermal trip circuit
Cabinet Dimensions (HxWxD) : 450x250x392mm (17.7″x8.8″x15.4″)
Weight : 28kg/61.6lbs (per cabinet)
