*Please note -- this item is pre-owned and may show signs of use. Includes a six-month Alto Music warranty!
ATC, Acoustic Transducer Company, was founded in 1974 by sound engineer Billy Woodman and they have continued to build some of the best studio speakers in the world. Their monitors are designed to meticulous detail, and they are constantly inventing new drivers and other audio technologies. They are also the choice of sound engineers in top recording studios in the industry.

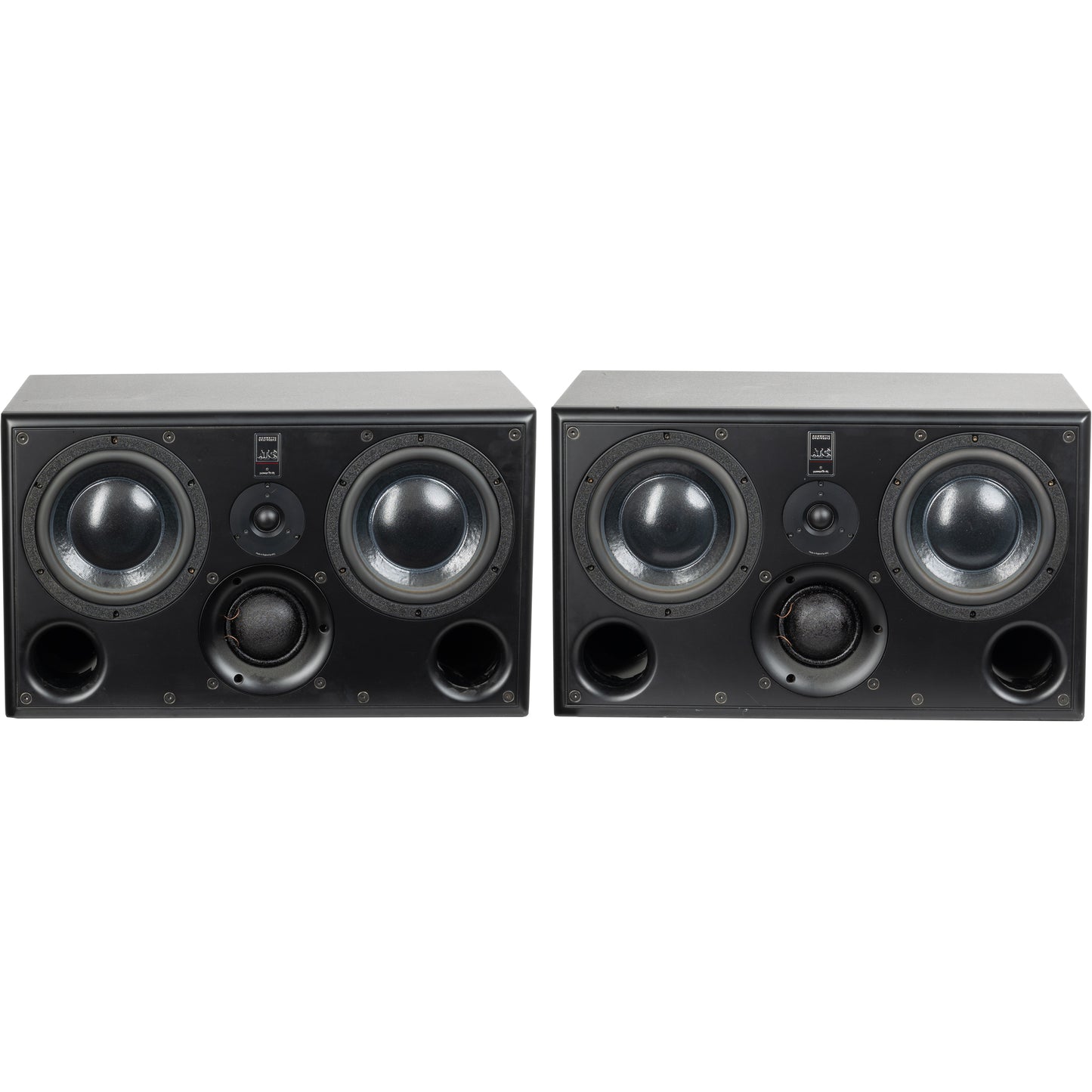

| Product Name | ATC SCM45A Pro Active 3-Way Studio Monitors - Pair |
|---|---|
| Brand | ATC |
| Condition | Pre-owned |
| MPN | SCM45A |
What's in the Box?
- ATC SCM45A Pro Active 3-Way Studio Monitors - Pair
- Mid-size very high-performance active 3-way studio monitor
- Ideally suited to:
- critical near-field listening applications in all control rooms
- LCR surround monitoring in medium control rooms
- surround channels in medium-to-large control rooms
- ATC hand built 6.5˝/164mm carbon-paper cone bass driver.
- ATC 25mm/1” Dual-Suspension ‘S-Spec’ Tweeter
- Discrete MOSFET class A/B tri-amp pack with 150W/60W/25W
continuous power output - Amplitude Linearity (+/-2dB): 70Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing): 42Hz-25kHz
- Dispersion: +/-80 Coherent Horizontal, +/-10 Coherent Vertical
- Max. Continuous SPL (1 metre): 112dB
- Audio Input: Rear panel mounted female xlr (pin 2 +)
- Input Sensitivity: 1V rms (ref. full output)
- Input Sensitivity Trim: 0dB to -6dB/1V - 2V(continuously variable via rear panel trimmer)
- Input Impedance: Balanced > 10kohms
- Amplifier Output Power: Bass 150W rms, Mid 60W rms, High 25W rms
- Crossover Frequencies: 380Hz, 3.5Khz
- Crossover Filters: 4th-order, critically damped with phase compensations
- Low Frequency Boost: 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)
| Drivers | HF 1″/25mm Dual-Suspension ‘S-Spec’, Mid 3″/75mm Soft Dome, LF 6.5″/164mm short-coil carbon paper cone |
| Amplitude Linearity (±2dB) | 70Hz-17kHz |
| Cut-off Frequencies (-6dB, free-standing) | 42Hz-25kHz |
| Dispersion | ±80° Coherent Horizontal, ±10° Coherent Vertical |
| Max. Continuous SPL (1 metre) | 112dB |
| Audio Input | Rear panel mounted female XLR (pin 2 +) |
| Input Sensitivity | 1V rms (ref. full output) |
| Input Sensitivity Trim | 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer) |
| Input Impedance | Balanced > 10kΩ |
| Amplifier Output Power | Bass 150W rms, Mid 60W rms, High 25W rms |
| Crossover Frequencies | 380Hz & 3.5kHz |
| Crossover Filters | 4th order critically damped with phase compensations |
| Low Frequency Boost | 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer) |
| Overload Protection | Active FET momentary gain reduction |
| Dimensions (HxWxD) | 353 x 600 x 375mm (13.9″ x 23.6″ x 14.8″). Handles add an additional 39mm/1.5″ to depth. |
| Weight | 36kg / 79.2lbs (per cabinet) |
ATC SCM45A Pro Active 3-Way Studio Monitors - Pair
Details
*Please note -- this item is pre-owned and may show signs of use. Includes a six-month Alto Music warranty!
ATC, Acoustic Transducer Company, was founded in 1974 by sound engineer Billy Woodman and they have continued to build some of the best studio speakers in the world. Their monitors are designed to meticulous detail, and they are constantly inventing new drivers and other audio technologies. They are also the choice of sound engineers in top recording studios in the industry.
| Product Name | ATC SCM45A Pro Active 3-Way Studio Monitors - Pair |
|---|---|
| Brand | ATC |
| Condition | Pre-owned |
| MPN | SCM45A |
What's in the Box?
- ATC SCM45A Pro Active 3-Way Studio Monitors - Pair
Features
- Mid-size very high-performance active 3-way studio monitor
- Ideally suited to:
- critical near-field listening applications in all control rooms
- LCR surround monitoring in medium control rooms
- surround channels in medium-to-large control rooms
- ATC hand built 6.5˝/164mm carbon-paper cone bass driver.
- ATC 25mm/1” Dual-Suspension ‘S-Spec’ Tweeter
- Discrete MOSFET class A/B tri-amp pack with 150W/60W/25W
continuous power output - Amplitude Linearity (+/-2dB): 70Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing): 42Hz-25kHz
- Dispersion: +/-80 Coherent Horizontal, +/-10 Coherent Vertical
- Max. Continuous SPL (1 metre): 112dB
- Audio Input: Rear panel mounted female xlr (pin 2 +)
- Input Sensitivity: 1V rms (ref. full output)
- Input Sensitivity Trim: 0dB to -6dB/1V - 2V(continuously variable via rear panel trimmer)
- Input Impedance: Balanced > 10kohms
- Amplifier Output Power: Bass 150W rms, Mid 60W rms, High 25W rms
- Crossover Frequencies: 380Hz, 3.5Khz
- Crossover Filters: 4th-order, critically damped with phase compensations
- Low Frequency Boost: 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)
Tech Specs
| Drivers | HF 1″/25mm Dual-Suspension ‘S-Spec’, Mid 3″/75mm Soft Dome, LF 6.5″/164mm short-coil carbon paper cone |
| Amplitude Linearity (±2dB) | 70Hz-17kHz |
| Cut-off Frequencies (-6dB, free-standing) | 42Hz-25kHz |
| Dispersion | ±80° Coherent Horizontal, ±10° Coherent Vertical |
| Max. Continuous SPL (1 metre) | 112dB |
| Audio Input | Rear panel mounted female XLR (pin 2 +) |
| Input Sensitivity | 1V rms (ref. full output) |
| Input Sensitivity Trim | 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer) |
| Input Impedance | Balanced > 10kΩ |
| Amplifier Output Power | Bass 150W rms, Mid 60W rms, High 25W rms |
| Crossover Frequencies | 380Hz & 3.5kHz |
| Crossover Filters | 4th order critically damped with phase compensations |
| Low Frequency Boost | 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer) |
| Overload Protection | Active FET momentary gain reduction |
| Dimensions (HxWxD) | 353 x 600 x 375mm (13.9″ x 23.6″ x 14.8″). Handles add an additional 39mm/1.5″ to depth. |
| Weight | 36kg / 79.2lbs (per cabinet) |
