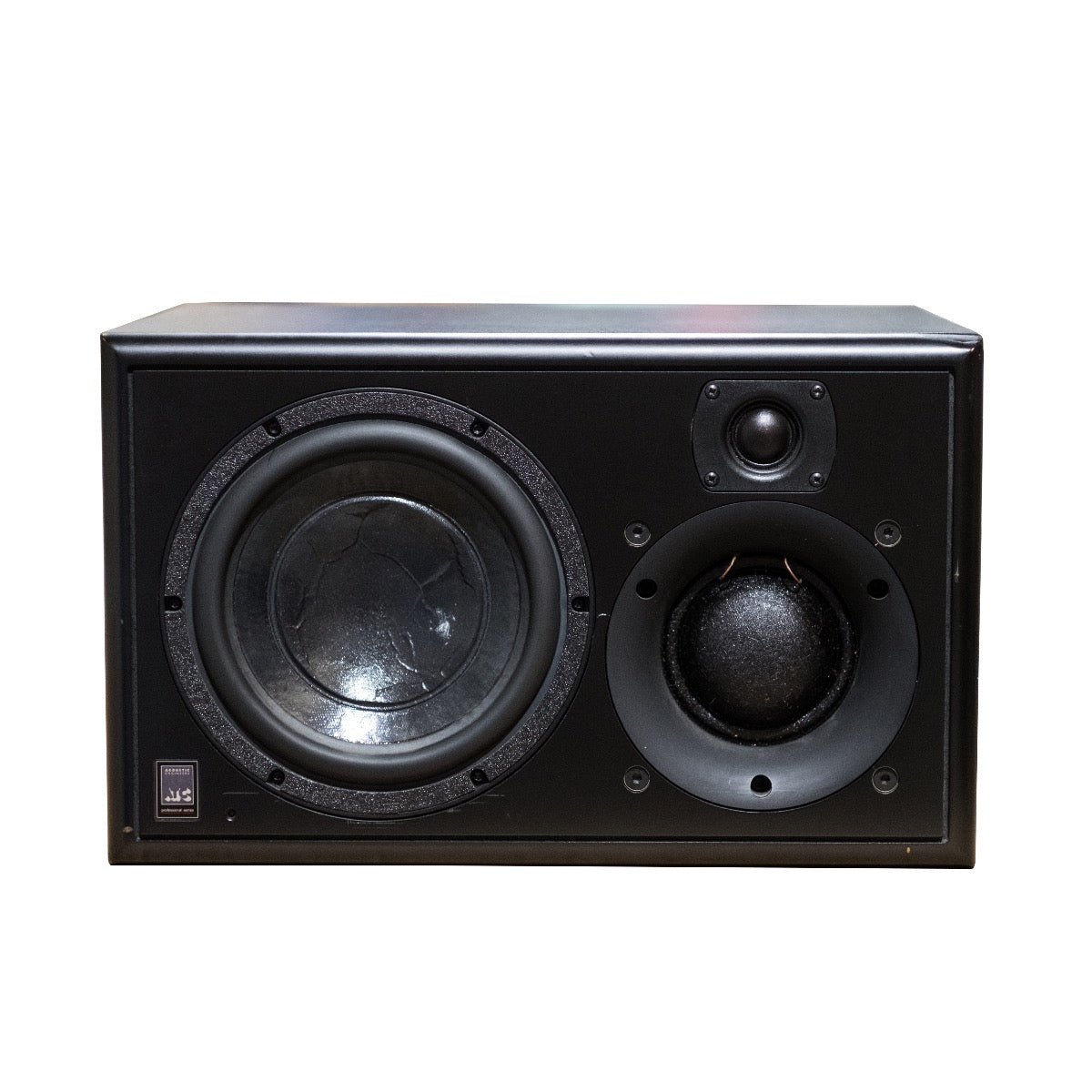

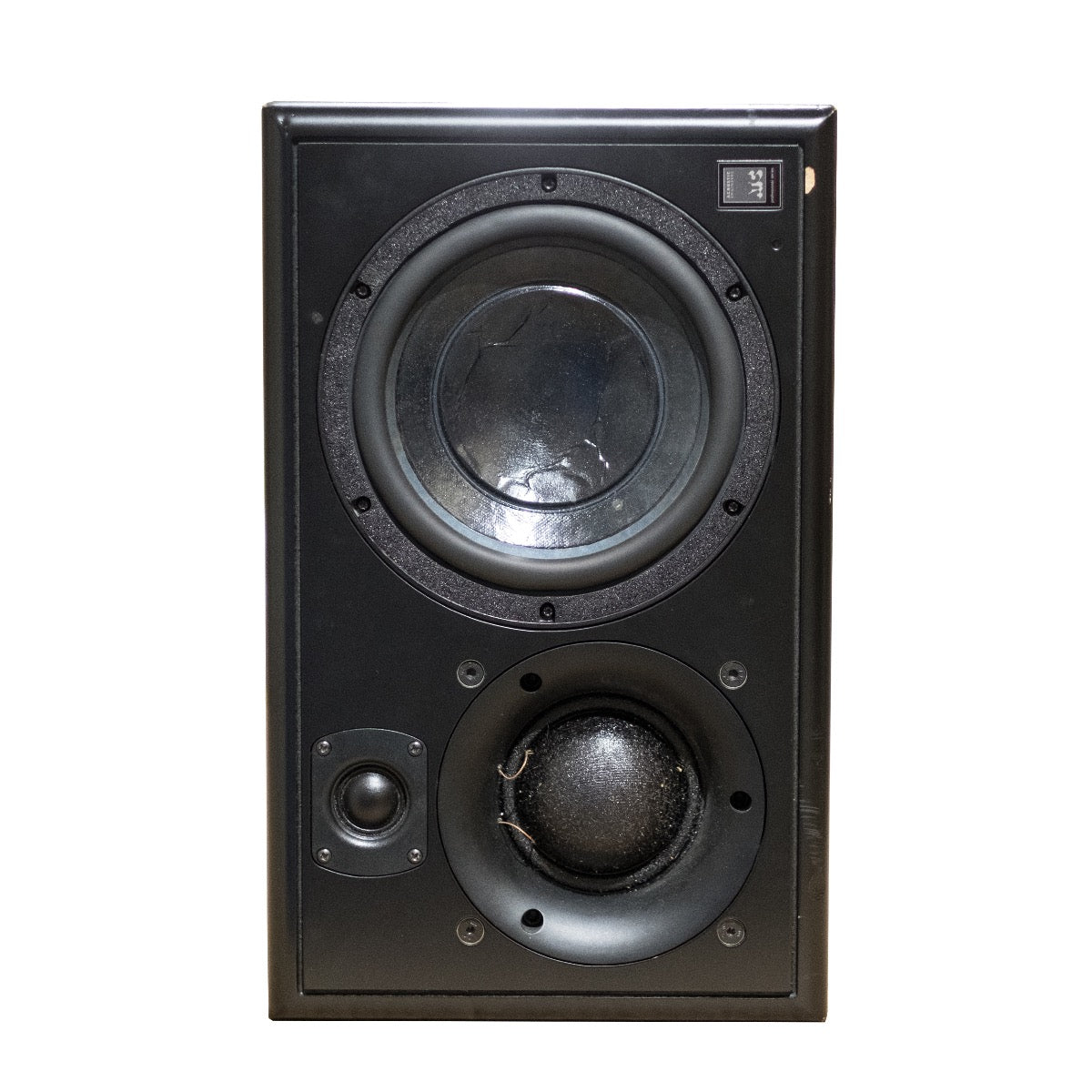

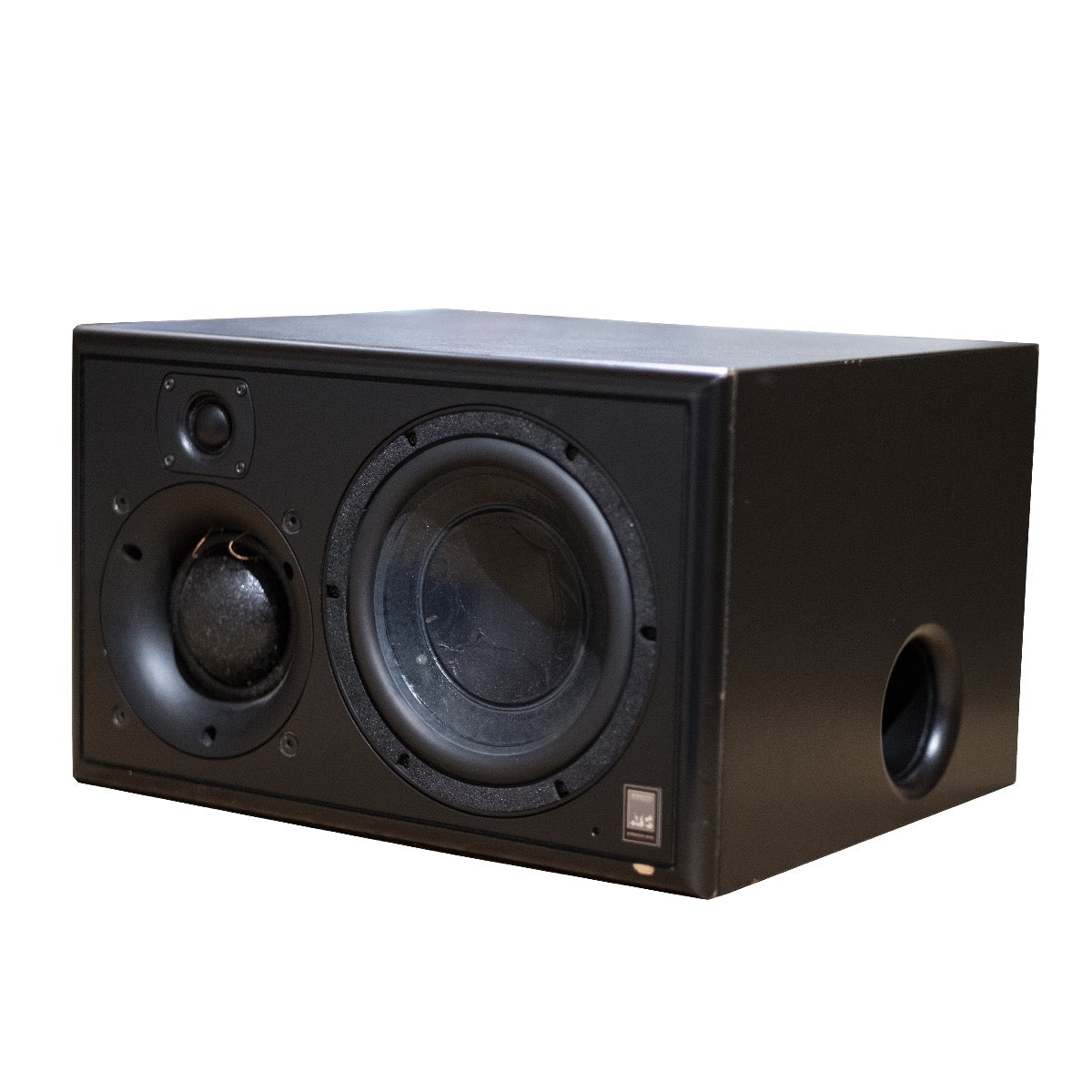

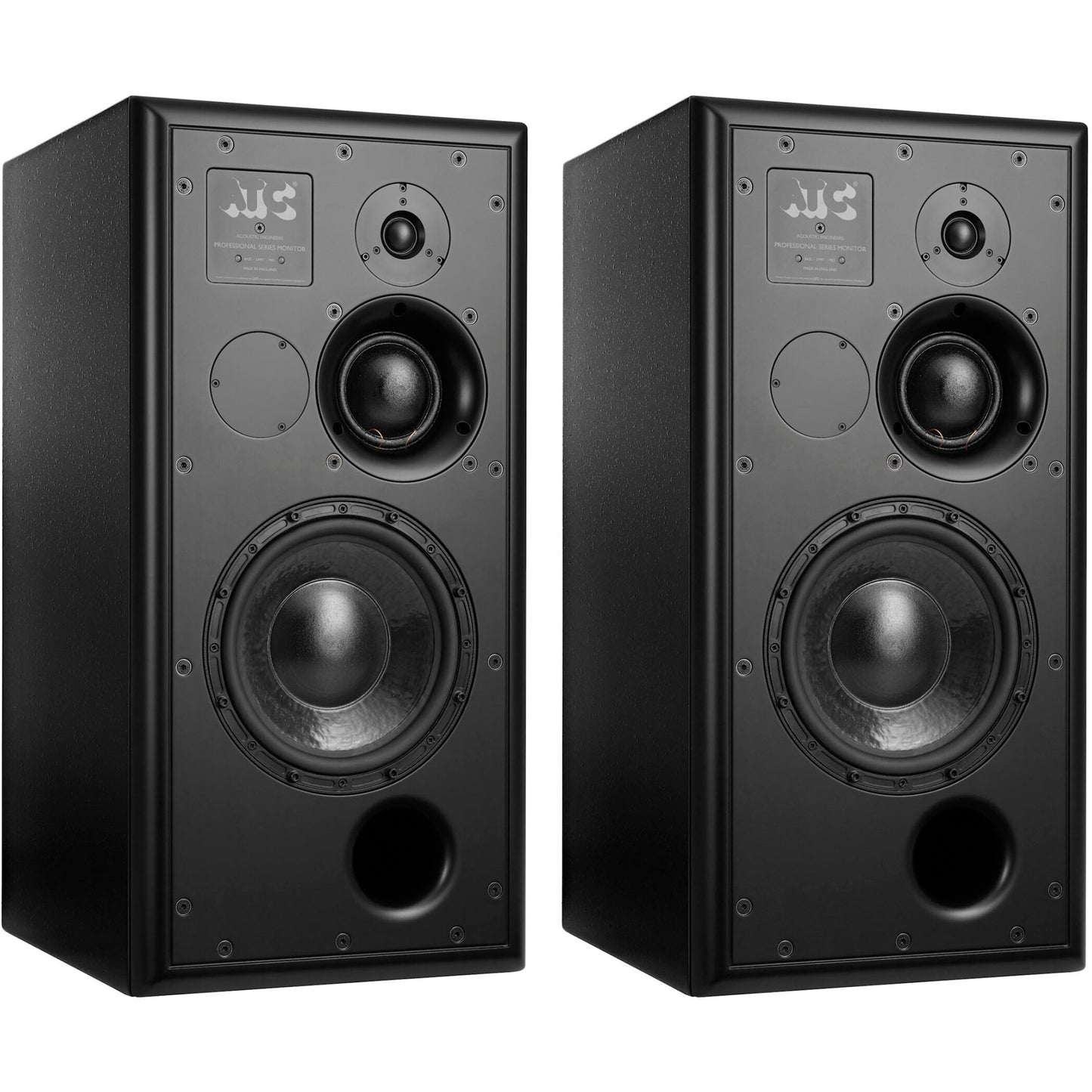

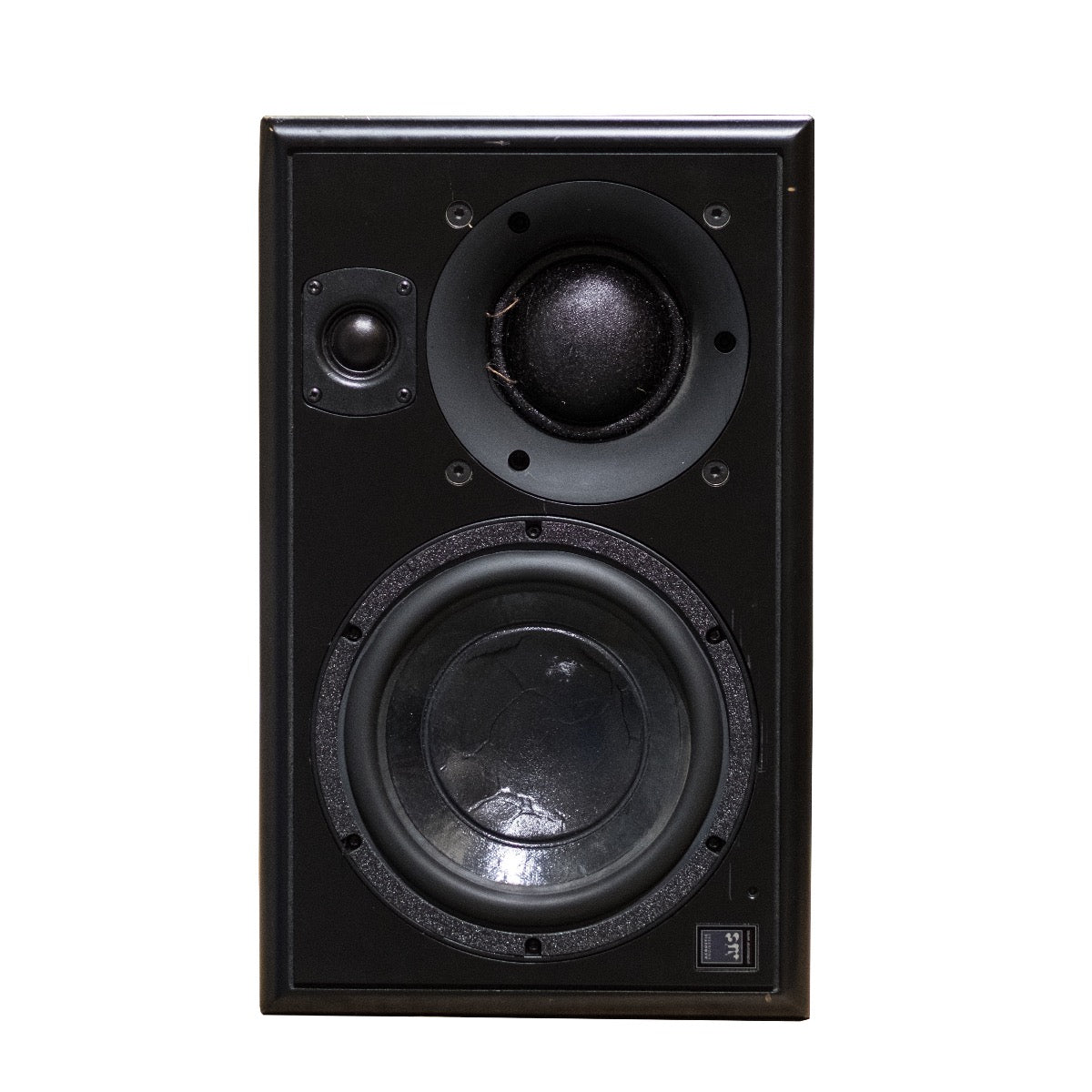

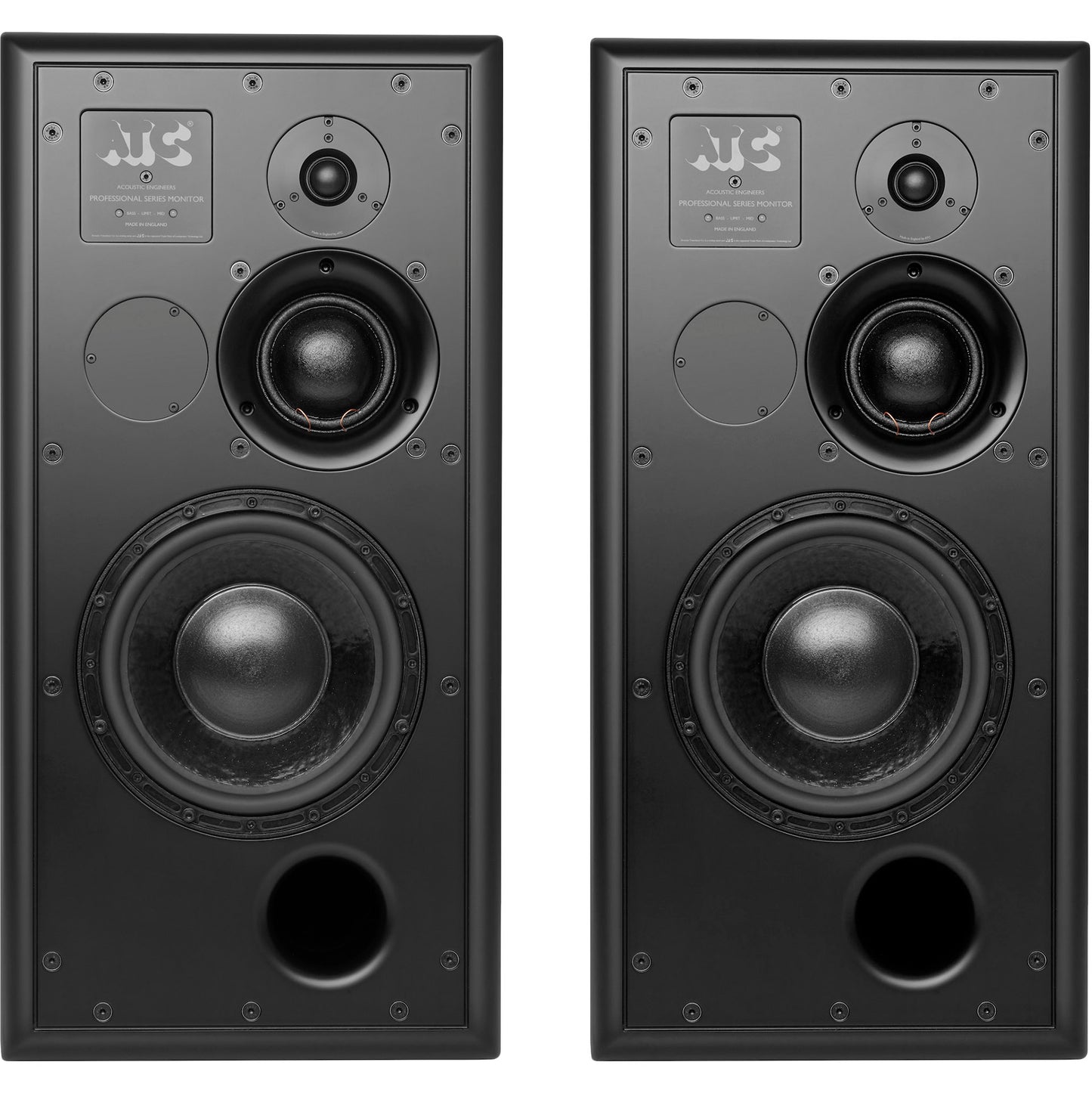

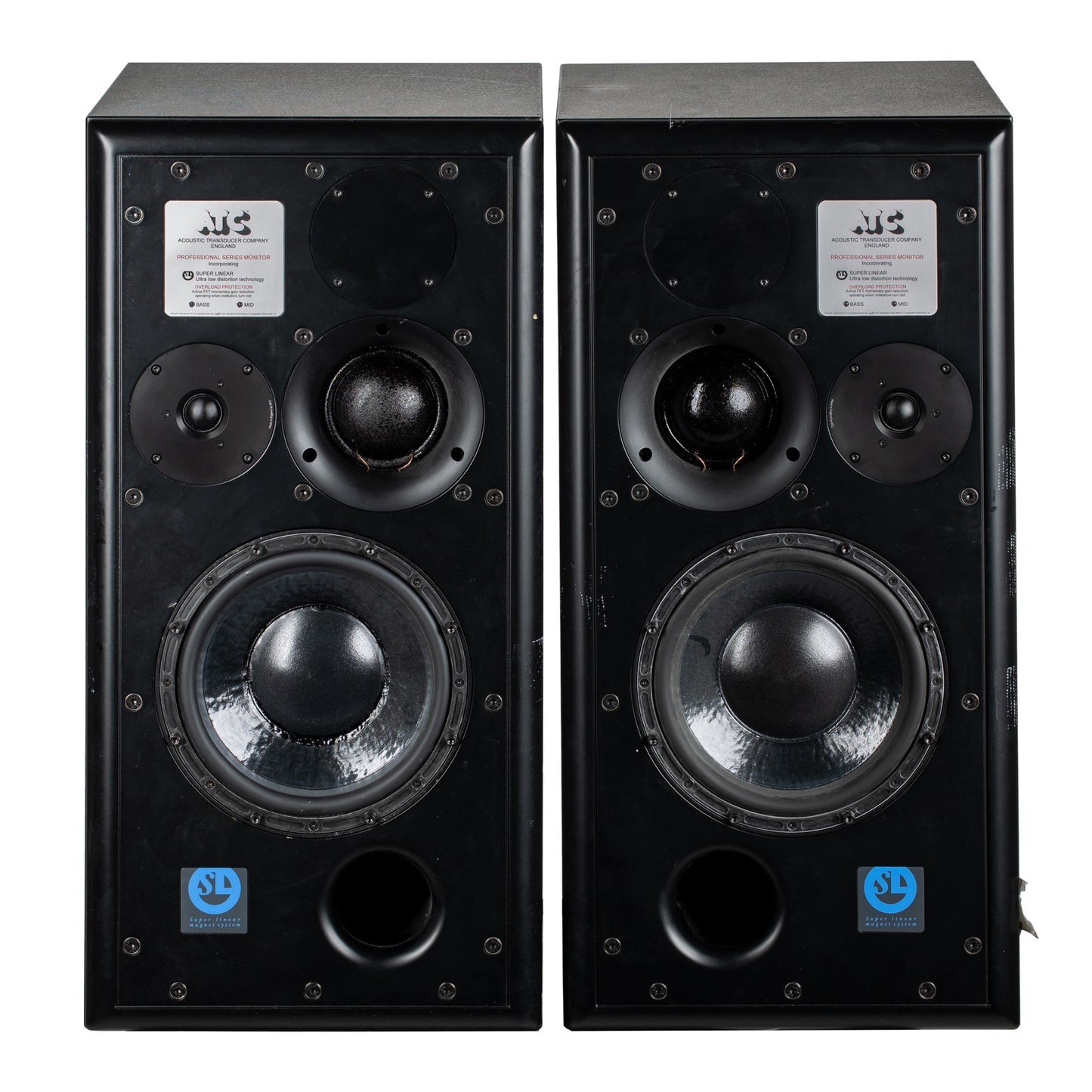

ATC SCM50ASL Pro Active 9 in 3 Way Monitor Speakers Pair:
The SCM50ASL Pro is an active 3-way monitor system suitable for reference monitoring in medium sized rooms, with a 234mm Super Linear bass driver, ATC’s own dual suspension tweeter, and ATC’s unique SM75-150S mid range soft dome driver.
The active design ensures optimum matching of six MOS-FET amp blocks to the drivers, providing plenty of transient headroom and maximum SPLs of up to 112dB.
An LF contour control provides five bass boost settings, and a flat reference response.

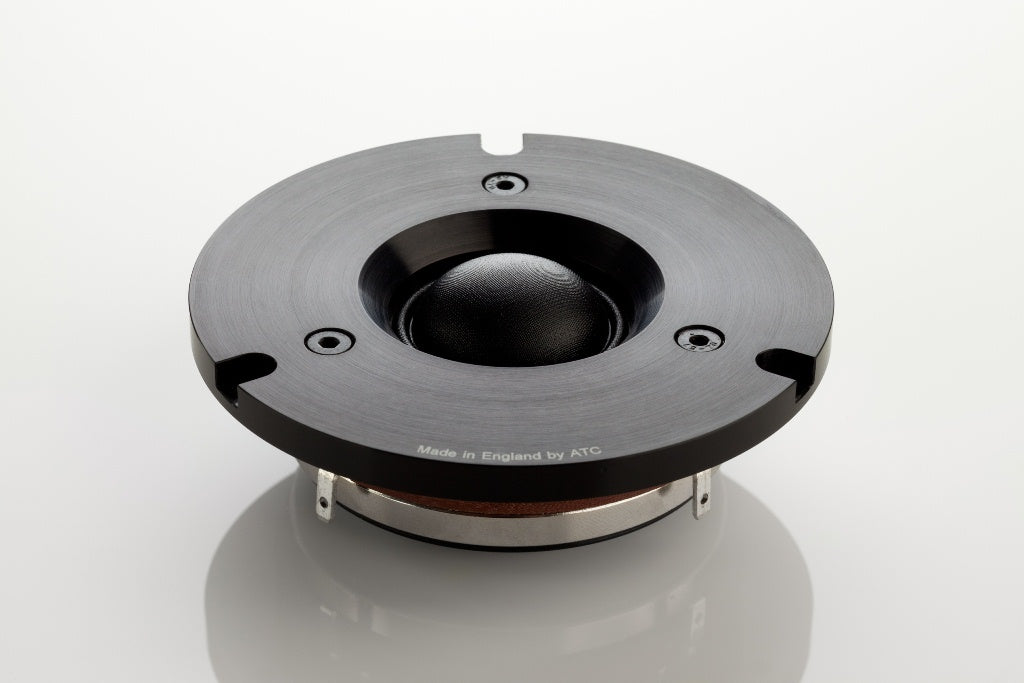

- ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.

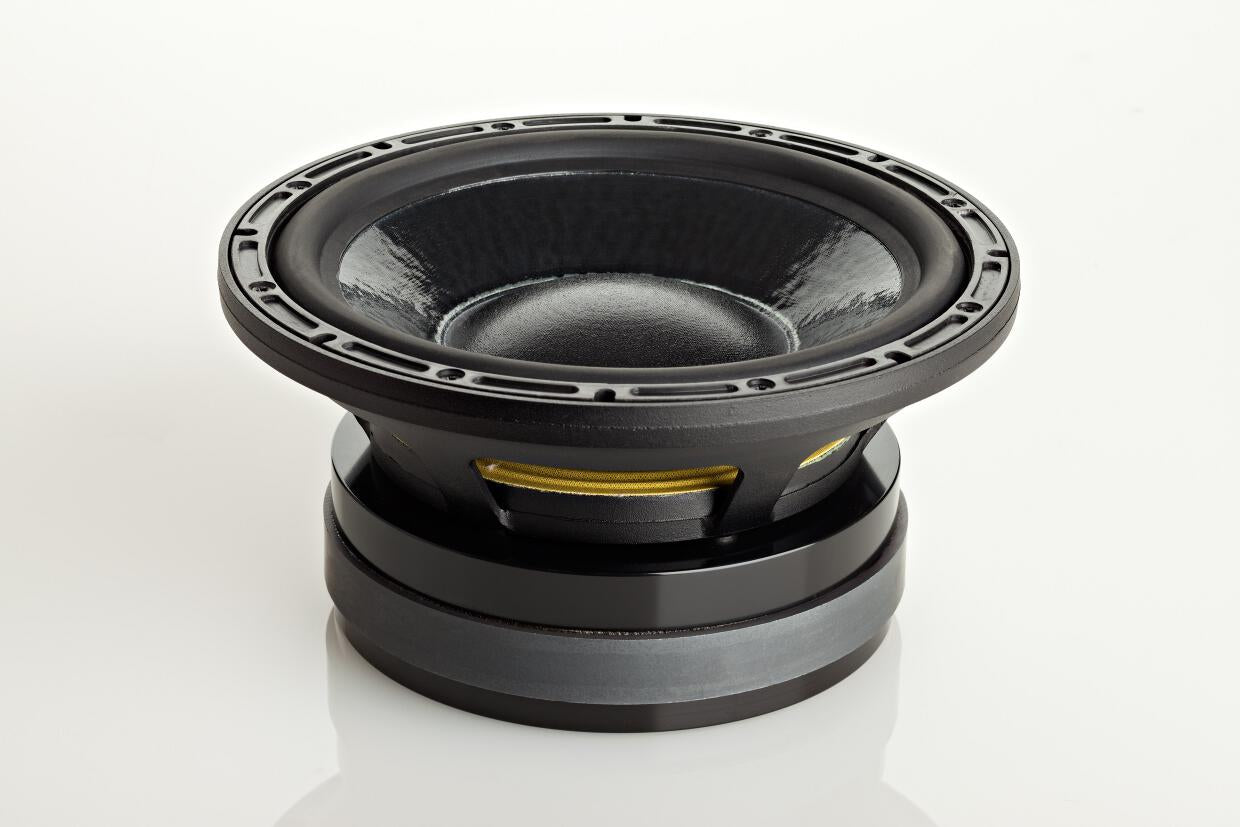

- Full “SL” spec 9˝/234mm bass driver.

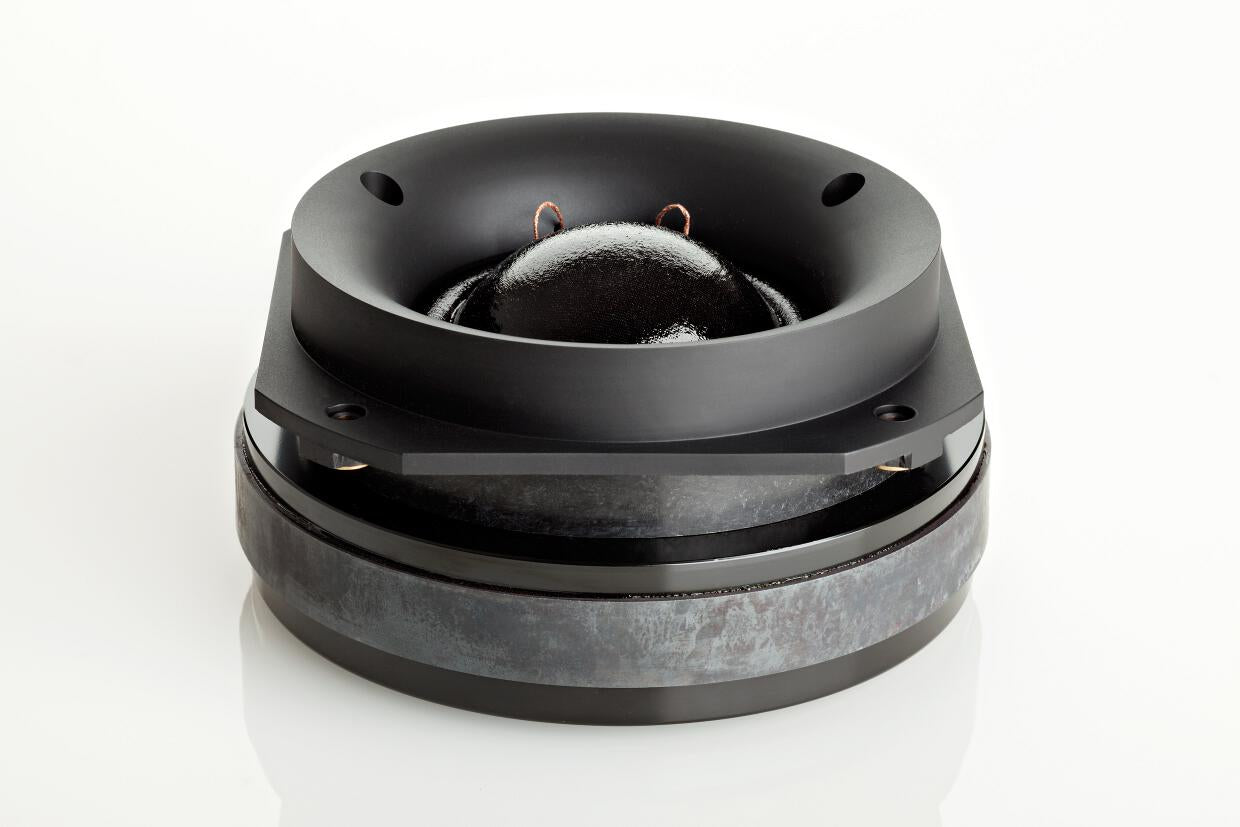

- ATC 75mm Super Dome” mid driver.

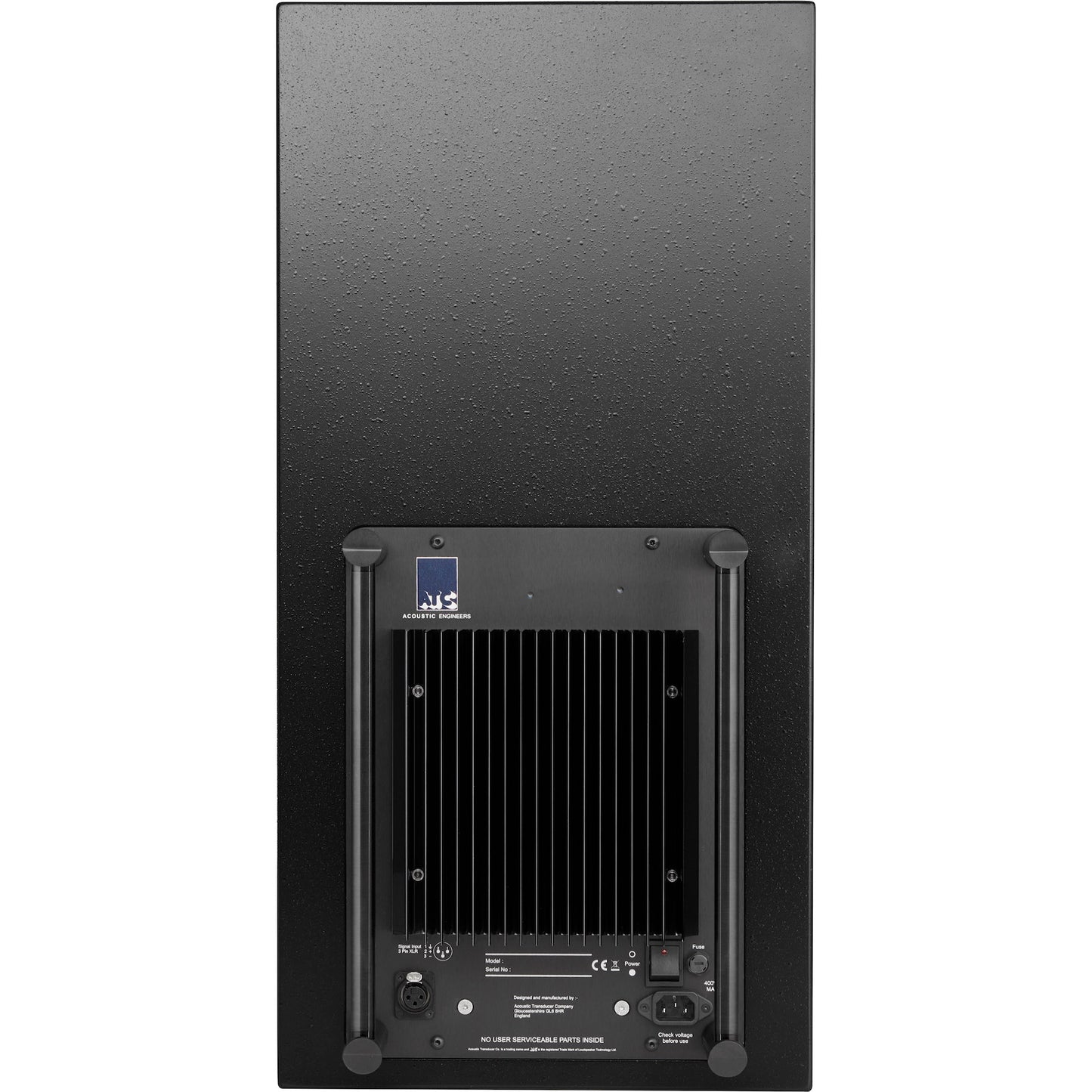

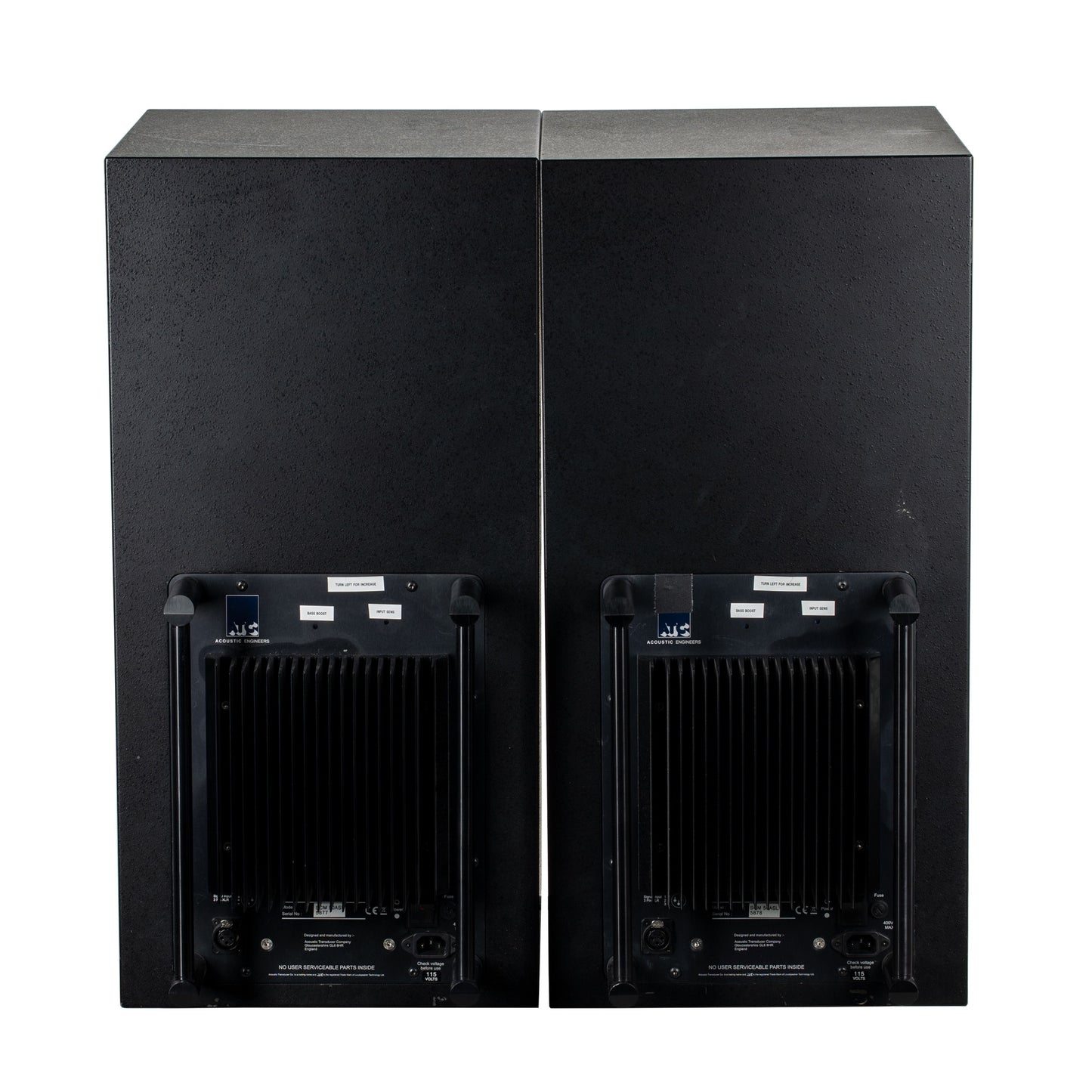

- On board grounded source 350W Tri-amp pack.
- LF contour control.
- Clip indication.
- 6 year warranty.
| Product Name | ATC SCM50ASL Pro Active 9 In 3-Way Monitor Speakers Pair |
|---|---|
| Brand | ATC Loudspeakers |
| Condition | New |
| MPN | SCM50ASL |
| Shipping Option | Free Shipping to the Continental U.S. |
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 9″/234mm
Amplitude Linearity (±2dB): 70Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 38Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 112dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 716 x 351 x 400mm (28.2Ë x 13.8Ë x 18.8Ë) Depth with amplifier at rear adds 3Ë
Weight: 49kg / 107.8lbs
