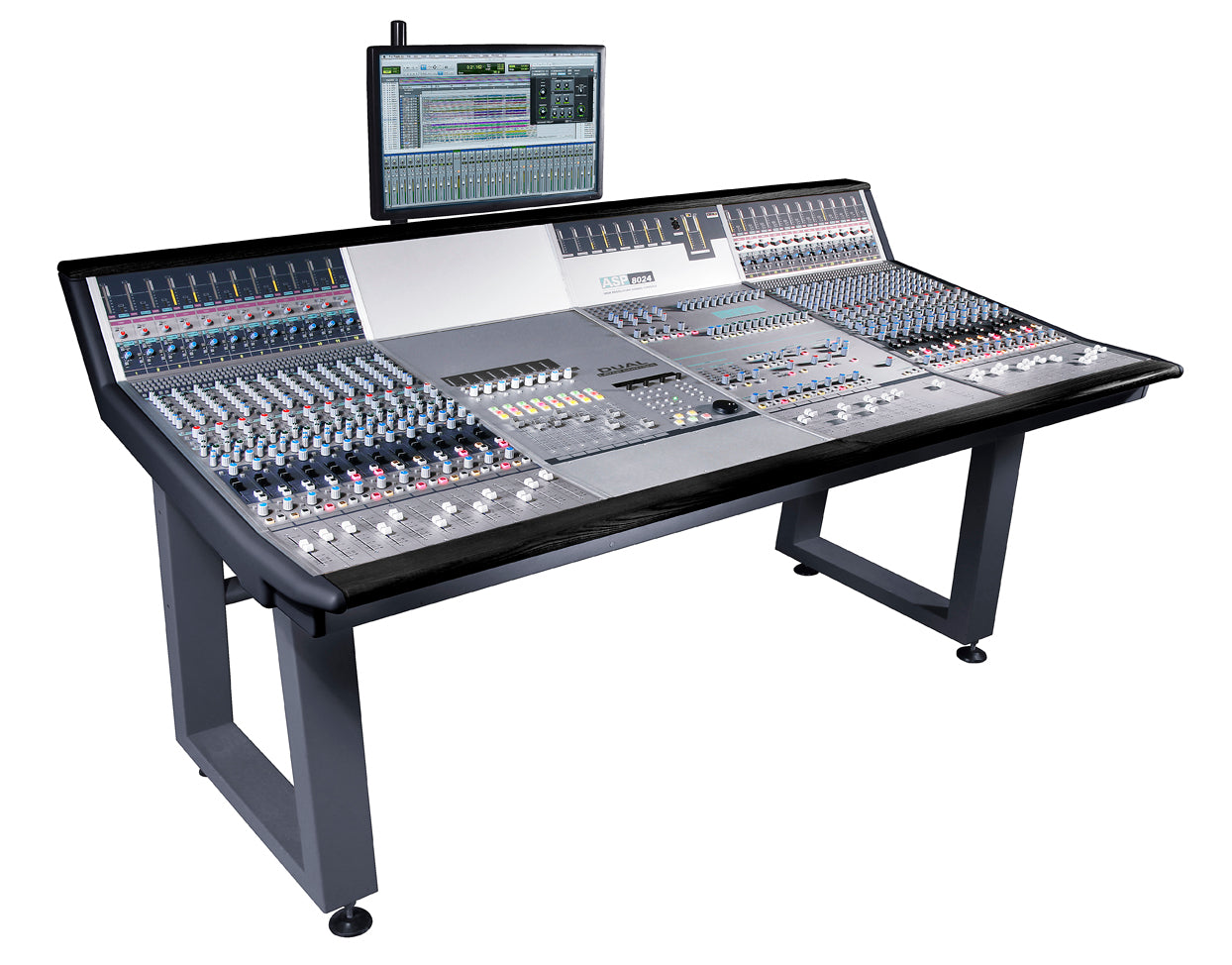

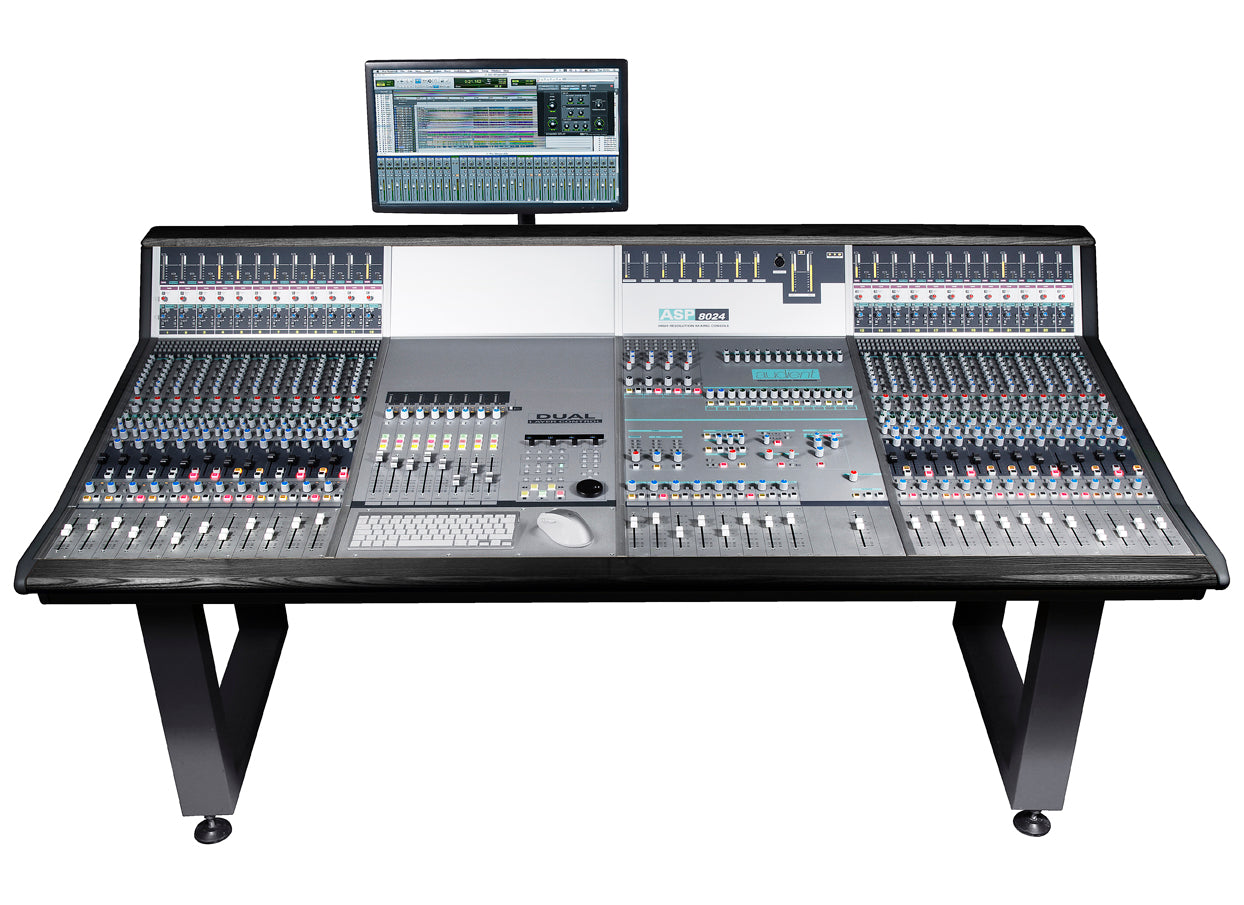

Audient ASP8024 Large Format Recording Console
No Patchbay
A powerful, flexible and intuitive console, ASP8024 brings superb audio performance from one of the world's most experienced and successful console engineering teams.
A premium recording and mixing console designed by analog “guru” David Dearden, ASP8024 combines Audient’s legendary analog circuitry with innovative DAW control and automation to provide the ultimate centre piece for production studios and education facilities.

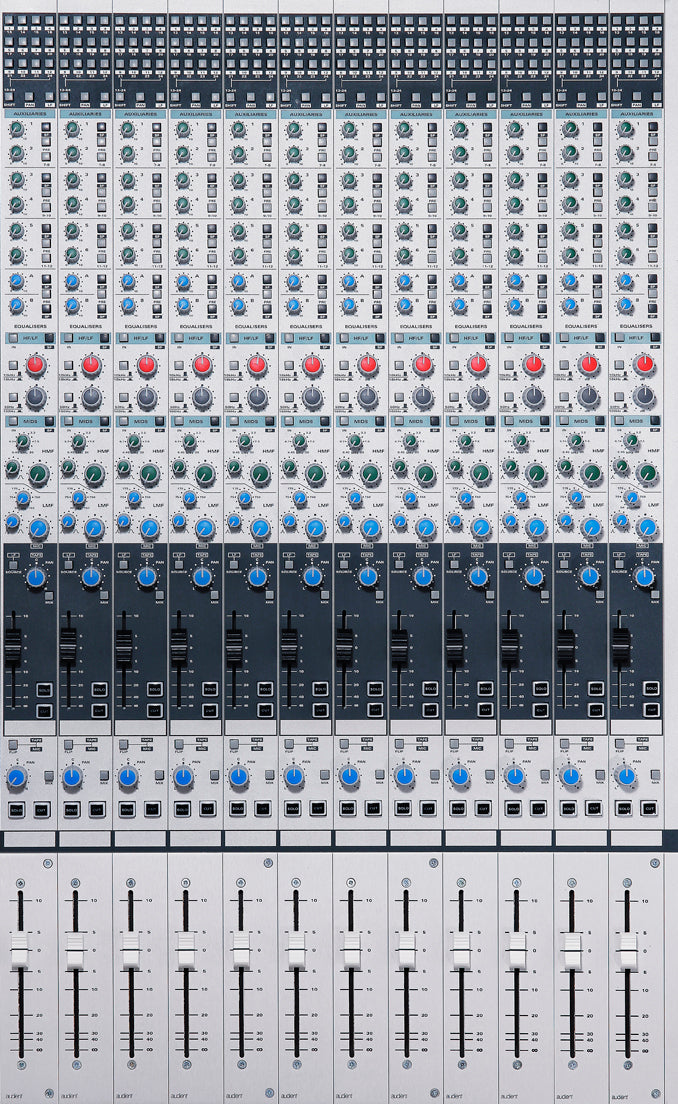

Each of the input channels features Audient’s impressive Class A preamp and 4 band EQ – a combination so versatile that many ASP8024 equipped studios no longer find the need for outboard preamps and EQ. The console features 24 bus routing, 12 auxes, 2 dedicated cue sends, 4 stereo returns, stereo bus compressor and a comprehensive monitor section.
Fully featured in-line architecture.
80 inputs in on 36 channel version.
Full 24-track routing.
Ergonomic control surface with clear status feedback.
Extended range, splittable equalisers.
14 auxiliary buses.
Unique modular construction for easy serviceability.
Integral compressors on stereo bus.
Selection for Main plus 3 alternate control room speakers.
Comprehensive communications.
Optional extras:
Patch Bay
Producer's Desk

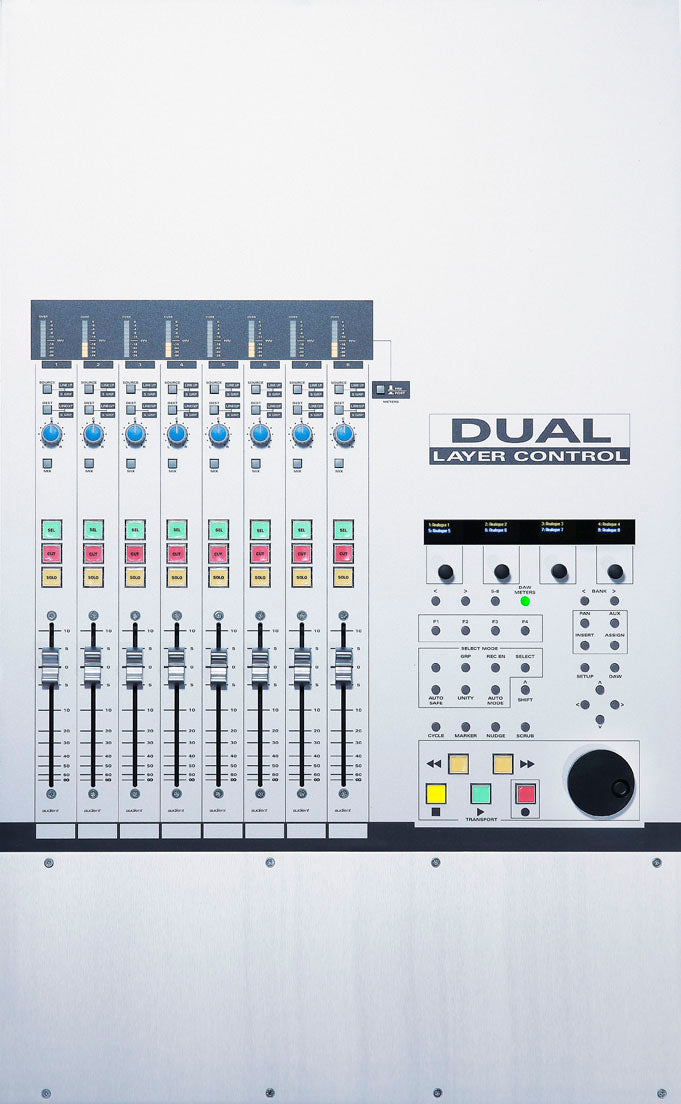

Dual layer control module
Frequency Response
Mic input to Mix output <+0,-0.3 dB 20Hz-20kHz @ 6-40 dB gain.
Line input to Mix output <+0,-0.3 dB 20Hz-20kHz @ 0 dB gain.
T.H.D. and Noise at +20 dB Output
Mic XLR input to any output <0.005% at 1kHz
Line input to any output <0.005% at 1kHz
Tape input to any output <0.003% at 1kHz
Noise
Mic EIN (20-20kHz, 150R source) <-127.5 dBu
Bus noise (no inputs routed) <-93 dBu
Bus noise (36 inputs routed) <-78 dBu
Mic C.M.R.R.
70 dB (Min gain) 75 dB (Max gain)
Crosstalk and Mute Attenuation at 1kHz
Short fader Mute >90 dB
Long fader Mute >90 dB
Mix assign >90 dB
Bus assign >90 dB
Maximum Input
Mic >+21 dBu (min gain)
Line >+30dBu (min gain)
Insert return >+21dBu
Maximum Output Into 2 kΩ
Mix output >+26 dBu
Bus output >+26 dBu
Aux output >+26 dBu
Insert send >+21 dBu
Monitor, Studio, F/B outputs >+21 dBu
Dimensions (mm)
ASP 8024-24 24 channel console 1470 x 1065 x 990
ASP 8024-36 36 channel console 1930 x 1065 x 990
ASP8024-36PB 36 channel console with patchbay 2390 x 1065 x 990
ASP8024-48 48 channel console 2390 x 1065 x 990
ASP8024-48PB 48 channel console with patchbay 2850 x 1065 x 990
ASP 8024-60 60 channel console 2850 x 1065 x 990
| Product Name | Audient ASP8024 Large Format Recording Console |
|---|---|
| Brand | Audient |
| Condition | New |
| MPN | ASP8024-48 |
| Shipping Option | Free Shipping to the Continental U.S. |
