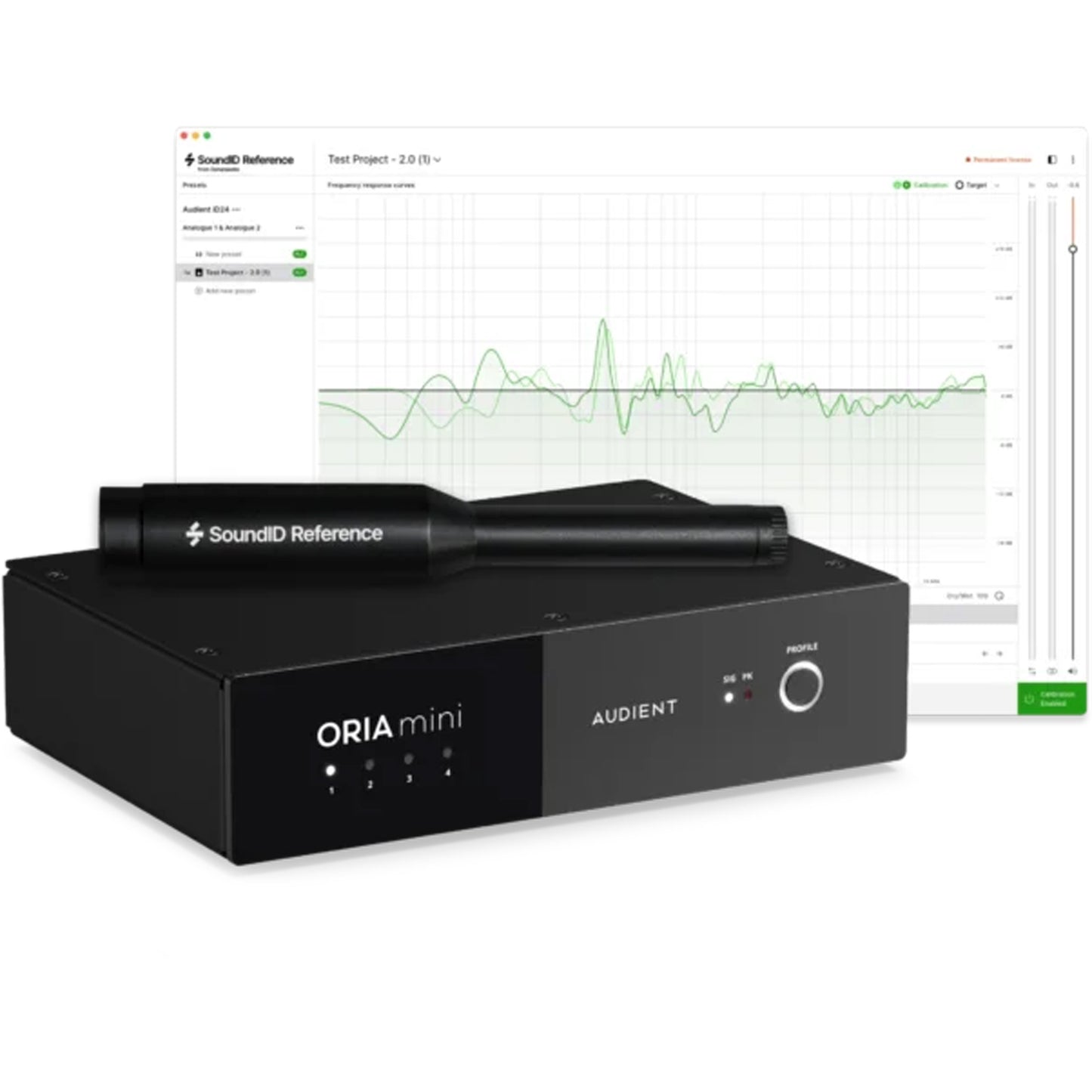

If you can’t trust what you’re hearing, you can’t trust your mix. The truth is your room is likely holding you back. Introducing ORIA Mini, the room correction powerhouse that sits between your audio interface and speakers – transforming your studio monitoring and giving you an instant performance boost. We’ve partnered with Sonarworks to bring you a dedicated hardware solution that analyses and corrects your room’s acoustic imperfections in minutes, taking your studio from a guess-and-check system to a reliable professional monitoring environment.
| Product Name | Audient ORIA Mini Stereo Room Correction System |
|---|---|
| Brand | Audient |
| Condition | New |
| MPN | ORIAMINI |
| UPC | 5060374260641 |
| Shipping Option | Free Shipping to the Continental U.S. |

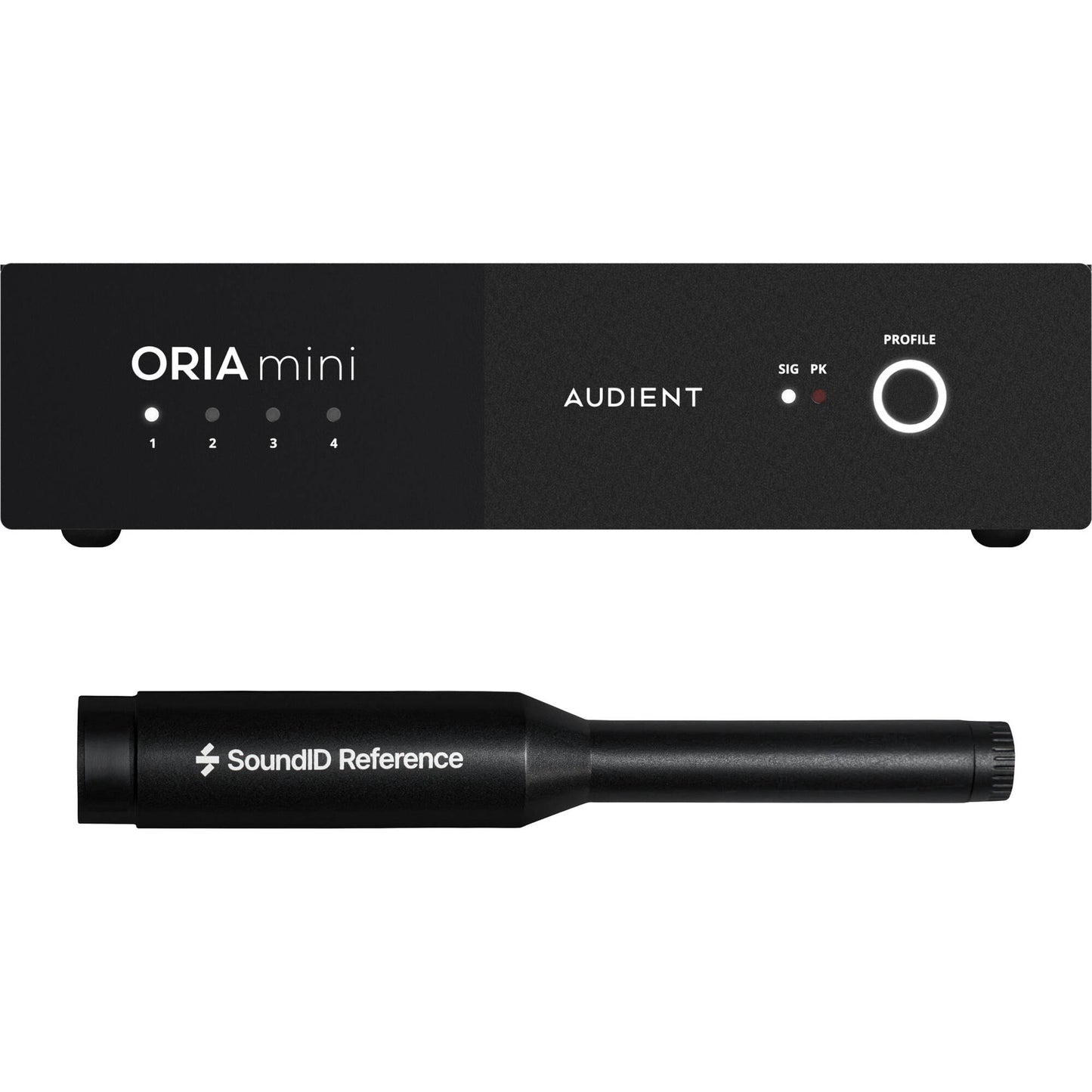

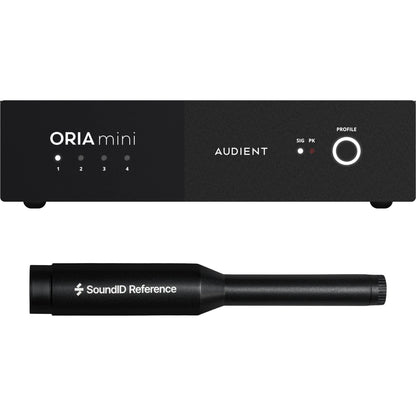

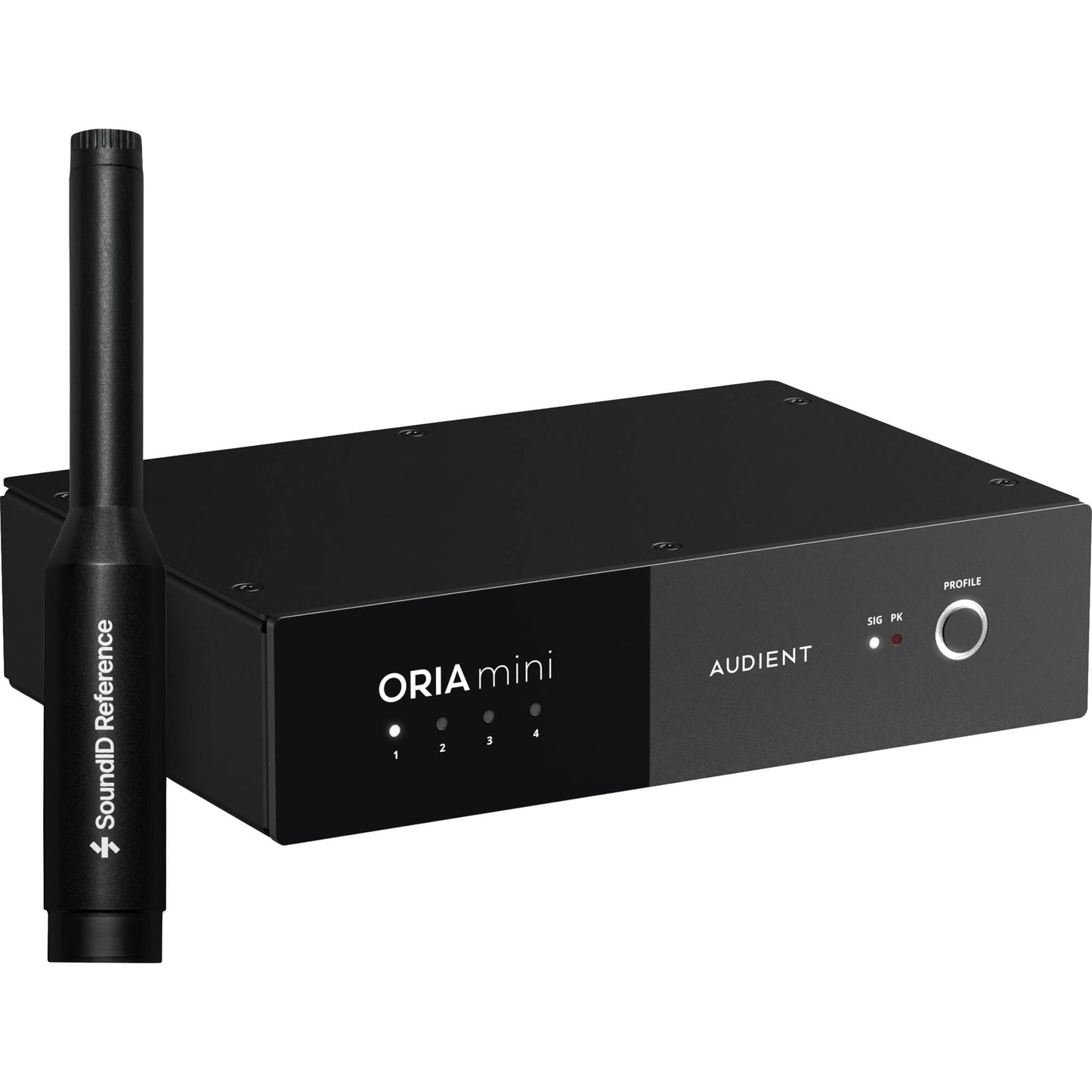

What's in the Box?
- Audient ORIA Mini Room Correction System
- SONARWORKS SoundID Reference Measurement Microphone
- USB-C Cable
- Room Correction System
- Powered by Sonarworks SoundiD Reference*
- Supports up to 2.1 Speaker Setups
- Ultra low-latency Monitoring
- Advanced 32-bit AD/DA Converter Technology
- Create and Store 4 Custom Calibration Profiles
- Switch between Profiles via Hardware
- Onboard Room Calibration Processing
- EQ, Delay, Trim & Bass Management

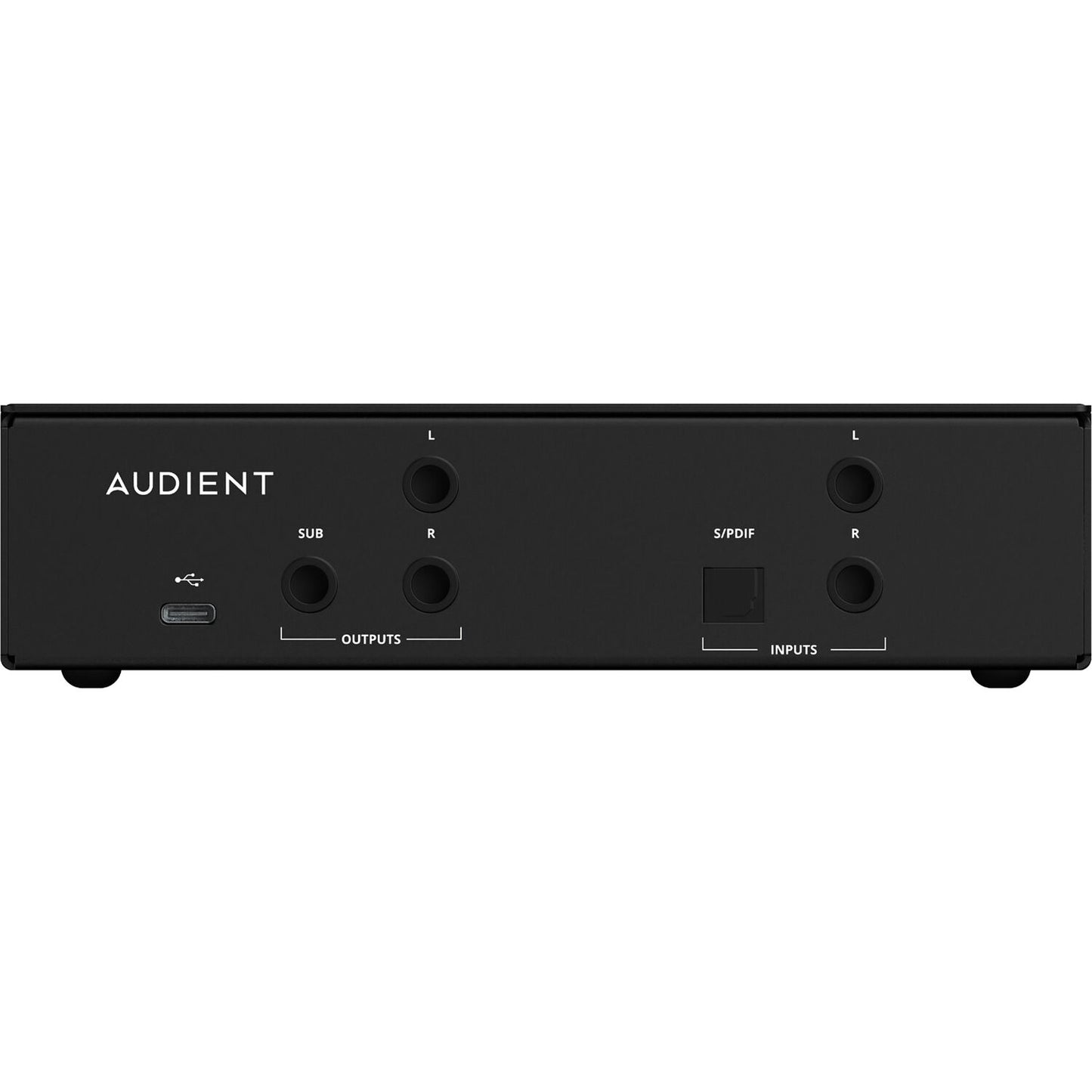

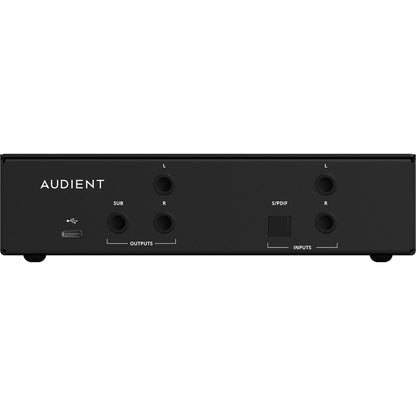

- 1 x Stereo Input (TRS)
- 1 x Digital Input (S/PDIF)
- 1 x Stereo Speaker Output (TRS)
- 1 x Subwoofer Output (TRS)
- 24 bit / 96kHz
- USB 3.0 / USB Type-C
- USB Bus Powered
- Includes Sonarworks Measurement Mic
- MacOS and Windows Compatible
- Remote Control
- iOS iPad Remote
- Stream Deck Support
System Specs |
|
|---|---|
| Analogue Input Channels | 2 |
| Analogue Output Channels | 3 |
| Digital Input Channels* | 2 *No audio streams over USB. USB is for power and control data only. |
| System Sample Rate | 96 kHz (with inbuilt sample rate conversion for digital inputs) |
Line Output (via Optical Input) |
|
| Max Output Level | +18 dBu |
| Dynamic Range (A Weighted) | 127 dB |
| THD+N (-1dBFS) | -113 dB / 0.0002% |
| Frequency Response (20Hz > FS/2*) | ± 0.1 dB *FS/2 of the incoming optical signal |
| Crosstalk (1kHz) | <-123 dB |
Line Input to Line Output |
|
| Max Input Level | +18 dBu |
| Dynamic Range (A Weighted) | 122.5 dB |
| THD+N (-1dBFS) | -105 dB / 0.0005% |
| Frequency Response (20Hz – 40kHz) | ± 0.2 dB |
| Crosstalk (1kHz) | <-118 dB |
Digital Input |
|
| Stereo S/PDIF | 44.1 kHz to 96 kHz |
USB |
|
| Connector Type | USB-C |
| Bus Power Requirement | 0.9 A @ 5 V (>= USB 3.0 Port) |
| Included Cable | USB-C – 1 m (39.37 in) |
Measurement Mic Specs |
|
| Model | MREF Microphone |
| Microphone Type | Electret-condenser |
| Transducer Type | MEMS |
| Frequency Response | 20 Hz – 20 kHz |
| Polar Pattern | Omni-directional |
| Output Impedance | 330 Ω |
| Sensitivity | -40 dBV/Pa |
| SNR | 65 dBA |
| Dynamic Range | 105 dB |
| Max SPL | 125 dB SPL |
| Power Requirements | +48 V Phantom Power |
| Connector Type | 3 Pin XLR |
| Weight | 54 g (0.119 lb) |

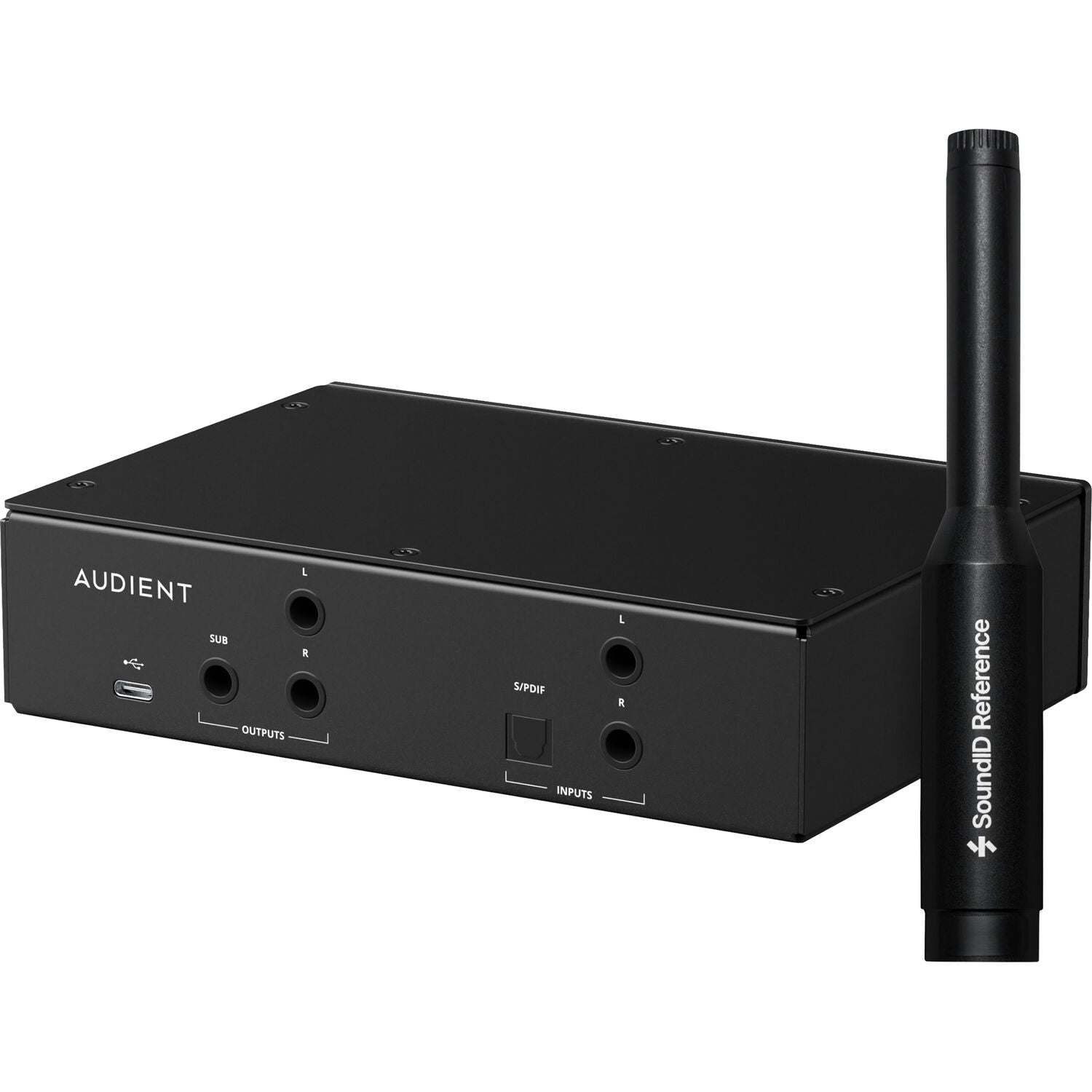

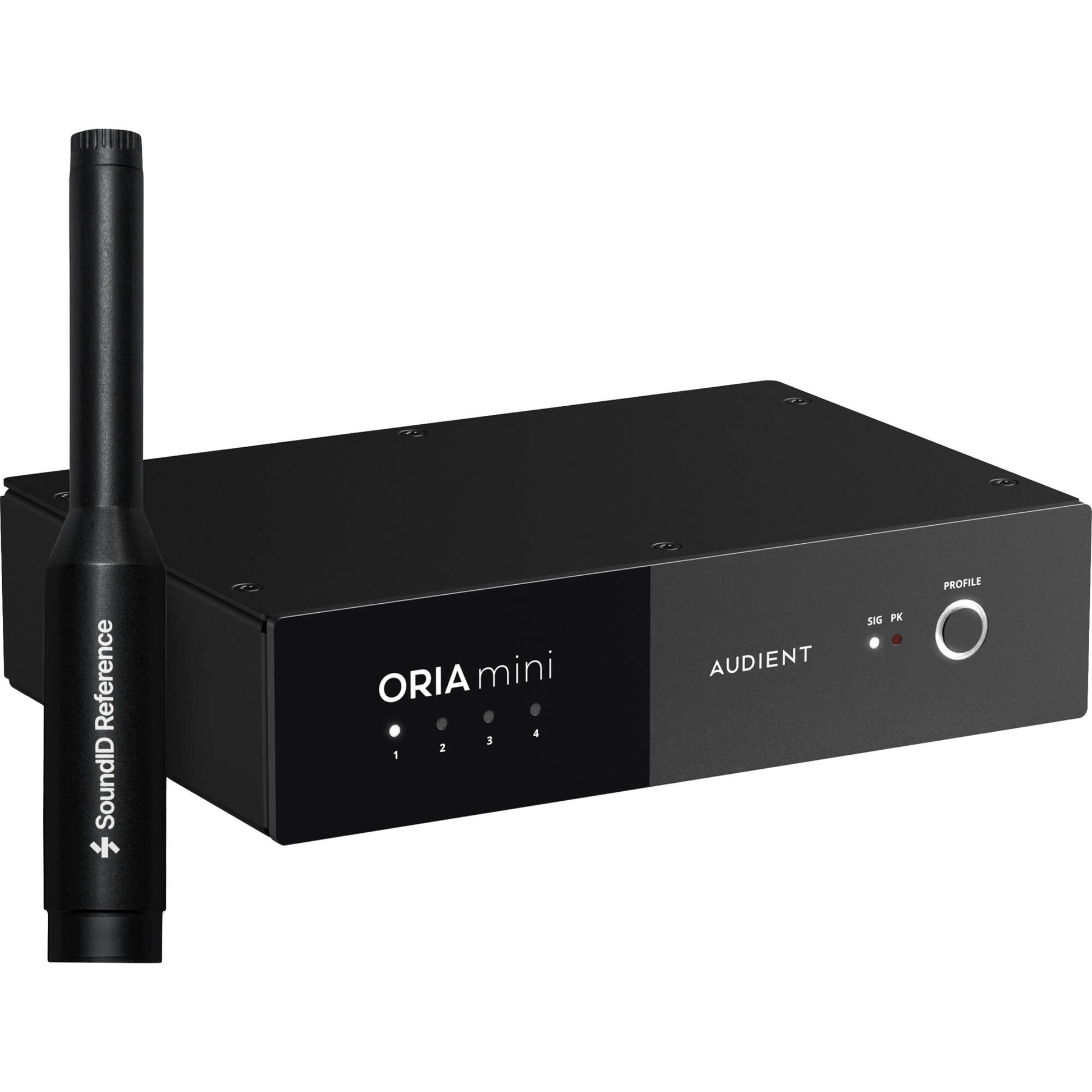

Audient ORIA Mini Stereo Room Correction System
Details
Unlock Your Best Mixes
If you can’t trust what you’re hearing, you can’t trust your mix. The truth is your room is likely holding you back. Introducing ORIA Mini, the room correction powerhouse that sits between your audio interface and speakers – transforming your studio monitoring and giving you an instant performance boost. We’ve partnered with Sonarworks to bring you a dedicated hardware solution that analyses and corrects your room’s acoustic imperfections in minutes, taking your studio from a guess-and-check system to a reliable professional monitoring environment.
| Product Name | Audient ORIA Mini Stereo Room Correction System |
|---|---|
| Condition | New |
| MPN | ORIAMINI |
| UPC | 5060374260641 |
What's in the Box?
- Audient ORIA Mini Room Correction System
- SONARWORKS SoundID Reference Measurement Microphone
- USB-C Cable
Features
- Room Correction System
- Powered by Sonarworks SoundiD Reference*
- Supports up to 2.1 Speaker Setups
- Ultra low-latency Monitoring
- Advanced 32-bit AD/DA Converter Technology
- Create and Store 4 Custom Calibration Profiles
- Switch between Profiles via Hardware
- Onboard Room Calibration Processing
- EQ, Delay, Trim & Bass Management
- 1 x Stereo Input (TRS)
- 1 x Digital Input (S/PDIF)
- 1 x Stereo Speaker Output (TRS)
- 1 x Subwoofer Output (TRS)
- 24 bit / 96kHz
- USB 3.0 / USB Type-C
- USB Bus Powered
- Includes Sonarworks Measurement Mic
- MacOS and Windows Compatible
- Remote Control
- iOS iPad Remote
- Stream Deck Support
Tech Specs
System Specs |
|
|---|---|
| Analogue Input Channels | 2 |
| Analogue Output Channels | 3 |
| Digital Input Channels* | 2 *No audio streams over USB. USB is for power and control data only. |
| System Sample Rate | 96 kHz (with inbuilt sample rate conversion for digital inputs) |
Line Output (via Optical Input) |
|
| Max Output Level | +18 dBu |
| Dynamic Range (A Weighted) | 127 dB |
| THD+N (-1dBFS) | -113 dB / 0.0002% |
| Frequency Response (20Hz > FS/2*) | ± 0.1 dB *FS/2 of the incoming optical signal |
| Crosstalk (1kHz) | <-123 dB |
Line Input to Line Output |
|
| Max Input Level | +18 dBu |
| Dynamic Range (A Weighted) | 122.5 dB |
| THD+N (-1dBFS) | -105 dB / 0.0005% |
| Frequency Response (20Hz – 40kHz) | ± 0.2 dB |
| Crosstalk (1kHz) | <-118 dB |
Digital Input |
|
| Stereo S/PDIF | 44.1 kHz to 96 kHz |
USB |
|
| Connector Type | USB-C |
| Bus Power Requirement | 0.9 A @ 5 V (>= USB 3.0 Port) |
| Included Cable | USB-C – 1 m (39.37 in) |
Measurement Mic Specs |
|
| Model | MREF Microphone |
| Microphone Type | Electret-condenser |
| Transducer Type | MEMS |
| Frequency Response | 20 Hz – 20 kHz |
| Polar Pattern | Omni-directional |
| Output Impedance | 330 Ω |
| Sensitivity | -40 dBV/Pa |
| SNR | 65 dBA |
| Dynamic Range | 105 dB |
| Max SPL | 125 dB SPL |
| Power Requirements | +48 V Phantom Power |
| Connector Type | 3 Pin XLR |
| Weight | 54 g (0.119 lb) |
