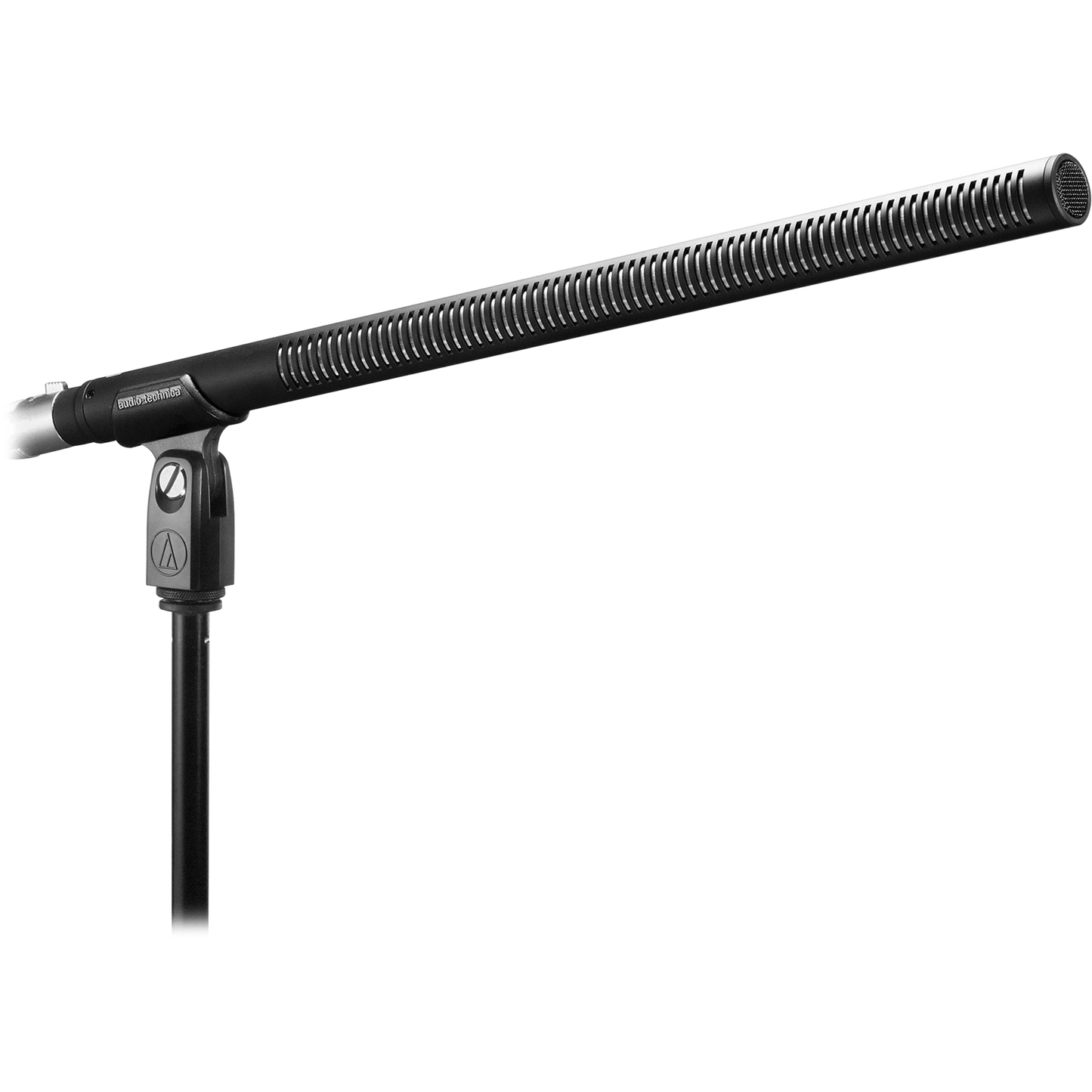

Based on models originally developed for use in the broadcast of the Sydney Games in 2000, the Audio-Technica BP4027 Stereo Shotgun model is engineered for high-end broadcast and production use. Both microphones feature independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing. These innovative microphones allow sound recordists the choice of selecting a left-right stereo output (wide or narrow) via the microphone's internal matrixing system or choosing discrete Mid-Side signals for later manipulation, a flexibility not available from any other manufacturer.



A switchable low frequency roll-off filter helps minimize the pickup of unwanted low frequency noise. These phantom-powered models feature a rugged lightweight design and sleek black color scheme, perfect for on-camera use.



Features

Designed for broadcasters, videographers and sound recordists

Compact, lightweight design is perfect for camera-mount use

Independent Line-cardioid and Figure-of-eight condenser elements

Switchable low-frequency roll-off

Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes

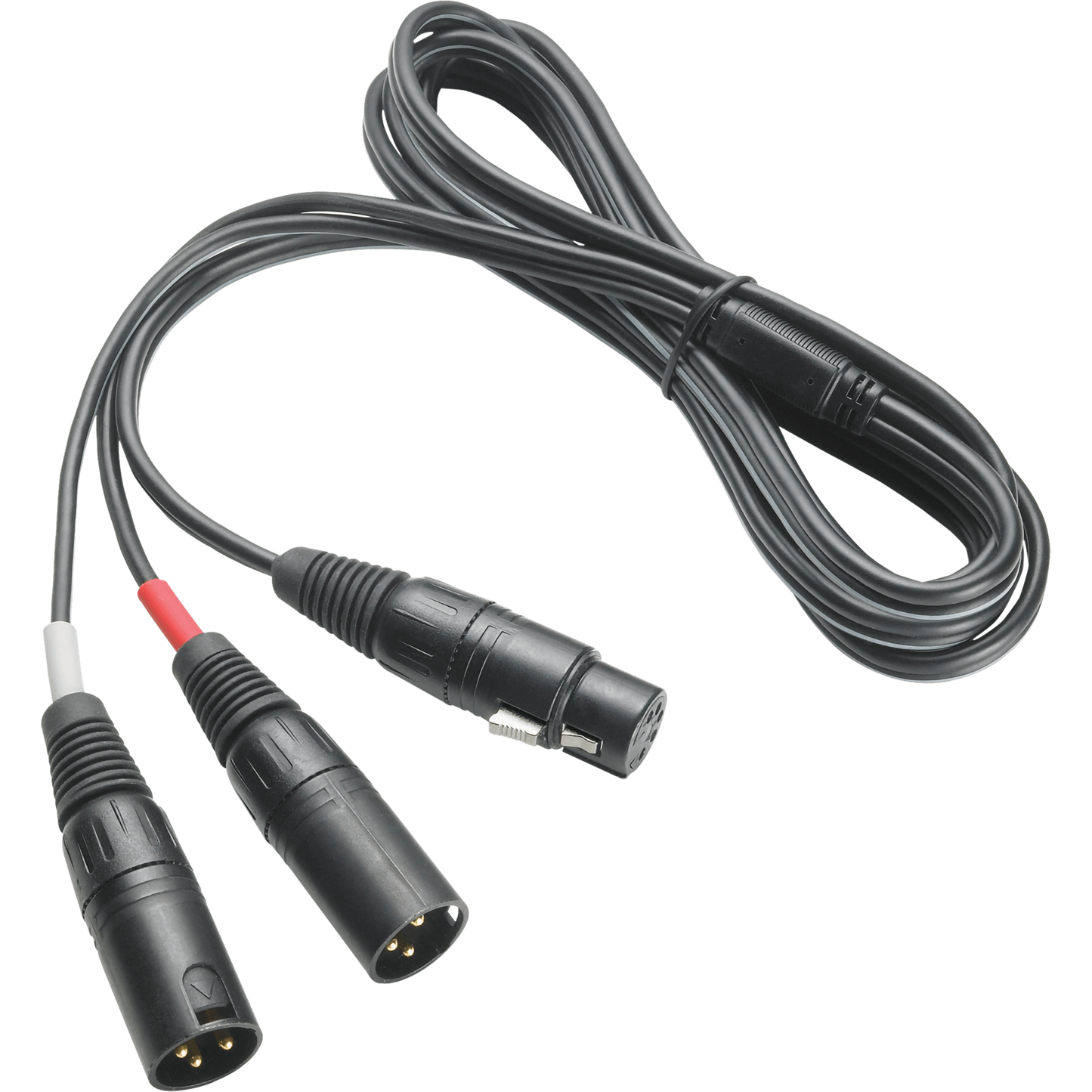

Includes a 0.61 m (24") cable (5-pin XLRF to two standard 3-pin XLRM connectors)

RoHS compliant--free from all substances specified in the EU directive on hazardous substances



Elements: Fixed-Charge Back Plate, Permanently Polarized Condenser

Polar Patterns: Line-Cardioid, Figure-Of-Eight

Frequency Response: 30-20,000 Hz

Low Frequency Roll-Off: 80 Hz, 12 Db/Octave

Open Circuit Sensitivity: Mid: -30 Db (31.6 Mv) Re 1v At 1 Pa;

Side: -34 Db (19.9 Mv) Re 1v At 1 Pa;

Lr Stereo: -36 Db (15.8 Mv) Re 1v At 1 Pa

Impedance: 200 Ohms

Maximum Input Sound Level: Mid: 123 Db Spl, 1 Khz At 1% T.H.D.;

Side: 127 Db Spl, 1 Khz At 1% T.H.D.;

Lr Stereo: 126 Db Spl, 1 Khz At 1% T.H.D.

Dynamic Range (Typical): Mid: 101 Db, 1 Khz At Max Spl;

Side: 101 Db, 1 Khz At Max Spl;

Lr Stereo: 102 Db, 1 Khz At Max Spl

Signal-To-Noise Ratio: Mid: 72 Db Spl, 1 Khz At 1 Pa;

Side: 68 Db Spl, 1 Khz At 1 Pa;

Lr Stereo: 70 Db Spl, 1 Khz At 1 Pa

Phantom Power Requirements: 11-52v Dc, 4 Ma Typical At 48v, Each Channel

Switches: M-S, Lr Stereo-Wide (Lr-W), Lr Stereo-Narrow (Lr-N);

Flat, Roll-Off

Weight: 142 G (5.0 Oz)

Dimensions: 380.0 Mm (14.96") Long, 21.0 Mm (0.83") Diameter

Output Connector: Integral Xlr5m-Type

Cable: Dual 0.61 M (24") Shielded Two-Conductor, Terminated In Two Xlr3m-Type Connectors

Accessories Furnished: At8405a Stand Clamp For 5/8"-27 Threaded Stands; AT8135 Foam Windscreen; 5/8"-27 To 3/8"-16 Threaded Adapter; Protective Carrying Case

Audio-Technica Case Style: Sg3
