Audio Technica Instrument Condenser Microphone (ATM350U)

Audio Technica Instrument Condenser Microphone (ATM350U)

On order with the manufacturer!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

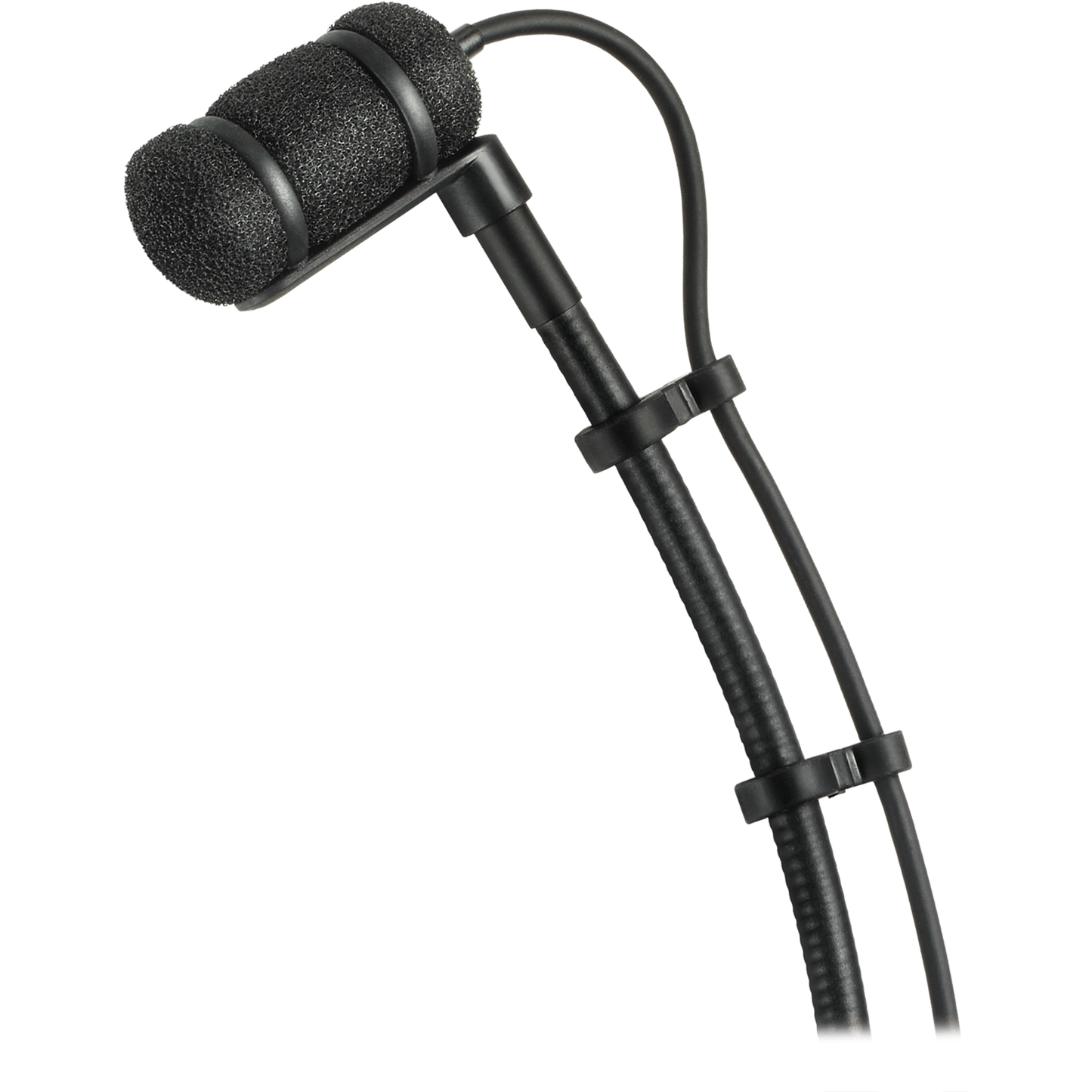

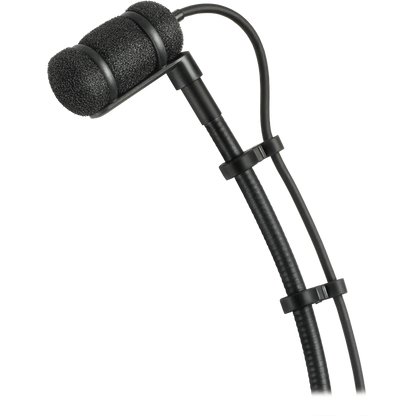

Designed for use with brass, saxophone and other instruments, the ATM350U UniMount® mounting system gives you the tools to perform with confidence. The system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument. When teamed with the included AT8491U universal clip-on mount and strong, flexible AT8490 5" gooseneck, the mic can be clipped securely to the bell of your instrument and positioned to stay where you want it – the gooseneck won’t flop around no matter how aggressively you move the instrument as you play.

The microphone’s cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with hook-and-loop fastener and a protective carrying case.

More Information
Product Name Audio Technica Instrument Condenser Microphone (ATM350U)
Brand Audio Technica
Condition New
MPN ATM350u
UPC 4961310136727
Shipping Option Free Shipping to the Continental U.S.
  • Low-profile mic design for minimum visibility
  • Crisp, clear, well-balanced microphone response, even at high SPLs
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • UniMount® universal clip-on mount attaches securely to instrument bell and provides excellent shock resistance for the microphone
  • Rugged UniMount® 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
  • In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
  • Interchangeable elements available for hypercardioid and omnidirectional polar patterns
  • Included violin mount with hook-and-loop fastener provides an additional mounting option
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 40 – 20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY –49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 159 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 130 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11– 52V DC, 3.5 mA typical
SWITCH Flat, roll-off
WEIGHT (MICROPHONE) 14.5 g (0.5 oz)
WEIGHT (POWER MODULE) 90 g (3.2 oz)
DIMENSIONS (MICROPHONE) 37.8 mm (1.49'') long,
12.2 mm (0.48'') maximum body diameter
DIMENSIONS (POWER MODULE) 92 mm (3.62") long,
18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS UE-H hypercardioid (100°)
UE-O omnidirectional (360°)
ACCESSORIES FURNISHED ATM350a cardioid condenser microphone; AT8543 power module; AT8491U UniMount® universal clip-on mount; AT8490 UniMount® 5" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
AUDIO-TECHNICA CASE STYLE M36

Audio Technica Instrument Condenser Microphone (ATM350U)

Details

Designed for use with brass, saxophone and other instruments, the ATM350U UniMount® mounting system gives you the tools to perform with confidence. The system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument. When teamed with the included AT8491U universal clip-on mount and strong, flexible AT8490 5" gooseneck, the mic can be clipped securely to the bell of your instrument and positioned to stay where you want it – the gooseneck won’t flop around no matter how aggressively you move the instrument as you play.

The microphone’s cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with hook-and-loop fastener and a protective carrying case.

More Information
Product Name Audio Technica Instrument Condenser Microphone (ATM350U)
Brand Audio Technica
Condition New
MPN ATM350u
UPC 4961310136727
Shipping Option Free Shipping to the Continental U.S.
Features
  • Low-profile mic design for minimum visibility
  • Crisp, clear, well-balanced microphone response, even at high SPLs
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • UniMount® universal clip-on mount attaches securely to instrument bell and provides excellent shock resistance for the microphone
  • Rugged UniMount® 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
  • In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
  • Interchangeable elements available for hypercardioid and omnidirectional polar patterns
  • Included violin mount with hook-and-loop fastener provides an additional mounting option
Tech Specs
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 40 – 20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY –49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 159 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 130 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11– 52V DC, 3.5 mA typical
SWITCH Flat, roll-off
WEIGHT (MICROPHONE) 14.5 g (0.5 oz)
WEIGHT (POWER MODULE) 90 g (3.2 oz)
DIMENSIONS (MICROPHONE) 37.8 mm (1.49'') long,
12.2 mm (0.48'') maximum body diameter
DIMENSIONS (POWER MODULE) 92 mm (3.62") long,
18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS UE-H hypercardioid (100°)
UE-O omnidirectional (360°)
ACCESSORIES FURNISHED ATM350a cardioid condenser microphone; AT8543 power module; AT8491U UniMount® universal clip-on mount; AT8490 UniMount® 5" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
AUDIO-TECHNICA CASE STYLE M36
Reviews
