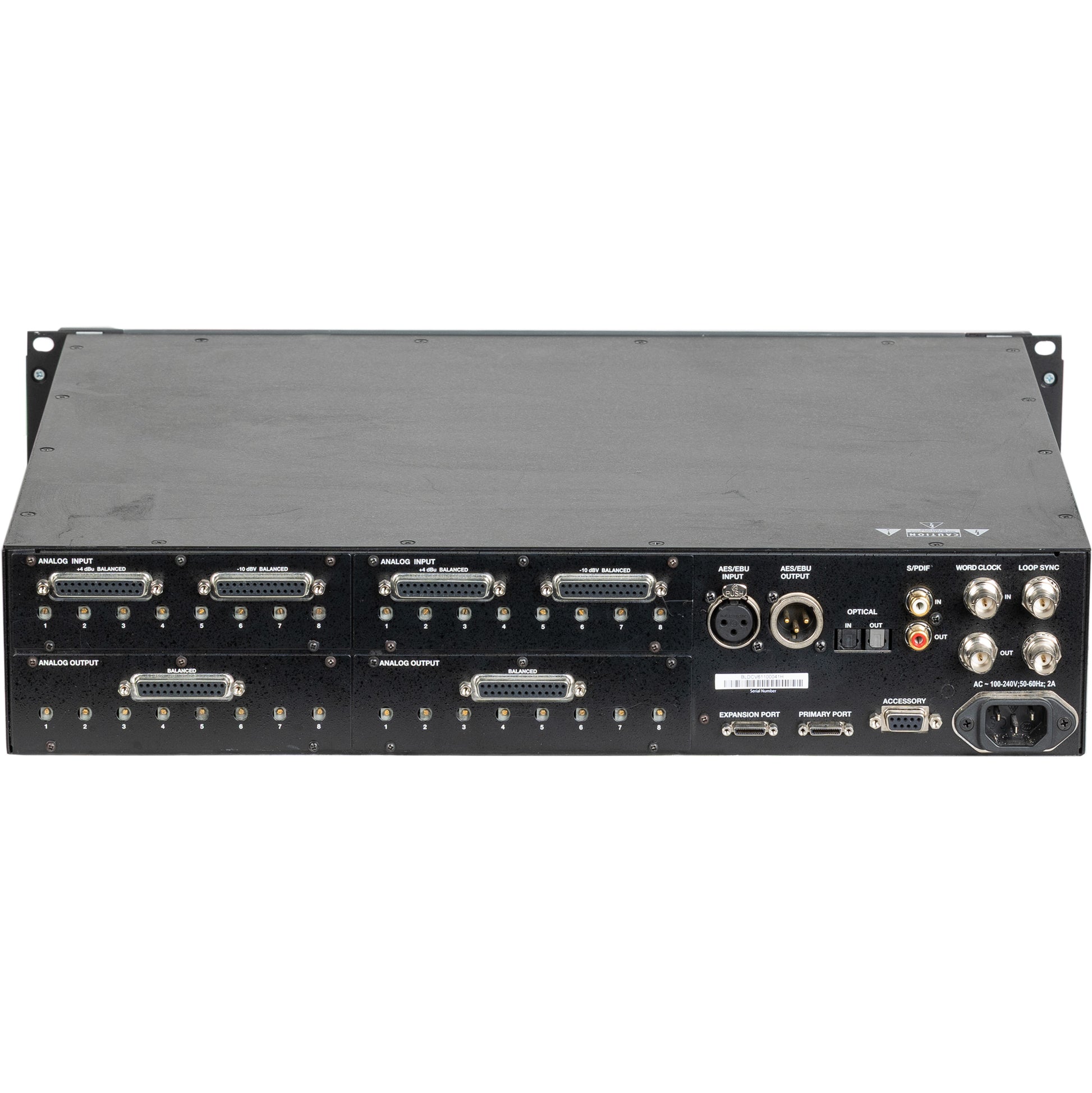

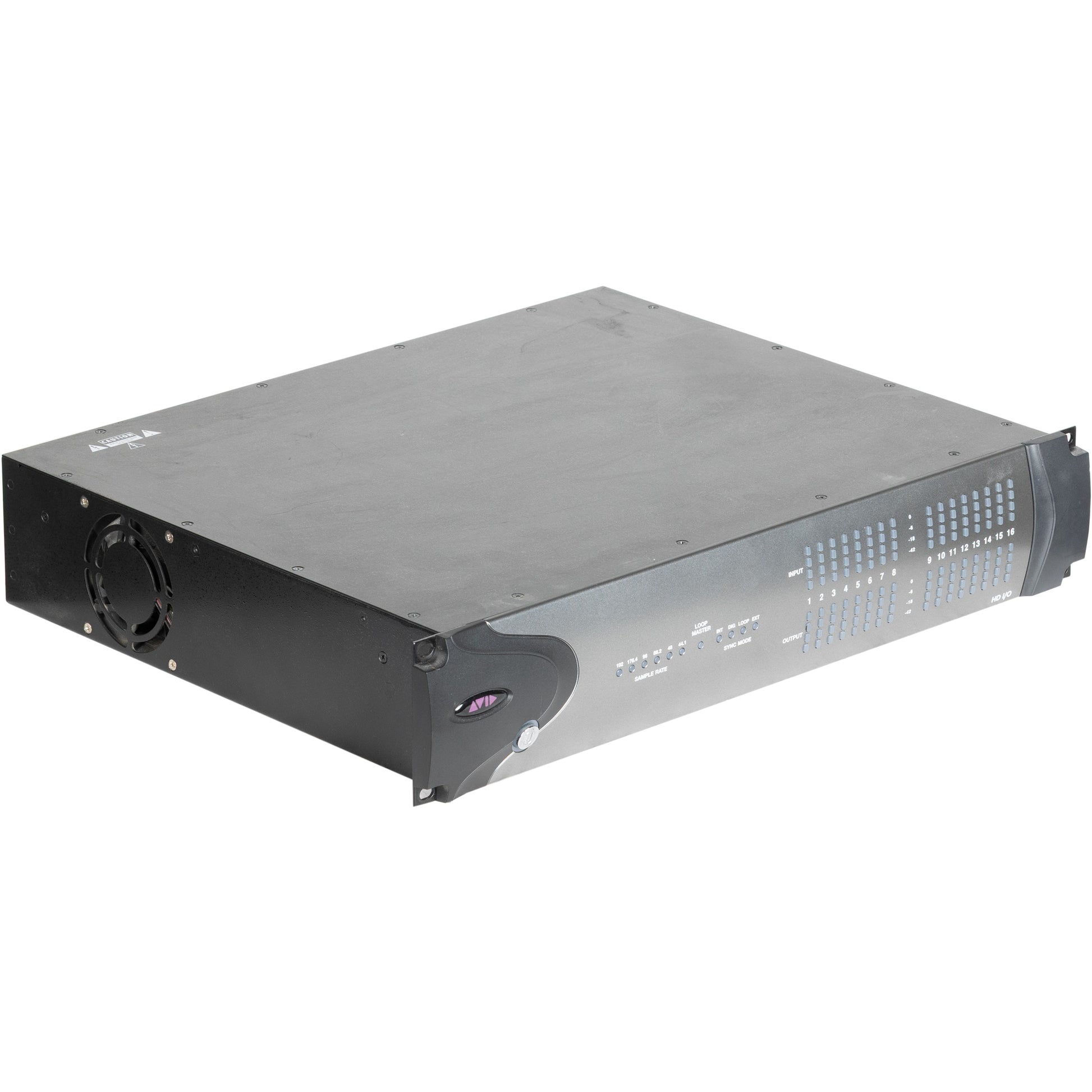

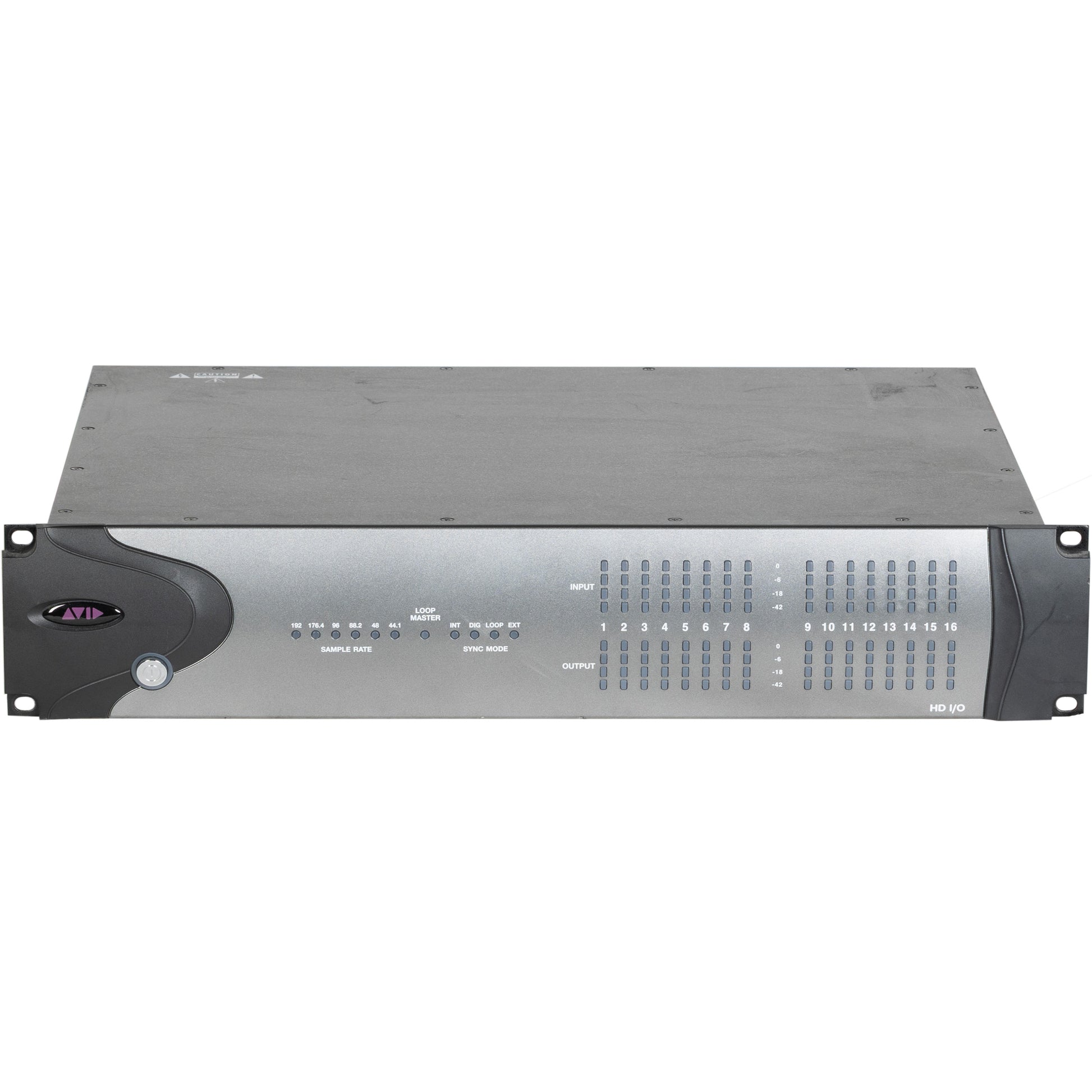

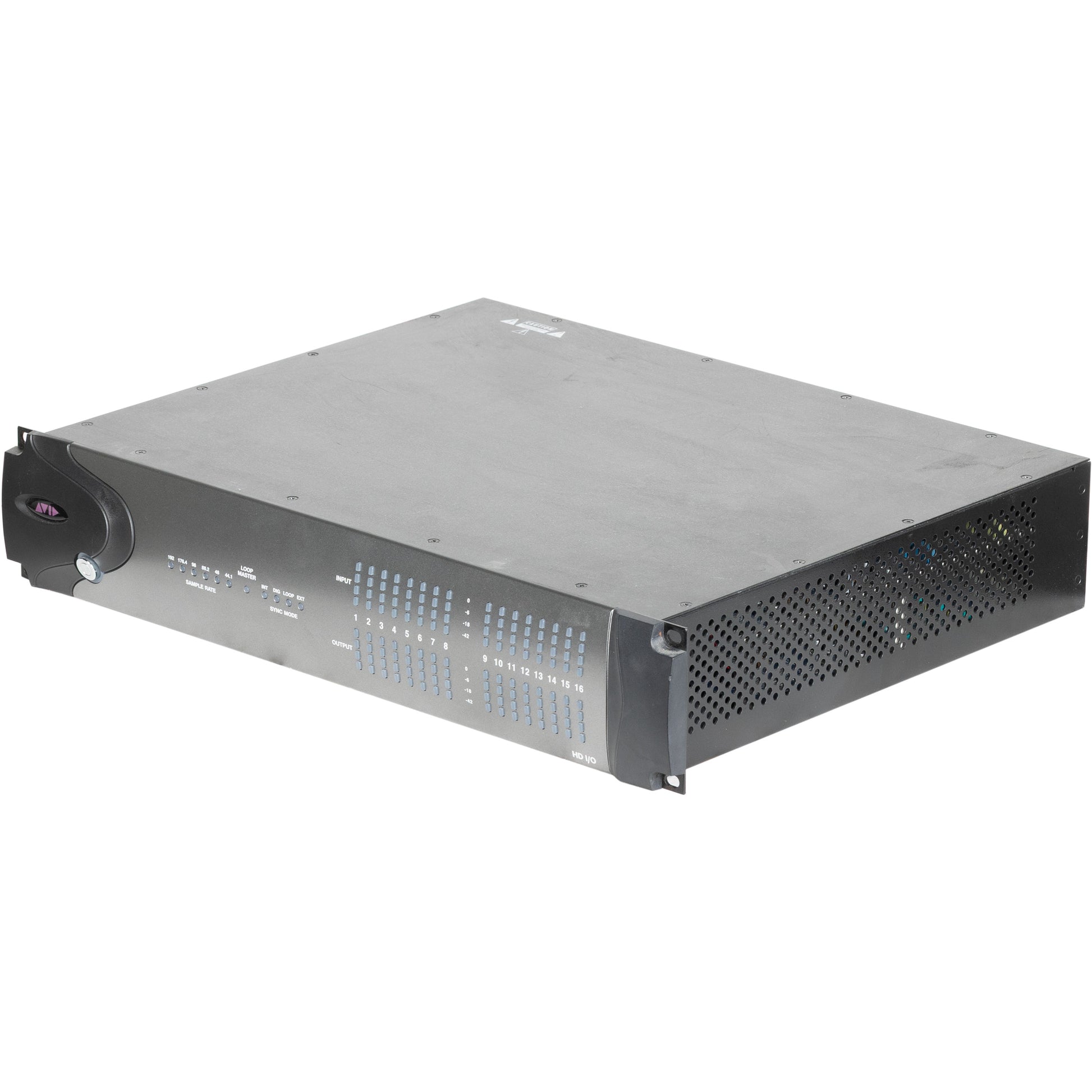

*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
The HD I/O 16x16 Analog from Avid is a high-performance Pro Tools HD Series audio interface that is designed to completely integrate with Pro Tools HD systems. Available in three different configurations, this version provides the maximum in analog input and output. Since the interface utilizes all four card slots, expansion is not possible, but customization is.
Although it bears a physical resemblance to previous interfaces, the HD I/O has been completely redesigned with high quality converters and premium input and output circuitry. The interface provides maximum performance, dependability, and control of all inputs, outputs, and routing right from the Pro Tools software interface.
| Product Name | Avid HD I/O 16x16 Analog Audio Interface |
|---|---|
| Brand | Avid |
| Condition | Pre-Owned |
| MPN | 9900-58670-40 |
| UPC | 724643110994 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Avid HD I/O 16x16 Analog Audio Interface
- DigiLink Mini Cable
- 16 input / 16 output analog audio interface with full Pro Tools|HD integration for complete input, output and routing control
- Pristine audio clarity and ultra low latency through state-of-the-art analog-to-digital and digital-to-analog conversion, premium analog circuitry, and meticulous attention to design
- Stereo AES/EBU, stereo S/PDIF and 8 channels of ADAT digital I/O with built-in sample rate conversion
- Customize the I/O with digital option cards
- Track hotter signals and smooth out sounds with Curv, a built-in soft-knee limiter Dedicated Wordclock and Loop Sync I/O
- 32, 4-segment metering LEDs for accurate level monitoring
- Robust 2U rack-mountable chassis
- Connects to Pro Tools HD through a DigiLink Mini connection
| Channels of I/O | 16 Input / 16 Output |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Analog Audio I/O | 2x DB-25 Mic/8-Channel Input 2x DB-25 Line/8-Channel Input 2x DB-25 8-Channel Output |
| Digital Audio I/O | 1x AES3 Input 1x AES3 Output 1x ADAT / S/PDIF Input 1x ADAT / S/PDIF Output 1x S/PDIF Input 1x S/PDIF Output |
| Host Connection | 2x DigiLink Mini |
| Power Requirements | AC/DC Power Adapter (Included) |
General |
|
|---|---|
| Display | 32x Multi-Segment LED Meter |
| Channels of I/O | 16 Input / 16 Output |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Built-In Microphone | No |
Signal Processing |
|
| Pad | No |
| High-Pass Filter | No |
| Solo/Mute | No |
Connectivity |
|
| Analog Audio I/O | 2x DB-25 Mic/8-Channel Input 2x DB-25 Line/8-Channel Input 2x DB-25 8-Channel Output |
| Phantom Power | No |
| Digital Audio I/O | 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output 1x TOSLINK Optical ADAT / S/PDIF Input 1x TOSLINK Optical ADAT / S/PDIF Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection / USB | 2x DigiLink Mini |
| Host Connection Protocol | Avid Proprietary |
| USB (Non-Host) | No |
| Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output 1x BNC Loop Sync Input 1x BNC Loop Sync Output |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Other I/O | 1x DB-9 Expansion In/Out |
| Wireless | No |
Performance |
|
| Frequency Response | A/D Converters: 20 Hz to 20 kHz ±0.03 dB D/A Converters: 20 Hz to 20 kHz ±0.15 dB |
| Dynamic Range | A/D Converters: 122 dB D/A Converters: 125 dB |
| THD+N | A/D Converters: -114 dB / 0.0002% D/A Converters: -110 dB / 0.00032% |
Digital Audio |
|
| Sample Rates | 44.1 to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Sync Sources | DB-25, Ethernet |
| Clocking | Internal: |
Audio Storage & Playback |
|
| Media/Memory Card Slot | No |
Compatibility |
|
| OS Compatibility | macOS / Windows |
| Mobile Device Compatibility | No |
| Required Hardware | DigiLink Mini Port |
Power |
|
| Power Requirements | AC/DC Power Adapter (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Physical |
|
| Rackmount Size | 2 U |
| Weight | 25.0 lb / 11.3 kg |
