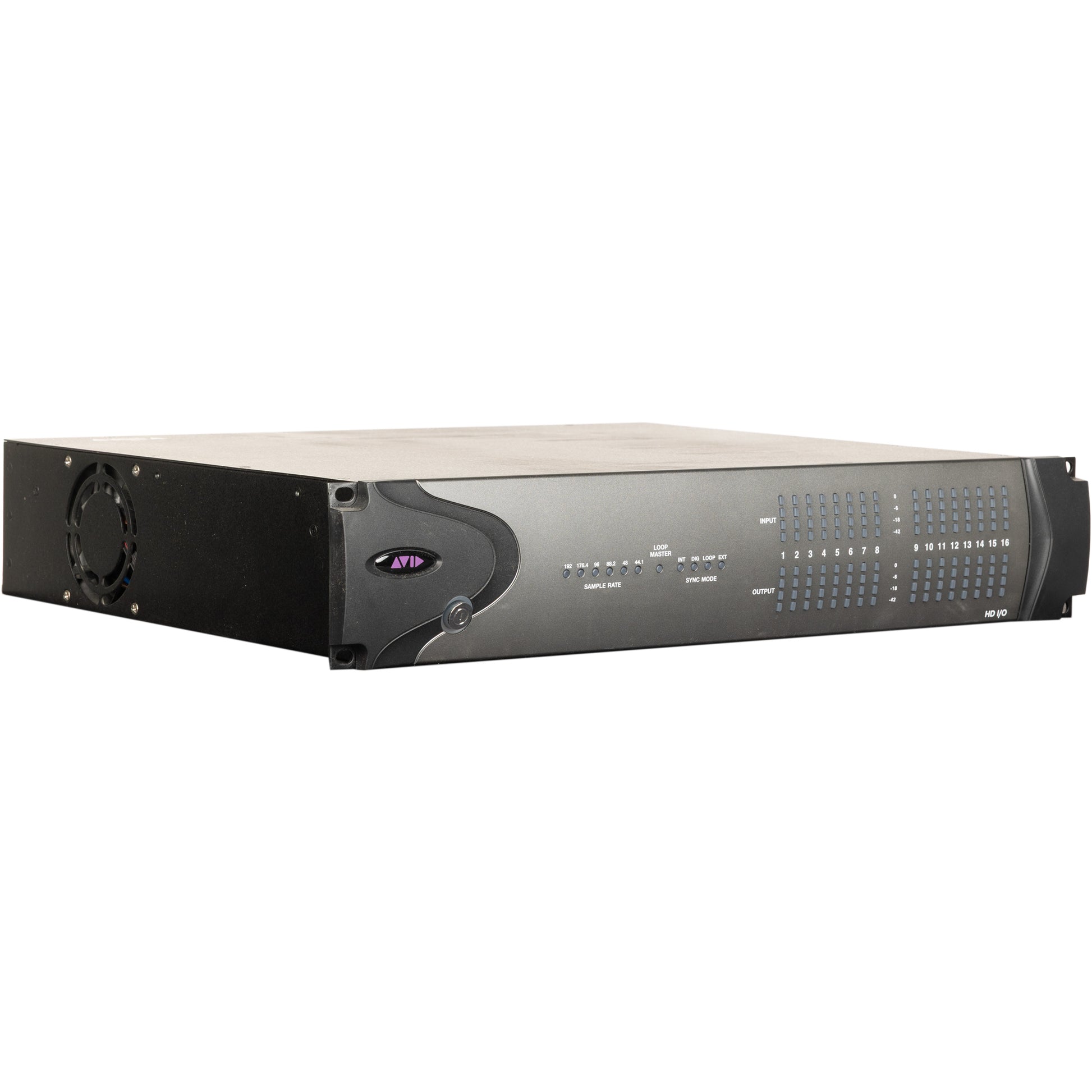

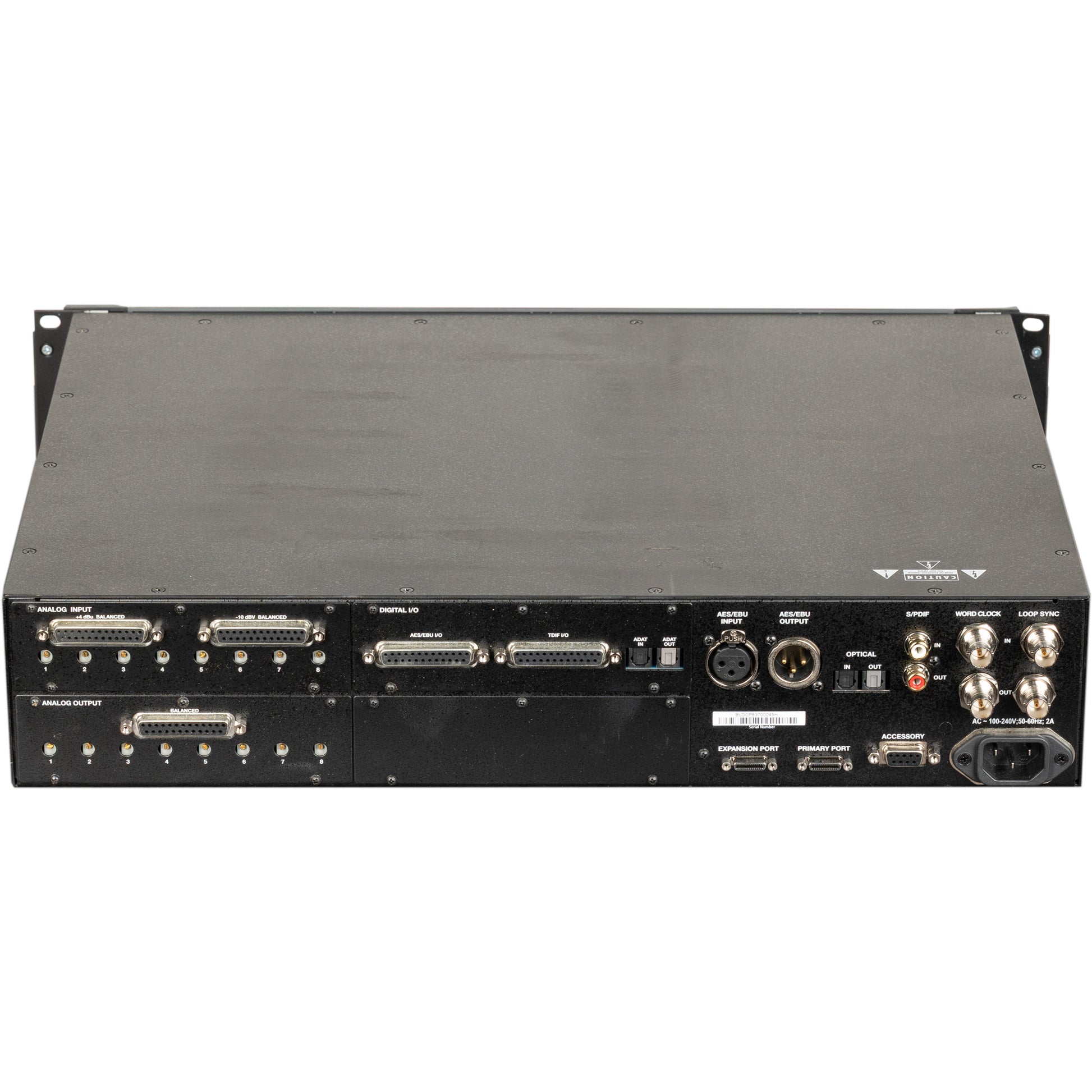

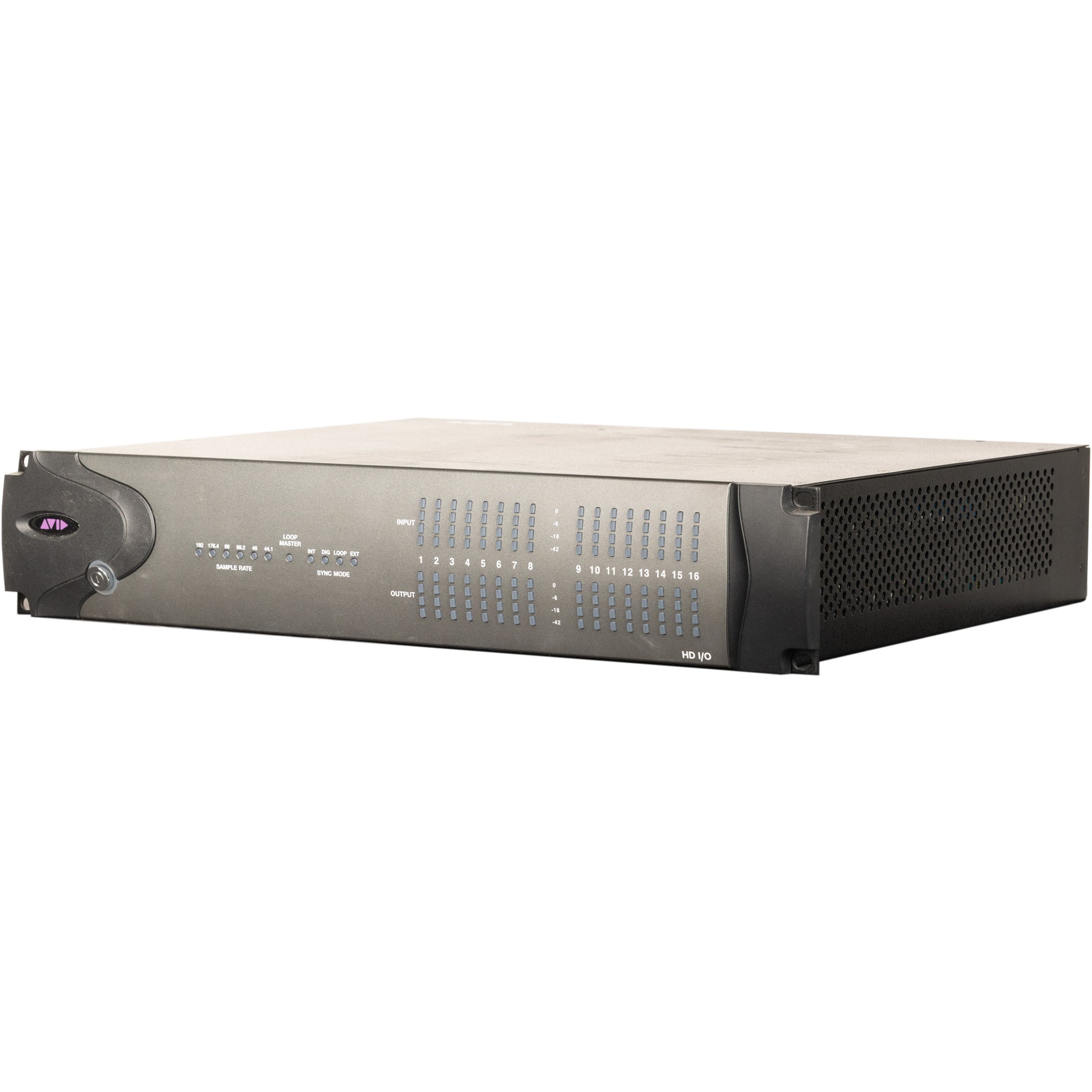

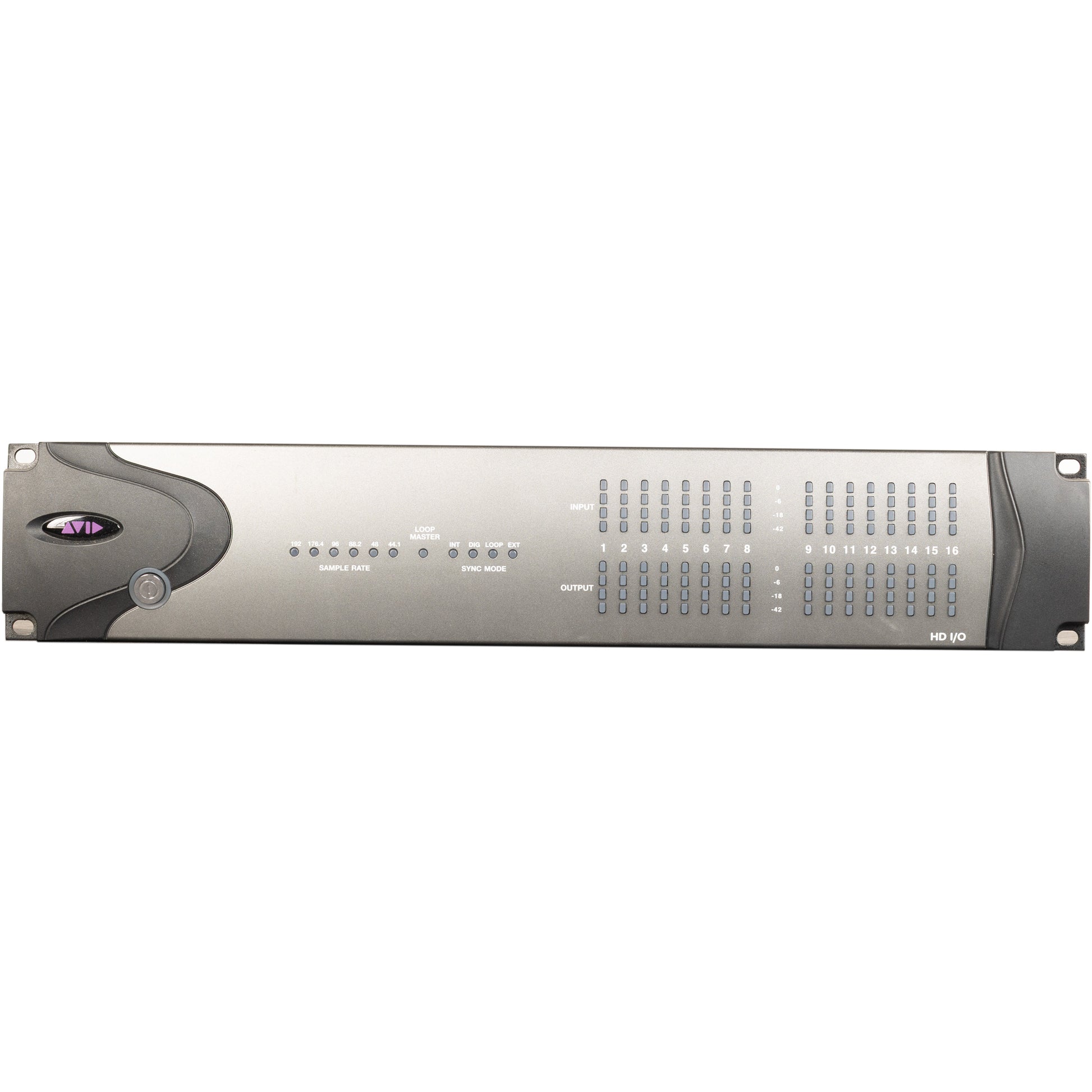

*Please note -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.
The HD I/O 8x8x8 Analog from Avid is a high-performance Pro Tools HD Series audio interface that is designed to completely integrate with Pro Tools HD systems. Available in three different configurations, this version provides eight analog inputs and outputs, with an additional 8 channels of AES/EBU I/O, or 8 channels of TDIF I/O, or 8 channels of ADAT Lightpipe.
Although it bears a physical resemblance to previous interfaces, the HD I/O has been completely redesigned with high quality converters and premium input and output circuitry. The interface provides maximum performance, dependability, and control of all inputs, outputs, and routing right from the Pro Tools software interface. Sample rate conversion is available on the digital card.
The Digital I/O card contains connectors for eight channels each of AES/EBU I/O, TDIF I/O, and optical (ADAT) I/O. Only one digital format can be used at a time. A single card slot is available for further expansion.
| Product Name | Avid HD I/O 8x8x8 Pro Tools HD Series Audio Interface |
|---|---|
| Brand | Avid |
| Condition | Pre-Owned |
| MPN | 9900-58669-40 |
| UPC | 724643110857 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Avid HD I/O 8x8x8 Pro Tools HD Series Audio Interface
- 8 x 8 Analog I/O
- 8 x 8 + 2 AES/EBU I/O
(or) 8 x 8 TDIF I/O
(or) 8 + 8 ADAT I/O - S/PDIF and Optical Digital I/O
- 8 Channels Sample Rate Conversion (SRC)
- Built-In Soft-Knee Limiter
- 32 Metering LED Ladders
- 2U Rack-Mountable Chassis
- Complete Integration with Pro Tools HD
| Channels of I/O | 8 Input / 8 Output |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Analog Audio I/O | 2x DB-25 8-Channel Input 1x DB-25 8-Channel Output |
| Digital Audio I/O | DB-25 AES3 In & Out DB-25 TDIF In & Out TOSLINK Optical ADAT Input TOSLINK Optical ADAT Output TOSLINK Optical ADAT / S/PDIF Input TOSLINK Optical ADAT / S/PDIF Output XLR 3-Pin AES3 Input XLR 3-Pin AES3 Output RCA Coaxial S/PDIF Input RCA Coaxial S/PDIF Output |
| Host Connection | 2x DigiLink Mini |
| Power Requirements | AC/DC Power Adapter (Included) |
General |
|
|---|---|
| Display | Color LED |
| Channels of I/O | 8 Input / 8 Output |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No |
| Built-In Microphone | No |
Signal Processing |
|
| Pad | No |
| High-Pass Filter | No |
| Solo/Mute | No |
Connectivity |
|
| Analog Audio I/O | 2x DB-25 8-Channel Input 1x DB-25 8-Channel Output |
| Digital Audio I/O | 1x DB-25 AES3 In & Out 1x DB-25 TDIF In & Out 1x TOSLINK Optical ADAT Input 1x TOSLINK Optical ADAT Output 1x TOSLINK Optical ADAT / S/PDIF Input 1x TOSLINK Optical ADAT / S/PDIF Output 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection / USB | 2x DigiLink Mini |
| Host Connection Protocol | Avid Proprietary |
| USB (Non-Host) | No |
| Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output 1x BNC Loop Sync Input 1x BNC Loop Sync Output |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | 1x I/O Slot |
| Other I/O | 1x DB-9 Expansion In/Out |
| Wireless | No |
Performance |
|
| Frequency Response | A/D Converters: 20 Hz to 20 kHz ±0.03 dB D/A Converters: 20 Hz to 20 kHz ±0.15 dB |
| Dynamic Range | A/D Converters: 122 dB D/A Converters: 125 dB |
| THD+N | A/D Converters: -114 dB / 0.0002% D/A Converters: -110 dB / 0.00032% |
Digital Audio |
|
| Sample Rates | 44.1 to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Sync Sources | Word Clock |
| Clocking | Word Clock: |
Audio Storage & Playback |
|
| Media/Memory Card Slot | No |
Compatibility |
|
| OS Compatibility | macOS / Windows |
| Mobile Device Compatibility | No |
| Required Hardware | DigiLink Mini Port |
Power |
|
| Power Requirements | AC/DC Power Adapter (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC/DC Power Adapter | Included |
Physical |
|
| Rackmount Size | 2 U |
| Weight | 24.0 lb / 10.9 kg |
