Expand your Pro Tools|HD workflow to integrate with MADI-equipped devicesincluding routers and digital mixing consoleswith the all-digital HD MADI interface. The perfect solution for integrating Pro Tools|HD into post-production and broadcast environments, HD MADI gives you great connection flexibility, fuss-free use through built-in sample rate conversion, and the ability to send and receive up to 64 channels of audio between your Pro Tools setup and MADI devices up to 2 km (1.24 miles) awayall with a single rack unit interface.
View full details
- Details
- Features
- Tech Specs
- Reviews
Why You Need the Avid HD MADI Interface:
HD MADI is a versatile, all-digital interface that provides 64 channels of MADI I/O, making it easy to integrate Pro Tools | HD systems into post-production and broadcast environments. Get great connection flexibility, fuss-free use through built-in sample rate conversion, and the ability to send and receive audio between your Pro Tools setup and MADI devices up to 2 km (1.24 miles) away.
| Product Name | Avid HD Madi Interface |
|---|---|
| Brand | Avid |
| Condition | New |
| MPN | 9900-58834-40 |
| UPC | 0724643110666 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Send and receive up to 64 audio streams between Pro Tools | HD and other MADI devices
- Maintain maximum audio fidelity, with up to 24-bit, 192 kHz sample rate support

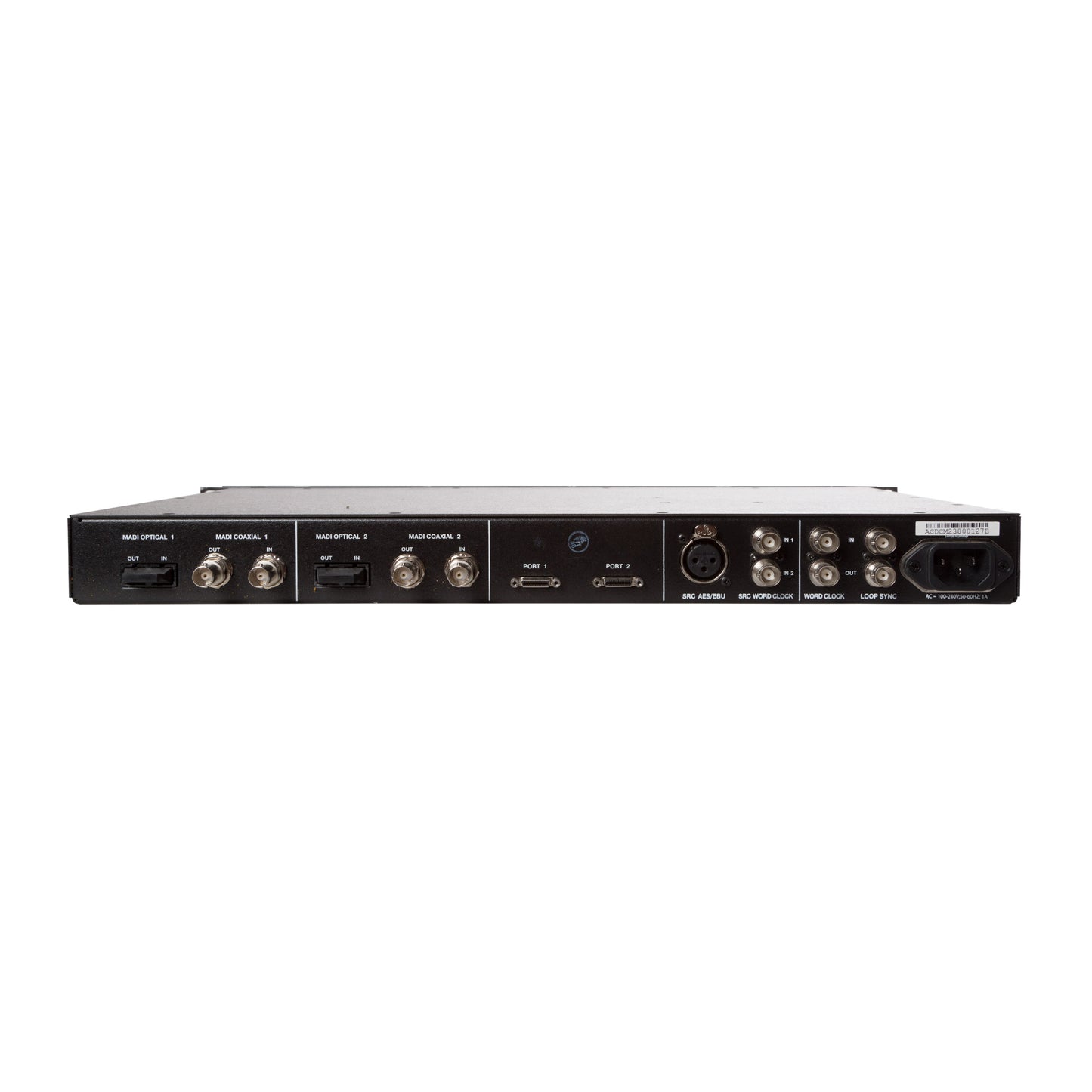

- Gain connection and routing flexibility through optical and coaxial connections:
- 2 MADI inputs (optical and coaxial)
- 2 MADI outputs (simultaneous optical and coaxial)
- Forget having to match sample rates, thanks to built-in SRC on all I/O channels
- Completely integrates with Pro Tools | HD family systems for full input, output, and routing control
- Sync to an external clock through dedicated BNC Word Clock and XLR AES/EBU connections when using SRC on output
- Keep things in sync with versatile Clock support, including Internal, Loop Sync, Word Clock, AES/EBU, and MADI
- Gain better device compatibility with 64-channel (non-Varispeed) and 56-channel (Varispeed) support (at 48 kHz)
- Integrate Pro Tools | HD family systems with MADI-equipped Avid live sound systems for recording and Virtual Soundcheck
- Verify and troubleshoot signals through status indicators and global I/O signal LEDs
- Compact 1U rack-mountable design overcomes space limitations

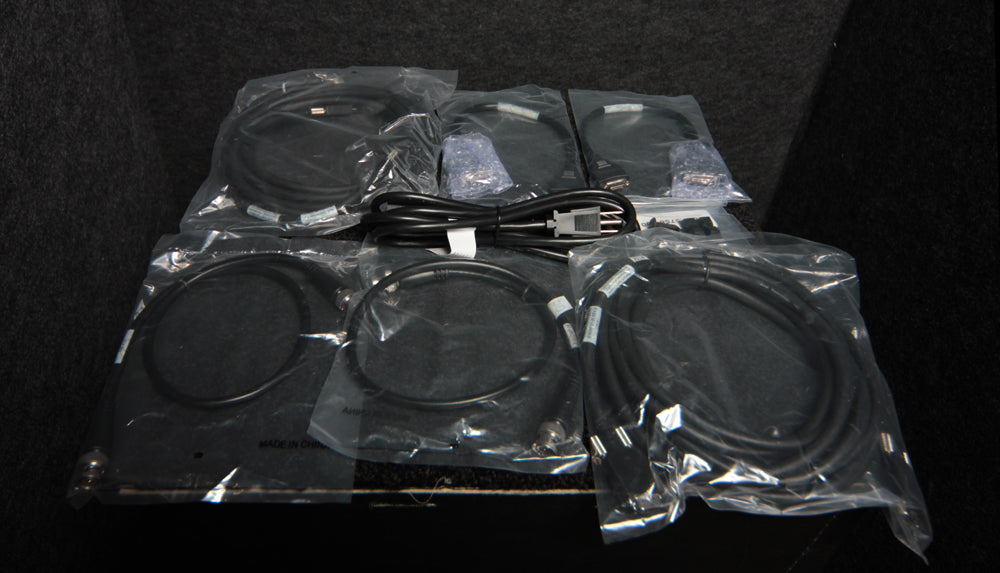

- Connects to Pro Tools | HD through two DigiLink Mini connections (32 audio channels each; cables and adaptors included)
- Computer Connectivity: PCI
- Form Factor: Rackmount
- Simultaneous I/O: 64 x 64
- A/D Resolution: 24-bit/192kHz
- Digital Inputs: 1 x MADI (Optical, 32 Ch.), 1 x MADI (Coax, 32 Ch.)
- Digital Outputs: 1 x MADI (Optical, 32 Ch.), 1 x MADI (Coax, 32 Ch.)
- Clock I/O: 1 x Word Clock (In/Out on AES/EBU), 2 x Word Clock (In/Out on BNC), 1 x Loop Sync (In/Out on BNC)
- Rack Spaces: 1U
HD MADI works with the following host audio systems:
- Avid-qualified Pro Tools | HD family system running Pro Tools | HD 8.1 or higher software
- Any third-party system that supports Core Audio or ASIO drivers
Avid HD Madi Interface
Details
Why You Need the Avid HD MADI Interface:
HD MADI is a versatile, all-digital interface that provides 64 channels of MADI I/O, making it easy to integrate Pro Tools | HD systems into post-production and broadcast environments. Get great connection flexibility, fuss-free use through built-in sample rate conversion, and the ability to send and receive audio between your Pro Tools setup and MADI devices up to 2 km (1.24 miles) away.
| Product Name | Avid HD Madi Interface |
|---|---|
| Brand | Avid |
| Condition | New |
| MPN | 9900-58834-40 |
| UPC | 0724643110666 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- Send and receive up to 64 audio streams between Pro Tools | HD and other MADI devices
- Maintain maximum audio fidelity, with up to 24-bit, 192 kHz sample rate support
- Gain connection and routing flexibility through optical and coaxial connections:
- 2 MADI inputs (optical and coaxial)
- 2 MADI outputs (simultaneous optical and coaxial)
- Forget having to match sample rates, thanks to built-in SRC on all I/O channels
- Completely integrates with Pro Tools | HD family systems for full input, output, and routing control
- Sync to an external clock through dedicated BNC Word Clock and XLR AES/EBU connections when using SRC on output
- Keep things in sync with versatile Clock support, including Internal, Loop Sync, Word Clock, AES/EBU, and MADI
- Gain better device compatibility with 64-channel (non-Varispeed) and 56-channel (Varispeed) support (at 48 kHz)
- Integrate Pro Tools | HD family systems with MADI-equipped Avid live sound systems for recording and Virtual Soundcheck
- Verify and troubleshoot signals through status indicators and global I/O signal LEDs
- Compact 1U rack-mountable design overcomes space limitations
- Connects to Pro Tools | HD through two DigiLink Mini connections (32 audio channels each; cables and adaptors included)
Tech Specs
- Computer Connectivity: PCI
- Form Factor: Rackmount
- Simultaneous I/O: 64 x 64
- A/D Resolution: 24-bit/192kHz
- Digital Inputs: 1 x MADI (Optical, 32 Ch.), 1 x MADI (Coax, 32 Ch.)
- Digital Outputs: 1 x MADI (Optical, 32 Ch.), 1 x MADI (Coax, 32 Ch.)
- Clock I/O: 1 x Word Clock (In/Out on AES/EBU), 2 x Word Clock (In/Out on BNC), 1 x Loop Sync (In/Out on BNC)
- Rack Spaces: 1U
HD MADI works with the following host audio systems:
- Avid-qualified Pro Tools | HD family system running Pro Tools | HD 8.1 or higher software
- Any third-party system that supports Core Audio or ASIO drivers
