Aviom AN16I 16 v2-Channel Line Level Input Module
Aviom AN16I 16 v2-Channel Line Level Input Module
Regular price
$1,299.00
Regular price
Sale price
$1,299.00
Unit price
per
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
On order with the manufacturer!
Couldn't load pickup availability
- Details
- Reviews
Alto Music - Why you need the Aviom AN16iV2 Channel Line Level Input Module
• Integrates with Pro16 and Pro16e devices to build personal monitoring systems, digital snakes, and audio distribution systems for live use, broadcast, and/or recording
• High quality A-to-D conversion ensures zero signal loss

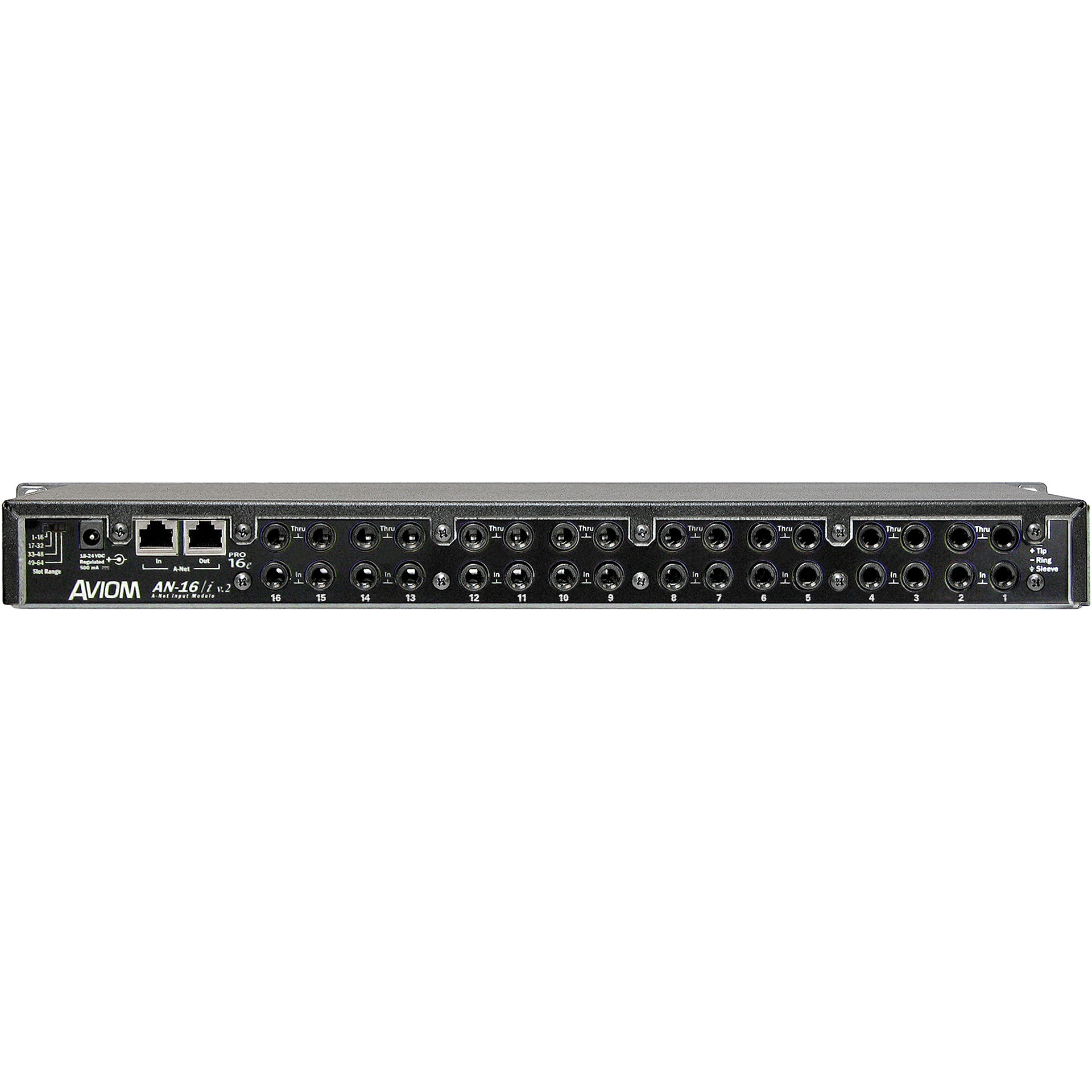

• 16 TRS inputs for audio input
• 16 TRS connections for audio thru

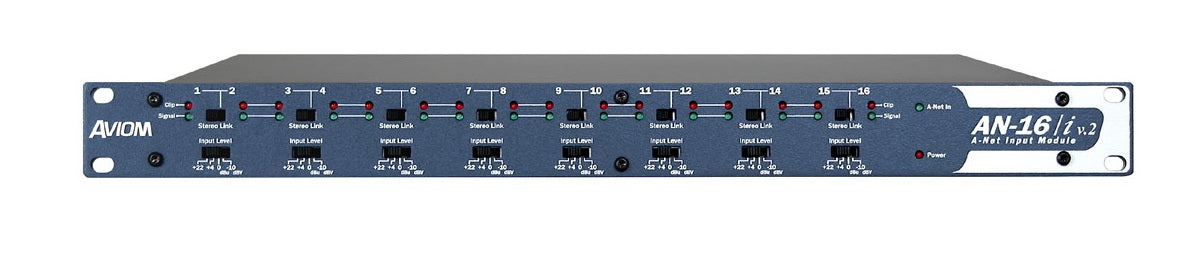

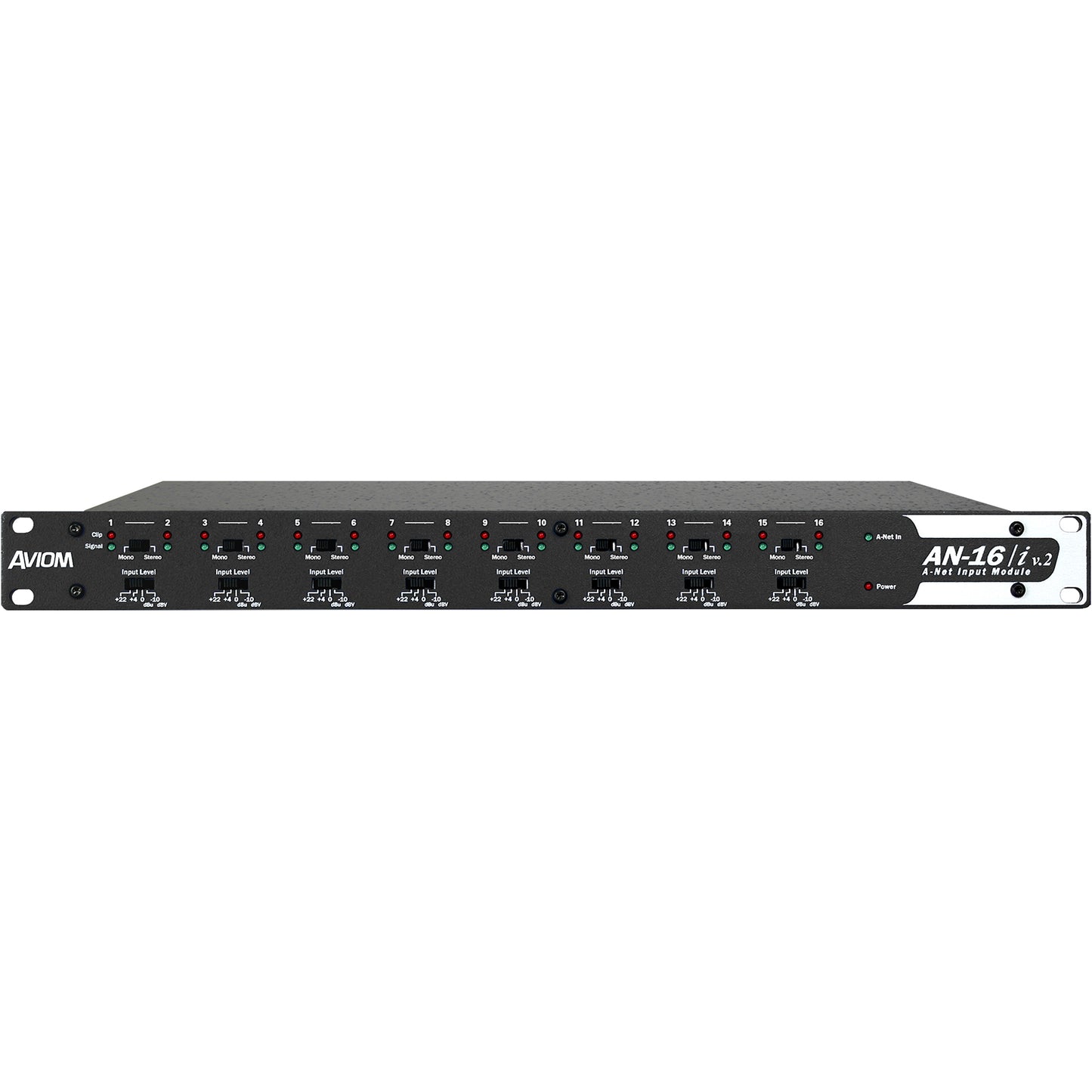

• 8 Channel Link switches turn mono inputs to joined stereo
• 4-position input level switches on each channel pair makes connection from a variety of sources possible
The Aviom AN-16/i v.2 provides 16 balanced line-level inputs into a Pro16 system. Audio is converted to digital and transmitted via A-Net, up to 500'/150m over Cat-5e. A dedicated audio Thru is available for each input channel, allowing the Aviom AN-16/i v.2 to be seamlessly inserted into an existing audio signal path.
Placed at a front-of-house or monitor console, the Aviom AN-16/i v.2 can be used as a head-end for a Pro16 Monitor Mixing System. Audio from the console-any combination of channel inserts, direct outs, submixes, auxes, or groups-is connected to the input channels on the Aviom AN-16/i v.2. The A-Net Out on the Aviom AN-16/i v.2 is connected to the A-Net In of a Pro16 Personal Mixer (A-16II or A-16R) or an A-Net Distributor (A-16D or A-16 Pro).
Used in conjunction with the Aviom AN-16/o v.4 Output Module, the Aviom AN-16/i v.2 can also be used in a digital snake as an input path for main return signals from front-of-house. The built-in A-Net Expansion jack allows two 16-channel A-Net streams to be combined onto a single cable (32x0 or 16x16), and the AN-16SBR System Bridge can be used to combine up to four 16-channel streams onto a single cable in a variety of bi-directional configurations.
The flexibility and simplicity of the Pro16 Series allows complex audio distribution systems and snakes to be created quickly and cost-effectively.
Long Distance A-Net
Fiber-optic technology can be used for digital snake applications that require cable distances that exceed the A-Net maximum length of 500 feet (150 meters) between devices.
| Product Name | Aviom AN16I 16 v2-Channel Line Level Input Module |
|---|---|
| Brand | Aviom |
| Condition | New |
| MPN | AN-16-I |
| UPC | 410000151044 |
| Shipping Option | Free Shipping to the Continental U.S. |
Aviom AN16I 16 v2-Channel Line Level Input Module
Details
Alto Music - Why you need the Aviom AN16iV2 Channel Line Level Input Module
• Integrates with Pro16 and Pro16e devices to build personal monitoring systems, digital snakes, and audio distribution systems for live use, broadcast, and/or recording
• High quality A-to-D conversion ensures zero signal loss
• 16 TRS inputs for audio input
• 16 TRS connections for audio thru
• 8 Channel Link switches turn mono inputs to joined stereo
• 4-position input level switches on each channel pair makes connection from a variety of sources possible
The Aviom AN-16/i v.2 provides 16 balanced line-level inputs into a Pro16 system. Audio is converted to digital and transmitted via A-Net, up to 500'/150m over Cat-5e. A dedicated audio Thru is available for each input channel, allowing the Aviom AN-16/i v.2 to be seamlessly inserted into an existing audio signal path.
Placed at a front-of-house or monitor console, the Aviom AN-16/i v.2 can be used as a head-end for a Pro16 Monitor Mixing System. Audio from the console-any combination of channel inserts, direct outs, submixes, auxes, or groups-is connected to the input channels on the Aviom AN-16/i v.2. The A-Net Out on the Aviom AN-16/i v.2 is connected to the A-Net In of a Pro16 Personal Mixer (A-16II or A-16R) or an A-Net Distributor (A-16D or A-16 Pro).
Used in conjunction with the Aviom AN-16/o v.4 Output Module, the Aviom AN-16/i v.2 can also be used in a digital snake as an input path for main return signals from front-of-house. The built-in A-Net Expansion jack allows two 16-channel A-Net streams to be combined onto a single cable (32x0 or 16x16), and the AN-16SBR System Bridge can be used to combine up to four 16-channel streams onto a single cable in a variety of bi-directional configurations.
The flexibility and simplicity of the Pro16 Series allows complex audio distribution systems and snakes to be created quickly and cost-effectively.
Long Distance A-Net
Fiber-optic technology can be used for digital snake applications that require cable distances that exceed the A-Net maximum length of 500 feet (150 meters) between devices.
| Product Name | Aviom AN16I 16 v2-Channel Line Level Input Module |
|---|---|
| Brand | Aviom |
| Condition | New |
| MPN | AN-16-I |
| UPC | 410000151044 |
| Shipping Option | Free Shipping to the Continental U.S. |
