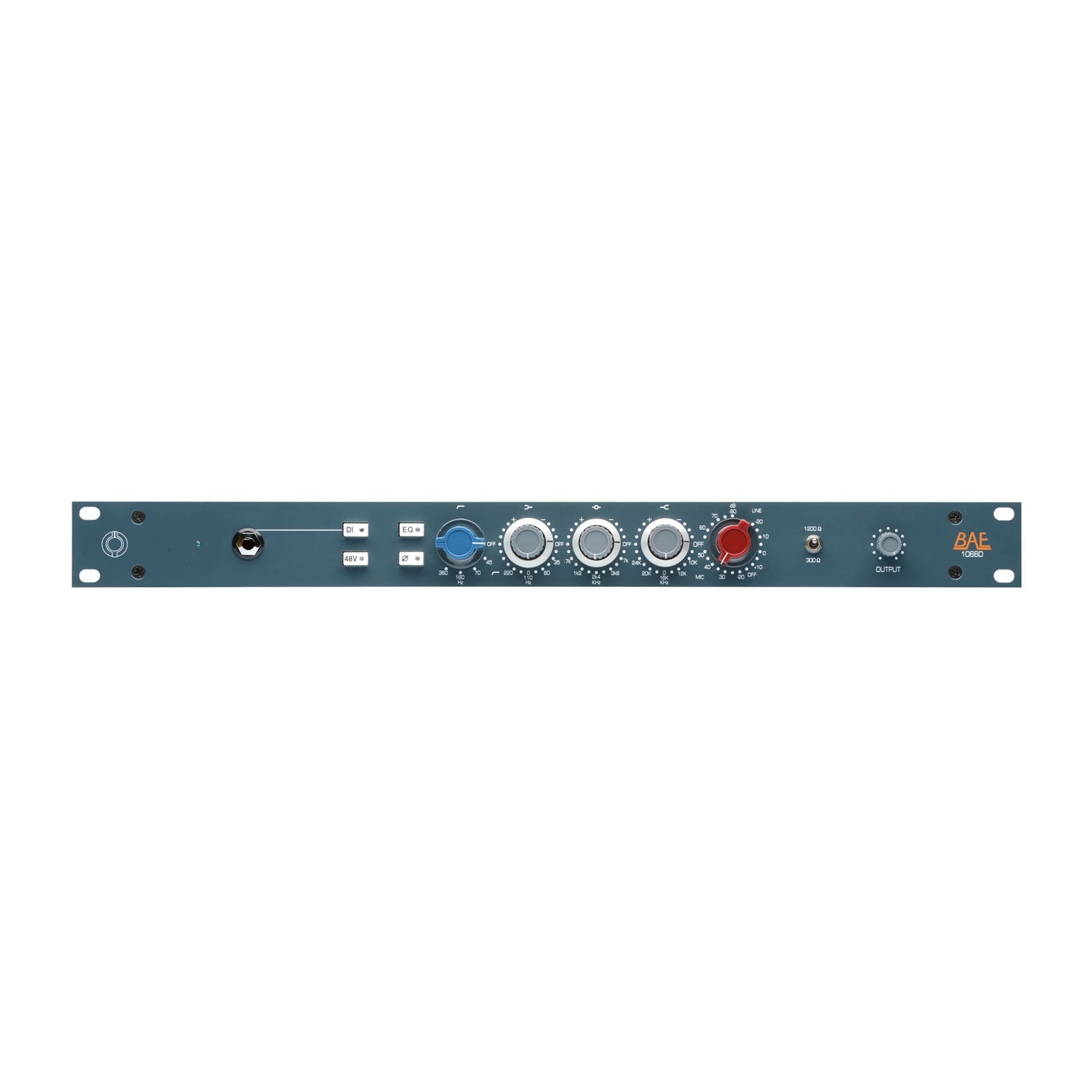

Bae 1066D Single 19" 1RU Mic Preamp/EQ

Bae 1066D Single 19" 1RU Mic Preamp/EQ

$2,985.00
$2,985.00
Sale Sold out

+ Free Shipping

Out of Stock

Rack mounted microphone preamp with equalizer. Modern product, vintage sound. Does not include power supply.
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

BAE 1066D Single 19" 1RU Mic Preamp/EQ- No Power Supply

  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-16dB peaking with switchable selectable center frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180º

The 1066D is a top-of-the-line microphone preamp with a strong mid range capability that is popular amongst guitarists. It is modeled after its original predecessor the 1066, but has a few modern updates such as an addition of different frequencies besides the standard 10k.

More Information
Product Name Bae 1066D Single 19" 1RU Mic Preamp/EQ
Brand BAE
Condition New
Shipping Option Free Shipping to the Continental U.S.
  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.
  • Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°

Frequency Response

10Hz to -3dB at 55kHz


3 Band Equaliser

HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz

LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz

MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz


High Pass Filter

45Hz, 70Hz, 160Hz & 360Hz


Mic Input Impedance

≈1200/300 ohms


Line Input Impedance

10k ohms


DI Input Impedance

≈150k ohms


Output Impedance

65 ohms


Common Mode Rejection Ratio

100dB min @ 60Hz


Maximum Output Level

+27.4 dBu @ 600Ω


Power Requirements

115/230 VAC, 28W


Gain dB

0 to 80 dB


Equivalent Input Noise

-110 dBu; Unweighted 300kHz Bandwidth


Weight (Module/Rackmount)

6 LBS / 2.72 KG

10 LBS / 4.54 KG


Dimensions in Inches (Module/Rackmount)

45 mm W x 8.75 inches H x 10.5 inches D

19W x 1.75L x 9D


Bae 1066D Single 19" 1RU Mic Preamp/EQ
Details

BAE 1066D Single 19" 1RU Mic Preamp/EQ- No Power Supply

  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-16dB peaking with switchable selectable center frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180º

The 1066D is a top-of-the-line microphone preamp with a strong mid range capability that is popular amongst guitarists. It is modeled after its original predecessor the 1066, but has a few modern updates such as an addition of different frequencies besides the standard 10k.

More Information
Product Name Bae 1066D Single 19" 1RU Mic Preamp/EQ
Brand BAE
Condition New
Shipping Option Free Shipping to the Continental U.S.
Features
  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.
  • Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°
Tech Specs

Frequency Response

10Hz to -3dB at 55kHz


3 Band Equaliser

HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz

LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz

MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz


High Pass Filter

45Hz, 70Hz, 160Hz & 360Hz


Mic Input Impedance

≈1200/300 ohms


Line Input Impedance

10k ohms


DI Input Impedance

≈150k ohms


Output Impedance

65 ohms


Common Mode Rejection Ratio

100dB min @ 60Hz


Maximum Output Level

+27.4 dBu @ 600Ω


Power Requirements

115/230 VAC, 28W


Gain dB

0 to 80 dB


Equivalent Input Noise

-110 dBu; Unweighted 300kHz Bandwidth


Weight (Module/Rackmount)

6 LBS / 2.72 KG

10 LBS / 4.54 KG


Dimensions in Inches (Module/Rackmount)

45 mm W x 8.75 inches H x 10.5 inches D

19W x 1.75L x 9D
