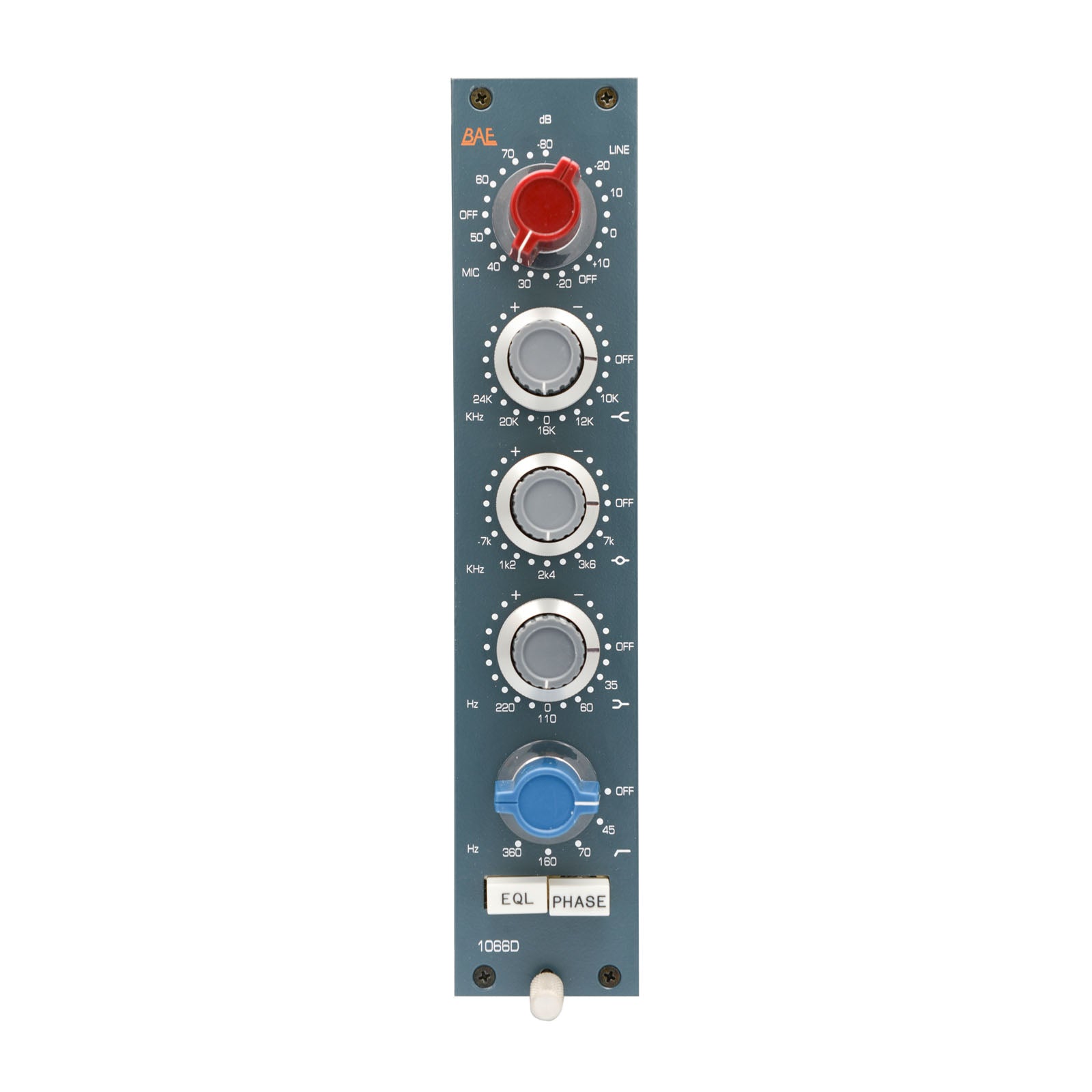

Bae 1066D Module

Bae 1066D Module

$2,545.00
$2,545.00
Sale Sold out

+ Free Shipping

Out of Stock

A high end microphone preamp for 500 series racks. Modern product, vintage sound.
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

BAE 1066D Module Mic Preamp/EQ

  • High Frequency: +/-16dB shelving with selectable frequencies
  • Low Frequency: +/-16dB shelving with selectable frequencies
  • Mid Range: +/-16dB peaking with switchable selectable centre frequencies
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°
  • Does not include rack or power supply

The 1066D is a top-of-the-line microphone preamp with a strong mid range capability that is popular amongst guitarists. It is modeled after its original predecessor the 1066, but has a few modern updates such as an addition of different frequencies besides the standard 10k.

More Information
Product Name Bae 1066D Module
Brand BAE
Condition New
Shipping Option Free Shipping to the Continental U.S.
  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.
  • Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°

Frequency Response

10Hz to -3dB at 55kHz


3 Band Equaliser

HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz

LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz

MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz


High Pass Filter

45Hz, 70Hz, 160Hz & 360Hz


Mic Input Impedance

≈1200/300 ohms


Line Input Impedance

10k ohms


DI Input Impedance

≈150k ohms


Output Impedance

65 ohms


Common Mode Rejection Ratio

100dB min @ 60Hz


Maximum Output Level

+27.4 dBu @ 600Ω


Power Requirements

115/230 VAC, 28W


Gain dB

0 to 80 dB


Equivalent Input Noise

-110 dBu; Unweighted 300kHz Bandwidth


Weight (Module/Rackmount)

6 LBS / 2.72 KG

10 LBS / 4.54 KG


Dimensions in Inches (Module/Rackmount)

45 mm W x 8.75 inches H x 10.5 inches D

19W x 1.75L x 9D


Bae 1066D Module
Details

BAE 1066D Module Mic Preamp/EQ

  • High Frequency: +/-16dB shelving with selectable frequencies
  • Low Frequency: +/-16dB shelving with selectable frequencies
  • Mid Range: +/-16dB peaking with switchable selectable centre frequencies
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°
  • Does not include rack or power supply

The 1066D is a top-of-the-line microphone preamp with a strong mid range capability that is popular amongst guitarists. It is modeled after its original predecessor the 1066, but has a few modern updates such as an addition of different frequencies besides the standard 10k.

More Information
Product Name Bae 1066D Module
Brand BAE
Condition New
Shipping Option Free Shipping to the Continental U.S.
Features
  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.
  • Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°
Tech Specs

Frequency Response

10Hz to -3dB at 55kHz


3 Band Equaliser

HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz

LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz

MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz


High Pass Filter

45Hz, 70Hz, 160Hz & 360Hz


Mic Input Impedance

≈1200/300 ohms


Line Input Impedance

10k ohms


DI Input Impedance

≈150k ohms


Output Impedance

65 ohms


Common Mode Rejection Ratio

100dB min @ 60Hz


Maximum Output Level

+27.4 dBu @ 600Ω


Power Requirements

115/230 VAC, 28W


Gain dB

0 to 80 dB


Equivalent Input Noise

-110 dBu; Unweighted 300kHz Bandwidth


Weight (Module/Rackmount)

6 LBS / 2.72 KG

10 LBS / 4.54 KG


Dimensions in Inches (Module/Rackmount)

45 mm W x 8.75 inches H x 10.5 inches D

19W x 1.75L x 9D
