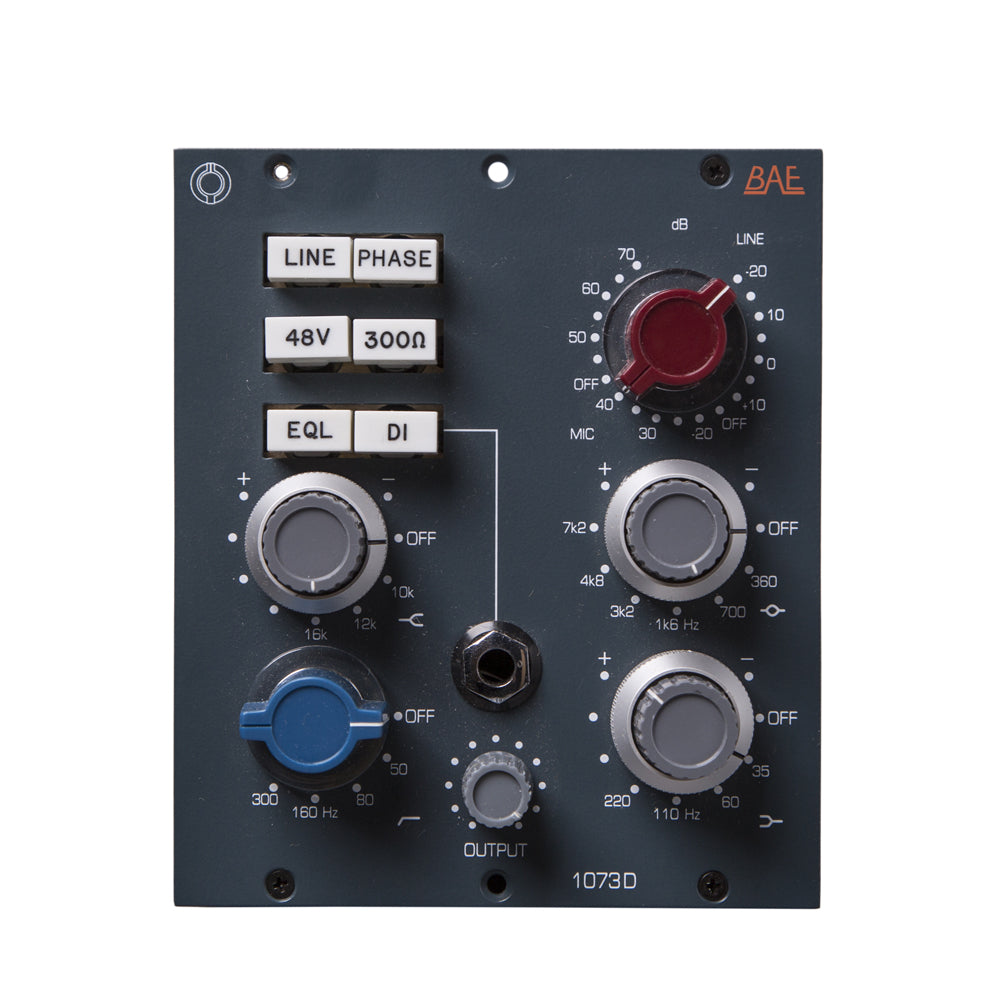

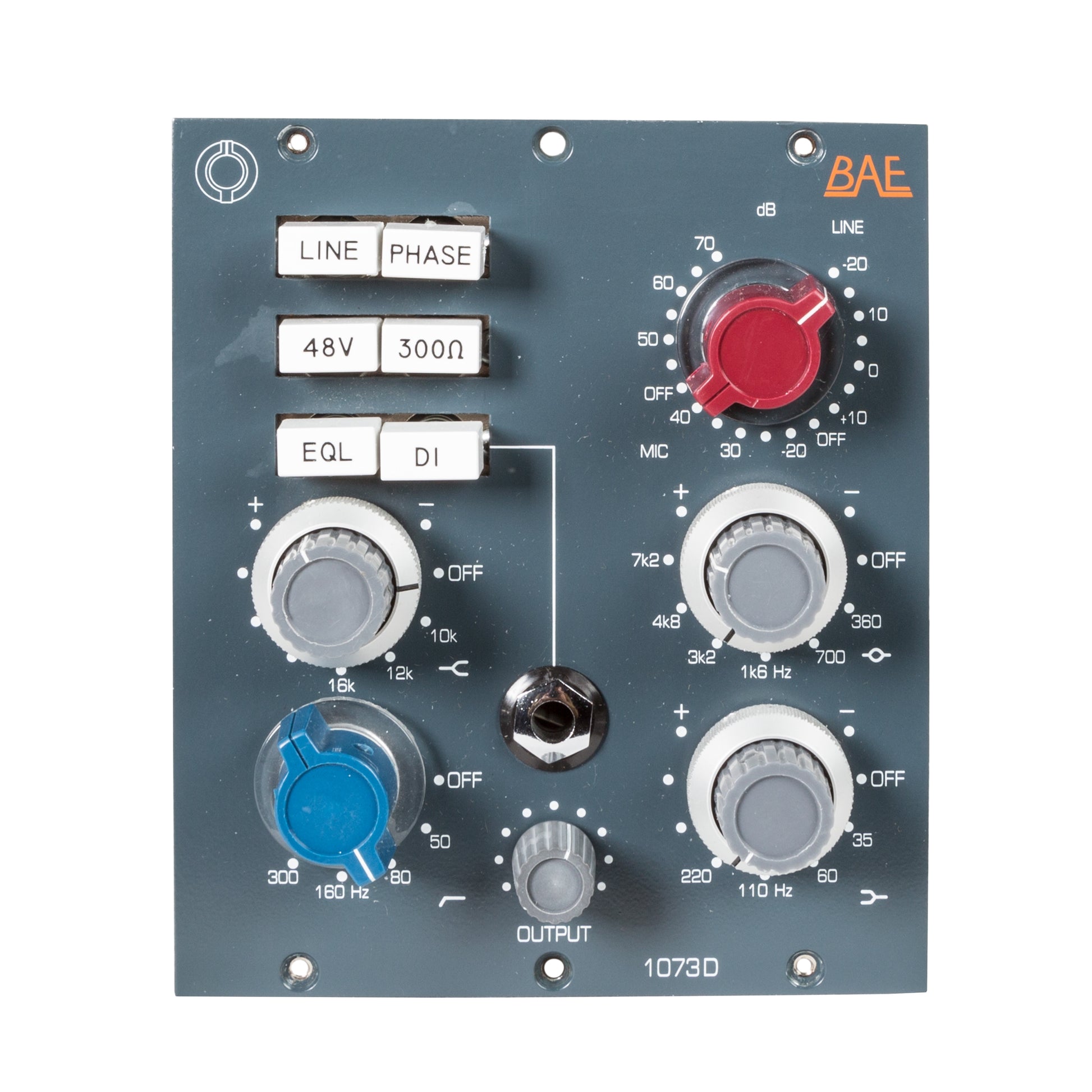

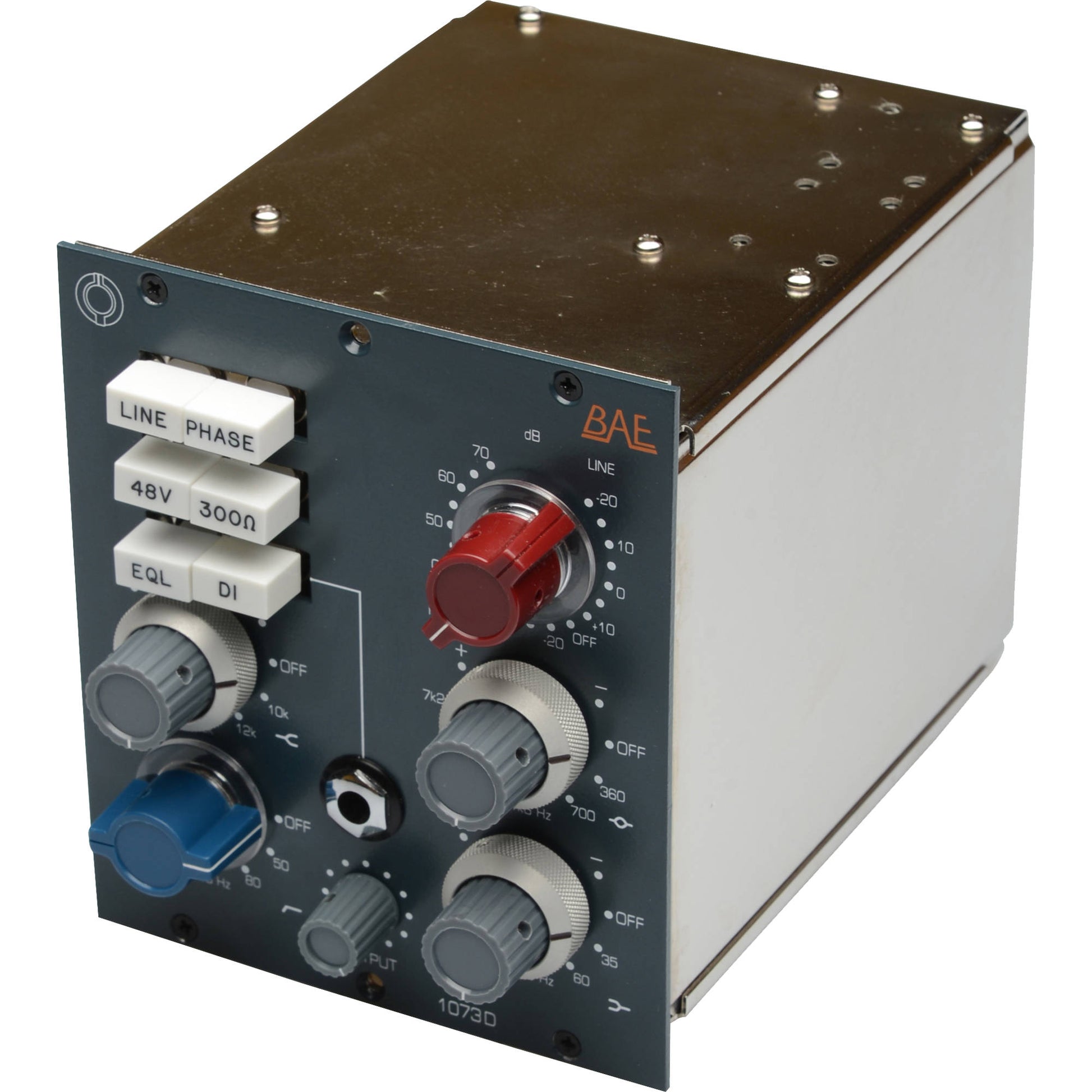

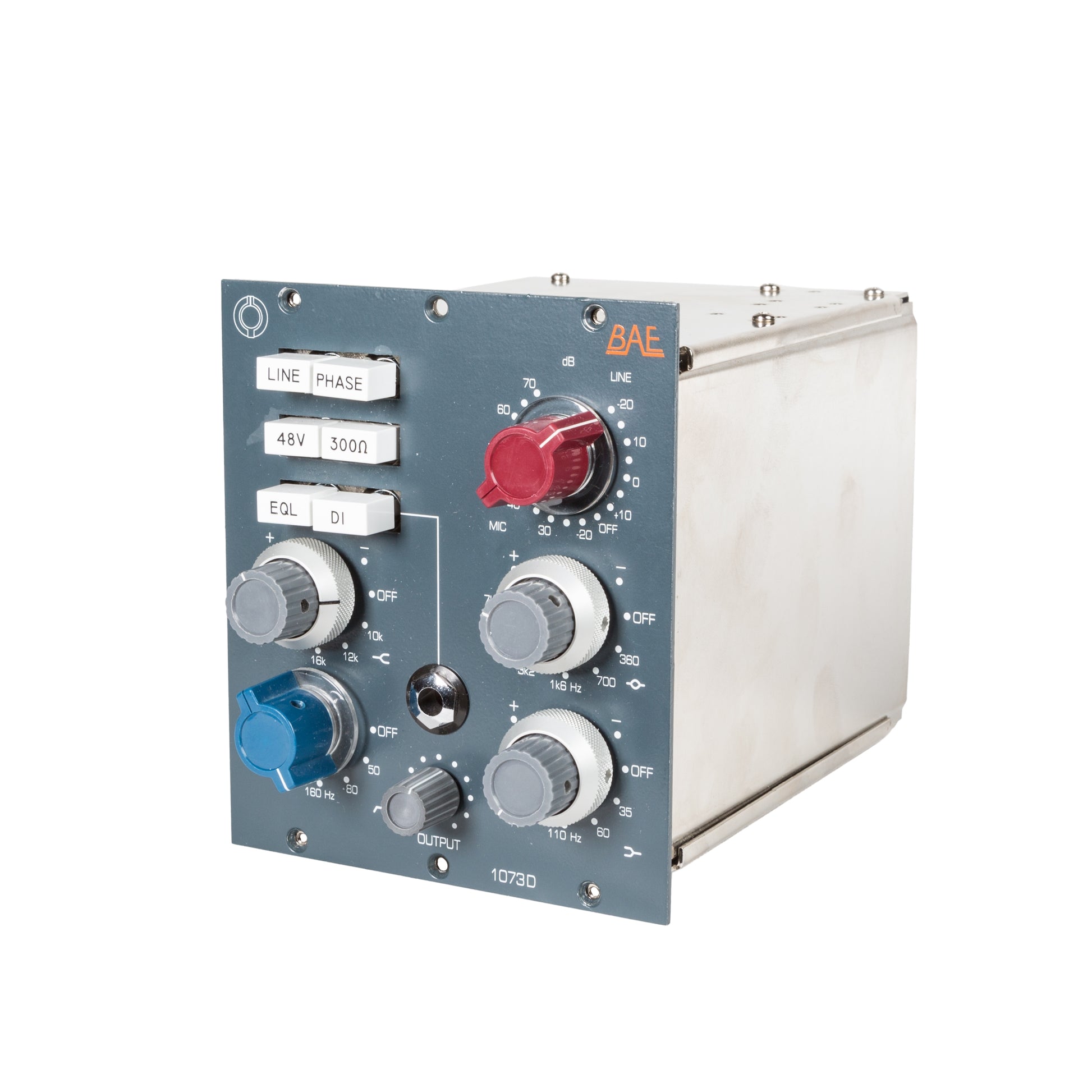

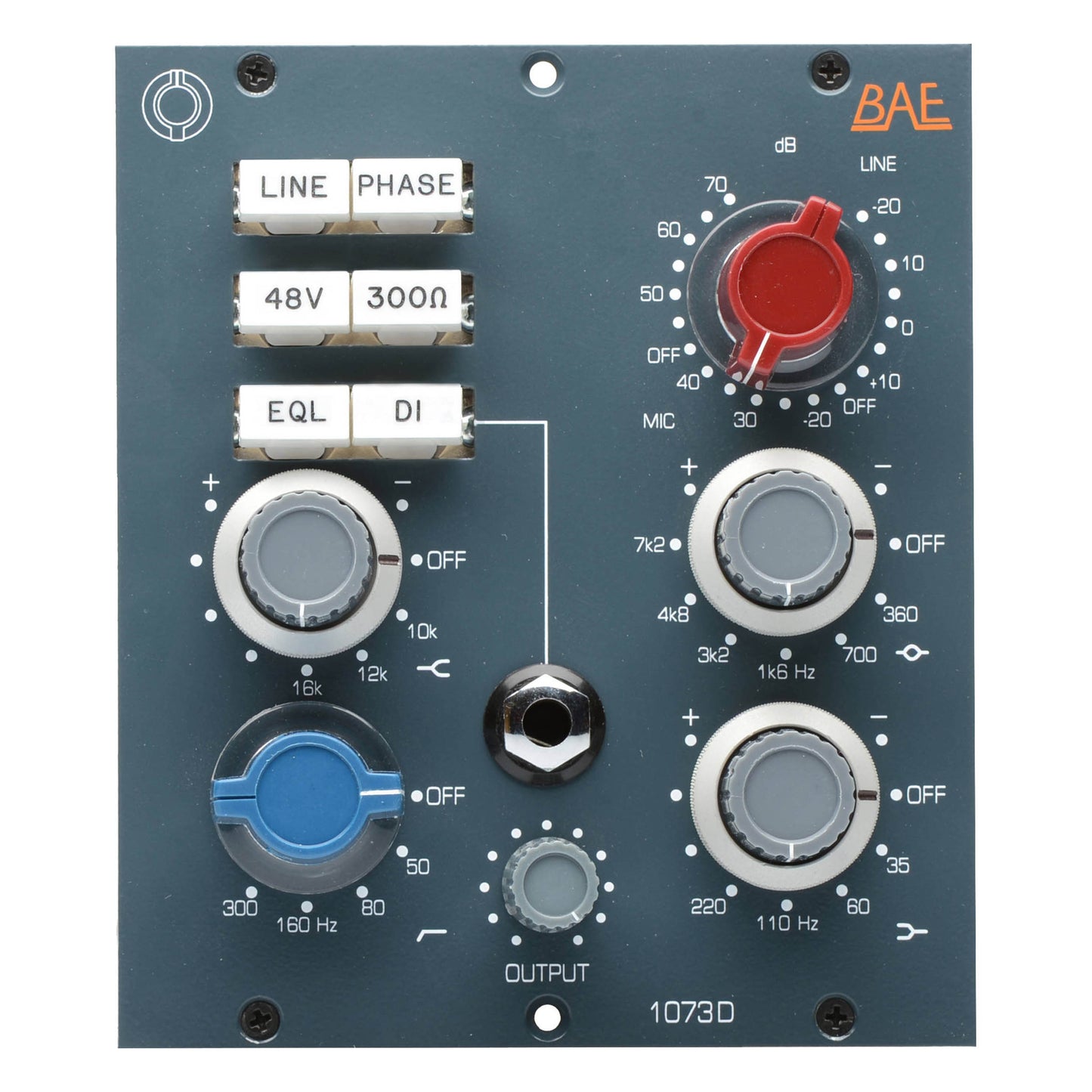

BAE 1073D 500-Series Module with EQ

BAE 1073D 500-Series Module with EQ

$1,773.99
$1,773.99
Sale Sold out

+ Free Shipping

Out of Stock

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews
The 1073D (Deluxe) is essentially a 1073 module with extra high frequencies and a direct input for the 500 series market. Built using the same exact parts as the 10 series module, the 1073D features Carnhill transformers, Elma gold plated switches and Canford wire making this the best sounding Class A mic‐pre EQ module on the block.
Because BAE did not want to compromise, the parts are such that they made this a 3 space wide module for optimal quality in contrast to building a smaller rack space version lacking the same premium components.

Features:

  • High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Phase Button: 180°
More Information
Product Name BAE 1073D 500-Series Module with EQ
Brand BAE
Condition Pre-Owned
MPN 1073D
UPC 856558005017
Shipping Option Free Shipping to the Continental U.S.
  • High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Phase Button: 180°
  • High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Phase Button: 180°

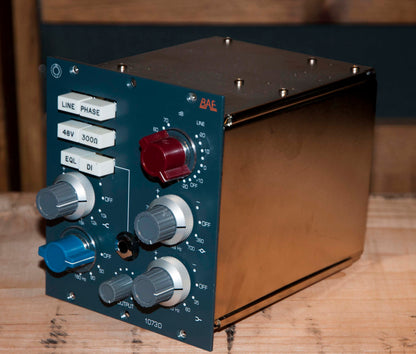

BAE 1073D Deluxe Mic Pre 500-Series Module
Details
The 1073D (Deluxe) is essentially a 1073 module with extra high frequencies and a direct input for the 500 series market. Built using the same exact parts as the 10 series module, the 1073D features Carnhill transformers, Elma gold plated switches and Canford wire making this the best sounding Class A mic‐pre EQ module on the block.
Because BAE did not want to compromise, the parts are such that they made this a 3 space wide module for optimal quality in contrast to building a smaller rack space version lacking the same premium components.

Features:

  • High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Phase Button: 180°
More Information
Product Name BAE 1073D 500-Series Module with EQ
Brand BAE
Condition Pre-Owned
MPN 1073D
UPC 856558005017
Shipping Option Free Shipping to the Continental U.S.
Features
  • High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Phase Button: 180°
Tech Specs
  • High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Phase Button: 180°
