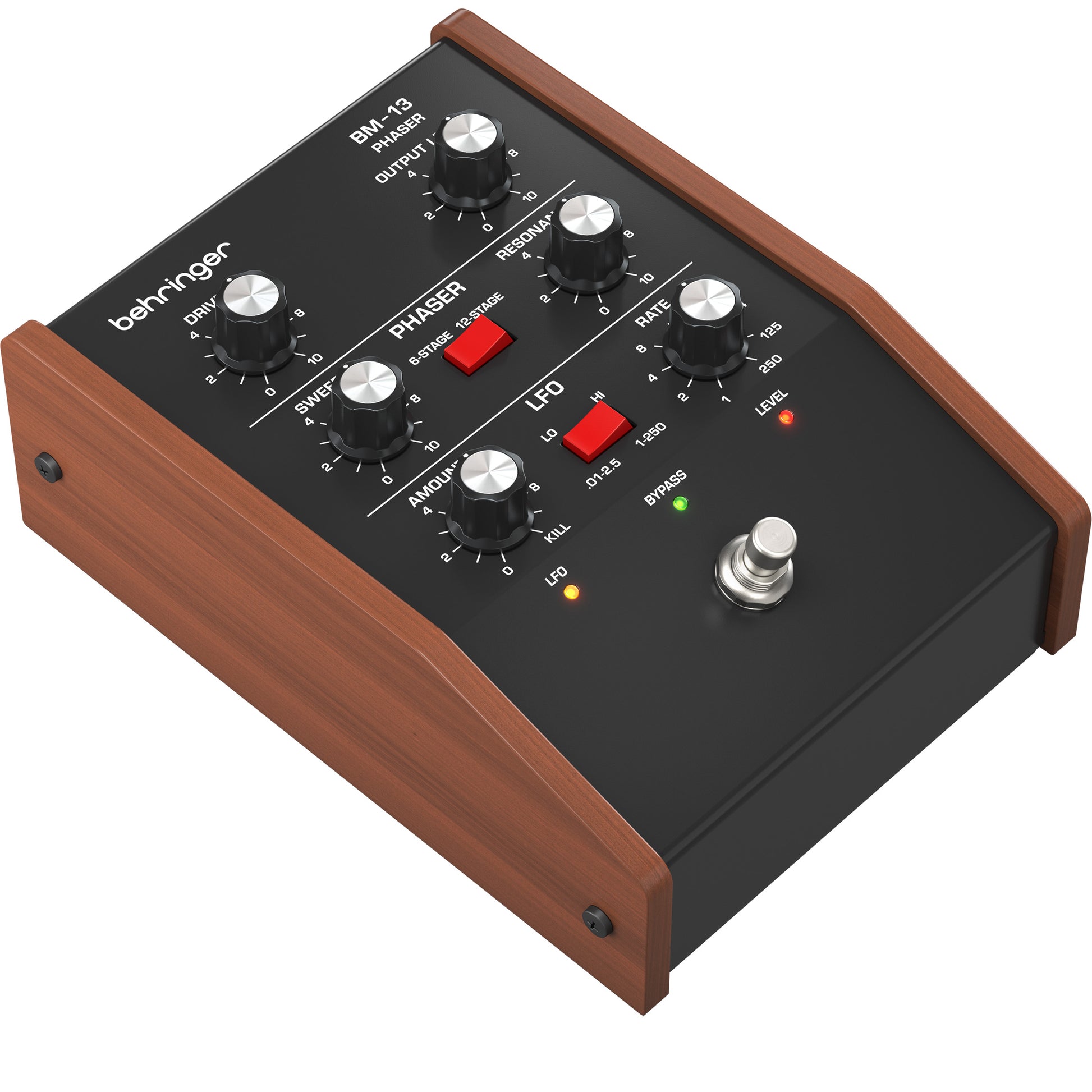

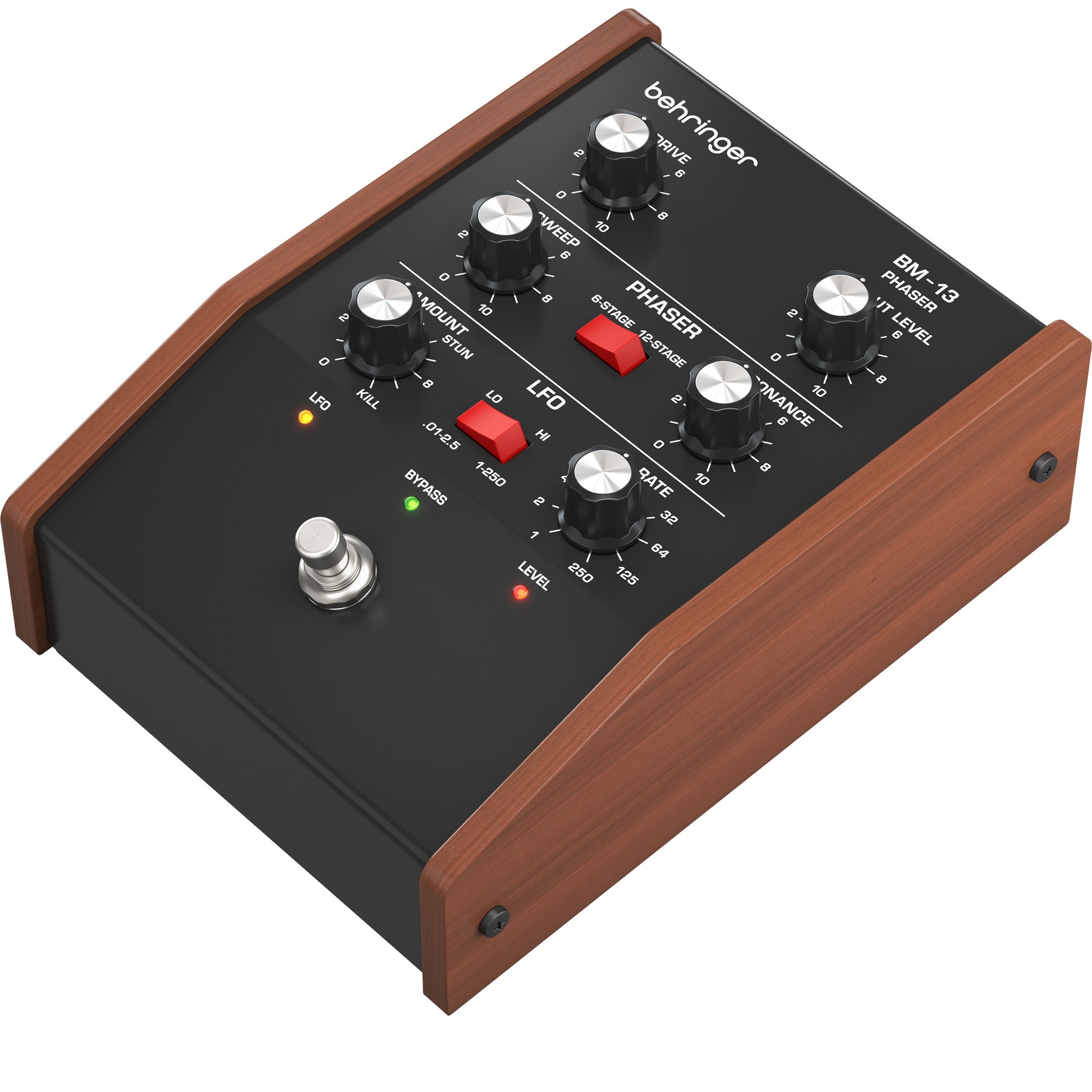

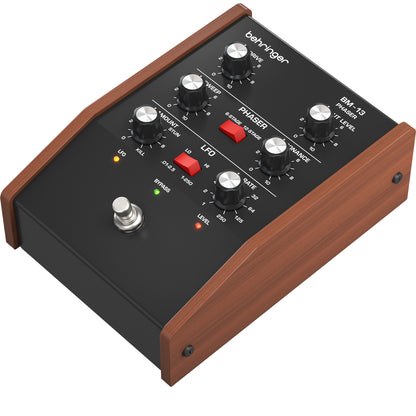

BM-13 PHASER
The Behringer BM-13 PHASER is your new go-to box of swirling, sweeping, analog goodness. Whether you’re chasing subtle vintage shimmer or deep resonant sweeps, BM-13 delivers timeless phaser tones with powerful controls for shaping the waveform the way you want.
A Control Freak’s Dream
With hands-on control over sweep, resonance, LFO rate and amount, BM-13 is as tweakable as it is musical. Want to slow things down to a hypnotic pulse? Crank that LFO down to a lazy 0.01 Hz. Feeling spicy? Flip it into high gear for warbly, out-there textures at up to 250 Hz. Add a little grit with the Drive knob, fine-tune your output level and explore either 6-stage or 12-stage phasing – each delivering its own flavor dimension and character.
Plug In and Lose Yourself
From funked-out guitar riffs to synth pads that melt into space, BM-13 is built for exploration. Guitarists and bassists will love how it adds motion without washing out your tone, while keyboardists and synth wizards can drench their patches in analog swirl. Even in the studio, it’s a secret weapon – run vocals, drums, or entire mixes through it for instant vibe and warmth. And with stereo output capability, your sound can stretch wide across the stage or mix.
Built to Play
Modulation doesn’t stop at the stomp switch. BM-13 comes equipped with expression pedal inputs, giving you full control over key parameters from modular gear or performance pedals. Whether you’re a traditional player or an experimental sound-shaper, the Behringer BM-13 PHASER invites you to dive in and make it your own.
Product Name | Behringer BM-13 Phaser Pedal |
---|---|
Brand | Behringer |
MPN | 0709-ALO86-001 |
What's in the Box?
- Behringer BM-13 Phaser Pedal
- Inspired by a famous series of pedals from the 2000s
- Massive swirling textures and sounds
- Choice between 6-stage and 12-stage phasing
- 12-Stage lineage can be traced back to a classic, highly-regarded phaser known for superior tone
- Enhanced control options compared to typical phasers
- LFO Control: Adjustable sweep, resonance, rate, and an LFO low/high switch
- Onboard pre-amp with dedicated Drive control for rich, harmonic saturation
- Extensive input/output capabilities
- Supports expression pedal or CV control for parameters like sweep, resonance, and rate
- LFO output capability
- Mono or stereo audio output configuration
- Constructed with a solid metal enclosure with wood side panels
- Runs on a simple 9V center-negative power supply
- Perfect for guitarists, synth players, and producers.

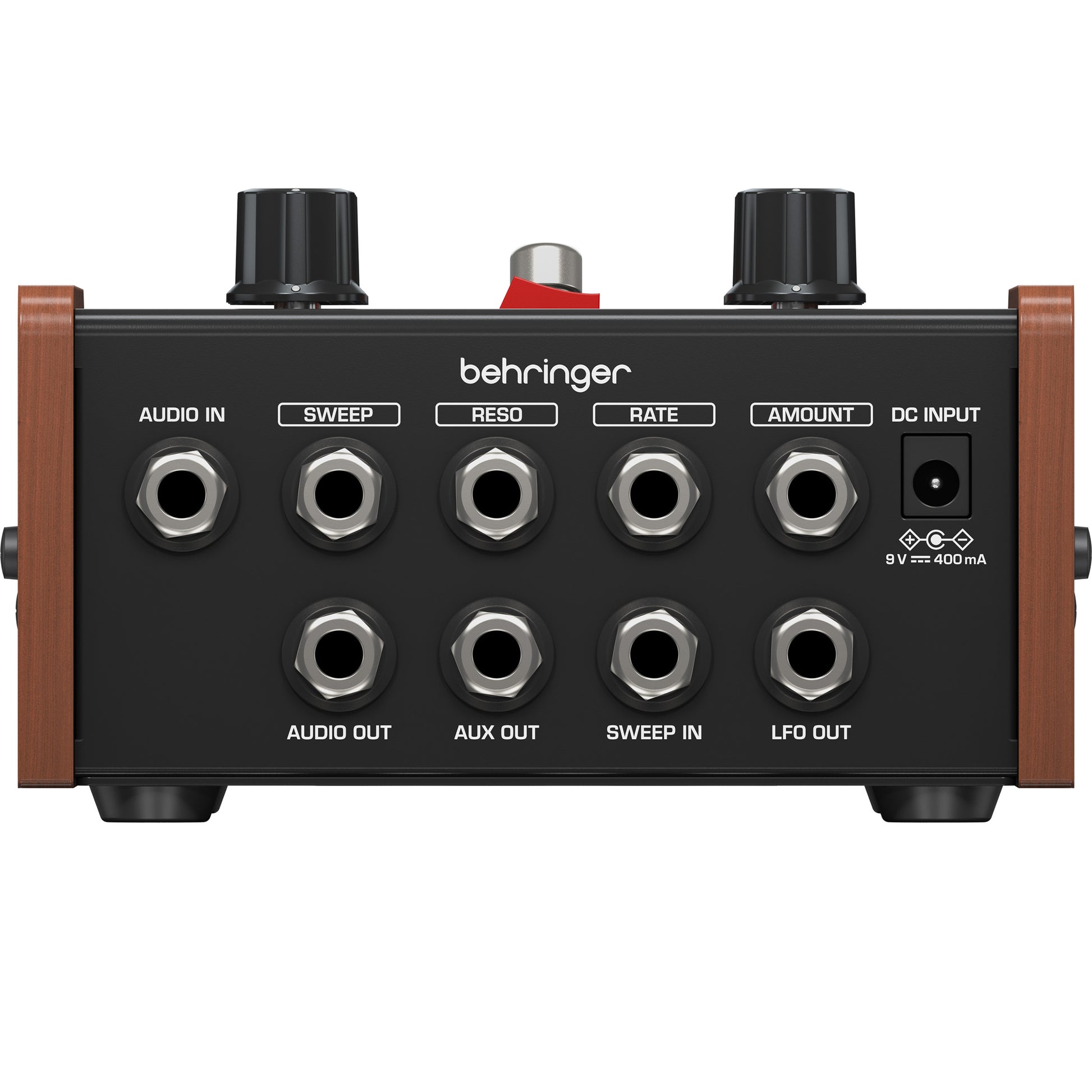

Audio Connections |
|
---|---|
Audio In - Connector | 1 x 1/4" TS, unbalanced |
Audio In - Impedance | 1 MΩ |
Audio Out - Connector | 1 x 1/4" TS, unbalanced |
Audio Out - Output Impedance | 6.8 kΩ |
Aux Out - Connector | 1 x 1/4" TS, unbalanced |
Aux Out - Output Impedance | 6.8 kΩ |
Control Connections |
|
Sweep - Connector | 1 x 1/4" TRS |
Sweep - Impedance | 40 kΩ, unbalanced |
Sweep - CV Input Range | 0 V to +10 V |
Reso - Connector | 1 x 1/4" TRS |
Reso - Impedance | 50 kΩ, unbalanced |
Reso - CV Input Range | 0 V to +5 V |
Rate - Connector | 1 x 1/4" TRS |
Rate - Impedance | 34 kΩ, unbalanced |
Rate - CV Input Range | 0 V to +5 V |
Amount - Connector | 1 x 1/4" TRS |
Amount - Impedance | 40 kΩ, unbalanced |
Amount - CV Input Range | 0 V to +5 V |
Sweep In - Connector | 1 x 1/4" TRS |
Sweep In - Impedance | 47 kΩ, unbalanced |
Sweep In - CV Input Range | ±2.5 V |
FLO Out - Connector | 1 x 1/4" TRS |
FLO Out - Output Impedance | 2.2 kΩ, unbalanced |
FLO Out - CV Input Range | ±2.8 V |

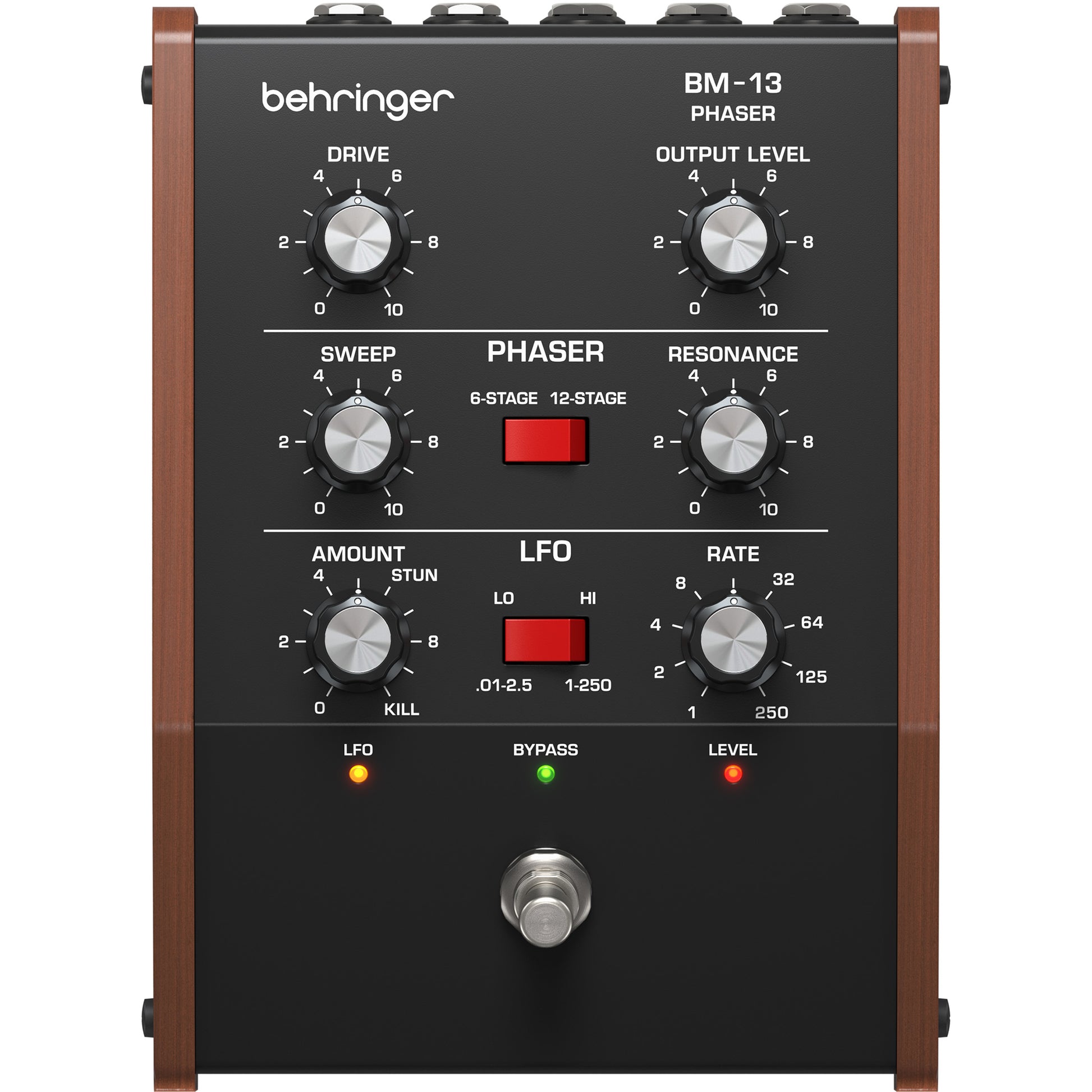

Controls |
|
Drive | 1 x rotary knob |
Output Level | 1 x rotary knob |
Sweep | 1 x rotary knob |
6-stage / 12-stage | 1 x rocker switch |
Resonance | 1 x rotary knob |
Amount | 1 x rotary knob |
Hi / Lo | 1 x rocker switch |
Rate | 1 x rotary knob |
Bypass | 1 x footswitch |
System |
|
Frequency Response | 20 Hz to 20 kHz (+0 / -0.3 dB) |
Dynamic Range | > 73 dB (20 Hz to 20 kHz) |
Signal-to-Noise Ratio | > 63 dB |
Overall Gain | 22 dBu |
Power Supply / Voltage |
|
Power Input | Standard 9 V DC, centre negative, > 400 mA (power supply not included) |
Power Consumption | 0.75 W |
Dimensions / Weight |
|
Dimensions (H x W x D) | 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75") |
Weight | 1,047 g (36.9 oz) |
Behringer BM-13 Phaser Pedal
BM-13 PHASER
The Behringer BM-13 PHASER is your new go-to box of swirling, sweeping, analog goodness. Whether you’re chasing subtle vintage shimmer or deep resonant sweeps, BM-13 delivers timeless phaser tones with powerful controls for shaping the waveform the way you want.
A Control Freak’s Dream
With hands-on control over sweep, resonance, LFO rate and amount, BM-13 is as tweakable as it is musical. Want to slow things down to a hypnotic pulse? Crank that LFO down to a lazy 0.01 Hz. Feeling spicy? Flip it into high gear for warbly, out-there textures at up to 250 Hz. Add a little grit with the Drive knob, fine-tune your output level and explore either 6-stage or 12-stage phasing – each delivering its own flavor dimension and character.
Plug In and Lose Yourself
From funked-out guitar riffs to synth pads that melt into space, BM-13 is built for exploration. Guitarists and bassists will love how it adds motion without washing out your tone, while keyboardists and synth wizards can drench their patches in analog swirl. Even in the studio, it’s a secret weapon – run vocals, drums, or entire mixes through it for instant vibe and warmth. And with stereo output capability, your sound can stretch wide across the stage or mix.
Built to Play
Modulation doesn’t stop at the stomp switch. BM-13 comes equipped with expression pedal inputs, giving you full control over key parameters from modular gear or performance pedals. Whether you’re a traditional player or an experimental sound-shaper, the Behringer BM-13 PHASER invites you to dive in and make it your own.
Product Name | Behringer BM-13 Phaser Pedal |
---|---|
Brand | Behringer |
MPN | 0709-ALO86-001 |
What's in the Box?
Behringer BM-13 Phaser Pedal- Inspired by a famous series of pedals from the 2000s
- Massive swirling textures and sounds
- Choice between 6-stage and 12-stage phasing
- 12-Stage lineage can be traced back to a classic, highly-regarded phaser known for superior tone
- Enhanced control options compared to typical phasers
- LFO Control: Adjustable sweep, resonance, rate, and an LFO low/high switch
- Onboard pre-amp with dedicated Drive control for rich, harmonic saturation
- Extensive input/output capabilities
- Supports expression pedal or CV control for parameters like sweep, resonance, and rate
- LFO output capability
- Mono or stereo audio output configuration
- Constructed with a solid metal enclosure with wood side panels
- Runs on a simple 9V center-negative power supply
- Perfect for guitarists, synth players, and producers.
Audio Connections |
|
---|---|
Audio In - Connector | 1 x 1/4" TS, unbalanced |
Audio In - Impedance | 1 MΩ |
Audio Out - Connector | 1 x 1/4" TS, unbalanced |
Audio Out - Output Impedance | 6.8 kΩ |
Aux Out - Connector | 1 x 1/4" TS, unbalanced |
Aux Out - Output Impedance | 6.8 kΩ |
Control Connections |
|
Sweep - Connector | 1 x 1/4" TRS |
Sweep - Impedance | 40 kΩ, unbalanced |
Sweep - CV Input Range | 0 V to +10 V |
Reso - Connector | 1 x 1/4" TRS |
Reso - Impedance | 50 kΩ, unbalanced |
Reso - CV Input Range | 0 V to +5 V |
Rate - Connector | 1 x 1/4" TRS |
Rate - Impedance | 34 kΩ, unbalanced |
Rate - CV Input Range | 0 V to +5 V |
Amount - Connector | 1 x 1/4" TRS |
Amount - Impedance | 40 kΩ, unbalanced |
Amount - CV Input Range | 0 V to +5 V |
Sweep In - Connector | 1 x 1/4" TRS |
Sweep In - Impedance | 47 kΩ, unbalanced |
Sweep In - CV Input Range | ±2.5 V |
FLO Out - Connector | 1 x 1/4" TRS |
FLO Out - Output Impedance | 2.2 kΩ, unbalanced |
FLO Out - CV Input Range | ±2.8 V |
Controls |
|
Drive | 1 x rotary knob |
Output Level | 1 x rotary knob |
Sweep | 1 x rotary knob |
6-stage / 12-stage | 1 x rocker switch |
Resonance | 1 x rotary knob |
Amount | 1 x rotary knob |
Hi / Lo | 1 x rocker switch |
Rate | 1 x rotary knob |
Bypass | 1 x footswitch |
System |
|
Frequency Response | 20 Hz to 20 kHz (+0 / -0.3 dB) |
Dynamic Range | > 73 dB (20 Hz to 20 kHz) |
Signal-to-Noise Ratio | > 63 dB |
Overall Gain | 22 dBu |
Power Supply / Voltage |
|
Power Input | Standard 9 V DC, centre negative, > 400 mA (power supply not included) |
Power Consumption | 0.75 W |
Dimensions / Weight |
|
Dimensions (H x W x D) | 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75") |
Weight | 1,047 g (36.9 oz) |
