Combining MIDI implementation and MIDI channel voice priority with an analog, semi-modular architecture, Behringer’s Edge lives up to its name and beyond, with its modern “edge” and a vintage soul. With its massive range of drums and percussion sounds, throbbing sub-bass, screaming highs, and spaced-out effects, Edge adds another layer of dimension and power to your grooves, analog ‘Precision-Synth” style.
Endlessly flexible yet easy to operate, Edge employs dual VCOs (with PWM, triangle, FM, and sync), a multi-mode 24dB “ladder” VCF, 3 EGs, and a white/pink noise generator for its massive analog sonics-- Edge delivers far more than any dedicated digital-era drum machine.

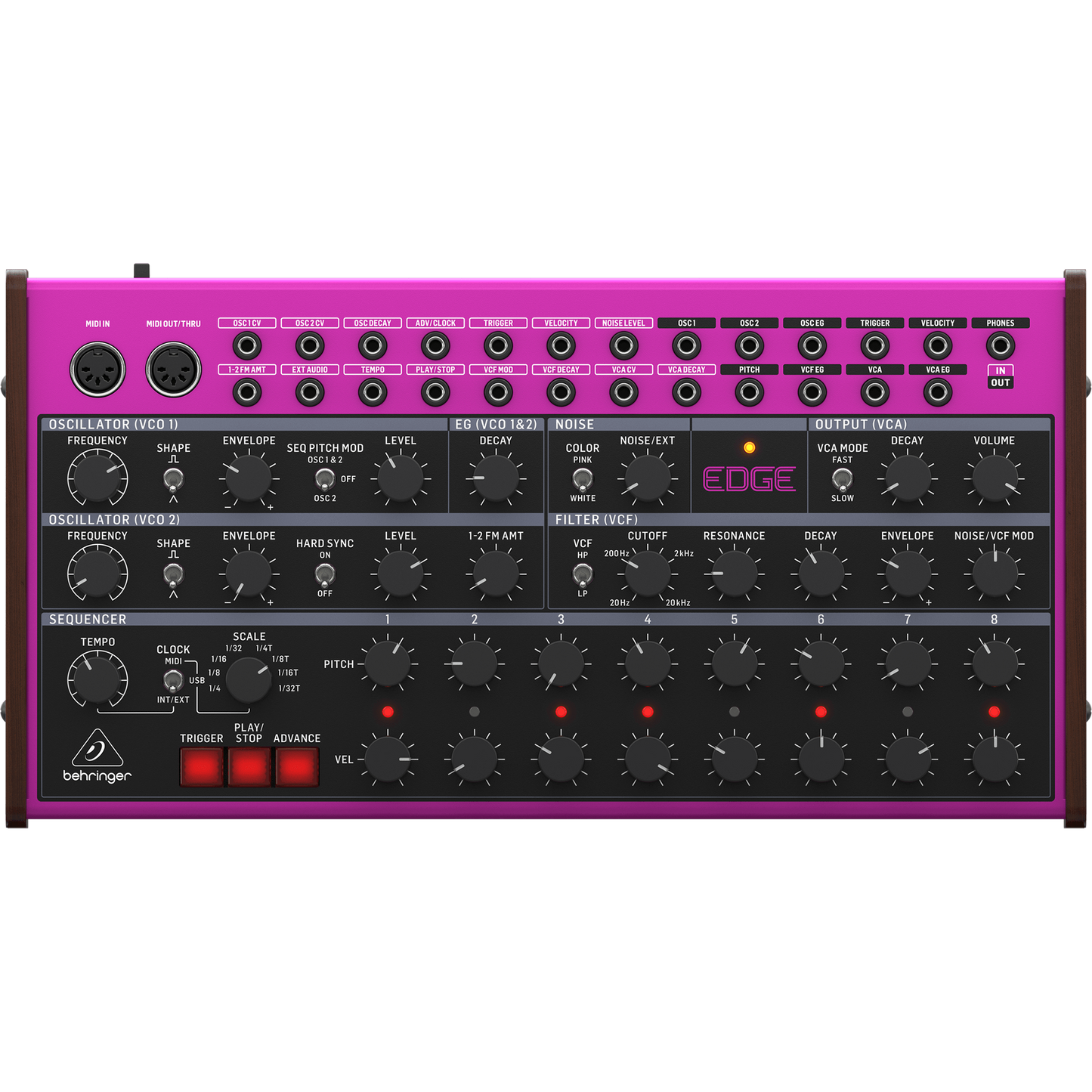

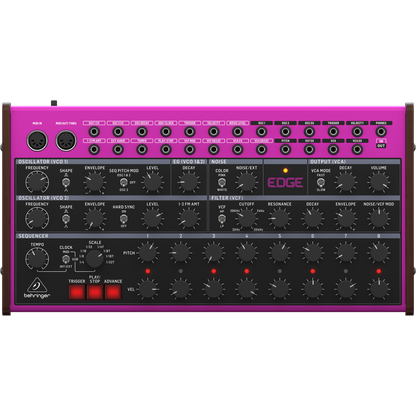

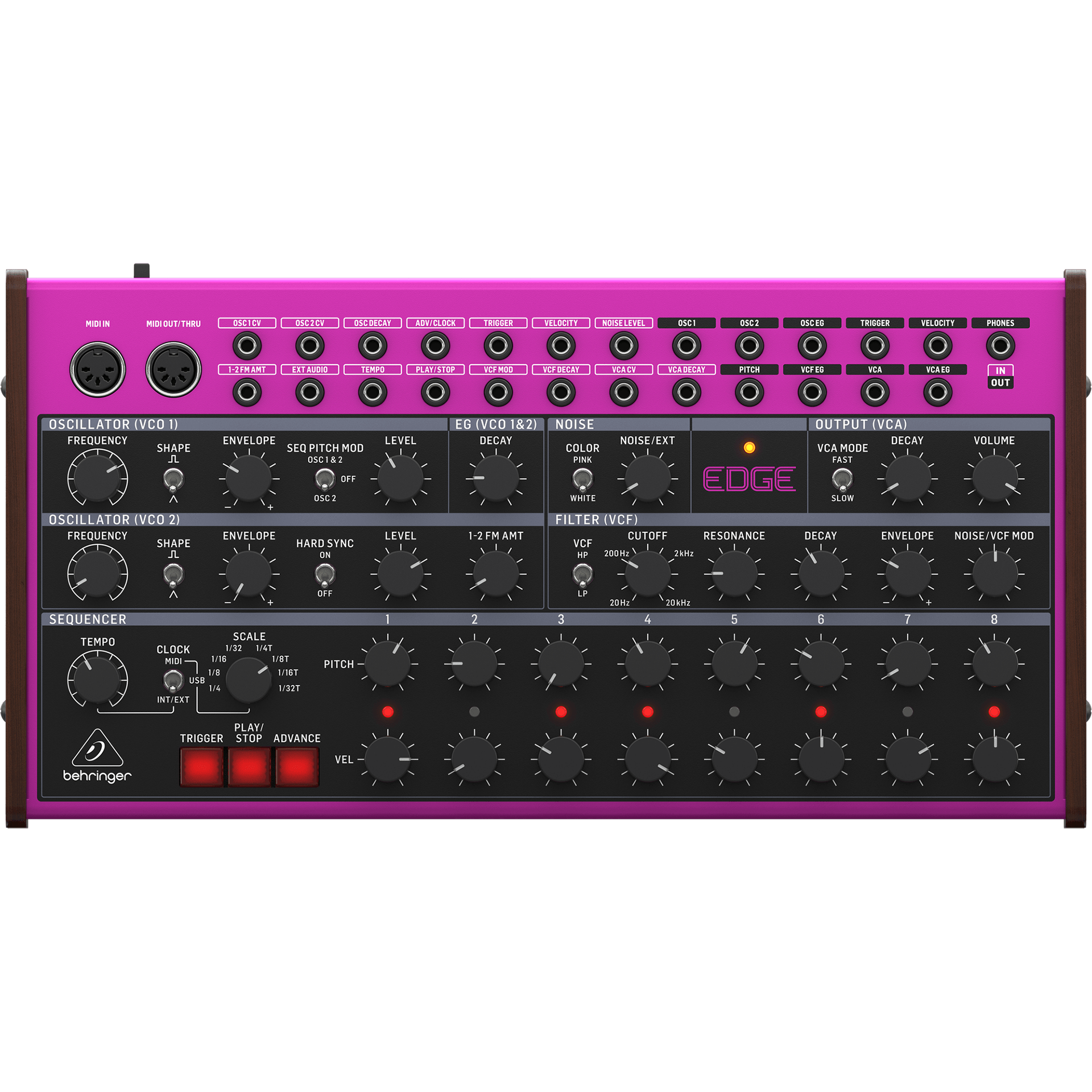

Along the top of the desktop-size module, you’ll discover a 15 x 10 patch bay matrix for a wide range of internal routing flexibility, plus MIDI and USB for external synchronization. Decked out in shocking electric pink, Edge features 44 controls of real-time access to all critical parameters, but the real fun starts at the Sequencer control section. Utilizing two 8-step sequencers with dedicated pitch and velocity controls, an 8-way time division selector, and tempo control that ramps up to 10,000 BPM—Behringer Edge is a powerfully versatile and very affordable standalone precision synth, a perfect mate for the Behringer Crave module or addition to any modular synth rig.
Product Name | Behringer Edge Semi-Modular Analog Percussion Synthesizer |
---|---|
Brand | Behringer |
MPN | EDGEBEHRINGER |
UPC | 787790550259 |
Shipping Option | Free Shipping to the Continental U.S. |
- All analog Semi-Modular Desktop Percussion/Bass Synth
- Dual VCOs, w/pulse and triangle waves, plus sync and FM options
- Pink and white noise generator
- Multimode 24dB Ladder filter
- 3 Envelope Generators
- 15 x 10 patch bay matrix
- (2) 8-step sequencers with pitch and velocity controls
- 8-way pitch and velocity knobs plus tempo, scale, and clock switch
- 10,000 BPM capability
- Play/Stop/Advance Buttons
- MIDI In/Out/Thru and USB TYPE-B connectivity with voice priority
- Analog Outputs: OSC (1, 2, EG), Trigger, Velocity, Pitch, VCF EG, VCA & EG
- Headphones: 1 x 1/8" TRS
Synthesizer Architecture |
|
---|---|
Number of voices | Monophonic |
Type | Analog |
Oscillators | 2 |
VCF | 1 HP/LP 4-pole (-24dB/Oct) ladder filter |
Envelope | 1 per VCO, 1 VCA decay, 1 VCF |
Noise | White, pink |
Connectivity |
|
Power input | DC input connector |
Power switch | Push button on / off |
USB (MIDI) | USB 2.0, type B |
MIDI In / Out /Thru | 2 x 5-pin DIN / 16 channels |
Output | VCA output: 3.5 mm TS, unbalanced, max +14.5 dBu |
Headphones | 3.5 mm TRS, max. 450uW @ 64 Ω |
Headphones output impedance | 470 Ω |
Inputs | 3.5 mm TS |
OSC 1 CV | -5 V to +5 V |
OSC 2 CV | -5 V to +5 V |
OSC decay | -5 V to +5 V |
ADV/clock | more than 3.2 V (10 V max) |
Trigger | 0 to +5 V Pulse or Gate signal (+10 V max) |
Velocity | 0 V to 5 V |
Noise level | 0 V to 8 V |
1-2FM AMT | 0 V to 8 V |
Ext audio | 10 V max |
Tempo | -5 V to +5 V |
Play/stop | more than 3.2 V (10 V max) |
VCF mod | -5 V to +5 V |
VCF decay | -5 V to +5 V |
VCA CV | 0 V to 8 V |
VCA decay | -5 V to +5 V |
Outputs |
|
Type | 3.5 mm TS |
OSC 1 | ± 5 V |
OSC 2 | ± 5 V |
OSC EG | 0 V to 8 V |
Trigger | 0 to +5V Pulse |
Velocity | 0 to +5V |
Pitch | ± 5 V |
VCF EG | 0 V to 8 V |
VCA EG | 0 V to 8 V |
USB |
|
Type | Class compliant USB 2.0, type B |
Supported operating systems | Windows 10 or higher / Mac OS X 10.14 or higher |
Oscillator (VCO) 1 Section |
|
Controls | Frequency ± 5 octave (10 octave range) |
Envelope | -5 to +5 |
Level | 0 to 10 |
Switches | Shape: pulse, triangle
Seq pitch mod: osc 1&2, off, osc 2 |
Oscillator (VCO) 2 Section |
|
Controls | Frequency ± 5 octave (10 octave range)
Envelope: -5 to +5 Level: 0 to 10 1-2 FM amt 0- 100% |
Switches | Shape: pulse, triangle
Hard sync on/off |
Noise Section |
|
Controls | Noise/ext 0-100% |
Switch | Color: pink/white |
Output (VCA) Section |
|
Controls | Decay 0 to 10
Volume: 0 to 10 |
Switch | VCA mode: fast/slow |
Filter (VCF) Section |
|
Controls | Cutoff frequency: 0 to 10 (20 Hz - 20 kHz)
Resonance: 0 to 10 Decay: 0 to 10 Envelope : -5 to +5 Noise/VCF MOD: 0 to 10 |
Switch | VCF: HP/LP |
Sequencer |
|
Controls | Tempo 0% - 100%
Scale 1/4, 1/8, 1/16, 1/32, 1/4T, 1/8T, 1/16T, 1/32T 8 Pitch controls ± 5 V 8 Velocity controls 0 to 5 V |
Switch | Clock: MIDI, USB, INT/EXT |
LED | Active step indication |
Buttons | Trigger, play/stop, Advance |
Power Requirements |
|
External power adapter | 12 V DC 1000 mA |
Power consumption | 4 W max |
Indicator | Power LED |
