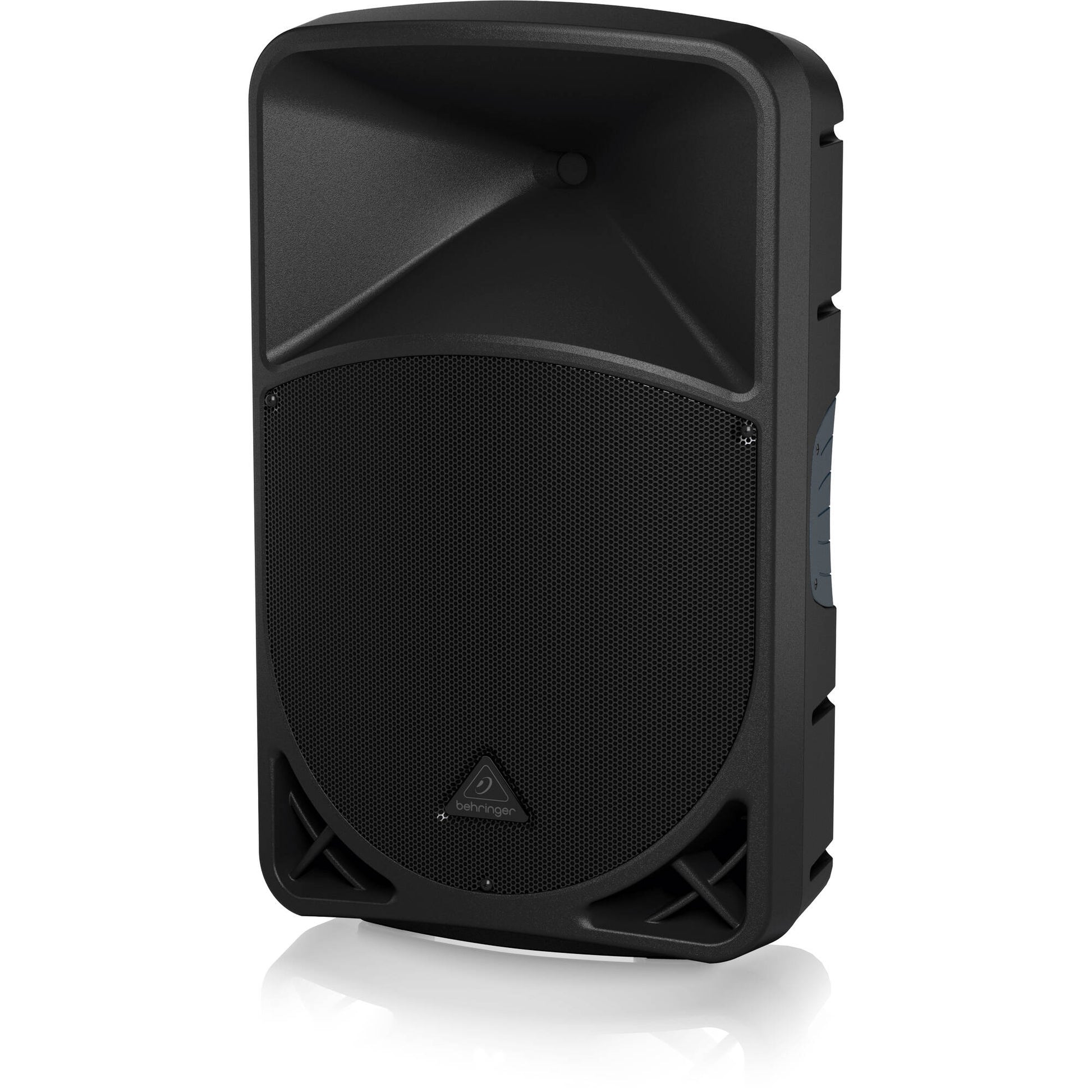

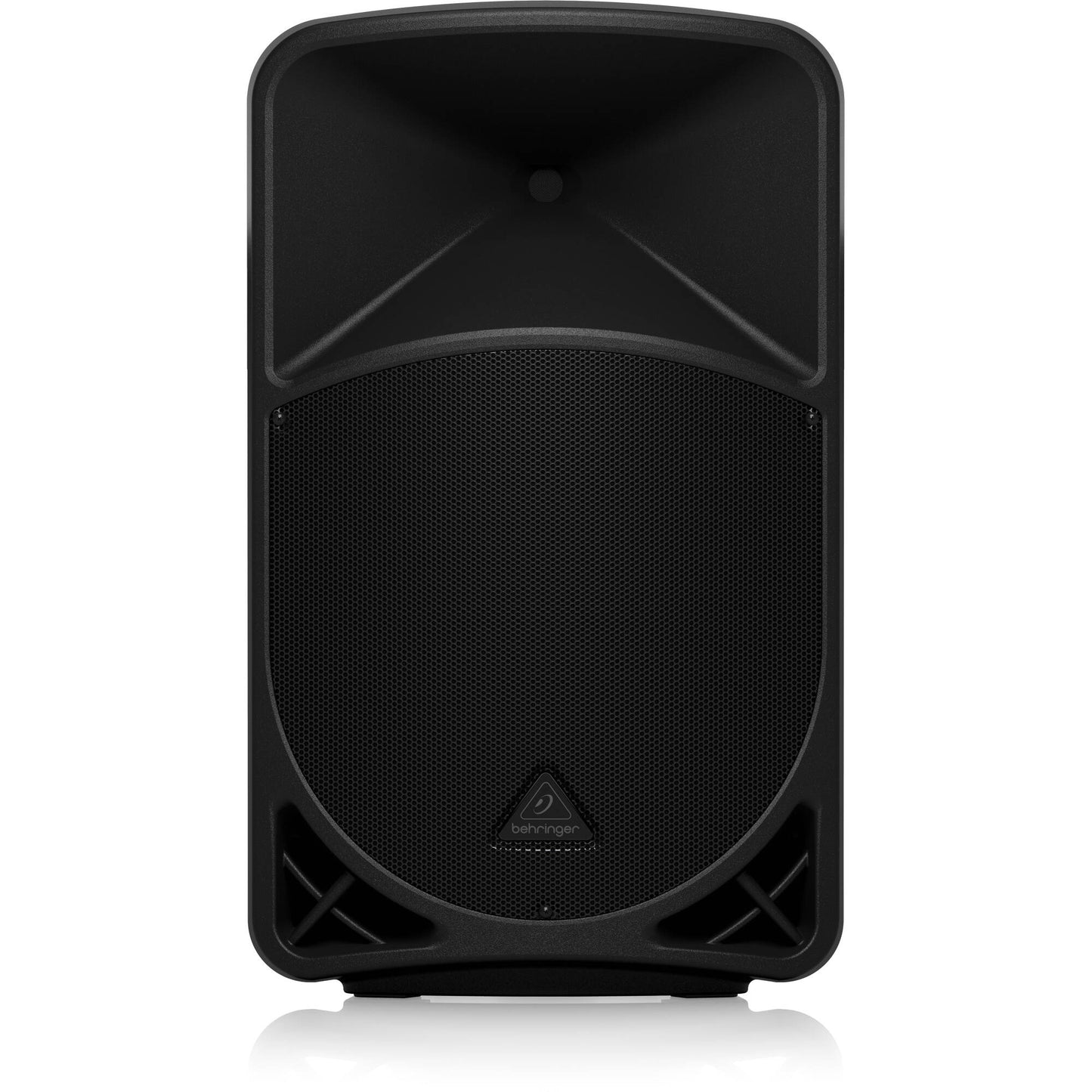

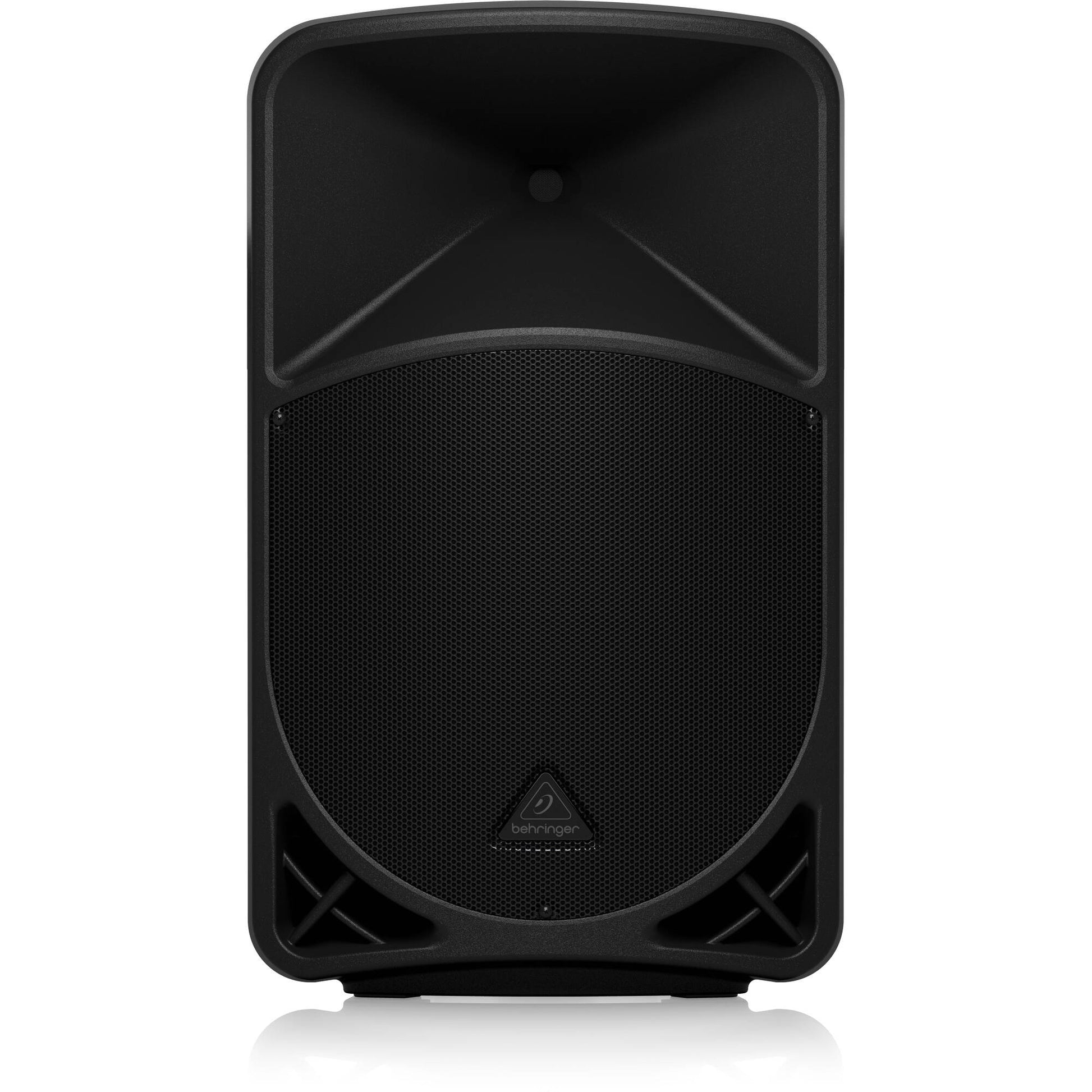

The EUROLIVE B15X active loudspeaker is exactly what you’ve come to expect from Behringer – more power, more features and absolutely more affordable! Our engineers have created a powered loudspeaker that merges 1000-Watt Class-D power amp technology, a 3-channel digital mixer with gain setting recall that is “wireless ready” for our ULM Series digital microphones (available separately), integrated DSP – and exceptional portability. Then we loaded the B15X with our best 12" long-excursion driver for incredibly deep bass, and a state-of-the-art 1'' phenolic-diaphragm compression driver for exceptional high-frequency reproduction. Built-in Bluetooth connectivity allows you to stream music from your smart-phone, tablet or other Bluetooth-equipped device – and you can even control the system via our free iOS */ Android * mobile apps. The B15X professional active loudspeaker is destined to become a legend in its own right, alongside the other EUROLIVE models that have made Behringer the world leader in active loudspeakers.
Built-in Digital Mixer – Comprehensive Remote Control

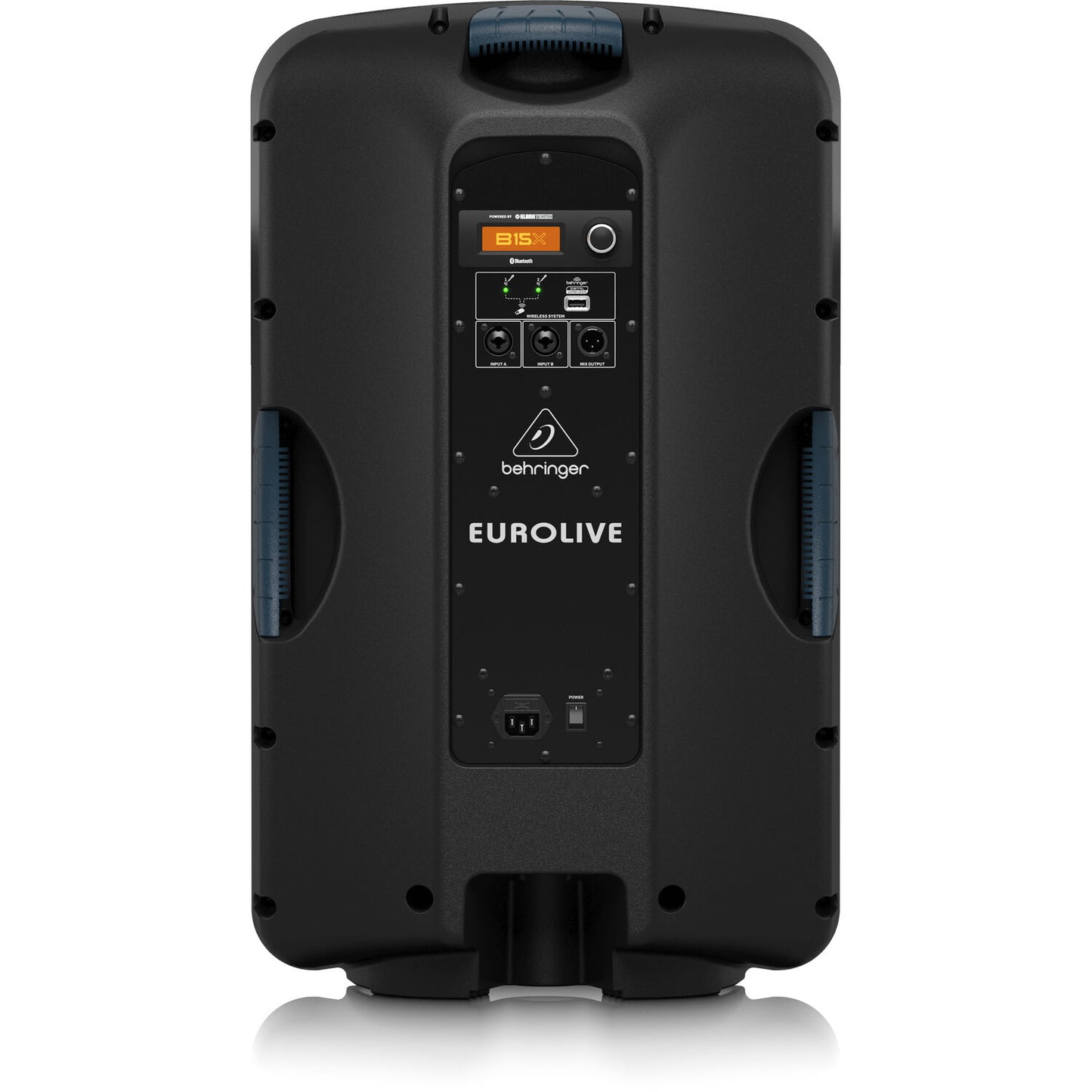

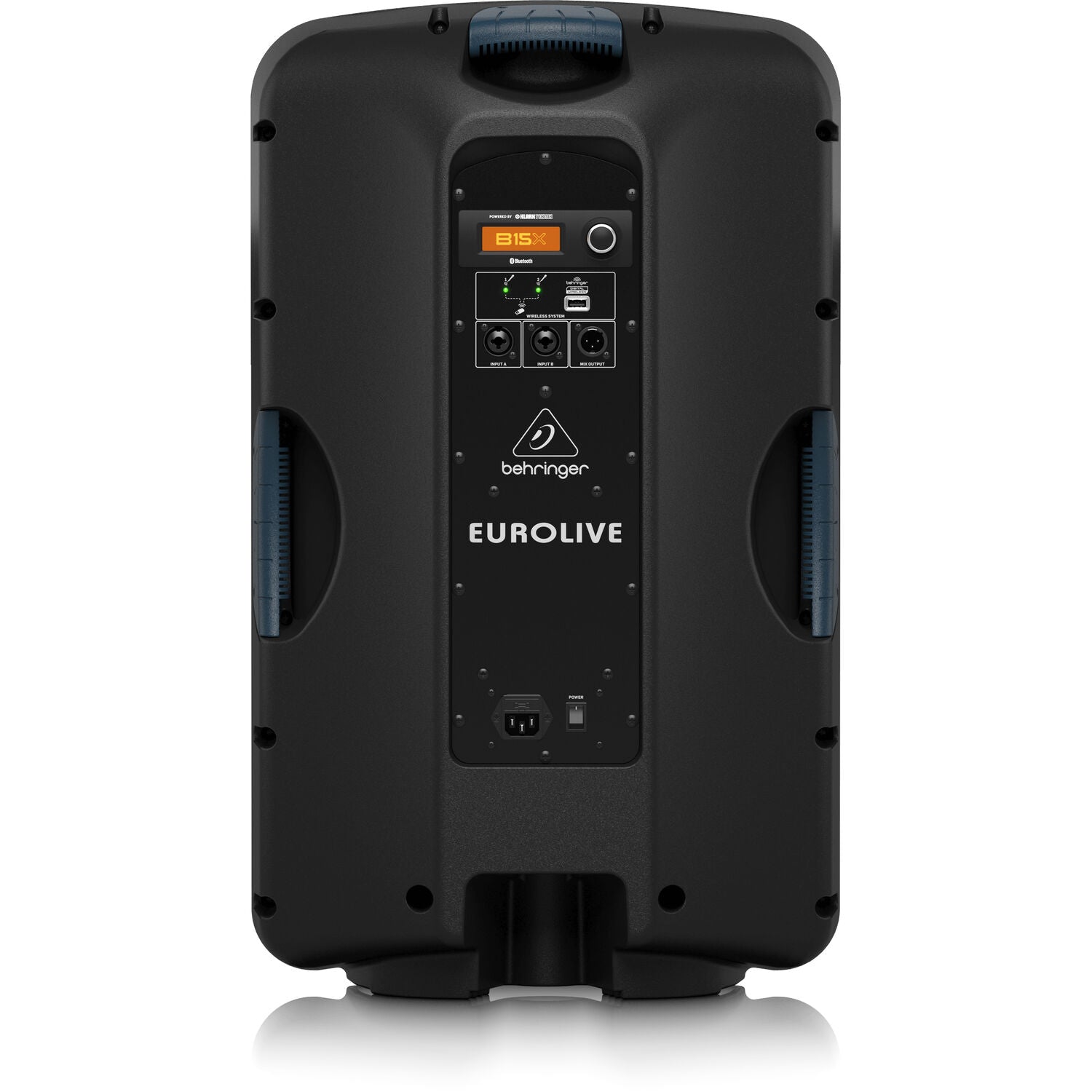

The B15X features a fully addressable onboard digital mixer with two combo jack/XLR connectors that accept balanced and unbalanced connections for dynamic mics and line-level instruments. The simple and intuitive user interface consists of a single rotary push-encoder with Process, Setup, Exit and Enter function buttons. A beautifully-backlit LCD display controls DSP functions including mixer parameters, 3 band EQ and presets. All settings can be controlled locally, or via the free downloadable iOS */ Android * mobile apps – and locked down to prevent unauthorized access.
Own the Stage with Digital Wireless
Get wireless-ready with the built-in, dedicated connectivity of our ULTRALINK ULM Series wireless microphone system. Wireless gives you maximum freedom and mobility without the need to run cables. The highest-quality sound is provided thanks to the ULM’s digital, license-free 2.4 GHz frequency spectrum.
The ULM wireless system combines professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Just plug in the ULM receiver “dongle,” and instantly you have an exceptional wireless mic system. Freeing you from cables is the simply easy way to own the stage.
Product Name | Behringer Eurolive B15X Active 1000W 15" Speaker System |
---|---|
Brand | Behringer |
MPN | B15X |
UPC | 841434197160 |
What's in the Box?
- Behringer Eurolive B15X Active 1000W 15" Speaker System
- IEC Power Cable
- High-power 1000-Watt 2-way PA sound reinforcement speaker system for live and playback applications
- Remote control 3-channel digital mixer with gain setting recall
- "Wireless-ready" for high-quality Behringer digital wireless system (not included)
- Comprehensive remote control via iOS/Android mobile app available free of charge
- High quality Bluetooth stereo audio streaming
- DSP presets for application type and speaker positioning
- Klark Teknik Digital Signal Processing for total system control
- Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
- Extremely powerful 15'' long-excursion driver provides incredibly deep bass and acoustic power
- State-of-the-art 1.35'' aluminum-diaphragm compression driver for exceptional high-frequency reproduction
- Intuitive single rotary control user interface with LCD display for ease of navigation
- Ultra-wide dispersion, large-format exponential horn

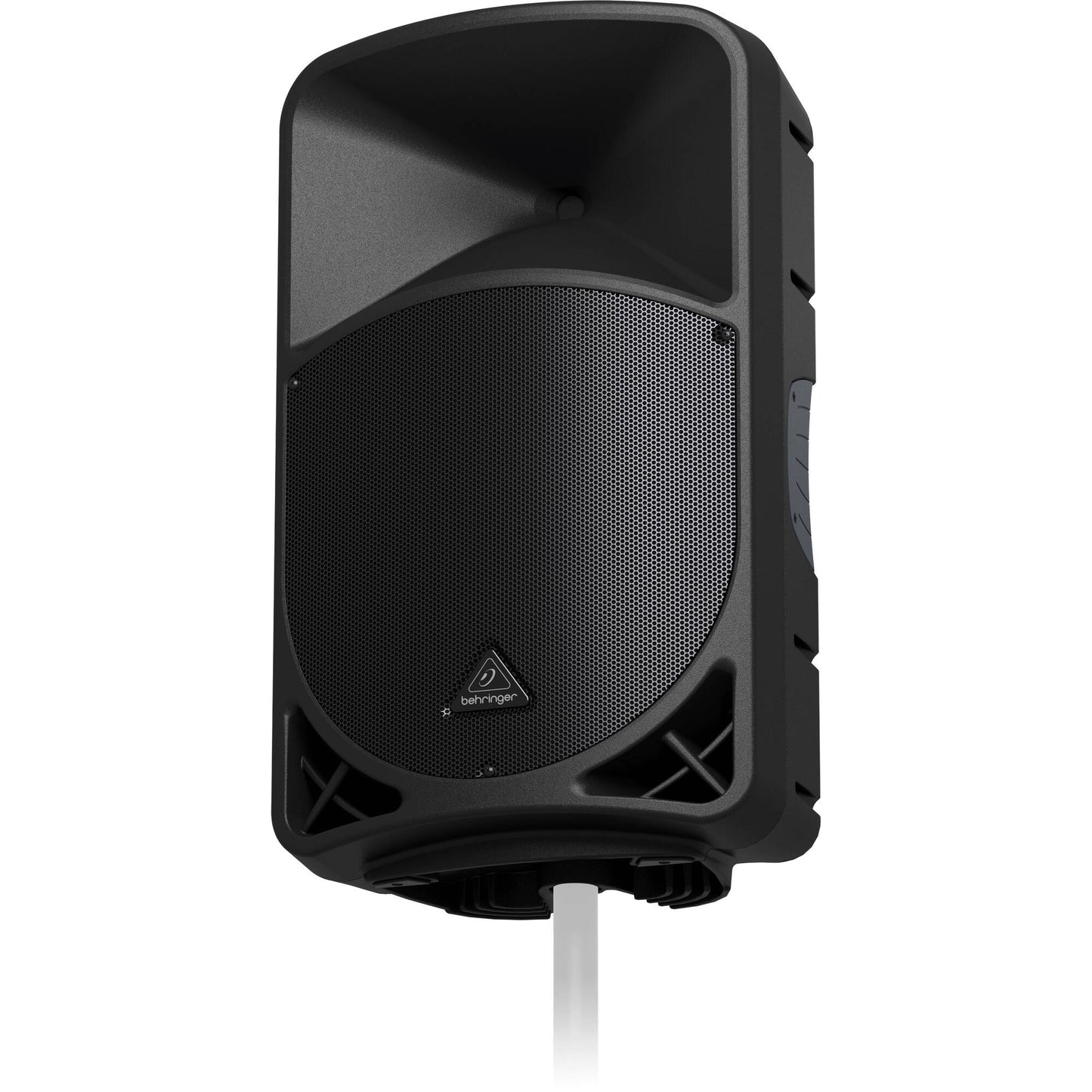

- Versatile trapezoidal enclosure design allows different positioning:- Stand mounting with 35-mm pole socket- Tilts on its side for use as a floor monitor
- Ergonomically shaped handles for easy carrying and setup
Amplifier |
|
---|---|
Maximum output power | 1000 W* |
Type | Class-D |
Protection | Short circuit, open circuit, thermal |
Controls |
|
Hardware | Rotary push-encoder |
Software | Apple iOS / Android interface via Bluetooth |
Loudspeaker / System Data |
|
Woofer | 385 mm (1 x 15") LF driver |
Tweeter | 25.4 mm (1 x 1") HF compression driver |
Frequency response | 50 Hz – 20 kHz (±3 dB) 45 Hz – 20 kHz (-10 dB) |
Nominal dispersion | 85° H X 60° V @ -6 dB |
Maximum SPL | 127 dB |
Crossover | 2-way, active |
Limiter | Independent HF, LF |
Audio Connections |
|
Input A / B | 2 x XLR / ¼" TRS combo jacks (servo-balanced) |
Impedance | 33 kΩ, balanced / 16 kΩ, unbalanced |
Sensitivity | 4 dBu, nominal |
Max. input level | +22 dBu |
Output | 1 x XLR |
Impedance | 440 Ω balanced, 220 Ω unbalanced |
Max. output level | +22 dBu |
Digital Signal Processor (DSP) |
|
Display | LCD 128 x 32, amber backlit |
Factory EQ presets | Positioning, sound mode, phase |
Equalization |
Bass: ±10 dB @ 80 Hz, shelving Middle: ±10 dB @ 2.5 kHz, parametric, Q = 0.5 Treble: ±10 dB @ 12 kHz, shelving |
Crossover | High pass, L-R 24 dB/Oct. |
Protection | Lockout function for all settings |
Wireless System |
|
USB dongle | USB socket accepts signals from 2 independent Behringer ULM mics |
Signal indicator LED | 2 (green) |
Bluetooth / MP3** |
|
Frequency range | 2402 MHz ~ 2480 MHz |
Channel number | 79 |
Version | Bluetooth spec 4.0 compliant |
Compatibility | Supports GATT, A2DP 1.2 profiles |
Max. communication range | 30 m (without interference) |
Connectivity | Master-slave stereo pairing link |
Power Supply / Voltage (Fuses) |
|
USA / Canada / Japan | 100-120 V~, 50/60 Hz (T 6.3 A H 250 V) |
UK / Australia / Europe / Korea / China | 220-240 V~, 50/60 Hz (T 3.15 A H 250 V) |
Power consumption @ 1/8 max power | 80 W |
Mains connection | Standard IEC receptacle |
Dimension / Weight |
|
Dimensions (H x W x D) | 712.5 x 426.7 x 312.9 mm (28.1 x 16.8 x 12.3") |
Weight | 18.2 kg (40.0 lbs) |
Behringer Eurolive B15X Active 1000W 15" Speaker System
The EUROLIVE B15X active loudspeaker is exactly what you’ve come to expect from Behringer – more power, more features and absolutely more affordable! Our engineers have created a powered loudspeaker that merges 1000-Watt Class-D power amp technology, a 3-channel digital mixer with gain setting recall that is “wireless ready” for our ULM Series digital microphones (available separately), integrated DSP – and exceptional portability. Then we loaded the B15X with our best 12" long-excursion driver for incredibly deep bass, and a state-of-the-art 1'' phenolic-diaphragm compression driver for exceptional high-frequency reproduction. Built-in Bluetooth connectivity allows you to stream music from your smart-phone, tablet or other Bluetooth-equipped device – and you can even control the system via our free iOS */ Android * mobile apps. The B15X professional active loudspeaker is destined to become a legend in its own right, alongside the other EUROLIVE models that have made Behringer the world leader in active loudspeakers.
Built-in Digital Mixer – Comprehensive Remote Control
The B15X features a fully addressable onboard digital mixer with two combo jack/XLR connectors that accept balanced and unbalanced connections for dynamic mics and line-level instruments. The simple and intuitive user interface consists of a single rotary push-encoder with Process, Setup, Exit and Enter function buttons. A beautifully-backlit LCD display controls DSP functions including mixer parameters, 3 band EQ and presets. All settings can be controlled locally, or via the free downloadable iOS */ Android * mobile apps – and locked down to prevent unauthorized access.
Own the Stage with Digital Wireless
Get wireless-ready with the built-in, dedicated connectivity of our ULTRALINK ULM Series wireless microphone system. Wireless gives you maximum freedom and mobility without the need to run cables. The highest-quality sound is provided thanks to the ULM’s digital, license-free 2.4 GHz frequency spectrum.
The ULM wireless system combines professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Just plug in the ULM receiver “dongle,” and instantly you have an exceptional wireless mic system. Freeing you from cables is the simply easy way to own the stage.
Product Name | Behringer Eurolive B15X Active 1000W 15" Speaker System |
---|---|
Brand | Behringer |
MPN | B15X |
UPC | 841434197160 |
What's in the Box?
- Behringer Eurolive B15X Active 1000W 15" Speaker System
- IEC Power Cable
- High-power 1000-Watt 2-way PA sound reinforcement speaker system for live and playback applications
- Remote control 3-channel digital mixer with gain setting recall
- "Wireless-ready" for high-quality Behringer digital wireless system (not included)
- Comprehensive remote control via iOS/Android mobile app available free of charge
- High quality Bluetooth stereo audio streaming
- DSP presets for application type and speaker positioning
- Klark Teknik Digital Signal Processing for total system control
- Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
- Extremely powerful 15'' long-excursion driver provides incredibly deep bass and acoustic power
- State-of-the-art 1.35'' aluminum-diaphragm compression driver for exceptional high-frequency reproduction
- Intuitive single rotary control user interface with LCD display for ease of navigation
- Ultra-wide dispersion, large-format exponential horn
- Versatile trapezoidal enclosure design allows different positioning:- Stand mounting with 35-mm pole socket- Tilts on its side for use as a floor monitor
- Ergonomically shaped handles for easy carrying and setup
Amplifier |
|
---|---|
Maximum output power | 1000 W* |
Type | Class-D |
Protection | Short circuit, open circuit, thermal |
Controls |
|
Hardware | Rotary push-encoder |
Software | Apple iOS / Android interface via Bluetooth |
Loudspeaker / System Data |
|
Woofer | 385 mm (1 x 15") LF driver |
Tweeter | 25.4 mm (1 x 1") HF compression driver |
Frequency response | 50 Hz – 20 kHz (±3 dB) 45 Hz – 20 kHz (-10 dB) |
Nominal dispersion | 85° H X 60° V @ -6 dB |
Maximum SPL | 127 dB |
Crossover | 2-way, active |
Limiter | Independent HF, LF |
Audio Connections |
|
Input A / B | 2 x XLR / ¼" TRS combo jacks (servo-balanced) |
Impedance | 33 kΩ, balanced / 16 kΩ, unbalanced |
Sensitivity | 4 dBu, nominal |
Max. input level | +22 dBu |
Output | 1 x XLR |
Impedance | 440 Ω balanced, 220 Ω unbalanced |
Max. output level | +22 dBu |
Digital Signal Processor (DSP) |
|
Display | LCD 128 x 32, amber backlit |
Factory EQ presets | Positioning, sound mode, phase |
Equalization |
Bass: ±10 dB @ 80 Hz, shelving Middle: ±10 dB @ 2.5 kHz, parametric, Q = 0.5 Treble: ±10 dB @ 12 kHz, shelving |
Crossover | High pass, L-R 24 dB/Oct. |
Protection | Lockout function for all settings |
Wireless System |
|
USB dongle | USB socket accepts signals from 2 independent Behringer ULM mics |
Signal indicator LED | 2 (green) |
Bluetooth / MP3** |
|
Frequency range | 2402 MHz ~ 2480 MHz |
Channel number | 79 |
Version | Bluetooth spec 4.0 compliant |
Compatibility | Supports GATT, A2DP 1.2 profiles |
Max. communication range | 30 m (without interference) |
Connectivity | Master-slave stereo pairing link |
Power Supply / Voltage (Fuses) |
|
USA / Canada / Japan | 100-120 V~, 50/60 Hz (T 6.3 A H 250 V) |
UK / Australia / Europe / Korea / China | 220-240 V~, 50/60 Hz (T 3.15 A H 250 V) |
Power consumption @ 1/8 max power | 80 W |
Mains connection | Standard IEC receptacle |
Dimension / Weight |
|
Dimensions (H x W x D) | 712.5 x 426.7 x 312.9 mm (28.1 x 16.8 x 12.3") |
Weight | 18.2 kg (40.0 lbs) |
