Before the house lights dim and the show can start, having enough clean and reliable power is how all great concerts, theatrical performances, and live presentations begin. To ensure your events get off to the right start and stay that way till the last note, the Behringer NX6000 power amp is a great place to begin. Capable of delivering 3,000 watts (per side) of stereo power, expect more than enough crisp, clean power to tackle large venues without breaking a sweat. With its modern Class-D power plant, the NX6000 chimes in at an ultra-lightweight total of only 13 lbs. Plus, it operates very efficiently without excess heat associated with less reliable (and hefty) power amp designs of the past; the NX6000 won’t break your back or the bank.

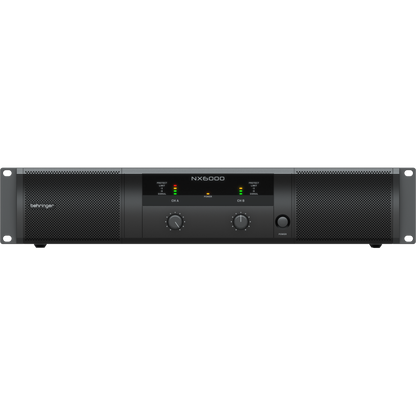

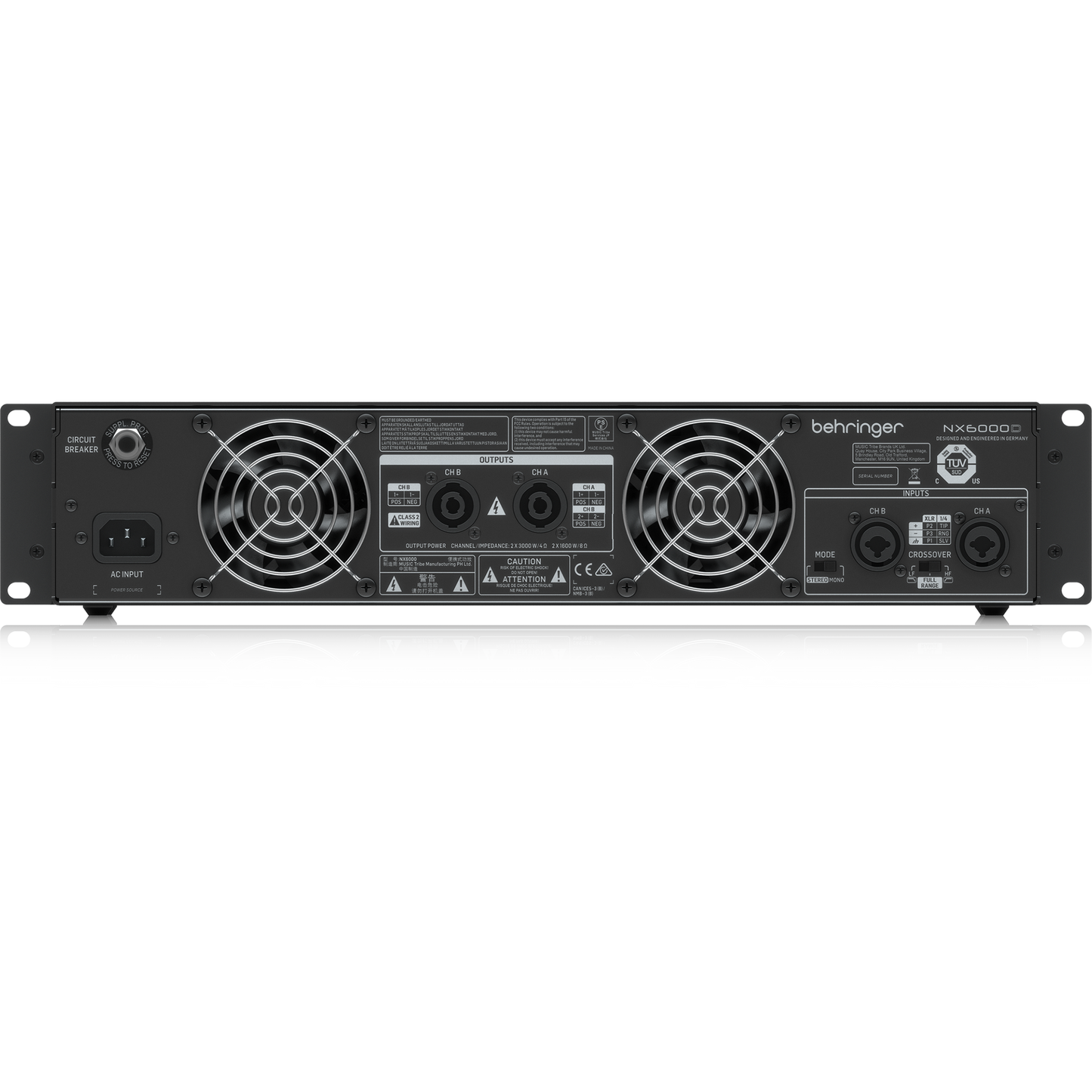

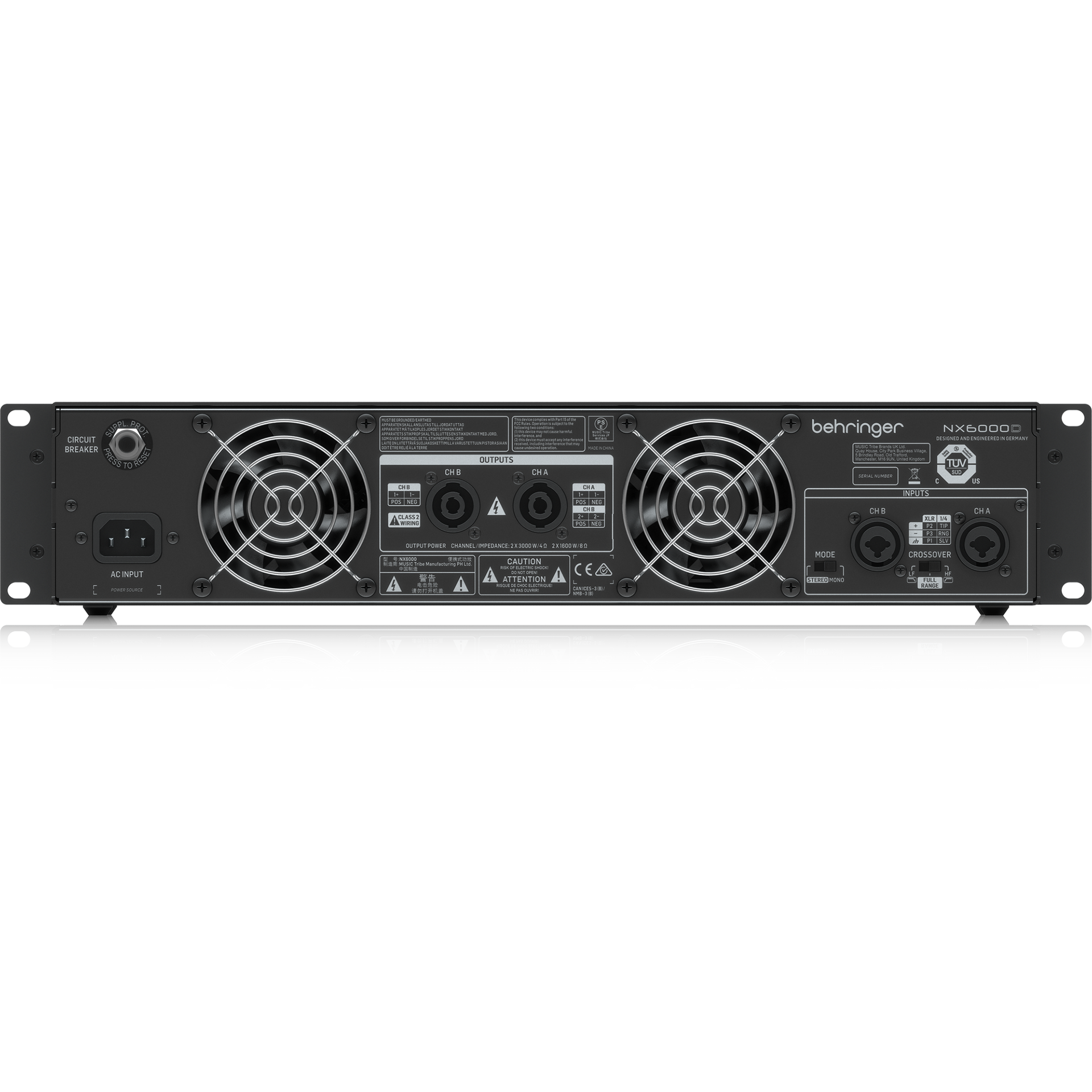

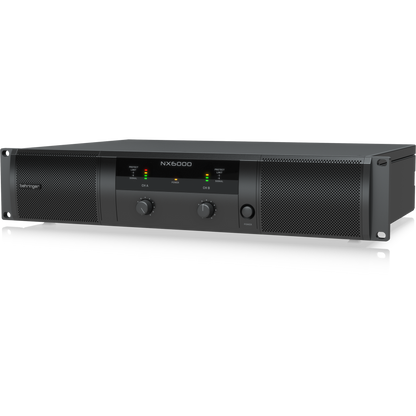

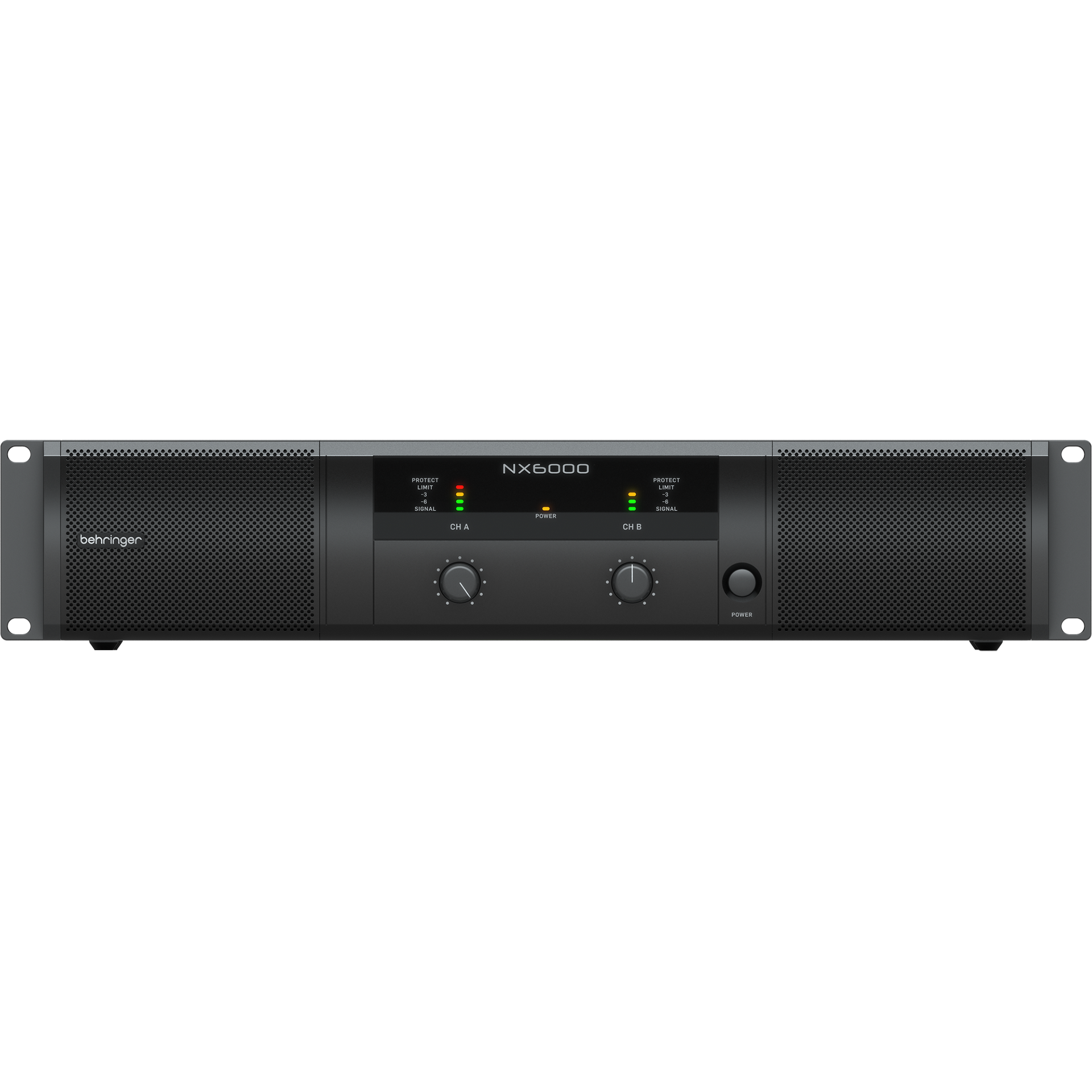

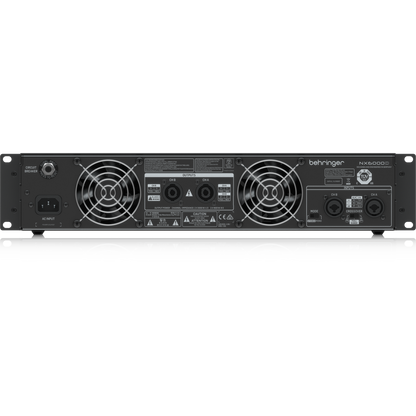

On the front panel, a pair of gain controls with detents and illuminated indicators make setting output levels easy and precise. Around the back, you’ll find a manual crossover switch that allows you to manually select high, low, and full-range crossover settings and a stereo/mono selector--a feature that comes in handy when using multiple power amps and speaker arrays. Twist-lock “SpeakON” output contacts assure reliable and efficient speaker connections, and a pair of combination XLR-1/4” inputs support balanced and unbalanced inputs for maximum compatibility.
In addition to high performance, lightweight, and versatility, the NX6000 is also designed for long life and ease of use. Internal “SmartSense” impedance compensation automatically selects the proper setting without lifting a finger. This protects the amp from overloading and provides the same flat frequency response you rely on at any speaker load. Independent DC, LF, and thermal overload protection on each channel assures reliable performance night after night, year after year.
- Stereo or mono performance (3000 watts per side at 4 Ohms, 1600 watts per side at 8 Ohms)
- Detented and illuminated gain controls
- Precise 4-segment LEDs
- Built-in stereo crossover with low-cut, high-cut, and full-range mode
- SmartSense Loudspeaker impedance compensation speaker load impedance
- Thermal and DC overload protection
- Inputs (2) XLR-1/4" combo
- Outputs (2) SpeakON
- 13 lbs.
- 2U rackmount ready
| Product Name | Behringer NX6000 Power Amplifier |
|---|---|
| Brand | Behringer |
| MPN | NX6000 |
| UPC | 653341314734 |
- Delivers 2 x 3000 Watts into 4 Ohms; 2 x 1600 Watts into 8 Ohms and weighs less than 13 lbs / 5.9 kg
- Ultimate reliability through revolutionary cool-running High-Density Class-D technology with “near-zero” thermal buildup
- Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
- Built-in stereo crossover with low-cut, high-cut and full range mode
- SmartSense Loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance
- “Zero-Attack” limiters offer maximum output level with reliable overload protection
- Detented and illuminated gain controls for precise level setting
- Precise 4-segment Signal and Limit LEDs to monitor performance
- XLR and 1/4" TRS combination input connectors for compatibility with any source
- Professional twist-lock speaker connectors for ultimate reliability
- Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
- “Back-to-front” ventilation system prevents thermal buildup for reliable operation
Maximum Output Power |
|
|---|---|
| Stereo / 4-channel | 2 x 3000 W |
| 4 Ω per channel, stereo | - |
Controls |
|
| Front | Power switch, Gain controls (channels A and B) |
| Rear | Mode switch (stereo / mono), Crossover switch (LF / fullrange / HF), Circuit breaker |
Indicators |
|
| Power | Amber LED |
| Limit (per channel) | 0 dB LED |
| Signal (per channel) | -40 / -6 / -3 dB LEDs |
| Protect (per channel) | Red LED |
Input Sensitivity |
|
| For rated power into 4 Ω | 0.775 V (0 dBu) |
System |
|
| Inputs | 2 x combo jacks |
| Input impedance | 10 kΩ unbalanced, 20 kΩ balanced |
| Outputs | 2 x locking-style professional speaker connectors |
| Output circuit type | Class D |
| Distortion | <0.1% |
| Frequency response | 20 Hz to 20 kHz, +0 / -2 dB |
| Damping factor | >140 @ 8 Ω |
| Signal-to-noise | >100 dB |
Circuit Protection |
|
| Cooling | Continuously variable speed fan, Back-to-front air flow |
| Amplifier protection | Thermal and DC protection, Stable into reactive or mismatched loads |
| Load protection | On/off muting, DC-fault power supply shutdown |
Power Supply, Voltage, Current Consumption (Breaker / Fuses) |
|
| USA / Canada | 120 V~, 60 Hz, (T 25 A H 250 V) |
| Japan | 100 V~, 50/60 Hz, (T 25 A H 250 V) |
| UK / Australia / Europe | 220-240 V~, 50/60 Hz, (T 12 A H 250 V) |
| Korea / China | 220-240 V~, 50/60 Hz, (T 12 A H 250 V) |
| Power consumption @ 4 Ω, 1⁄8 rated power | 620 W |
| Mains connector | Standard IEC receptacle |

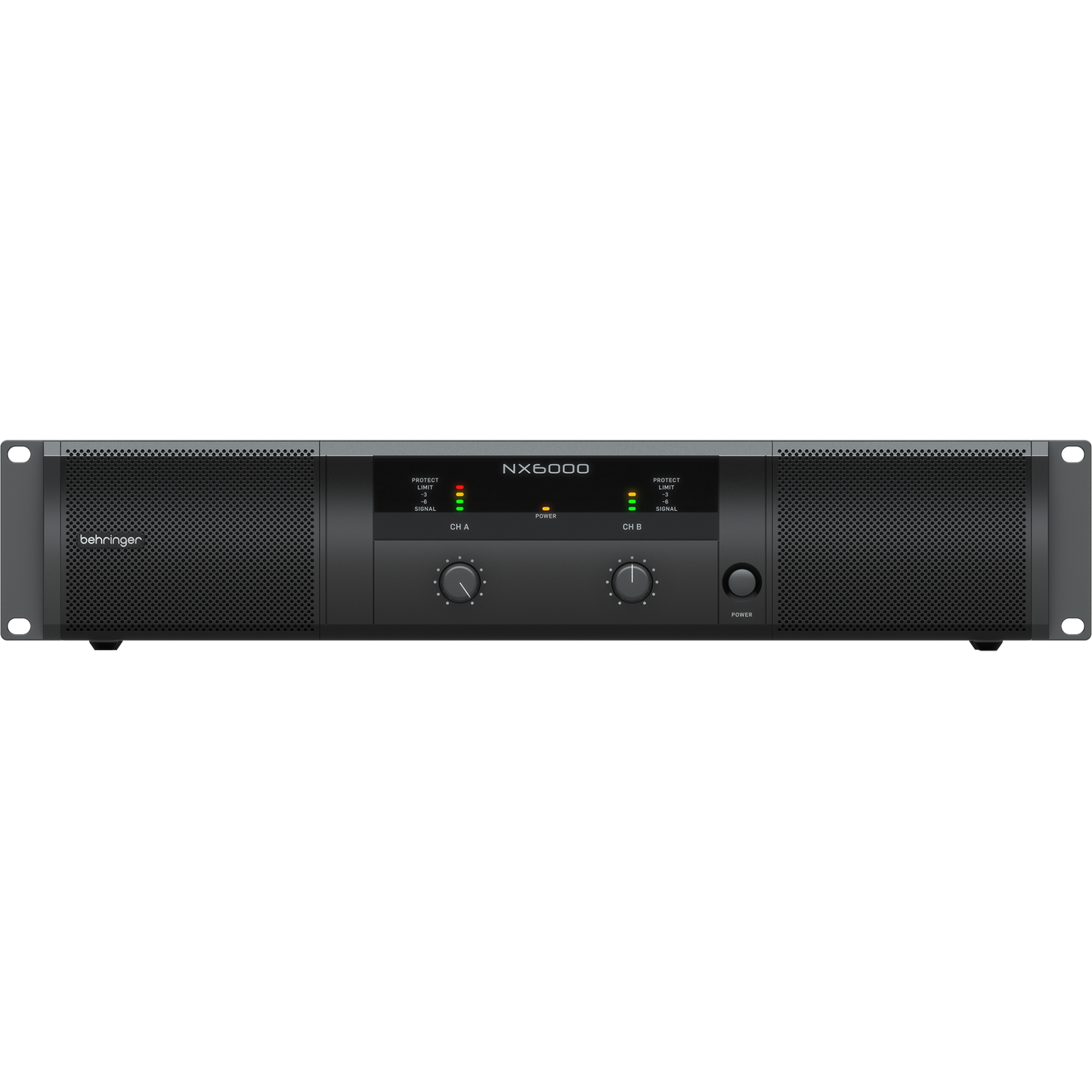

Behringer NX6000 Power Amplifier
Before the house lights dim and the show can start, having enough clean and reliable power is how all great concerts, theatrical performances, and live presentations begin. To ensure your events get off to the right start and stay that way till the last note, the Behringer NX6000 power amp is a great place to begin. Capable of delivering 3,000 watts (per side) of stereo power, expect more than enough crisp, clean power to tackle large venues without breaking a sweat. With its modern Class-D power plant, the NX6000 chimes in at an ultra-lightweight total of only 13 lbs. Plus, it operates very efficiently without excess heat associated with less reliable (and hefty) power amp designs of the past; the NX6000 won’t break your back or the bank.
On the front panel, a pair of gain controls with detents and illuminated indicators make setting output levels easy and precise. Around the back, you’ll find a manual crossover switch that allows you to manually select high, low, and full-range crossover settings and a stereo/mono selector--a feature that comes in handy when using multiple power amps and speaker arrays. Twist-lock “SpeakON” output contacts assure reliable and efficient speaker connections, and a pair of combination XLR-1/4” inputs support balanced and unbalanced inputs for maximum compatibility.
In addition to high performance, lightweight, and versatility, the NX6000 is also designed for long life and ease of use. Internal “SmartSense” impedance compensation automatically selects the proper setting without lifting a finger. This protects the amp from overloading and provides the same flat frequency response you rely on at any speaker load. Independent DC, LF, and thermal overload protection on each channel assures reliable performance night after night, year after year.
- Stereo or mono performance (3000 watts per side at 4 Ohms, 1600 watts per side at 8 Ohms)
- Detented and illuminated gain controls
- Precise 4-segment LEDs
- Built-in stereo crossover with low-cut, high-cut, and full-range mode
- SmartSense Loudspeaker impedance compensation speaker load impedance
- Thermal and DC overload protection
- Inputs (2) XLR-1/4" combo
- Outputs (2) SpeakON
- 13 lbs.
- 2U rackmount ready
| Product Name | Behringer NX6000 Power Amplifier |
|---|---|
| Brand | Behringer |
| MPN | NX6000 |
| UPC | 653341314734 |
- Delivers 2 x 3000 Watts into 4 Ohms; 2 x 1600 Watts into 8 Ohms and weighs less than 13 lbs / 5.9 kg
- Ultimate reliability through revolutionary cool-running High-Density Class-D technology with “near-zero” thermal buildup
- Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
- Built-in stereo crossover with low-cut, high-cut and full range mode
- SmartSense Loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance
- “Zero-Attack” limiters offer maximum output level with reliable overload protection
- Detented and illuminated gain controls for precise level setting
- Precise 4-segment Signal and Limit LEDs to monitor performance
- XLR and 1/4" TRS combination input connectors for compatibility with any source
- Professional twist-lock speaker connectors for ultimate reliability
- Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
- “Back-to-front” ventilation system prevents thermal buildup for reliable operation
Maximum Output Power |
|
|---|---|
| Stereo / 4-channel | 2 x 3000 W |
| 4 Ω per channel, stereo | - |
Controls |
|
| Front | Power switch, Gain controls (channels A and B) |
| Rear | Mode switch (stereo / mono), Crossover switch (LF / fullrange / HF), Circuit breaker |
Indicators |
|
| Power | Amber LED |
| Limit (per channel) | 0 dB LED |
| Signal (per channel) | -40 / -6 / -3 dB LEDs |
| Protect (per channel) | Red LED |
Input Sensitivity |
|
| For rated power into 4 Ω | 0.775 V (0 dBu) |
System |
|
| Inputs | 2 x combo jacks |
| Input impedance | 10 kΩ unbalanced, 20 kΩ balanced |
| Outputs | 2 x locking-style professional speaker connectors |
| Output circuit type | Class D |
| Distortion | <0.1% |
| Frequency response | 20 Hz to 20 kHz, +0 / -2 dB |
| Damping factor | >140 @ 8 Ω |
| Signal-to-noise | >100 dB |
Circuit Protection |
|
| Cooling | Continuously variable speed fan, Back-to-front air flow |
| Amplifier protection | Thermal and DC protection, Stable into reactive or mismatched loads |
| Load protection | On/off muting, DC-fault power supply shutdown |
Power Supply, Voltage, Current Consumption (Breaker / Fuses) |
|
| USA / Canada | 120 V~, 60 Hz, (T 25 A H 250 V) |
| Japan | 100 V~, 50/60 Hz, (T 25 A H 250 V) |
| UK / Australia / Europe | 220-240 V~, 50/60 Hz, (T 12 A H 250 V) |
| Korea / China | 220-240 V~, 50/60 Hz, (T 12 A H 250 V) |
| Power consumption @ 4 Ω, 1⁄8 rated power | 620 W |
| Mains connector | Standard IEC receptacle |
