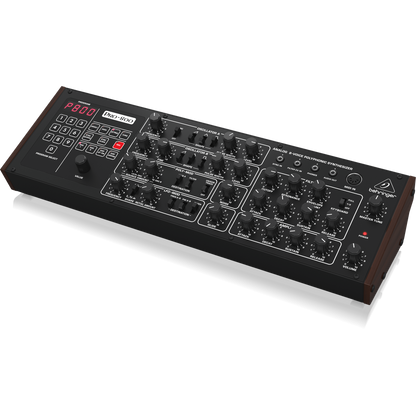

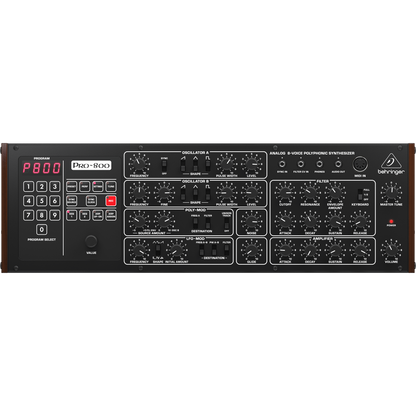

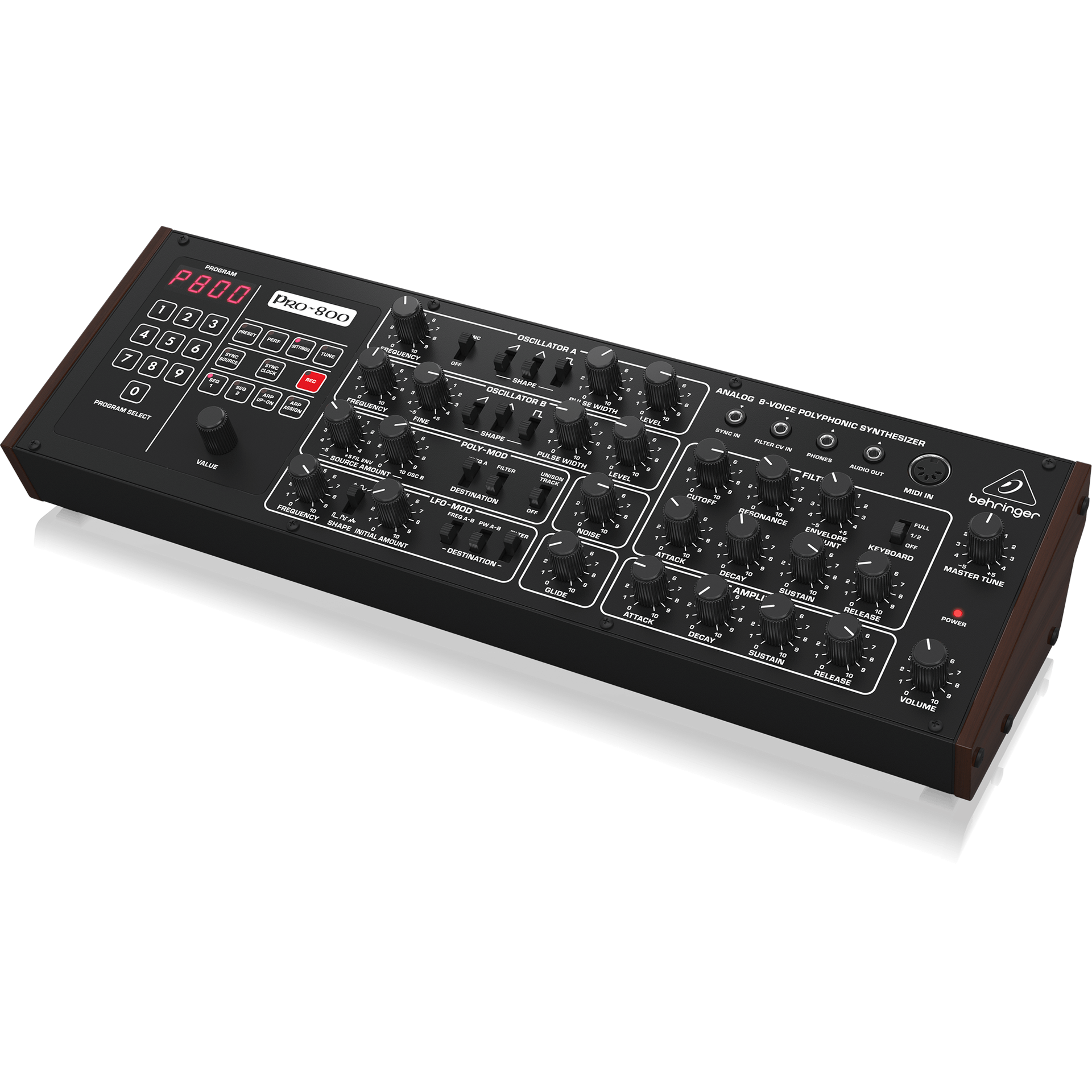

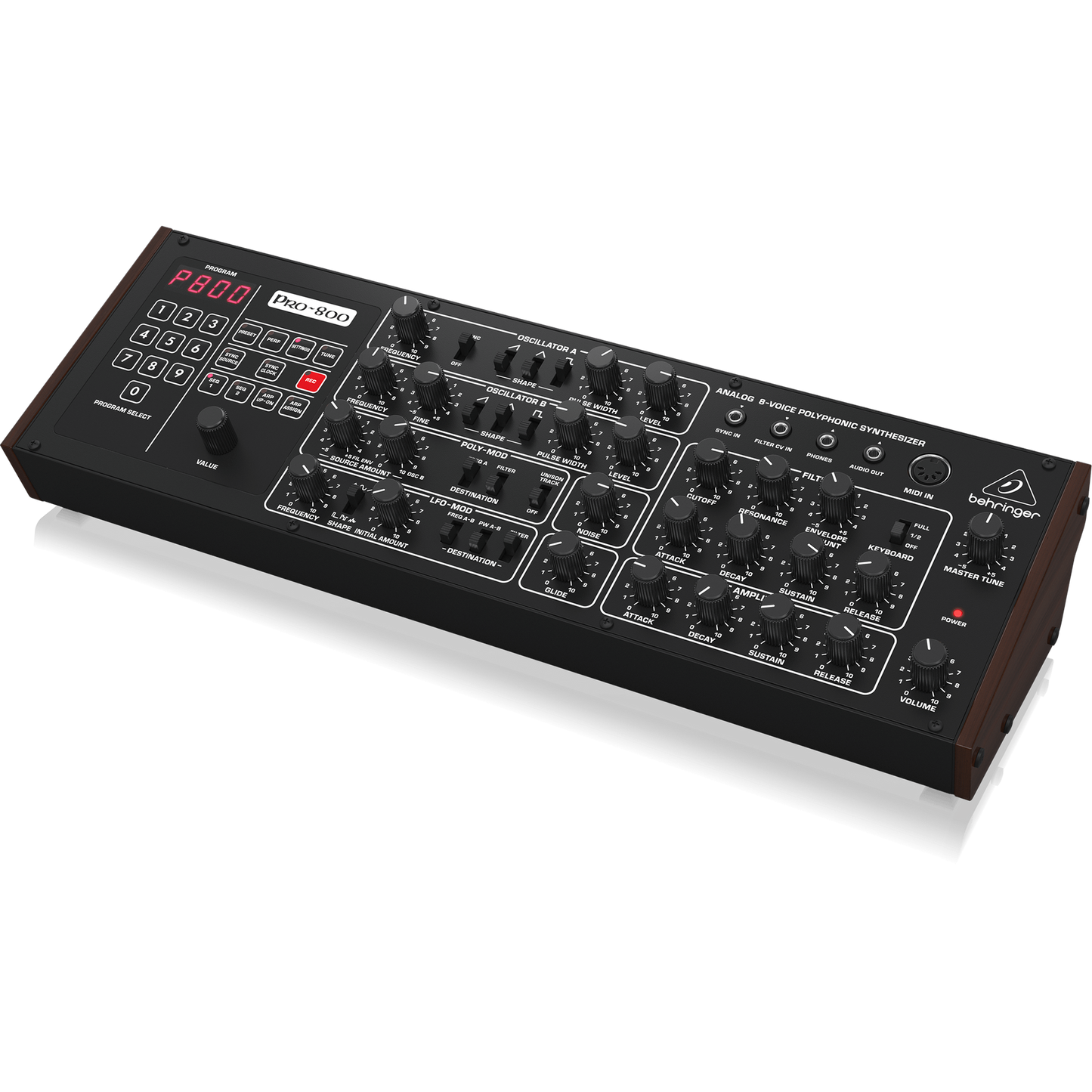

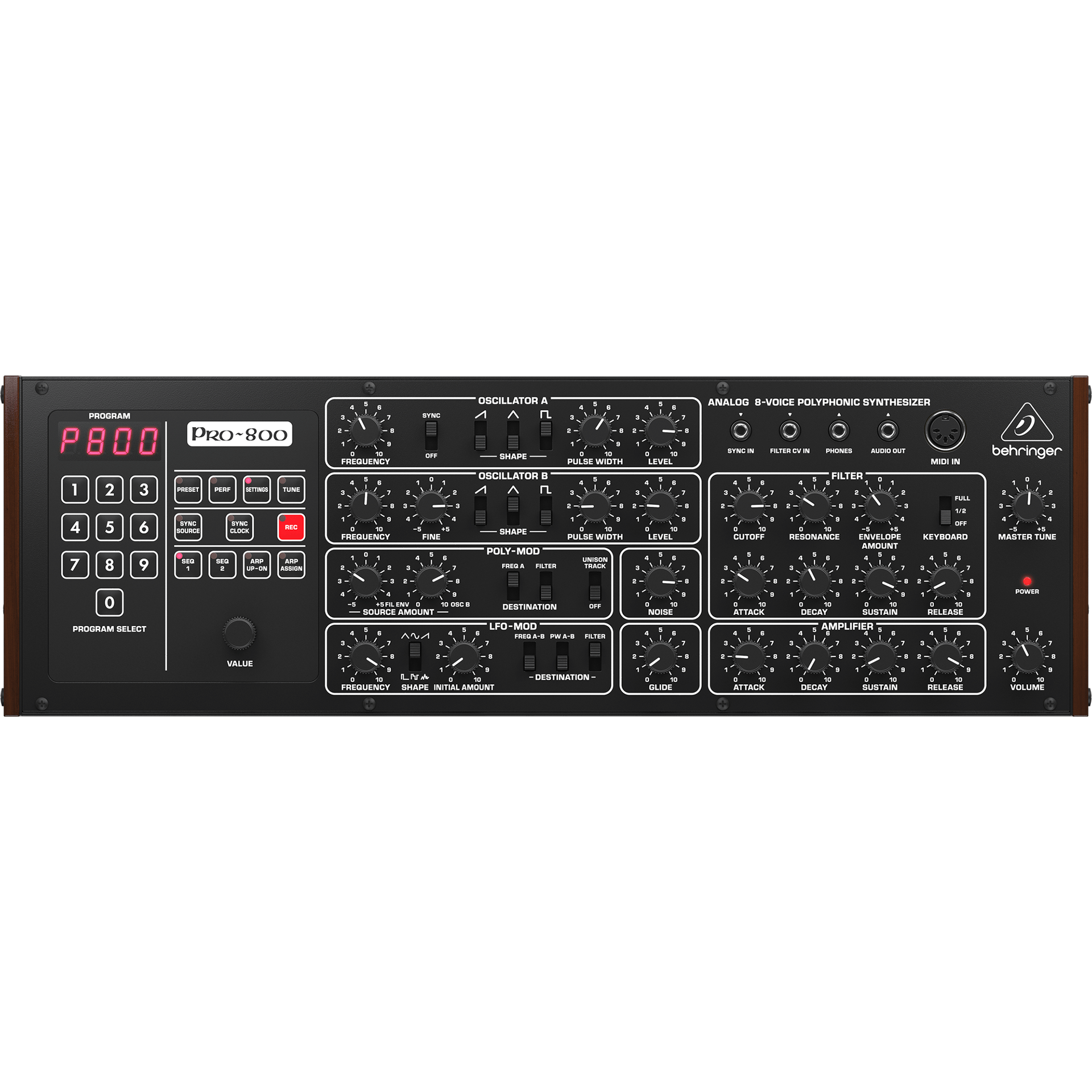

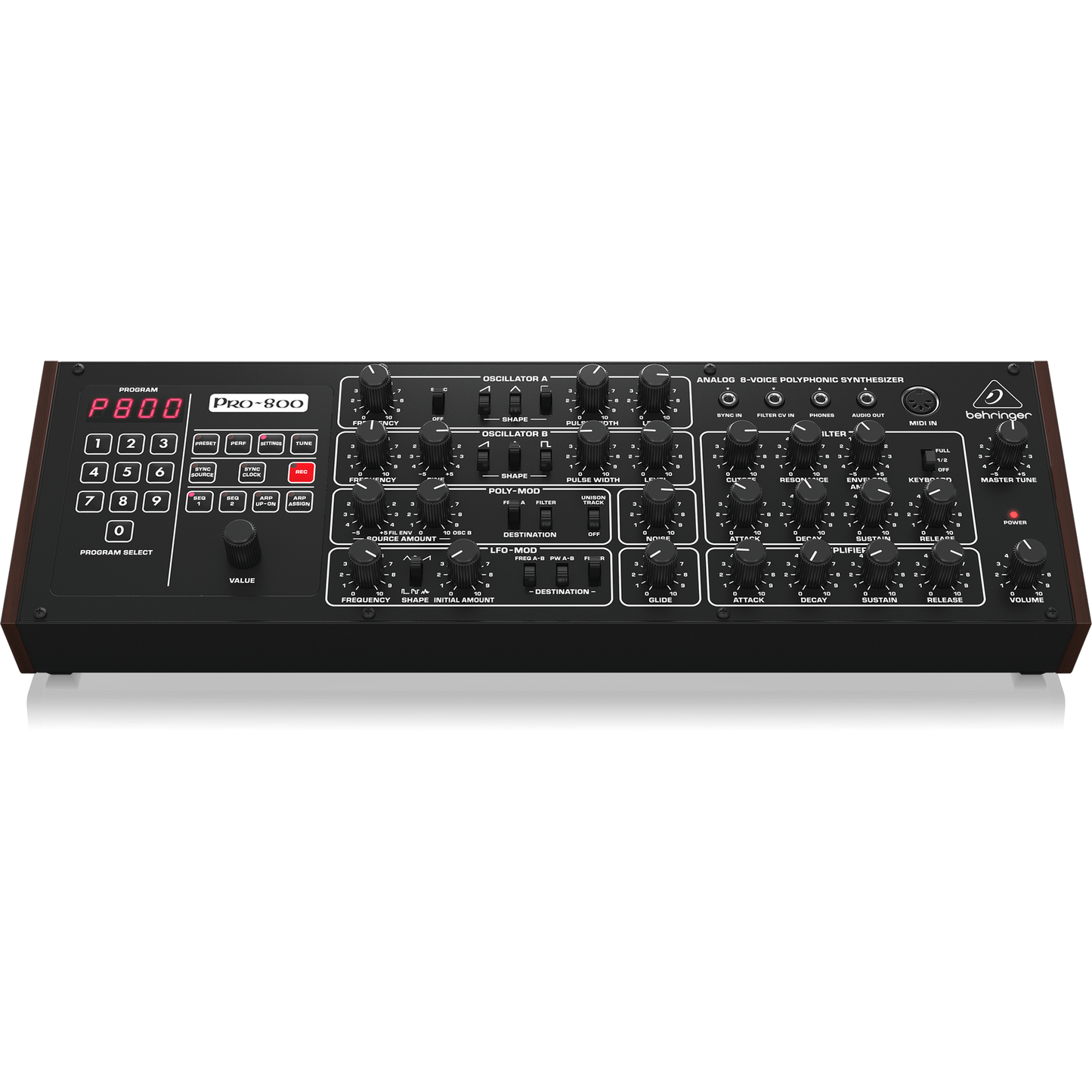

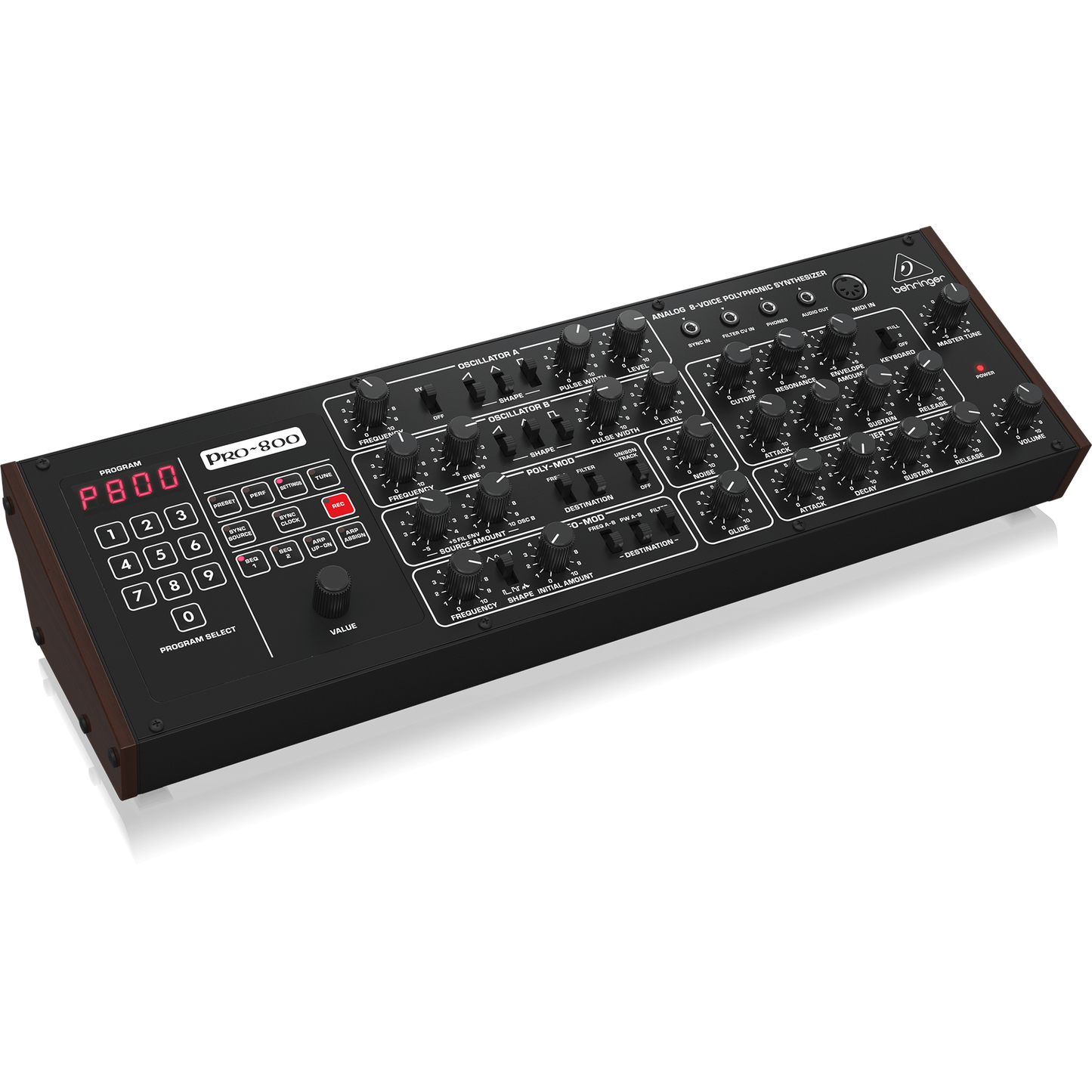

Behringer PRO-800 Classic Analog 8-Voice Polyphonic Synthesizer

Behringer PRO-800 Classic Analog 8-Voice Polyphonic Synthesizer

Ready to ship immediately!

Classic Analog 8-Voice Polyphonic Synthesizer with 2 VCOs, Classic VCF, Arpeggiator, Sequencer and 400 Program Memories in Eurorack Format
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Another classic blast from the past, brought back to life by Behringer! Known for its fat, bright, and brash sonics, the PRO-800 faithfully replicates the architecture of the first MIDI-equipped poly synth and more. Like all Behringer’s reborn analog synths of yesterday, the PRO-800 delivers all the classic sounds, capabilities, and experience without the “vintage era” limitations.

Above and beyond the breakthrough 1982 model 600’s 6-voice capability, the PRO-800 features 8-voice polyphony, 400 user-programmable slots, full polyphonic MIDI implementation, and an additional noise generator. Control up to 6 simultaneous wave shapes with 2 VCOs per voice for dreamy synth pads and ambient soundscapes-- or utilize all 16 oscillators in unison mode for fat, full analog power perfect for EDM-style fat bass sounds and mix-cutting hooks.

The Pro-800 lets you easily control and create rhythmic patterns with the 2-track sequencer and key assignable arpeggiator--or create anything from light portamento through dramatic swells with the Polyphonic glide control. All laid out in an easily integrated rack-mountable and Eurorack-compatible module, the PRO-800 takes you back and opens the doors to the future. Pro-quality performance and construction at an affordable price, the Behringer Pro-800 is now available at Alto Music.

More Information
Product Name Behringer PRO-800 Classic Analog 8-Voice Polyphonic Synthesizer
Brand Behringer
Condition New
MPN PRO800
UPC 644216664603
  • A faithful recreation of the analog 1982 model 600
  • 16-oscillator architecture with 8-voice polyphony plus unison mode
  • 3 waveforms (Saw, Triangle & Pulse) per VCO
  • Two VCOs per voice for up to 6 simultaneous waveshapes
  • Noise generator and overdrive control
  • 4-pole lowpass filter with 24dB/oct slope
  • Polyphonic 2-track sequencer and key-assignable arpeggiator
  • Polyphonic glide
  • 400-user programmable slots
  • Eurorack ready
  • Outputs (1) 1/4" TS, (1) 1/8" TS
  • Headphones (1) 1/8" TRS
  • MIDI-16-channel (2) 5-pin (in, out/thru)
  • USB (1) Type B
  • Pedal Inputs (1) 1/4" TS
  • Power Supply: 12V DC Power Adapter (included)

Synthesizer Architecture

Number of voices 8
Type of oscillators 2 x 3340 per voice
Type Analog
Oscillators 16 (32.70 Hz to 8372.02 Hz across 4 ranges)
LFO 1 (0.08 Hz to 20 Hz)
VCF 1 x 4-pole low pass (24 dB/oct. slope)
Envelopes VCF, VCA

Connectivity

Output ¼" TS, unbalanced, max. +5.0 dBu
Audio out 1/8" TS, unbalanced, max. +20.0 dBu
Footswitch ¼" TS, unbalanced
Headphones 1/8" TRS, unbalanced, max. 7.5 mW @ 32 Ohm
Headphones output impedance 8 Ω
MIDI In Out/Thru 2 x 5-pin DIN/ 16 channels
USB (MIDI) USB 2.0, type B
Sync in TS 3.5 mm 1PPS, 2PPQ, 24PPQ, 48PPQ
Filter CV IN TS 3.5 mm 0 V to +10 V

Behringer PRO-800 Classic Analog 8-Voice Polyphonic Synthesizer

Details

Another classic blast from the past, brought back to life by Behringer! Known for its fat, bright, and brash sonics, the PRO-800 faithfully replicates the architecture of the first MIDI-equipped poly synth and more. Like all Behringer’s reborn analog synths of yesterday, the PRO-800 delivers all the classic sounds, capabilities, and experience without the “vintage era” limitations.

Above and beyond the breakthrough 1982 model 600’s 6-voice capability, the PRO-800 features 8-voice polyphony, 400 user-programmable slots, full polyphonic MIDI implementation, and an additional noise generator. Control up to 6 simultaneous wave shapes with 2 VCOs per voice for dreamy synth pads and ambient soundscapes-- or utilize all 16 oscillators in unison mode for fat, full analog power perfect for EDM-style fat bass sounds and mix-cutting hooks.

The Pro-800 lets you easily control and create rhythmic patterns with the 2-track sequencer and key assignable arpeggiator--or create anything from light portamento through dramatic swells with the Polyphonic glide control. All laid out in an easily integrated rack-mountable and Eurorack-compatible module, the PRO-800 takes you back and opens the doors to the future. Pro-quality performance and construction at an affordable price, the Behringer Pro-800 is now available at Alto Music.

More Information
Product Name Behringer PRO-800 Classic Analog 8-Voice Polyphonic Synthesizer
Brand Behringer
Condition New
MPN PRO800
UPC 644216664603
Features
  • A faithful recreation of the analog 1982 model 600
  • 16-oscillator architecture with 8-voice polyphony plus unison mode
  • 3 waveforms (Saw, Triangle & Pulse) per VCO
  • Two VCOs per voice for up to 6 simultaneous waveshapes
  • Noise generator and overdrive control
  • 4-pole lowpass filter with 24dB/oct slope
  • Polyphonic 2-track sequencer and key-assignable arpeggiator
  • Polyphonic glide
  • 400-user programmable slots
  • Eurorack ready
  • Outputs (1) 1/4" TS, (1) 1/8" TS
  • Headphones (1) 1/8" TRS
  • MIDI-16-channel (2) 5-pin (in, out/thru)
  • USB (1) Type B
  • Pedal Inputs (1) 1/4" TS
  • Power Supply: 12V DC Power Adapter (included)
Tech Specs

Synthesizer Architecture

Number of voices 8
Type of oscillators 2 x 3340 per voice
Type Analog
Oscillators 16 (32.70 Hz to 8372.02 Hz across 4 ranges)
LFO 1 (0.08 Hz to 20 Hz)
VCF 1 x 4-pole low pass (24 dB/oct. slope)
Envelopes VCF, VCA

Connectivity

Output ¼" TS, unbalanced, max. +5.0 dBu
Audio out 1/8" TS, unbalanced, max. +20.0 dBu
Footswitch ¼" TS, unbalanced
Headphones 1/8" TRS, unbalanced, max. 7.5 mW @ 32 Ohm
Headphones output impedance 8 Ω
MIDI In Out/Thru 2 x 5-pin DIN/ 16 channels
USB (MIDI) USB 2.0, type B
Sync in TS 3.5 mm 1PPS, 2PPQ, 24PPQ, 48PPQ
Filter CV IN TS 3.5 mm 0 V to +10 V
