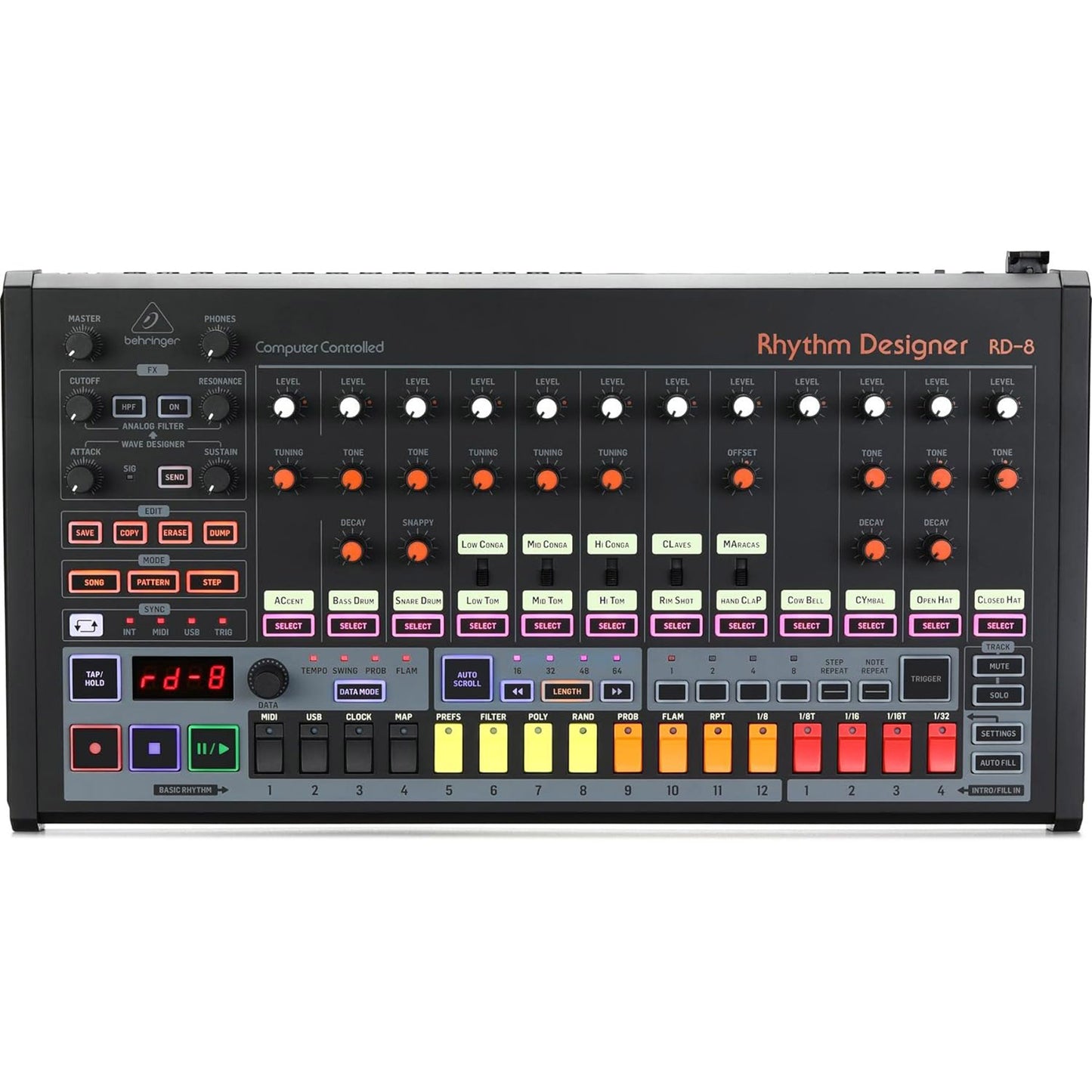

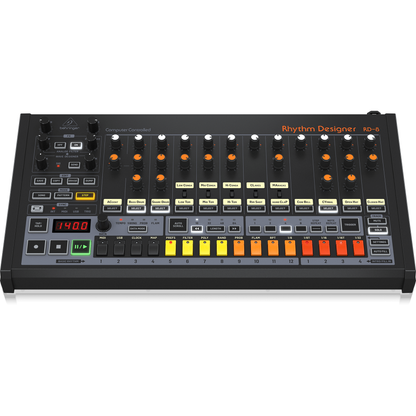

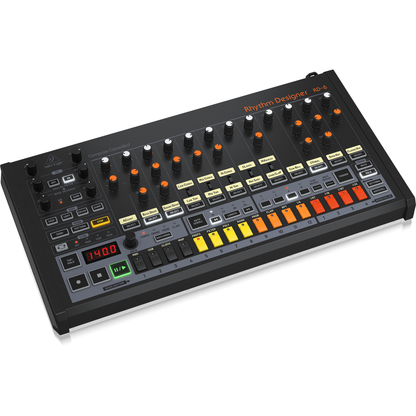

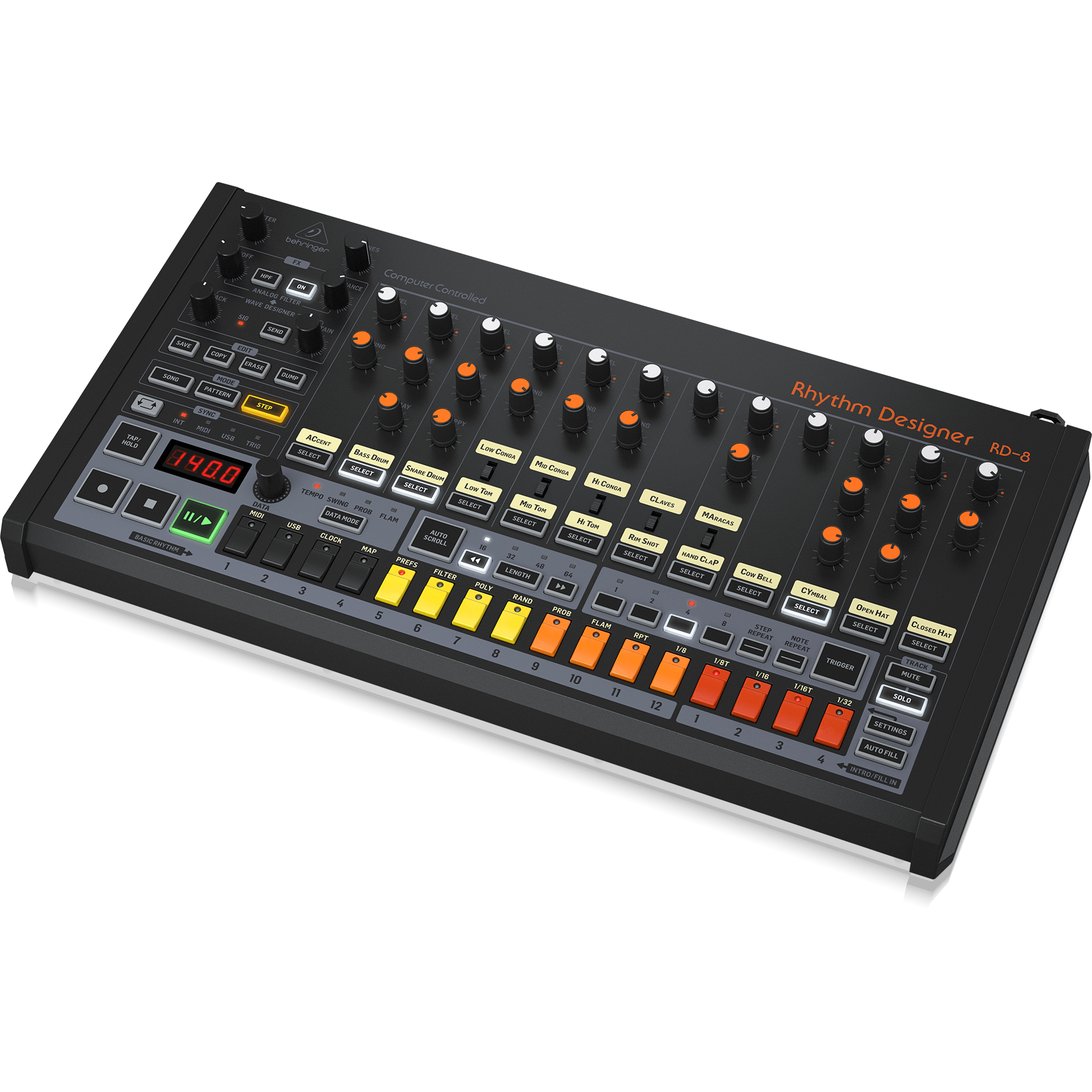

Behringer RD-8 Mk2 Analog Drum Machine

Behringer RD-8 Mk2 Analog Drum Machine

Limited quantities available!

Classic Analog Drum Machine with 16 Drum Sounds, 64 Step Sequencer, Wave Designer and Dual-Mode Filter
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Since the late 70s, “Drum Machines” have become an indispensable force that has changed how we write, arrange, and produce modern music and driven new genres and styles. Since then, only one can claim as many hit records as the legendary TR808. With great attention to detail and reverence, Behringer’s RD-8MKII revives the essence of the now priceless vintage icon. Priced unbelievably lower than the original 808 at introduction back in 1980 and only a fraction of the price of a vintage example, the RD-8 MKII is affordably well within reach.

Built with vintage-accurate analog components, including the notorious and long-discontinued 662 OTA chip, even a time machine set for 1980 could deliver greater authenticity. With its classic, genera-defining sounds, expanded sequencer functions, wave designer, dual-mode filter, MIDI connectivity, and more, the RD-8MKII is a powerhouse modern drum machine with a vintage soul.

Like the original, the RD-8 MKII features 16 analog-generated sounds, including the highly desirable deep and dark bass drum, snappy snare, and sizzling high hats with additional parameters and global accent capability. Also. Like the original, up to 11 simultaneous sounds can be run through independent analog outputs for external processing or recording. The powerful 64-step sequencer can store up to 16 songs and 256 patterns that can be imported or exported during playback for unlimited songs and patterns. Additionally, the sequencer operates in Pattern mode (for setting patterns and repeats), Song mode (for arranging songs and sets), and Auto-scroll for adding improvisation in all modes).

True to Behringer form, the RD-8MKII features some modern digital-age upgrades, like an Integrated FX bus with Wave Designer and dual-mode Analog Filter with per-voice assignment, MIDI In/Out/Thru, plus USB connectivity, Sync, and Encoder for real-time Tempo, Swing, Probability, Flam, and Random control for a human “feel.”

More Information
Product Name Behringer RD-8 Mk2 Analog Drum Machine
Brand Behringer
MPN RD8MK2
UPC 4033653017312
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Behringer RD-8 Mk2 Analog Drum Machine
  • Power Supply
  • Reproduction of the 662 OTA Sound Chip
  • 16 original 808 Analog Drum Sounds: Bass-drum, Snare Drum, Conga (Low/Mid/Hi), Toms (Low/Mid/Hi), Claves, Rim-shot, Maracas, Clap, Cow Bell, Cymbal, Closed and Open High-Hat
  • 11 simulations tones polyphony
  • Reproduction 662 OTA Sound Chip
  • Global accent capability
  • 64-step sequencer with storage of 16 sounds and 256 patterns
  • Pattern, Song, and Auto mode pattern editing
  • Dual-mode Analog Filter and Wave Designer
  • LED display for editing of program parameters
  • MIDI In/Out/Thru/USB (TYPE-B)
  • Inputs(1) 1/4"
  • Outputs (1) 1/4" TRS, 11 x 1/4" TS (voice out)
  • Headphones (1) 1/4" (stereo)
  • 18V DC power supply (included)

Voices

Number of sounds 16
Type Analog
Number of simultaneous voices 11 (12 including global accent)

Sound controls

Accent Level
Bass drum Level, tone, decay, tuning
Snare drum Level, tone, snappy
Low, mid, hi conga / low, mid, hi tom Level, tuning, voice selection
Claves / rim shot Level, voice selection
Maracas / hand clap Level, offset, voice selection
Cow bell Level
Cymbal Level, tone, decay
Open hat Level, tone, decay
Closed hat Level, tone
Select buttons 16 Voice select buttons

Connectivity Outputs

Phones 1 x ¼" TRS, stereo, 8 Ω impedance
Mono 1 x ¼" TRS, servo-balanced
Voice out 11 x ¼" TS, unbalanced
MIDI In, Out & Thru 3 x 5-pin DIN
Trigger outs 3 x +5 V, 1 ms pulse
Clock in / out 2 x 1/8" TS
USB Class compliant USB 2.0, type B
Supported operating systems Windows 7 or higher, Mac OS X 10.6.8 or higher
Volume controls Master, phones
Return (Input) 1 x ¼" TRS, balanced

Wave Designer

Bus 11 voices, independently assignable

Controls

Attack -15 to +15 dB, adjustable
Sustain -24 to +24 dB, adjustable
Send button On/off, switchable
Sig LED Red

Analog Filter

Type State variable, 12 dB slope
Cutoff 10 Hz - 15 kHz, adjustable
Resonance 0 - 10, adjustable
HPF button LPF / HPF mode, switchable
On button On / off, switchable

Sync Section

Mode selector Internal / MIDI / USB / Clock, selectable

Sequencer Section

Edit buttons Save, copy, erase and dump
Mode buttons Song, pattern and step
Control Encoder for data editing
Playback controls Tap / hold, record, stop, play / pause
Data mode Tempo / swing / prob / flam, selectable
Auto scroll On / off, rewind, length (16 / 32 / 48 / 64, selectable), fast forward
Trigger On / off, repeat division (1 / 2 / 4 / 8, selectable), step repeat, note repeat
Track Mute / solo, selectable
Step buttons 16 step enter buttons

Settings

Settings Enter settings mode, use step buttons to select operation

Autofill

Autofill Enter autofill selection mode

Songs / Storage

Song mode Chain any of the 16 songs together for full sets

Pattern / Storage

Capacity 16 songs, 16 patterns each
Pattern mode Up to 99 iterations per pattern/part
Steps 64 steps

Power Supply

External power adapter 18 V DC, 1000 mA
Power consumption 15 W typical

Environmental

Operating temperature range 5°C to 40°C (41°F to 104°F)

Physical

Dimensions (H x W x D) 77 x 498 x 265 mm (3.0 x 19.6 x 10.4")
Weight 3.0 kg (6.6 lbs)

Behringer RD-8 Mk2 Analog Drum Machine

Details

Since the late 70s, “Drum Machines” have become an indispensable force that has changed how we write, arrange, and produce modern music and driven new genres and styles. Since then, only one can claim as many hit records as the legendary TR808. With great attention to detail and reverence, Behringer’s RD-8MKII revives the essence of the now priceless vintage icon. Priced unbelievably lower than the original 808 at introduction back in 1980 and only a fraction of the price of a vintage example, the RD-8 MKII is affordably well within reach.

Built with vintage-accurate analog components, including the notorious and long-discontinued 662 OTA chip, even a time machine set for 1980 could deliver greater authenticity. With its classic, genera-defining sounds, expanded sequencer functions, wave designer, dual-mode filter, MIDI connectivity, and more, the RD-8MKII is a powerhouse modern drum machine with a vintage soul.

Like the original, the RD-8 MKII features 16 analog-generated sounds, including the highly desirable deep and dark bass drum, snappy snare, and sizzling high hats with additional parameters and global accent capability. Also. Like the original, up to 11 simultaneous sounds can be run through independent analog outputs for external processing or recording. The powerful 64-step sequencer can store up to 16 songs and 256 patterns that can be imported or exported during playback for unlimited songs and patterns. Additionally, the sequencer operates in Pattern mode (for setting patterns and repeats), Song mode (for arranging songs and sets), and Auto-scroll for adding improvisation in all modes).

True to Behringer form, the RD-8MKII features some modern digital-age upgrades, like an Integrated FX bus with Wave Designer and dual-mode Analog Filter with per-voice assignment, MIDI In/Out/Thru, plus USB connectivity, Sync, and Encoder for real-time Tempo, Swing, Probability, Flam, and Random control for a human “feel.”

More Information
Product Name Behringer RD-8 Mk2 Analog Drum Machine
Brand Behringer
MPN RD8MK2
UPC 4033653017312
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Behringer RD-8 Mk2 Analog Drum Machine
  • Power Supply
Features
  • Reproduction of the 662 OTA Sound Chip
  • 16 original 808 Analog Drum Sounds: Bass-drum, Snare Drum, Conga (Low/Mid/Hi), Toms (Low/Mid/Hi), Claves, Rim-shot, Maracas, Clap, Cow Bell, Cymbal, Closed and Open High-Hat
  • 11 simulations tones polyphony
  • Reproduction 662 OTA Sound Chip
  • Global accent capability
  • 64-step sequencer with storage of 16 sounds and 256 patterns
  • Pattern, Song, and Auto mode pattern editing
  • Dual-mode Analog Filter and Wave Designer
  • LED display for editing of program parameters
  • MIDI In/Out/Thru/USB (TYPE-B)
  • Inputs(1) 1/4"
  • Outputs (1) 1/4" TRS, 11 x 1/4" TS (voice out)
  • Headphones (1) 1/4" (stereo)
  • 18V DC power supply (included)
Tech Specs

Voices

Number of sounds 16
Type Analog
Number of simultaneous voices 11 (12 including global accent)

Sound controls

Accent Level
Bass drum Level, tone, decay, tuning
Snare drum Level, tone, snappy
Low, mid, hi conga / low, mid, hi tom Level, tuning, voice selection
Claves / rim shot Level, voice selection
Maracas / hand clap Level, offset, voice selection
Cow bell Level
Cymbal Level, tone, decay
Open hat Level, tone, decay
Closed hat Level, tone
Select buttons 16 Voice select buttons

Connectivity Outputs

Phones 1 x ¼" TRS, stereo, 8 Ω impedance
Mono 1 x ¼" TRS, servo-balanced
Voice out 11 x ¼" TS, unbalanced
MIDI In, Out & Thru 3 x 5-pin DIN
Trigger outs 3 x +5 V, 1 ms pulse
Clock in / out 2 x 1/8" TS
USB Class compliant USB 2.0, type B
Supported operating systems Windows 7 or higher, Mac OS X 10.6.8 or higher
Volume controls Master, phones
Return (Input) 1 x ¼" TRS, balanced

Wave Designer

Bus 11 voices, independently assignable

Controls

Attack -15 to +15 dB, adjustable
Sustain -24 to +24 dB, adjustable
Send button On/off, switchable
Sig LED Red

Analog Filter

Type State variable, 12 dB slope
Cutoff 10 Hz - 15 kHz, adjustable
Resonance 0 - 10, adjustable
HPF button LPF / HPF mode, switchable
On button On / off, switchable

Sync Section

Mode selector Internal / MIDI / USB / Clock, selectable

Sequencer Section

Edit buttons Save, copy, erase and dump
Mode buttons Song, pattern and step
Control Encoder for data editing
Playback controls Tap / hold, record, stop, play / pause
Data mode Tempo / swing / prob / flam, selectable
Auto scroll On / off, rewind, length (16 / 32 / 48 / 64, selectable), fast forward
Trigger On / off, repeat division (1 / 2 / 4 / 8, selectable), step repeat, note repeat
Track Mute / solo, selectable
Step buttons 16 step enter buttons

Settings

Settings Enter settings mode, use step buttons to select operation

Autofill

Autofill Enter autofill selection mode

Songs / Storage

Song mode Chain any of the 16 songs together for full sets

Pattern / Storage

Capacity 16 songs, 16 patterns each
Pattern mode Up to 99 iterations per pattern/part
Steps 64 steps

Power Supply

External power adapter 18 V DC, 1000 mA
Power consumption 15 W typical

Environmental

Operating temperature range 5°C to 40°C (41°F to 104°F)

Physical

Dimensions (H x W x D) 77 x 498 x 265 mm (3.0 x 19.6 x 10.4")
Weight 3.0 kg (6.6 lbs)
