Behringer RING STINGER brings back to life the DNA of a boutique 90’s gem that had previously been lost to time. Jammed packed with a concoction of Ring Modulation and Fuzz, the tones produced by this box truly have to be heard to be understood.
| Product Name | Behringer Ring Stinger Ring Modulation and Fuzz Pedal |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | RINGERSTINGER |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Behringer Ring Stinger Ring Modulation and Fuzz Pedal
- Suitable for guitarists, synth players, producers, and other instrumentalists.
- Ring Modulation: Core feature that creates metallic and harmonic overtones through signal manipulation
- Expression Pedal Compatibility: Enables dynamic control of various parameters, adding
expressiveness - LFO (Low-Frequency Oscillator): Provides rhythmic modulation patterns for dynamic
soundscapes - Blend Control: Balances the dry and modulated signals for precise tonal blending.
- Waveform Selection: Offers different modulation waveform options for versatility
- Assignable Parameters: Allows users to assign expression control to various parameters
- True Bypass: Maintains the integrity of the dry signal when the effect is disengaged
Audio Connections |
|
|---|---|
| Input Connector | 1 × 1/4" TS, Unbalanced |
| Input Impedance | 1 MΩ |
| VCO Out Connector | 1 × 1/4" TS, Unbalanced |
| VCO Out Impedance | 470 Ω |
| Carrier In Impedance | 97 kΩ |
| Output | Mono |
| Output Connector | 1 × 1/4" TS, Unbalanced |
| Output Impedance | 470 Ω |
Control Connections |
|
| LFO Depth Pedal Connector | 1 × 1/4" TRS |
| LFO Depth Pedal Impedance | 810 Ω, Unbalanced |
| LFO Depth CV Input Range | 0 V to +5 V |
| VCO CV In / Pedal Connector | 1 × 1/4" TRS |
| VCO CV In / Pedal Impedance | 1 MΩ, Unbalanced |
| VCO CV Input Range | 0 V to +5 V |
Controls |
|
| Depth / Manual | 1 × Rotary Knob |
| Rate | 1 × Rotary Knob |
| VCO Frequency | 1 × Rotary Knob |
| Drive (I) | 1 × Rotary Knob |
| Timbre | 1 × Rotary Knob |
| Blend | 1 × Rotary Knob |
| LFO Waveform | Triangle / Square (Rotary Switch) |
| VCO Waveform | Sine / Triangle / Sawtooth / Square (Rotary Switch) |
| LFO Unlock | 1 × Footswitch |
| Bypass | 1 × Footswitch |
| Octave / Ring | 1 × Footswitch |
System |
|
| Frequency Response | 20 Hz – 20 kHz (+0 / −2 dB) |
| Dynamic Range | > 86 dB |
| Signal-to-Noise Ratio | > 76 dB |
| Overall Gain | +15 dB |
Power Supply / Voltage |
|
| Power Input | Standard 9 V DC, Centre Negative, > 400 mA |
| Power Consumption | 0.7 W |
Dimensions / Weight |
|
| Dimensions (H × W × D) | 62.3 × 200.1 × 148.5 mm (2.5 × 7.9 × 5.9 in) |
| Weight | 1087 g (38.3 oz) |

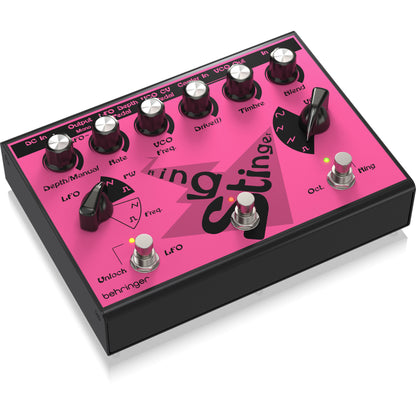

Behringer Ring Stinger Ring Modulation and Fuzz Pedal
Details
Behringer RING STINGER brings back to life the DNA of a boutique 90’s gem that had previously been lost to time. Jammed packed with a concoction of Ring Modulation and Fuzz, the tones produced by this box truly have to be heard to be understood.
| Product Name | Behringer Ring Stinger Ring Modulation and Fuzz Pedal |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | RINGERSTINGER |
What's in the Box?
Behringer Ring Stinger Ring Modulation and Fuzz Pedal
Features
- Suitable for guitarists, synth players, producers, and other instrumentalists.
- Ring Modulation: Core feature that creates metallic and harmonic overtones through signal manipulation
- Expression Pedal Compatibility: Enables dynamic control of various parameters, adding
expressiveness - LFO (Low-Frequency Oscillator): Provides rhythmic modulation patterns for dynamic
soundscapes - Blend Control: Balances the dry and modulated signals for precise tonal blending.
- Waveform Selection: Offers different modulation waveform options for versatility
- Assignable Parameters: Allows users to assign expression control to various parameters
- True Bypass: Maintains the integrity of the dry signal when the effect is disengaged
Tech Specs
Audio Connections |
|
|---|---|
| Input Connector | 1 × 1/4" TS, Unbalanced |
| Input Impedance | 1 MΩ |
| VCO Out Connector | 1 × 1/4" TS, Unbalanced |
| VCO Out Impedance | 470 Ω |
| Carrier In Impedance | 97 kΩ |
| Output | Mono |
| Output Connector | 1 × 1/4" TS, Unbalanced |
| Output Impedance | 470 Ω |
Control Connections |
|
| LFO Depth Pedal Connector | 1 × 1/4" TRS |
| LFO Depth Pedal Impedance | 810 Ω, Unbalanced |
| LFO Depth CV Input Range | 0 V to +5 V |
| VCO CV In / Pedal Connector | 1 × 1/4" TRS |
| VCO CV In / Pedal Impedance | 1 MΩ, Unbalanced |
| VCO CV Input Range | 0 V to +5 V |
Controls |
|
| Depth / Manual | 1 × Rotary Knob |
| Rate | 1 × Rotary Knob |
| VCO Frequency | 1 × Rotary Knob |
| Drive (I) | 1 × Rotary Knob |
| Timbre | 1 × Rotary Knob |
| Blend | 1 × Rotary Knob |
| LFO Waveform | Triangle / Square (Rotary Switch) |
| VCO Waveform | Sine / Triangle / Sawtooth / Square (Rotary Switch) |
| LFO Unlock | 1 × Footswitch |
| Bypass | 1 × Footswitch |
| Octave / Ring | 1 × Footswitch |
System |
|
| Frequency Response | 20 Hz – 20 kHz (+0 / −2 dB) |
| Dynamic Range | > 86 dB |
| Signal-to-Noise Ratio | > 76 dB |
| Overall Gain | +15 dB |
Power Supply / Voltage |
|
| Power Input | Standard 9 V DC, Centre Negative, > 400 mA |
| Power Consumption | 0.7 W |
Dimensions / Weight |
|
| Dimensions (H × W × D) | 62.3 × 200.1 × 148.5 mm (2.5 × 7.9 × 5.9 in) |
| Weight | 1087 g (38.3 oz) |
