Behringer RX1202FX Eurorack Pro Rackmount 12-Input Mixer
Behringer RX1202FX Eurorack Pro Rackmount 12-Input Mixer
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews
The Behringer Eurorack Pro RX1202FX mixers open up a world of options from the studio to the live stage. Just the right size for club dates and house of worship sound reinforcement, or as a keyboard, drums, or vocal sub-mixer, it is easy to transport and fits in a 3U Eurorack space.
Pro-sound quality starts with state-of-the-art studio-quality XENYX mic preamps on the 8 XLR input channels for outstanding clarity and detailed boutique-quality audio reproduction. Each XLR channel also features phantom power, allowing dynamic or studio compressor mics to be used. Additional high-headroom line input stereo channels are perfect for keyboards, drums, guitars, and external audio playback. All 10 channels feature sealed rotary controls for the 2-band “classic U.K-voiced” E.Q, gain, balance, monitor, FX level, plus classic 60mm throw faders AND led clipping alert for rugged and precise operation. The RX1202FX also has a 24-bit processor with 100 high-quality presets for essential FX like Reverbs, Delay, and Chorus, plus exotic FX like a Flanger and pitch-shifter. This eliminates the need for an external FX source-- or use the send and return feature for additional outboard FX.

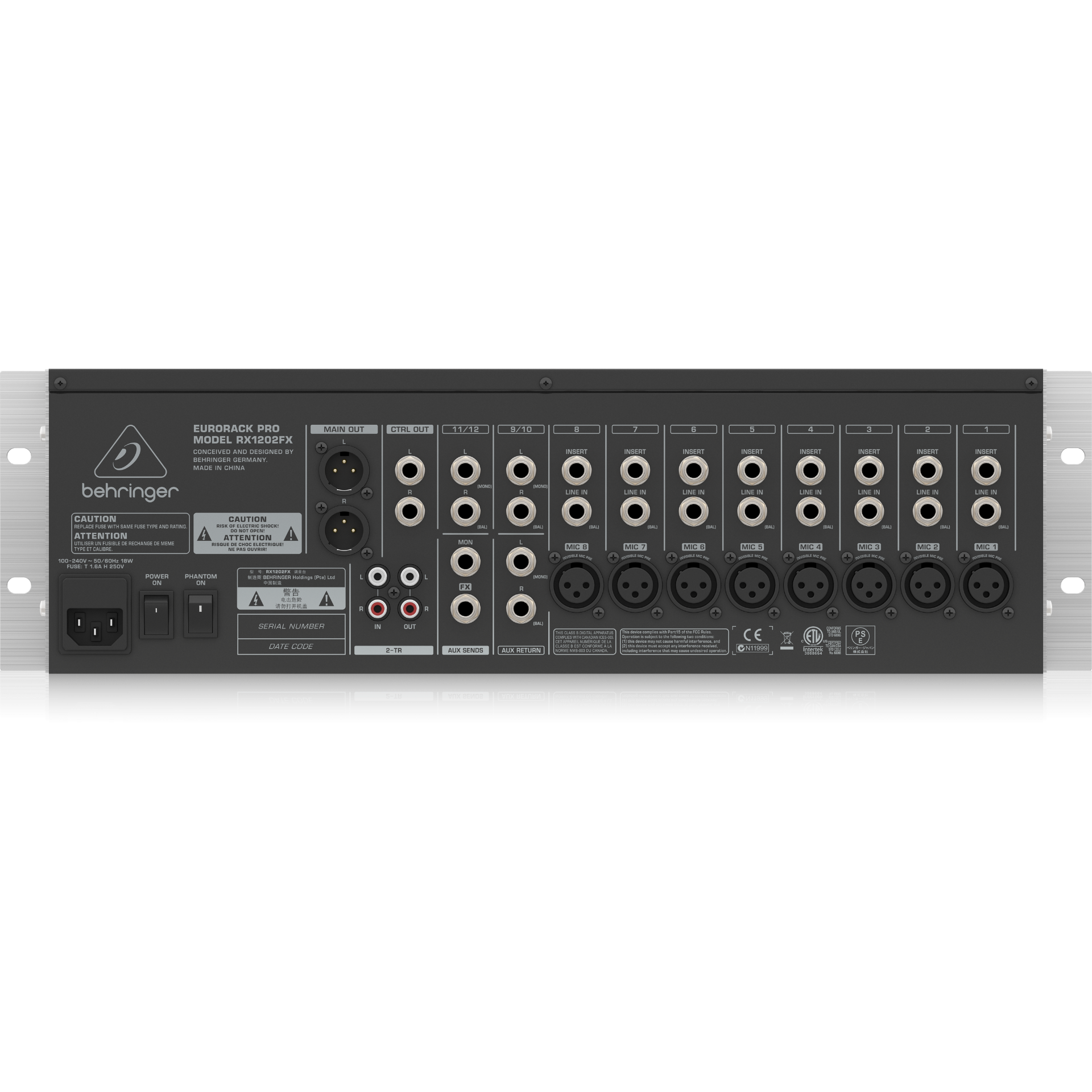

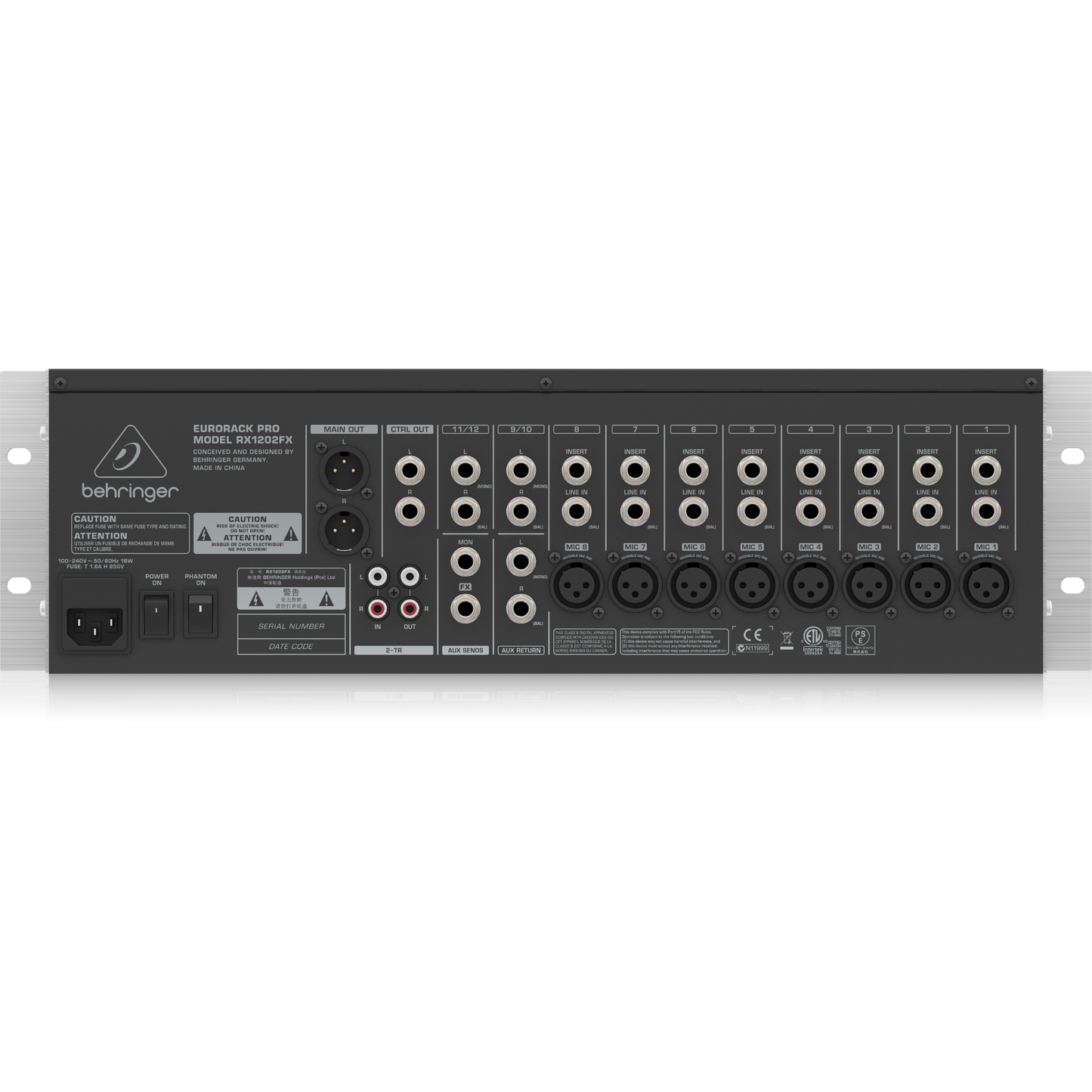

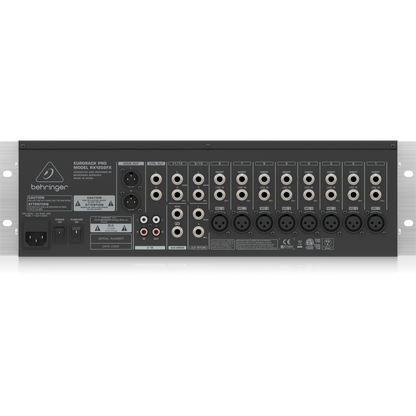

On the back panel, you’ve got plenty of connectivity options. Use the gold-plated XLR connectors for the main speakers and the ¼” TRS for your wedge monitors or studio headphone mixer. To keep the crowd warm between sets or for streaming backing tracks during live performances, the Stereo RCA jacks let you steam audio with your CD or MP3 player--adding even more value to an already feature-rich, super affordable multi-role mixer.
- 12-channel analog mixer with onboard FX in a 3U Eurorack enclosure
- 8 state-of-the-art XENYX Mic Preamps-(8) XLR
- 4 additional balanced high-headroom line inputs- (12) TRS total
- (1) Dual RCA Stereo (aux in)
- 1 pre-fader 1 post-fader auxiliary output per channel
- Send/Return (2) 1/4" TRS send, (2) 1/4" TRS (return)
- Studio-grade 24-bit FX processor with 100 presets
- Neo-classic "British" 2-band EQs for warm and musical sound
- Switchable +48 V phantom power for condenser microphones
- CD/Tape inputs assignable to the Main mix or Control Room/Phones outputs
- Separate Control Room, Phones, and stereo CD/tape outputs
- Balanced Main mix outputs with gold-plated XLR connectors
- Behringer "Planet Earth" (100 - 240 V~) power
| Product Name | Behringer RX1202FX Eurorack Pro Rackmount 12-Input Mixer |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | RX1202FX |
| UPC | 4033653071680 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Premium ultra-low noise, high headroom analog 3U rack mount mixer
- 8 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
- Neo-classic "British" 2-band EQs for warm and musical sound
- Studio-grade FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
- Switchable +48 V phantom power for condenser microphones
- 4 additional balanced high-headroom line inputs
- CD/Tape inputs assignable to Main mix or Control Room/Phones outputs
- 2 Aux sends per channel: 1 pre fader for monitoring applications, 1 post fader for internal FX or as external send
- Separate Control Room, Phones and stereo CD/tape outputs
- Balanced Main mix outputs with gold-plated XLR connectors
- Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
- "Planet Earth" switching power supply for maximum flexibility (100
- 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving - 3-Year Warranty Program*
- Designed and engineered in Germany
Inputs |
|
| Mic Inputs | |
| Type | XLR, electronically balanced |
| Impedance | 2.6 kΩ balanced |
| Max. Input Level | +12 dBu @ +10 dB gain |
| Gain Range | +10 to +60 dB |
| Signal-to-Noise Ratio | -110 dB / -112 dB A-weighted |
| Distortion (THD + N) | 0.003%, A-weighted |
| Line Inputs | |
| Type | 1/4" TRS connector, electronically balanced |
| Impedance | 20 kΩ balanced, 10 kΩ unbalanced |
| Gain Range | -10 to +40 dB |
| Max. Input Level | +22 dBu @ 0 dB gain |
| Auxiliary Inputs | |
| Type | RCA connectors, unbalanced |
| Impedance | 20 kΩ |
| Max. Input Level | +22 dBu |
| Insert | |
| Type | 1/4" TRS connector (tip = send, ring = return) |
| Aux Return | |
| Type | 1/4" TRS connector, balanced |
| Impedance | 20 kΩ balanced, 10 kΩ unbalanced |
| Max. Input Level | +22 dBu |
Outputs |
|
| Main Out | |
| Type | XLR connectors, balanced |
| Impedance | 240 Ω balanced, 120 Ω unbalanced |
| Max. Output Level | +28 dBu balanced, +22 dBu unbalanced |
| Ctrl Out | |
| Type | 1/4" TRS connector, impedance balanced |
| Impedance | 240 Ω balanced, 120 Ω unbalanced |
| Max. Output Level | +22 dBu |
| CD/Tape Out | |
| Type | RCA connectors, unbalanced |
| Impedance | 1 kΩ |
| Max. Output Level | +22 dBu |
| Phones Out | |
| Type | 1/4" TRS connector, stereo |
| Max. Output Level | +19 dBu / 150 Ω (316 mW) |
| Aux Send | |
| Type | 1/4" TRS connector, impedance balanced |
| Impedance | 240 Ω balanced, 120 Ω unbalanced |
| Max. Output Level | +22 dBu |
EQ |
|
| Low | ±15 dB @ 100 Hz |
| High | ±15 dB @ 12 kHz |
System Specifications |
|
| Noise | Main mix @ -∞, channel fader @ -∞: -98 dB / -101 dB A-weighted Main mix @ 0 dB, channel fader @ -∞: -85 dB / -88 dB A-weighted Main mix @ 0 dB, channel fader @ 0 dB: -77 dB / -80 dB A-weighted |
| Frequency Response | 20 Hz to 105 kHz, ±1 dB |
| Crosstalk | 90 dB |
Effects Section |
|
| Converter | 24-bit Sigma-Delta |
| Frequency Rate | 40 kHz |
| Presets | 100 |
Power Supply |
|
| Switch-Mode Autorange Power Supply | 100-240 V ~50/60 Hz |
| Power Consumption | 18 W |
| Mains Connection | Standard IEC connector |
Physical |
|
| Dimensions (H x W x D) | 133 x 482 x 150 mm (5.2 x 19.0 x 5.9") |
| Weight | 3.1 kg (6.8 lbs) |
