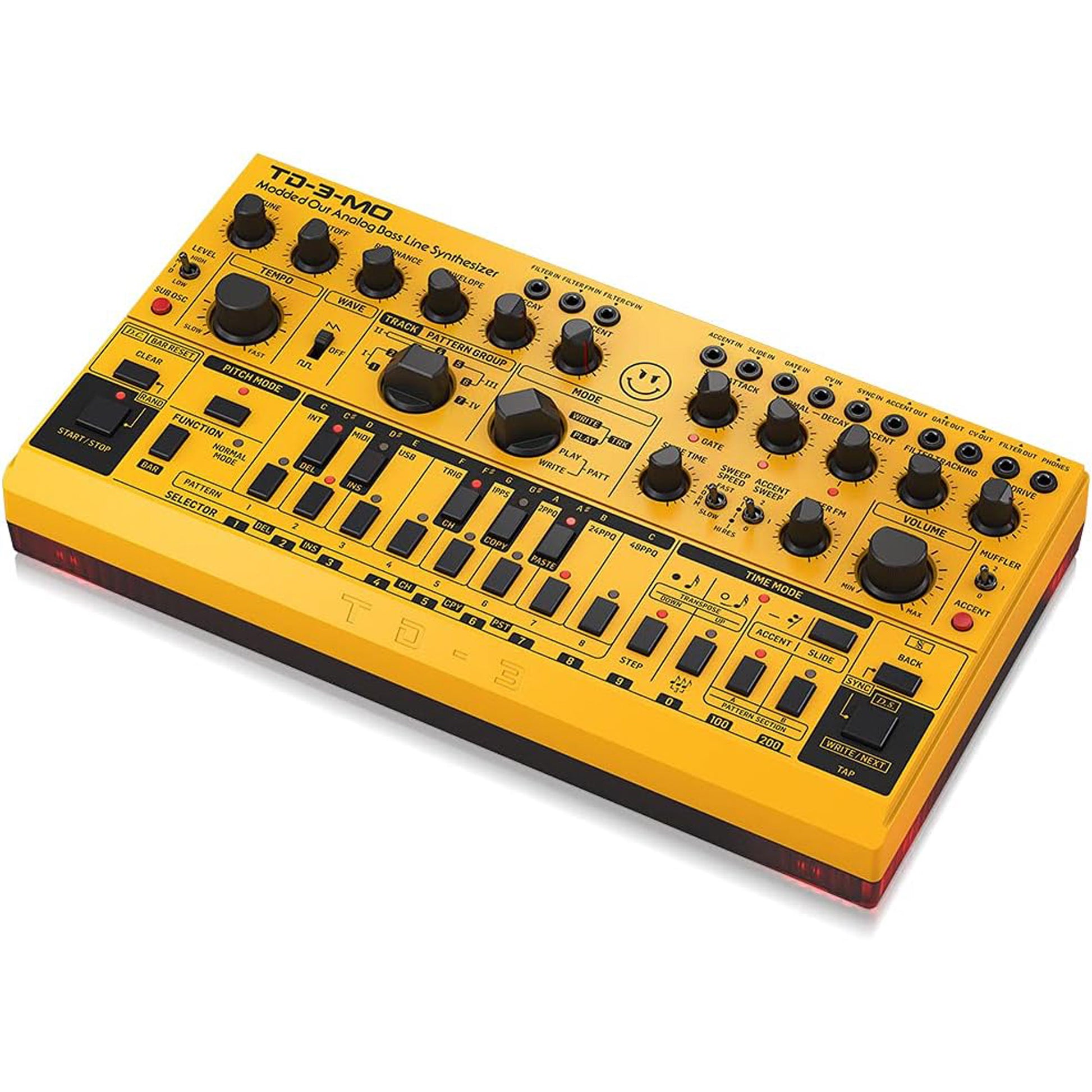

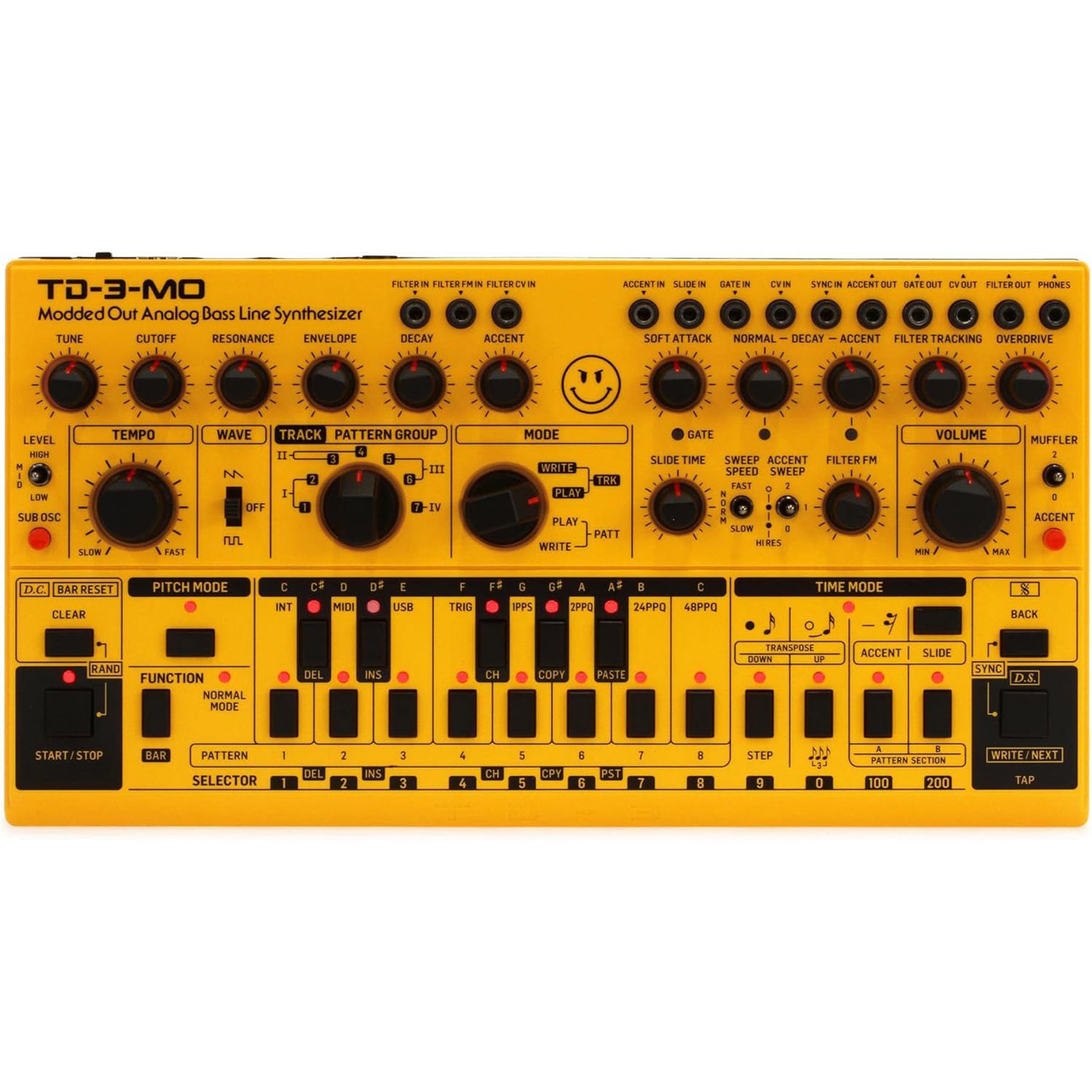

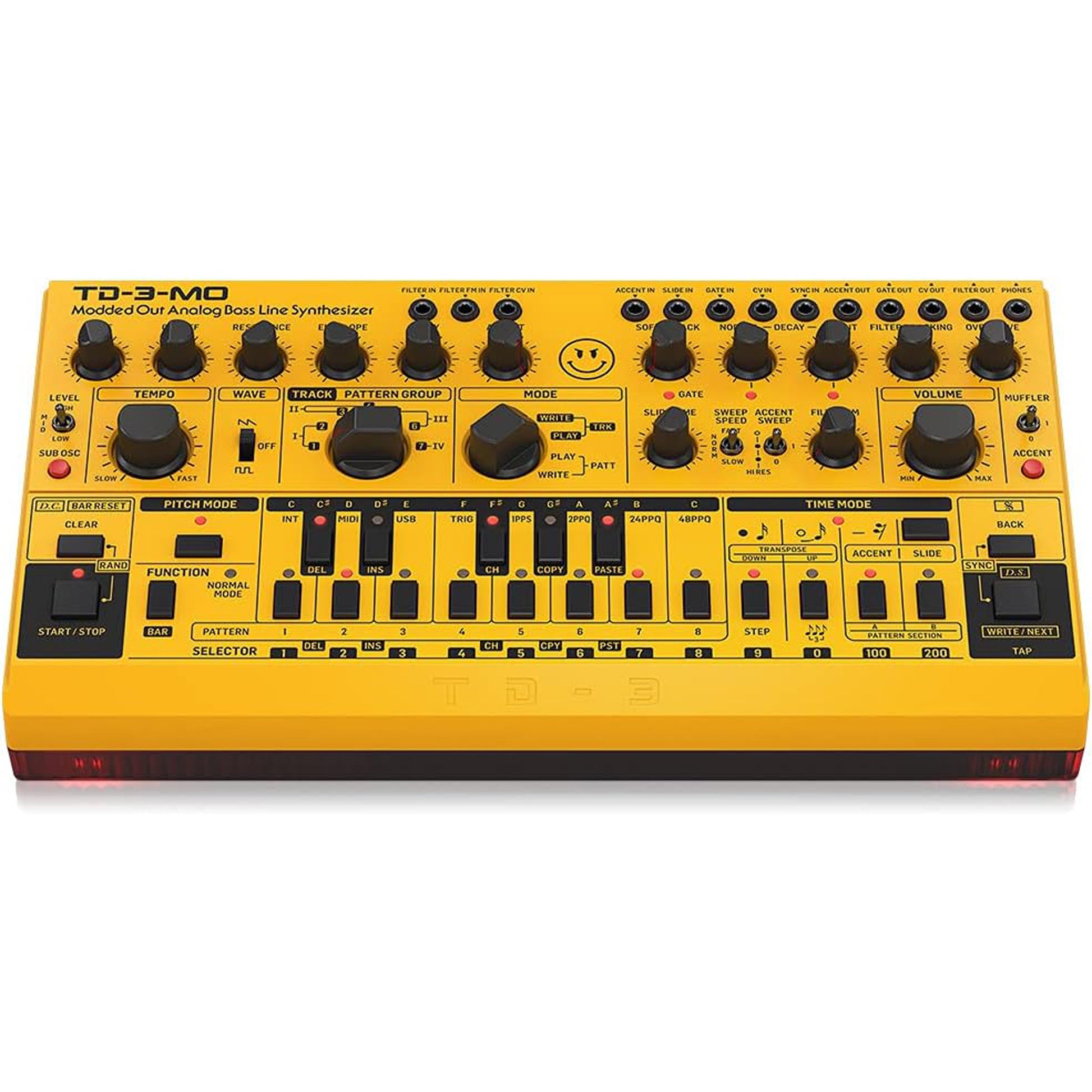

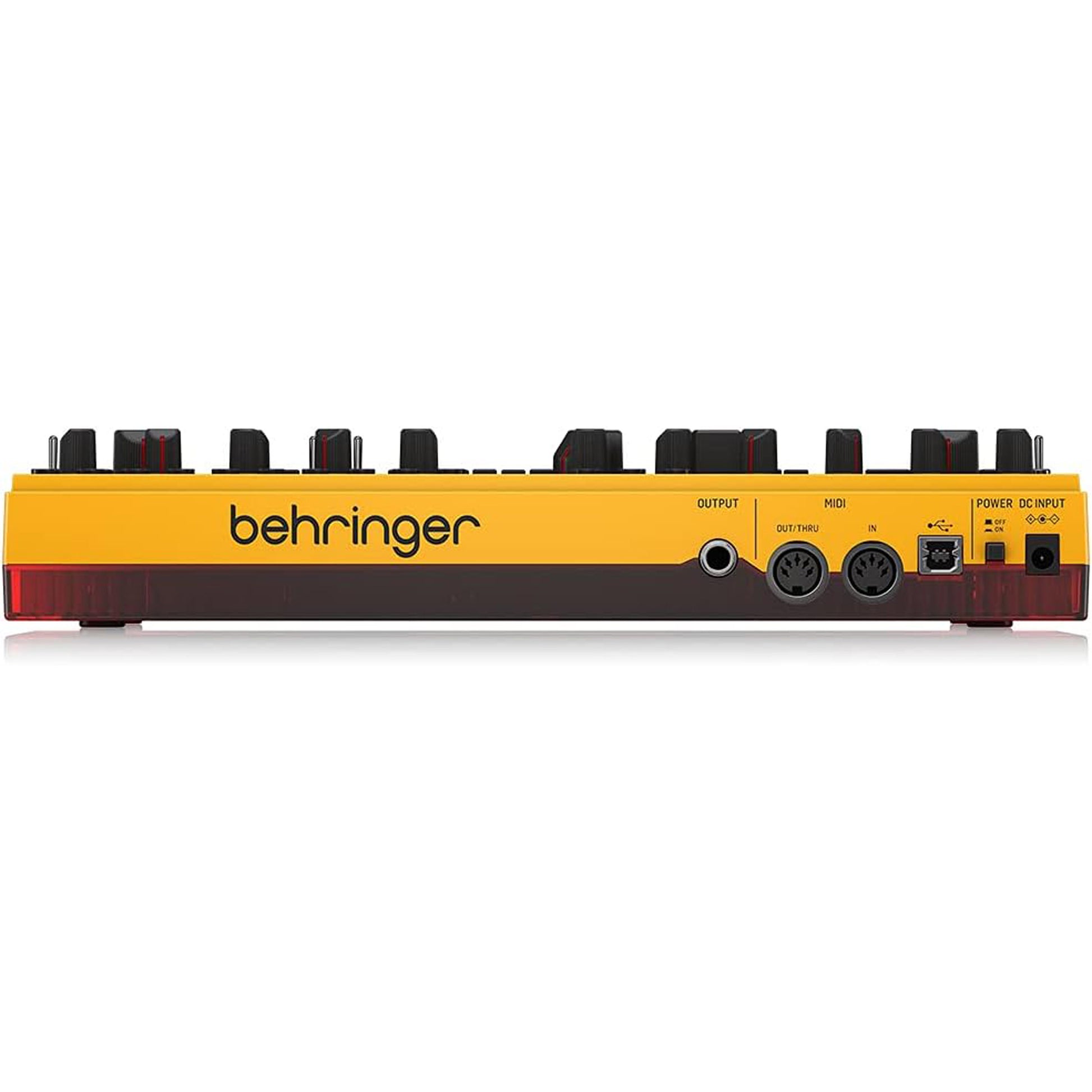

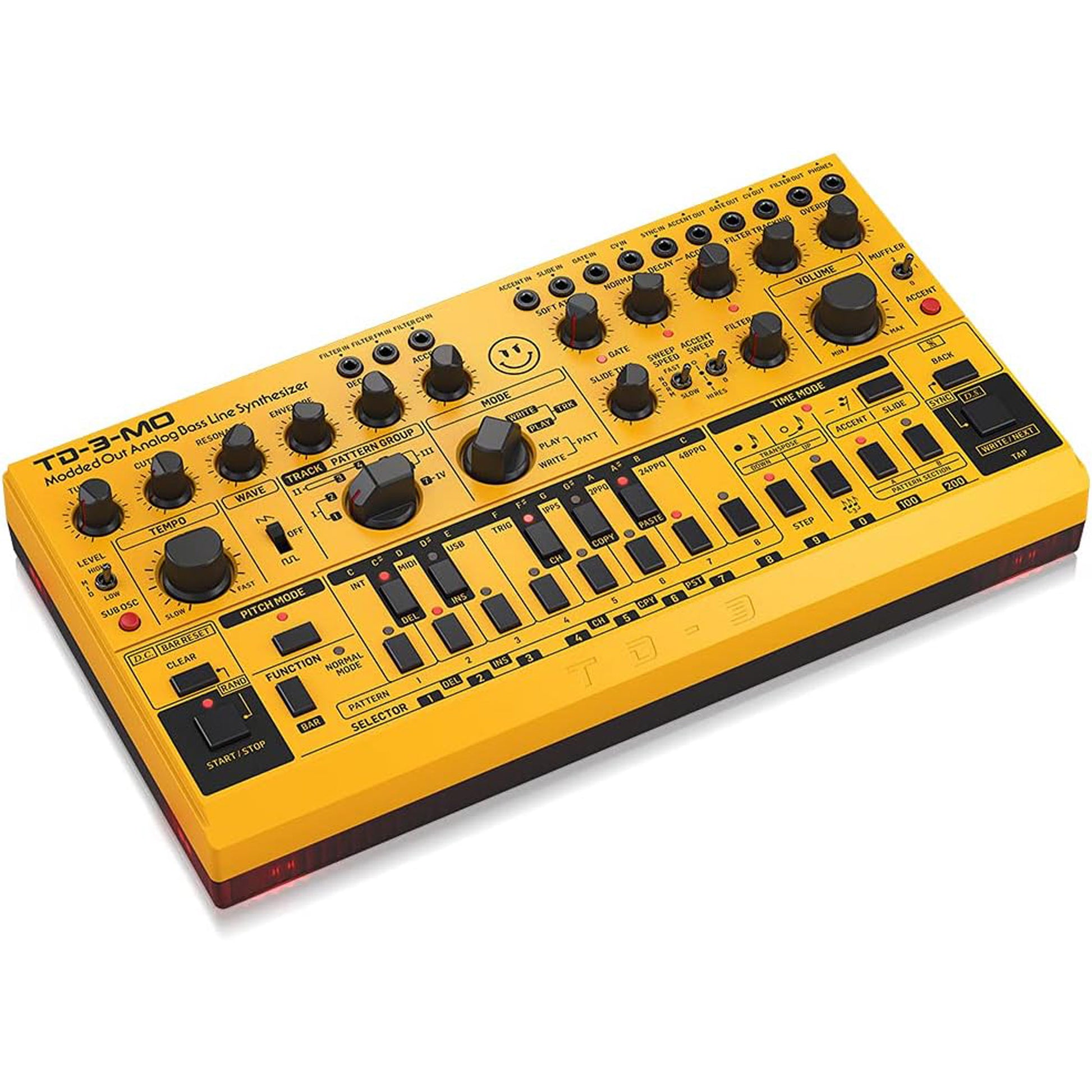

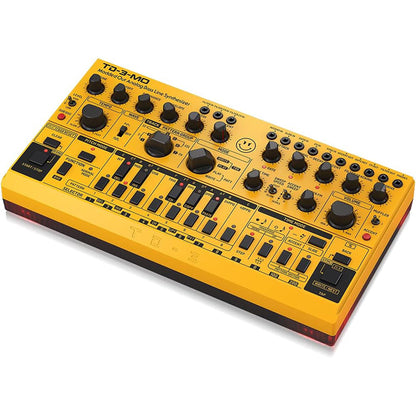

Behringer TD-3-MO-AM Analog Bass Line Synthesizer - Yellow

Behringer TD-3-MO-AM Analog Bass Line Synthesizer - Yellow

Ready to ship immediately!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Complete with all the legendary sounds, expanded “mod-shop” performance, and priced like it’s 1981 again. Based on the “little silver bass box” behind New-Wave, Chicago, Acid, Big Beat, and virtually all styles of House and EDM genres, the TD-3-MO is “all that” and more. Just like the celebrated but short live original, the Behringer TD-3-MO delivers powerful, hypnotic bass lines, unique filter effects, and a bone-simple control layout—for an experience that’s as much fun as it is essential.

To begin with, the TD-3-MO Bass Line features a pure analog signal path, authentic transistor-controlled wave-shaping circuitry, vintage-style VCO, VCF, VCA, and 16-step sequencer and arpeggiator. The legendary 4-pole “ladder-style” low-pass filter helps provide massive low-end sonics and features cut-off, resonance, envelope, decay, and accent control for that unique squelching, 303-inspired voice.

Aside from extraordinarily affordable pricing, Behringer’s collection of re-imagined analog essentials is also famous for including a few modern improvements without sacrificing authenticity. The TD-3 “MODIFIED” edition includes all the modern connectivity and hot-rodded sonics you’ve ever dreamed of:

A 16-note Poly Chain function lets you combine multiple synths for up to 16-voice polyphony. The expanded MIDI-CV controllable filter section provides independent slide time, three-mode Sweep Speed, Accent Sweep, Soft Attack, and overdrive controls. Add depth and power to the already massive bass sounds with an additional three-octave sub-oscillator and more. Now you can say, “Everyone Needs a TD-3 MO.”

More Information
Product Name Behringer TD-3-MO-AM Analog Bass Line Synthesizer - Yellow
Brand Behringer
MPN TD-3-MO-AM
UPC 4033653032957
Shipping Option Free Shipping to the Continental U.S.
  • A “Modded Out” revision of the Acid House bass sequencer classic
  • Single oscillator with switchable sawtooth and square waveforms
  • All-analog VCO, VCF, VCA signal path design
  • (13) Key buttons
  • Tempo, Track Pattern Group, Mode, and Volume control knobs
  • Sawtooth/Pulse Waveforms with Cutoff and Resonance Controls
  • (250) User Patterns
  • 16-step, 7-track Sequencer:
  • Poly Chain for up to 16-voice polyphony
  • Programmable accents, slides, filter FM, sub-oscillator, overdrive
  • Input (1) 1/8" TS
  • Output ()1) 1/4", (1) 1/8" (filter out)
  • Headphones: (1) 1/8"
  • MIDI In, Out/Thru, and USB
  • CV in/out, Gate in/out, Filter FM in, Filter CV in, Accent in/out, Slide in, Sync in
  • USB (1) Type B9V DC power supply (included)

Synthesizer Architecture

Number of voices Monophonic
Type Analog
Oscillators 1

Connectivity

Power input DC input connector
Power switch Push button on/off
MIDI In/Thru MIDI In and MIDI Thru, 5-pin DIN
USB (MIDI) USB 2.0, type B
Outputs Line output: 1/4" TRS, unbalanced, max. +8 dBu
Output impedance 1.5 kΩ
Headphones 3.5 mm TRS, max. 50 mW/32 Ω (1 KHz, 1% THD)
Headphones output impedance 15 Ω
USB Type Class compliant USB 2.0, type B
Supported Operating Systems Windows 7 or higher

Mac OS X 10.6.8 or higher

Inputs and Outputs (TS 3.5 mm)

Inputs Filter in: -6 V to +6 V

Filter FM in: 0 V to +12 V

Filter CV in: 0 V to +12 V

Accent in: off: 0 V, on: +12 V

Slide in: off: 0 V, on: +3.3 V

Gate in: off: 0 V, on: +3.3 V

CV in: +1 V to +5 V

Sync in: more than 2.5 V

Outputs Accent out: off: 0 V, on: +6 V

Gate out: off: 0 V, on: +12 V

CV out: +1 V to +5 V (1 volt/oct)

Filter out: -400 mV to +400 mV

Behringer TD-3-MO-AM Analog Bass Line Synthesizer - Yellow

Details

Complete with all the legendary sounds, expanded “mod-shop” performance, and priced like it’s 1981 again. Based on the “little silver bass box” behind New-Wave, Chicago, Acid, Big Beat, and virtually all styles of House and EDM genres, the TD-3-MO is “all that” and more. Just like the celebrated but short live original, the Behringer TD-3-MO delivers powerful, hypnotic bass lines, unique filter effects, and a bone-simple control layout—for an experience that’s as much fun as it is essential.

To begin with, the TD-3-MO Bass Line features a pure analog signal path, authentic transistor-controlled wave-shaping circuitry, vintage-style VCO, VCF, VCA, and 16-step sequencer and arpeggiator. The legendary 4-pole “ladder-style” low-pass filter helps provide massive low-end sonics and features cut-off, resonance, envelope, decay, and accent control for that unique squelching, 303-inspired voice.

Aside from extraordinarily affordable pricing, Behringer’s collection of re-imagined analog essentials is also famous for including a few modern improvements without sacrificing authenticity. The TD-3 “MODIFIED” edition includes all the modern connectivity and hot-rodded sonics you’ve ever dreamed of:

A 16-note Poly Chain function lets you combine multiple synths for up to 16-voice polyphony. The expanded MIDI-CV controllable filter section provides independent slide time, three-mode Sweep Speed, Accent Sweep, Soft Attack, and overdrive controls. Add depth and power to the already massive bass sounds with an additional three-octave sub-oscillator and more. Now you can say, “Everyone Needs a TD-3 MO.”

More Information
Product Name Behringer TD-3-MO-AM Analog Bass Line Synthesizer - Yellow
Brand Behringer
MPN TD-3-MO-AM
UPC 4033653032957
Shipping Option Free Shipping to the Continental U.S.
Features
  • A “Modded Out” revision of the Acid House bass sequencer classic
  • Single oscillator with switchable sawtooth and square waveforms
  • All-analog VCO, VCF, VCA signal path design
  • (13) Key buttons
  • Tempo, Track Pattern Group, Mode, and Volume control knobs
  • Sawtooth/Pulse Waveforms with Cutoff and Resonance Controls
  • (250) User Patterns
  • 16-step, 7-track Sequencer:
  • Poly Chain for up to 16-voice polyphony
  • Programmable accents, slides, filter FM, sub-oscillator, overdrive
  • Input (1) 1/8" TS
  • Output ()1) 1/4", (1) 1/8" (filter out)
  • Headphones: (1) 1/8"
  • MIDI In, Out/Thru, and USB
  • CV in/out, Gate in/out, Filter FM in, Filter CV in, Accent in/out, Slide in, Sync in
  • USB (1) Type B9V DC power supply (included)
Tech Specs

Synthesizer Architecture

Number of voices Monophonic
Type Analog
Oscillators 1

Connectivity

Power input DC input connector
Power switch Push button on/off
MIDI In/Thru MIDI In and MIDI Thru, 5-pin DIN
USB (MIDI) USB 2.0, type B
Outputs Line output: 1/4" TRS, unbalanced, max. +8 dBu
Output impedance 1.5 kΩ
Headphones 3.5 mm TRS, max. 50 mW/32 Ω (1 KHz, 1% THD)
Headphones output impedance 15 Ω
USB Type Class compliant USB 2.0, type B
Supported Operating Systems Windows 7 or higher

Mac OS X 10.6.8 or higher

Inputs and Outputs (TS 3.5 mm)

Inputs Filter in: -6 V to +6 V

Filter FM in: 0 V to +12 V

Filter CV in: 0 V to +12 V

Accent in: off: 0 V, on: +12 V

Slide in: off: 0 V, on: +3.3 V

Gate in: off: 0 V, on: +3.3 V

CV in: +1 V to +5 V

Sync in: more than 2.5 V

Outputs Accent out: off: 0 V, on: +6 V

Gate out: off: 0 V, on: +12 V

CV out: +1 V to +5 V (1 volt/oct)

Filter out: -400 mV to +400 mV
