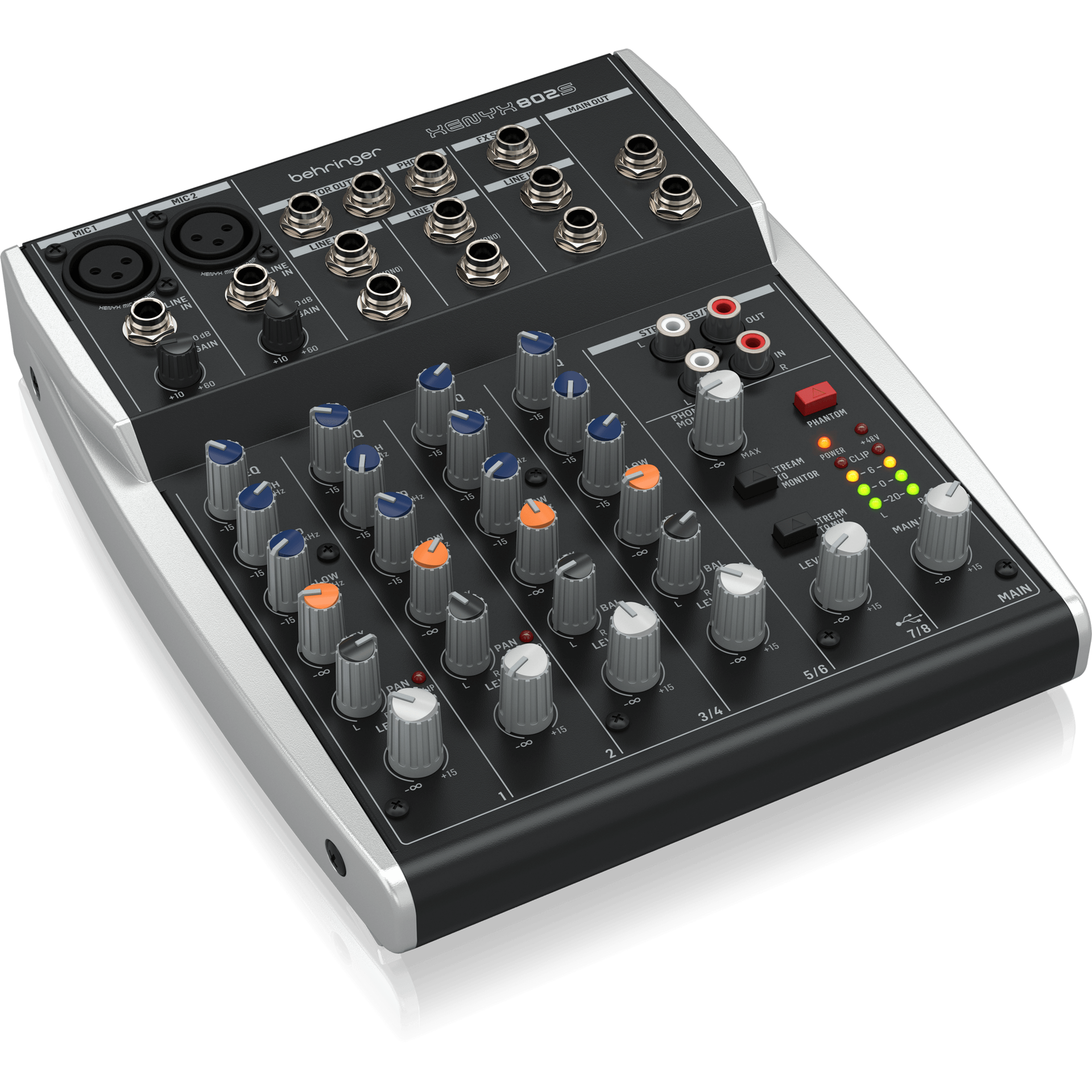

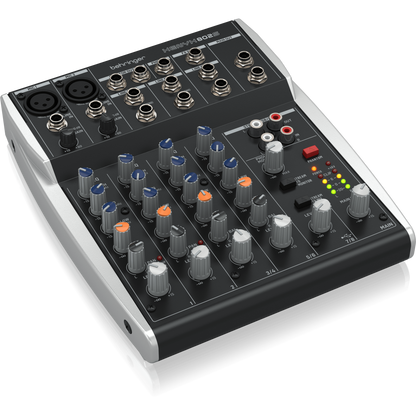

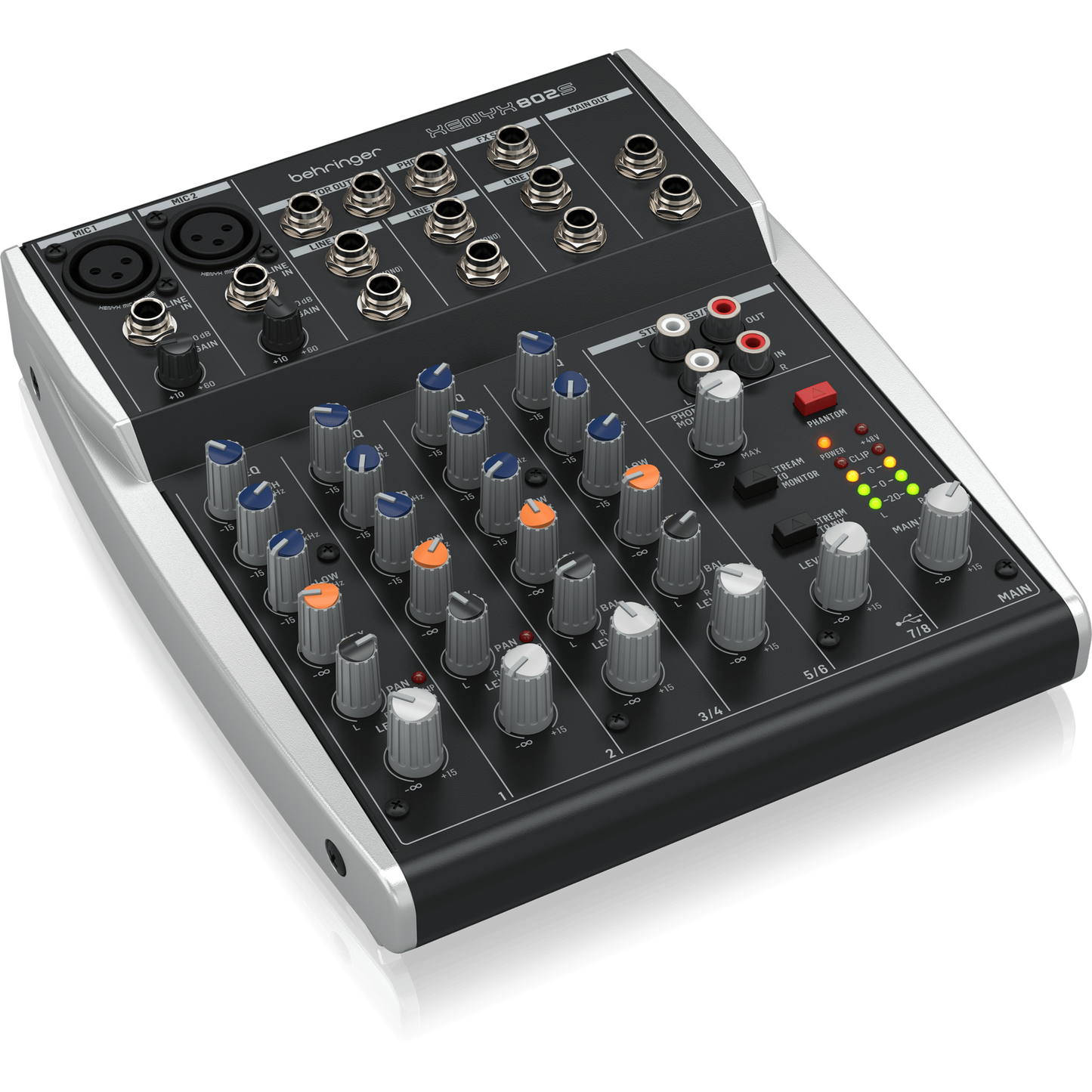

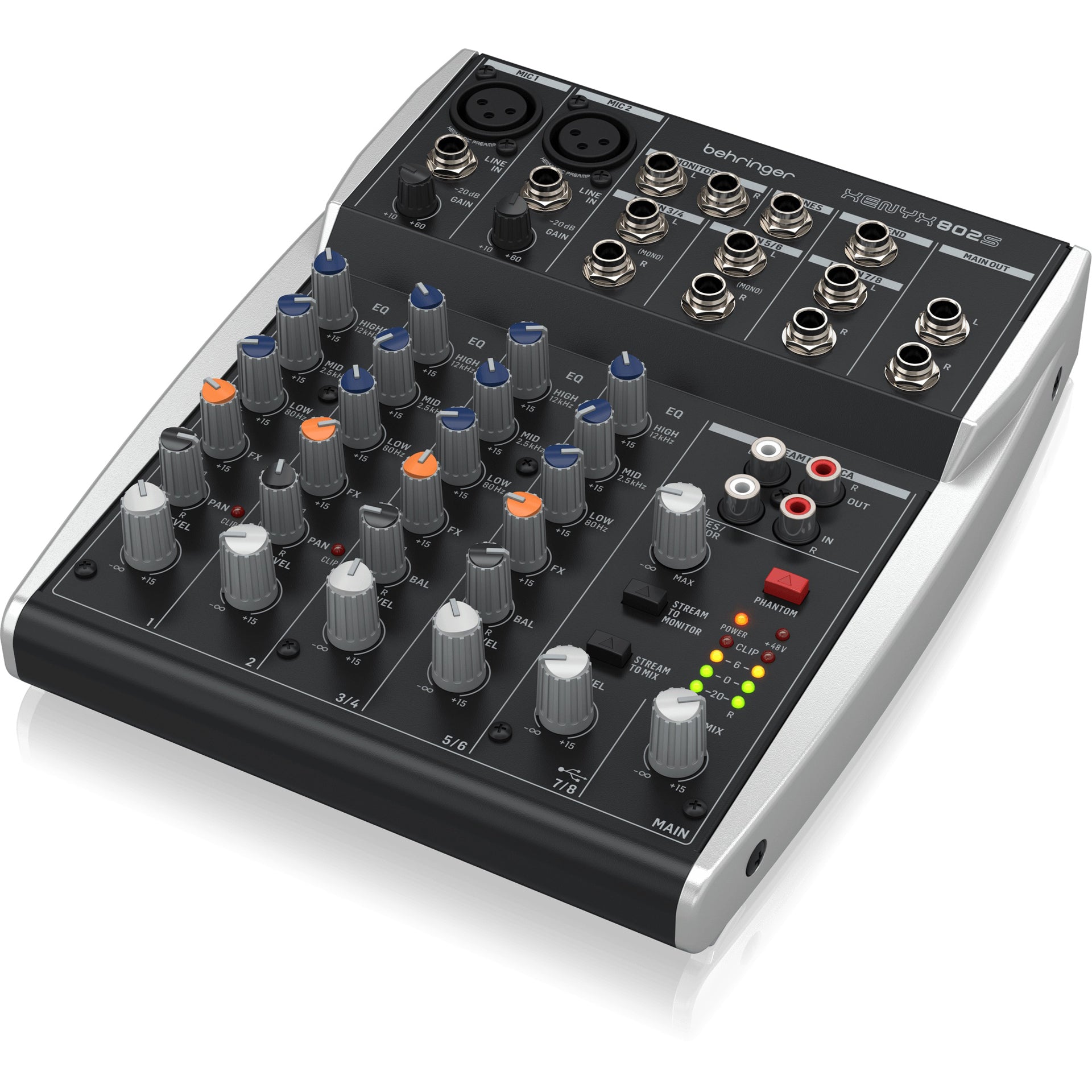

Behringer’s “XENYN S” series portable analog mixers are purpose-built to help podcasters, content creators, and producers mix and record professional audio on the go in an affordably versatile package. Enjoy outstanding, low-noise audio reproduction using your dynamic or condenser mic, thanks to the award-winning XENYX mic pre/channel strip with phantom power. Monitor and control the mix, balance, and E.Q. with the easy-to-use compact control surface-- or connect control and record with your computer, tablet, or smartphone with the onboard USB port.
| Product Name | Behringer Xenyx 802S 8-Channel Analog Streaming Mixer |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | XENYX502S |
| UPC | 787790550457 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Behringer Xenyx 802S 8-channel Analog Streaming Mixer
- Power Supply

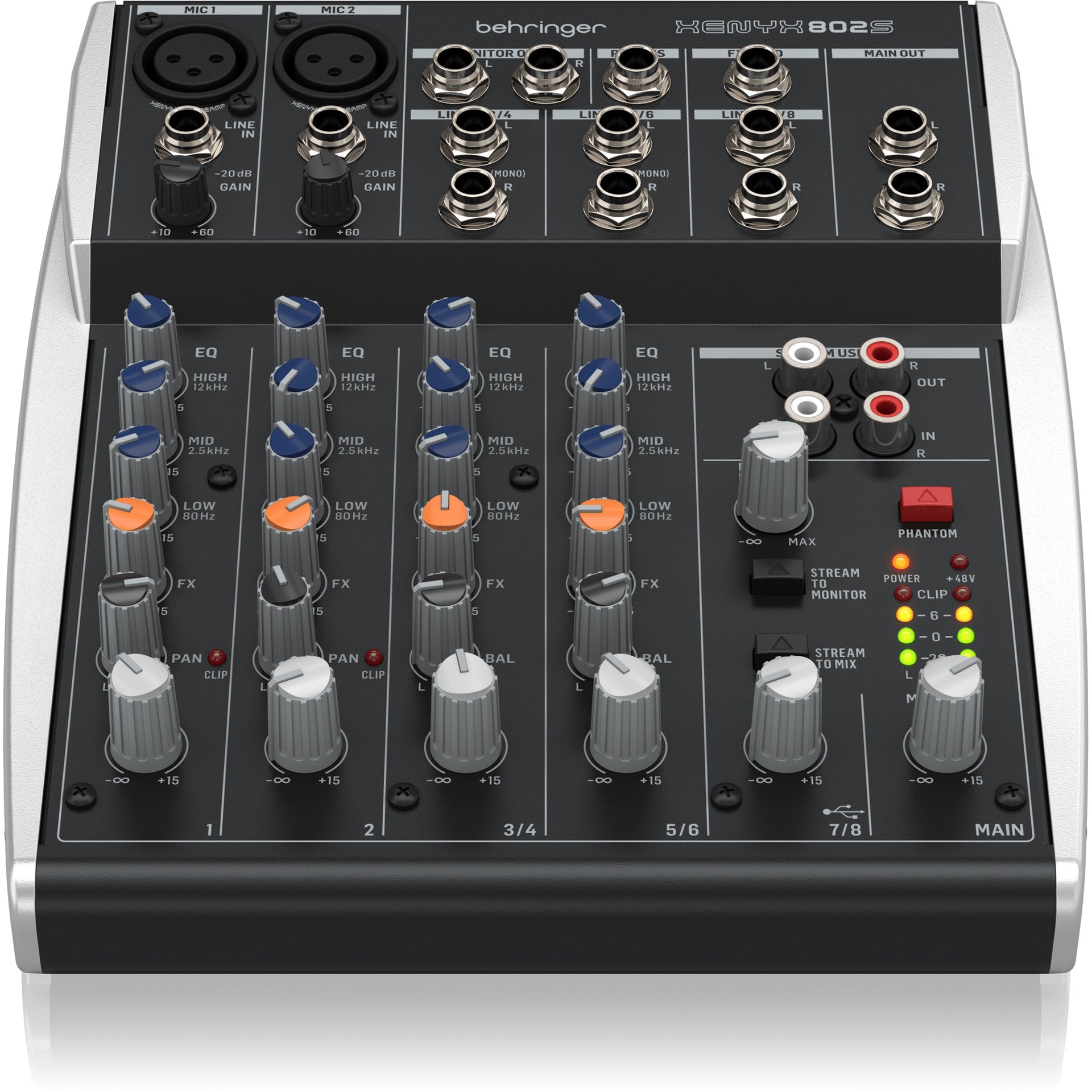

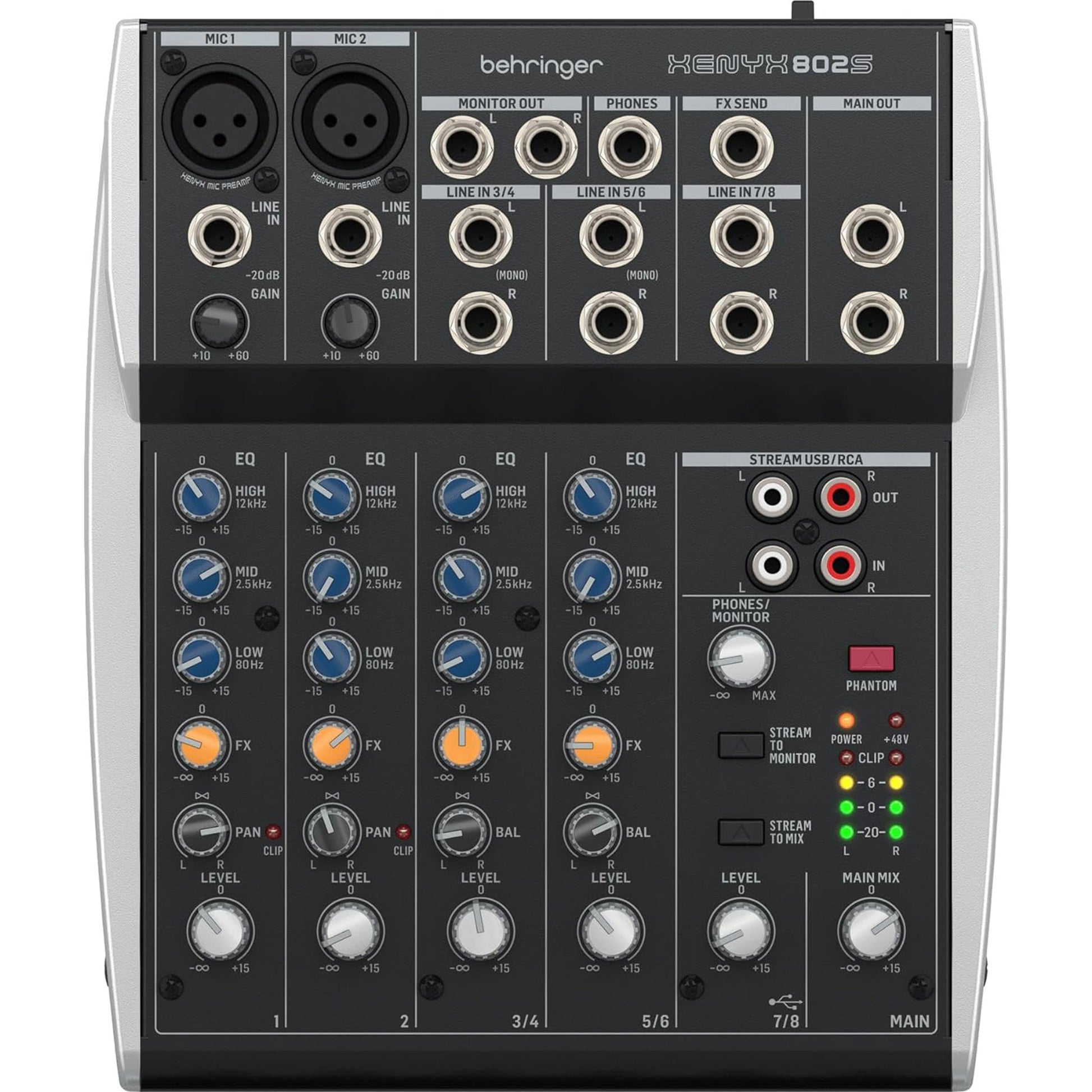

- Mix up to 8 channels (2) mono and 3 stereo signal paths)
- Mic Input/Preamp: (2) XLR/ with 3 band E.Q.
- Line inputs: (1)1/4" line and (3) 1/4" paired inputs
- RCA Inputs: (1) pair
- Outputs:
- (2) 1/4" TRS (Tip Ring Sleeve) plus (2) 1/4 “ TPS monitor outputs.
- (1) RCA dual stereo pair
- (1) Vibrable 1/4” Headphone out

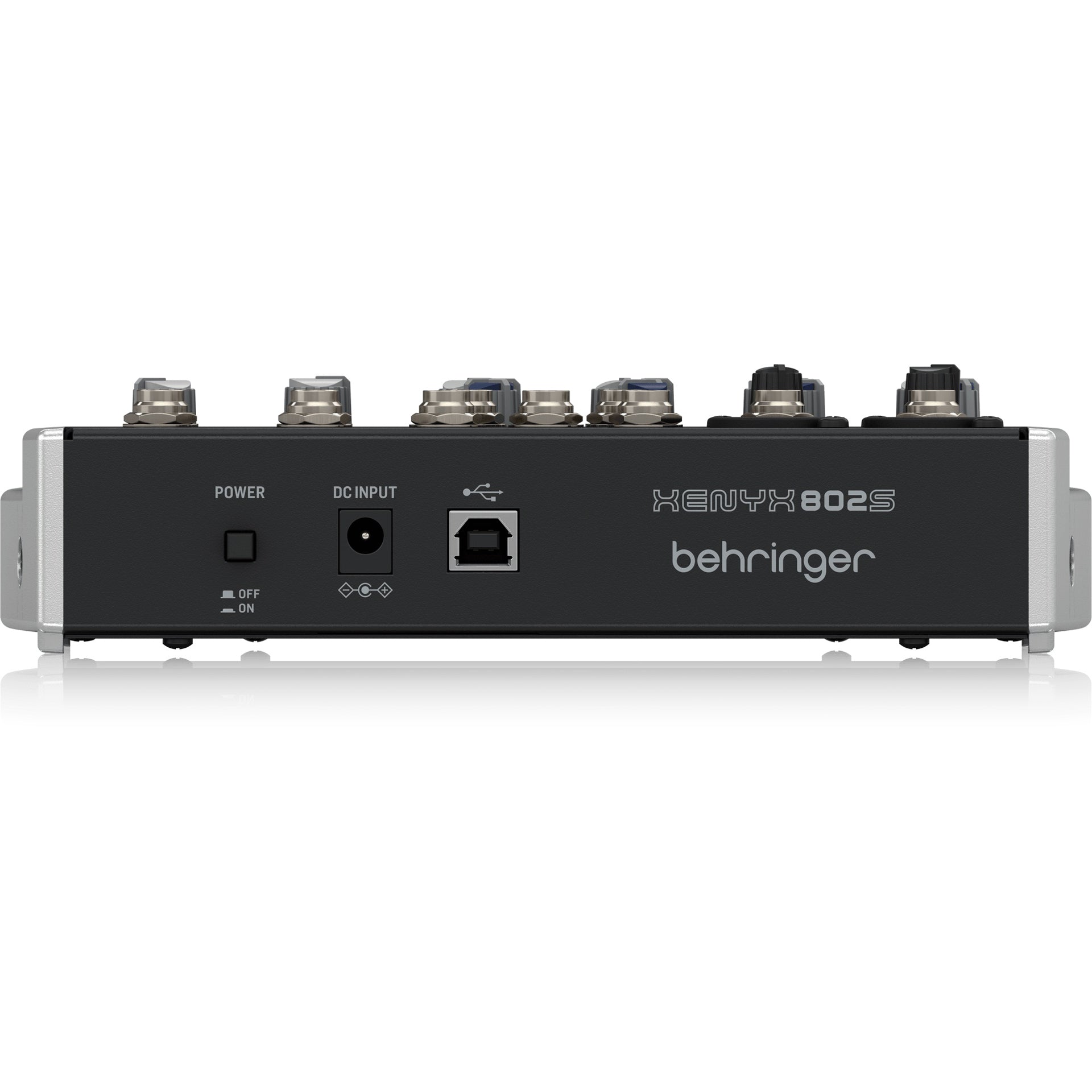

- (1) Type B USB
- 18V DC power supply included
Mono Inputs |
|
|---|---|
| Microphone Input | Balanced XLR, discrete input circuit |
| Mic EIN (22 Hz-22 kHz) @ 50 Ω | 132 dB, A-weighted |
| Frequency response Gain +10 dB | 10 Hz to 150 kHz |
| Frequency response Gain +60 dB | 20 Hz to 70 kHz |
| Gain range | +10 dB to +60 dB |
| Max input level @ +10 dB Gain | +12 dBu |
| Input Impedance | 2 kΩ balanced |
| Distortion (THD + N) 1 kHz @ +10 dB Gain | 0.005% |
| Mono Line Inputs | 1/4" TRS connector balanced |
| Impedance | 22 kΩ balanced, 10 kΩ unbalanced |
| Gain range | -10 dB to +40 dB |
| Max input level @ 0 dB Gain | +21 dBu |
Stereo Inputs |
|
| Stereo Line | 1/4" TRS connector balanced |
| Frequency response | 20 Hz to 200 kHz |
| Impedance | 22 kΩ balanced, 10 kΩ unbalanced |
| Max input level @ 0 dB Gain | +21 dBu |
| STREAM Inputs (Analog) | RCA connector unbalanced |
| Impedance | 10 kΩ unbalanced |
| Max input level | 10 dBu |
EQUALIZER |
|
| Low | 80 Hz/±15 dB |
| Mid | 2.5 kHz/±15 dB |
| High | 12 kHz/±15 dB |
Main, Monitor & FX Send Outputs |
|
| Type | 1/4" TRS connector impedance-balanced |
| Impedance | 120 Ω |
| Max output level | 21 dBu |
Phones Out |
|
| Type | 1/4" TRS connector unbalanced |
| Impedance | 23 Ω |
| Max output level | 19 dBu/150 Ω |
STREAM out (Analog) |
|
| Type | RCA connector unbalanced |
| Impedance | 1 kΩ unbalanced |
| Max output level | 10 dBu |
Main Mix noise |
|
| Main Mix @ -∞ | -109 dBu A-weighted |
| Channel @ -∞ | -109 dBu A-weighted |
USB |
|
| Type | Type-B connector |
| USB Audio Data | 48 kHz 16 bit |
| UAC2 Class Compliant | stereo in/out |
Power Supply |
|
| Power Consumption | 12 W |
| Adaptor input | 100 - 240 V~, 50/60 Hz, 0.5 A |
| Adaptor output | 18 V DC 1.0 A |
Behringer Xenyx 802S 8-Channel Analog Streaming Mixer
Behringer’s “XENYN S” series portable analog mixers are purpose-built to help podcasters, content creators, and producers mix and record professional audio on the go in an affordably versatile package. Enjoy outstanding, low-noise audio reproduction using your dynamic or condenser mic, thanks to the award-winning XENYX mic pre/channel strip with phantom power. Monitor and control the mix, balance, and E.Q. with the easy-to-use compact control surface-- or connect control and record with your computer, tablet, or smartphone with the onboard USB port.
| Product Name | Behringer Xenyx 802S 8-Channel Analog Streaming Mixer |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | XENYX502S |
| UPC | 787790550457 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Behringer Xenyx 802S 8-channel Analog Streaming Mixer
- Power Supply
- Mix up to 8 channels (2) mono and 3 stereo signal paths)
- Mic Input/Preamp: (2) XLR/ with 3 band E.Q.
- Line inputs: (1)1/4" line and (3) 1/4" paired inputs
- RCA Inputs: (1) pair
- Outputs:
- (2) 1/4" TRS (Tip Ring Sleeve) plus (2) 1/4 “ TPS monitor outputs.
- (1) RCA dual stereo pair
- (1) Vibrable 1/4” Headphone out
- (1) Type B USB
- 18V DC power supply included
Mono Inputs |
|
|---|---|
| Microphone Input | Balanced XLR, discrete input circuit |
| Mic EIN (22 Hz-22 kHz) @ 50 Ω | 132 dB, A-weighted |
| Frequency response Gain +10 dB | 10 Hz to 150 kHz |
| Frequency response Gain +60 dB | 20 Hz to 70 kHz |
| Gain range | +10 dB to +60 dB |
| Max input level @ +10 dB Gain | +12 dBu |
| Input Impedance | 2 kΩ balanced |
| Distortion (THD + N) 1 kHz @ +10 dB Gain | 0.005% |
| Mono Line Inputs | 1/4" TRS connector balanced |
| Impedance | 22 kΩ balanced, 10 kΩ unbalanced |
| Gain range | -10 dB to +40 dB |
| Max input level @ 0 dB Gain | +21 dBu |
Stereo Inputs |
|
| Stereo Line | 1/4" TRS connector balanced |
| Frequency response | 20 Hz to 200 kHz |
| Impedance | 22 kΩ balanced, 10 kΩ unbalanced |
| Max input level @ 0 dB Gain | +21 dBu |
| STREAM Inputs (Analog) | RCA connector unbalanced |
| Impedance | 10 kΩ unbalanced |
| Max input level | 10 dBu |
EQUALIZER |
|
| Low | 80 Hz/±15 dB |
| Mid | 2.5 kHz/±15 dB |
| High | 12 kHz/±15 dB |
Main, Monitor & FX Send Outputs |
|
| Type | 1/4" TRS connector impedance-balanced |
| Impedance | 120 Ω |
| Max output level | 21 dBu |
Phones Out |
|
| Type | 1/4" TRS connector unbalanced |
| Impedance | 23 Ω |
| Max output level | 19 dBu/150 Ω |
STREAM out (Analog) |
|
| Type | RCA connector unbalanced |
| Impedance | 1 kΩ unbalanced |
| Max output level | 10 dBu |
Main Mix noise |
|
| Main Mix @ -∞ | -109 dBu A-weighted |
| Channel @ -∞ | -109 dBu A-weighted |
USB |
|
| Type | Type-B connector |
| USB Audio Data | 48 kHz 16 bit |
| UAC2 Class Compliant | stereo in/out |
Power Supply |
|
| Power Consumption | 12 W |
| Adaptor input | 100 - 240 V~, 50/60 Hz, 0.5 A |
| Adaptor output | 18 V DC 1.0 A |
