Behringer XR12 Digital Mixer
Behringer XR12 Digital Mixer
Regular price
$329.00
Regular price
Sale price
$329.00
Unit price
per
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
Ready to ship immediately!
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews

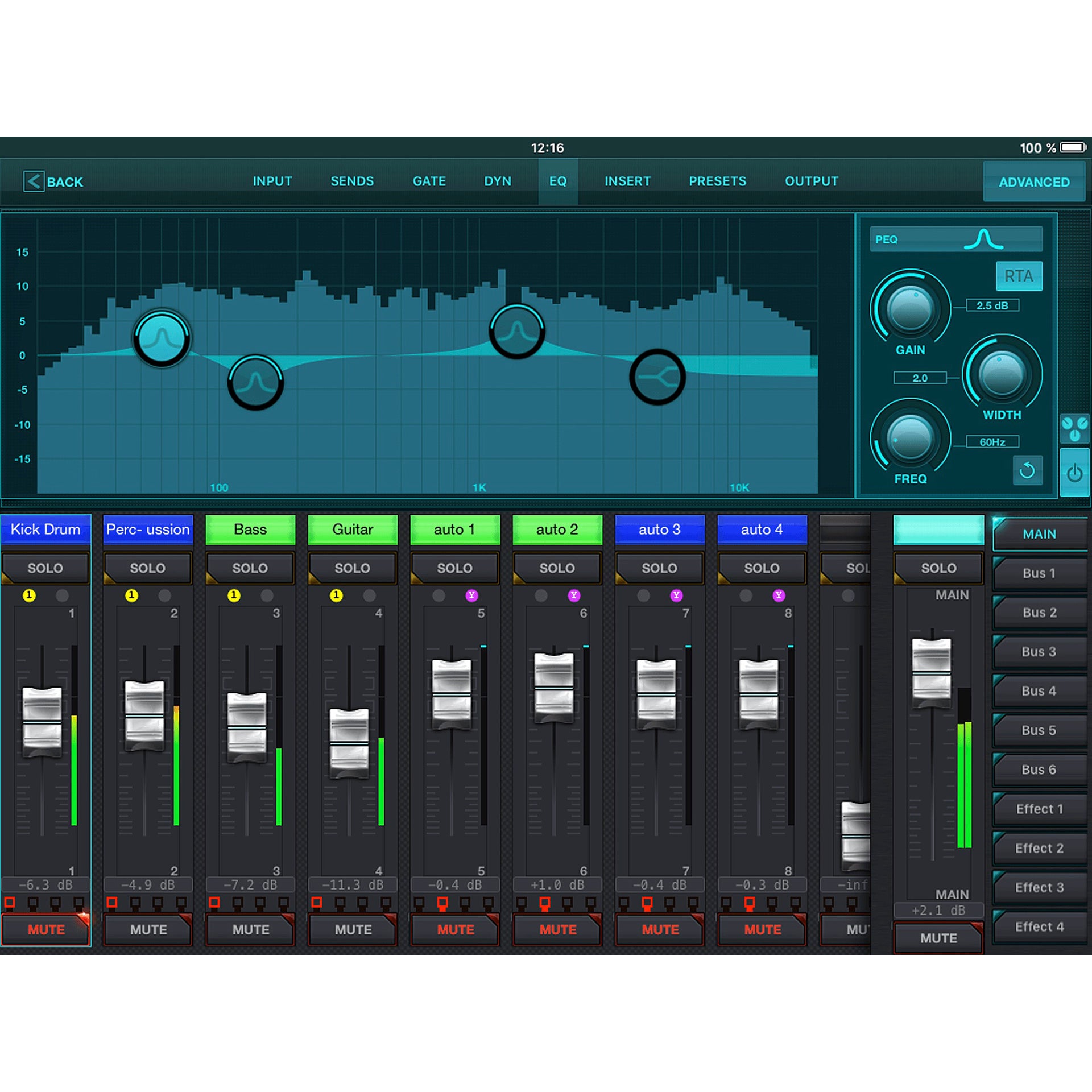

Find out what hundreds of thousands of studio and live sound engineers, DJs, MCs, and musicians already know. Behringer’s XR Air series of digital mixers eliminate the need for a bulky mixing desk, effects rack, mic snake, or devise slowing plug-ins in one rugged stage box/rack-mountable solution. Connect your laptop, Android, iOS tablet, or smartphone via onboard Ethernet, USB, or onboard Wi-Fi to control the entire mixing environment from any part of the venue, including the stage—a game-changing feature for live acts that perform without a dedicated sound engineer.
Each channel features a pre-set enabled 4-band parametric EQ, low-cut filter, compressor, limiter, noise gate, and more. The 100-band RTA (real-time analyzer) acts like an extra hand at the board, helping you boost or cut frequencies on the edge of rumble or unwanted feedback. Award-winning virtual Midas pre-amps bring time-tested performance to your dynamic stage mics or high-end studio condensers.
The on-board FX’s suite allows easy use of 4 (or 8 mono) simultaneous studio quality stereo modeling engines packed with digital delays, lexicon-designed reverbs, aural exciters, and more—plus several vintage styles, and 31-band parametric Equalization.
Each channel features a pre-set enabled 4-band parametric EQ, low-cut filter, compressor, limiter, noise gate, and more. The 100-band RTA (real-time analyzer) acts like an extra hand at the board, helping you boost or cut frequencies on the edge of rumble or unwanted feedback. Award-winning virtual Midas pre-amps bring time-tested performance to your dynamic stage mics or high-end studio condensers.
The on-board FX’s suite allows easy use of 4 (or 8 mono) simultaneous studio quality stereo modeling engines packed with digital delays, lexicon-designed reverbs, aural exciters, and more—plus several vintage styles, and 31-band parametric Equalization.
| Product Name | Behringer XR12 Digital Mixer |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | XR12 |
| UPC | 748252150844 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Behringer XR12
- Set of Rack Ears
- Protection Bumpers

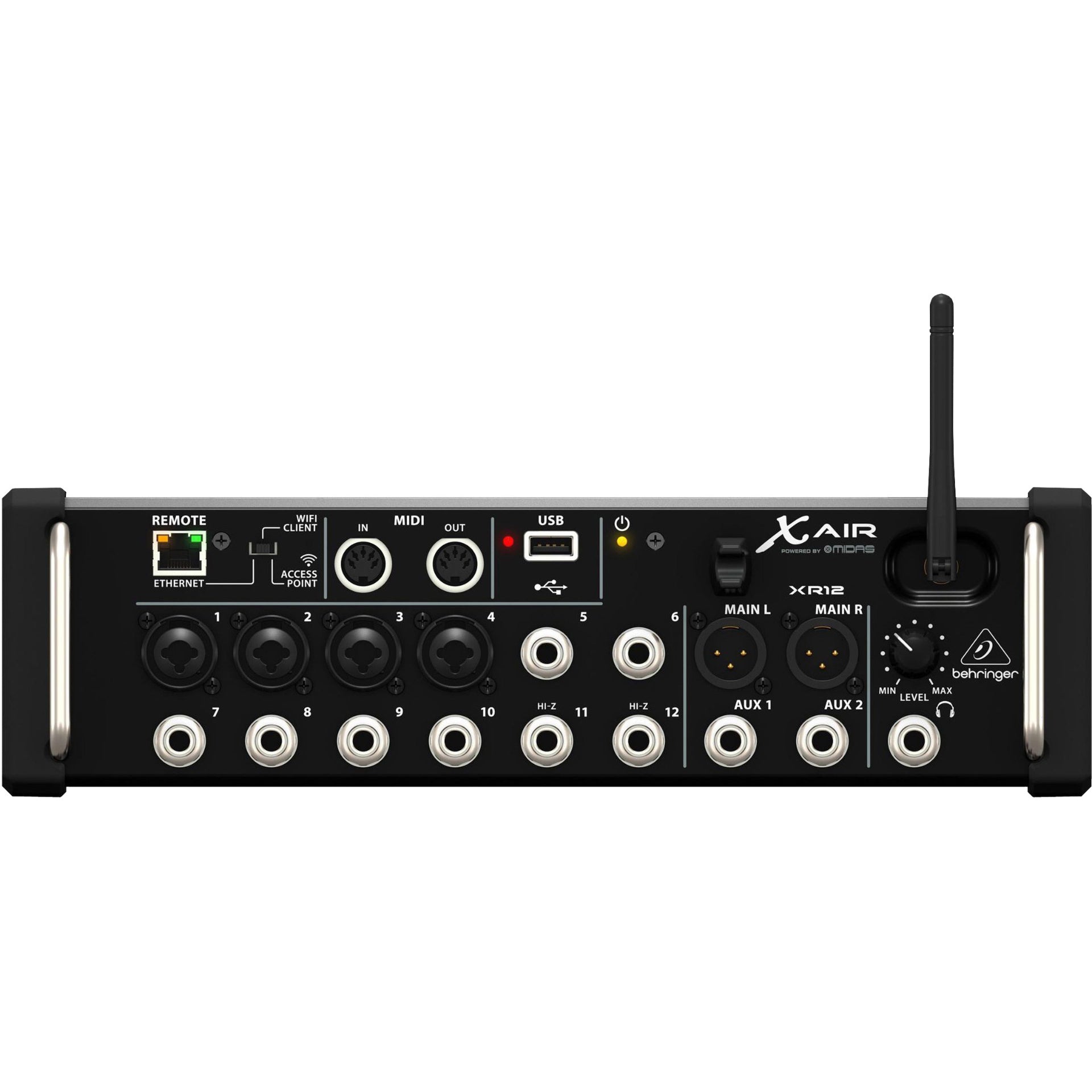

The X-Air XR12 is the smallest and most affordable tablet-controlled all-in-one digital mixer of the Behringer XR Air series. Features include:
- Inputs: 12 total (4-XLR-1/4" combo mic-preamps, 6- 1/4" and 2- 1/4" Hi-Z channels).
- Outputs: 2 1/4” XLR
- Other: (2) 1/4" TRS auxiliary out
- 1 USB/Flash drive for recording/live playback
- Variable Headphone line-out
- MIDI-In/Out
- Phantom Power
Processing |
|
| Number of processing channels | 16 input channels, 1 stereo USB return channel, 4 stereo FX return channels, 6 aux buses, main LR |
| Internal effects engines | 4 true stereo |
| Signal processing | 40-bit floating point |
| A/D-D/A conversion (Cirrus Logic A/D CS5368, D/A CS4385) | 24-bit @ 44.1 / 48 kHz, 114 dB A/D dynamic range |
| Analog I/O latency* | 0.8 ms |
Connectors |
|
| Programmable mic preamps, designed by Midas | 4 XLR/TRS combo jacks, balanced |
| Line inputs | 8 TRS, balanced |
| Main outputs | 2 XLR, balanced |
| Aux outputs | 2 TRS, balanced |
| Phones outputs | 1 TRS |
| MIDI inputs / outputs | 1/1 DIN |
| Ethernet | 1 RJ45 |
| USB port | Type A |
Mic Input Characteristics |
|
| Preamp design | Midas |
| THD + noise, 20 dB gain, 0 dBu out | < 0.005%, A-weighted |
| Phantom power, switchable per input | 48 V |
| Equivalent input noise level, XLR (input shorted | -128 dBu, A-weighted |
| CMRR, XLR, @ 20 dB gain (typical) | >60 dB |
| CMRR, XLR, @ 40 dB gain | >65 dB |
Input/Output Characteristics |
|
| Frequency range, @ 48 kHz sample rate, 0 dB to -1 dB | 10 Hz - 22 kHz |
| Dynamic range, analog mic in to analog out (typical | 104 dB |
| A/D dynamic range, mic preamp to converter (typical) | 109 dB |
| D/A dynamic range, converter and output | 108 dB |
| Cross talk rejection @ 1 kHz, adjacent channels | 90 dB |
| Mic input impedance XLR jack, unbal. / bal. | 5 kΩ / 10 kΩ |
| Non clip maximum input level, XLR | +23 dBu |
| Hi-Z input impedance TRS jack, unbal. / bal. | 1 MΩ / 2 MΩ |
| Line input impedance TRS jack, unbal. / bal. | 20 kΩ / 40 kΩ |
| Non clip maximum input level, TRS | +21 dBu |
Output Characteristics |
|
| Output impedance, XLR, unbal. / bal. | 50 Ω / 50 Ω |
| Output level, XLR, nom./max. | +4 dBu / +16 dBu |
| Output impedance, TRS, unbal. / bal. | 50 Ω / 50 Ω |
| Output level, TRS, nom./max. | +4 dBu / +16 dBu |
| Phones output impedance / level | 40 Ω / +35 dBm (stereo) |
| Residual noise level, XLR and TRS | -92 dBu, A-weighted |
WLAN Module |
|
| Antenna | External, SMA connector, 50 Ω |
| Access Point, number of clients | Max. 4 |
| IEEE 802.11 b/g standard | 2.4 GHz |
| Frequency Range | 2,412-2,462 MHz |
| WLAN channels (Wifi Client, Access Point) | 1-11 / 1-11 |
| Max Output Power | 19 dBm (802.11b) / 18 dBm (802.11g) |
Power |
|
| Switch-mode power supply | Autorange 100-240 V, (50/60 Hz) |
| Power consumption | 30 W |
Physical |
|
| Standard operating temperature range | 5°C – 40°C (41°F – 104°F) |
| Dimensions | 333 x 149 x 95 mm (13.1 x 5.9 x 3.7 in) |
| Weight | 2.4 kg (5.3 lb) |
Behringer XR12 Digital Mixer
Details
Find out what hundreds of thousands of studio and live sound engineers, DJs, MCs, and musicians already know. Behringer’s XR Air series of digital mixers eliminate the need for a bulky mixing desk, effects rack, mic snake, or devise slowing plug-ins in one rugged stage box/rack-mountable solution. Connect your laptop, Android, iOS tablet, or smartphone via onboard Ethernet, USB, or onboard Wi-Fi to control the entire mixing environment from any part of the venue, including the stage—a game-changing feature for live acts that perform without a dedicated sound engineer.
Each channel features a pre-set enabled 4-band parametric EQ, low-cut filter, compressor, limiter, noise gate, and more. The 100-band RTA (real-time analyzer) acts like an extra hand at the board, helping you boost or cut frequencies on the edge of rumble or unwanted feedback. Award-winning virtual Midas pre-amps bring time-tested performance to your dynamic stage mics or high-end studio condensers.
The on-board FX’s suite allows easy use of 4 (or 8 mono) simultaneous studio quality stereo modeling engines packed with digital delays, lexicon-designed reverbs, aural exciters, and more—plus several vintage styles, and 31-band parametric Equalization.
Each channel features a pre-set enabled 4-band parametric EQ, low-cut filter, compressor, limiter, noise gate, and more. The 100-band RTA (real-time analyzer) acts like an extra hand at the board, helping you boost or cut frequencies on the edge of rumble or unwanted feedback. Award-winning virtual Midas pre-amps bring time-tested performance to your dynamic stage mics or high-end studio condensers.
The on-board FX’s suite allows easy use of 4 (or 8 mono) simultaneous studio quality stereo modeling engines packed with digital delays, lexicon-designed reverbs, aural exciters, and more—plus several vintage styles, and 31-band parametric Equalization.
| Product Name | Behringer XR12 Digital Mixer |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | XR12 |
| UPC | 748252150844 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Behringer XR12
- Set of Rack Ears
- Protection Bumpers
Features
The X-Air XR12 is the smallest and most affordable tablet-controlled all-in-one digital mixer of the Behringer XR Air series. Features include:
- Inputs: 12 total (4-XLR-1/4" combo mic-preamps, 6- 1/4" and 2- 1/4" Hi-Z channels).
- Outputs: 2 1/4” XLR
- Other: (2) 1/4" TRS auxiliary out
- 1 USB/Flash drive for recording/live playback
- Variable Headphone line-out
- MIDI-In/Out
- Phantom Power
Tech Specs
Processing |
|
| Number of processing channels | 16 input channels, 1 stereo USB return channel, 4 stereo FX return channels, 6 aux buses, main LR |
| Internal effects engines | 4 true stereo |
| Signal processing | 40-bit floating point |
| A/D-D/A conversion (Cirrus Logic A/D CS5368, D/A CS4385) | 24-bit @ 44.1 / 48 kHz, 114 dB A/D dynamic range |
| Analog I/O latency* | 0.8 ms |
Connectors |
|
| Programmable mic preamps, designed by Midas | 4 XLR/TRS combo jacks, balanced |
| Line inputs | 8 TRS, balanced |
| Main outputs | 2 XLR, balanced |
| Aux outputs | 2 TRS, balanced |
| Phones outputs | 1 TRS |
| MIDI inputs / outputs | 1/1 DIN |
| Ethernet | 1 RJ45 |
| USB port | Type A |
Mic Input Characteristics |
|
| Preamp design | Midas |
| THD + noise, 20 dB gain, 0 dBu out | < 0.005%, A-weighted |
| Phantom power, switchable per input | 48 V |
| Equivalent input noise level, XLR (input shorted | -128 dBu, A-weighted |
| CMRR, XLR, @ 20 dB gain (typical) | >60 dB |
| CMRR, XLR, @ 40 dB gain | >65 dB |
Input/Output Characteristics |
|
| Frequency range, @ 48 kHz sample rate, 0 dB to -1 dB | 10 Hz - 22 kHz |
| Dynamic range, analog mic in to analog out (typical | 104 dB |
| A/D dynamic range, mic preamp to converter (typical) | 109 dB |
| D/A dynamic range, converter and output | 108 dB |
| Cross talk rejection @ 1 kHz, adjacent channels | 90 dB |
| Mic input impedance XLR jack, unbal. / bal. | 5 kΩ / 10 kΩ |
| Non clip maximum input level, XLR | +23 dBu |
| Hi-Z input impedance TRS jack, unbal. / bal. | 1 MΩ / 2 MΩ |
| Line input impedance TRS jack, unbal. / bal. | 20 kΩ / 40 kΩ |
| Non clip maximum input level, TRS | +21 dBu |
Output Characteristics |
|
| Output impedance, XLR, unbal. / bal. | 50 Ω / 50 Ω |
| Output level, XLR, nom./max. | +4 dBu / +16 dBu |
| Output impedance, TRS, unbal. / bal. | 50 Ω / 50 Ω |
| Output level, TRS, nom./max. | +4 dBu / +16 dBu |
| Phones output impedance / level | 40 Ω / +35 dBm (stereo) |
| Residual noise level, XLR and TRS | -92 dBu, A-weighted |
WLAN Module |
|
| Antenna | External, SMA connector, 50 Ω |
| Access Point, number of clients | Max. 4 |
| IEEE 802.11 b/g standard | 2.4 GHz |
| Frequency Range | 2,412-2,462 MHz |
| WLAN channels (Wifi Client, Access Point) | 1-11 / 1-11 |
| Max Output Power | 19 dBm (802.11b) / 18 dBm (802.11g) |
Power |
|
| Switch-mode power supply | Autorange 100-240 V, (50/60 Hz) |
| Power consumption | 30 W |
Physical |
|
| Standard operating temperature range | 5°C – 40°C (41°F – 104°F) |
| Dimensions | 333 x 149 x 95 mm (13.1 x 5.9 x 3.7 in) |
| Weight | 2.4 kg (5.3 lb) |
