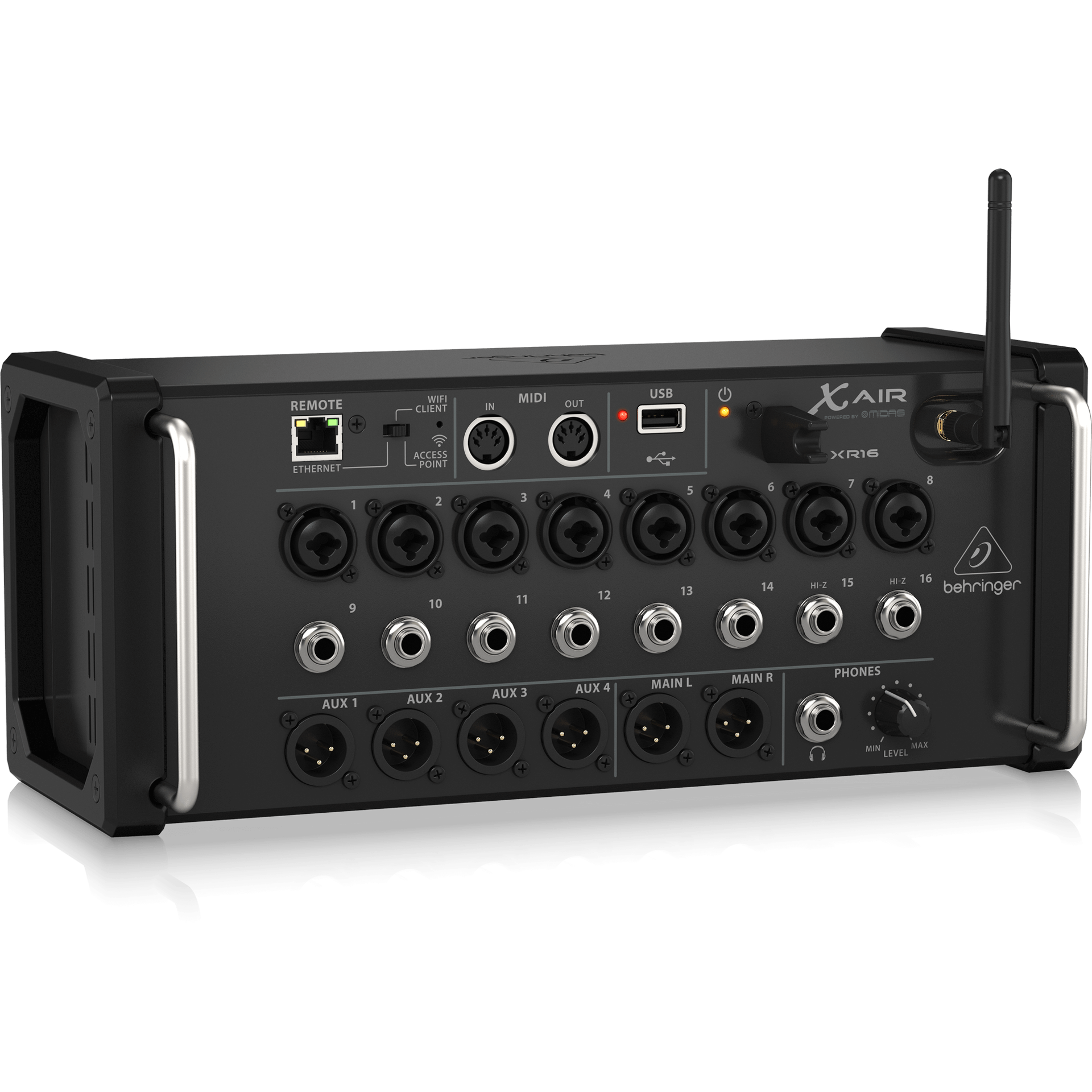

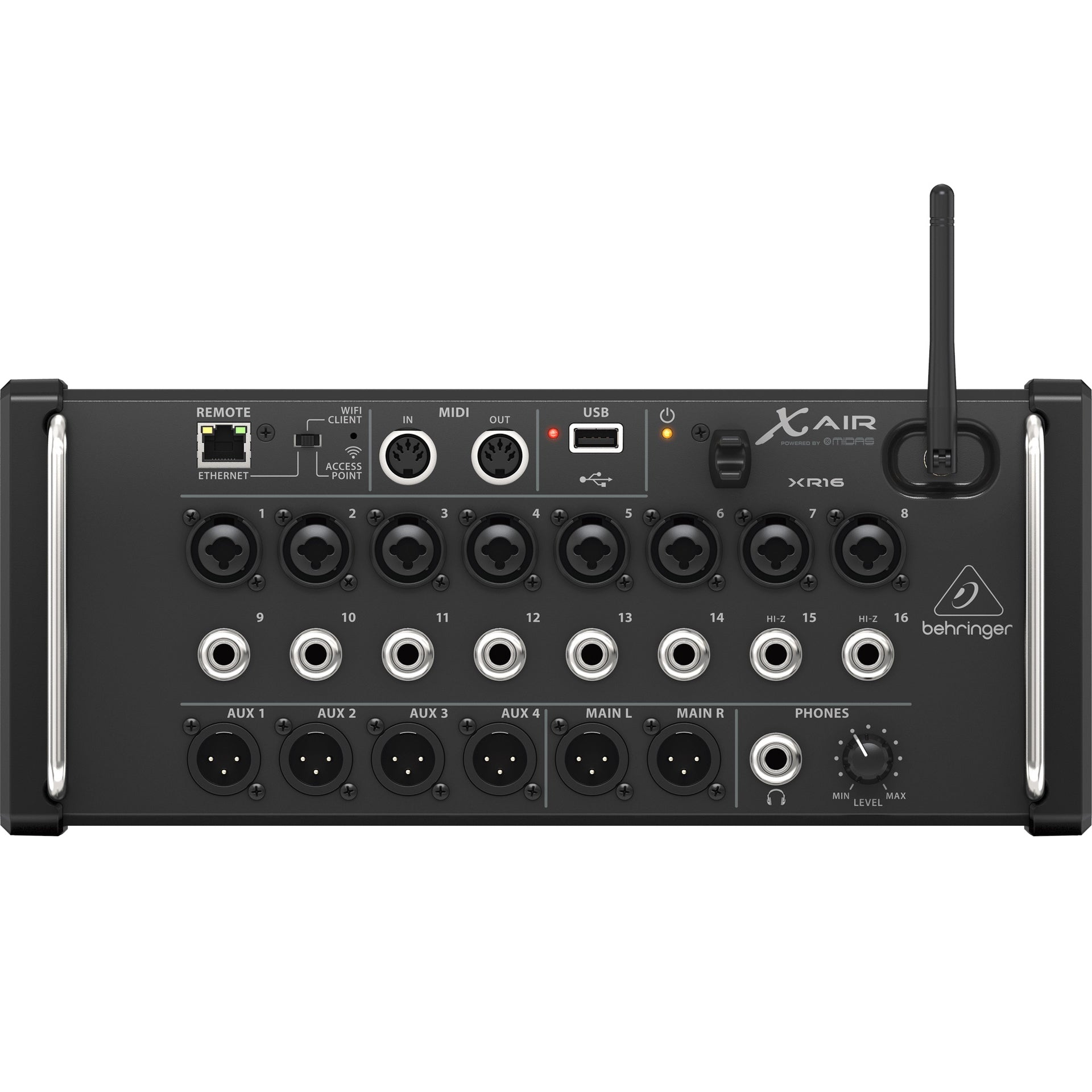

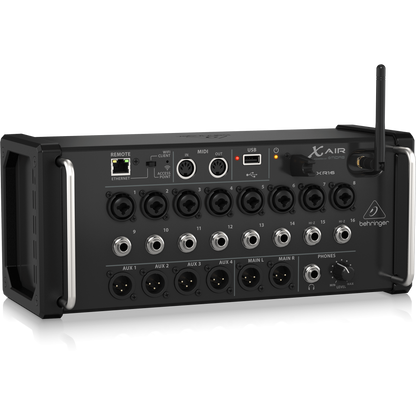

Behringer XR16 Rackmount 16-Input Digital Mixer
Behringer XR16 Rackmount 16-Input Digital Mixer
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
Limited quantities available!
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews

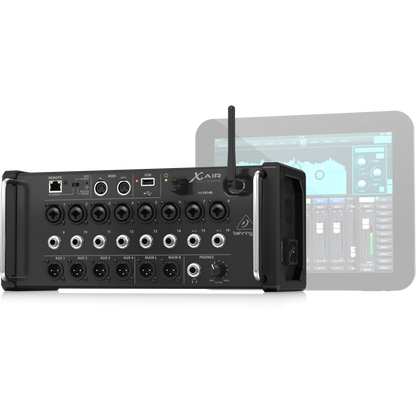

Find out what hundreds of thousands of studio and live sound engineers, DJs, MCs, and musicians already know. Behringer’s XR Air series of digital mixers eliminate the need for a bulky mixing desk, effects rack, mic snake, or device slowing plug-ins, all in one rugged stage box/rack-mountable solution. Connect your laptop, Android, iOS tablet, or smartphone via onboard Ethernet, USB, or onboard Wi-Fi to control the entire mixing environment from any part of the venue, including the stage—a game-changing feature for live acts that perform without a dedicated sound engineer.

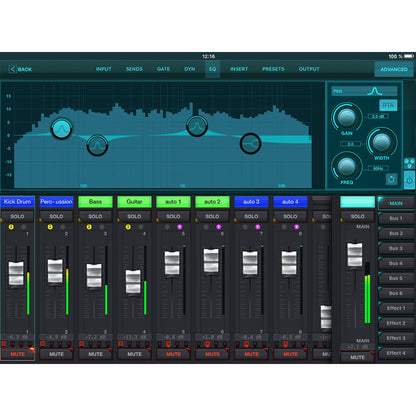

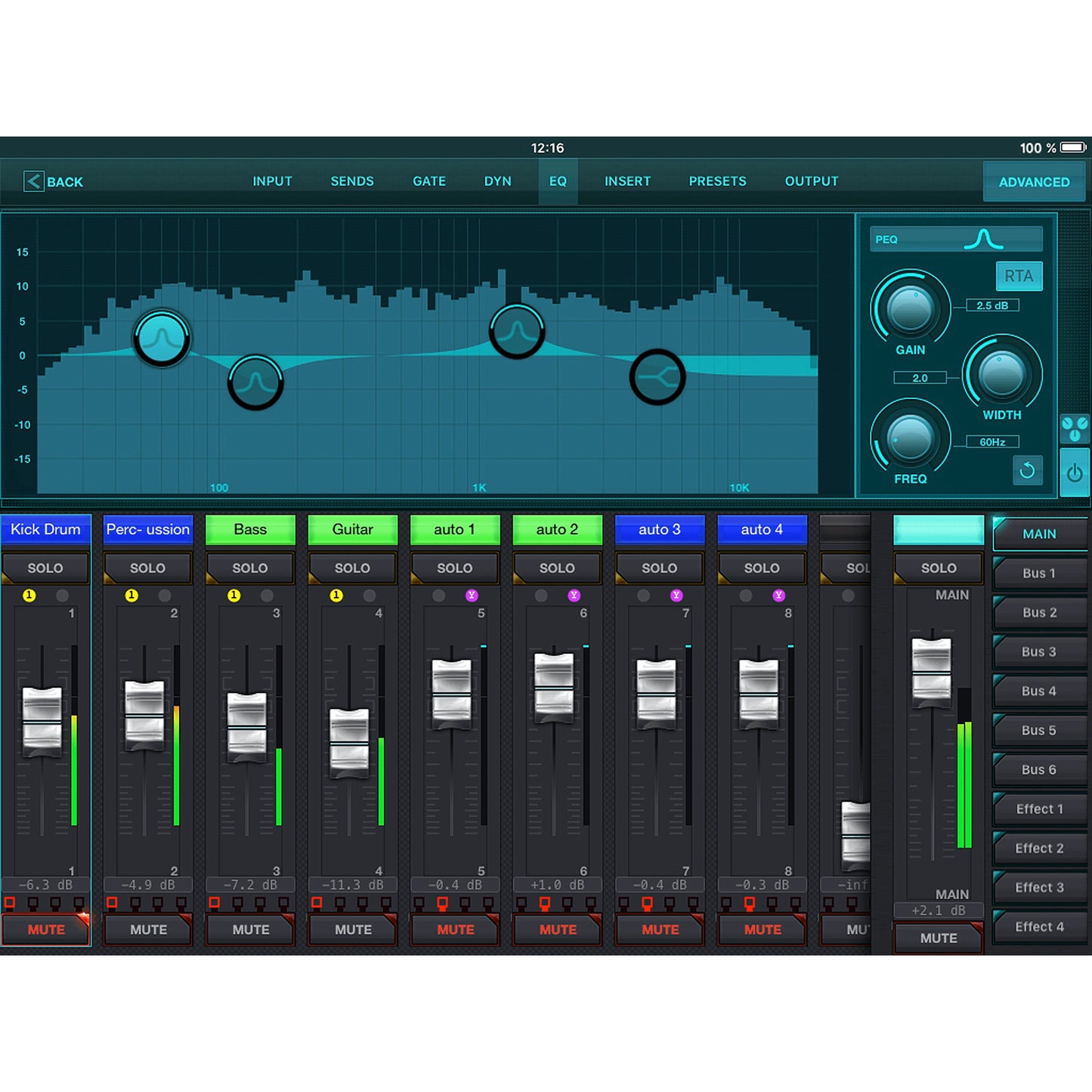

Each channel features a pre-set enabled 4-band parametric EQ, low-cut filter, compressor, limiter, noise gate, and more. The 100-band RTA (real-time analyzer) acts like an extra hand at the board, helping you boost or cut frequencies on the edge of rumble or unwanted feedback. Award-winning virtual Midas pre-amps bring time-tested performance to your dynamic stage mics or high-end studio condensers.
The on-board FX’s suite allows easy use of 4 (or 8 mono) simultaneous studio quality stereo modeling engines packed with digital delays, lexicon-designed reverbs, aural exciters, and more—plus several vintage styles, and 31-band parametric Equalization.
| Product Name | Behringer XR16 Rackmount 16-Input Digital Mixer |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | XR16 |
| UPC | 748252150943 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Behringer XR16 Rackmount Digital Mixer

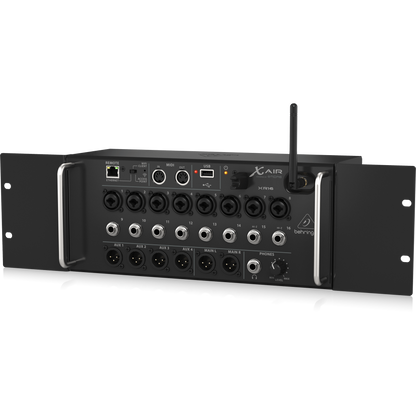

- Rack Ears
- Protective Bumpers
The X-Air XR16 is the mid-sized version of Behringer’s XR-Air series tablet-controlled all-in-one digital mixers.
Features include:
- 16 Inputs: (8) XLR-1/4" combo mic-preamps, 6- 1/4" and 2- 1/4" Hi-Z channels).
- Outputs- (2) 1/4” XLR, variable headphone line-out
- Other: (4) XLR auxiliary out
- 1 USB/Flash drive for recording/live playback
- Variable Headphone line-out
- MIDI-In/Out
- Phantom Power
Processing |
|
|---|---|
| Number of processing channels | 16 input channels, 1 stereo USB return channel, 4 stereo FX return channels, 6 aux buses, main LR |
| Internal effects engines | 4 true stereo |
| Signal processing | 40-bit floating point |
| A/D-D/A conversion (Cirrus Logic A/D CS5368, D/A CS4385) | 24-bit @ 44.1 / 48 kHz, 114 dB dynamic range |
| Analog I/O latency* | 0.8 ms |

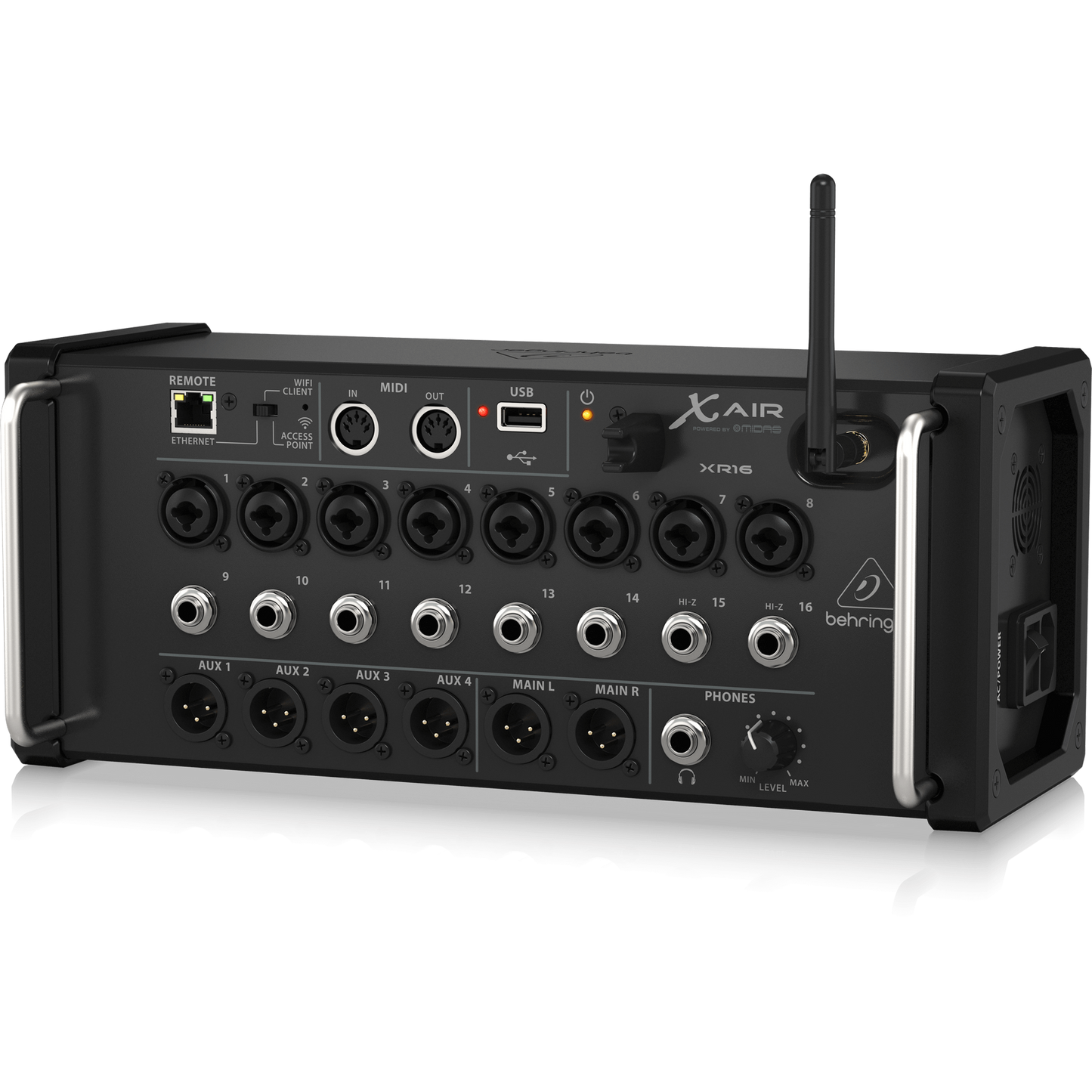

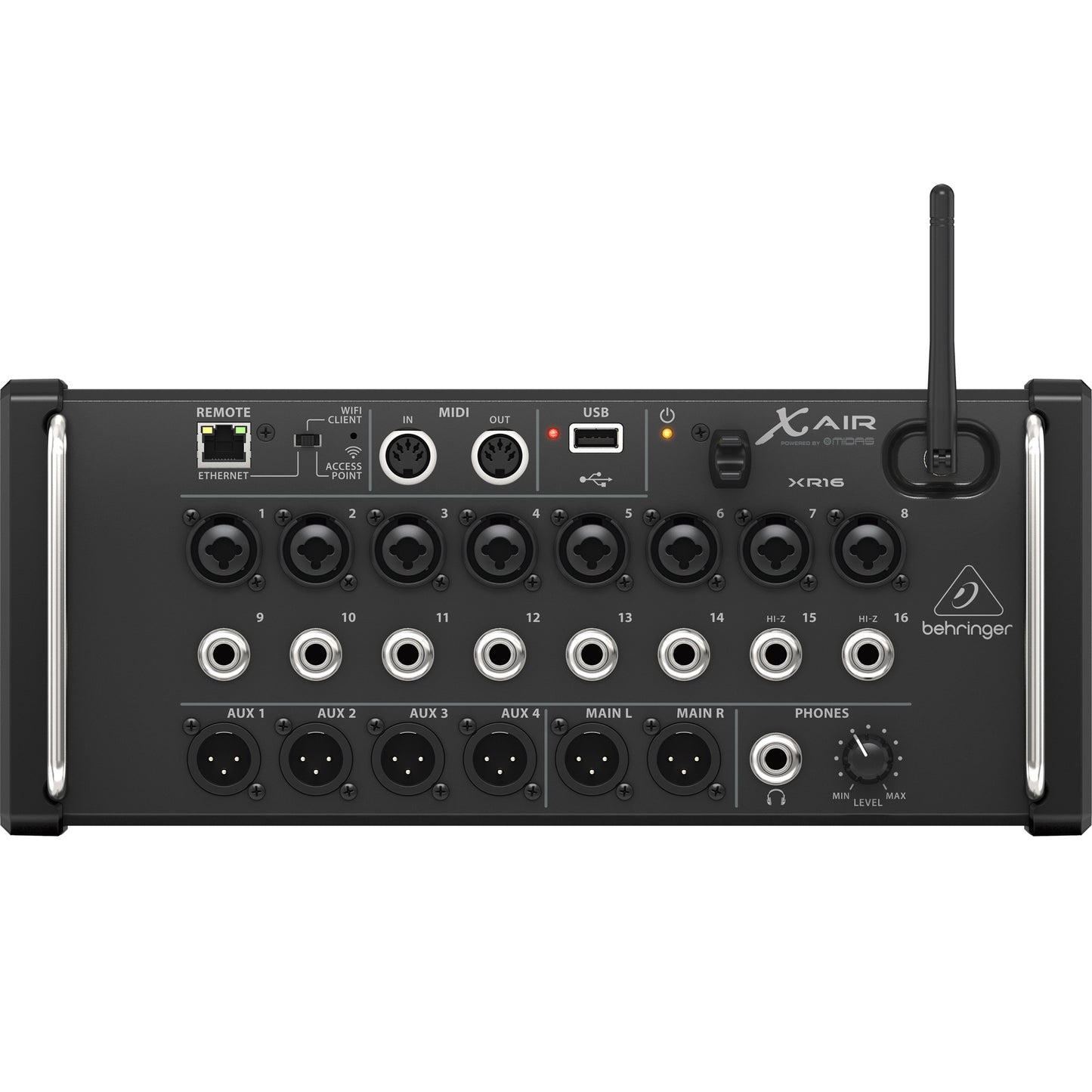

Connectors |
|
| Programmable mic preamps, designed by Mida | 8 XLR/TRS combo jacks, balanced |
| Line inputs | 8 TRS, balanced |
| Main outputs | 2 XLR, balanced |
| Aux outputs | 4 XLR, balanced |
| Phones outputs | 1 TRS |
| MIDI inputs / outputs | 1/1 DIN |
| Ethernet | 1 RJ45 |
| USB port | Type A |
Mic Input Characteristics |
|
| Preamp design | Midas |
| THD + noise, 20 dB gain, 0 dBu out | < 0.005%, A-weighted |
| Phantom power, switchable per input | 48 V |
| Equivalent input noise level, XLR (input shorted) | -128 dBu, A-weighted |
| CMRR, XLR, @ 20 dB gain (typical) | >60 dB |
| CMRR, XLR, @ 40 dB gain | >65 dB |
Input/Output Characteristics |
|
| Frequency range, @ 48 kHz sample rate, 0 dB to -1 d | 10 Hz - 22 kHz |
| Dynamic range, analog mic in to analog out (typical) | 105 dB |
| A/D dynamic range, mic preamp to converter (typical) | 109 dB |
| D/A dynamic range, converter and output | 108 dB |
| Cross talk rejection @ 1 kHz, adjacent channels | 90 dB |
| Mic input impedance XLR jack, unbal. / bal. | 5 kΩ / 10 kΩ |
| Non clip maximum input level, XLR | +23 dBu |
| Hi-Z input impedance TRS jack, unbal. / bal. | 1 MΩ / 2 MΩ |
| Line input impedance TRS jack, unbal. / bal. | 20 kΩ / 40 kΩ |
| Non clip maximum input level, TRS | +21 dBu |
Output Characteristics |
|
| Output impedance, XLR, unbal. / bal. | Output level, XLR, nom./max. |
| Output impedance, TRS, unbal. / bal. | Output level, TRS, nom./max. |
| Phones output impedance / level | |
| Residual noise level, XLR and TRS | -92 dBu, A-weighted |
WLAN Module |
|
| Antenna | External, SMA connector, 50 Ω |
| Access Point, number of clients | Max. 4 |
| IEEE 802.11 b/g standard | 2.4 GHz |
| Frequency Range | 2,412-2,462 MHz |
| WLAN channels (Wifi Client, Access Point) | 1-11 / 1-11 |
| Max Output Power | 19 dBm (802.11b) / 18 dBm (802.11g) |
Power |
|

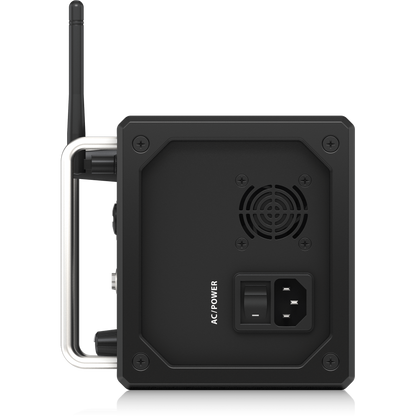

| Switch-mode power supply | Autorange 100-240 V, (50/60 Hz) |
| Power consumption | 30 W |
Physical |
|
| Standard operating temperature range | 5°C – 40°C (41°F – 104°F) |
| Dimensions | 333 x 149 x 140 mm (13.1 x 5.9 x 5.5 in) |
| Weight | 3.0 kg (6.6 lb) |
