This device boasts a genuine analog sound processing system meticulously designed with premium-grade military NOS Soviet vacuum tubes, low noise FET-input Burr-BrownTM opamps, hand matched inductors, capacitors and in-house manufactured Bettermaker TT-1 audio transformers. All designed, developed and built by our talented team in Poland.
The transformers represent the closest substitute to renowned vintage models, ensuring a distinguished auditory experience characterized by minimal harmonic distortion, particularly in the lower frequency range. For those seeking an enhanced warmth in sound, we recommend activating the "HEAT" mode.
| Product Name | Bettermaker Valve Stereo Passive Equalizer |
|---|---|
| Brand | Bettermaker |
| MPN | vspe |

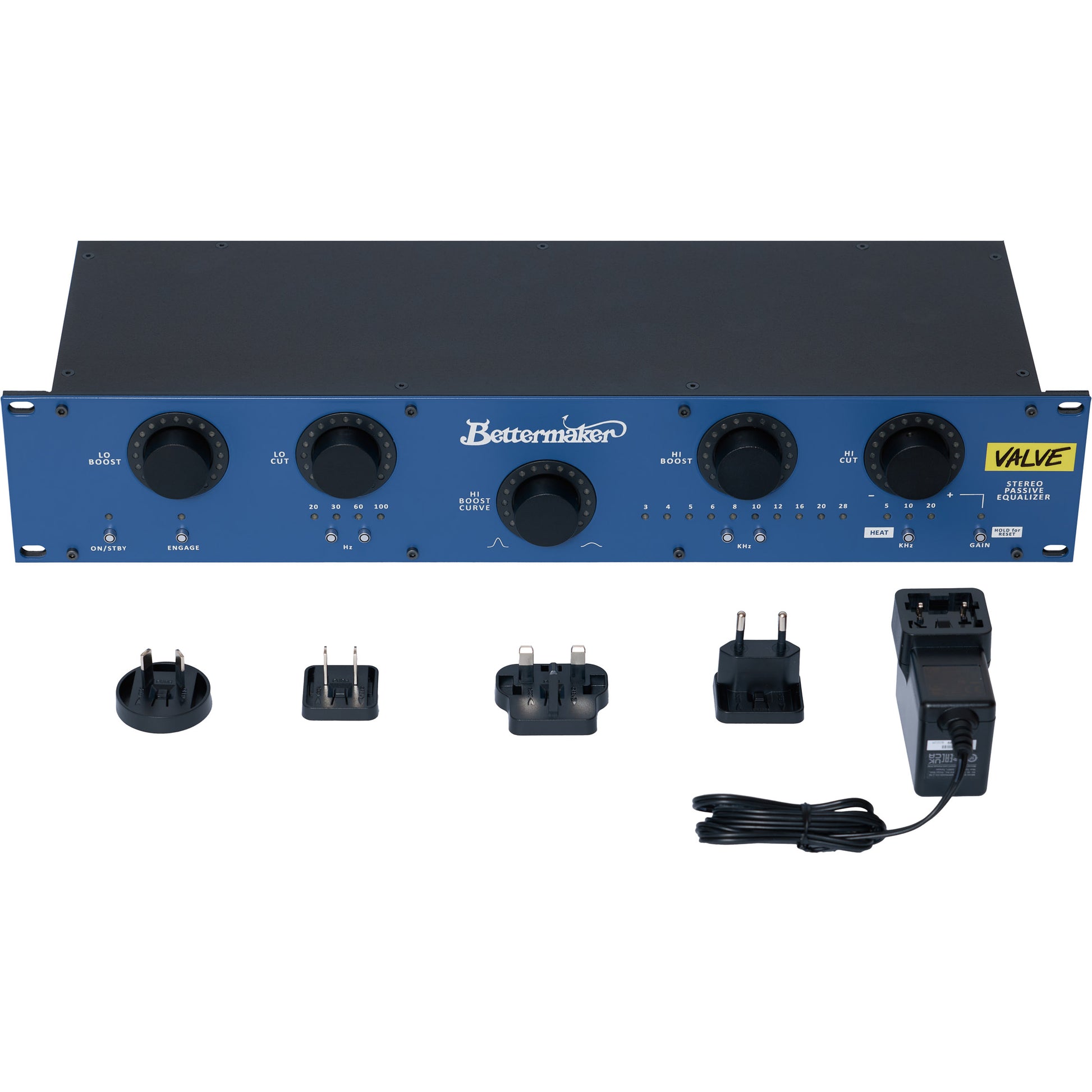

What's in the Box?
- Bettermaker Valve Stereo Passive Equalizer
- Digitally controlled analog Stereo Passive Equalizer with transformer output and vacuum tube drive stage. Maximum input level: +24 dBu (balanced with 48kΩ input impedance)
- Maximum output level: +22 dBu
- Output impedance: 120Ω (30Ω with HEAT activated - Bettermaker TT-1 transformer balanced)
- Nominal audio level: +4 dBu
- Max LF boost: 15 dB (set to 100 Hz)
- Max LF cut: 16 dB (set to 100 Hz)
- Max HF boost: 18 dB (all frequencies)
- Low boost/cut frequencies: 20, 30, 60, 100 Hz
- High boost frequencies: 3, 4, 5, 6, 8, 10, 12, 16, 20, 28 kHz
- High cut frequencies: 5, 10, 20 kHz
- Control Resolution: 101 steps (Lo Boost, Lo Cut, Hi Boost, Bandwidth) & 34 steps (Hi Cut) Control Resolution in Quantize mode: 17 steps for all controls
- Output gain: +/- 8 dB (0.1 dB resolution; 1 dB in Quantize mode)
- Input level metering range: -15dBu to +24dBu (bottom yellow dot = +4dBu)
- Unit height: 2U
- Unit depth: 140 mm
- Unit weight without cables and PSU: 2.7kg
- AC power consumption: 18W (2W in standby, with included 100-240VAC power adapter)
- Shipping weight & dimensions: 3.5kg, 60x30x20 cm

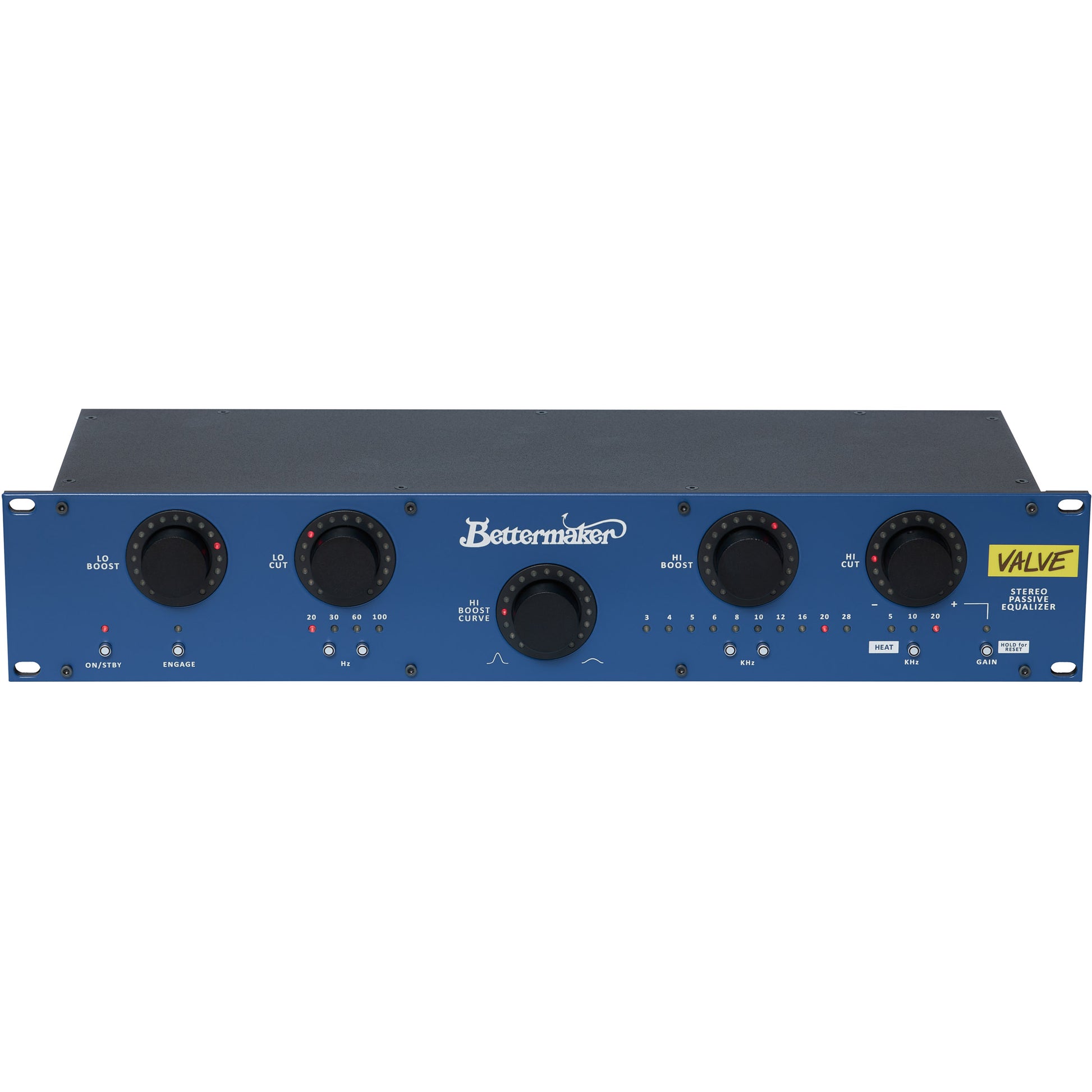

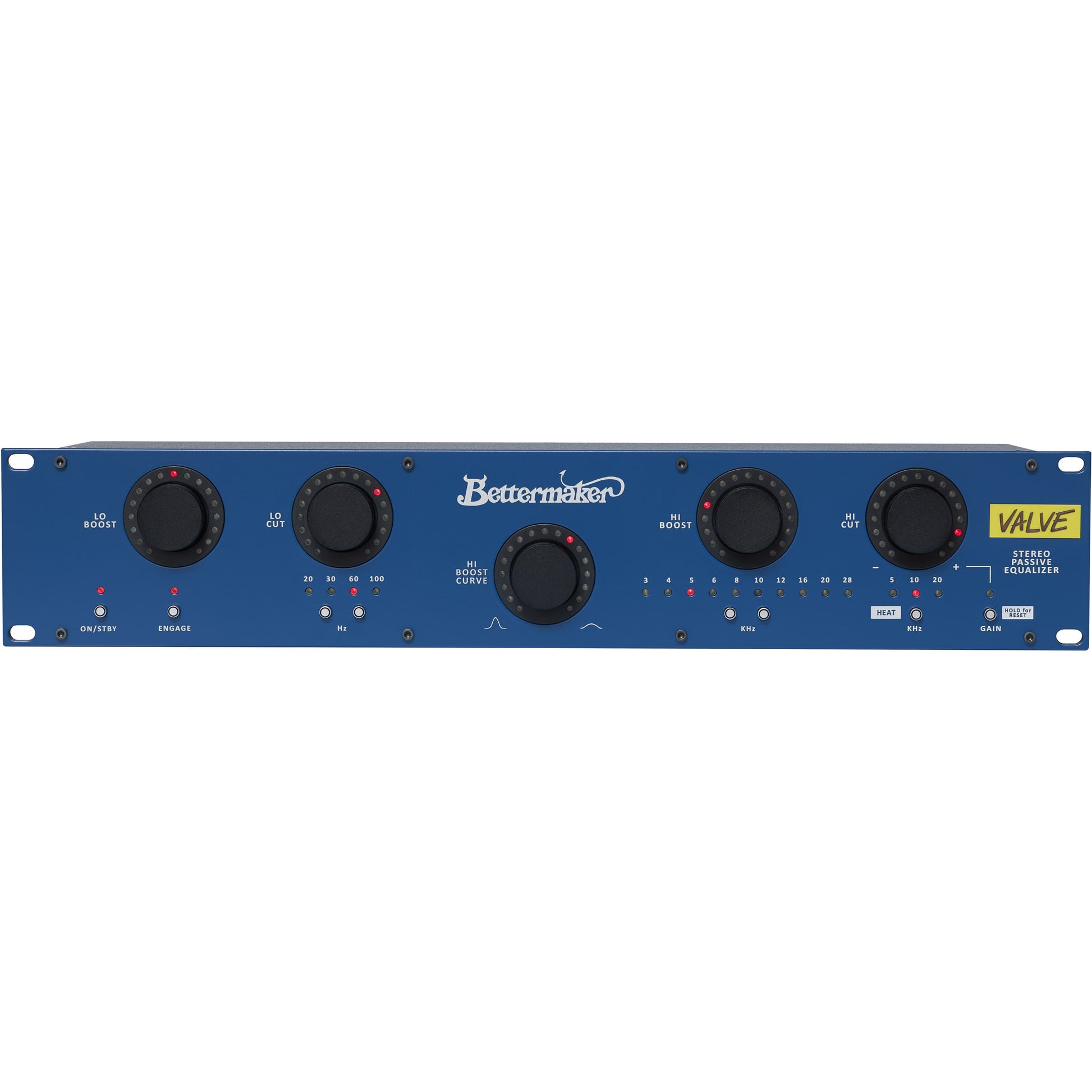

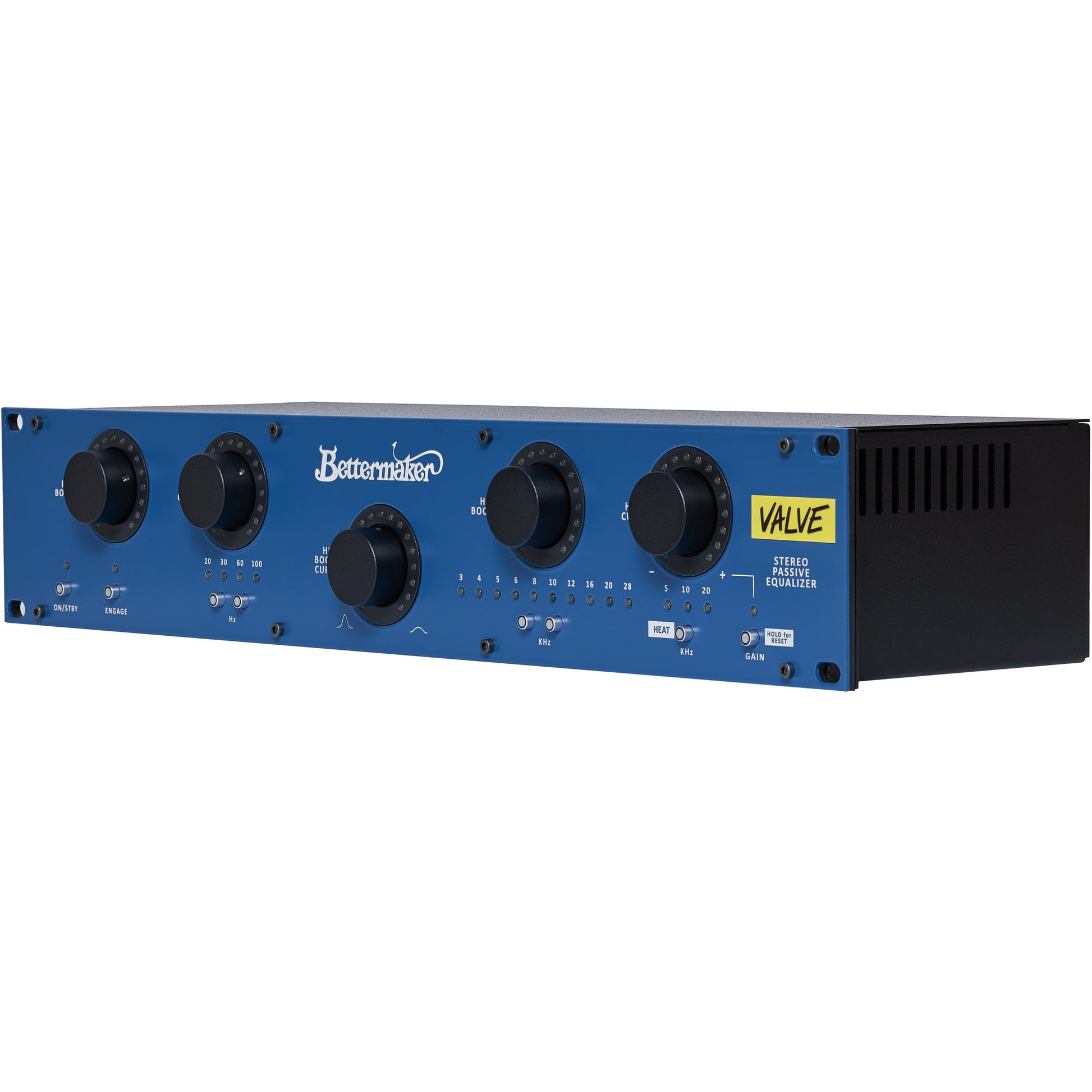

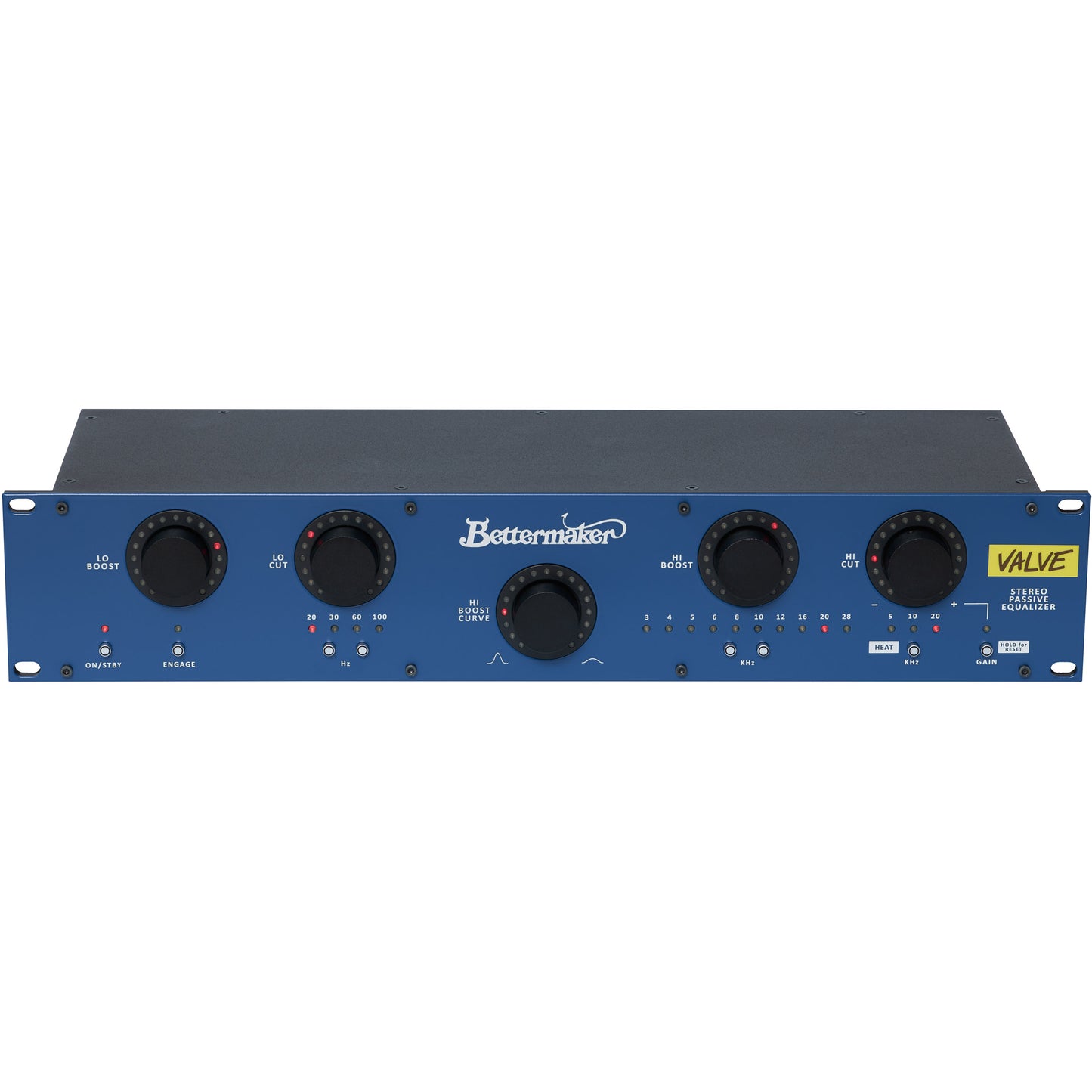

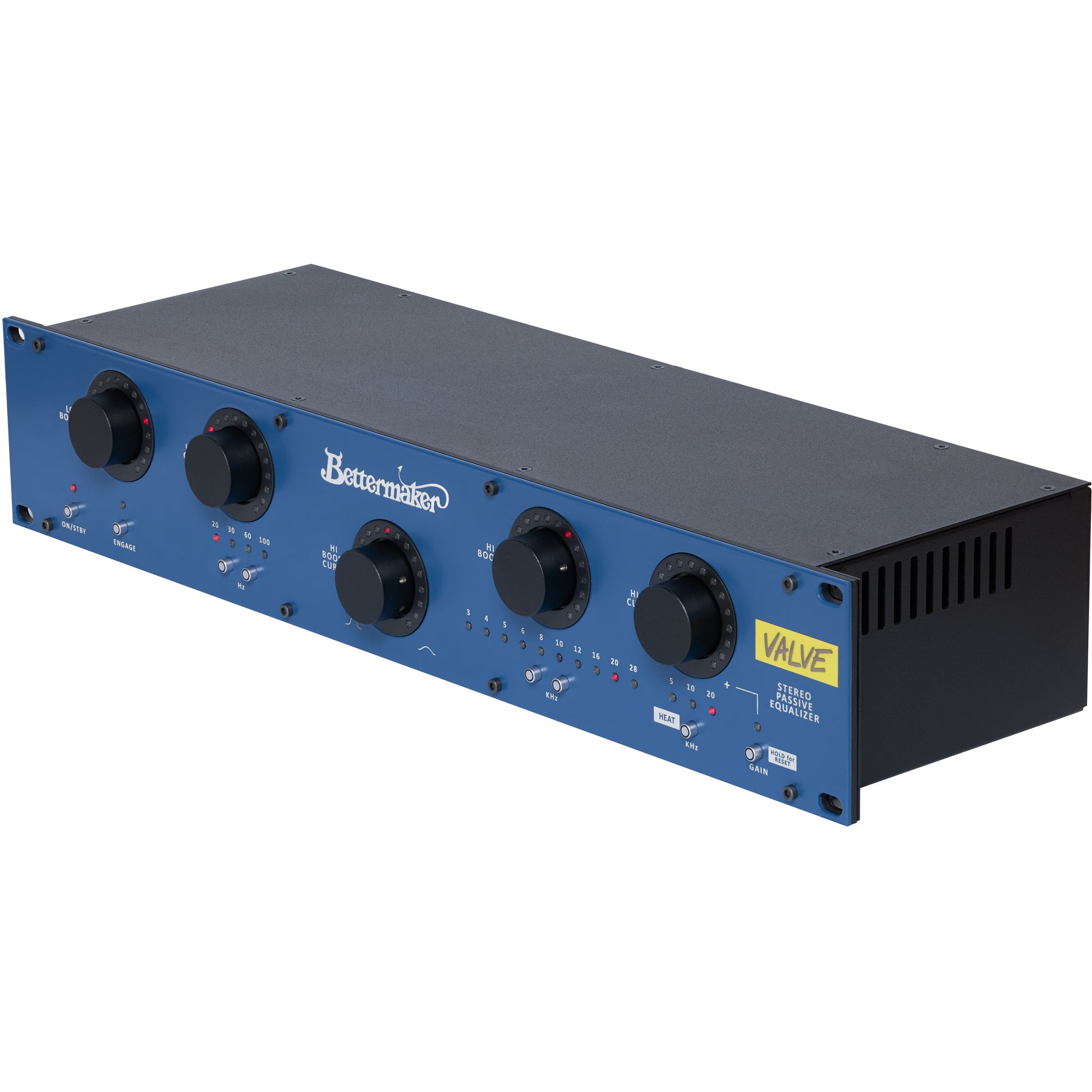

Bettermaker Valve Stereo Passive Equalizer
This device boasts a genuine analog sound processing system meticulously designed with premium-grade military NOS Soviet vacuum tubes, low noise FET-input Burr-BrownTM opamps, hand matched inductors, capacitors and in-house manufactured Bettermaker TT-1 audio transformers. All designed, developed and built by our talented team in Poland.
The transformers represent the closest substitute to renowned vintage models, ensuring a distinguished auditory experience characterized by minimal harmonic distortion, particularly in the lower frequency range. For those seeking an enhanced warmth in sound, we recommend activating the "HEAT" mode.
| Product Name | Bettermaker Valve Stereo Passive Equalizer |
|---|---|
| Brand | Bettermaker |
| MPN | vspe |
What's in the Box?
Bettermaker Valve Stereo Passive Equalizer- Digitally controlled analog Stereo Passive Equalizer with transformer output and vacuum tube drive stage. Maximum input level: +24 dBu (balanced with 48kΩ input impedance)
- Maximum output level: +22 dBu
- Output impedance: 120Ω (30Ω with HEAT activated - Bettermaker TT-1 transformer balanced)
- Nominal audio level: +4 dBu
- Max LF boost: 15 dB (set to 100 Hz)
- Max LF cut: 16 dB (set to 100 Hz)
- Max HF boost: 18 dB (all frequencies)
- Low boost/cut frequencies: 20, 30, 60, 100 Hz
- High boost frequencies: 3, 4, 5, 6, 8, 10, 12, 16, 20, 28 kHz
- High cut frequencies: 5, 10, 20 kHz
- Control Resolution: 101 steps (Lo Boost, Lo Cut, Hi Boost, Bandwidth) & 34 steps (Hi Cut) Control Resolution in Quantize mode: 17 steps for all controls
- Output gain: +/- 8 dB (0.1 dB resolution; 1 dB in Quantize mode)
- Input level metering range: -15dBu to +24dBu (bottom yellow dot = +4dBu)
- Unit height: 2U
- Unit depth: 140 mm
- Unit weight without cables and PSU: 2.7kg
- AC power consumption: 18W (2W in standby, with included 100-240VAC power adapter)
- Shipping weight & dimensions: 3.5kg, 60x30x20 cm
