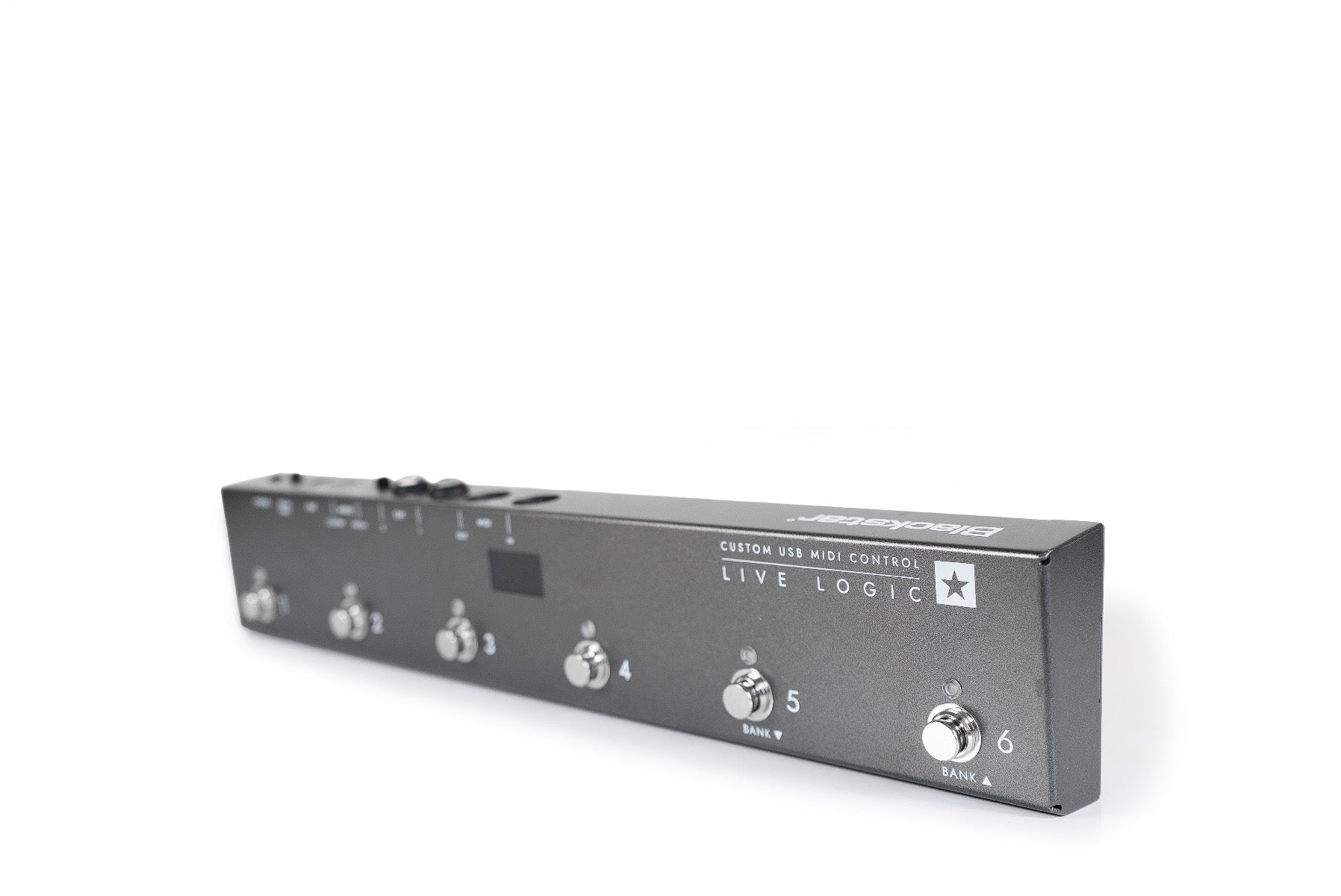

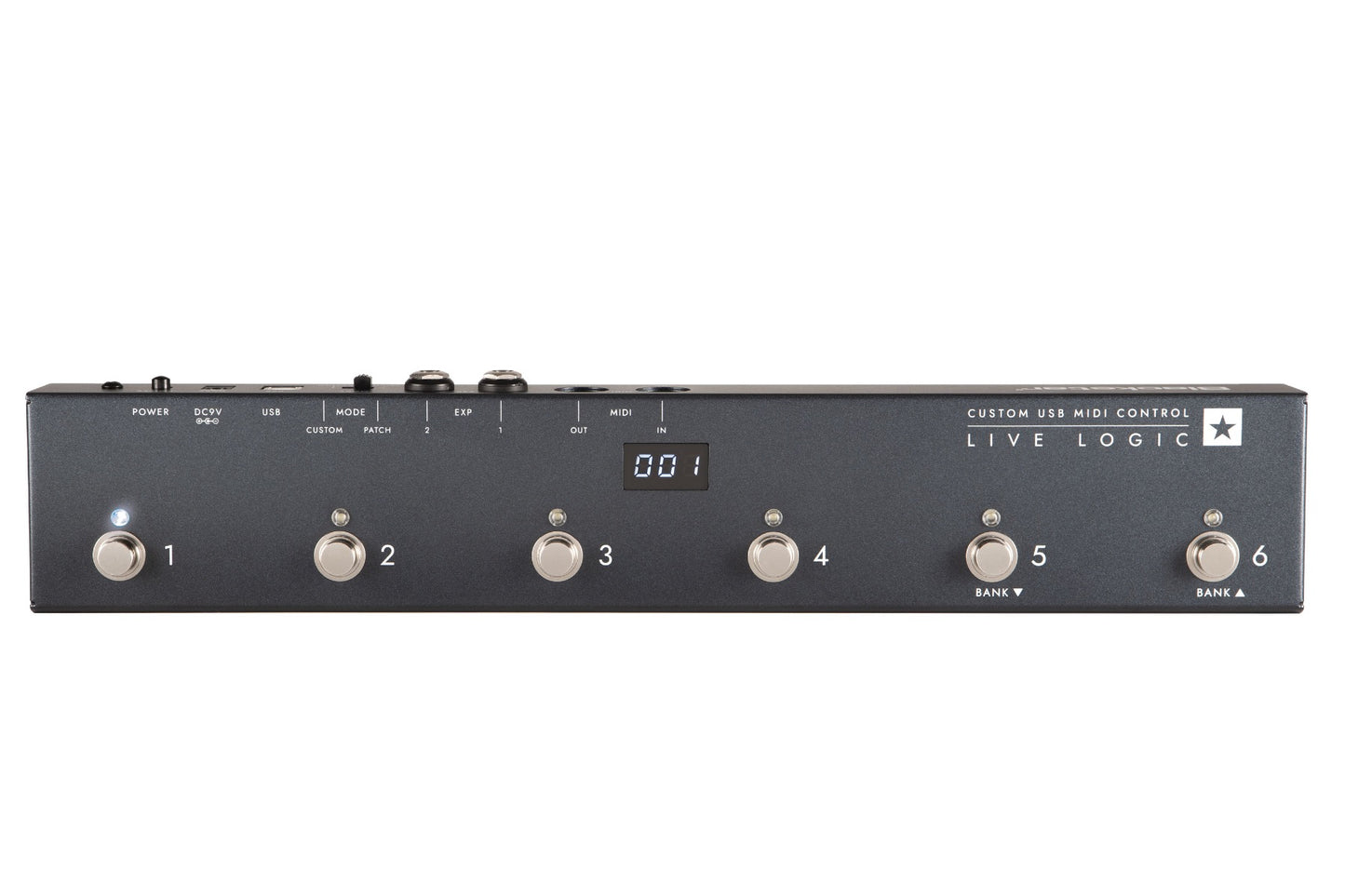

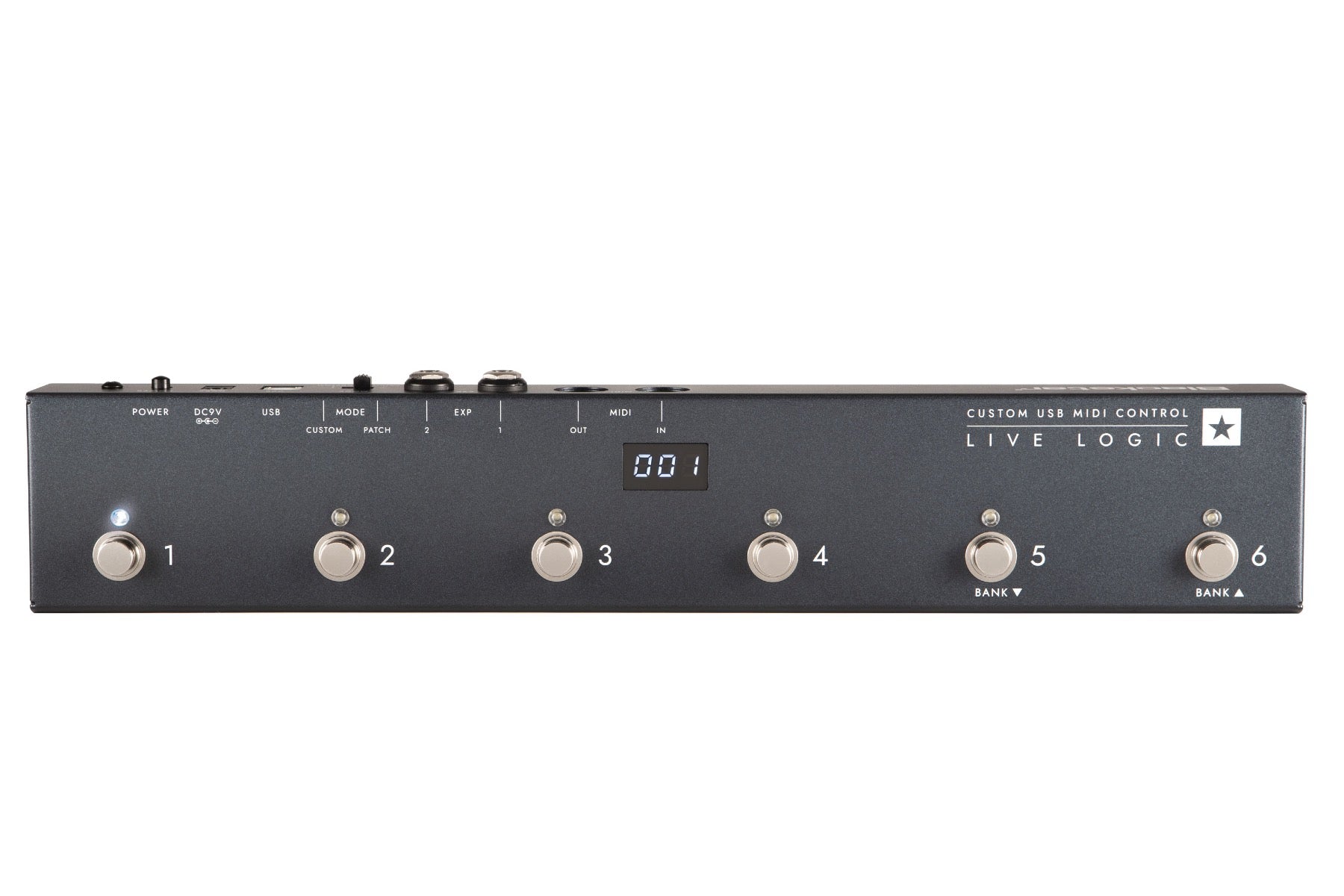

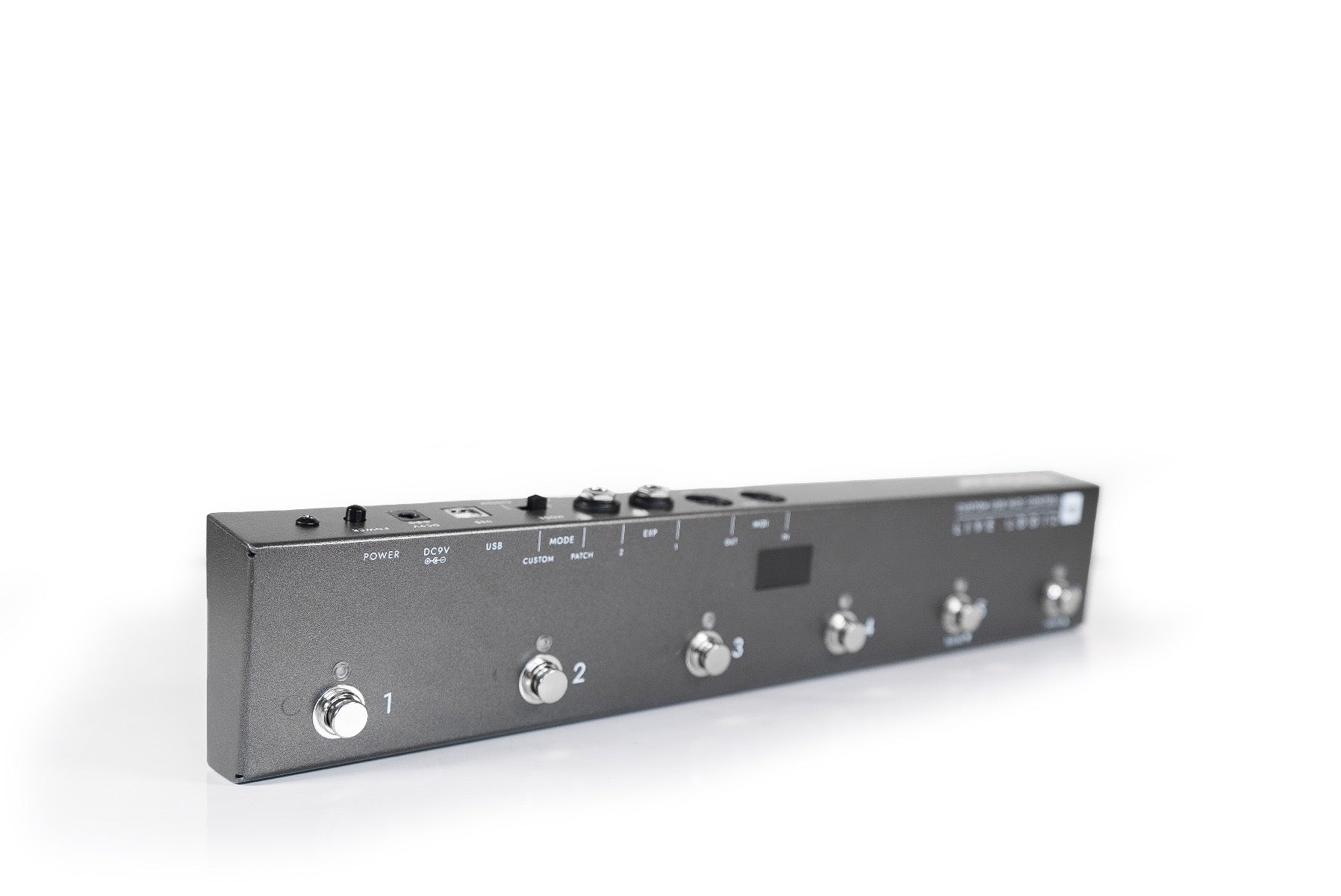

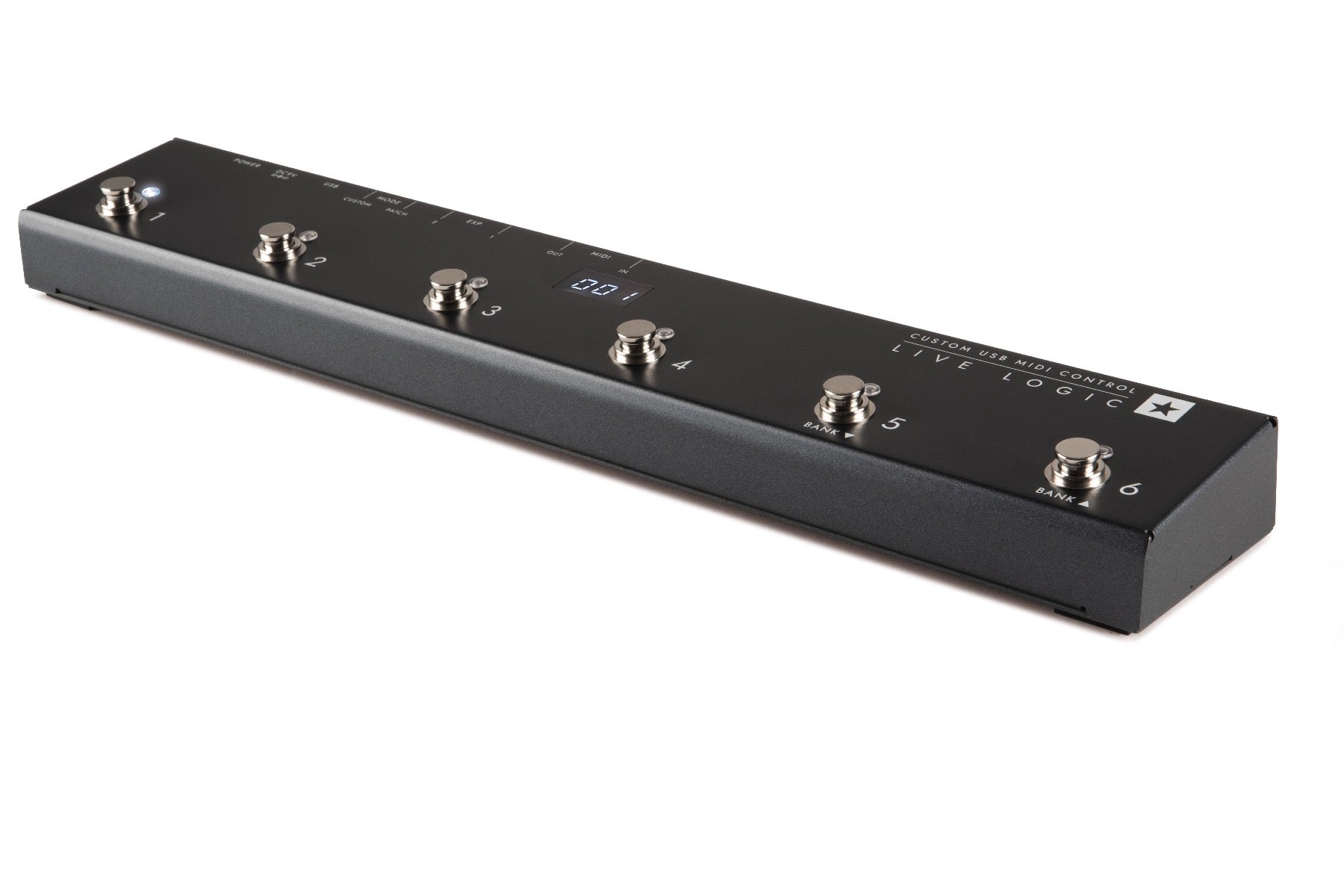

The Live Logic MIDI footcontroller gives you quick and easy performance control of any MIDI hardware or software platforms and plugins. MIDI over USB, assignable functions and two expression pedal inputs make it the perfect MIDI control solution and it can also be used as your USB MIDI interface.

There are two modes: Patch and Custom. Patch mode sets up the footswitches to send MIDI Program Change messages. Switches 1-4 send Program Change messages, and 5 and 6 will Bank up and Bank down, allowing access to 127 different patches. You can even set whether they should be arranged as 0-127 or 1-128 depending on the type of equipment you’re connecting to.

When in Custom mode, all 6 switches can be individually configured to any type of MIDI message you need, whether that’s Program Change for switching patches, Control Change for changing individual parameters, Note for triggering samples or Clock for synchronising the tempo of multiple time-based gear. There are also two expression pedal inputs for continuous control of MIDI parameters.

ENDLESS POSSIBILITIES WITH USB

Power it anywhere via USB, 9V battery or power supply.

The Live Logic Custom USB MIDI footcontroller’s MIDI over USB functionality easily gives you powerful performance control of DAWs, plugins and live sequencer/sampling software like Ableton LiveTM.

Live Logic can also be used as your USB MIDI interface to integrate any non-USB MIDI devices into a USB setup.

• 6-button MIDI Footcontroller
• 2 x expression pedal inputs
• Controls PC, CC, Note and Clock messages
• MIDI over USB for use with DAWs and plugins
• PP3 battery, 9V DC and USB bus powered
• Customisable MIDI messages via free software
• Program Change Messages 0-127 / 1-128
• Stage visible multi-function LED display

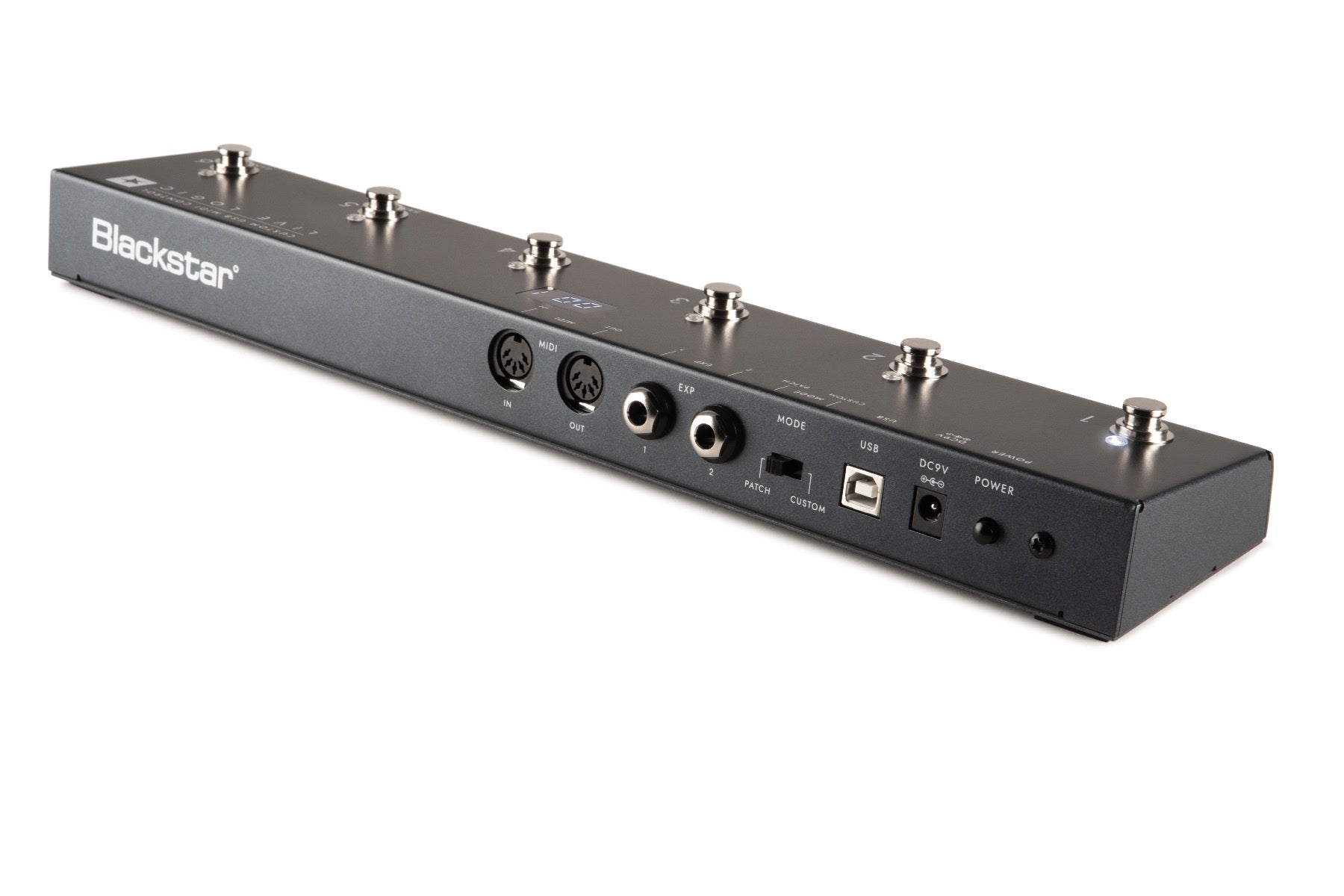

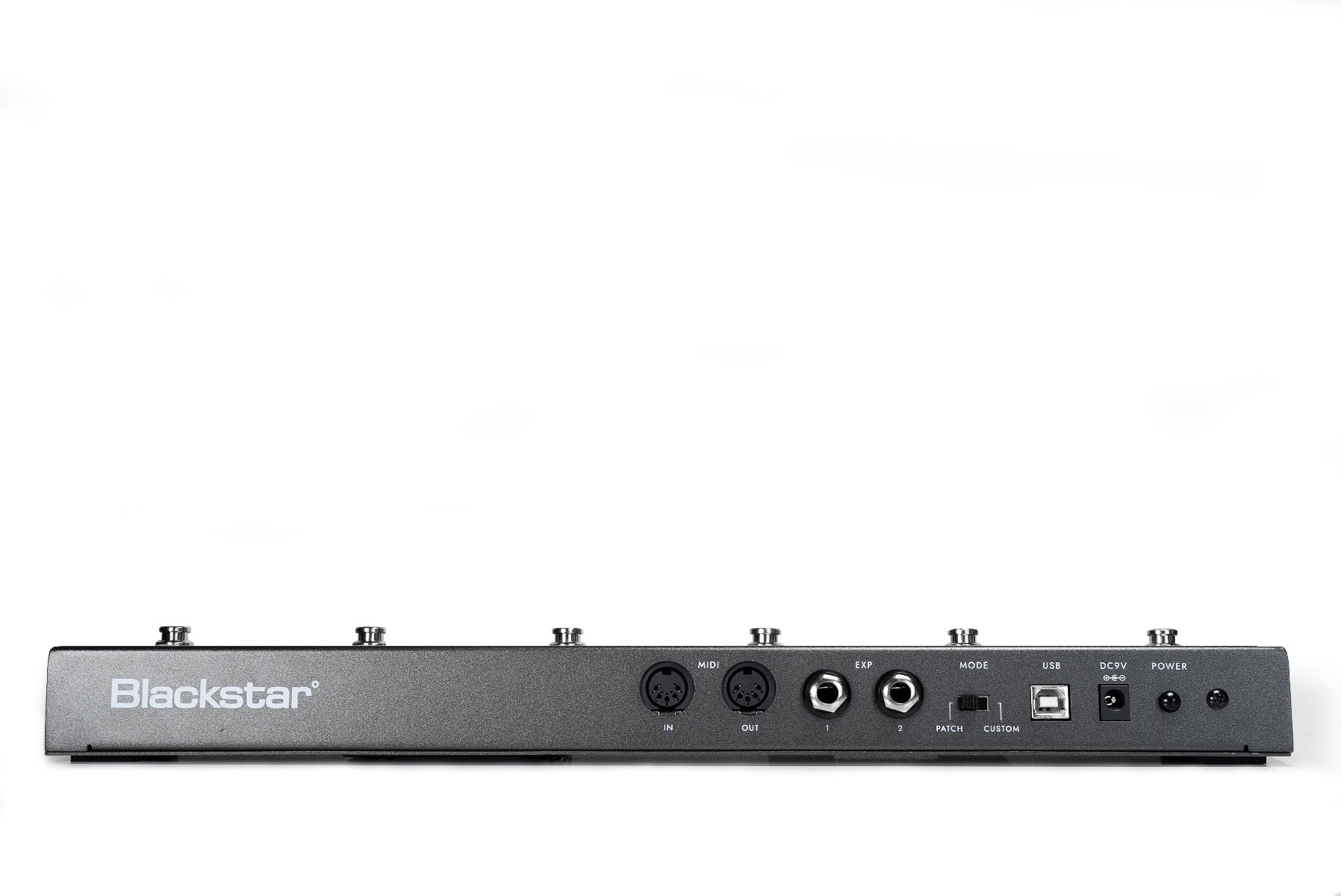

• MIDI IN, MIDI OUT and USB
• Dimensions 396 x 37 x 74mm
