Burl Audio B80-BDA8 8-Channel DAC Card for B80

Name: Burl Audio B80-BDA8 8-Channel DAC Card for B80
Brand: Burl
SKU: BDA8
Price: 1885.5 USD
Availability: InStock

$1,885.50

~~$2,095.00~~ $1,885.50

Sale Sold out

+ Free Shipping

New: $1,885.50

Product variants

On order with the manufacturer!

Burl BDA8 8 Channel DAC Card for B80. â¢ 44.1k Hz to 192k Hz, 24 bit, 4 channel ADC â¢ Circuit path based on B2 Bomber DAC

View full details

Details
Features
Reviews

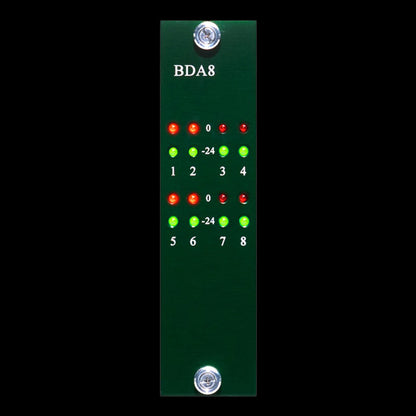

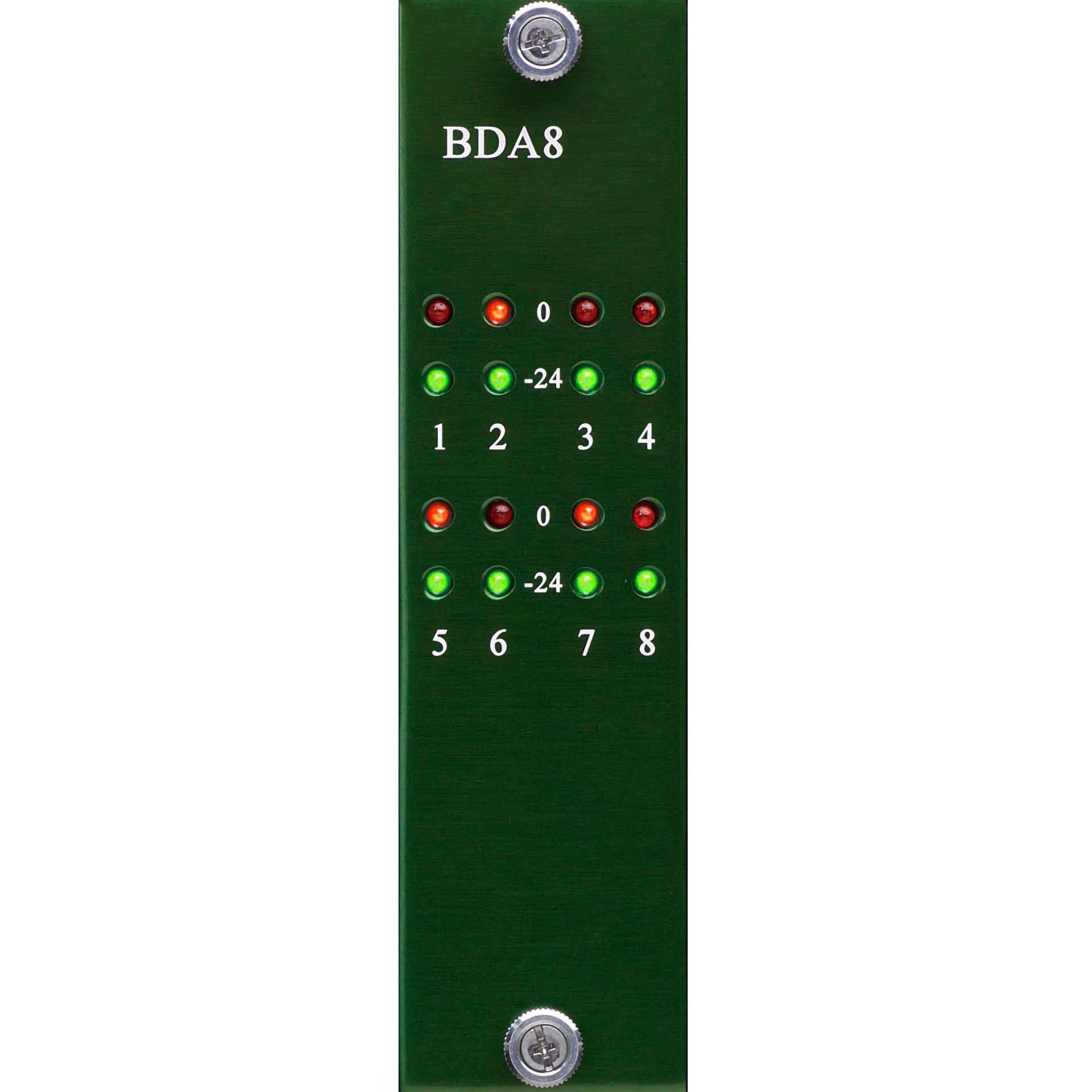

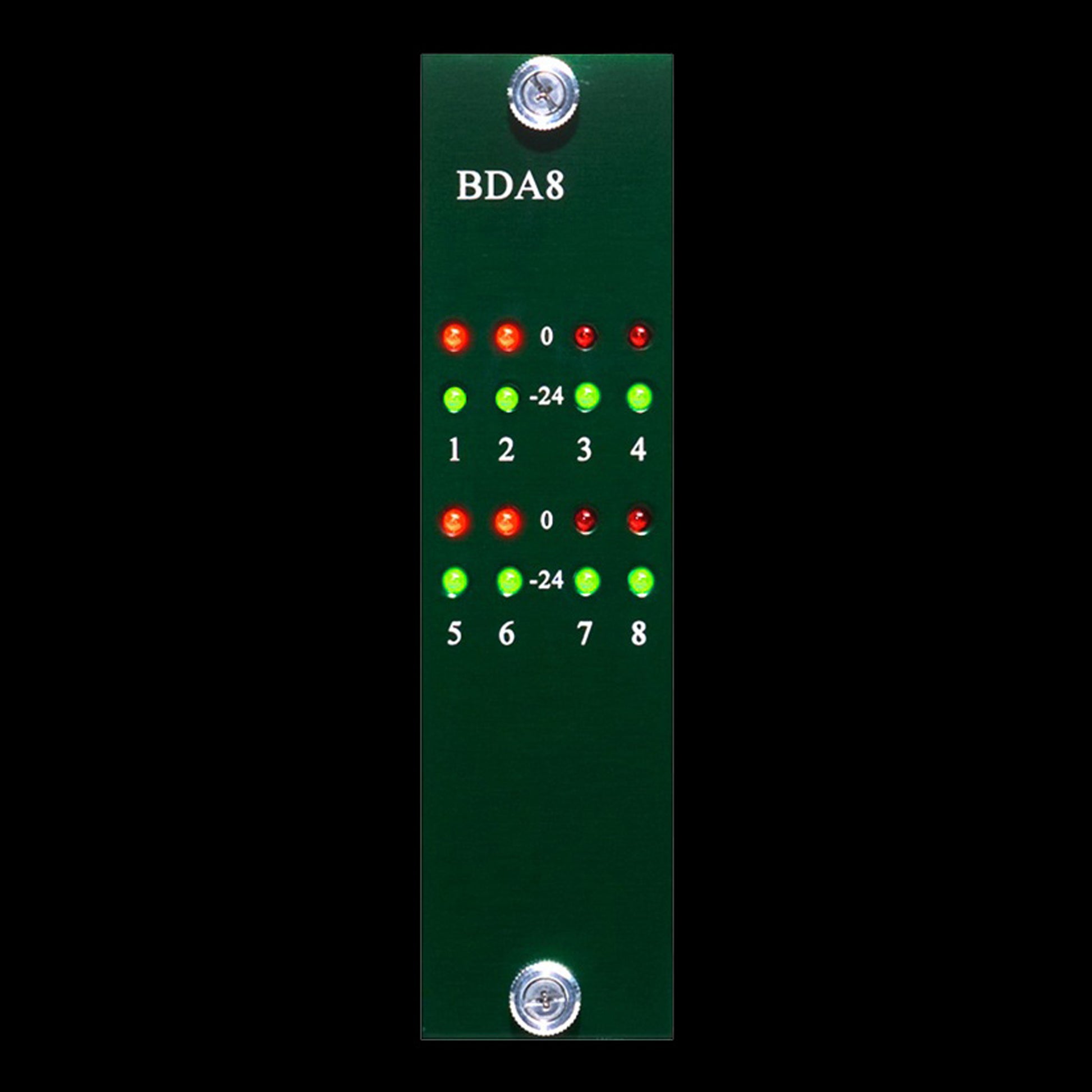

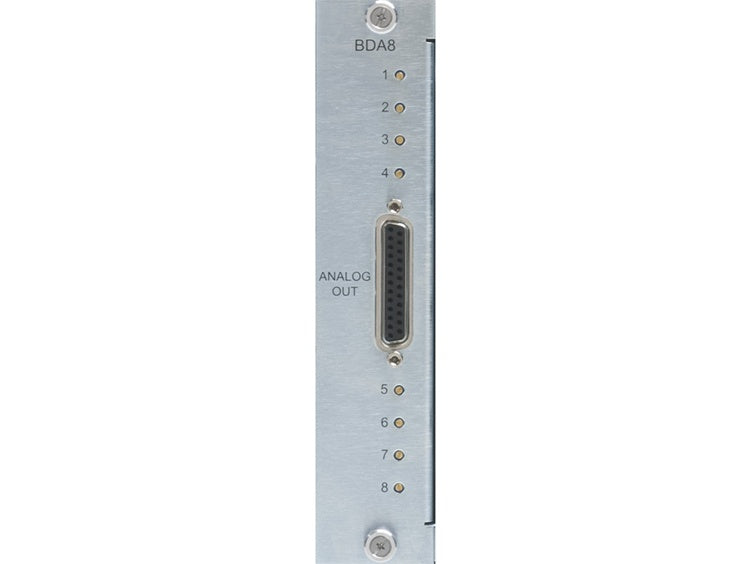

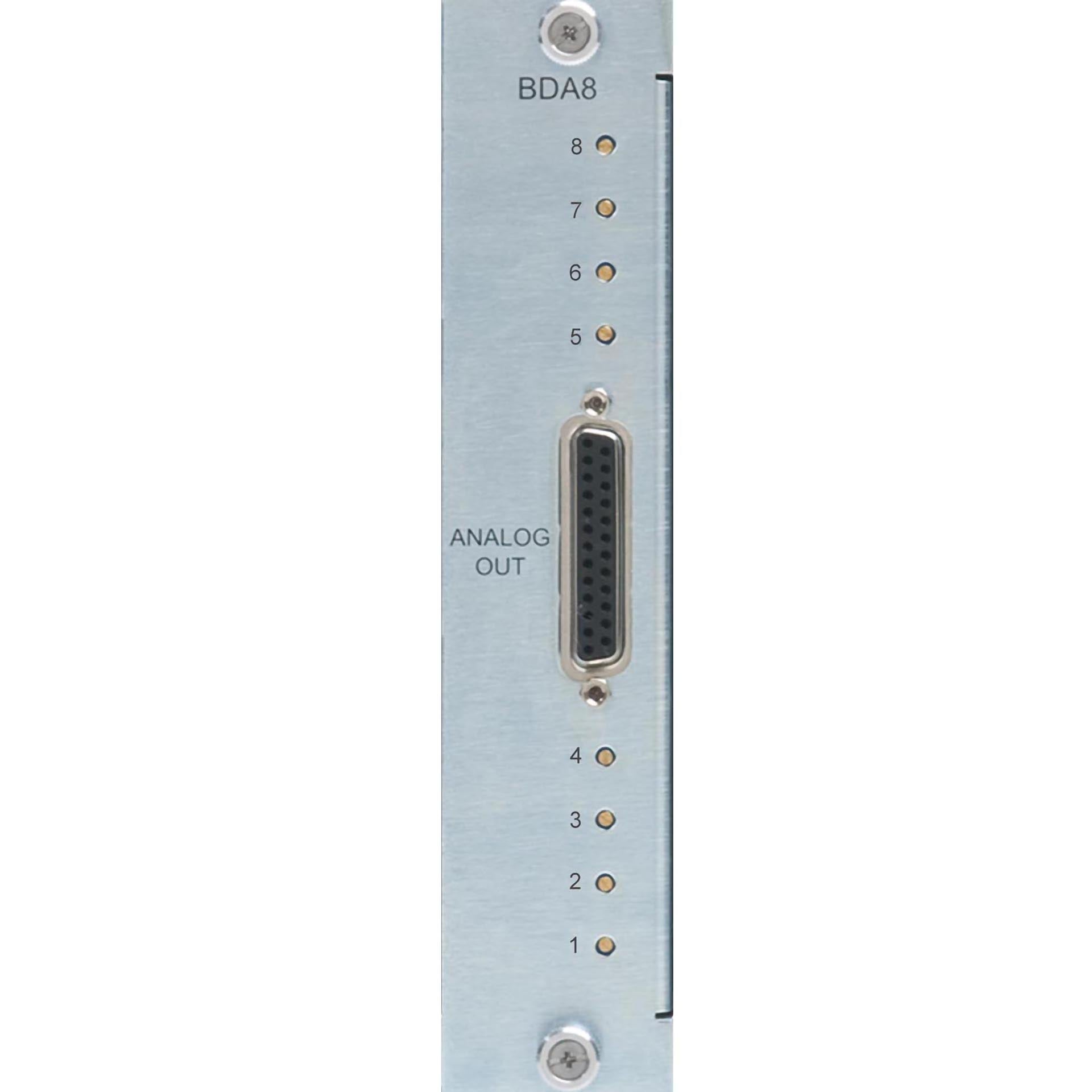

Burl BDA8 8 Channel DAC Card for B80

BDA8, 8-channel DAC

• 44.1k Hz to 192k Hz, 24 bit, 4 channel ADC

• Circuit path based on B2 Bomber DAC

• Latest Burl Audio BOPA2, OP-AMP

• All class A, discrete transistors signal path, zero caps

• DSUB 25 connectivity

B80 Mothership

BAD4 4 Channel Card

More Information
Product Name	Burl Audio B80-BDA8 8-Channel DAC Card for B80
Brand	Burl
Condition	New
MPN	BDA8
UPC	853224003063
Shipping Option	Free Shipping to the Continental U.S.

8-channel DAC
8-channel DSUB connectivity
All class-A, NextGen Analog BOPA14 op-amps
Avid delay matching
DAC filter select
Frequency response at 48kHz sample rate is 10Hz to 22kHz, +/- 0.1dB
Frequency response at 96kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -0.3 dB @ 40kHz
Frequency response at 192kHz sample rate is 10Hz to 30kHz, +/- 0.1dB, -1.5 dB @ 90kHz
115dB Dynamic Range
-96dB THD+N, full scale output = +22dBU
Rugged, Made in USA design
