buzz audio heritage
Designed to provide transparent amplification to reveal the true source, they do not come any better than this. If you wish to record your sounds with the utmost warmth and clarity possible, you have found the tool for the job.
audio path quality
The circuitry used in the MA-2.2 preamp was developed by Tim Farrant in the 1990's and was dubbed "True Class A". The resulting BE40 series of amplifiers exhibit very wide frequency response (into the mega-hertz ) and ultra fast slew rates (140V/uS) even at 60dB of gain. These attributes, plus the inherently low distortion provide the exceptionally pure top end sound of the MA-2.2. In additon, the over engineered power supply design with localized Class A regulators for each amplifier stage supplies the grunt needed for an authoritive and accurate bottom end.
applications galore
As many of our users have discovered, the MA-2.2 sounds amazingly vibrant when recording acoustic guitar and percussion. It is equally at home on vocal and piano duties - you will also be very surprised how good a kick drum can sound using this preamp. One could say, there is not much this preamp cannot record well! The transformer-less low reactance input stage with a Wima capacitor stack matches well with all microphones types and the noise specification is within 0.5dB of the theoretical minimum possible, so ribbon and dynamic mics' are no problem for this preamp.
Product Name | buzz audio MA-2.2 Mic Pre |
---|---|
Brand | Buzz Audio |
Condition | New |
MPN | ma2.2 |
Shipping Option | Free Shipping to the Continental U.S. |
- Min Gain; +16dB (-4dB with pad in)
- Max Gain; +65dB Maximum Output Level; +24dBu unbalanced
- Frequency Response 2Hz to 250kHz @ 20dB gain (-3dB)
20Hz to 250kHz @ 65dB gain (-3dB) - Harmonic Distortion; less than 0.008% 100Hz to 10kHz
- Slew Rate; typically 140 V/uS, @ +20dBu output level
- Equivalent Input Noise; -133.5dB A wtg, 150ohm source Z
- Signal to Noise Ratio; -74dBu A wtg, input shorted
- Common Mode Noise Rejection; 100Hz-80dB, 1kHz -80dB, 10kHz-70dB internal trims
- Channel to Channel Crosstalk; below noise
- Input Impedance; 3k ohms/1k2 ohms switchable
- Indicators; Peak Level @ +18dBu, Power On
- Connectors; Input-XLR3F, Out on 1/4" jack and XLR3M
- Size; 1 Unit rack mount, (482Wx44Hx300D)
- Power requirements; 230V/115V selectable

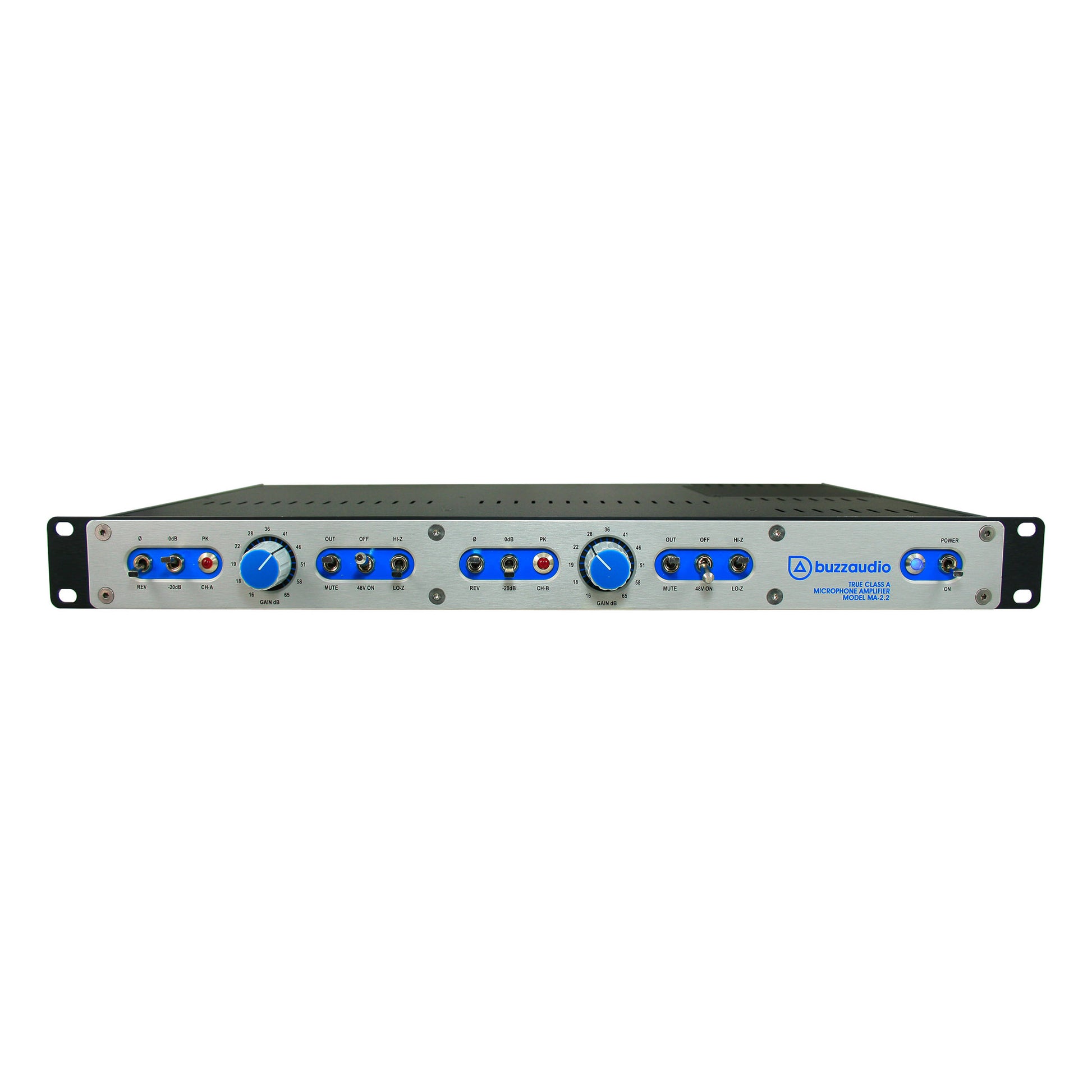

buzz audio MA-2.2 Mic Pre
