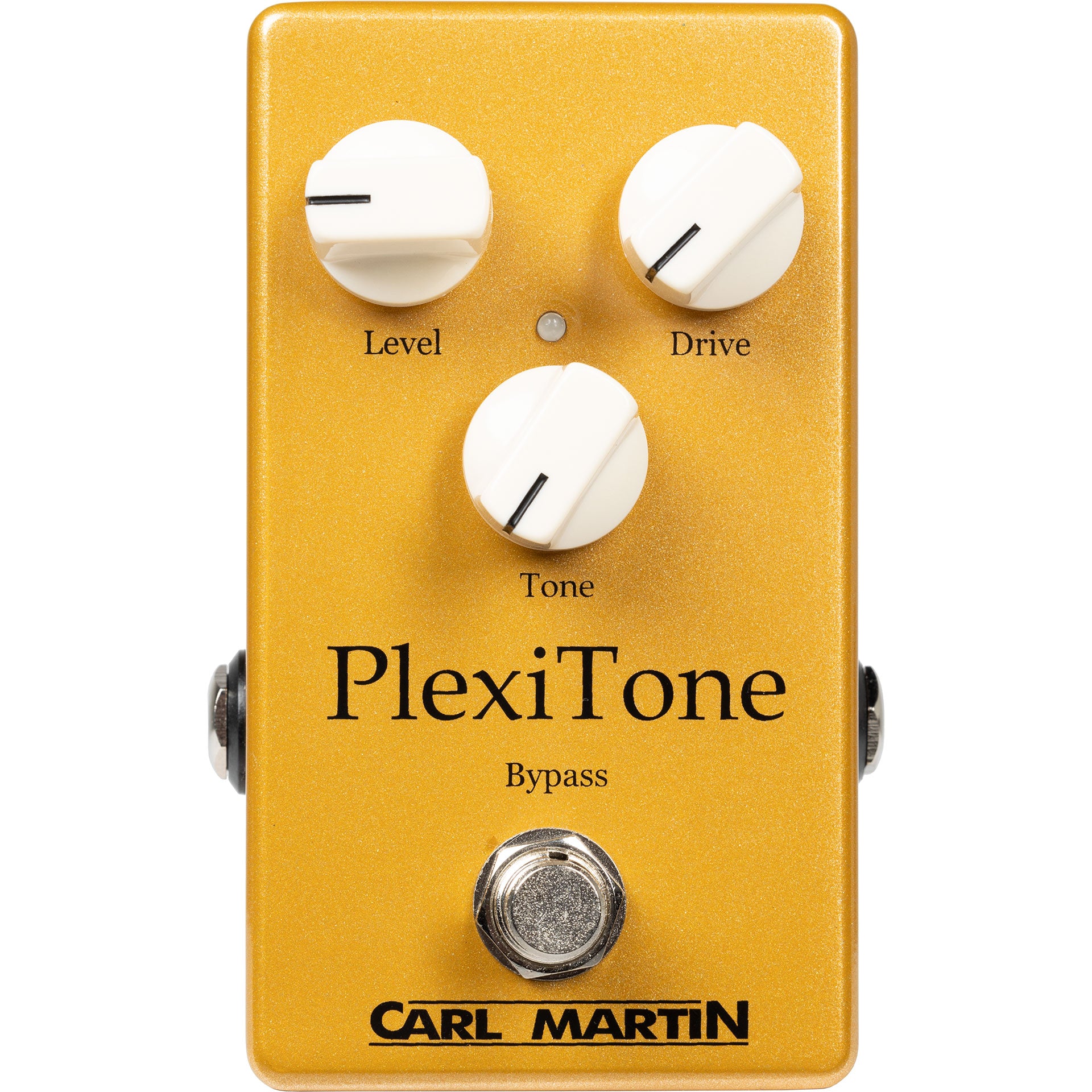

The new `single channel` Carl Martin PlexiTone was designed in association with Pete Thorn, and is housed in a small pedal-board friendly housing with 3 knobs and 1 switch. Apart from Pete’s slight modifications that give this new pedal a tighter bottom-end and slightly softer high frequencies, it is exactly the same gain structure as the High Gain setting on the original Pro-Series PlexiTone….it just plays better with different amps.
The single Plexi also incorporates Carl Martin's new DC-DC converter circuitry, so the pedal can be powered by a regulated 9V Power Supply but will still operate on the same +-12V level as the original AC powered PlexiTone. This allows us to use the same high quality components which provide the same tone and headroom that make the CM Pro-Series stand out from the rest!
| Product Name | Carl Martin Plexitone Single Overdrive Pedal |
|---|---|
| Brand | Carl Martin |
| Condition | New |
| MPN | CM0217 |
| UPC | 852940000578 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Input: 1M Ohm
- Output: 200 Ohm
- S/N Ratio: 54 dB
- Dimensions:
- 112 (W) x 72 (D) x 57 (H) mm
- 4.40” (W) x 2,83” (D) x 2.24” (H)
- Weight: 280g/ 0.62lbs
Power Requirements
- Battery: The PlexiTone does not accept the use of battery, only external power supply.
- Power consumption: max. 62 mA
- Power supply: 9 V DC (regulated), 100 mA minimum, 2.1 mm female plug, center negative (-)
- Please Use DC Power Supply Only! Failure to do so may damage the unit.
Carl Martin Plexitone Single Overdrive Pedal
The new `single channel` Carl Martin PlexiTone was designed in association with Pete Thorn, and is housed in a small pedal-board friendly housing with 3 knobs and 1 switch. Apart from Pete’s slight modifications that give this new pedal a tighter bottom-end and slightly softer high frequencies, it is exactly the same gain structure as the High Gain setting on the original Pro-Series PlexiTone….it just plays better with different amps.
The single Plexi also incorporates Carl Martin's new DC-DC converter circuitry, so the pedal can be powered by a regulated 9V Power Supply but will still operate on the same +-12V level as the original AC powered PlexiTone. This allows us to use the same high quality components which provide the same tone and headroom that make the CM Pro-Series stand out from the rest!
| Product Name | Carl Martin Plexitone Single Overdrive Pedal |
|---|---|
| Brand | Carl Martin |
| Condition | New |
| MPN | CM0217 |
| UPC | 852940000578 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Input: 1M Ohm
- Output: 200 Ohm
- S/N Ratio: 54 dB
- Dimensions:
- 112 (W) x 72 (D) x 57 (H) mm
- 4.40” (W) x 2,83” (D) x 2.24” (H)
- Weight: 280g/ 0.62lbs
Power Requirements
- Battery: The PlexiTone does not accept the use of battery, only external power supply.
- Power consumption: max. 62 mA
- Power supply: 9 V DC (regulated), 100 mA minimum, 2.1 mm female plug, center negative (-)
- Please Use DC Power Supply Only! Failure to do so may damage the unit.
