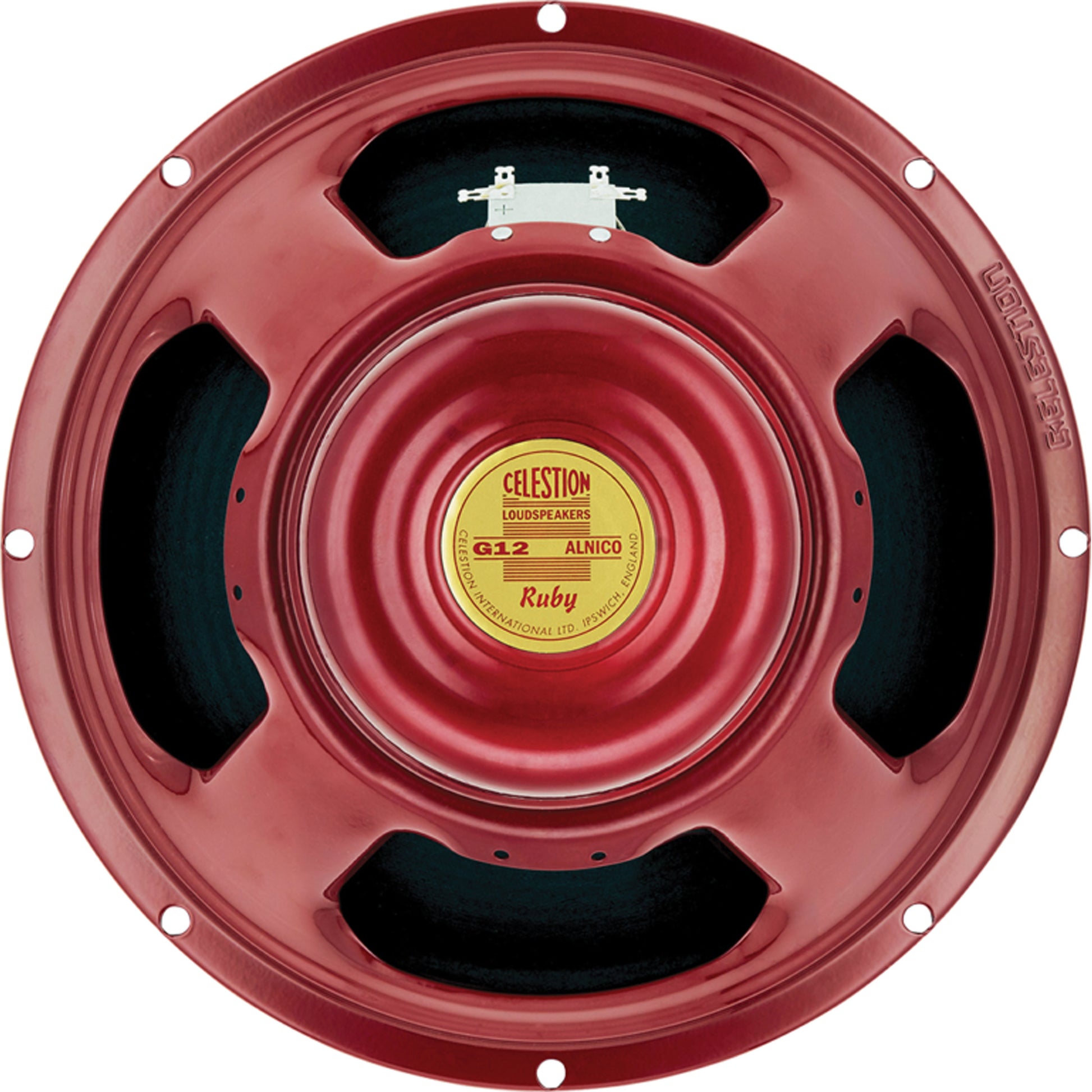

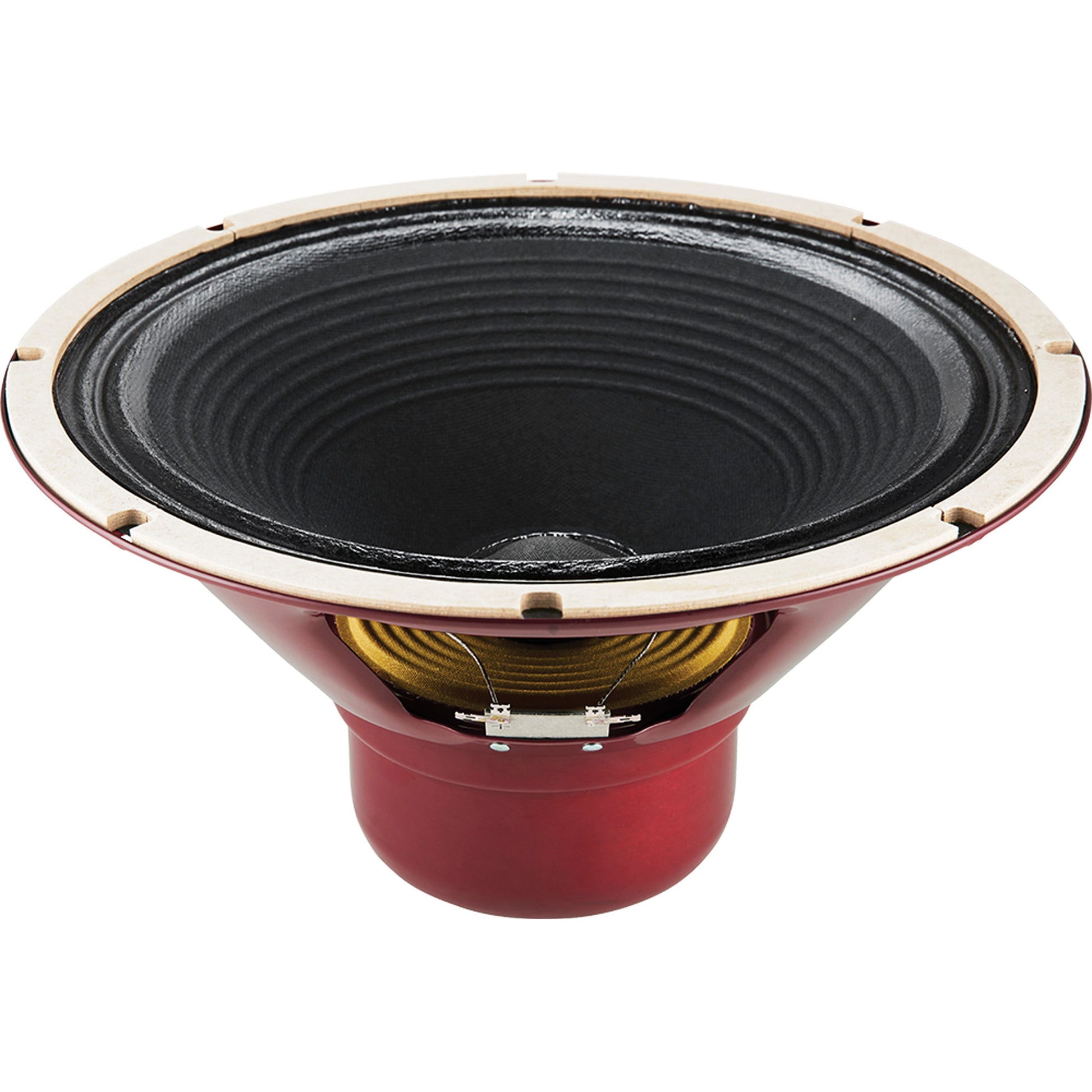

The Ruby is an alnico-magnet guitar speaker that’s purpose-built to create vintage tones – and at 35-watts power handling it’s ideal for use with mid-powered amps and combos. Bringing the instantly familiar Celestion alnico vibe with its glorious dampened attack; the Ruby oozes a richly musical vintage warmth with mellow highs and a smooth sophisticated midrange.
| Product Name | Celestion Ruby 12-inch 35-watt Alnico Replacement Guitar Amp Speaker - 8 ohm |
|---|---|
| Brand | Celestion |
| Condition | New |
| MPN | T6388 |
| UPC | 739894638807 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Nominal diameter - 305mm / 12in
- Power rating - 35W
- Rated impedance - 8Ω or 16Ω
- Sensitivity - 100dB
- Chassis type - Pressed steel
- Magnet type - Alnico
- Voice coil diameter - 1.75in / 44mm
- Voice coil material - Round copper
- Frequency range - 75-5000Hz
- Resonance frequency - Fs75Hz
- DC resistance - Re6.7Ω or 13.1Ω
Mounting Information
- Cut-out diameter - 283mm / 11.1in
- Diameter - 309mm / 12.2in
- Magnet structure diameter - 128mm / 5.0in
- Mounting hole dimensions - 7.9mm / 0.31in Ø
- Mounting hole - PCD297mm / 11.7in
- Number of mounting holes - 8
- Chassis depth (inc gasket) - 92mm / 3.63in
- Magnet depth - 73mm / 2.87in
- Overall depth - 165mm / 6.5in
- Unit weight - 4.2kg / 9.3lb
Celestion Ruby 12-inch 35-watt Alnico Replacement Guitar Amp Speaker - 8 ohm
The Ruby is an alnico-magnet guitar speaker that’s purpose-built to create vintage tones – and at 35-watts power handling it’s ideal for use with mid-powered amps and combos. Bringing the instantly familiar Celestion alnico vibe with its glorious dampened attack; the Ruby oozes a richly musical vintage warmth with mellow highs and a smooth sophisticated midrange.
| Product Name | Celestion Ruby 12-inch 35-watt Alnico Replacement Guitar Amp Speaker - 8 ohm |
|---|---|
| Brand | Celestion |
| Condition | New |
| MPN | T6388 |
| UPC | 739894638807 |
- Nominal diameter - 305mm / 12in
- Power rating - 35W
- Rated impedance - 8Ω or 16Ω
- Sensitivity - 100dB
- Chassis type - Pressed steel
- Magnet type - Alnico
- Voice coil diameter - 1.75in / 44mm
- Voice coil material - Round copper
- Frequency range - 75-5000Hz
- Resonance frequency - Fs75Hz
- DC resistance - Re6.7Ω or 13.1Ω
Mounting Information
- Cut-out diameter - 283mm / 11.1in
- Diameter - 309mm / 12.2in
- Magnet structure diameter - 128mm / 5.0in
- Mounting hole dimensions - 7.9mm / 0.31in Ø
- Mounting hole - PCD297mm / 11.7in
- Number of mounting holes - 8
- Chassis depth (inc gasket) - 92mm / 3.63in
- Magnet depth - 73mm / 2.87in
- Overall depth - 165mm / 6.5in
- Unit weight - 4.2kg / 9.3lb
