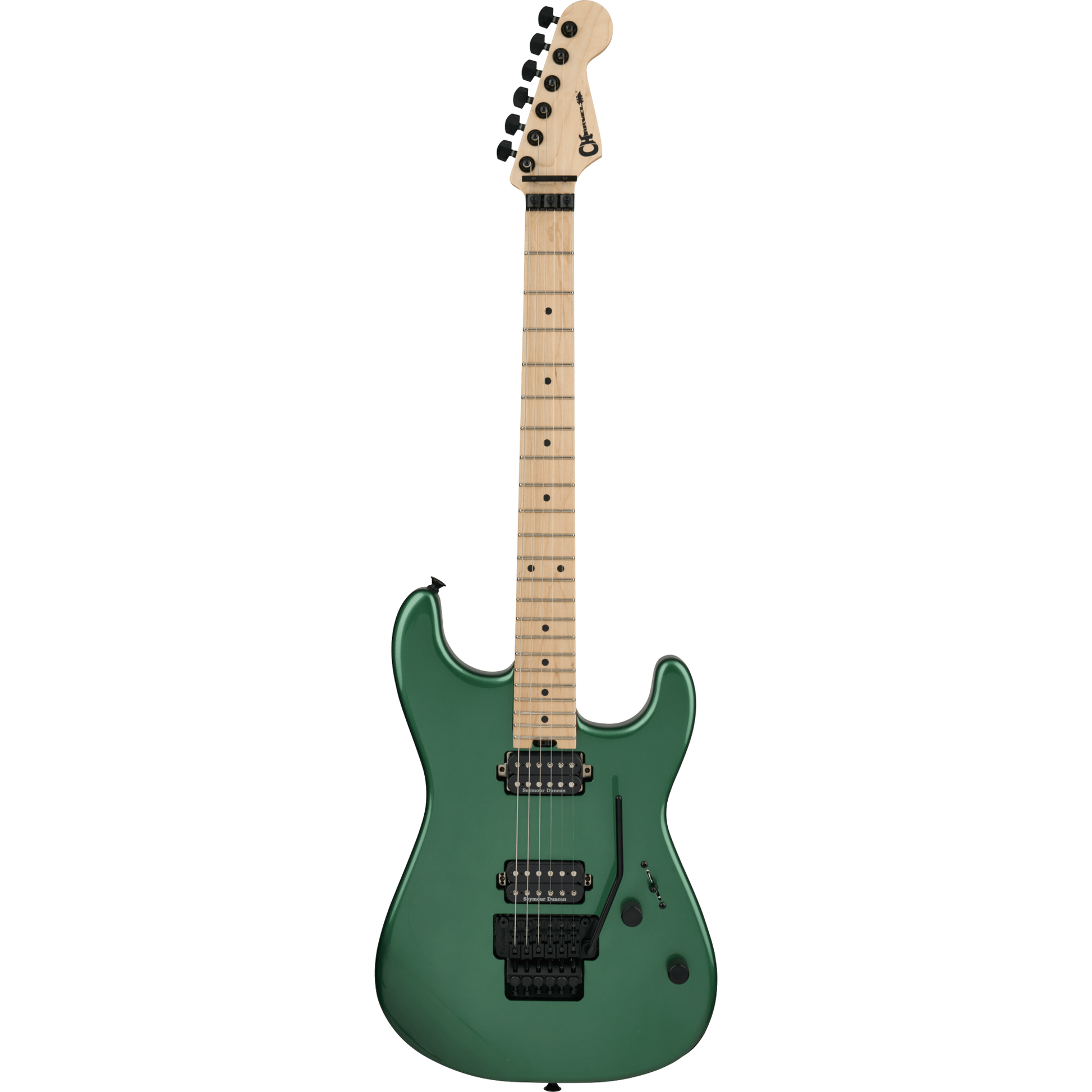

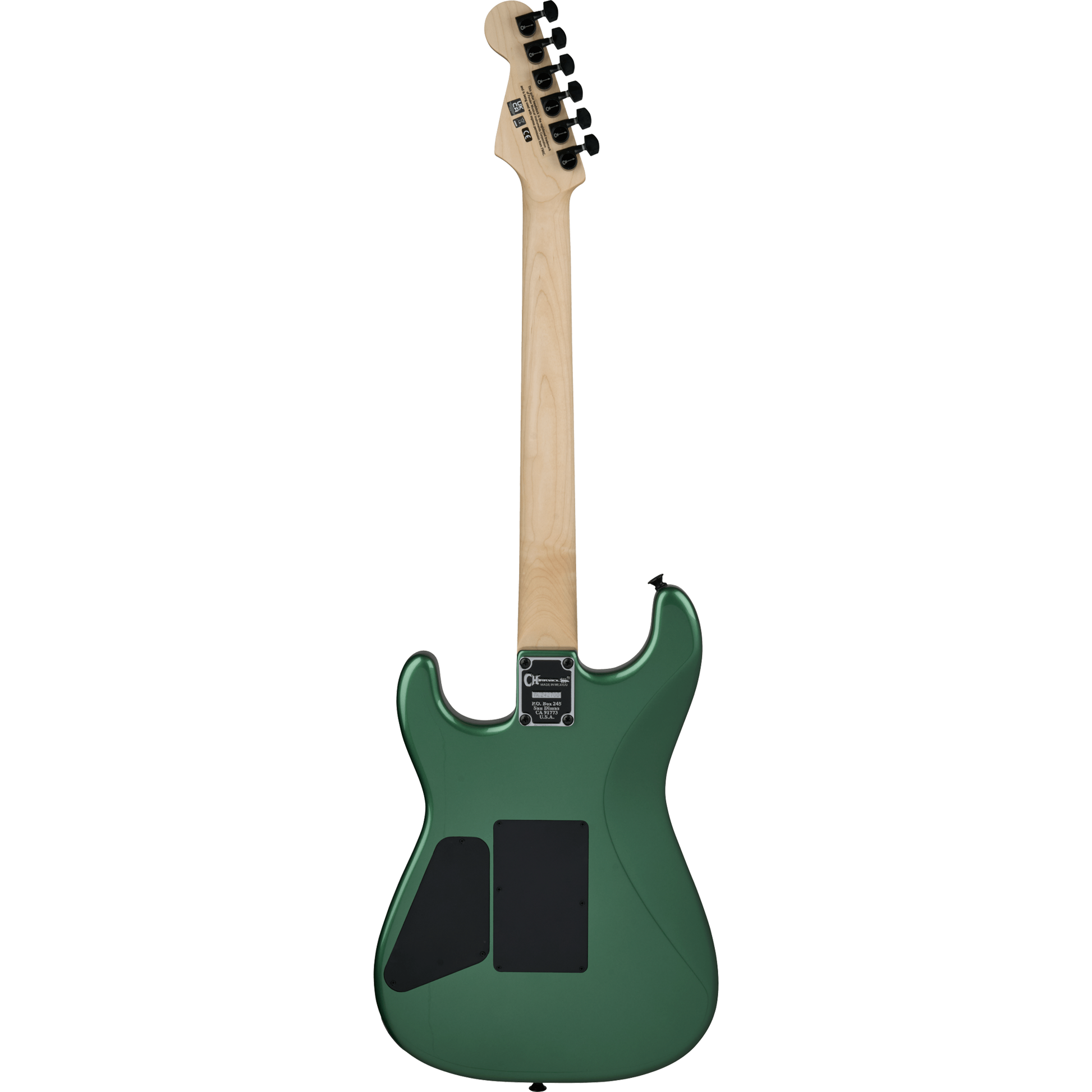

Charvel Pro-Mod San Dimas Style 1 HH FR MPL Electric Guitar - Pelham Green

Charvel Pro-Mod San Dimas Style 1 HH FR MPL Electric Guitar - Pelham Green

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Crafted from alder, the body is coupled with a bolt-on maple neck featuring a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius maple fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.

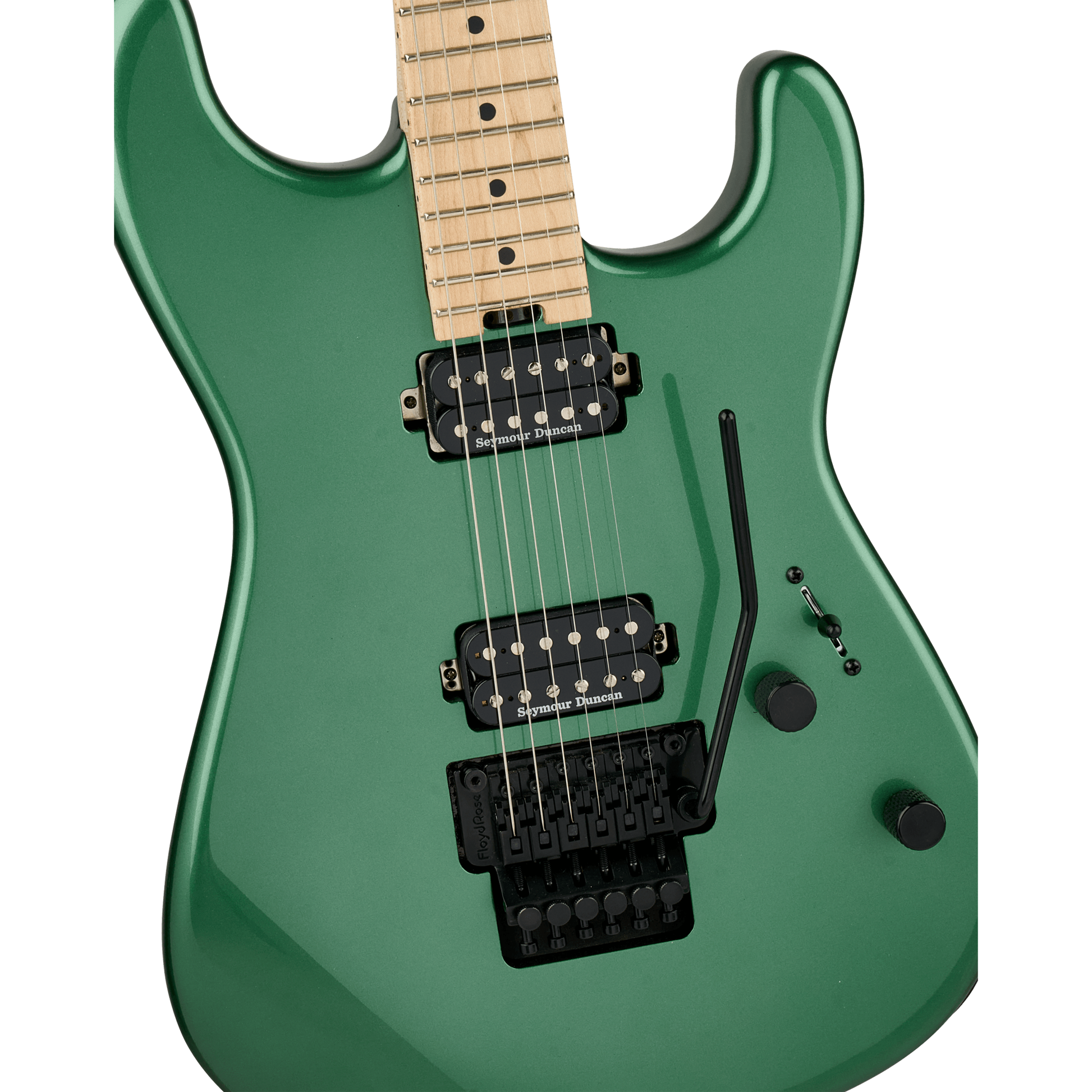

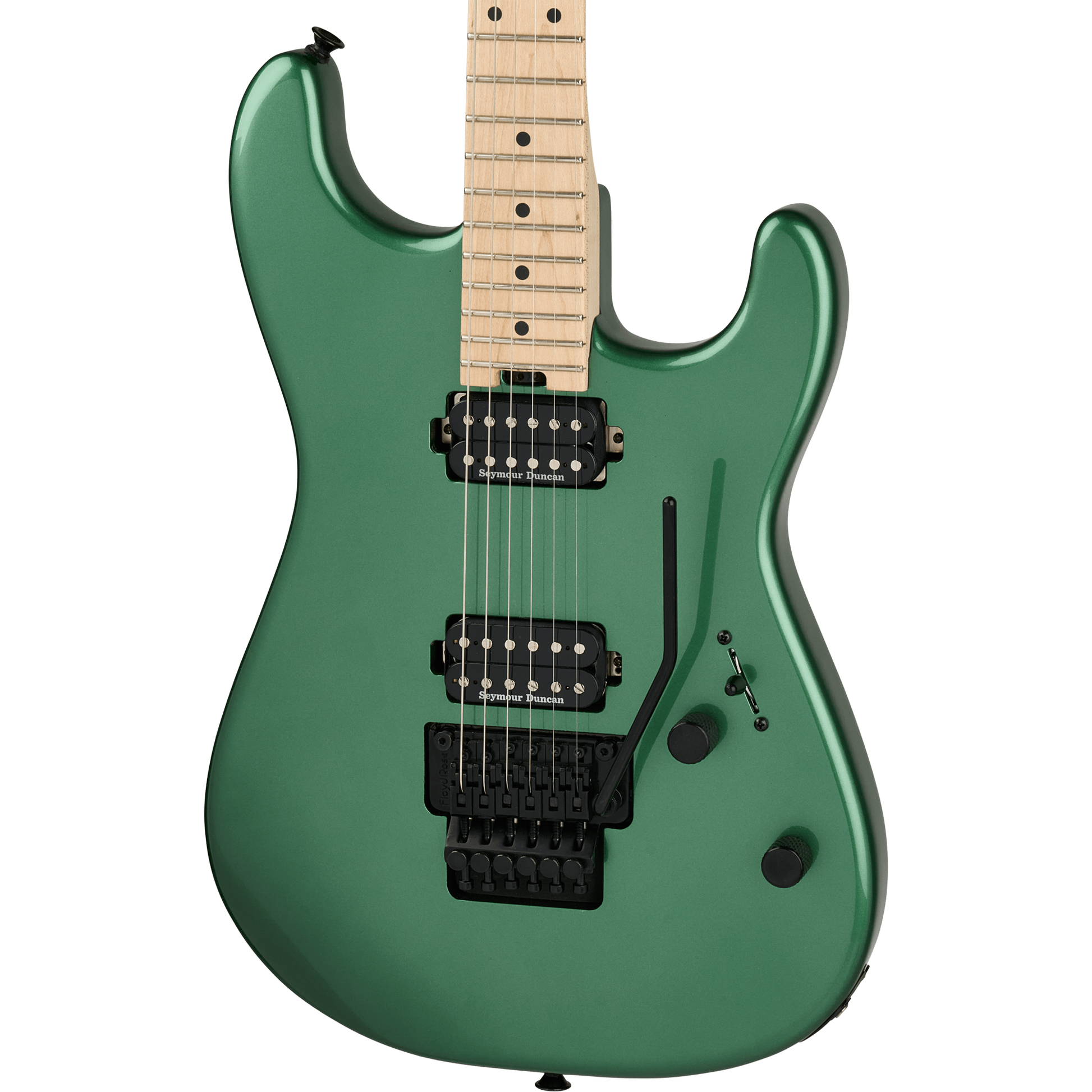

High-output Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups are directly mounted to the body, cranking out high octane rock 'n' roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through. Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 Series double-locking tremolo bridge system.

More Information
Product Name Charvel Pro-Mod San Dimas Style 1 HH FR MPL Electric Guitar - Pelham Green
Brand Charvel
MPN 2965001553
UPC 885978429714
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Charvel Pro-Mod San Dimas Style 1 HH FR MPL Electric Guitar - Maple Fingerboard, Pelham Green
  • Alder body
  • Bolt-on maple neck with graphite reinforcement rods
  • 12"-16" compound radius maple fingerboard
  • 22 jumbo frets
  • Heel-mount truss rod adjust thumbwheel
  • Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups
  • Volume control with push/pull coil split and no-load tone
  • Recessed Floyd Rose® 1000 Series double-locking tremolo

Neck

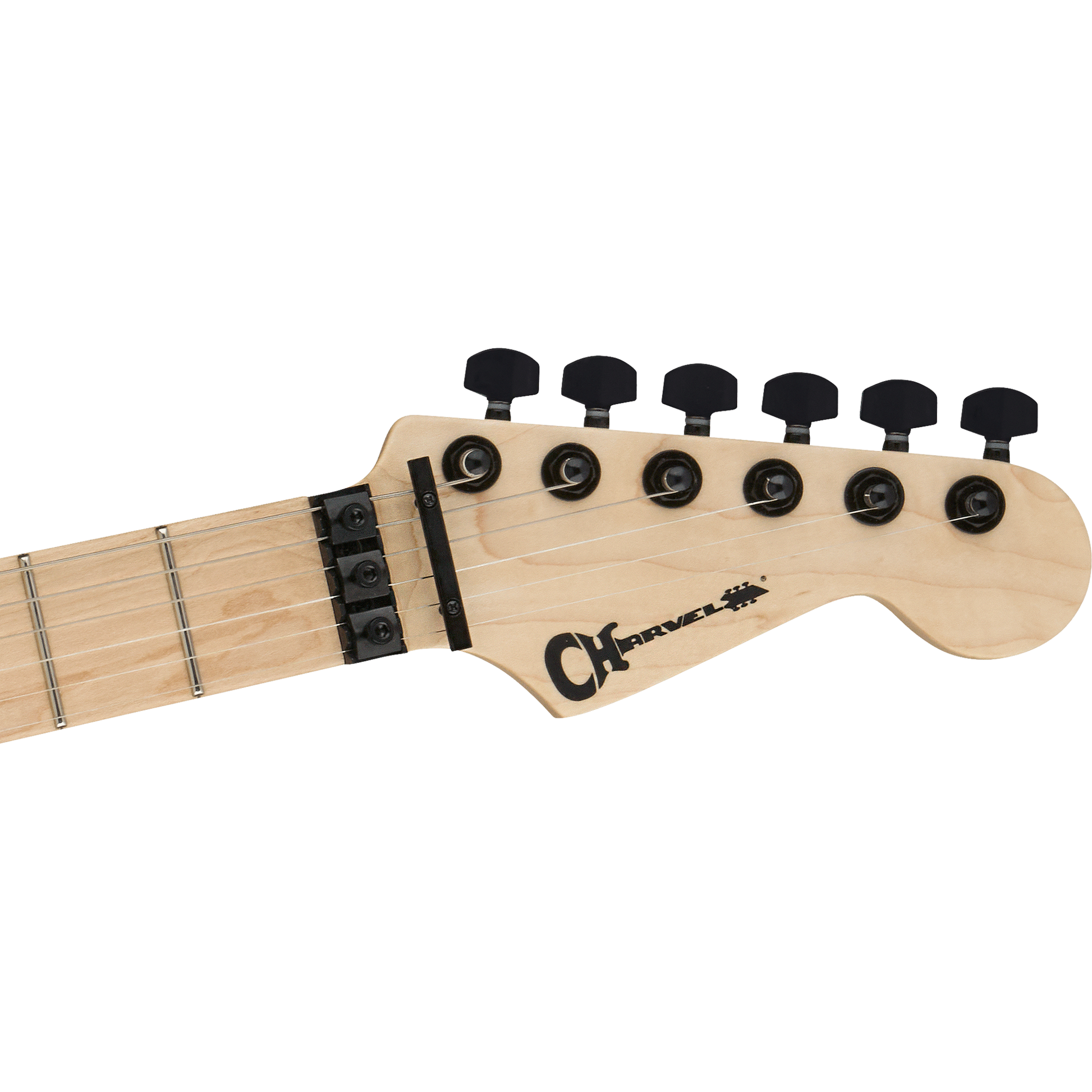

Headstock Licensed Fender® Stratocaster®
Neck Material Maple
Neck Finish Hand-Rubbed Satin Urethane with Gloss Urethane Headstock Face
Neck Construction Bolt-On with Graphite Reinforcement
Fingerboard Radius 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material Maple
Position Inlays Black Dot
Number of Frets 22
Truss Rod Dual-Action with Wheel
String Nut Floyd Rose® 1000 Series Locking
Nut Width 1.6875" (42.86 mm)
Nut Material Floyd Rose® 1000 Series Locking
Fret Size Jumbo
Scale Length 25.5" (64.77 cm)

Body

Body Alder
Body Finish Gloss
Body Shape San Dimas®
Body Material Alder

Hardware

Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
Pickguard None
Pickup Covers Black
Control Knobs Knurled Flat-Top
Switch Tip Black
Hardware Finish Black

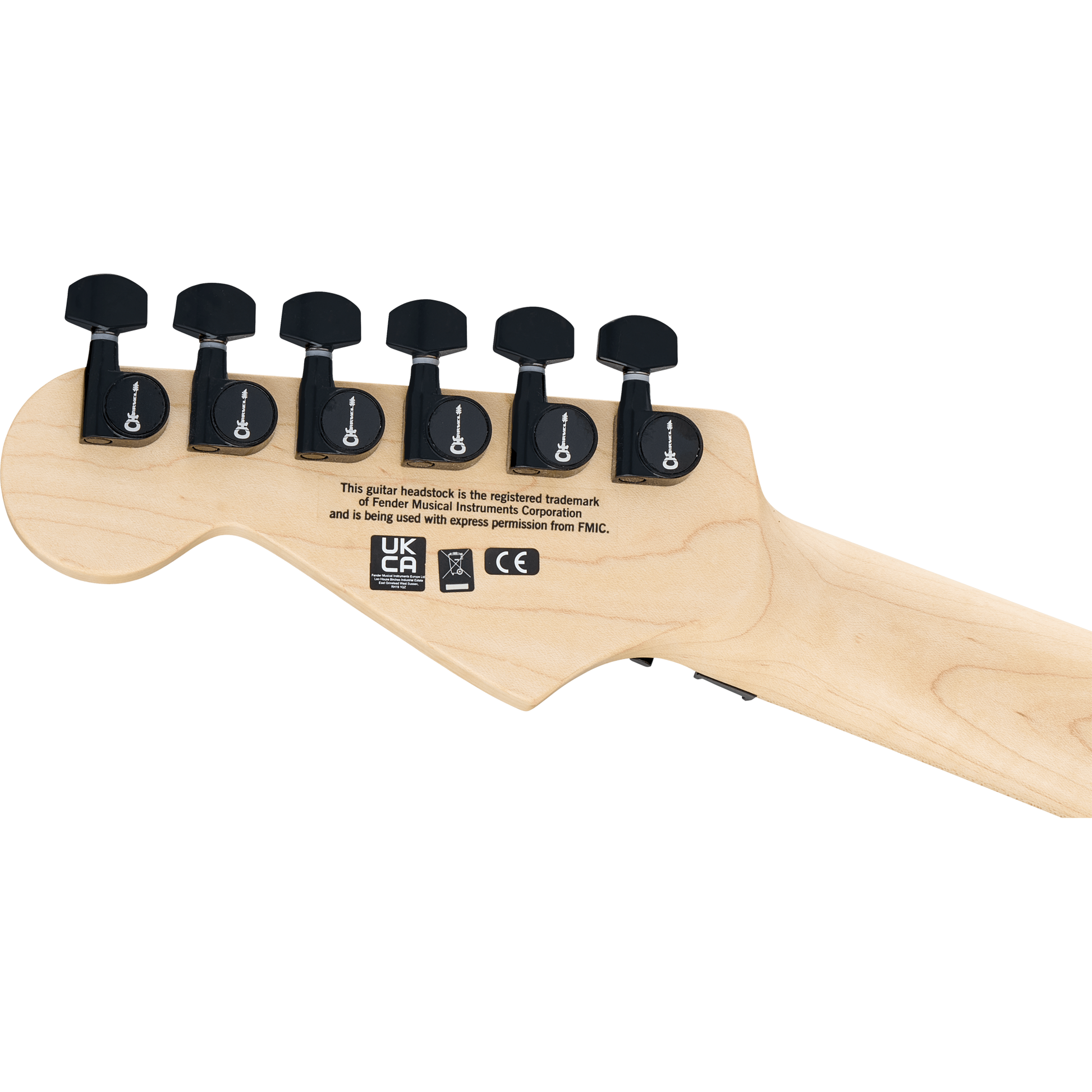

Tuning Machines Charvel®-Branded Die-Cast
Strings Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm Floyd Rose® FRT O1000 Locking
Neck Plate Charvel®
Strap Buttons Standard

Electronics

Bridge Pickup Seymour Duncan® JB™ TB-4
Neck Pickup Seymour Duncan® '59™ SH-1N
Pickup Configuration HH
Controls Volume (Push/Pull Coil Split), No-Load Tone
Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup

- (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil

Charvel Pro-Mod San Dimas Style 1 HH FR MPL Electric Guitar - Pelham Green

Details

Crafted from alder, the body is coupled with a bolt-on maple neck featuring a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts, while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Perfect for faster tempos, the 12"-16" compound radius maple fingerboard hosts 22 jumbo frets and white dot inlays. For regularly touring musicians, a heel-mount truss rod adjust thumbwheel is a must, allowing for quick and convenient neck relief tweaks.

High-output Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups are directly mounted to the body, cranking out high octane rock 'n' roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through. Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 Series double-locking tremolo bridge system.

More Information
Product Name Charvel Pro-Mod San Dimas Style 1 HH FR MPL Electric Guitar - Pelham Green
Brand Charvel
MPN 2965001553
UPC 885978429714
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

Charvel Pro-Mod San Dimas Style 1 HH FR MPL Electric Guitar - Maple Fingerboard, Pelham Green
Features
  • Alder body
  • Bolt-on maple neck with graphite reinforcement rods
  • 12"-16" compound radius maple fingerboard
  • 22 jumbo frets
  • Heel-mount truss rod adjust thumbwheel
  • Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups
  • Volume control with push/pull coil split and no-load tone
  • Recessed Floyd Rose® 1000 Series double-locking tremolo
Tech Specs

Neck

Headstock Licensed Fender® Stratocaster®
Neck Material Maple
Neck Finish Hand-Rubbed Satin Urethane with Gloss Urethane Headstock Face
Neck Construction Bolt-On with Graphite Reinforcement
Fingerboard Radius 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material Maple
Position Inlays Black Dot
Number of Frets 22
Truss Rod Dual-Action with Wheel
String Nut Floyd Rose® 1000 Series Locking
Nut Width 1.6875" (42.86 mm)
Nut Material Floyd Rose® 1000 Series Locking
Fret Size Jumbo
Scale Length 25.5" (64.77 cm)

Body

Body Alder
Body Finish Gloss
Body Shape San Dimas®
Body Material Alder

Hardware

Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
Pickguard None
Pickup Covers Black
Control Knobs Knurled Flat-Top
Switch Tip Black
Hardware Finish Black
Tuning Machines Charvel®-Branded Die-Cast
Strings Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm Floyd Rose® FRT O1000 Locking
Neck Plate Charvel®
Strap Buttons Standard

Electronics

Bridge Pickup Seymour Duncan® JB™ TB-4
Neck Pickup Seymour Duncan® '59™ SH-1N
Pickup Configuration HH
Controls Volume (Push/Pull Coil Split), No-Load Tone
Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup

- (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil
