DC7 is the first product in the Future Power Generation range from CIOKS. This power supply sets a new standard for versatility and sheer power in a trim, light and easy to mount package. It can power up to 7 high current effect pedals and simultaneously charge your smartphone or tablet. Weighing only half a kilo and being one inch tall, DC7 is a perfect and sleek companion to pedalboards of all sizes but especially the low-profile ones. If 7 isolated outlets is not enough you can extend it with either CIOKS 8 or CIOKS 4 units.
| Product Name | Cioks Limited Edition DC7 Power Supply - VHS Tape |
|---|---|
| Brand | Cioks |
| Condition | New |
| MPN | CIO-DC7LTD |
| UPC | 669014298164 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- CIOKS DC7 power supply
- Mains power cord
- Standard Flex type 1 – black with 5,5/2,1mm centre negative DC plug x7
- Standard Flex type 2 – red with 5,5/2,1mm centre positive DC plug x1
- Standard Flex type 4 – green with 5,5/2,5mm centre positive DC plug x1
- Standard Flex type 5 – black with tip positive 3,5mm Jack plug x1
- Split Flex type 1 – powers two pedals of a single outlet x1
- 3-way Daisy chain Flex type 1 – powers three pedals of a single outlet x1
- Mounting hardware: 2 screws and a hex-key
- Manual
- Product sheet (drill guide)
- CIOKS sticker sheet
- Flex guide
- Groundbreaking 1-inch profile (25,4mm)
- 2-stage switch-mode power supply topology
- Ultra-low noise achieved by multistage filtering
- 7 isolated DC-outlets, 6W each
- 660mA at 9V DC on each outlet
- 4 selectable voltages on each outlet
- 5V USB outlet with max. 1A
- 24V DC auxiliary outlet with max. 2A
- Individual power limit LED on all outputs
- Built-in true power meter showing the total load
- Global overload status LED
- Universal mains input voltage 90 to 265V AC
- Total maximum output power 48W
- Mounting hardware for Pedaltrain and Templeaudio boards included
- Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards*
- 12 Flex cables included
- Expandable with CIOKS 4*, CIOKS 8* and Crux*
- Weighs 1.1 lbs. (500 grams)
- Designed in Denmark, assembled in Poland

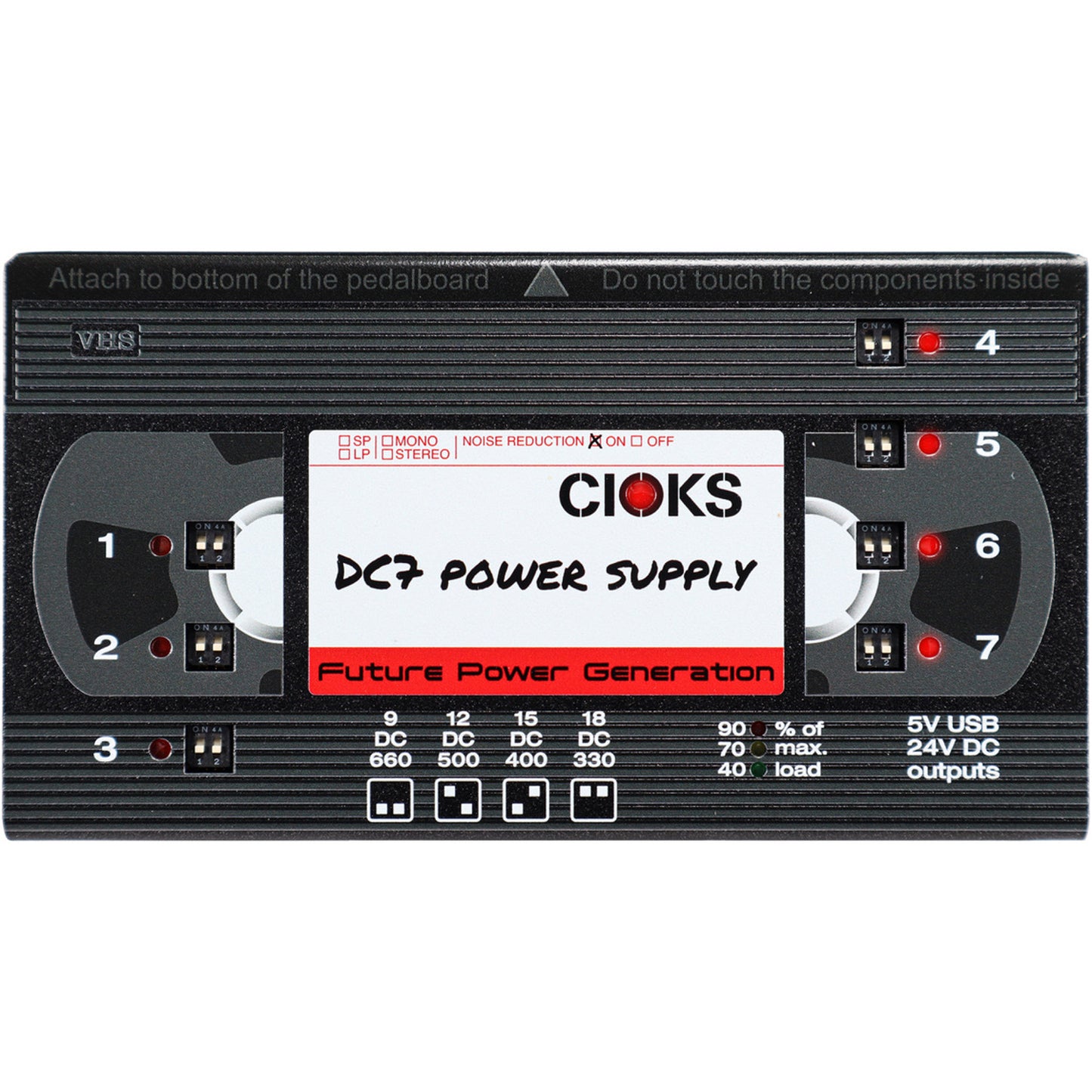

Cioks Limited Edition DC7 Power Supply - VHS Tape
DC7 is the first product in the Future Power Generation range from CIOKS. This power supply sets a new standard for versatility and sheer power in a trim, light and easy to mount package. It can power up to 7 high current effect pedals and simultaneously charge your smartphone or tablet. Weighing only half a kilo and being one inch tall, DC7 is a perfect and sleek companion to pedalboards of all sizes but especially the low-profile ones. If 7 isolated outlets is not enough you can extend it with either CIOKS 8 or CIOKS 4 units.
| Product Name | Cioks Limited Edition DC7 Power Supply - VHS Tape |
|---|---|
| Brand | Cioks |
| Condition | New |
| MPN | CIO-DC7LTD |
| UPC | 669014298164 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- CIOKS DC7 power supply
- Mains power cord
- Standard Flex type 1 – black with 5,5/2,1mm centre negative DC plug x7
- Standard Flex type 2 – red with 5,5/2,1mm centre positive DC plug x1
- Standard Flex type 4 – green with 5,5/2,5mm centre positive DC plug x1
- Standard Flex type 5 – black with tip positive 3,5mm Jack plug x1
- Split Flex type 1 – powers two pedals of a single outlet x1
- 3-way Daisy chain Flex type 1 – powers three pedals of a single outlet x1
- Mounting hardware: 2 screws and a hex-key
- Manual
- Product sheet (drill guide)
- CIOKS sticker sheet
- Flex guide
- Groundbreaking 1-inch profile (25,4mm)
- 2-stage switch-mode power supply topology
- Ultra-low noise achieved by multistage filtering
- 7 isolated DC-outlets, 6W each
- 660mA at 9V DC on each outlet
- 4 selectable voltages on each outlet
- 5V USB outlet with max. 1A
- 24V DC auxiliary outlet with max. 2A
- Individual power limit LED on all outputs
- Built-in true power meter showing the total load
- Global overload status LED
- Universal mains input voltage 90 to 265V AC
- Total maximum output power 48W
- Mounting hardware for Pedaltrain and Templeaudio boards included
- Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards*
- 12 Flex cables included
- Expandable with CIOKS 4*, CIOKS 8* and Crux*
- Weighs 1.1 lbs. (500 grams)
- Designed in Denmark, assembled in Poland
