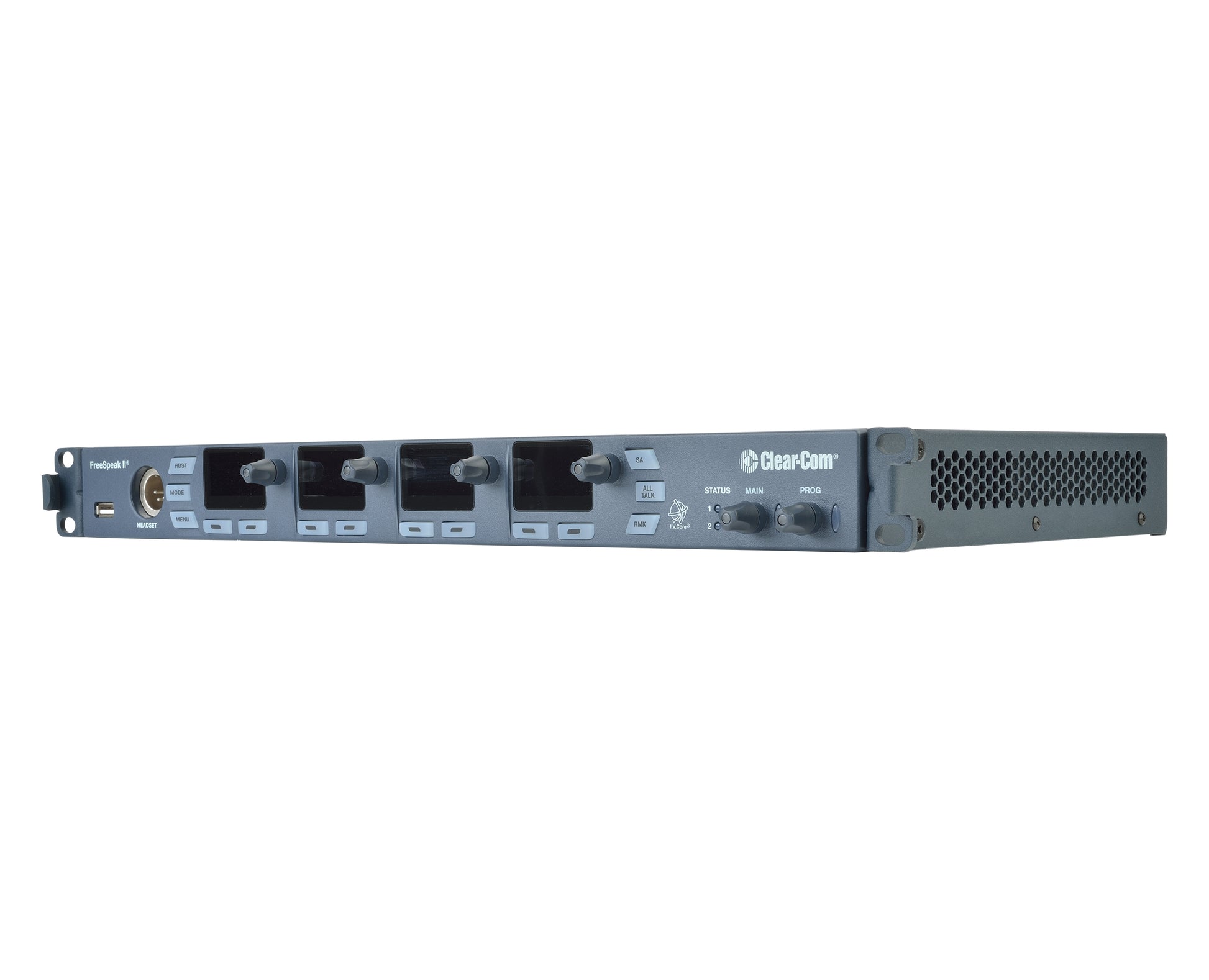

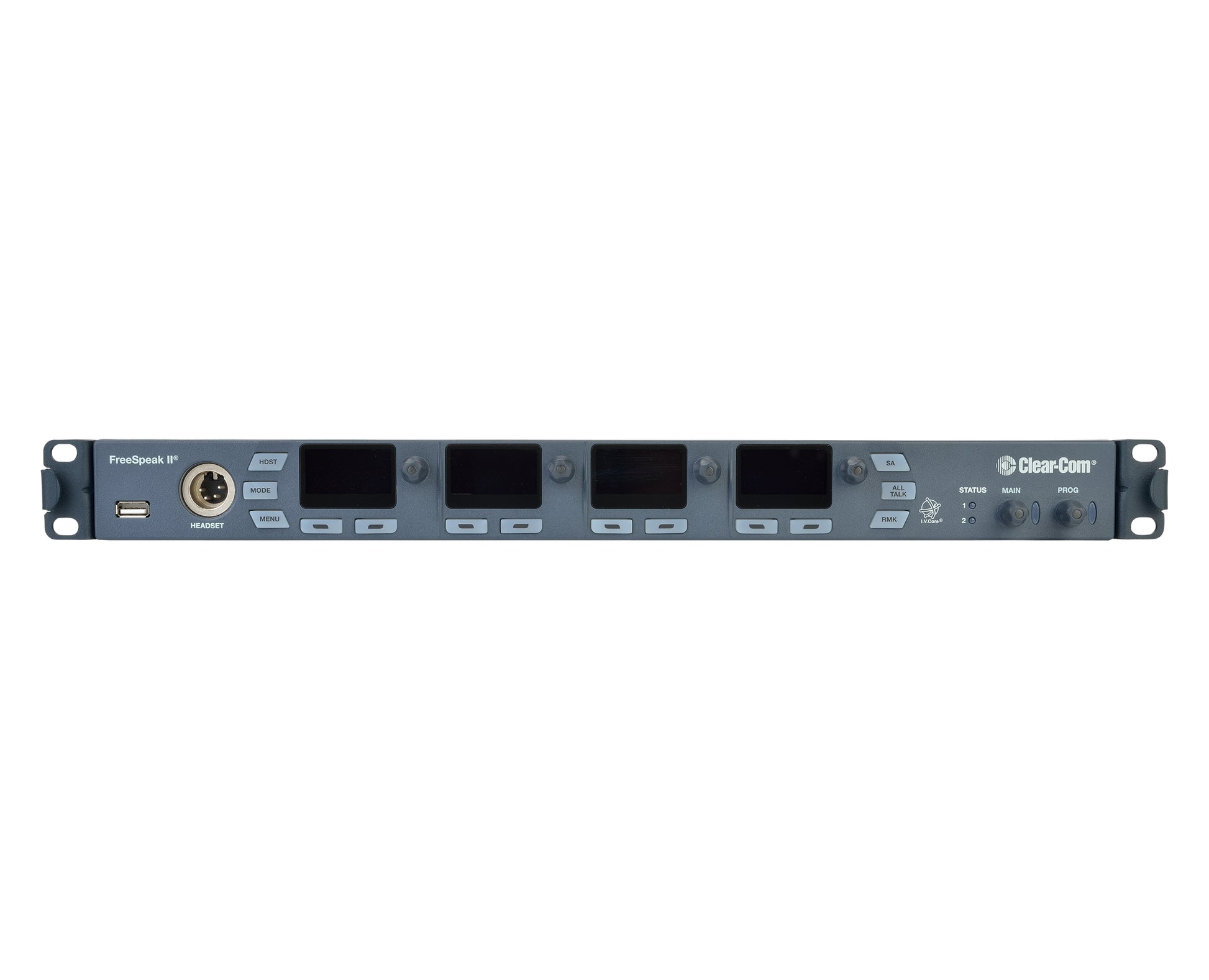

The FSII-BASE-II-5 is a base station for the wireless FreeSpeak II 1.9 GHz and 2.4 GHz active transceiver antennas and beltpacks. The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections and four displays with soft keys. Dedicated stage announce (SA) output and program audio input are provided.
| Product Name | Clear-Com FSII-Base-II-5 FreeSpeak II Digital Wireless Base Station |
|---|---|
| Brand | Clear-Com |
| MPN | FSII-BASE-II-5 |
What's in the Box?
- Clear-Com FSII-Base-II-5 FreeSpeak II Digital Wireless Base Station
- Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
- Routing and configuration of up to 5 FreeSpeak II beltpacks
- Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
- Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
- Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
- Matrix and partyline configurations support up to 12 channels and/or groups
- GPIOs allow assignment to trigger cue lights, tally or radios
- DECT Sync ports for optimizing co-located systems
- RF Audio Filter improves system performance in harsh RF environments
- Browser-based Core Configuration Manager (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
- Text messaging from CCM to wireless beltpacks
- Base-to-Beltpack Frequency Response: 100Hz - 7.1kHz
- No. of Beltpacks per Base Station: 5
- No. of Transceiver/ Antennas Supported by Base: 10
- No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
- PC Programming Port: 2 LAN RJ45
- Relay Port: DB15, supports one relay assigned to the SA out
- Partyline A, B, C, D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible
- Partyline Power On/Off: A/B, C/D paired Partyline
- Output Voltage: 26 - 28V DC, 400mA per pair (A/B or C/D)
- Four-Wire/Matrix Connection: 4 RJ45
- Program Input: XLR-3F, transformer isolated, line-level input
- Stage Announce Output: XLR-3M, transformer isolated, line-level output
- Front Panel Headset: 4-pin male and 5-pin female options

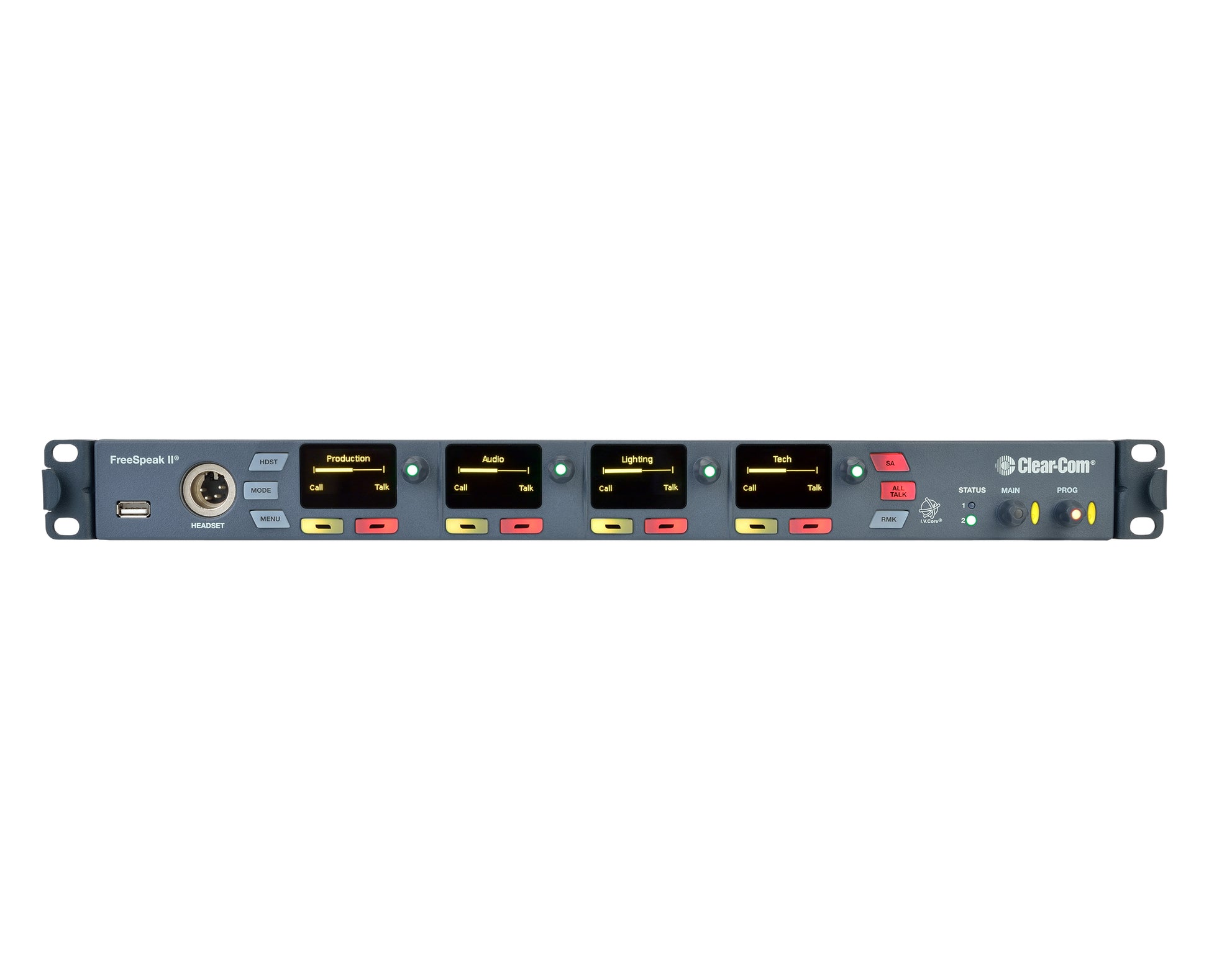

- Front Panel Displays: 4 OLED’s with encoders and assignable soft keys
- Front Panel Indicators: Antenna Status, Beltpack Status External Power Supply
- Connection: 12V DC Base Station
- Programming/Editing: Push-to-enter rotary encoder

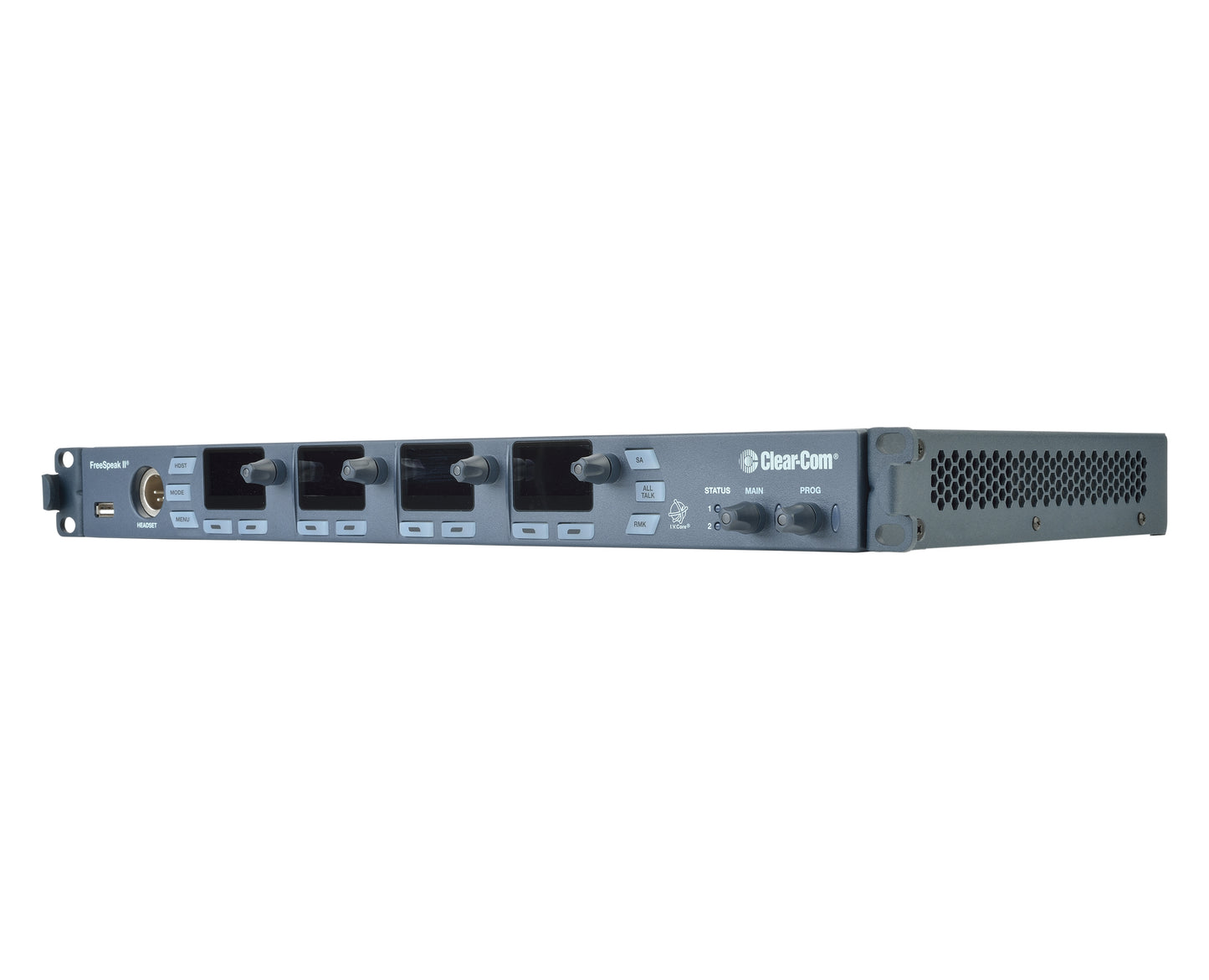

Clear-Com FSII-Base-II-5 FreeSpeak II Digital Wireless Base Station
Details
The FSII-BASE-II-5 is a base station for the wireless FreeSpeak II 1.9 GHz and 2.4 GHz active transceiver antennas and beltpacks. The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections and four displays with soft keys. Dedicated stage announce (SA) output and program audio input are provided.
| Product Name | Clear-Com FSII-Base-II-5 FreeSpeak II Digital Wireless Base Station |
|---|---|
| Brand | Clear-Com |
| MPN | FSII-BASE-II-5 |
What's in the Box?
Clear-Com FSII-Base-II-5 FreeSpeak II Digital Wireless Base Station
Features
- Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
- Routing and configuration of up to 5 FreeSpeak II beltpacks
- Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
- Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
- Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
- Matrix and partyline configurations support up to 12 channels and/or groups
- GPIOs allow assignment to trigger cue lights, tally or radios
- DECT Sync ports for optimizing co-located systems
- RF Audio Filter improves system performance in harsh RF environments
- Browser-based Core Configuration Manager (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
- Text messaging from CCM to wireless beltpacks
Tech Specs
- Base-to-Beltpack Frequency Response: 100Hz - 7.1kHz
- No. of Beltpacks per Base Station: 5
- No. of Transceiver/ Antennas Supported by Base: 10
- No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
- PC Programming Port: 2 LAN RJ45
- Relay Port: DB15, supports one relay assigned to the SA out
- Partyline A, B, C, D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible
- Partyline Power On/Off: A/B, C/D paired Partyline
- Output Voltage: 26 - 28V DC, 400mA per pair (A/B or C/D)
- Four-Wire/Matrix Connection: 4 RJ45
- Program Input: XLR-3F, transformer isolated, line-level input
- Stage Announce Output: XLR-3M, transformer isolated, line-level output
- Front Panel Headset: 4-pin male and 5-pin female options
- Front Panel Displays: 4 OLED’s with encoders and assignable soft keys
- Front Panel Indicators: Antenna Status, Beltpack Status External Power Supply
- Connection: 12V DC Base Station
- Programming/Editing: Push-to-enter rotary encoder
