Why you need the Dave Smith Instruments DSM01 Curtis Filter Module:

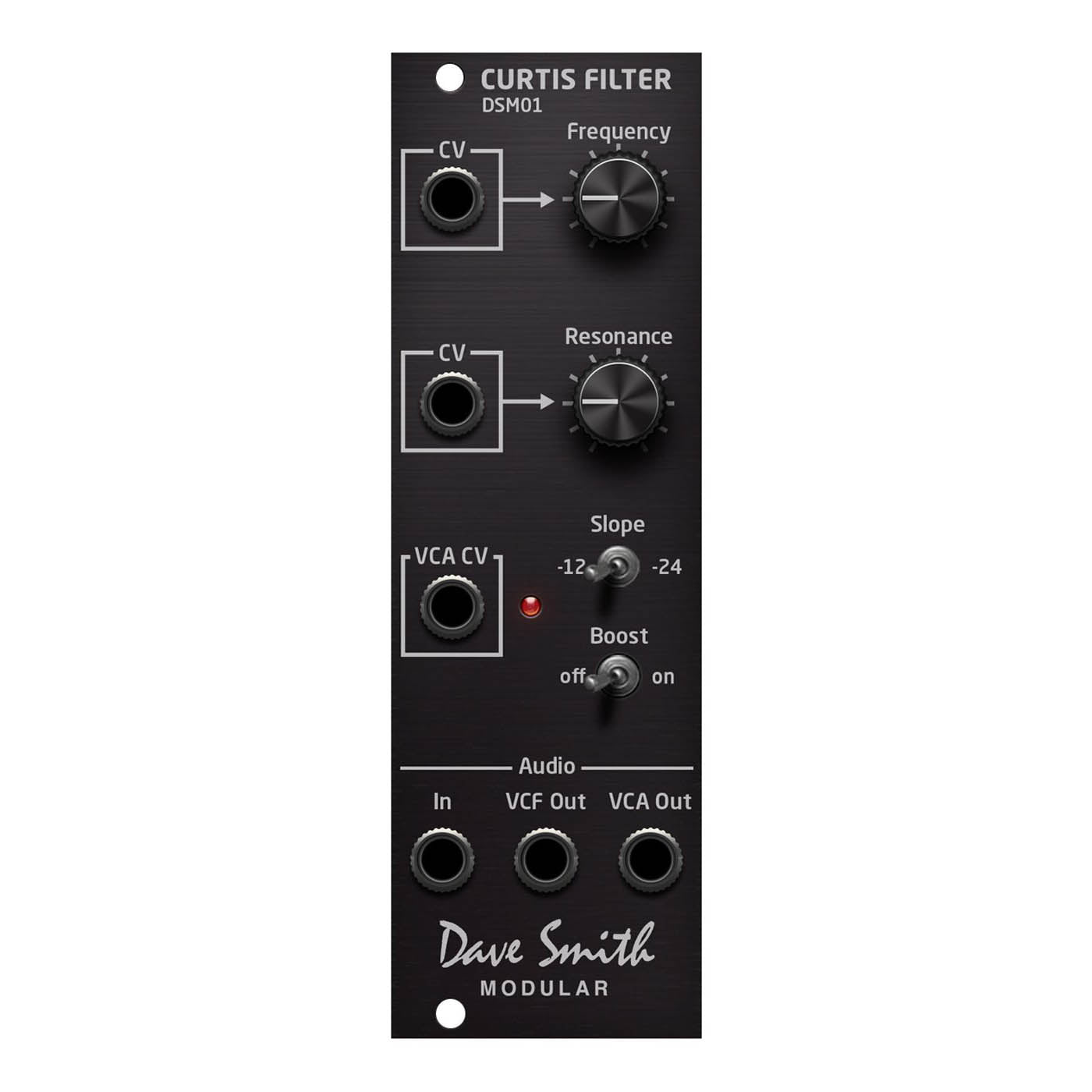

The Dave Smith Instruments DSM01 Curtis Filter Module is a compact, 8 HP Eurorack-format module. Plug it into your modular system and that classic Curtis sonic signature is instantly within a patch chord’s reach. The filter is a resonant low-pass design that can be switched between -12 dB and -24 dB operation and driven into self-oscillation in -24 dB mode. A Boost switch lets you overdrive the input stage for more aggressive coloration.
In addition to its Curtis filter, the DSM01 provides its own responsive, low-noise VCA with LED CV indicator. There are two separate outputs—one pre-amplifier and the other post-amplifier. This not only gives you added signal routing flexibility, but also frees your system’s existing VCAs for other tasks.
If you’re a typical modular user, you’re always on the lookout for new and interesting components to enhance your system. The DSM01 is an easy and affordable way to give your system a new sonic edge—with the filter that’s brought some of the world’s most in-demand synths their classic tone and vibe.
| Product Name | Dave Smith Instruments DSM01 Curtis Filter Module (DSI-4000) |
|---|---|
| Brand | Dave Smith Instruments |
| MPN | DSI-4000 |
| UPC | 855346000791 |
| Shipping Option | Free Shipping to the Continental U.S. |
IN/OUT
- 1 CV In – Frequency (3.5 mm jack) Range: 0 to 10V
- 1 CV In – Resonance (3.5 mm jack) Range: 0 to 10V
- 1 CV In – VCA (3.5 mm jack) Range: 0 to 10 V
- 1 Audio In (3.5 mm jack) +/-5V or 10V p-p
- 1 VCF Out – pre-VCA (3.5 mm jack)
- 1 VCA Out – post-VCA (3.5 mm jack)
- Self oscillation in -24 dB/octave mode, tracks at 1V/octave
POWER
- Internal power connector (ribbon cable included)
- Current draw: +12V @ 36mA, -12V @ 25mA
PHYSICAL SPECS
- 1.59″ W x 5.06″ H (40.3 mm x 128.5 mm)
- Width: 8 HP
- Depth (measured from back of panel with power cable installed): 1.06″ (27 mm)
INCLUDED
- Mounting screws
- Ribbon cable for power connection
Dave Smith Instruments DSM01 Curtis Filter Module (DSI-4000)
Details
Why you need the Dave Smith Instruments DSM01 Curtis Filter Module:
The Dave Smith Instruments DSM01 Curtis Filter Module is a compact, 8 HP Eurorack-format module. Plug it into your modular system and that classic Curtis sonic signature is instantly within a patch chord’s reach. The filter is a resonant low-pass design that can be switched between -12 dB and -24 dB operation and driven into self-oscillation in -24 dB mode. A Boost switch lets you overdrive the input stage for more aggressive coloration.
In addition to its Curtis filter, the DSM01 provides its own responsive, low-noise VCA with LED CV indicator. There are two separate outputs—one pre-amplifier and the other post-amplifier. This not only gives you added signal routing flexibility, but also frees your system’s existing VCAs for other tasks.
If you’re a typical modular user, you’re always on the lookout for new and interesting components to enhance your system. The DSM01 is an easy and affordable way to give your system a new sonic edge—with the filter that’s brought some of the world’s most in-demand synths their classic tone and vibe.
| Product Name | Dave Smith Instruments DSM01 Curtis Filter Module (DSI-4000) |
|---|---|
| Brand | Dave Smith Instruments |
| MPN | DSI-4000 |
| UPC | 855346000791 |
| Shipping Option | Free Shipping to the Continental U.S. |
Tech Specs
IN/OUT
- 1 CV In – Frequency (3.5 mm jack) Range: 0 to 10V
- 1 CV In – Resonance (3.5 mm jack) Range: 0 to 10V
- 1 CV In – VCA (3.5 mm jack) Range: 0 to 10 V
- 1 Audio In (3.5 mm jack) +/-5V or 10V p-p
- 1 VCF Out – pre-VCA (3.5 mm jack)
- 1 VCA Out – post-VCA (3.5 mm jack)
- Self oscillation in -24 dB/octave mode, tracks at 1V/octave
POWER
- Internal power connector (ribbon cable included)
- Current draw: +12V @ 36mA, -12V @ 25mA
PHYSICAL SPECS
- 1.59″ W x 5.06″ H (40.3 mm x 128.5 mm)
- Width: 8 HP
- Depth (measured from back of panel with power cable installed): 1.06″ (27 mm)
INCLUDED
- Mounting screws
- Ribbon cable for power connection
