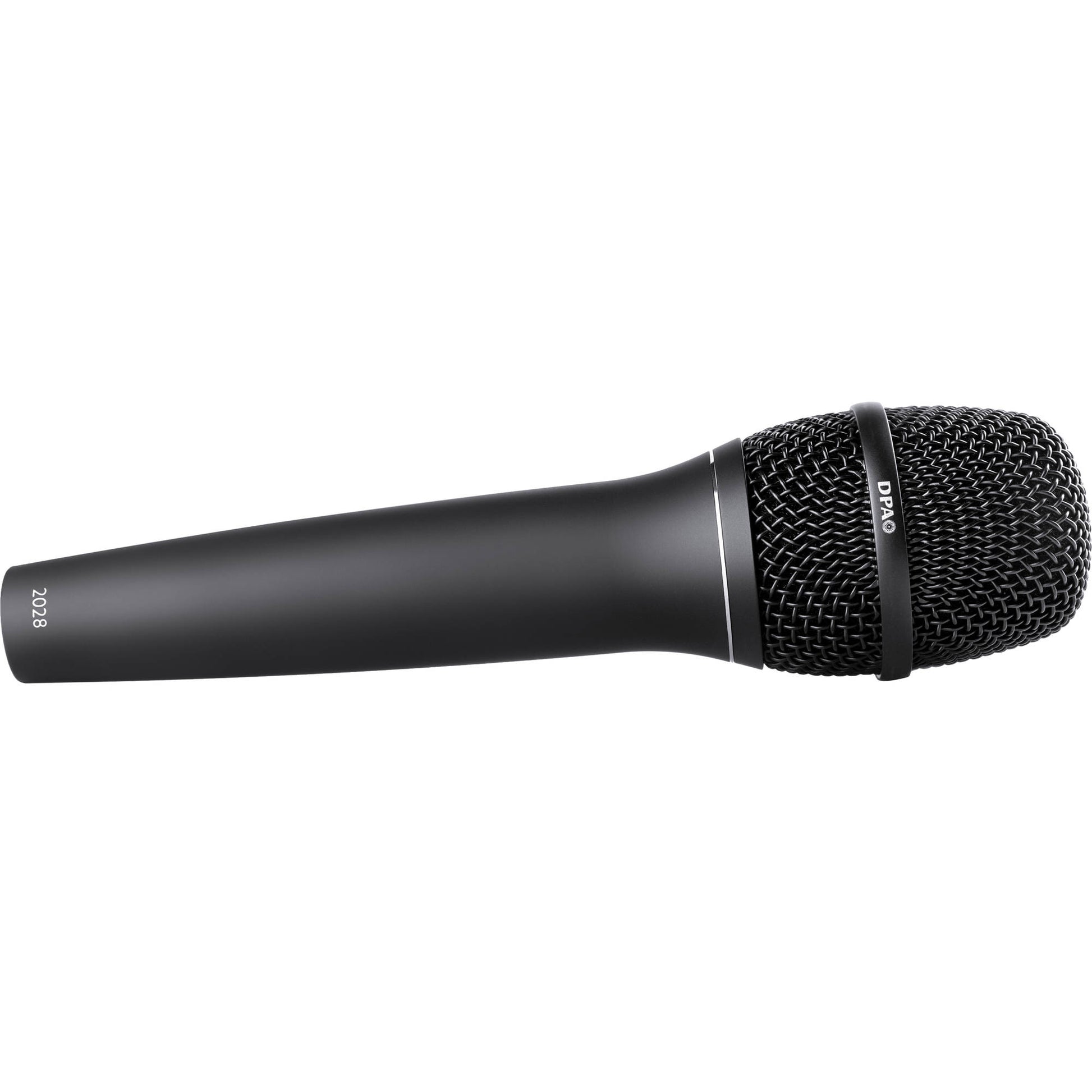

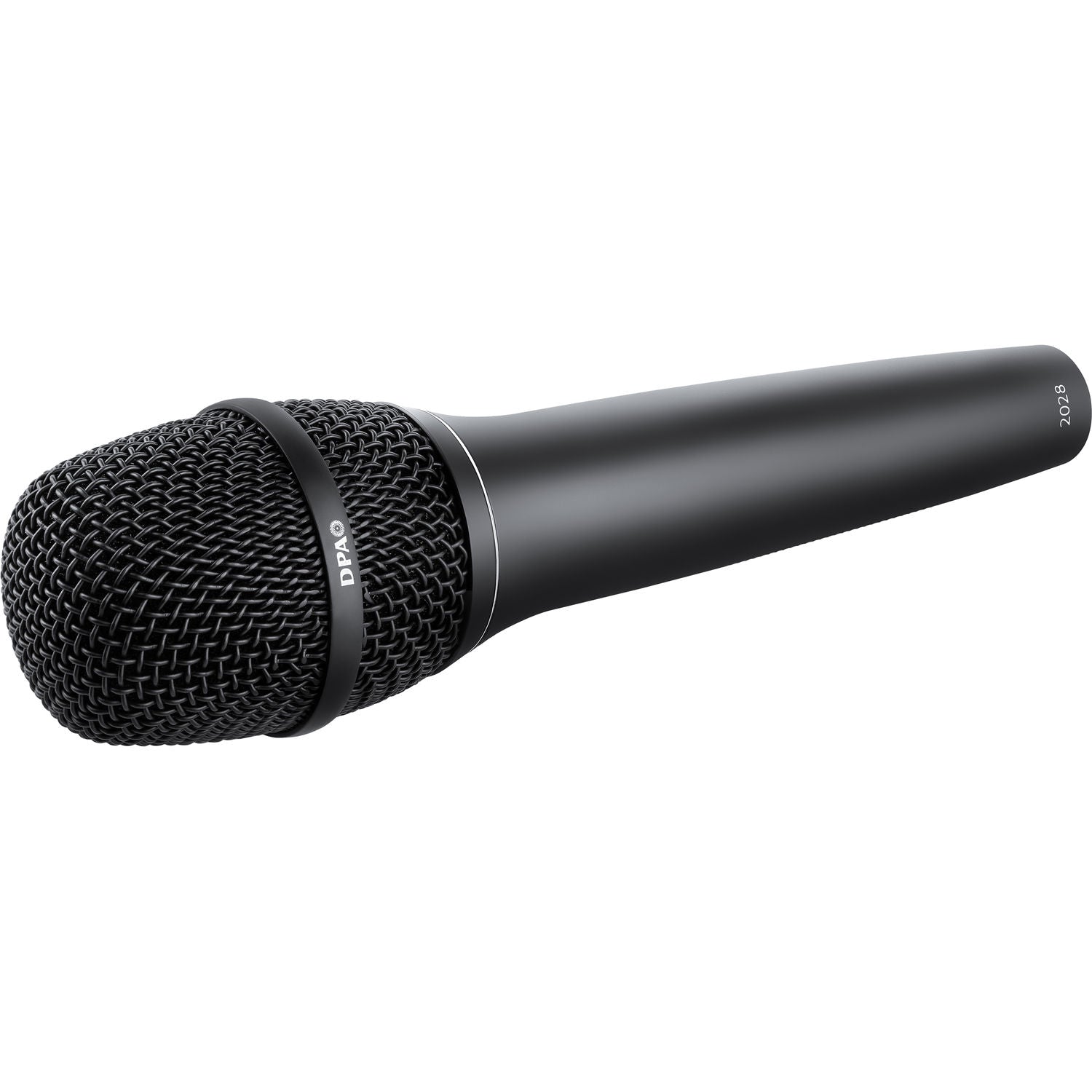

The 2028 Vocal Microphone is designed for the unique challenges of live stage performances. It is a flexible handheld vocal mic, which provides transparent, fantastic vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Just plug it in and hear the vocals shine like never before. This handheld mic has a wired XLR termination.
| Product Name | DPA 2028 Vocal Supercardioid Handheld Microphone - Black |
|---|---|
| Brand | DPA |
| Condition | New |
| MPN | 2028-B-B01 |
| UPC | 5713055019891 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- DPA 2028 Vocal Supercardioid Handheld Microphone - Black
- Microphone Clip
- Renowned DPA sound
- Natural vocals – from folk to metal
- Reduces feedback issues
- Rugged enough for the live stage
- Uniform supercardioid directionality
- Extreme SPL handling
Microphone Specifications |
|
|---|---|
| Directional Pattern | Supercardioid |
| Principle of Operation | Pressure Gradient |
| Cartridge Type | Pre-polarized Condenser |
| Frequency Response | 20 Hz - 20 kHz |
| Effective Frequency Range ±2 dB, at 12 cm (4.7 in) | 100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz |
| Sensitivity, Nominal, ±3 dB at 1 kHz | 5 mV/Pa; -46 dB re. 1 V/Pa |
| Equivalent Noise Level, A-weighted | Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A)) |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic Range | Typ. 117 dB |
| Max. SPL, THD 10% | 160 dB SPL peak |
| Rated Output Impedance | 150 Ω |
| Minimum Load Impedance | 1 |
| Cable Drive Capability | 100 m (328 ft) |
| Output Balance Principle | Impedance Balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR) | > 50 dB at 1 kHz |
| Power Supply (for Full Performance) | P48 (Phantom Power) |
| Current Consumption | Max 2.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Weight | 286 g (10.1 oz) |
| Microphone Diameter | 48 mm (1.9 in) |
| Capsule Diameter | 19 mm (0.75 in) |
| Microphone Length | 188 mm (7.4 in) |
| Maximum Output Voltage, RMS | 9 Vrms; 19 dBV; 28 dBu |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature Range | -40°C to 45°C (-40°F to 113°F) |
| Relative Humidity (RH) | Up to 90% |
| Colors | Matte Black |
DPA 2028 Vocal Supercardioid Handheld Microphone - Black
Details
The 2028 Vocal Microphone is designed for the unique challenges of live stage performances. It is a flexible handheld vocal mic, which provides transparent, fantastic vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Just plug it in and hear the vocals shine like never before. This handheld mic has a wired XLR termination.
| Product Name | DPA 2028 Vocal Supercardioid Handheld Microphone - Black |
|---|---|
| Brand | DPA |
| Condition | New |
| MPN | 2028-B-B01 |
| UPC | 5713055019891 |
What's in the Box?
- DPA 2028 Vocal Supercardioid Handheld Microphone - Black
- Microphone Clip
Features
- Renowned DPA sound
- Natural vocals – from folk to metal
- Reduces feedback issues
- Rugged enough for the live stage
- Uniform supercardioid directionality
- Extreme SPL handling
Tech Specs
Microphone Specifications |
|
|---|---|
| Directional Pattern | Supercardioid |
| Principle of Operation | Pressure Gradient |
| Cartridge Type | Pre-polarized Condenser |
| Frequency Response | 20 Hz - 20 kHz |
| Effective Frequency Range ±2 dB, at 12 cm (4.7 in) | 100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz |
| Sensitivity, Nominal, ±3 dB at 1 kHz | 5 mV/Pa; -46 dB re. 1 V/Pa |
| Equivalent Noise Level, A-weighted | Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A)) |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic Range | Typ. 117 dB |
| Max. SPL, THD 10% | 160 dB SPL peak |
| Rated Output Impedance | 150 Ω |
| Minimum Load Impedance | 1 |
| Cable Drive Capability | 100 m (328 ft) |
| Output Balance Principle | Impedance Balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR) | > 50 dB at 1 kHz |
| Power Supply (for Full Performance) | P48 (Phantom Power) |
| Current Consumption | Max 2.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Weight | 286 g (10.1 oz) |
| Microphone Diameter | 48 mm (1.9 in) |
| Capsule Diameter | 19 mm (0.75 in) |
| Microphone Length | 188 mm (7.4 in) |
| Maximum Output Voltage, RMS | 9 Vrms; 19 dBV; 28 dBu |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature Range | -40°C to 45°C (-40°F to 113°F) |
| Relative Humidity (RH) | Up to 90% |
| Colors | Matte Black |
