The d:fine™ Series of headsets has the leading position when it comes to head worn microphones. Combining pristine audio quality with unique and simple mechanical solutions alongside an extensive accessory line.

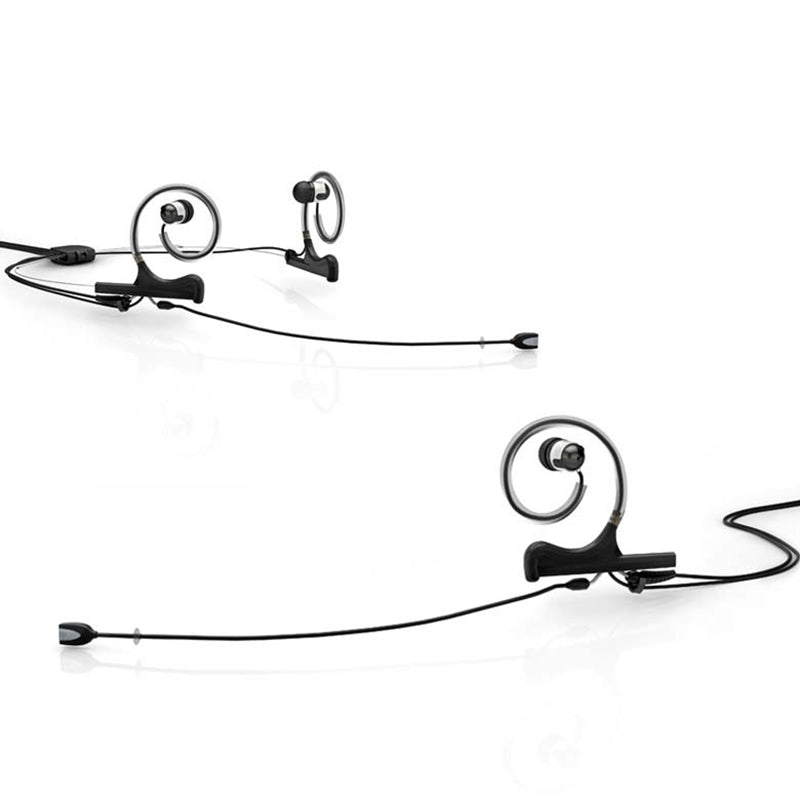

The d:fine™ Slim Directional Headset Microphone rejects side and background noise while creating higher separation from nearby sound sources. This improves the gain-to-feedback ratio and gives more channel control. Yet natural voice intelligibility is preserved. The mic also has very high SPL capabilities. You can both speak and sing into the mic with no hint of distortion.
Windscreens, a capsule protection cap, a cable clip (to anchor the cable to your clothing) and a color-coded cable clip (offering easy recognition of a specific headset among many) are included.
Legacy or CORE – the choice is yours
The legacy d:fine™ Slim Directional has always been, and still is, one of the most clear, consistent and robust miniature microphones you can find on the market. It is known for working across a wide dynamic range as well as exhibiting low distortion across all SPLs. But, if you need to squeeze a little more performance out of your mics, choose CORE. The d:fine™ CORE 4188 Slim Directional Flex Headset Microphone gets a14 dB increase in both THD and Dynamic range:
Total harmonic distortion: < 1% THD up to 137 dB SPL peak
Dynamic range: Typ. 111 dB
CORE availability
The d:fine™ CORE 4188 Slim Directional Flex Headset Microphone is available from April 2018 with:
- 120 mm boom in beige, black and brown with either MicroDot, 3-pin LEMO, TA4F Mini-XLR or Mini-Jack termination.
- 100 mm boom in beige, black and brown with MicroDot termination.
Flexible Adapter System
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine™, d:screet™ and d:vote™ series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
| Product Name | DPA d:fine™ Slim Capsule, Headset Mic., Dual Ear, 100mm Boom Interchangeable (Beige) |
|---|---|
| Brand | DPA |
| Condition | New |
| MPN | FIDFA10-M2 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Pristine audio quality
- Easy single-ear or dual-ear mounting
- Minimal visual impact
- Modular adapter system fits most professional wireless systems
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency range: 20 Hz - 20 kHz
- Frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in): 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz
- Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
- Total harmonic distortion (THD): < 1% up to 123 dB SPL peak, < 1% up to 120 dB SPL RMS sine
- Dynamic range: Typ. 95 dB
- Max. SPL, peak before clipping: 144 dB
- Output impedance: From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
- Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
- Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- Connector: MicroDot
- Color: Black or beige
- Weight: Microphone boom: 0.8 g (0.03 oz). Earhook: 1.1 g (0.04 oz). Cabel: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz)
- Microphone diameter: 5.4 mm (0.21 in)
- Cable length: 1.3 m (4.3 ft)
- Cable color: Black or beige
- Cable diameter: 1.6 mm (0.06 in)
- Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
- Electromagnetic compatibility (EMC): Fully compatible
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
